CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Super Flower MegaCool 120mm (Forward & Reverse Rotation Fan) Low
序号
Lab IDSF12000141
  • Report: 24FN141A
  • Receipt Date: Oct 10, 2024
  • Test Date: Oct 18, 2024
  • Report Date: Oct 18, 2024
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Lab Director

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
模式l Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

测试 Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

品牌名称Super Flower
型号MegaCool 120mm (Forward & Reverse Rotation Fan) Low
Max Speed (RPM)1782
Max Airflow (CFM)80.39
Max Static Pressure (mmAq)2.78
Max 风扇噪音 Level37.50
Fan Bearing TypeTwo Ball
Fan ConnectorPWM
Fan Max Current (A)0.22
Fan Weight (gr)248
Dimensions (W x H x D)120x120x30
Fan daisy-chain connectorv
Cable length (mm)130

Pressure and Airflow

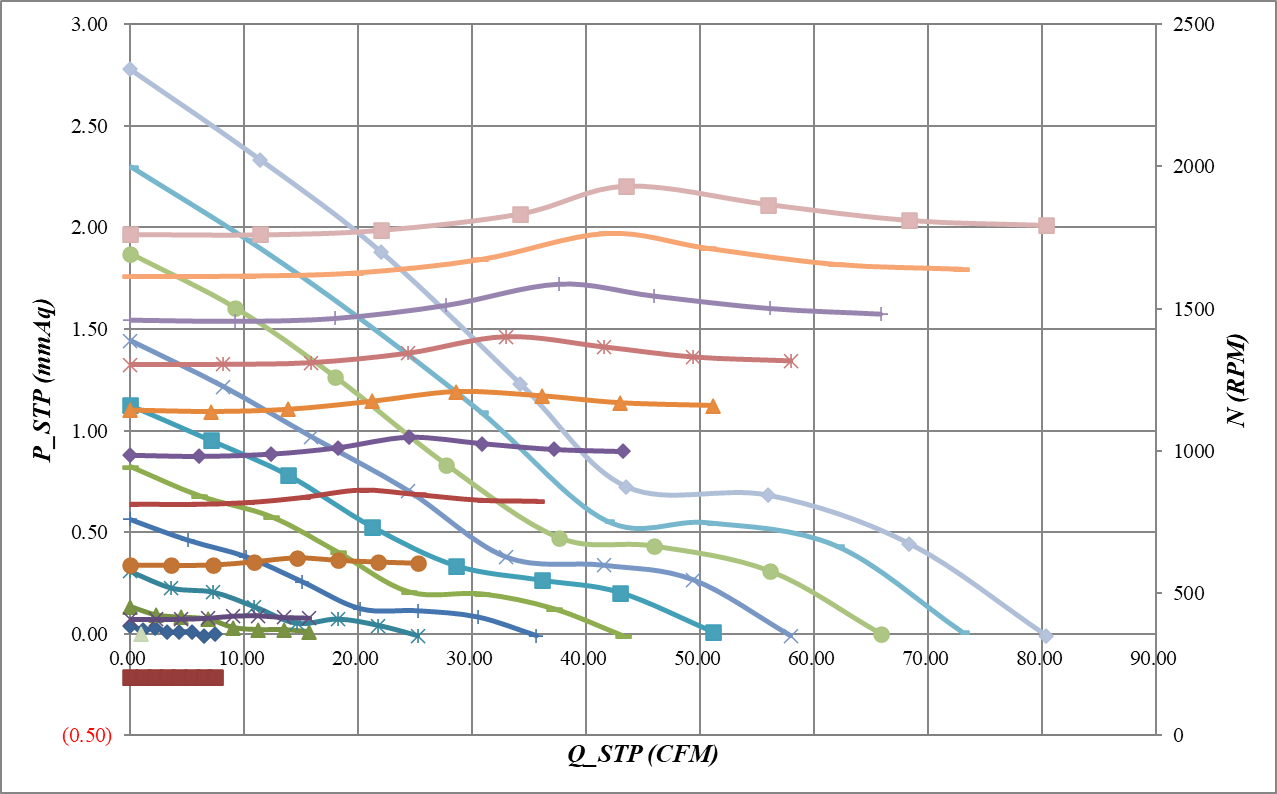

PQ Chart All Speed

PQ Chart 10% Speed

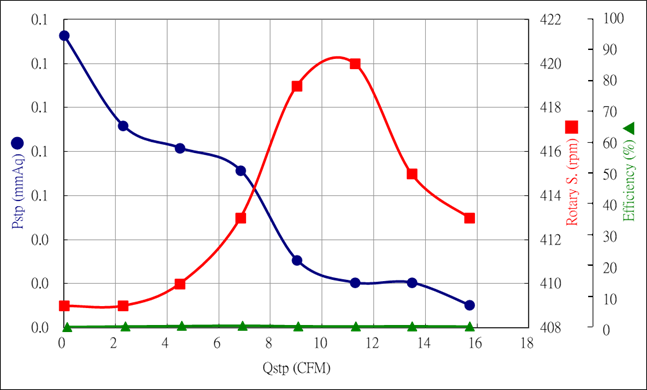

PQ Chart 20% Speed

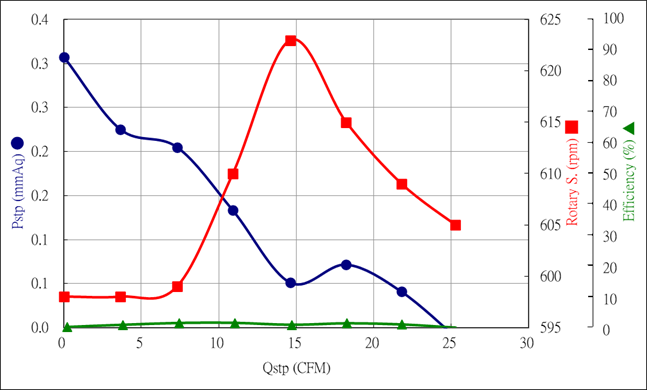

PQ Chart 30% Speed

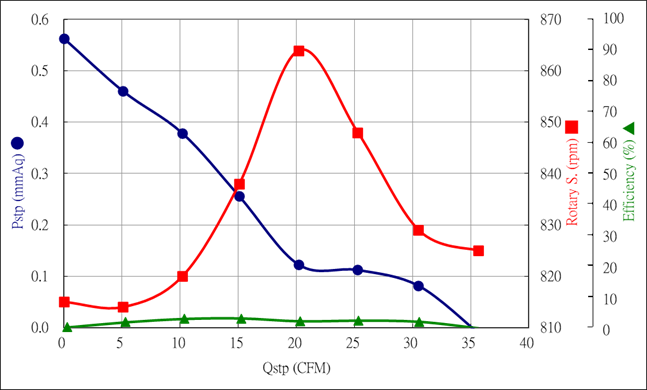

PQ Chart 40% Speed

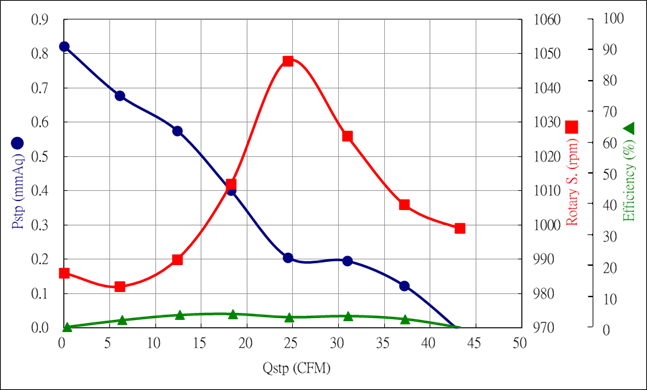

PQ Chart 50% Speed

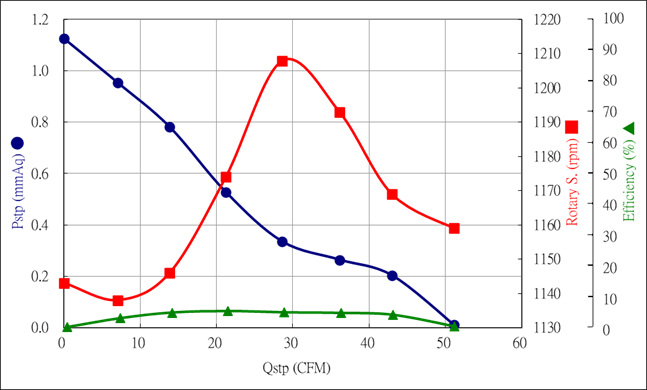

PQ Chart 60% Speed

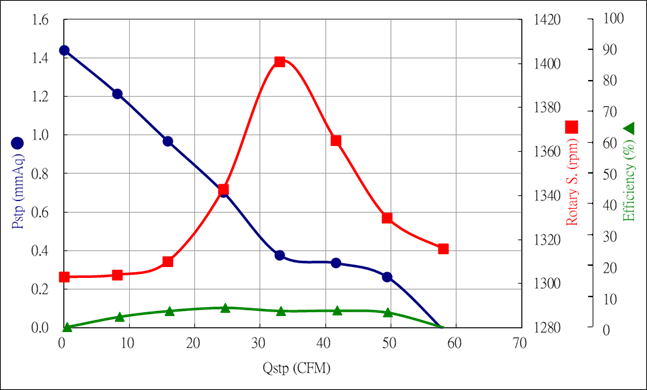

PQ Chart 70% Speed

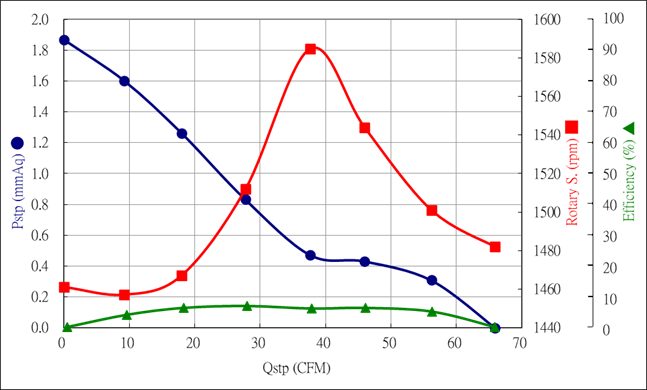

PQ Chart 80% Speed

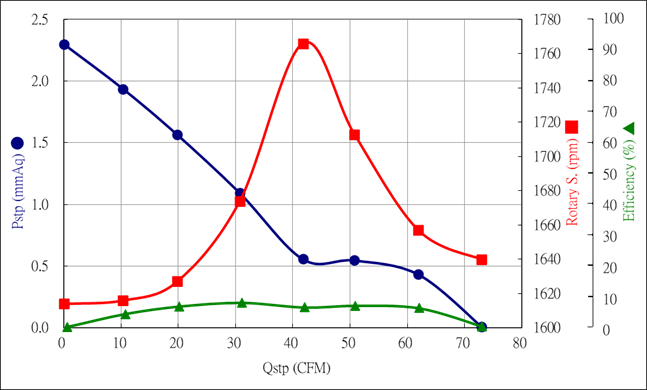

PQ Chart 90% Speed

PQ Chart 100% Speed

General Performance

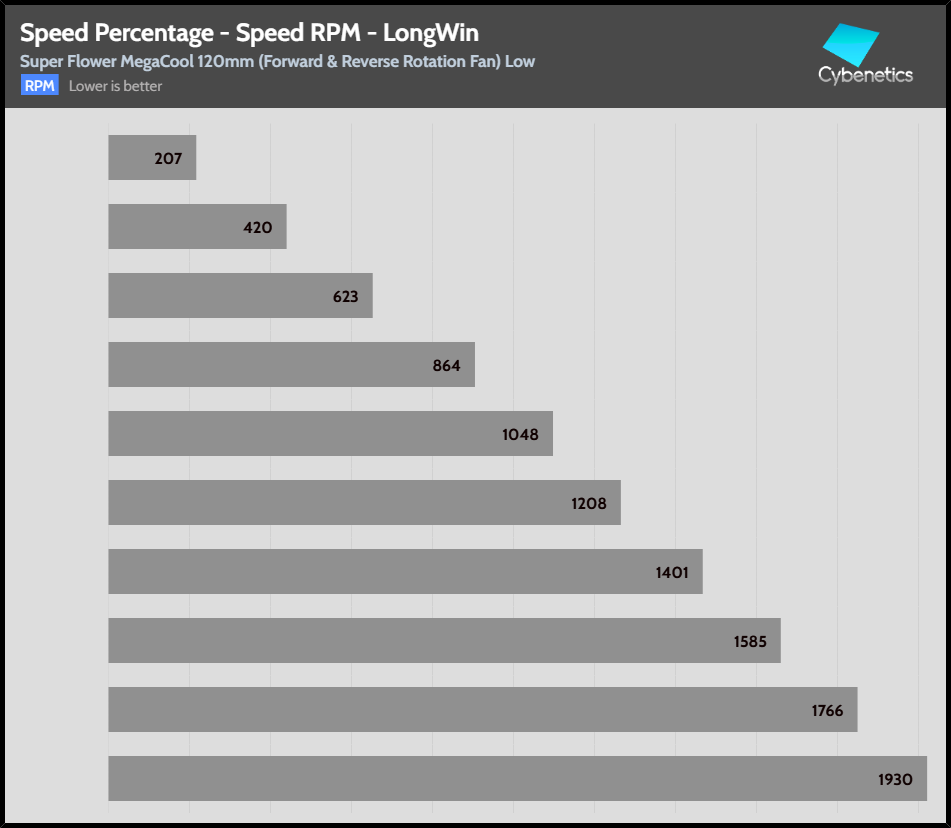

Fan Percentage RPM LongWin

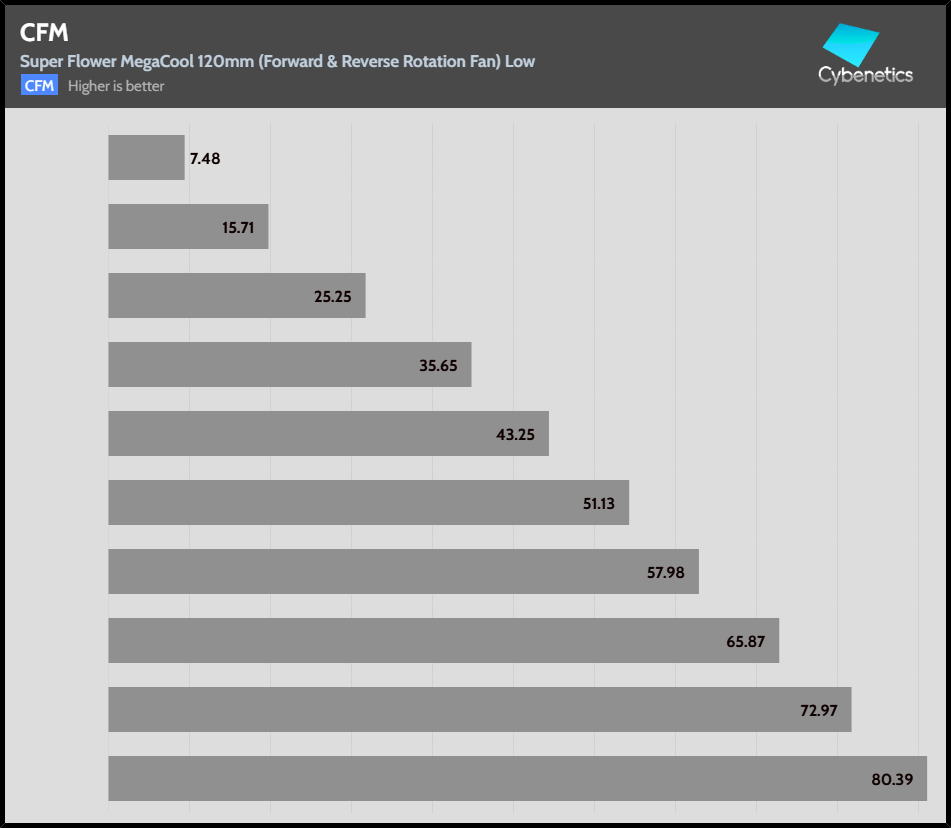

Fan Percentage CFM

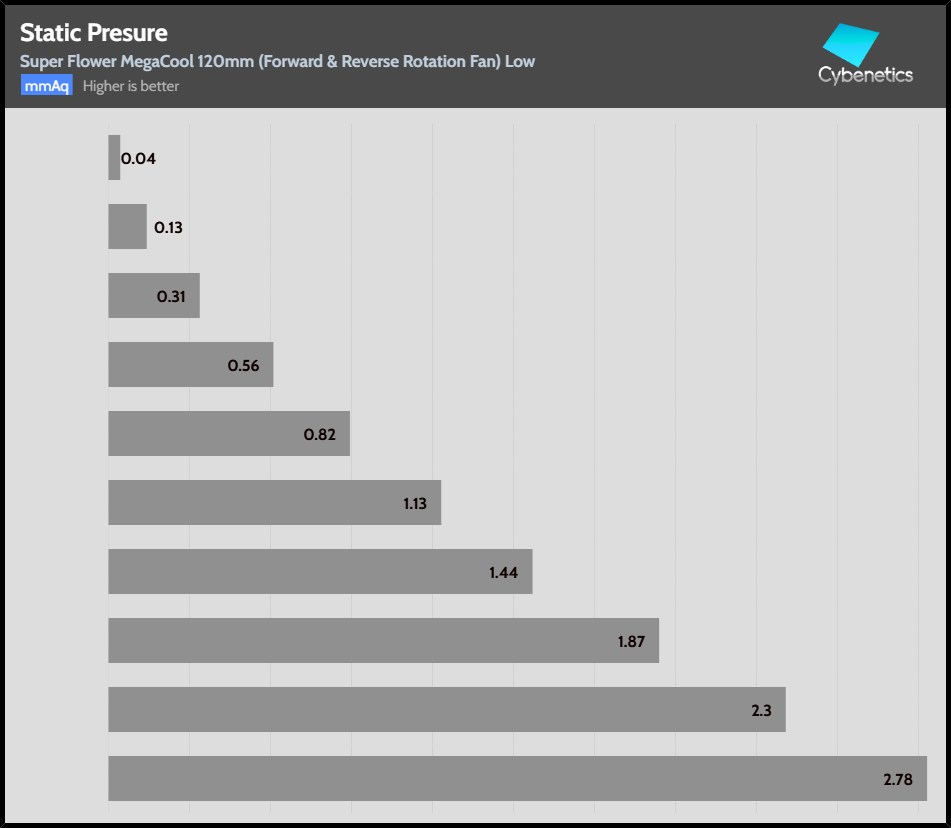

Fan Percentage Pressure

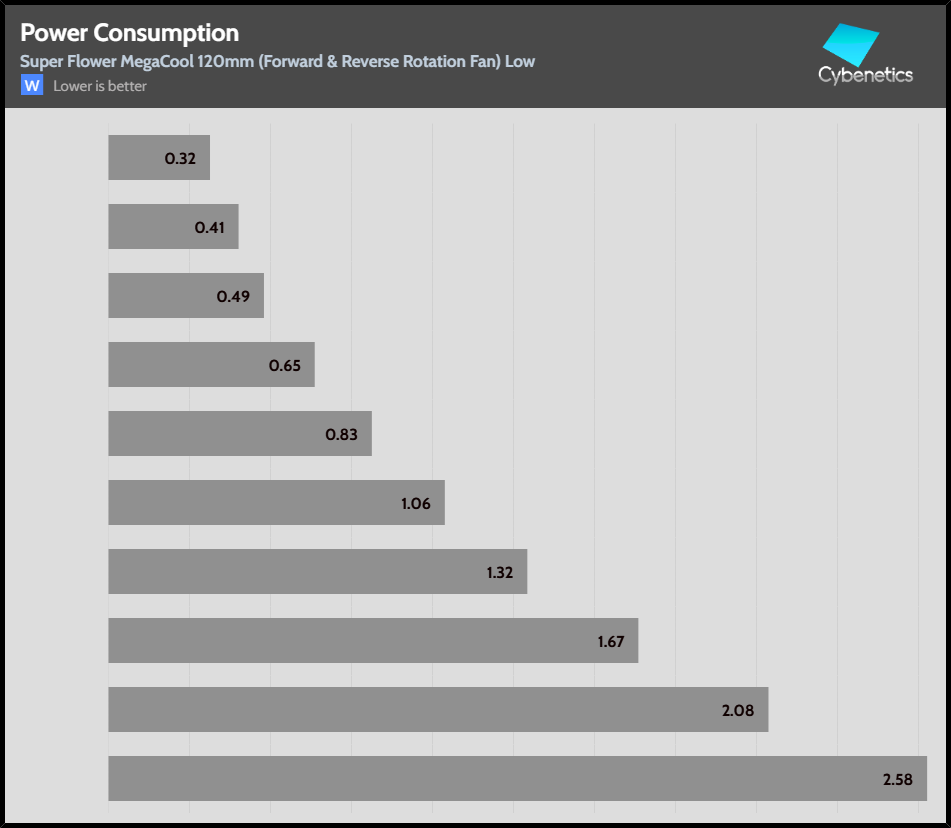

Fan Percentage Power

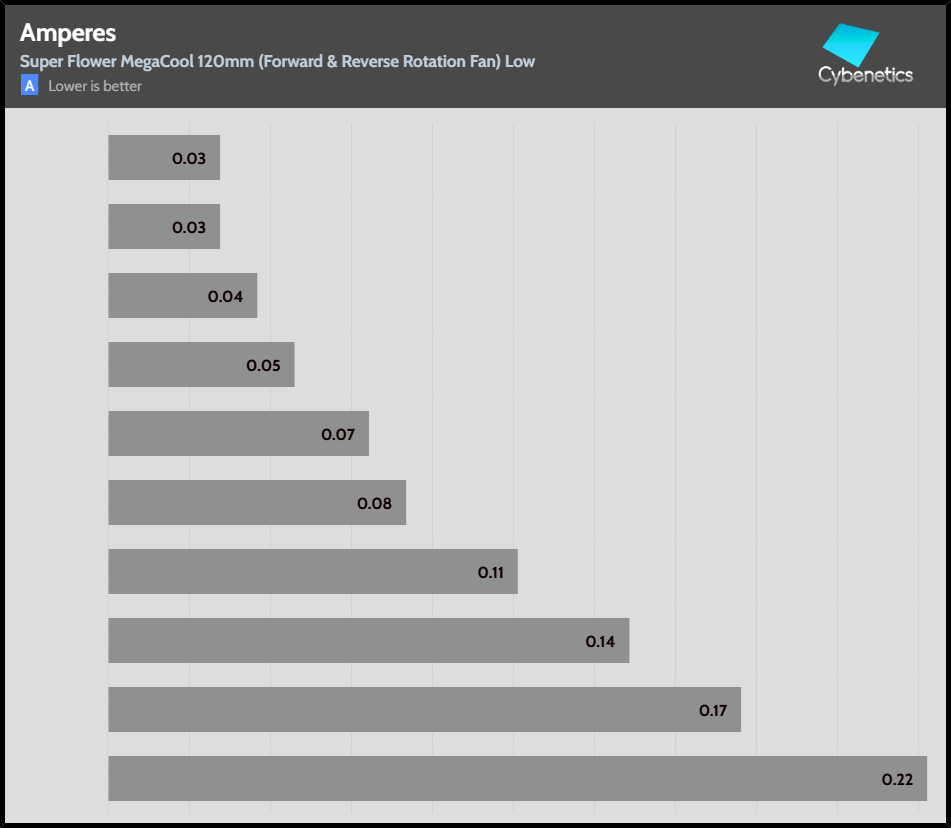

Fan Percentage Amps

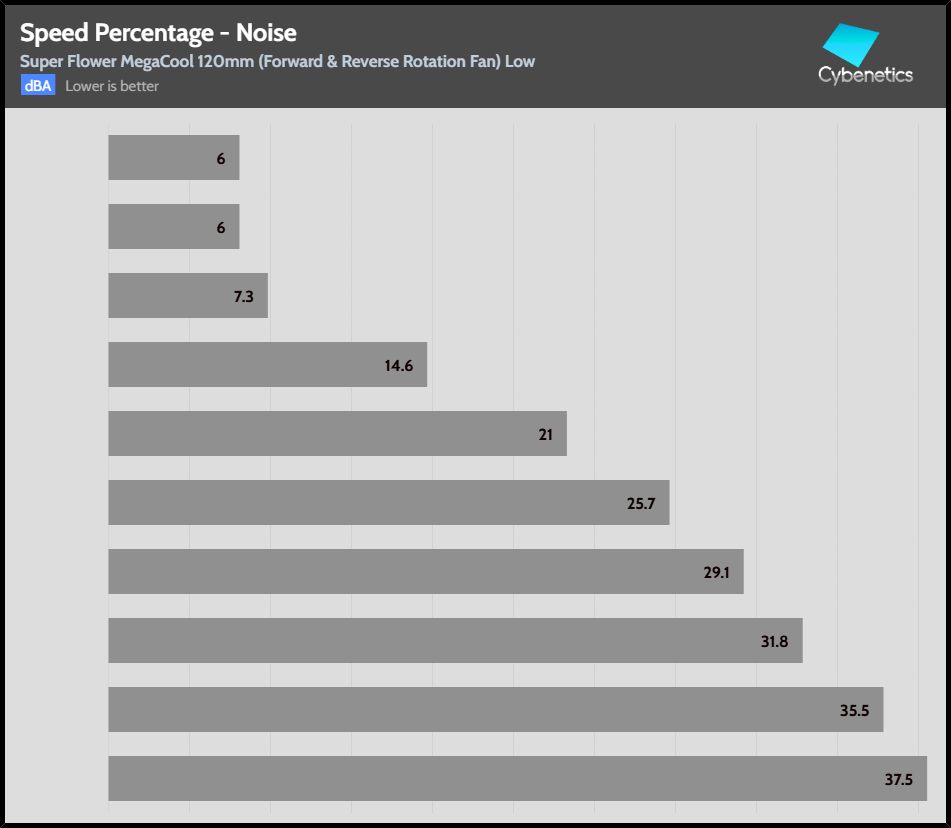

Fan Percentage Noise

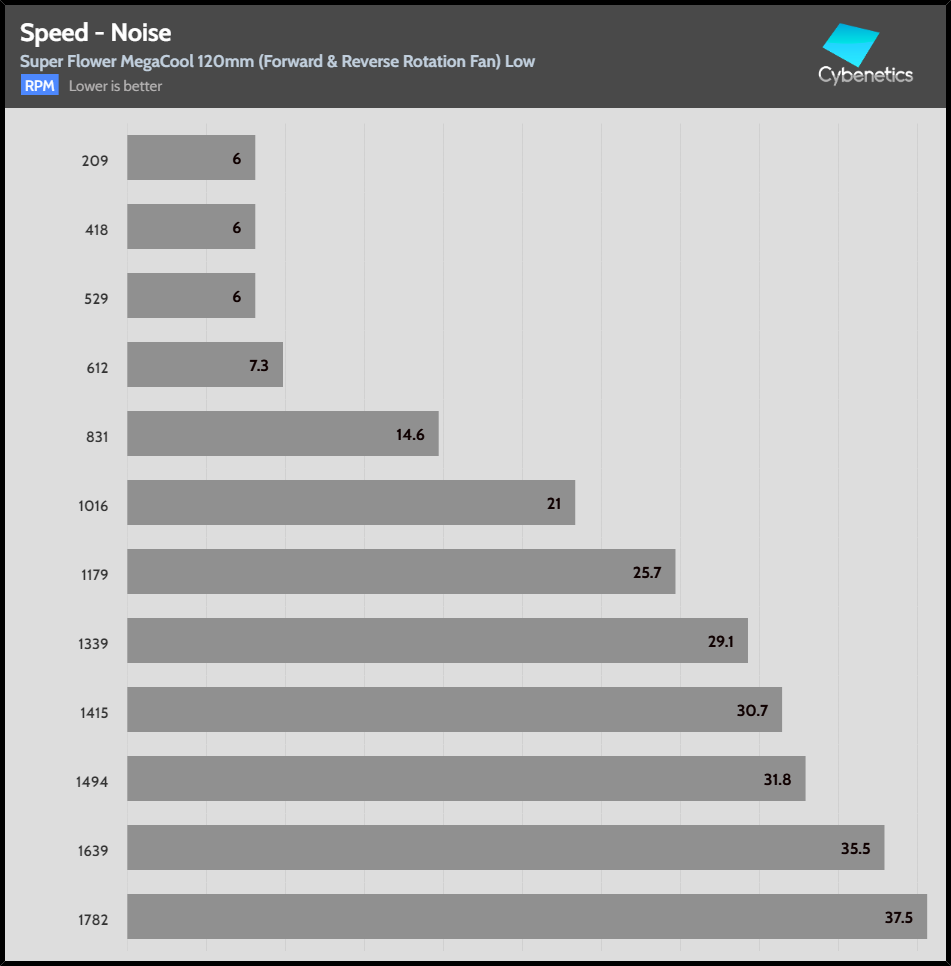

Fan Noise Speed

Super Flower MegaCool 120mm (Forward & Reverse Rotation Fan) Low

本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
