SilverStone CS380
1
Lab IDSLCAS00062
  • Date: 2019-12-24
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

Brand Silverstone
Product Name CS380
Type Midi Tower
Dimensions (LxWxH) 496 x 216 x 424mm
Motherboard Support Mini-ITX, Micro-ATX, ATX
Removable Motherboard Tray No
Front Door/Cover Yes
Materials Body Steel, Plastic
Materials Side Panel Left: Steel
Right: Steel
Expansion Slots 7x
Drive Bays 5.25": 2x External
3.5 " : 8x Internal hot-swap (2.5" compatible)
I/O Panel 2x USB 3.0, 1x audio jack, 1x mic jack
Pre-installed Fan(s) Side: 2x 120mm (1200 RPM max)
Rear: 1x 120mm (1200 RPM max)
Fan Support Side: 2x 120mm
Rear: 1x 120mm
Fan Bearing Type Sleeve
Fan Power Connector 3-Pin
Fan/LED Controller No
Radiator Support Rear: 120mm
CPU Cooler Height (Max) 163mm
VGA Length (Max) 270mm
PSU Length (Max) 220mm
Behind MB Tray Clearance/Cable Management Support 5-30mm
Dust Filters Side, Bottom
PSU Support Bottom, ATX
Weight 6.6 kg
Warranty Limited 1-year warranty for North America and Australia

Graphs

Stock Fan(s) RPM

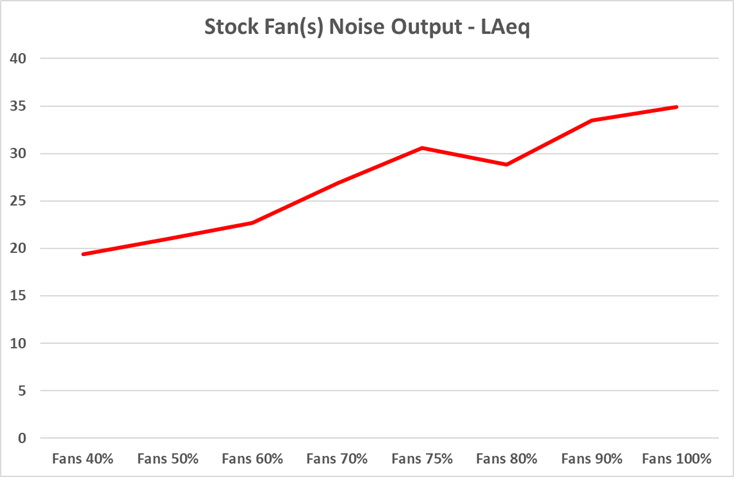

Stock Fan(s) Noise Output – LAeq

Stock Fan Noise Output from 40% to 100%

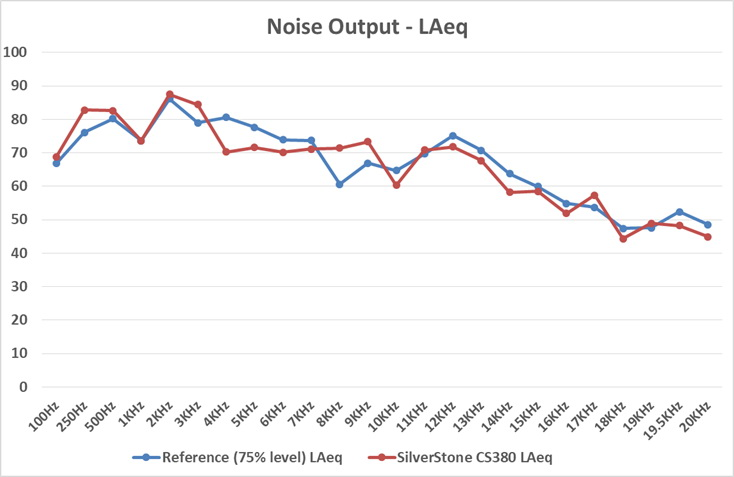

Noise Output LAeq – Test Tones

Noise Output in DB(A) from 100 Hz to 20 kHz

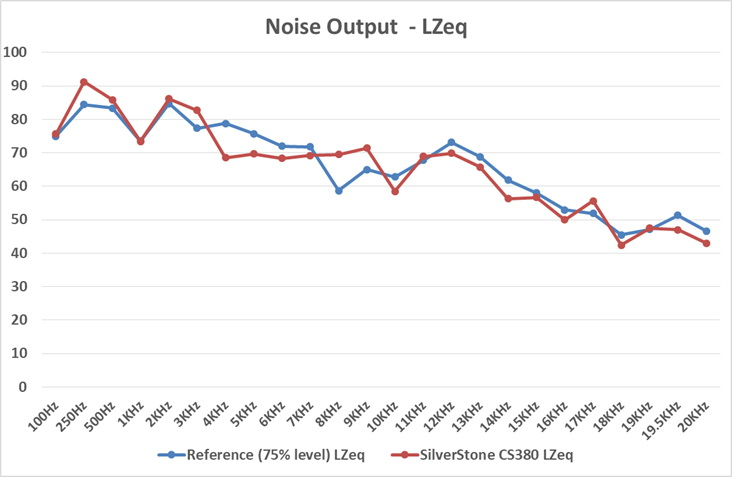

Noise Output LZeq – Test Tones

Noise Output in DB(Z) from 100 Hz to 20 kHz

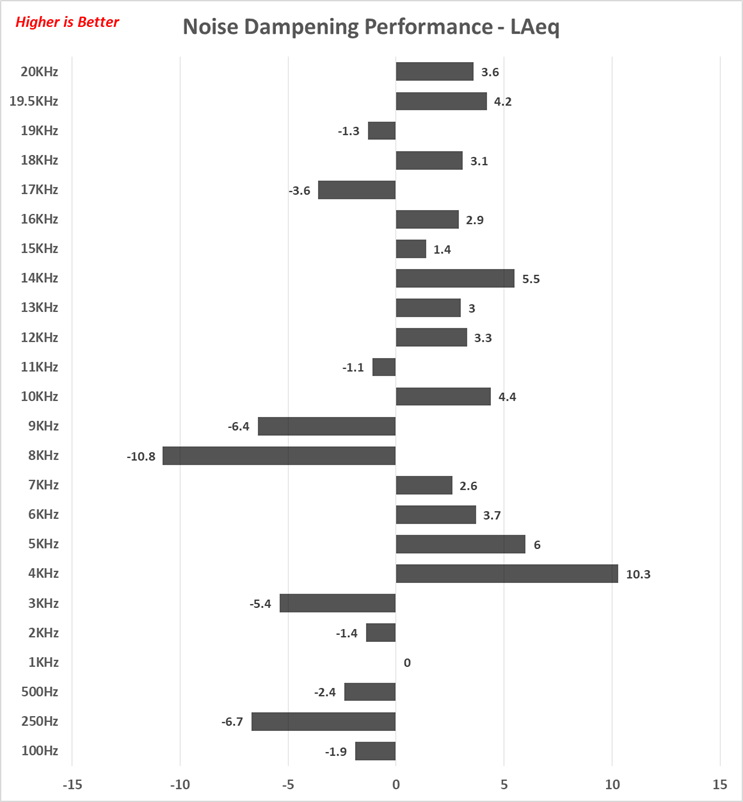

Noise Dampening Performance LAeq – Test Tones

Noise Dampening Performance in dB(A) from 100 Hz to 20 kHz

Noise Dampening Performance LZeq – Test Tones

Noise Dampening Performance in dB(Z) from 100 Hz to 20 kHz

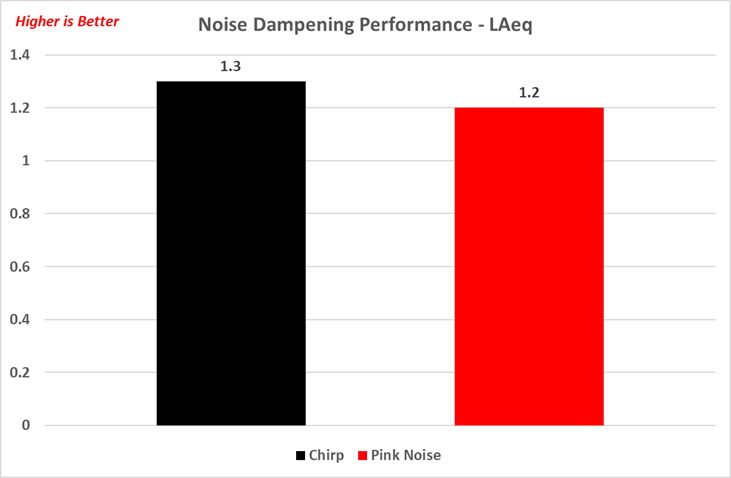

Noise Dampening Performance LAeq – Pink & Chirp

Chirp & Pink Noise Noise Dampening Performance (dB[A])

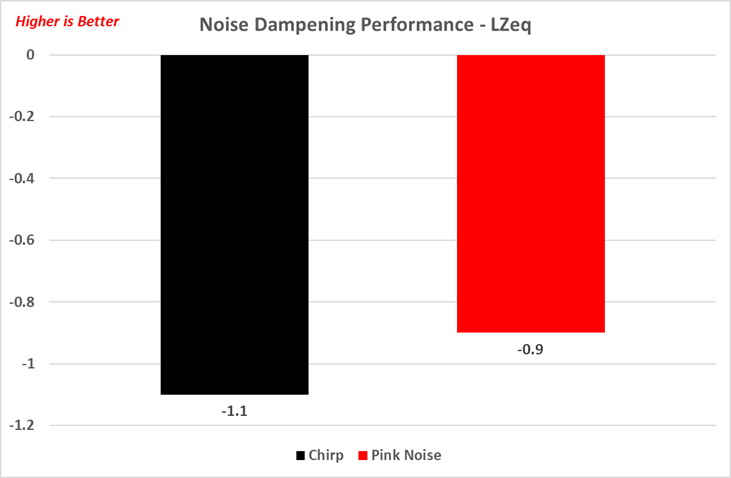

Noise Dampening Performance LZeq – Pink & Chirp

Chirp & Pink Noise Noise Dampening Performance (dB[Z])

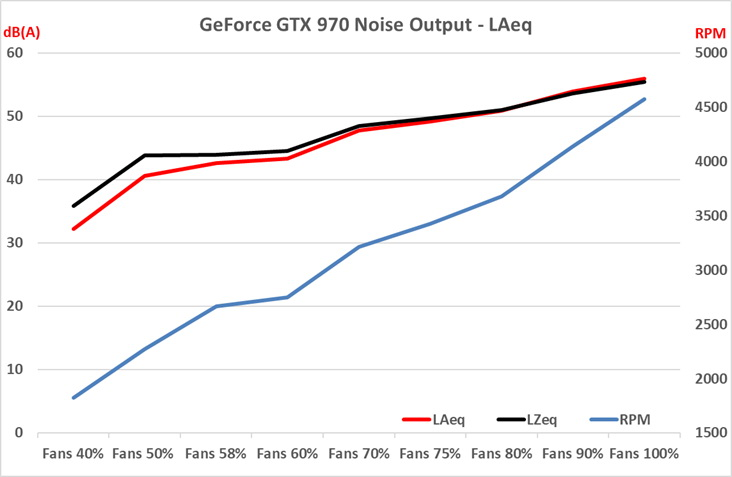

GPU Fan(s) Noise Output – LAeq

NVIDIA GeForce GTX 970 Noise Output from 40% to 100% Fan Speed

SilverStone CS380

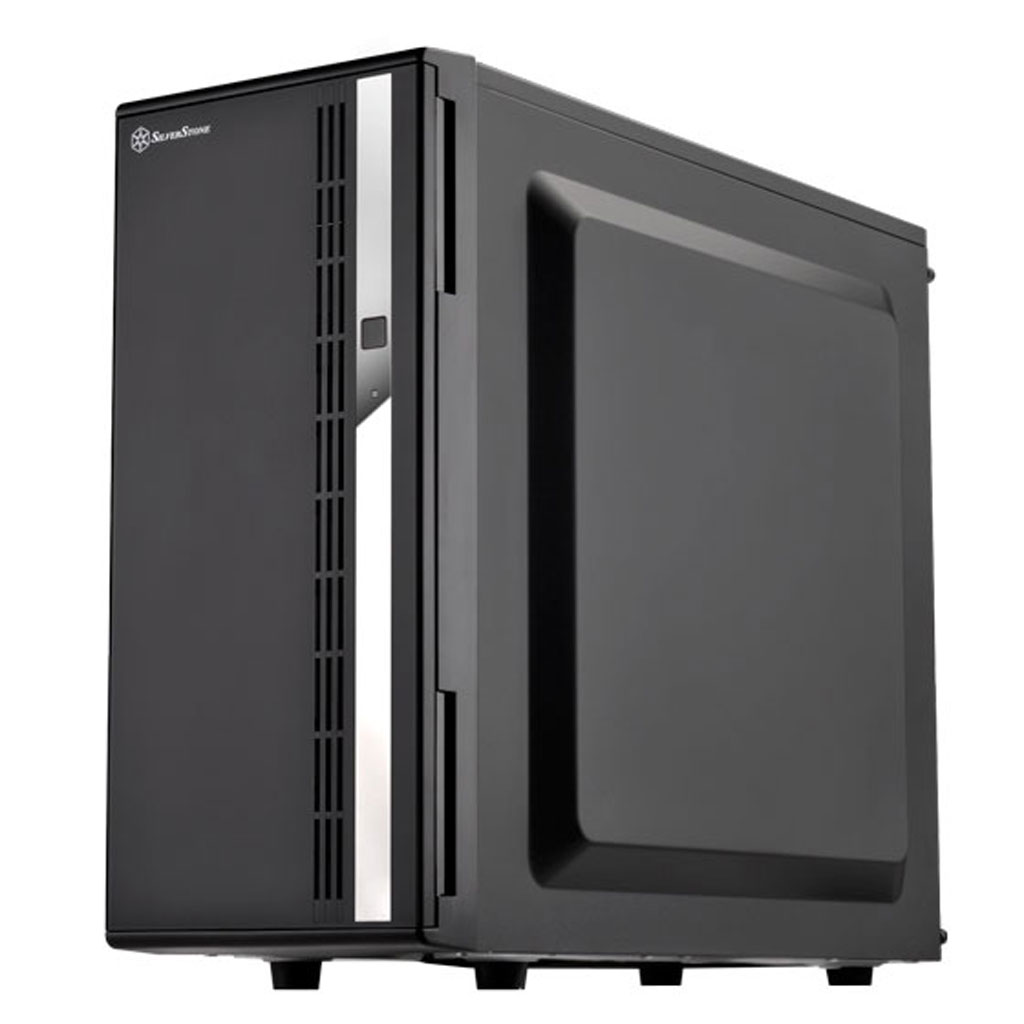

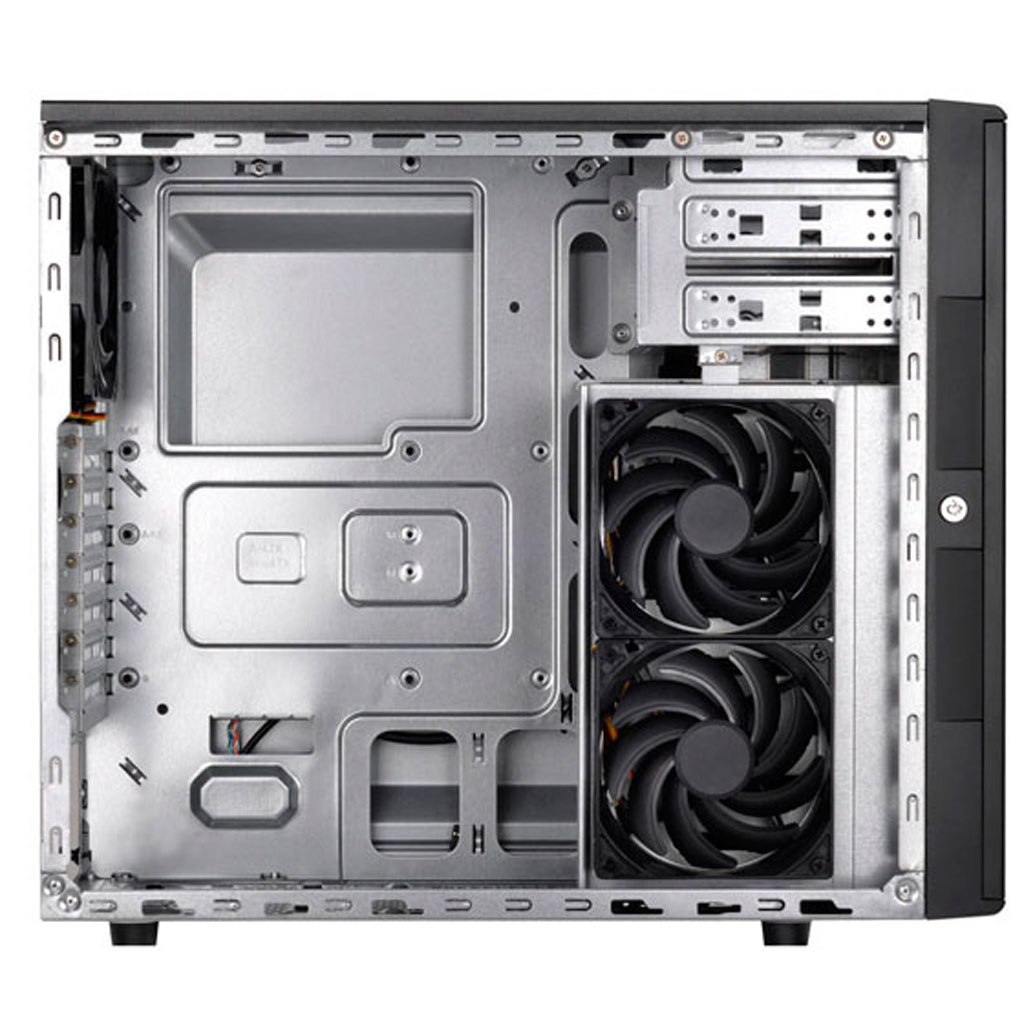

Case Photo
Case Photo #2
