Cybenetics Test - Fractal Design Define 7 XL (with plain top panel)

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

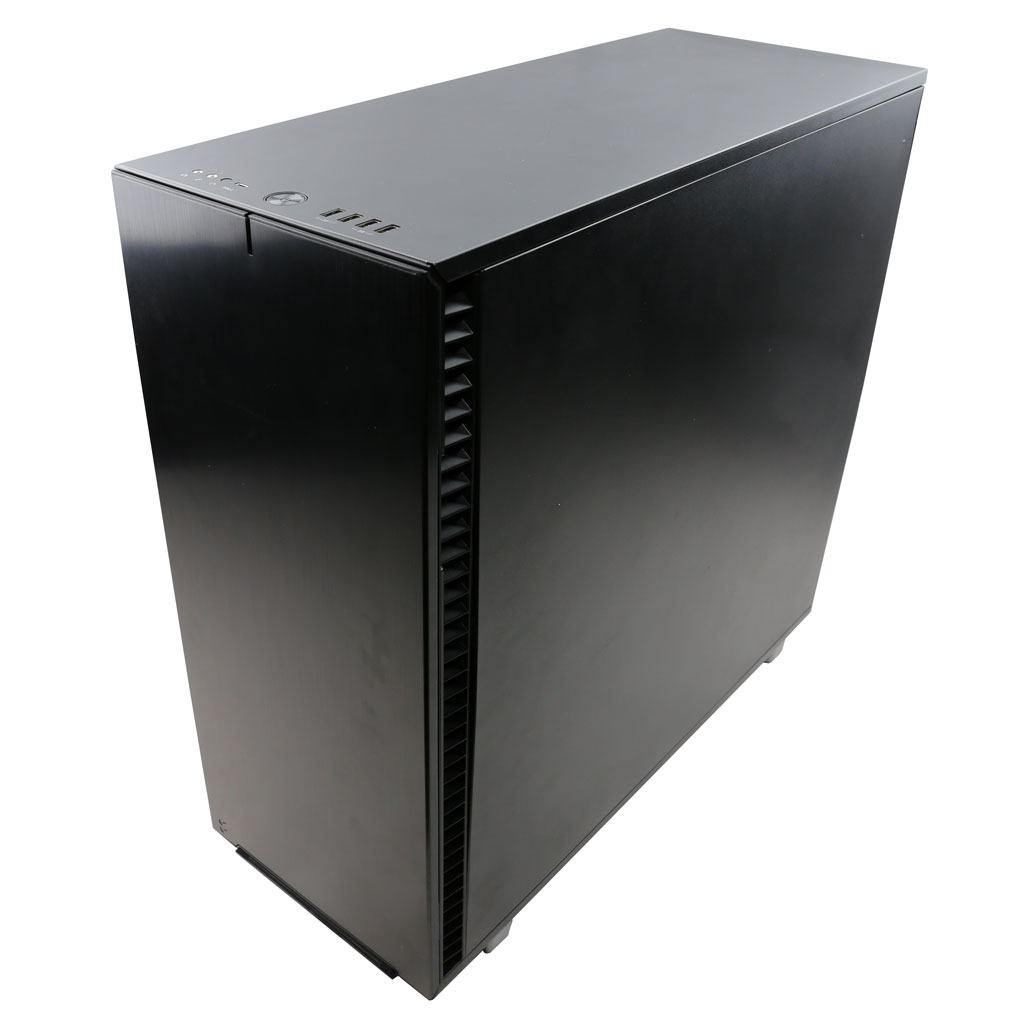

Fractal Design Define 7 XL (with plain top panel)

Lab IDFDCAS00057

噪音等级

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Fractal Design
Product Name	Define 7 XL
Type	Full Tower
Dimensions (LxWxH)	590 x 240 x 560mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX, XL-ATX
Removable Motherboard Tray	否
Front Door/Cover	是
Materials Body	Steel, Plastic, Tempered Glass, Sound Dampening Material
Materials Side Panel	Left: Tempered Glass Right: Sound-Dampened Steel
Expansion Slots	9x (plus three vertical)
Drive Bays	5.25": 2x External 3.5" : 6x Internal (compatible with 2.5") 2.5" : 4x Internal
I/O Panel	1x audio jack, 1x mic jack, Reset Button, 1x USB 3.1 Gen 2 Type-C, Power Button, 2x USB 2.0, 2x USB 3.0 (up to here)

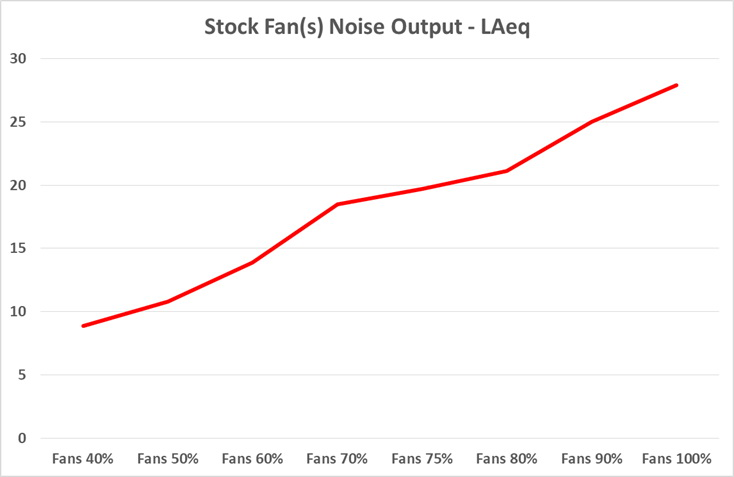

Pre-installed Fan(s)	Front: 2x 140mm (1000 RPM) Rear: 1x 140mm (1000 RPM) Top: *
Fan Support	Front: 4x 120mm / 3x 140mm Top: 4x 120mm / 3x 140mm Rear: 1x 120mm / 1x 140mm
Fan Bearing Type	Enhanced Sleeve Bearing
Fan Power Connector	3-Pin
Fan/LED Controller	Fan Controller (six 3-pin & thee PWM)
Radiator Support	Front: 120 / 240 / 360mm, 140 / 280 / 420mm / 480mm Top: 120 / 240 / 360 / 480mm, 140 / 280 / 420mm Rear: 120mm, 140mm
CPU Cooler Height (Max)	190mm
VGA Length (Max)	500mm
PSU Length (Max)	250mm
Behind MB Tray Clearance/Cable Management Support	24-35mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom ATX
Weight	15.4 kg (14.9 kg with plain top panel)
Warranty	否 info
