No. of Accred.: L152
TESTING
Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
MWE Gold 750 V4
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 88.796% | 91.296% |

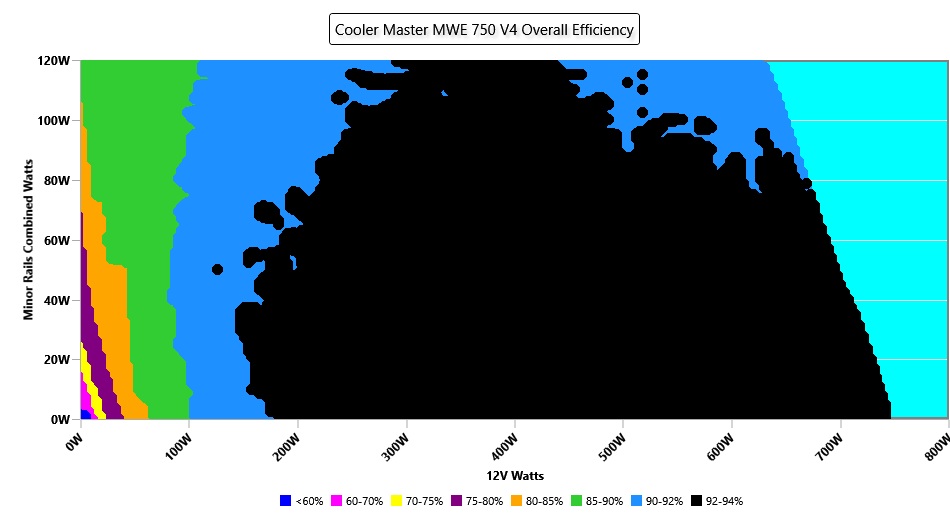

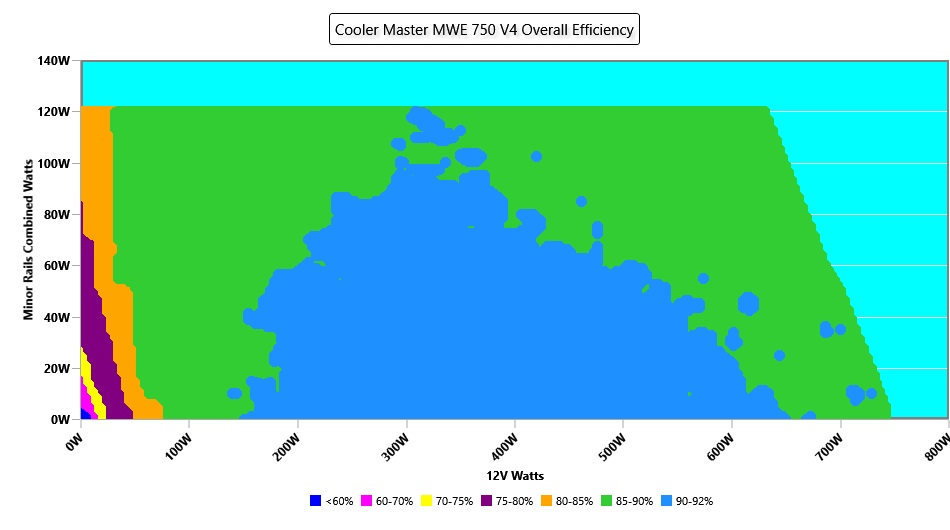

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.987 | 0.936 |
| 12V Step | 7.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0595W | 0.1502W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 80.062% | 79.105% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

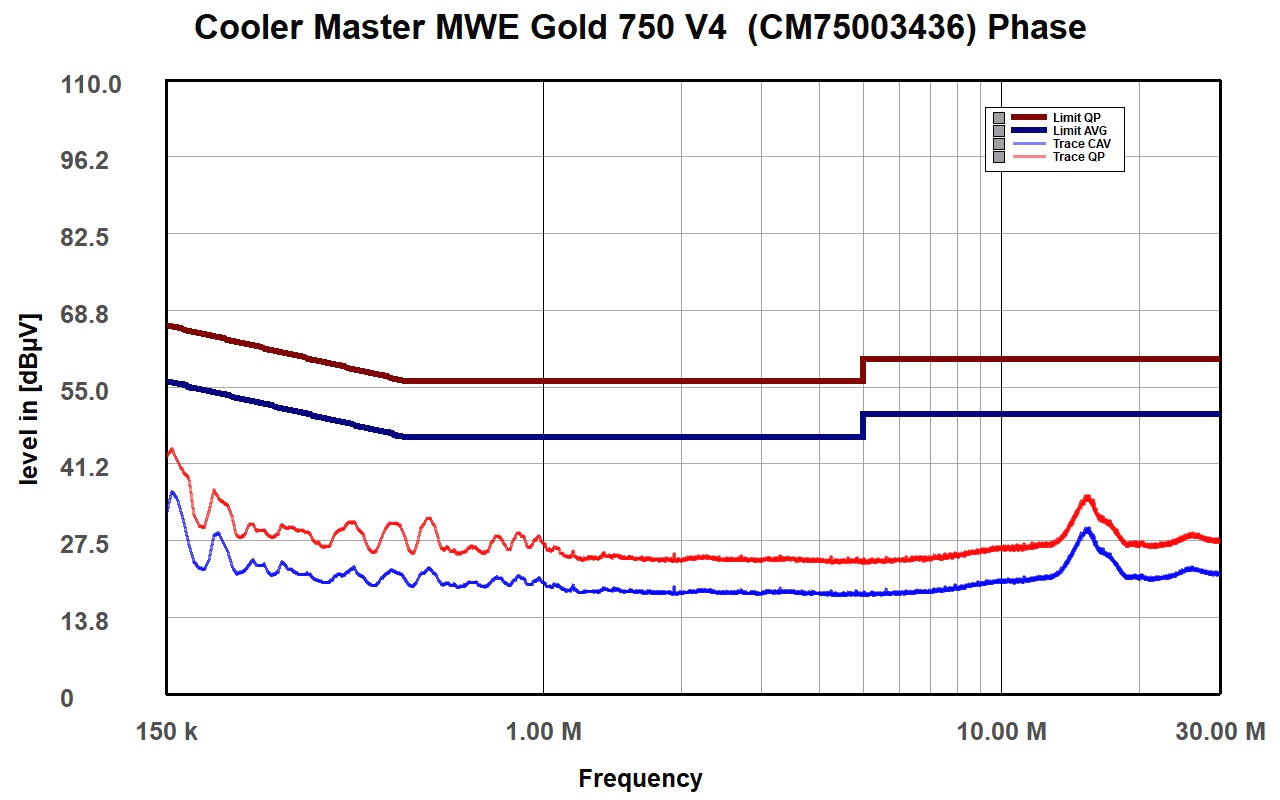

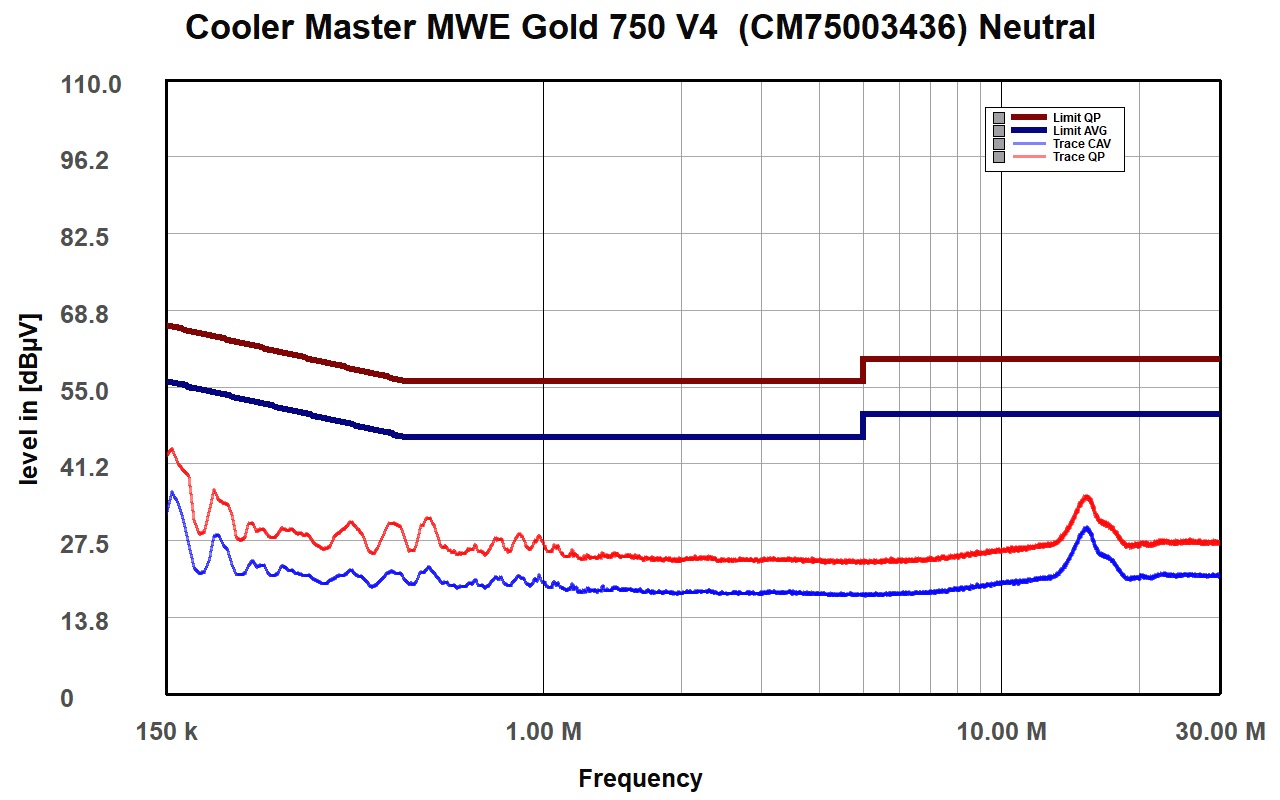

Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 25.96dBA | 25.96dBA |

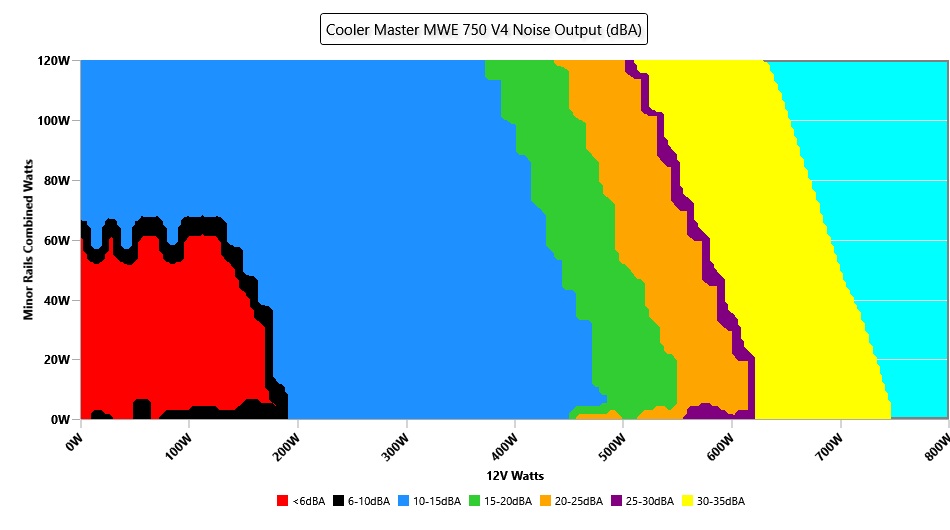

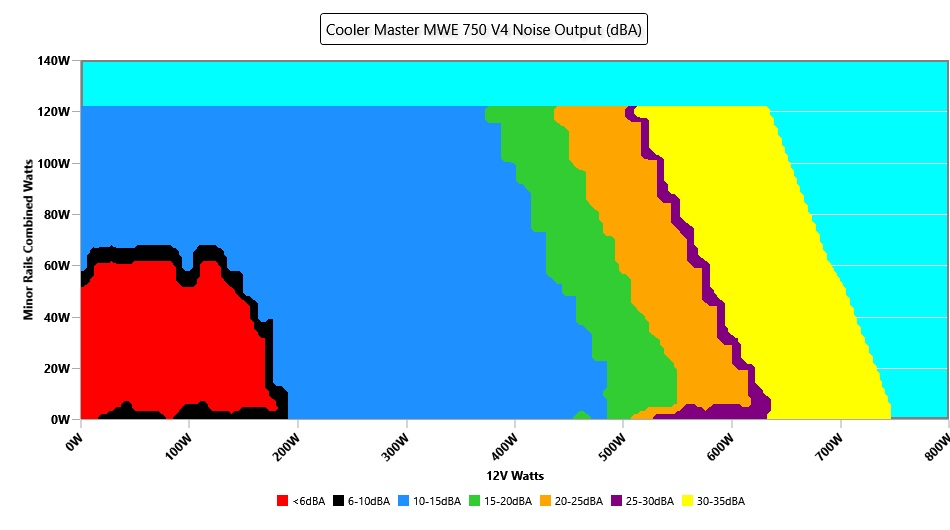

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 64.830% |
| Hold Up Time | 23.20ms |
| Power OK | 19.00ms |
| Power OK to DC Loss | 4.20ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.987 | 4.957 | 3.285 | 5.049 |
| 10ms | 11.748 | 4.952 | 3.263 | 4.995 |
| 1ms | 11.650 | 4.953 | 3.256 | 4.967 |
| 0.1ms | 11.482 | 4.947 | 3.245 | 4.931 |

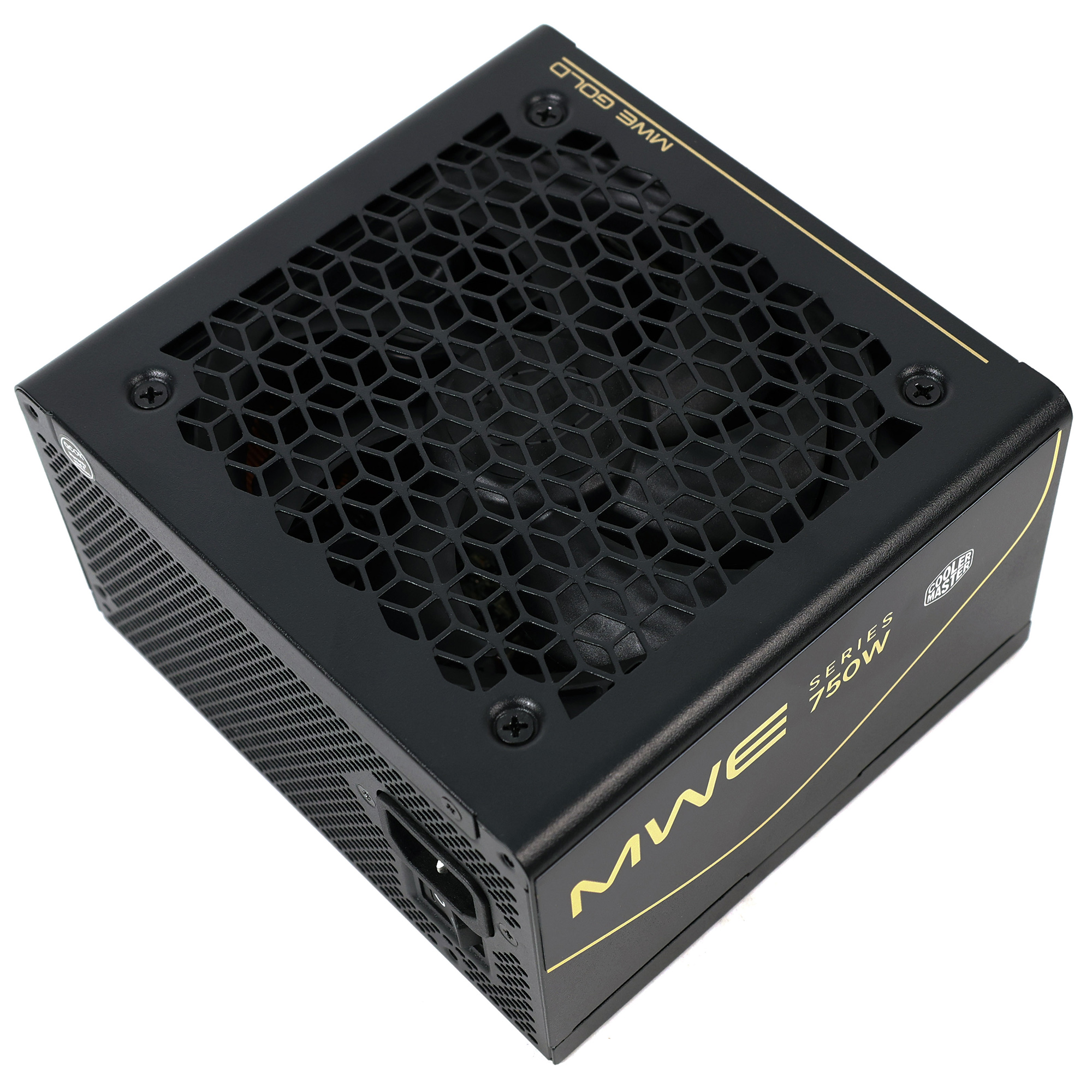

| Product Identification Details | |
| Brand | Cooler Master |
| Model | MWE Gold 750 V4 |
| OEM/ODM | GOSPOWER |
| Serial Number | - |

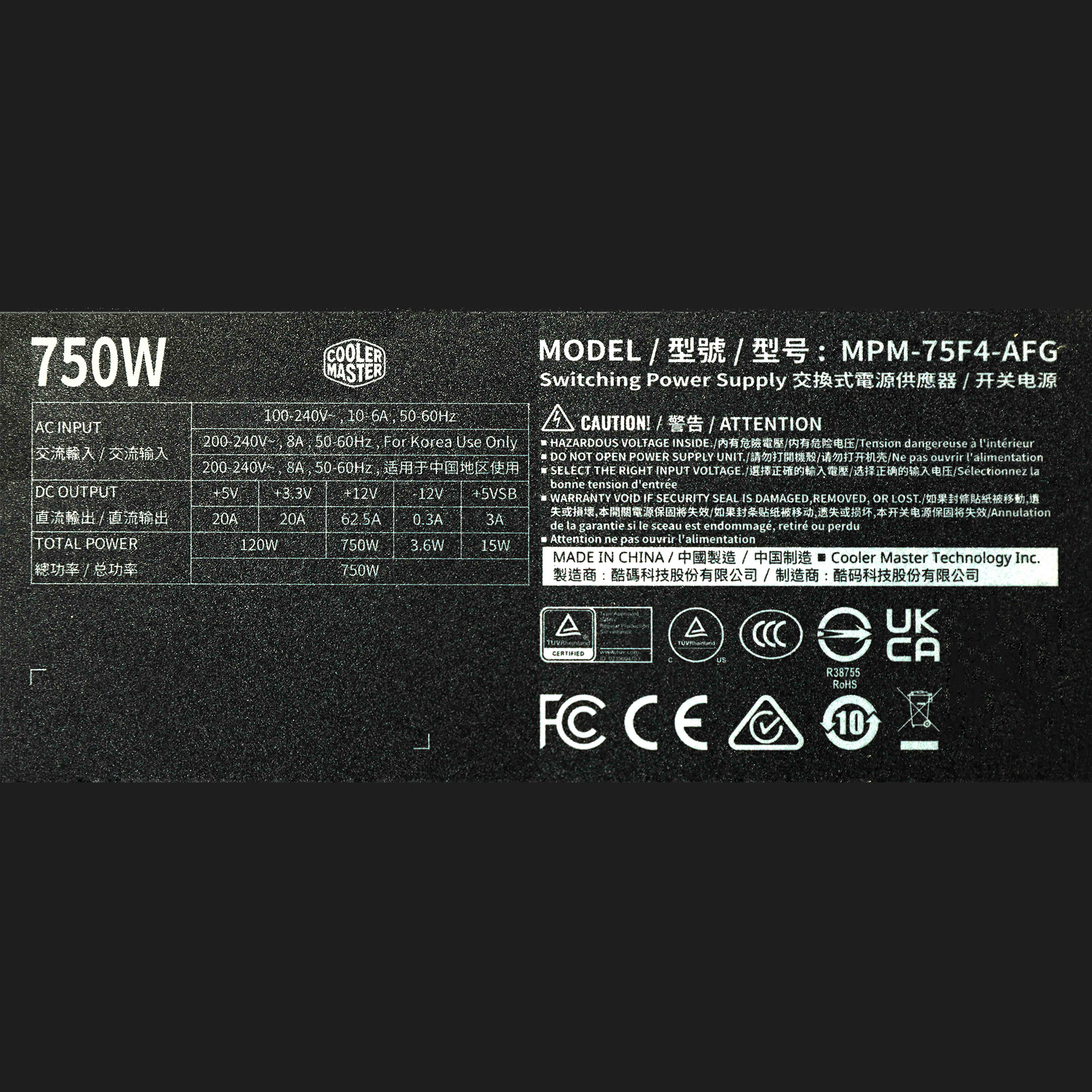

| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 750 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 86 x 140mm |
| Weight | 1.32 kg (2.91 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | CM75003436 |
| Date of receipt | Sep 10, 2026 |
| Testing Date | Oct 7, 2026 |
| Report Issued Date | Oct 8, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (700mm) | 1 | 1 | 18AWG | Tinned Copper |
| 8 pin EPS12V (700mm) | 1 | 1 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+125mm) | 2 | 4 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (400mm+110mm+110mm) | 2 | 6 | 18AWG | Tinned Copper |
| 4-pin Molex (400mm+120mm+120mm) | 1 | 3 | 18AWG | Tinned Copper |
| AC Power Cord (1350mm) - C13 coupler | 1 | 1 | 3G 0.75mm² | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |

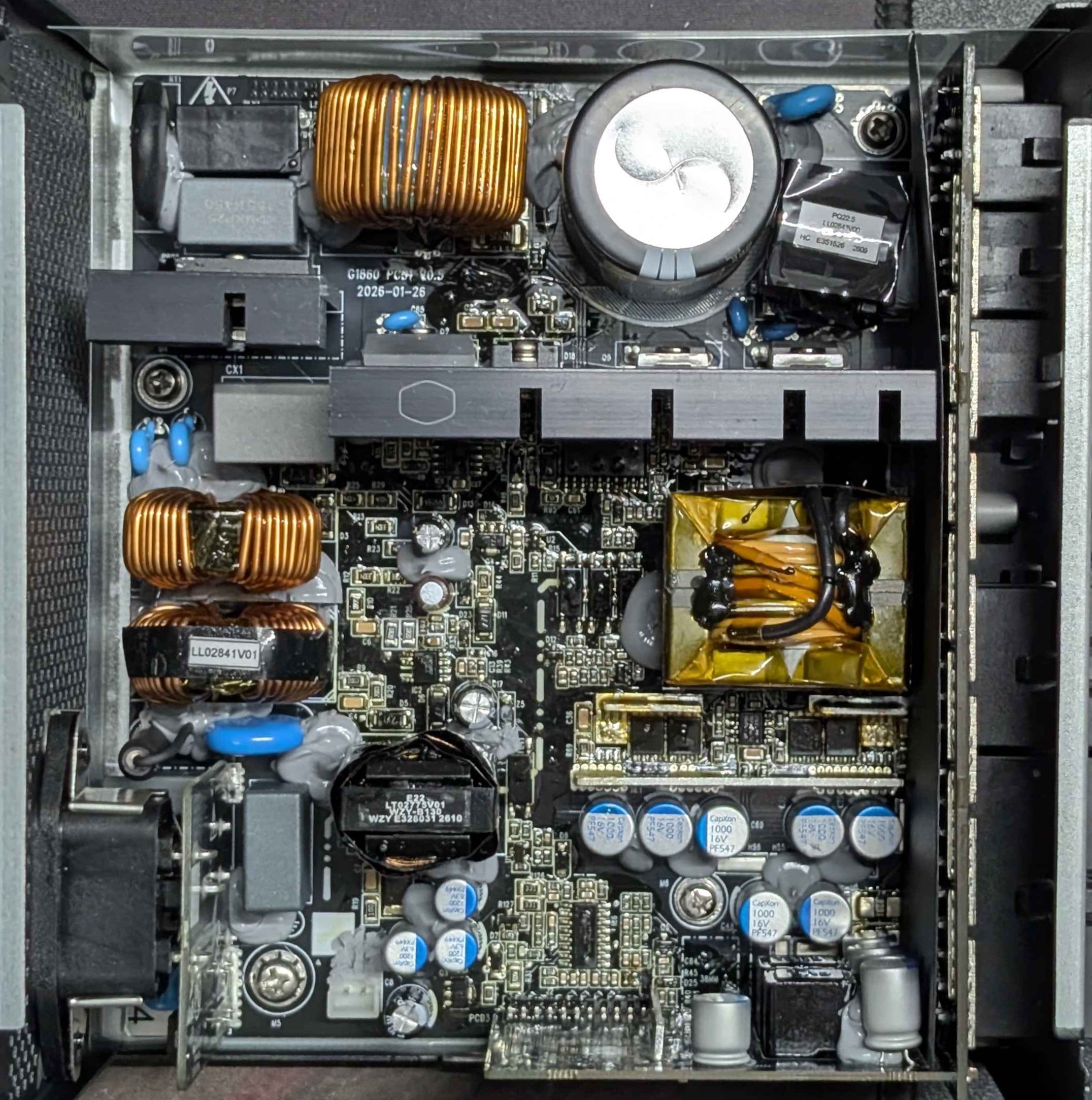

| General Data | |
| Manufacturer (OEM) | GOSPOWER |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | 1x NTC 5D-20 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x GBU1008 (800V, 10A @ 100°C) |
| APFC MOSFETs | 1x CR Micro CRJQ80N65F (650V, 33.7A @ 100°C, Rds(on): 0.090Ohm) |
| APFC Boost Diode | 1x Zhixin Microelectronics SDC10065NAS (650V, 10A @ 150°C) |
| Bulk Cap(s) | 1x Toshin Kogyo (450V, 390uF, 2000h @ 105°C, LGW ) |
| Main Switchers | 2x CR Micro CRJF99N65G2BF (650V, 20A @ 100°C, Rds(on): 0.099Ohm) |
APFC+LLC Combo Controller | MPS HR1280 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 4x 014N04B |
| 5V & 3.3V | DC-DC Converters: 4x CRSM035N03L6Z (30V, 54A @ 100°C, Rds(on): 3.5mOhm) PWM Controller(s): 1x APW7391 |
| Filtering Capacitors | Electrolytic: 2x CapXon (2000~5000h@ 105°C, KF ) 1x CapXon (3000~7000h @ 105°C, GH ) 1x Elite (2000h @ 105°C, EL ) Polymer: 17x CapXon 19x Nichicon |
| Supervisor IC | INFSitronix IN1T709-SDG |

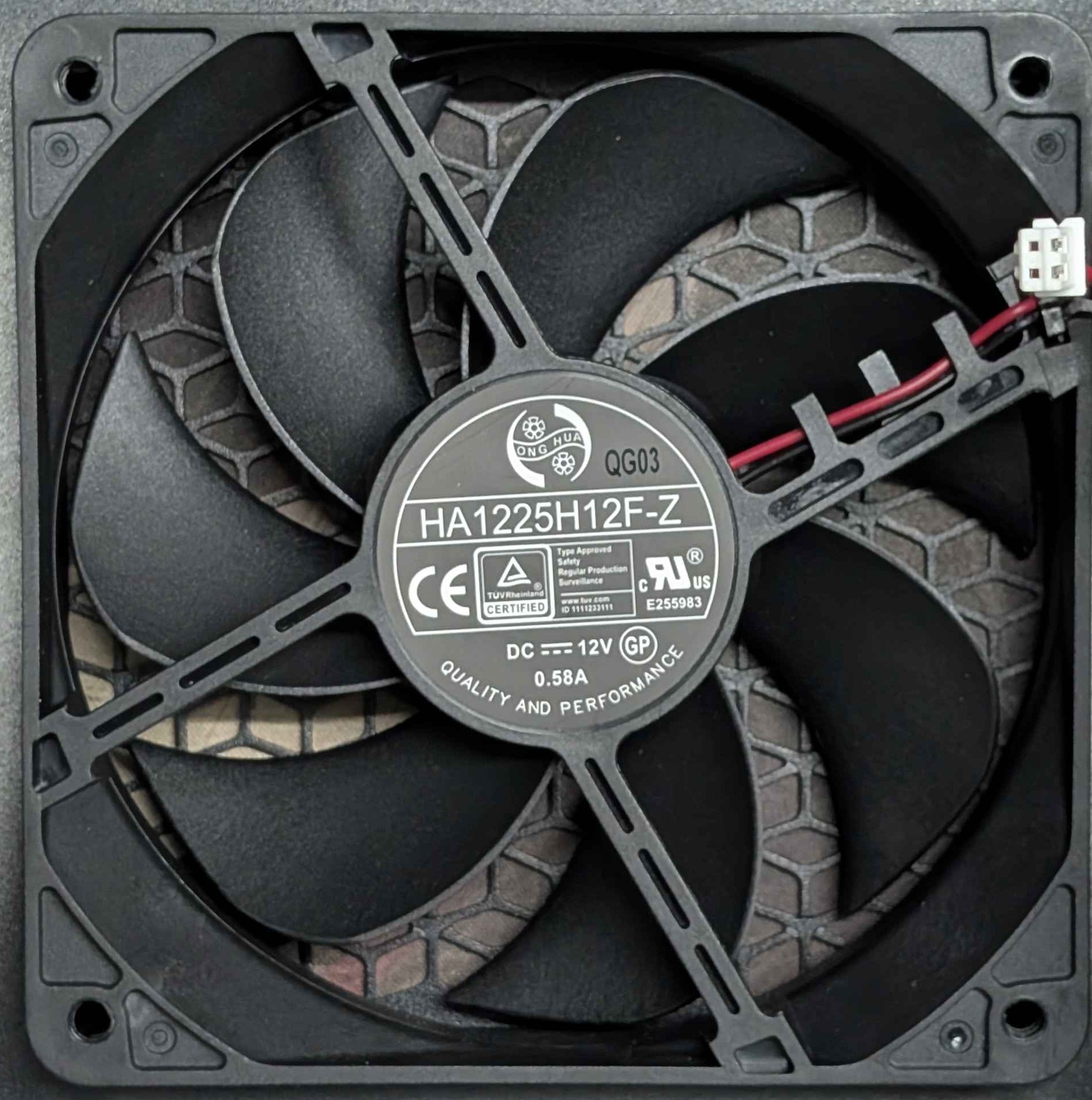

| Fan Model | Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan ) |
| 5VSB Circuit | |
| Rectifier | Yangjie SS10U45 |
| Standby PWM Controller | INFSitronix IN2P380C |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
