Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
Elite Gold 650W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|

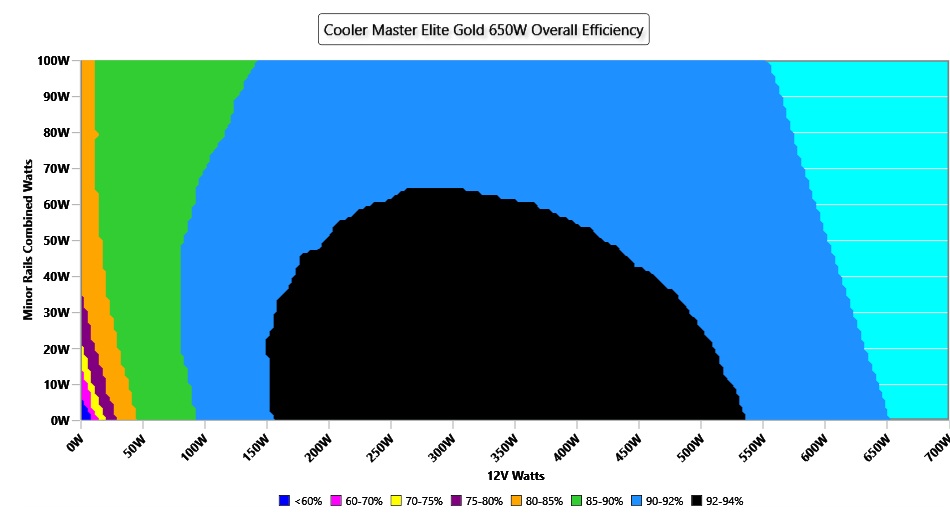

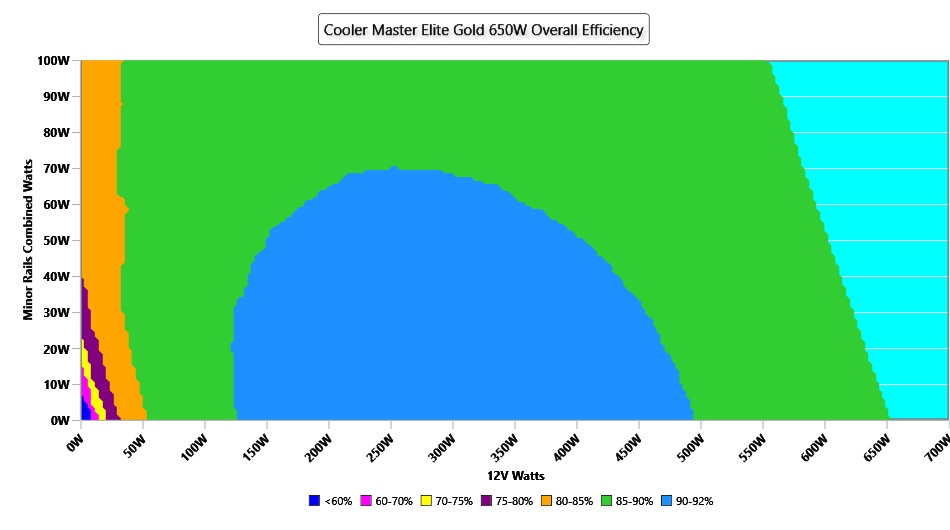

| Efficiency (>1450 Load Combinations) | 88.648% | 90.603% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.989 | 0.955 |
| 12V Step | 6.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0444W | 0.0788W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.573% | 81.109% |
| Conducted Emissions EN 55032 & CISPR 32 (48W) | Passed | |

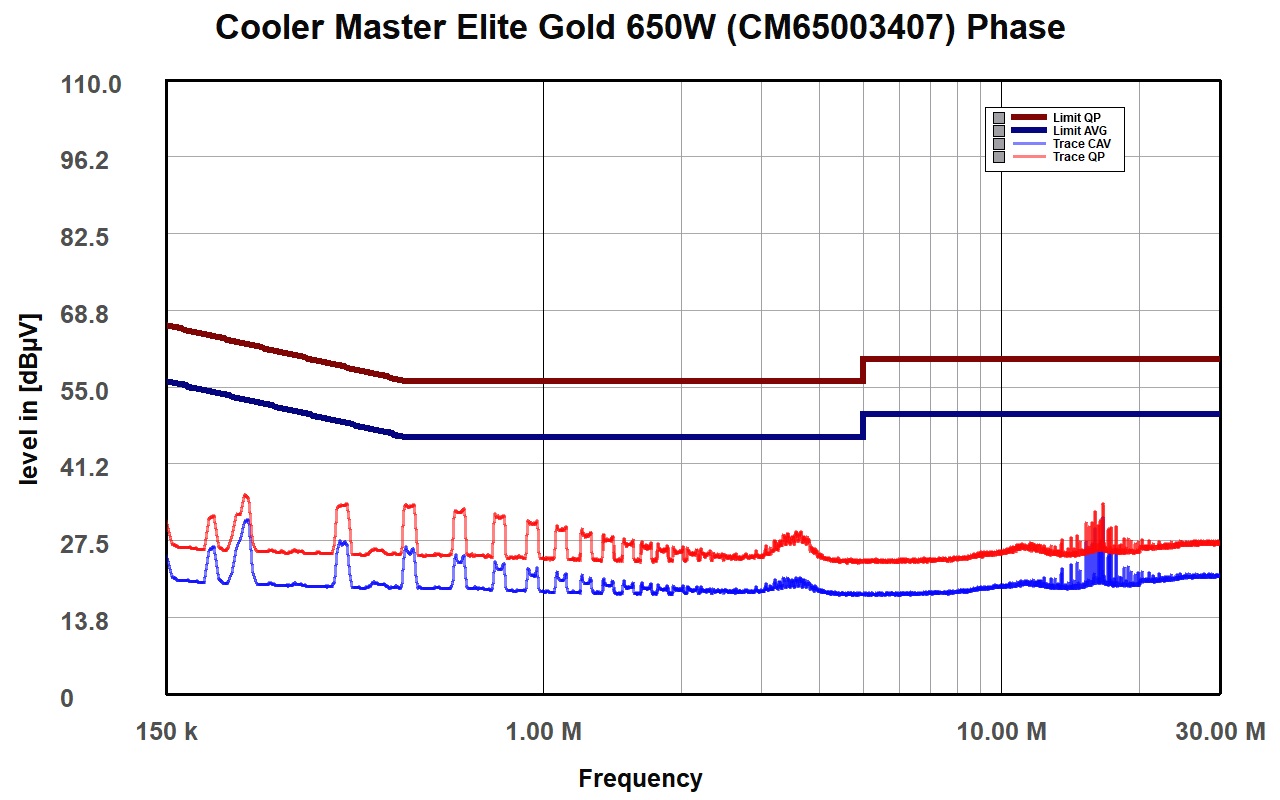

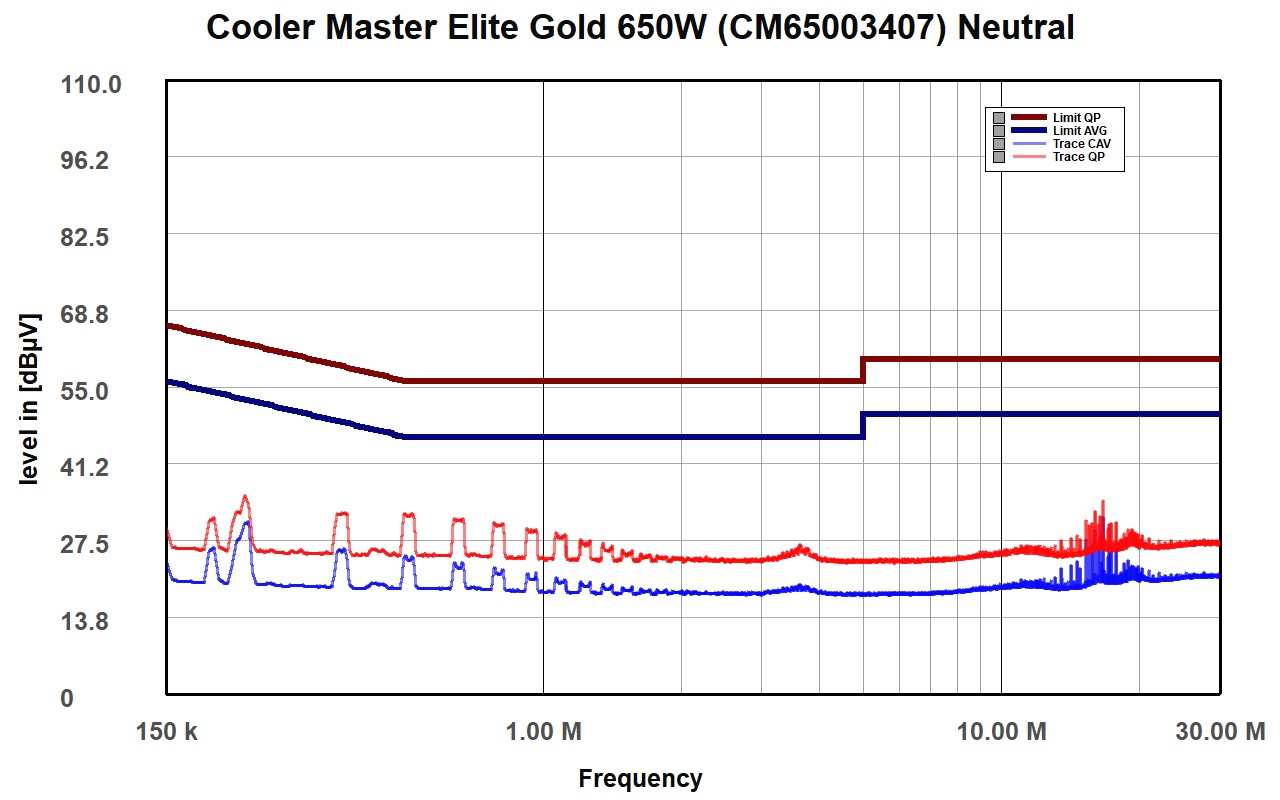

Conducted Emissions Graphs   | ||
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 23.43dBA | 22.20dBA |

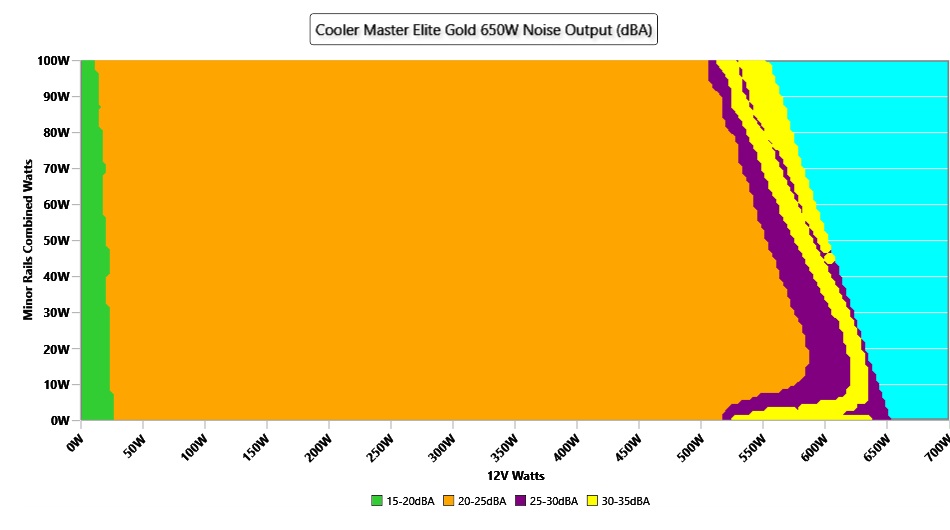

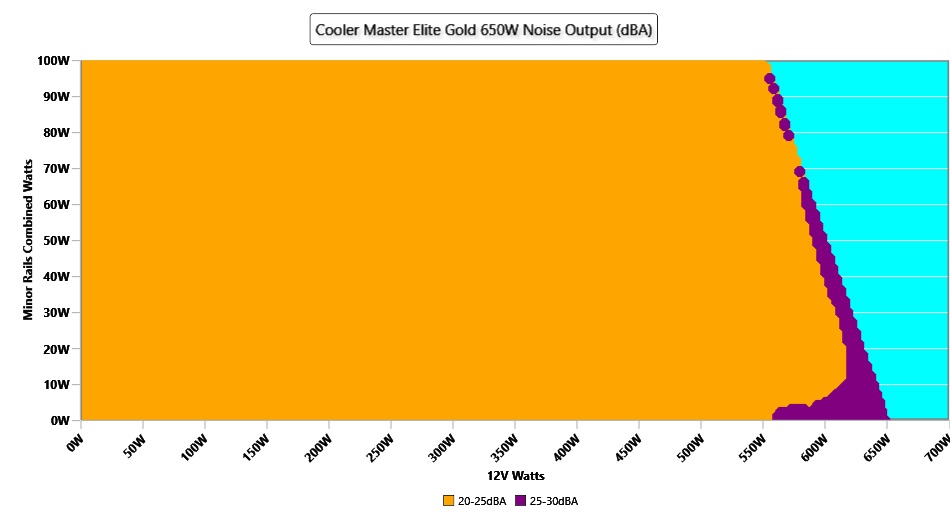

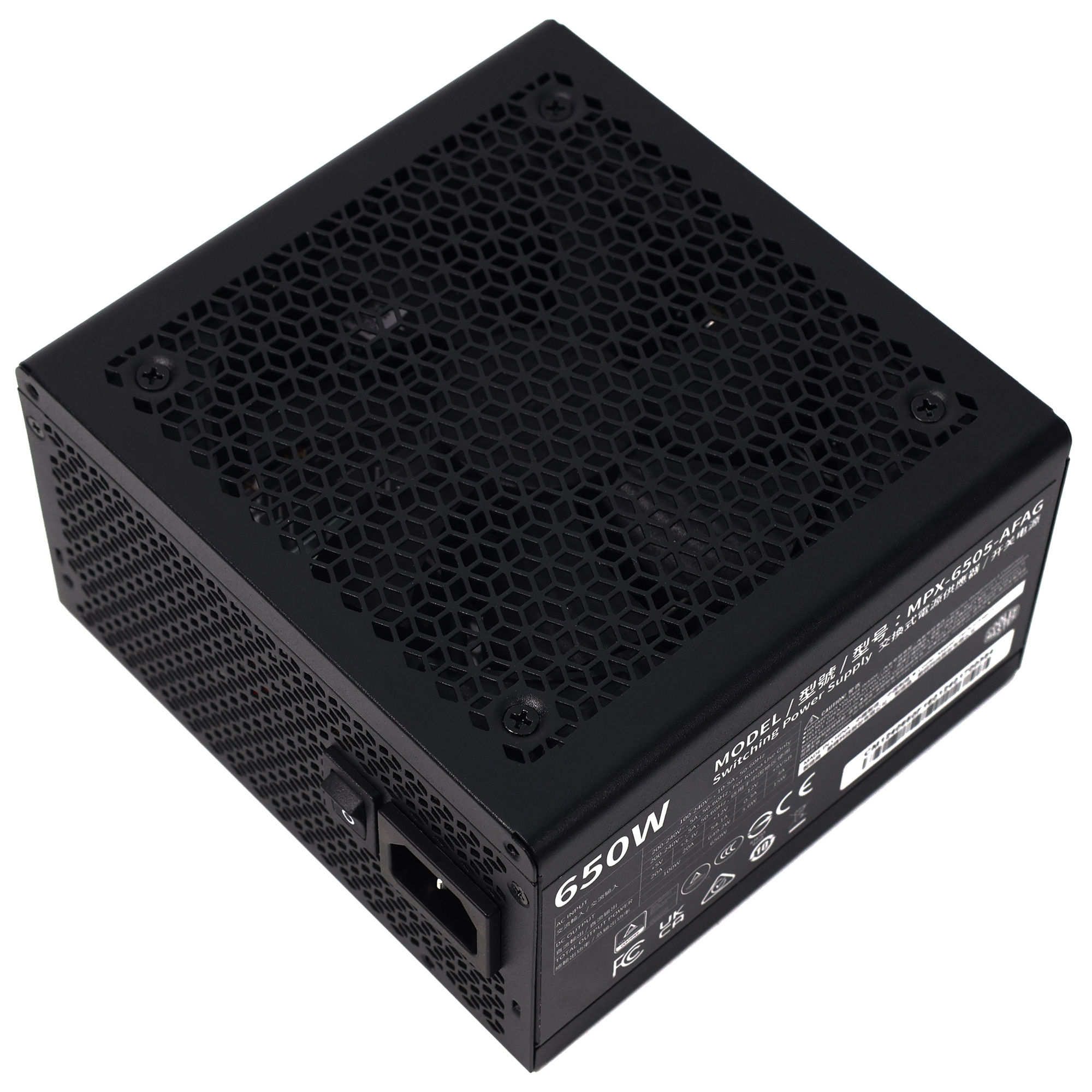

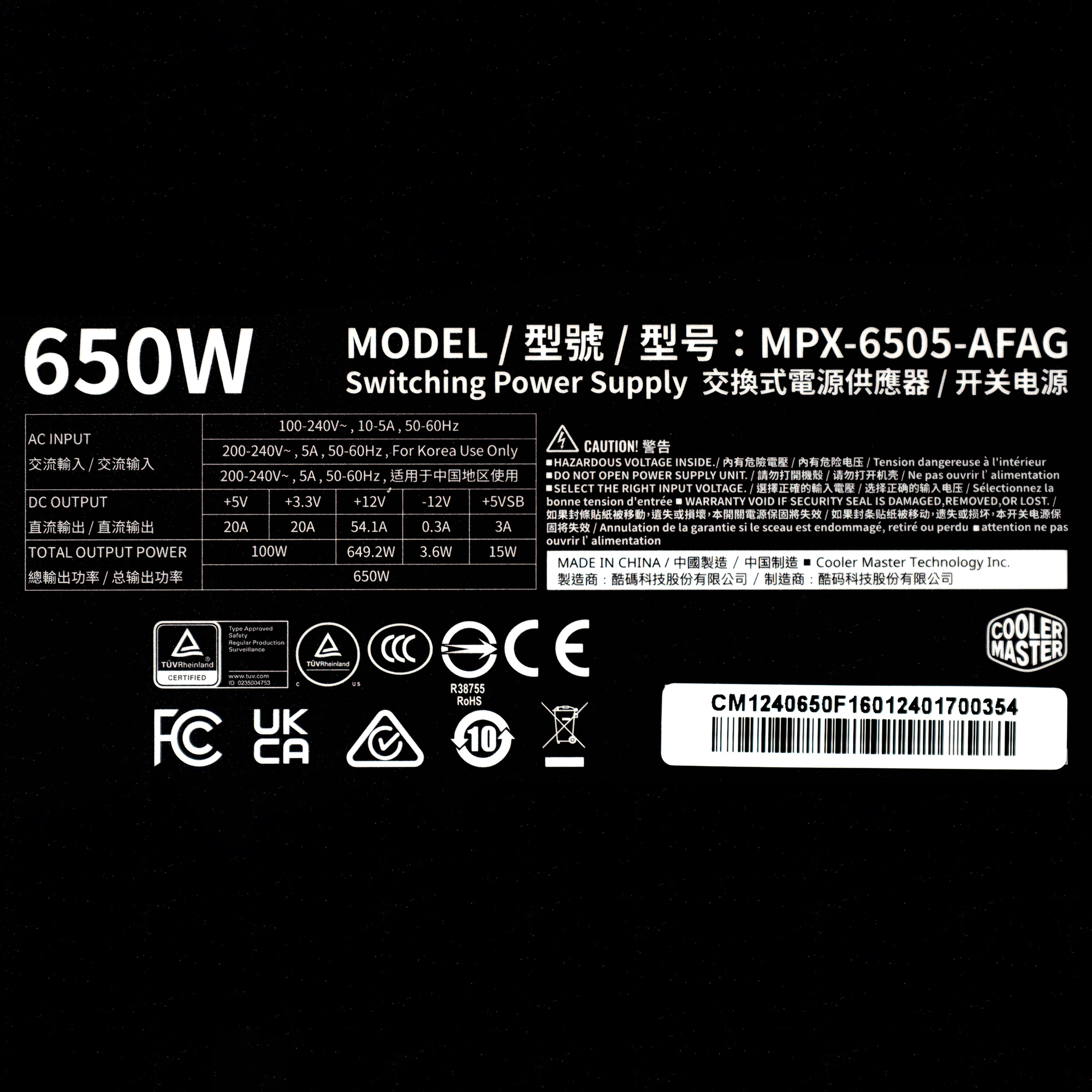

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 63.115% |
| Hold Up Time | 16.00ms |
| Power OK | 12.20ms |
| Power OK to DC Loss | 3.80ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.108 | 5.027 | 3.248 | 5.062 |
| 10ms | 11.783 | 5.007 | 3.243 | 5.033 |
| 1ms | 11.676 | 4.999 | 3.232 | 5.021 |
| 0.1ms | 11.578 | 4.985 | 3.217 | 5.004 |
| Product Identification Details | |
| Brand | Cooler Master |
| Model | Elite Gold 650W |
| OEM/ODM | Huizhou Xin Hui Yuan Tech |
| Serial Number | CM1240650F16012401700354 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 5-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 650 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140 mm |
| Weight | 1.40 kg (3.08 lb) |
| Cooling | 120mm Rifle Bearing Fan (DF1202512RFMN) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | CM65003407 |
| Date of receipt | Aug 19, 2026 |
| Testing Date | Aug 28, 2026 |
| Report Issued Date | Aug 30, 2026 |
| DUT Notes | The provided 12V-2x6 cable uses 18AWG for power delivery, but the Intel spec requires 16AWG. |
| Engineer Name | Efstathios Papadopoulos |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 24 pin (560mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (600mm+125mm) | 1 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (500mm+125mm) | 1 | 2 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (640mm) (450W) | 1 | 1 | 18-24AWG | Tinned Copper |
| SATA (400mm+120mm) / 4-pin Molex (+120mm) | 2 | 4 / 2 | 18AWG | Tinned Copper |
| AC Power Cord (1380mm) - C13 coupler | 1 | 1 | 16AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Xin Hui Yuan Technology |
| PCB Type | Double-Sided |

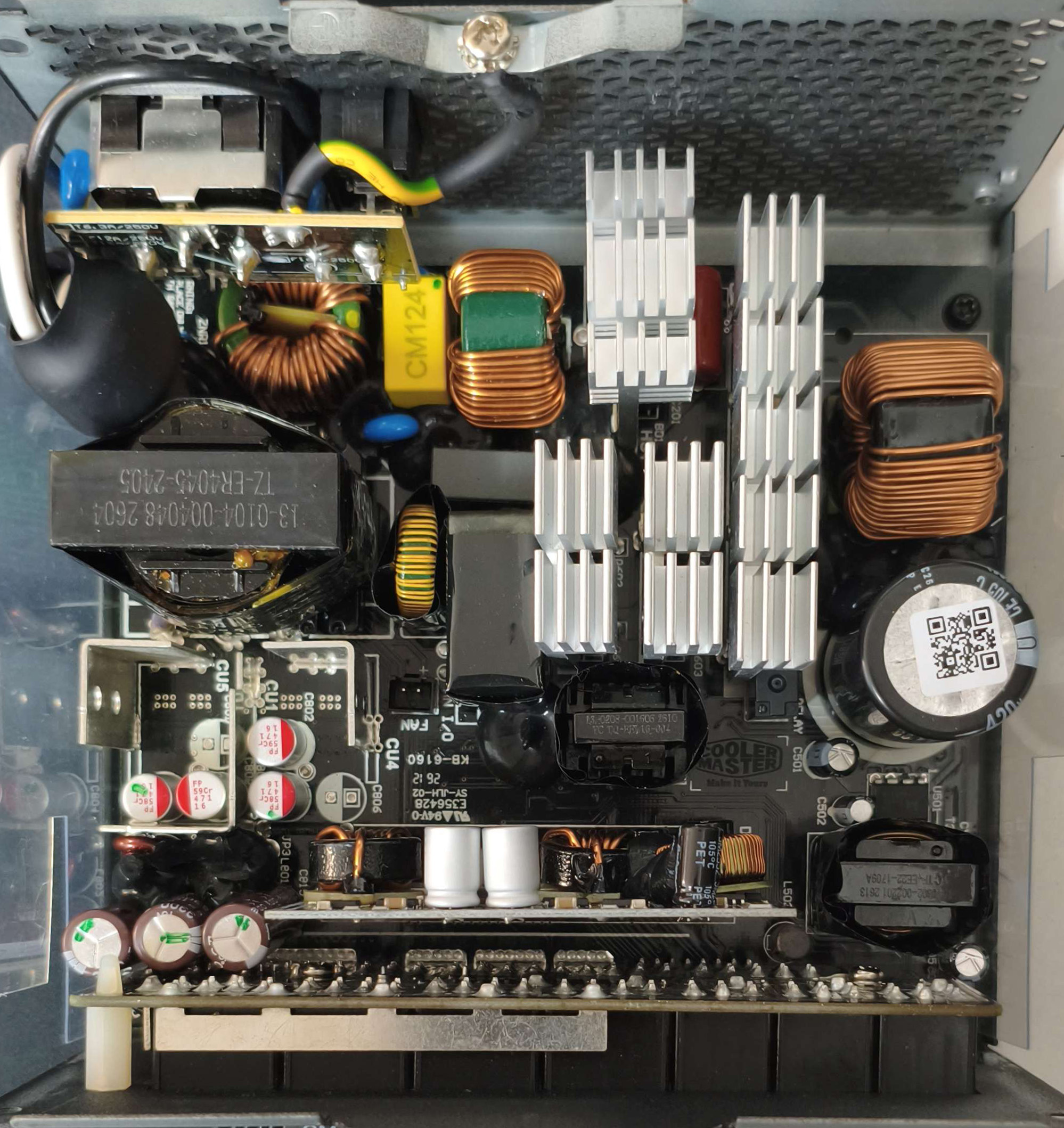

| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72 5D-15 (5Ohm @ 25°C) & Relay |
| Bridge Rectifier | 1x GBU1510 (1000V, 15A @ 100°C) |
| APFC MOSFETs | 2x CR Micro CRJT190N65G2BF (650V, 12A @ 100°C, Rds(on): 0.408Ohm) |
| APFC Boost Diode | 1x Sanan Semiconductor SDS065J006C3 (650V, 10A @ 135°C) |
| Bulk Cap(s) | 1x Nichicon (420V, 390uF, 2000h @ 105°C, GG ) |
| Main Switchers | 4x CR Micro CS10N50FA9R (500V, 6.3A @ 100°C, Rds(on): 0.5Ohm) |
APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T6X |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 2x Champion CMR011N06NS (60V, 289A) |
| 5V & 3.3V | DC-DC Converters: 4x CR Micro CRSM035N03L6Z (30V, 54A @ 100°C, Rds(on): 3.1mOhm) |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1S4241-SDG |
| Fan Power Switch | D965A Transistor |

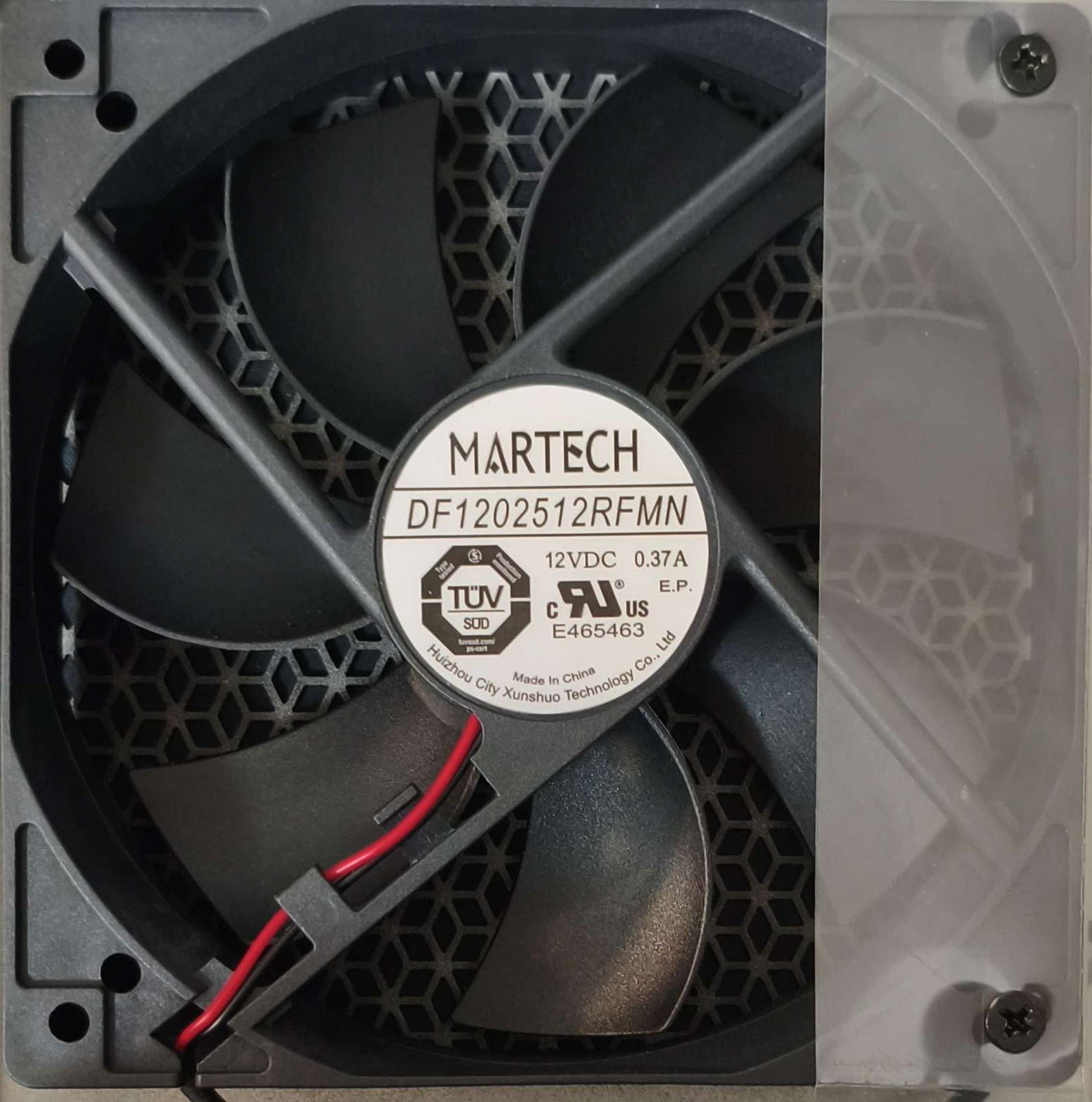

| Fan Model | MARTECH DF1202512RFMN (120mm, 12V, 0.37A, Rifle Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V60R10S |
| Standby PWM Controller | ExcellianceMOS EM8569C |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.43% |
| Timings | ±2.64ms |
| Power Excursions (Transient Response) | ±0.18V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dB |
| Noise Output | ±1.23 dB |
