Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
GP-UD1300GM PG5
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.952% | 92.288% |

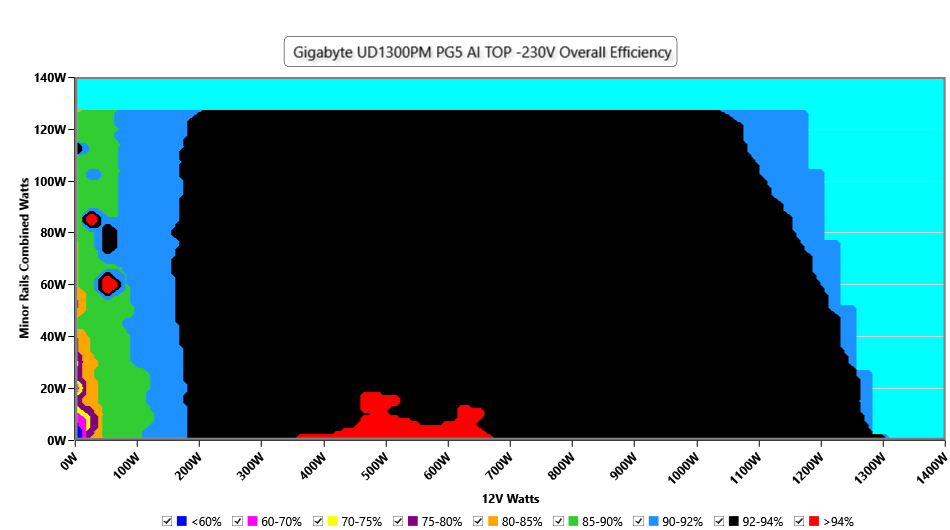

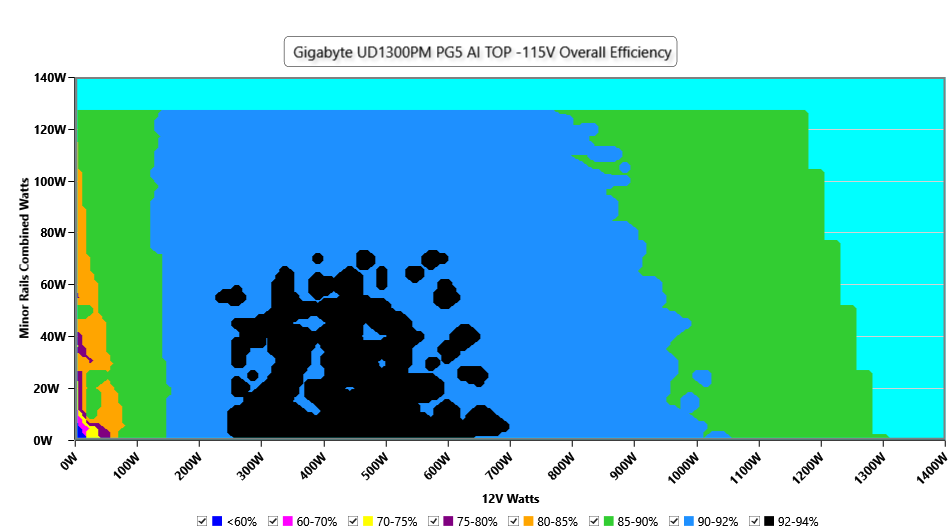

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.973 | 0.938 |
| 12V Step | 13.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0245W | 0.0642W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 80.961% | 80.054% |
| Conducted Emissions EN55032 & CISPR 32 (48W) | Passed | |

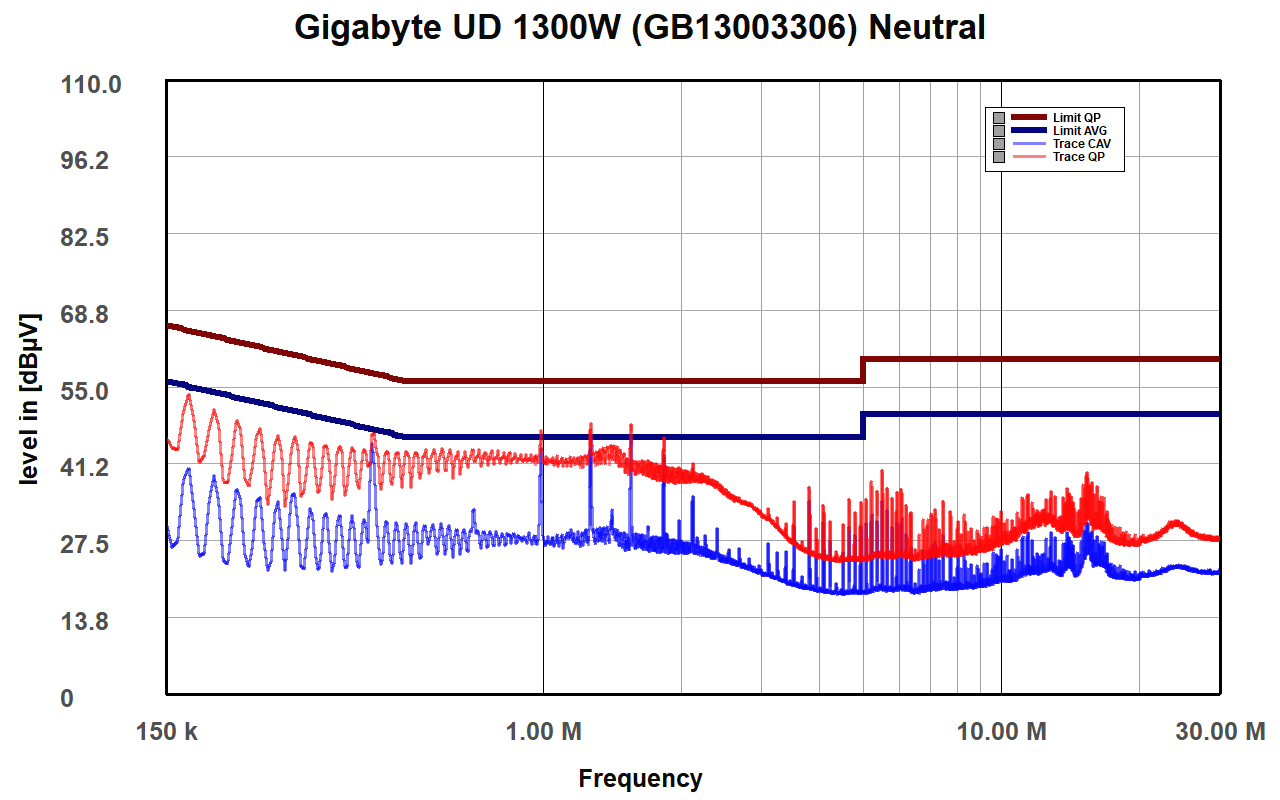

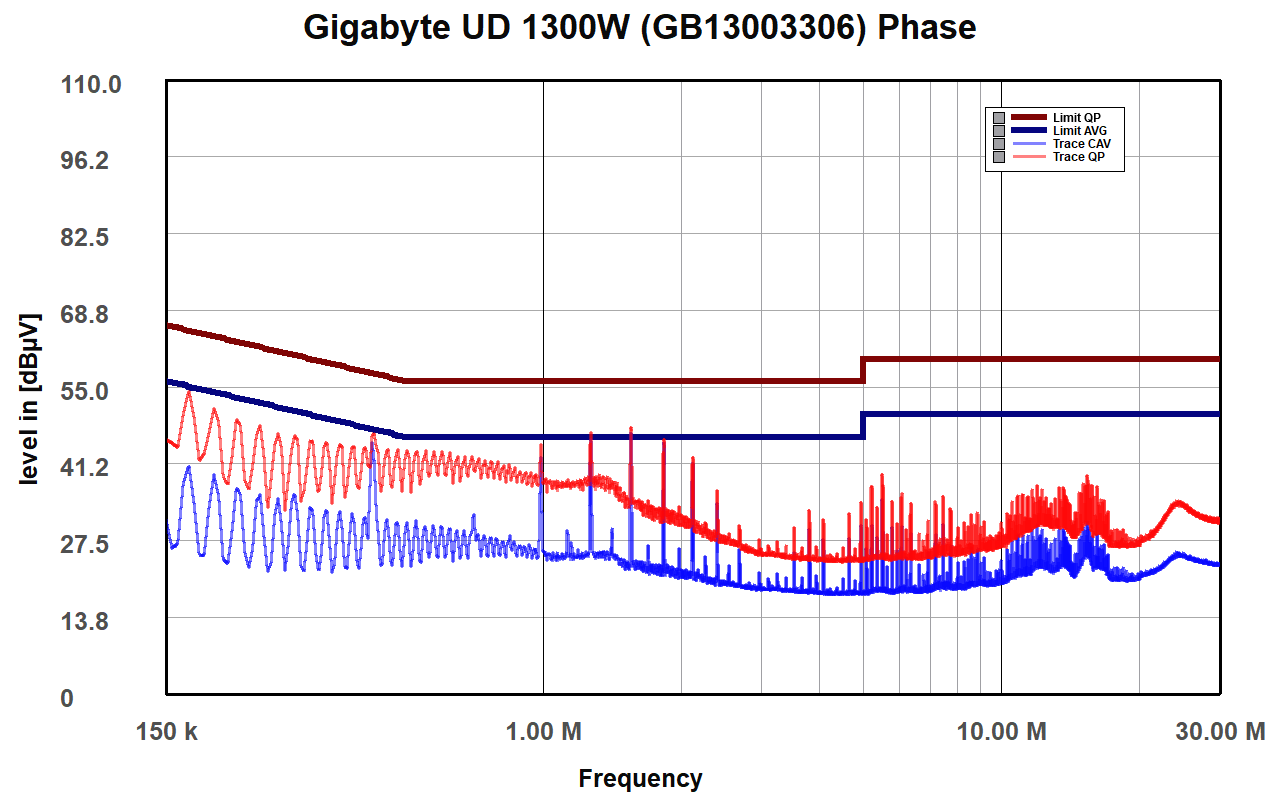

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 37.91dBA | 37.72dBA |

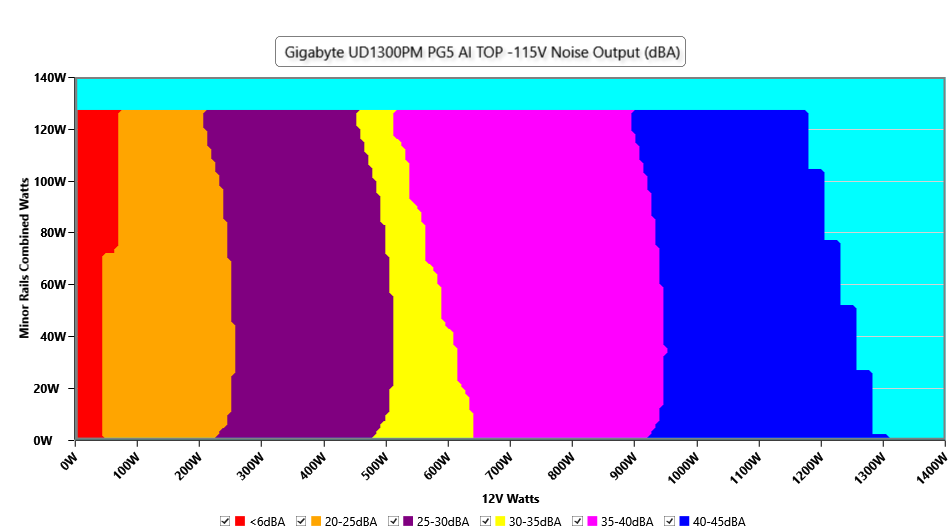

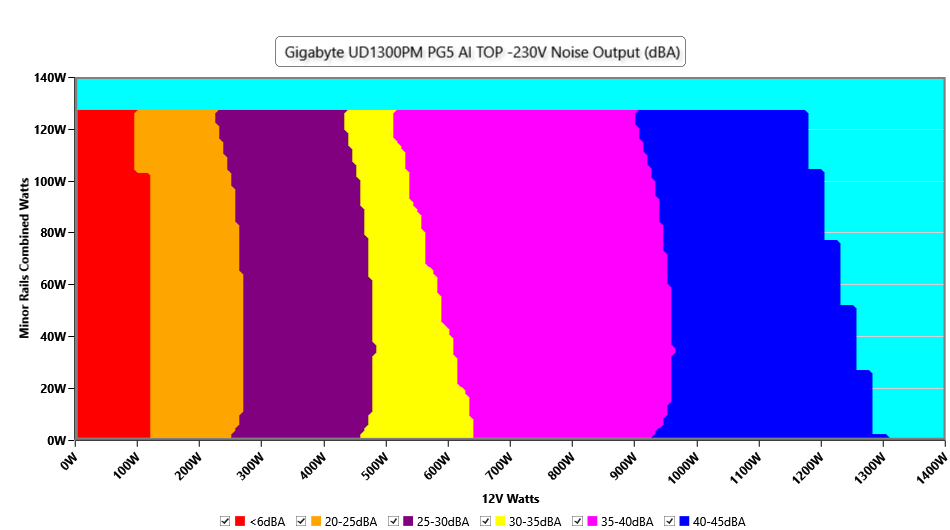

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 74.856% |
| Hold Up Time | 24.00ms |
| Power OK | 19.40ms |
| Power OK to DC Loss | 4.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.959 | 4.981 | 3.290 | 5.026 |
| 10ms | 11.620 | 4.943 | 3.238 | 5.009 |
| 1ms | 11.451 | 4.926 | 3.217 | 5.001 |
| 0.1ms | 11.302 | 4.908 | 3.198 | 4.991 |
| Product Identification Details | |
| Brand | Gigabyte |
| Model | GP-UD1300GM PG5 |
| OEM | Guangzhou Pansheng Electronic Technology Co., Ltd |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 7.5-15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1300 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 160mm |
| Weight | 2.04 kg (4.50 lb) |
| Cooling | 140mm Dual Ball Bearing Fan (PLA14025B12H) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | GB13003306 |
| Date of receipt | May 6, 2026 |
| Testing Date | Jun 5, 2026 |
| Report Issued Date | Jun 10, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (610mm) | 1 | 1 | 16-22AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (650mm+150mm) | 3 | 6 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (650mm) | 2 | 2 | 16AWG | Tinned Copper |
| 12+4 pin PCIe (700mm) (600W) | 2 | 2 | 16-26AWG | Tinned Copper |
| SATA (650mm+150mm+150mm+150mm) | 3 | 12 | 18AWG | Tinned Copper |
| 4-pin Molex (600mm+150mm+150mm) / FDD (+150mm) | 2 | 6 / 2 | 18AWG | Tinned Copper |
| AC Power Cord (1360mm) - C19 coupler | 1 | 1 | 15AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Guangzhou Pansheng Electronic Technology Co., Ltd |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK205R0 ( 5Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x RS2505M-U3 (1000V, 25A @ 100°C) |
| APFC MOSFETs | 2x CRMicro CRJQ99N65G2F (650V, 30A @ 25°C, Rds(on): 0.90Ohm) |
| APFC Boost Diode | 1x Wolfspeed C6D10065A (650V, 10A @ 125°C) |
| Bulk Cap(s) | 1x Nippon Chemi-con (400V, 820µF, 2000h @ 105°C, KMW ) |
| Main Switchers | 4x Alpha and Omega Semiconductor AOTF160A60L (700V, 15A @ 100°C, Rds(on): 0.16Ohm) |
| IC Drivers | Texas Instruments UCC21541 |
APFC Controller | Champion CU6510VC |
| Resonant Controller | Champion CU6901VACC |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm) |
| 5V & 3.3V | DC-DC Converters: 8x Alpha and Omega Semiconductor GP4626 PWM Controller(s): 2x ON Semi NCP5230 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Wletrend WT7502R |
| Fan Power Switch | Niko Semiconductor PD515BA |
| Fan Model | Power Logic PLA14025B12H (140mm, 12V, 0.5A, Dual Ball Bearing Fan ) |
| 5VSB Circuit | |
| Rectifier | PANJIT SVM1045V2B (45V, 10A) |
| Standby PWM Controller | Chipown PN8160 |
| Photos |  |  |

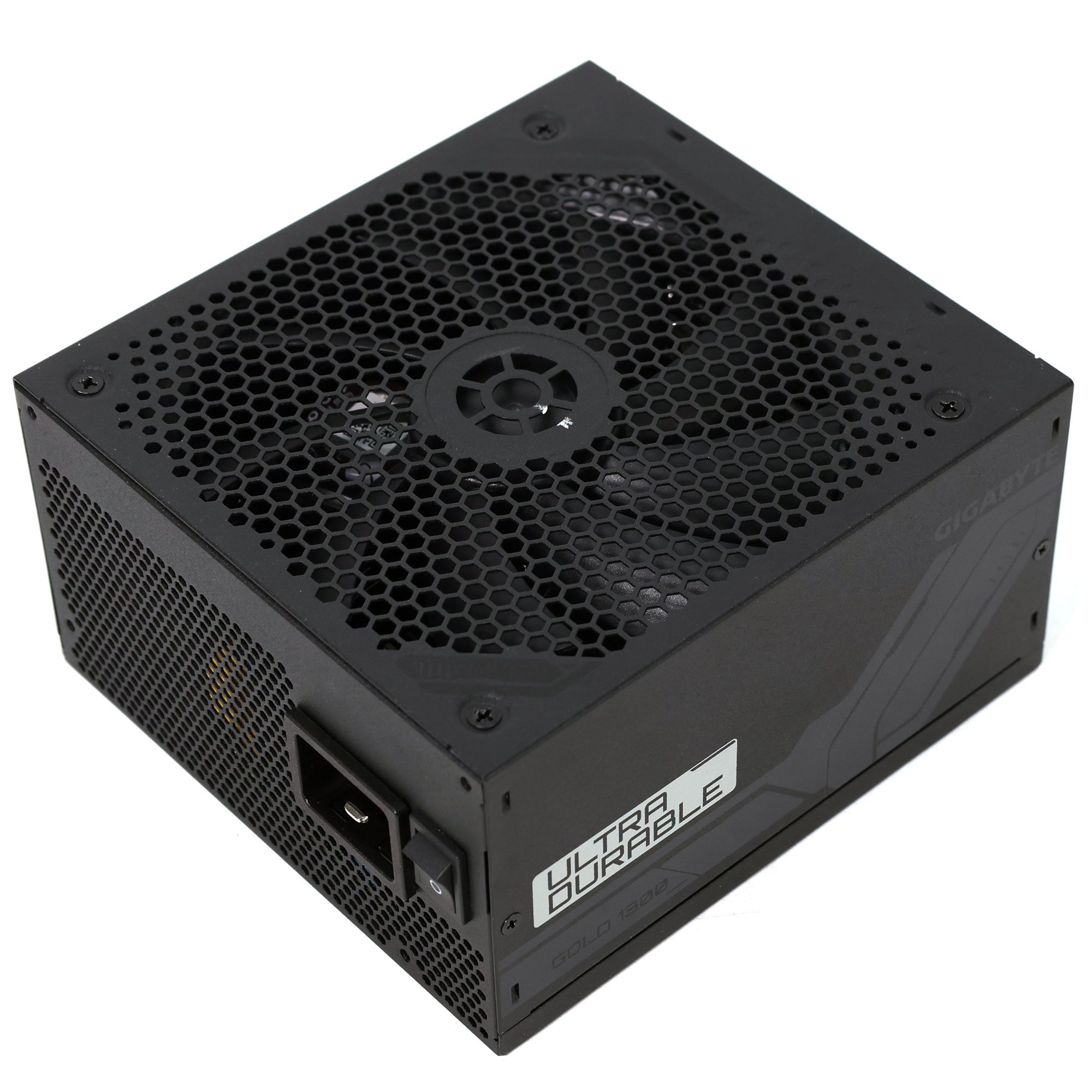

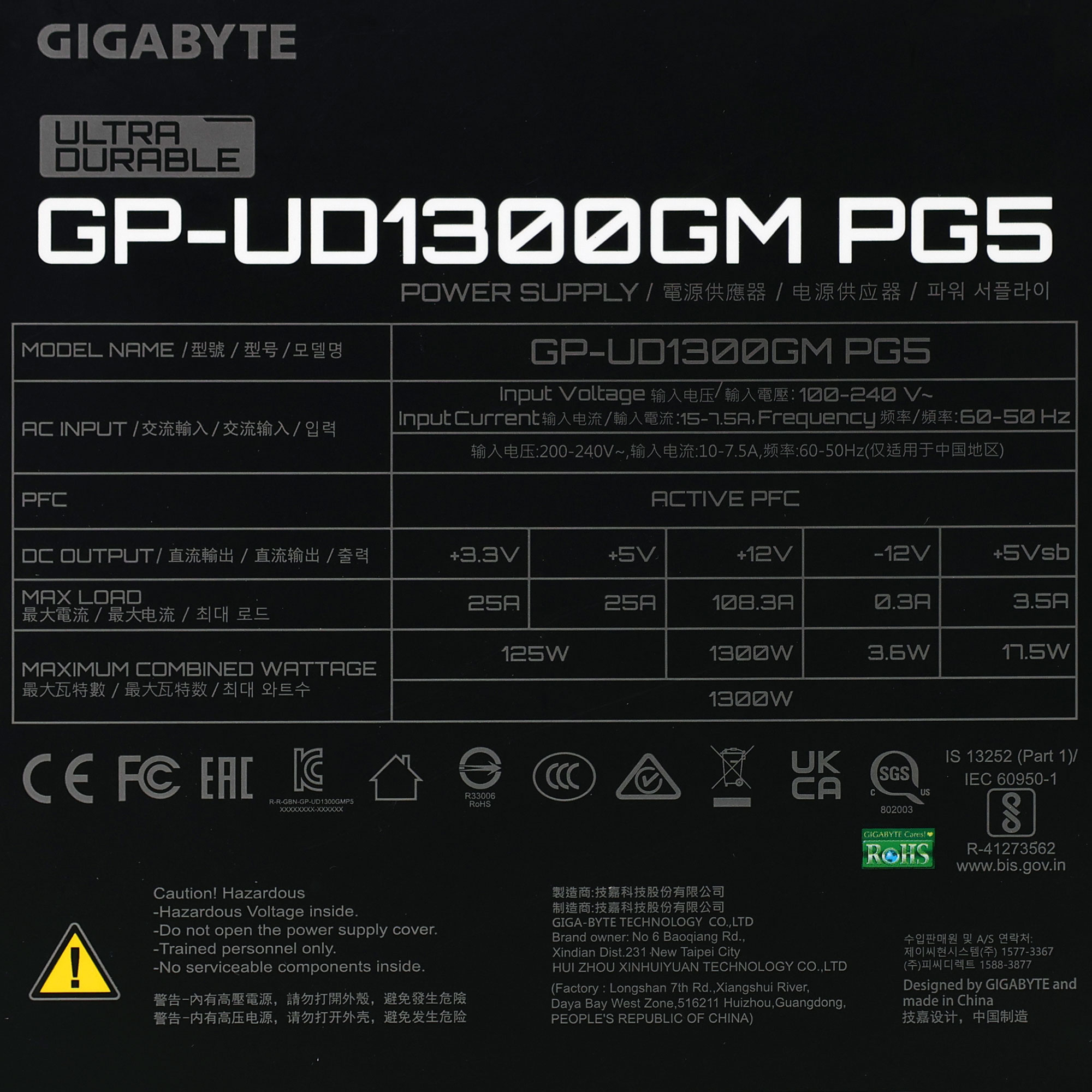

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
