EGK-850
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 88.992% | 90.860% |

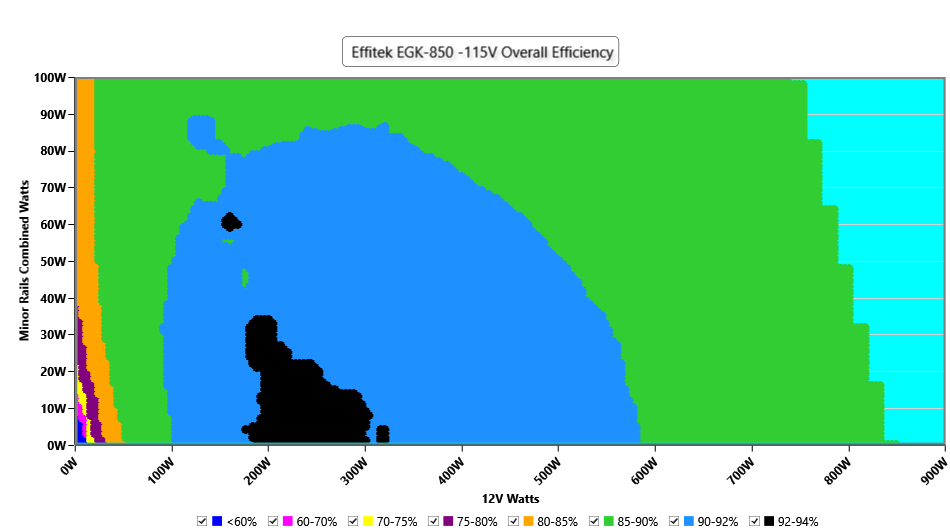

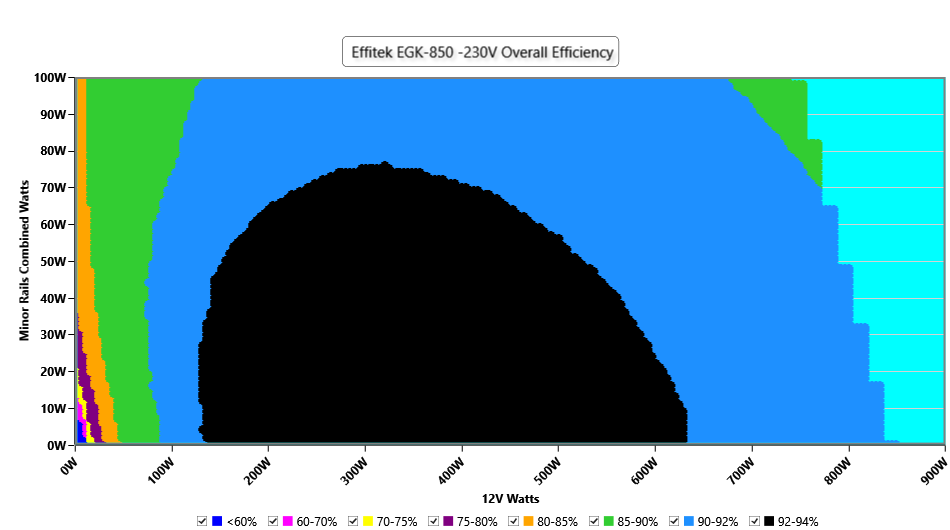

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.981 | 0.953 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0576W | 0.1890W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 82.960% | 80.524% |
| Conducted Emissions EN55032 & CISPR 32 (48W) | Passed | |

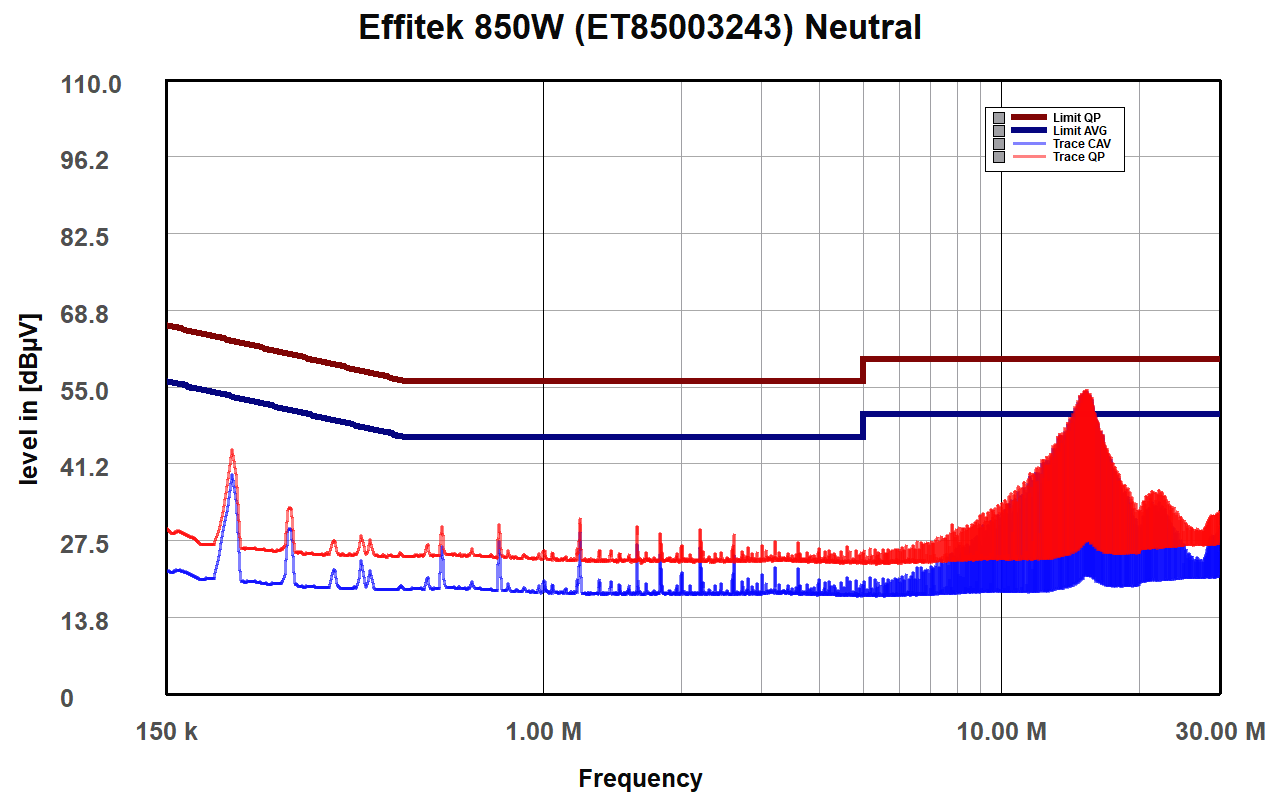

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 33.47dBA | 32.57dBA |

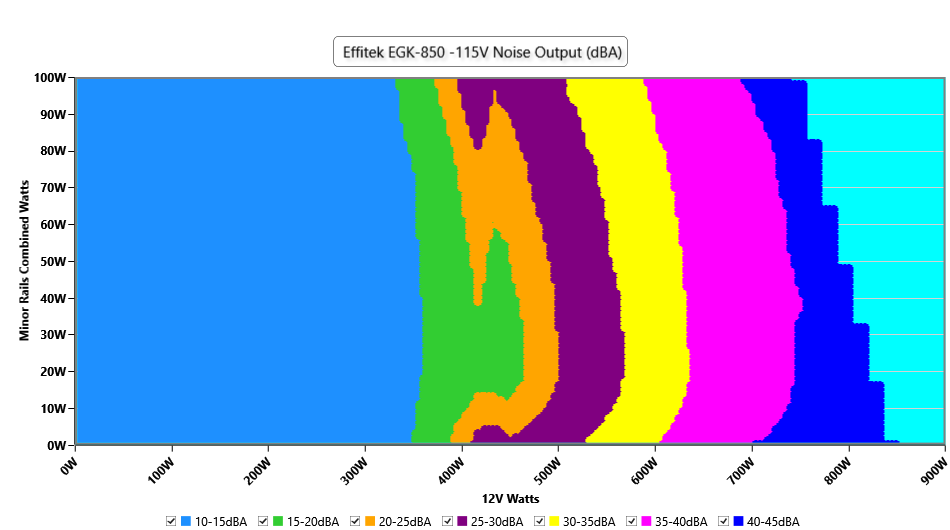

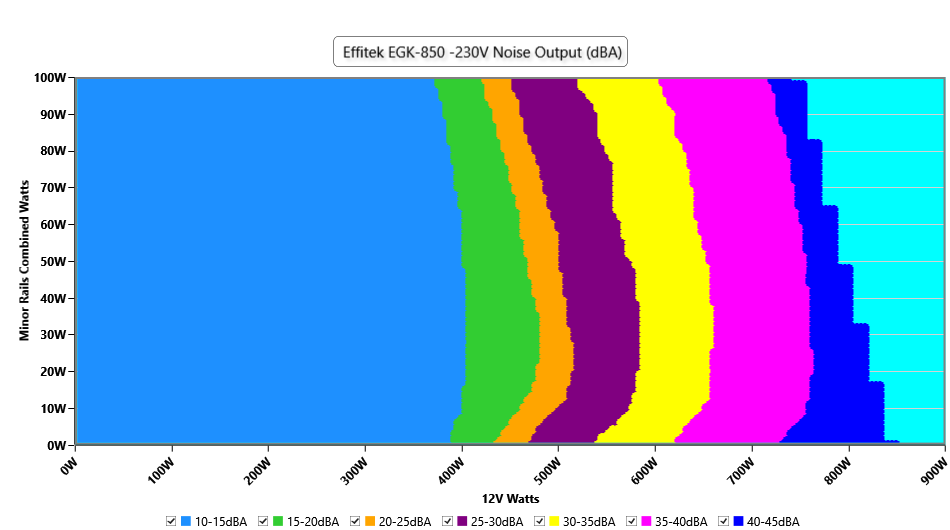

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 71.828% |
| Hold Up Time | 17.00ms |
| Power OK | 13.70ms |
| Power OK to DC Loss | 3.30ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.917 | 4.968 | 3.258 | 4.963 |
| 10ms | 11.584 | 4.940 | 3.228 | 4.932 |
| 1ms | 11.436 | 4.921 | 3.214 | 4.915 |
| 0.1ms | 11.297 | 4.901 | 3.194 | 4.940 |
| Product Identification Details | |
| Brand | Effitek |
| Model | EGK-850 |
| OEM | Shenzhen Xinweiye Technology |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 5-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fixed cables |
| Warranty | 10 Years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 2.20 kg (4.85 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z) |
| Semi-Passive Operation | ✗ |
| Cybenetics Testing Information | |
| Lab ID | ET85003243 |
| Date of receipt | Feb 24, 2026 |
| Testing Date | Apr 2, 2026 |
| Report Issued Date | Apr 3, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Captive Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (540mm) | 1 | 1 | 18AWG | Copper |
| 4+4 pin EPS12V (690mm+150mm) | 1 | 2 | 18AWG | Copper |
| 6+2 pin PCIe (540mm+120mm) | 2 | 4 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-26AWG | Tinned Copper |
| SATA (450mm+125mm) / 4-pin Molex (+125mm) | 2 | 4 / 2 | 18AWG | Copper |
| AC Power Cord (1670mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Shenzhen Xinweiye Technology |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72 5-D15 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 6x Rectifier Diode S8M (1000V, 8A @ 100°C) |
| APFC MOSFETs | 2x XLW C80R55Y ( @ 100°C, Rds(on): 0.055Ohm) |
| APFC Boost Diode | 2x CWBG NF3D10065A |
| Bulk Cap(s) | 1x 12Kuang Jin (420V, 680uF, 2000h @ 105°C, LT ) |
| Main Switchers | 2x Reactor Micro RMC60R150FDB (600V, 22A @ 25°C, Rds(on): 0.15Ohm) |
PFC / PWM Combo Controller | Champion CM6800UX |
| Topology | Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 4x Reactor Micro RMB035N06S (60V, 170A @ 25°C, Rds(on): 3.5mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x SLD80N03T (30V, 80A @ 100°C, Rds(on): 5.0mOhm) PWM Controller(s): 2x Anpec APW7164 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Infinno IN1S429I (OVP, UVP, OCP, SCP, PG) |
| Fan Power Transistor | B772-SOT-89 |
| Fan Model | Hong Hua HA1225M12F-Z (122mm, 12V, 0.45A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK60R15V (60V, 15mOhm) |
| Standby PWM Controller | Shenzhen Dongfangteng Technology EST.2915HP |

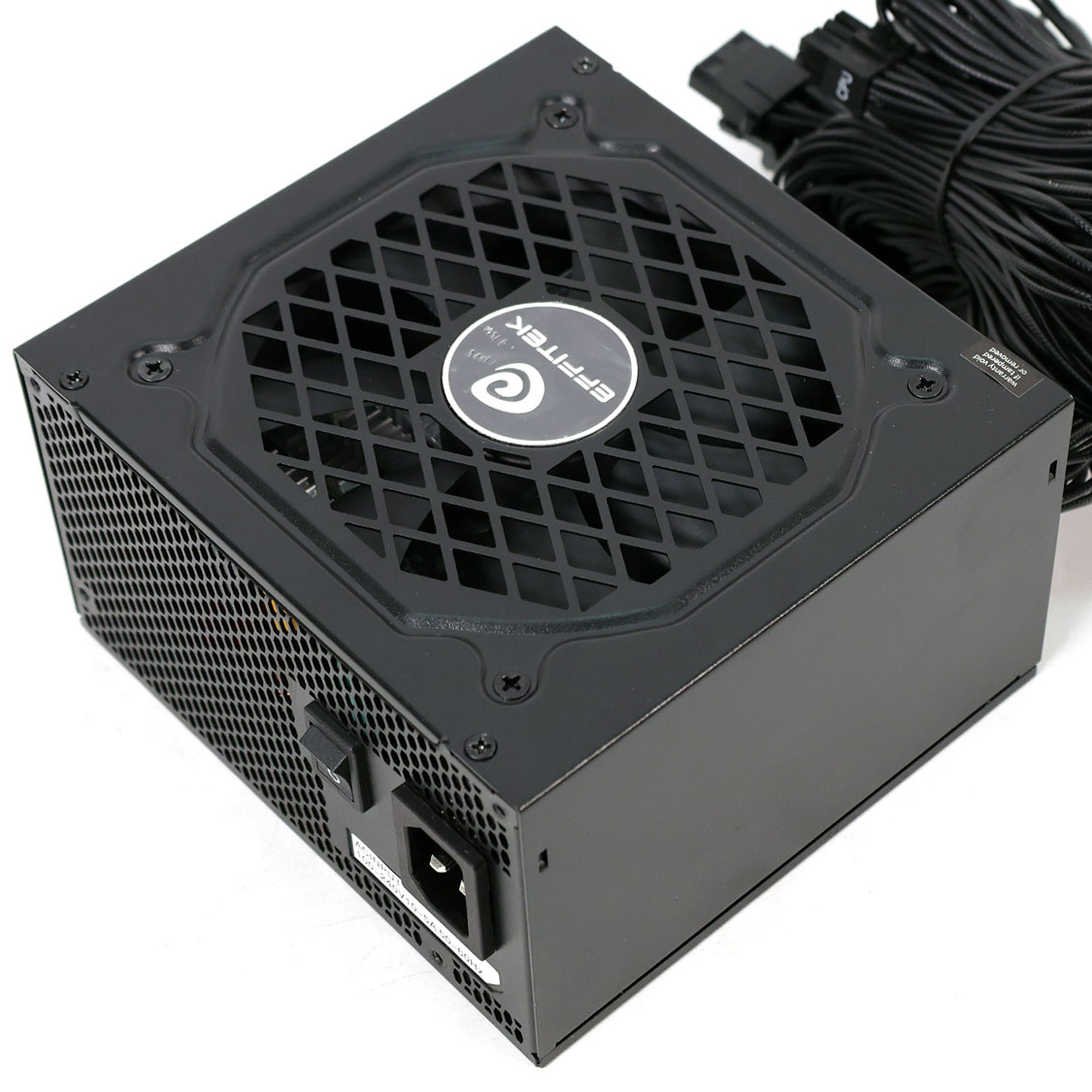

| Photos |  |  |

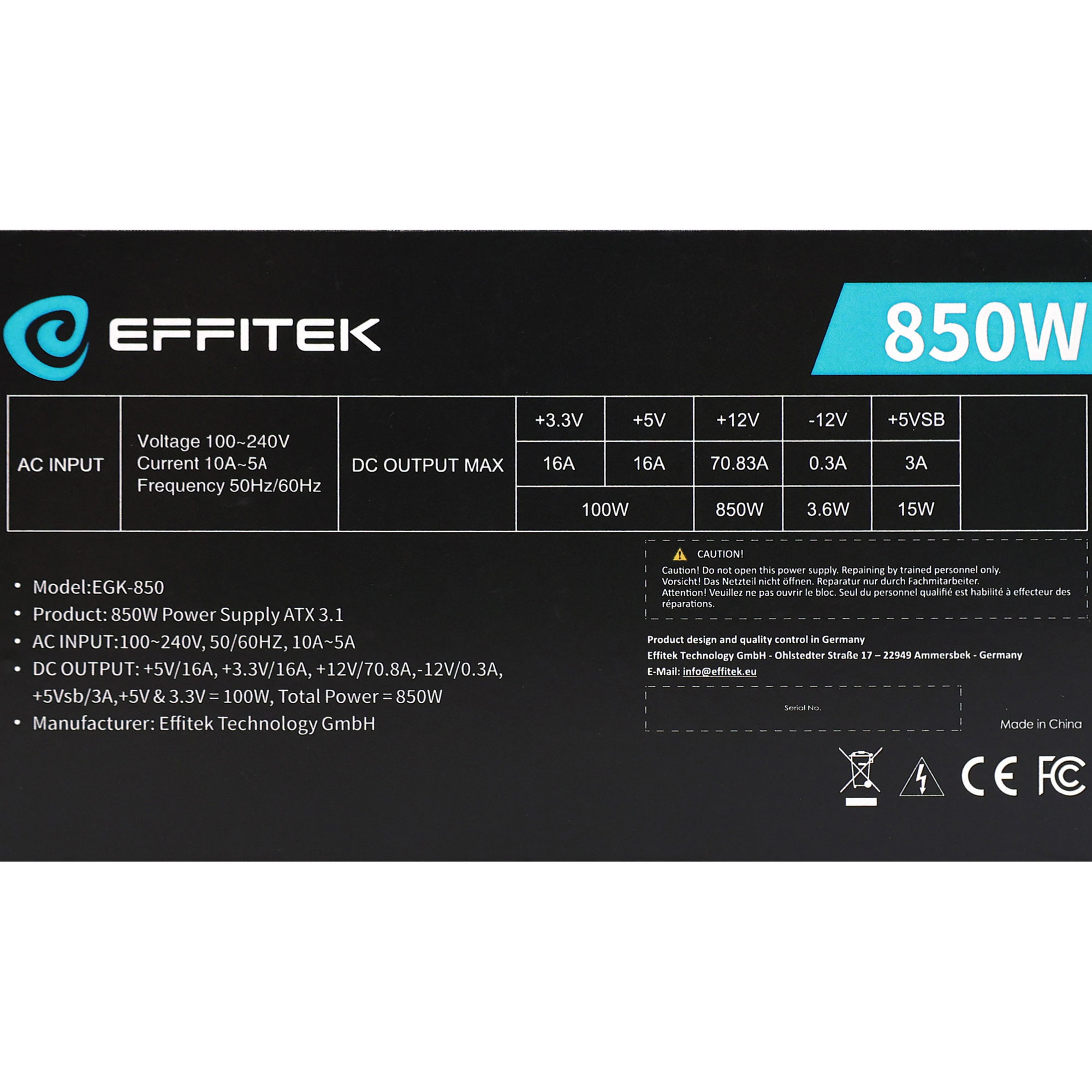

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
