Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
NE850 Platinum ATX3.1
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.700% | 92.558% |

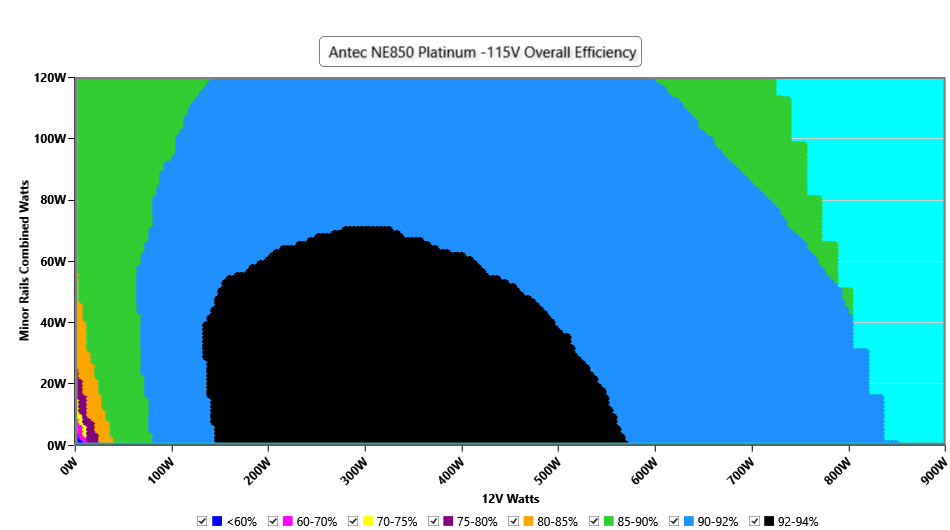

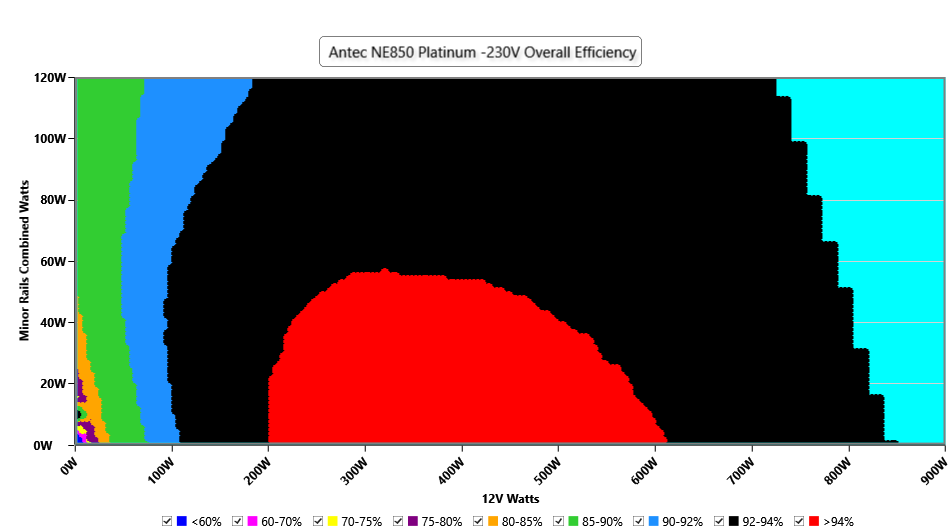

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.992 | 0.971 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 2.50W | |
| Standby Power Consumption | 0.0395W | 0.0842W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 81.359% | 80.937% |
| Conducted Emissions EN55032 & CISPR 32 (48W) | Passed | |

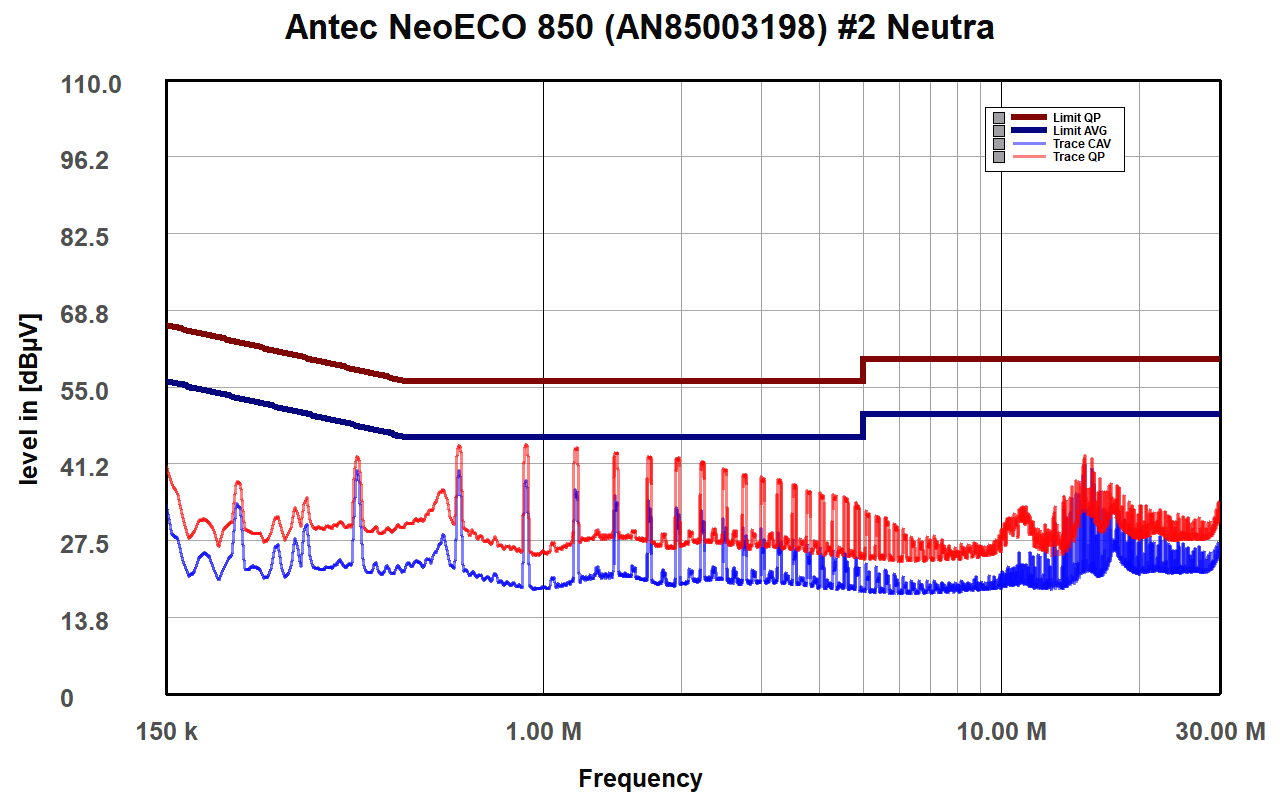

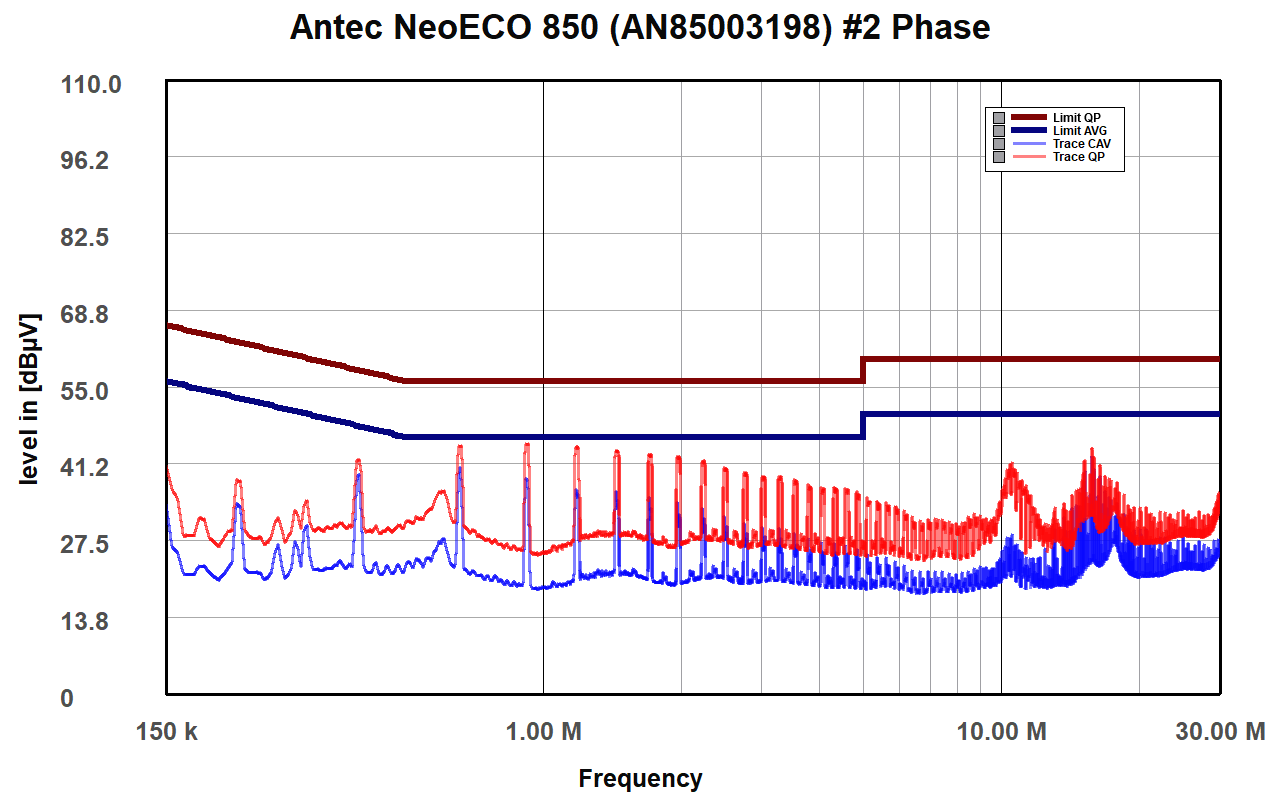

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 29.32dBA | 28.99dBA |

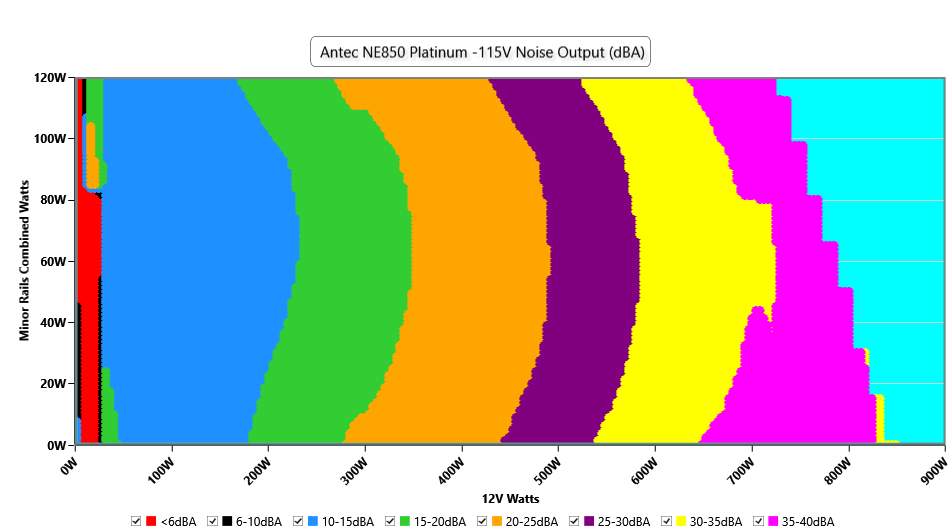

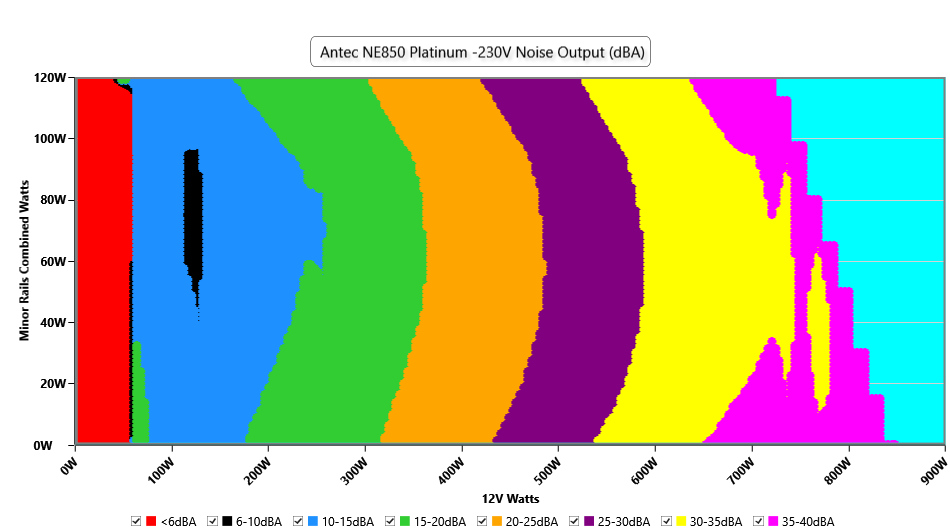

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 73.720% |
| Hold Up Time | 16.30ms |
| Power OK | 13.70ms |
| Power OK to DC Loss | 2.60ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.970 | 4.984 | 3.273 | 4.955 |
| 10ms | 11.709 | 4.961 | 3.248 | 4.920 |
| 1ms | 11.594 | 4.948 | 3.235 | 4.903 |
| 0.1ms | 11.174 | 4.936 | 3.222 | 4.884 |
| Product Identification Details | |
| Brand | Antec |
| Model | NE850 Platinum ATX3.1 |
| OEM | Helly |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 5-10 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | 10 Years |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.54kg (3.40 lb) |
| Cooling | 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | AN85003198 |
| Date of receipt | Feb 2, 2026 |
| Testing Date | Mar 10, 2026 |
| Report Issued Date | Mar 13, 2026 |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (675mm) | 2 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+120mm) | 1 | 2 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (650mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (460mm+120mm+120mm) / 4-pin Molex (+120mm) | 3 | 9 / 3 | 18AWG | Copper |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Helly |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 2x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor MF72-10D20 (10 Ohm @ 25°C) & Relay |
| Bridge Rectifier | GBU15J-U1 (600V 15A @ 150℃) |
| APFC MOSFETs | 2x Maplesemi SLF60R090E7 (600V, 17.8A @ 100℃, Rds(on): 90mOhm) |
| APFC Boost Diode | Xiamen Sanan Integrated Circuit SDS065J008C2 (650V, 11A @ 135°C) |
| Bulk Cap(s) | 1x Nichicon (400V, 820uF 2000 Hrs @ 105°C GG ) |
| Main Switchers | 2x Oriental Semiconductor OSG55R140FF (550V, 14.5A @ 150°C, Rds(on): 0.14 Ohm) |
APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T6X |
| Topology | Primary Side: APFC, Half-Bridge & LLC Resonant Converter |
| Secondary Side | |
| +12V MOSFETs | 6x HUAYI Microelectronics HYG009N04 (40V, 200A @ 175°C, Rds(on): 0.96mOhm) |
| 5V & 3.3V | DC-DC Converters: 2x FETek Technology KS3214T , (30V, 9A @ 150°C, Rds(on): 12mOhm) |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Weltrend WT7527RA (OVP, UVP, OCP, VX, PGO, FPOB, PSONB) |
| Fan Power Switch | Power Transistor D882 |
| Fan Model | Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, 2050 RPM, Fluid Dynamic Bearing) |
| 5VSB Circuit | |
| Rectifier | Dongke Semiconductor DK5V60R20S (60V, 20mOhm) |
| Standby PWM Controller | Excelliance MOS Corp. EM8569C |
| Photos |  |  |

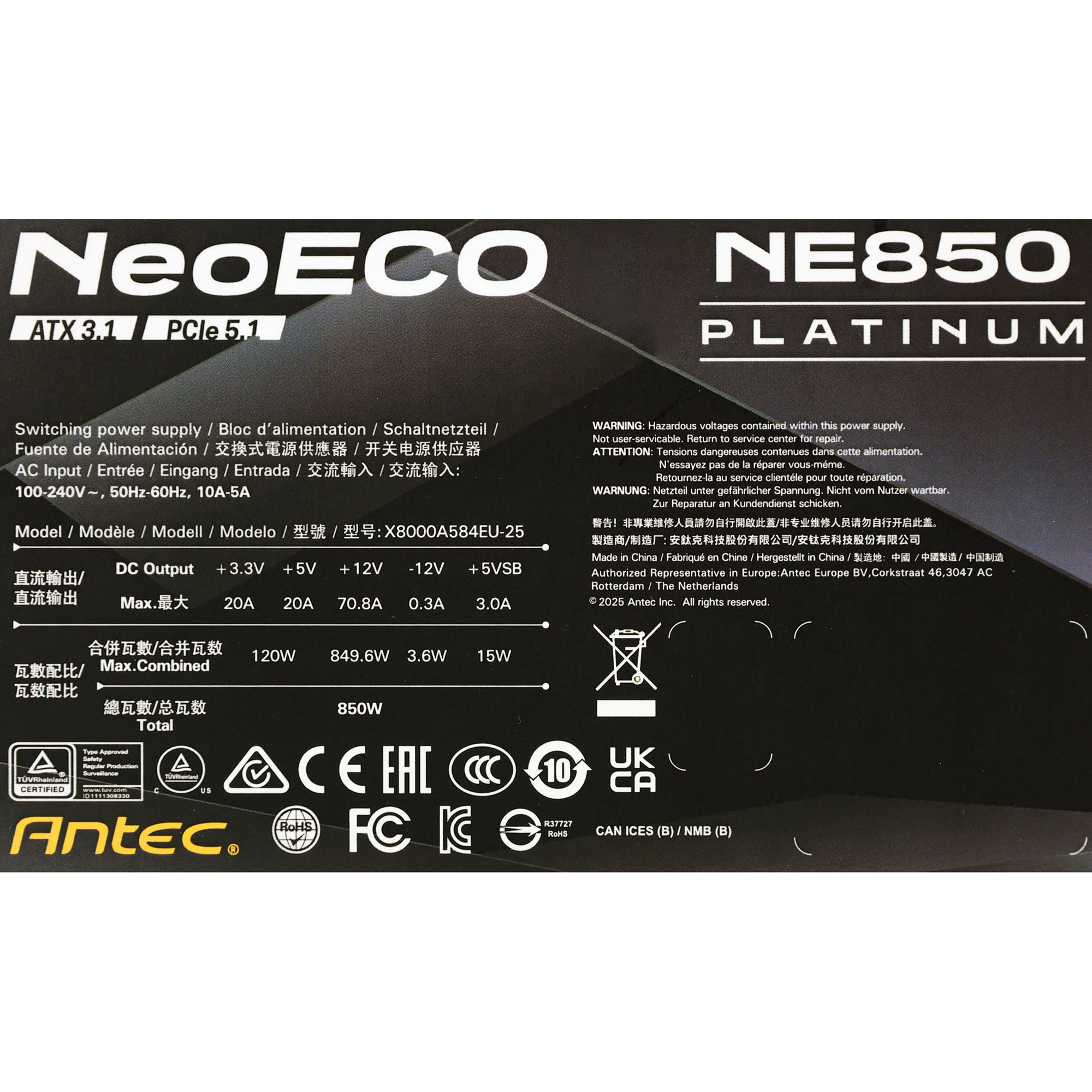

| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
