GP-UD850GM PG5 V2 / ICE
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 89.181% | 91.001% |
| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.980 | 0.923 |
| 12V Step | - | |
| 5V/3.3V Step | - | |
| Standby Power Consumption | 0.0744W | 0.2067W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 77.648% | 76.026% |
| Voltage | 115V | 230V |
|---|---|---|

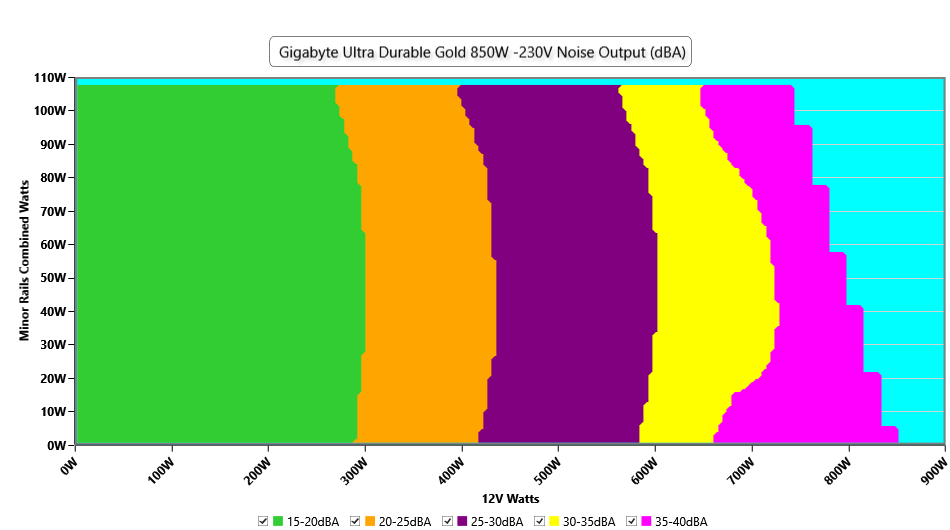

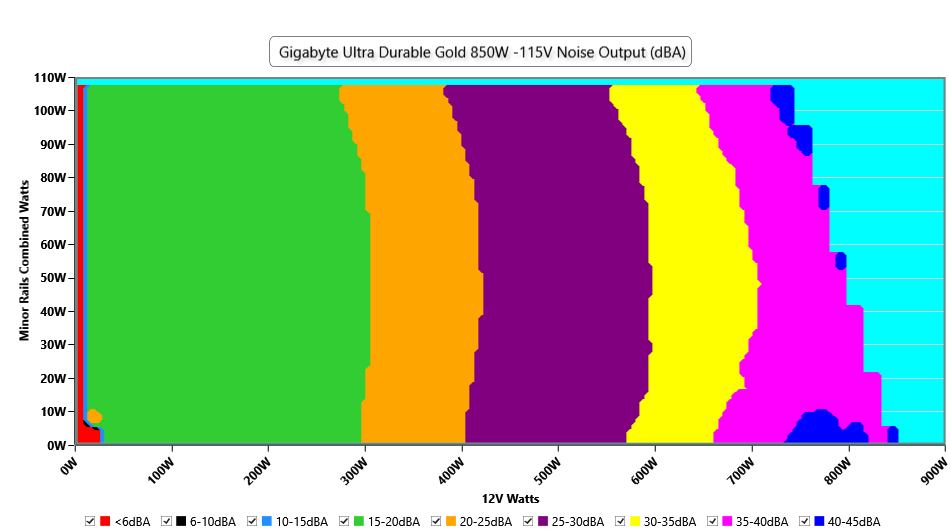

| Noise Rating (>1450 Load Combinations) | 28.01dBA | 27.50dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 67.906% |
| Hold Up Time | 26.00ms |
| Power OK | 18.70ms |
| Power OK to DC Loss | 7.30ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.663 | 4.931 | 3.310 | 4.986 |
| 10ms | 11.324 | 4.887 | 3.274 | 4.962 |
| 1ms | 11.164 | 4.855 | 3.254 | 4.952 |
| 0.1ms | 11.042 | 4.844 | 3.231 | 4.942 |
| Product Identification Details | |
| Brand | Gigabyte |
| Model | GP-UD850GM PG5 V2 / ICE |
| OEM | Guangzhou Pansheng Electronic Technology Co., Ltd |
| Serial Number | - |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6.5-12 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 50 |
| Type | ATX12V |
| Cable Design | Fully Modular |
| Warranty | No Info |
| Cybenetics | |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.35kg (2.98 lb) |
| Cooling | 120mm Rifle Bearing Fan (BK BDH12025S) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | GB85003089 |
| Date of receipt | Nov 17, 2025 |
| Testing Date | Dec 31, 2025 |
| Report Issued Date | Jan 9, 2026 |
| DUT Notes | • The results apply to both the black and white (ICE) models. • The vampire power consumption is too high for the Gold ETA rating at 230V (0.2067W). • The power factor is too low at 230V (0.923). As a result of this and the vampire power consumption, the PSU drops to Silver ETA rating at 230V. • The 5VSB rail efficiency drops below 75% at full load with a 115V AC input, but it's within the 5% limit we allow. |
| Engineer Name | Ioannis Kalyviotis |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 18AWG | Tinned Copper |
| 4+4 pin EPS12V (650mm+200mm) | 1 | 2 | 18AWG | Tinned Copper |
| 6+2 pin PCIe (600mm+145mm) | 2 | 4 | 18AWG | Tinned Copper |
| 12+4 pin PCIe (700mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (600mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| 4-pin Molex (500mm+150mm+150mm) / FDD (+150mm) | 1 | 3 / 1 | 18AWG | Tinned Copper |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✓ |
| Cooling | 120mm Rifle Bearing Fan (BK BDH12025S) |
| General Data | |
| Manufacturer (OEM) | Guangzhou Pansheng Electronic Technology Co., Ltd |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y Caps, 3x X Caps, 2x CM chokes,1x MOV |
| Inrush Protection | NTC Thermistor MF72-10D15 (10 Ohm @ 25℃) |
| Bridge Rectifier | 2x GBU1510 (1000V, 15A @ 100℃) |
| APFC MOSFETs | 2x Wuhan Xinyuan Semiconductor CWH65R125AZ (650V, 30A @ 25℃, Rds(on): 125 mOhm) |
| APFC Boost Diode | 1x CR Micro CRXF10D065G2 (650V, 10A @ 125 °C) |
| Bulk Cap(s) | 2x Toshin Kogyo (420V, 330µF each or 660µF combined, 2000h @ 105°C, LW) |
| DC Bus Filtering | JURCC 224J (0.22 µF, 750VDC, ±5 % tolerance) |
| Main Switchers | 2x Wuhan Xinyuan Semiconductor CWS60R130BZ (600V, 19A @ 100°C, Rds(on): 130mΩ) |
| APFC Controller | Champion CM6500UNX |
| Resonant Controller | Champion CM6901T2X |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x InPower Semiconductor (iPS) 014N04SA (40V, 100A @ 100℃, Rds(on):1.4mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x CR Micro 014N03L6 (30V, 100A @ 100°C, Rds(on): 1.4mOhm) PWM Controller(s): 2x ANPEC APW7164 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Grenergy GR8329E (OVP, UVP, OCP, PGO, FPO) |
| Fan Model | BOK BDH12025S (120mm, 12V, 0.18A, Rifle Bearing) |
| 5VSB Circuit | |
| Rectifier | 1x Dongke Semiconductor DK5V60R20S SBR (60V, 35A) |
| Standby PWM Controller | Excelliance MOS EM8564A |
| Photos |  |  |
| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
