Power Logic PLA08010B12HH (80mm, 12V, 0.35A, Double Ball Bearing)
5VSB Circuit
Standby PWM Controller
Power Integrations TNY278PN
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary
Efficiency Rating
SILVER
Noise Rating
A
Average Efficiency (>1450 load combinations)
88.239%
Average Noise Output (>1450 Load Combinations)
22.80dBA
Average PF (>1450 Load Combinations)
0.996
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0787W
12V Ripple (Full Load)
27.47mV
5V Ripple (Full Load)
35.12mV
3.3V Ripple (Full Load)
68.24mV
5VSB Ripple (Full Load)
20.68mV
12V Load Regulation
0.64%
5V Load Regulation
1.85%
3.3V Load Regulation
3.13%
5VSB Load Regulation
2.76%
Inrush Current
33.436A
Efficiency Rating
Noise Rating
Average Efficiency (>1450 load combinations)
90.154%
Average Noise Output (>1450 Load Combinations)
0.00dBA
Average PF (>1450 Load Combinations)
0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1615W
12V Ripple (Full Load)
24.80mV
5V Ripple (Full Load)
31.70mV
3.3V Ripple (Full Load)
66.66mV
5VSB Ripple (Full Load)
17.82mV
12V Load Regulation
0.67%
5V Load Regulation
1.93%
3.3V Load Regulation
3.33%
5VSB Load Regulation
2.84%
Inrush Current
46.241A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
Hold-Up Time & Power Ok Signal
11.10ms
AC Loss to PWR_OK Hold Up Time
8.30ms
PWR_OK Inactive to DC Loss Delay
2.80ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
0.00%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
11.1
AC Loss to PWR_OK Hold Up Time (ms)
8.3
PWR_OK Inactive to DC Loss Delay (ms)
2.8

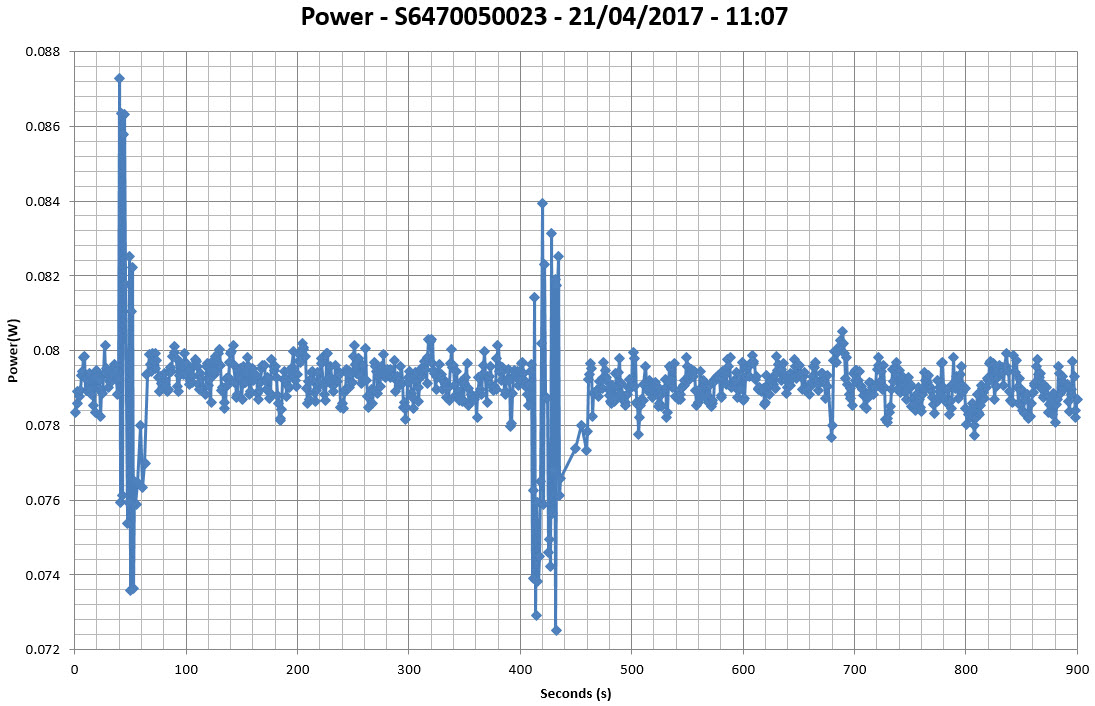

Vampire Power
Tables
Graphs
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

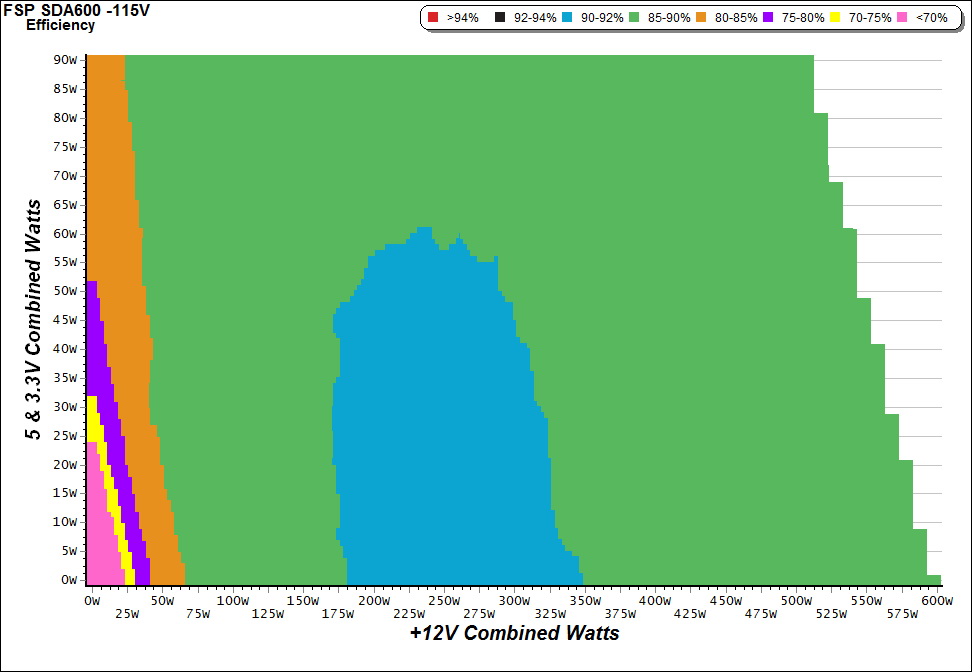

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

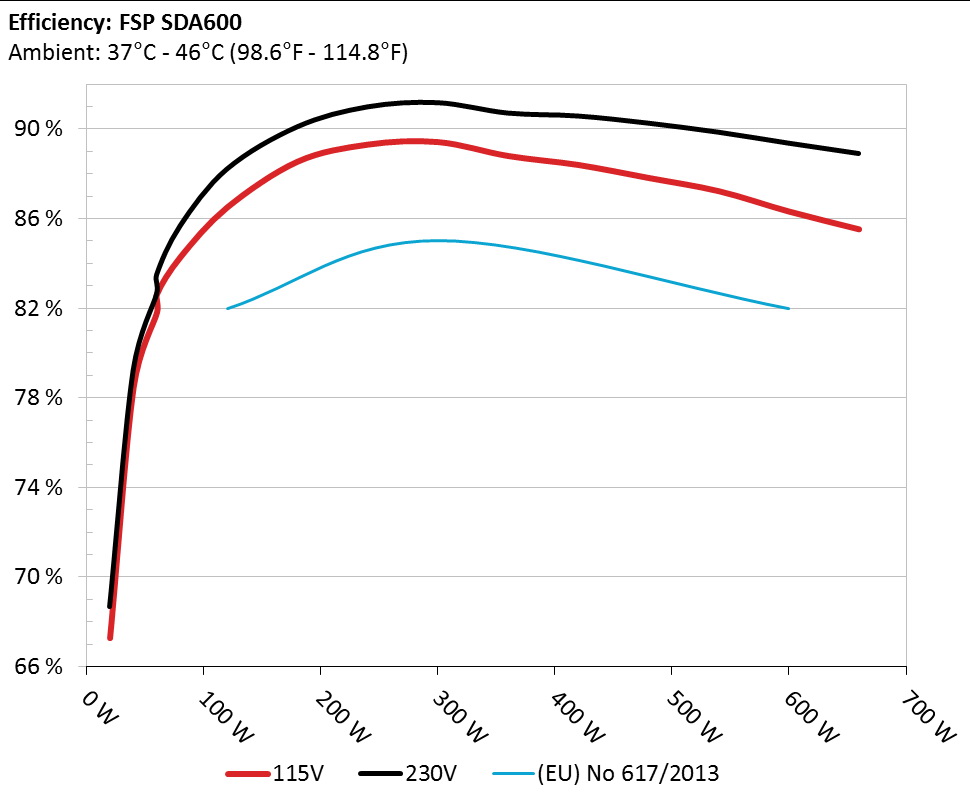

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

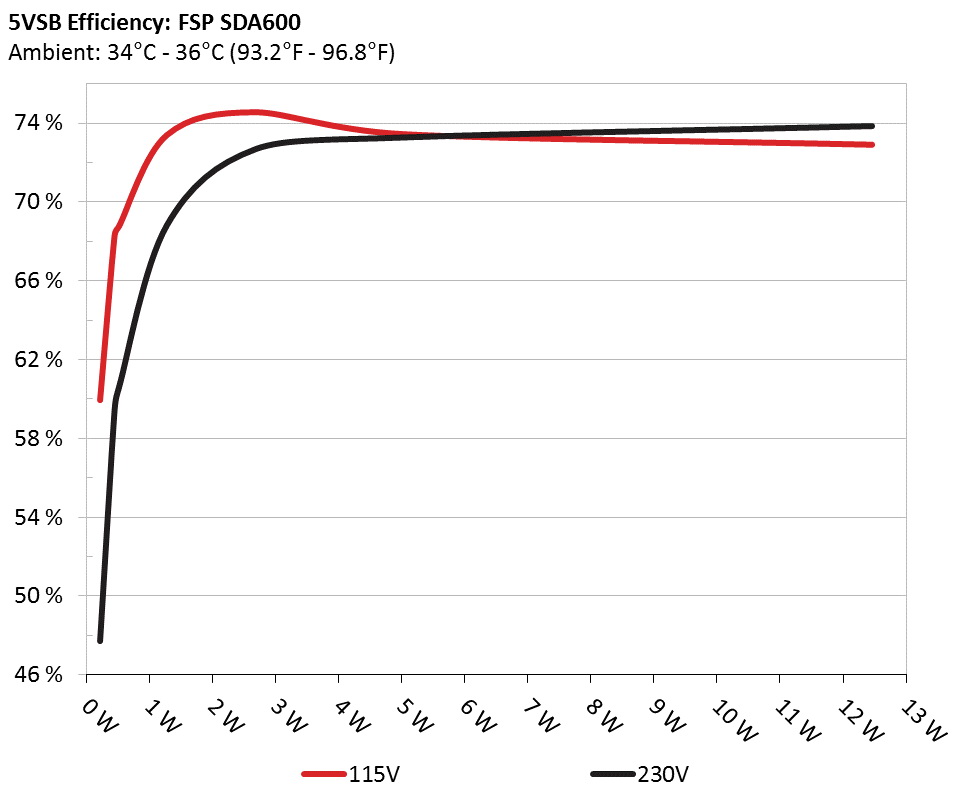

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.211
59.943%
0.043
5.049V
0.352
115.10V
2
0.088A
0.442
68.315%
0.077
5.048V
0.647
115.09V
3
0.532A
2.679
74.541%
0.296
5.036V
3.594
115.09V
4
2.501A
12.460
72.895%
0.477
4.982V
17.093
115.09V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.211
47.738%
0.016
5.048V
0.442
230.26V
2
0.088A
0.442
59.489%
0.027
5.048V
0.743
230.26V
3
0.532A
2.679
72.700%
0.124
5.035V
3.685
230.27V
4
2.501A
12.458
73.865%
0.334
4.981V
16.866
230.26V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.167A
2.010A
1.947A
0.996A
59.793
81.817%
1544
20.3
38.26°C
0.986
12.063V
4.977V
3.386V
5.013V
73.081
41.97°C
115.13V
2
7.376A
3.015A
2.932A
1.200A
119.773
86.498%
1544
20.3
38.85°C
0.995
12.053V
4.968V
3.374V
5.000V
138.469
42.80°C
115.12V
3
11.939A
3.521A
3.444A
1.400A
179.823
88.539%
1748
23.0
39.39°C
0.997
12.044V
4.959V
3.364V
4.988V
203.100
43.65°C
115.13V
4
16.497A
4.042A
3.933A
1.604A
239.753
89.300%
1851
23.8
39.91°C
0.999
12.037V
4.950V
3.354V
4.975V
268.479
44.73°C
115.12V
5
20.720A
5.060A
4.937A
1.811A
299.694
89.416%
2006
24.9
40.34°C
0.999
12.028V
4.939V
3.341V
4.963V
335.168
45.96°C
115.12V
6
24.948A
6.091A
5.947A
2.021A
359.714
88.793%
2213
25.8
41.36°C
0.999
12.021V
4.928V
3.329V
4.948V
405.122
47.75°C
115.12V
7
29.181A
7.121A
6.966A
2.225A
419.645
88.394%
2330
30.3
42.09°C
0.999
12.014V
4.914V
3.315V
4.935V
474.746
49.59°C
115.12V
8
33.419A
8.162A
7.994A
2.437A
479.608
87.815%
2768
32.3
42.68°C
0.999
12.005V
4.904V
3.302V
4.920V
546.158
51.05°C
115.12V
9
38.098A
8.688A
8.534A
2.441A
539.673
87.224%
3410
39.0
43.61°C
0.999
11.997V
4.895V
3.292V
4.912V
618.724
52.30°C
115.12V
10
42.734A
9.217A
9.050A
2.546A
599.514
86.319%
3695
41.6
44.65°C
0.999
11.988V
4.885V
3.283V
4.903V
694.535
54.24°C
115.14V
11
47.762A
9.233A
9.070A
2.552A
659.480
85.523%
3695
41.6
45.67°C
0.999
11.982V
4.875V
3.274V
4.894V
771.114
56.61°C
115.11V
CL1
0.099A
11.017A
11.005A
0.005A
92.236
83.120%
2238
26.1
43.22°C
0.995
12.067V
4.934V
3.331V
5.017V
110.967
52.12°C
115.12V
CL2
49.954A
1.003A
1.002A
1.002A
612.523
86.963%
3659
40.8
44.05°C
0.999
11.997V
4.909V
3.325V
4.959V
704.346
52.96°C
115.11V
The results above are not used in the certification process
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
PF/AC Volts
1
1.210A
0.503A
0.470A
0.196A
19.673
67.286%
1275
18.3
0.924
12.069V
4.975V
3.392V
5.042V
29.238
115.13V
2
2.447A
1.001A
0.972A
0.396A
39.786
78.472%
1359
18.6
0.968
12.065V
4.973V
3.389V
5.034V
50.701
115.13V
3
3.684A
1.497A
1.475A
0.596A
59.854
82.647%
1415
19.1
0.985
12.061V
4.975V
3.388V
5.026V
72.421
115.13V
4
4.910A
2.014A
1.949A
0.796A
79.807
84.282%
1506
19.5
0.991
12.059V
4.973V
3.384V
5.017V
94.690
115.13V
The results above are not used in the certification process
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
17.4 mV
21.4 mV
26.6 mV
10.6 mV
Pass
20% Load
19.3 mV
20.5 mV
29.5 mV
11.4 mV
Pass
30% Load
25.1 mV
22.7 mV
34.1 mV
11.5 mV
Pass
40% Load
21.2 mV
23.3 mV
38.9 mV
11.4 mV
Pass
50% Load
22.6 mV
25.6 mV
43.7 mV
11.8 mV
Pass
60% Load
22.0 mV
27.5 mV
49.6 mV
16.1 mV
Pass
70% Load
23.0 mV
29.2 mV
54.9 mV
19.7 mV
Fail
80% Load
23.2 mV
30.0 mV
62.5 mV
17.3 mV
Fail
90% Load
27.1 mV
33.2 mV
63.7 mV
18.1 mV
Fail
100% Load
27.5 mV
35.1 mV
68.2 mV
20.7 mV
Fail
110% Load
27.9 mV
36.6 mV
72.6 mV
21.6 mV
Fail
Crossload 1
18.6 mV
21.0 mV
33.0 mV
6.1 mV
Pass
Crossload 2
26.2 mV
24.5 mV
72.6 mV
17.5 mV
Fail
The results above are not used in the certification process
The results above are not used in the certification process
FSP Technology Inc. Dagger 600W
Top side

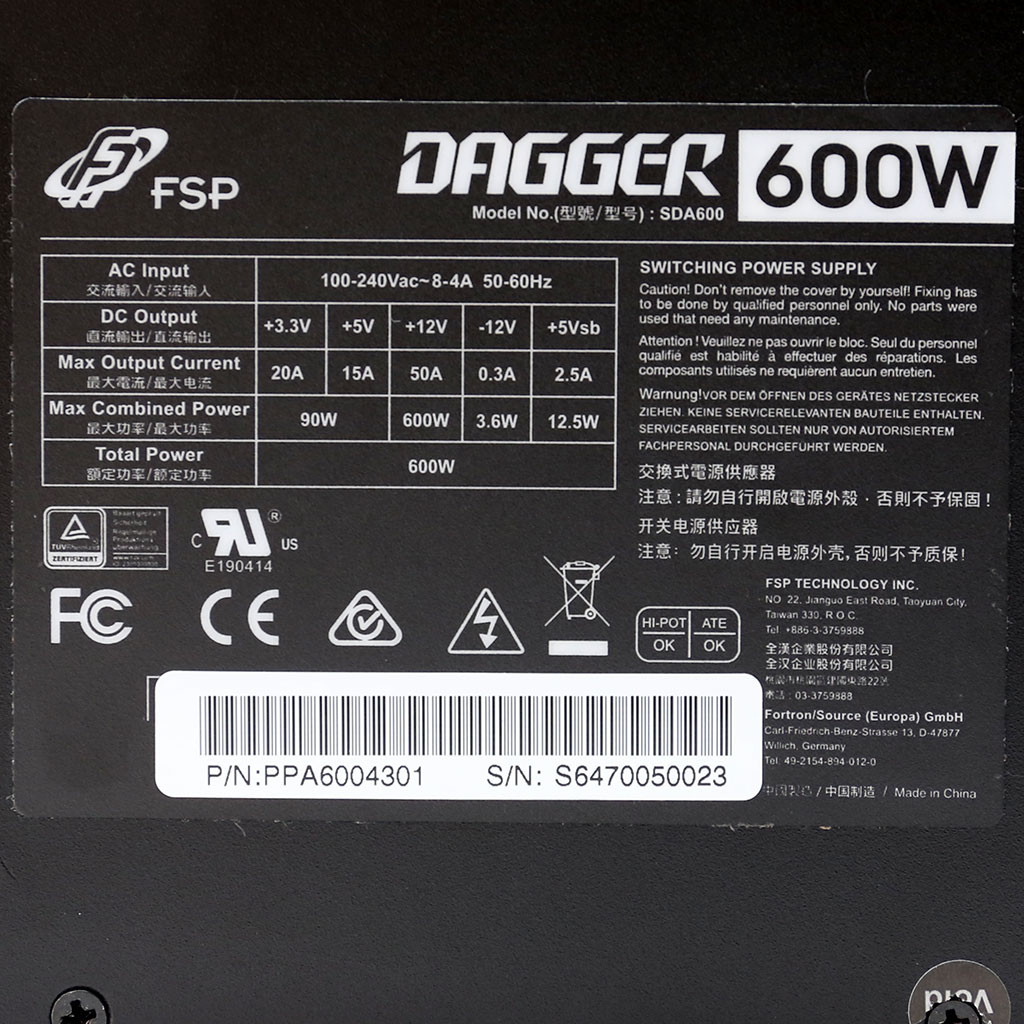

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
