CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Fractal Design ION SFX G 650
Serial Number1932FD20230100021
Lab IDFD19650128
  • Report: 19PS872A
  • Receipt Date: Oct 10, 2019
  • Test Date: Oct 15, 2019
  • Report Date: Oct 18, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandFractal Design
Manufacturer (OEM)Seasonic
SeriesION SFX G
Model NumberION 650G-BK
Serial Number1932FD20230100021
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-4
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeSFX-L
Cooling120mm Fluid Dynamic Bearing Fan
(S1201512HB)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts100648153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (350mm) 1 1 18-22AWG No
4+4 pin EPS12V (400mm) 1 1 18AWG No
6+2 pin PCIe (400mm+100mm) 2 4 18AWG No
SATA (310mm+200mm+200mm+100mm) 2 8 18AWG No
4-pin Molex (310mm+200mm) 1 2 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Champion GPT18N50D (500V, 18A, 0.27Ohm)
APFC Boost Diode 1x STTH8S06 (600V, 8A)
Hold-up Cap(s) 1x Nichicon (400V, 470uF, 2,000h @ 105°C, GG)
Main Switchers 2x Infineon IPP50R190CE (550V, 15.7A @ 100°C, 0.19Ohm)
APFC Controller Champion CM6500UNX
Resonant Controllers Champion CM6901T6
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN1R8-40YLC (40V, 100A @ 100°C, 3.25mOhm @ 150°C)
5V & 3.3V 2x DC-DC Converters
Filtering Capacitors Electrolytics: 9x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Nippon Chemi-Con (105°C, W), 1x Nichicon (4-10,000h @ 105°C, HE)
Polymers: 4x United Chemi-Con, 20x FPCAP
Supervisor IC Weltrend WT7527V (OCP, OVP, UVP, SCP, PG)
Fan Model Globe Fan S1201512HB (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x MCC MPR1045ULPS SBR (45V, 10A @ 90°C)
Standby PWM Controller Excelliance MOS Corp EM8569

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.6
AC Loss to PWR_OK Hold Up Time (ms)17.6
PWR_OK Inactive to DC Loss Delay (ms)4

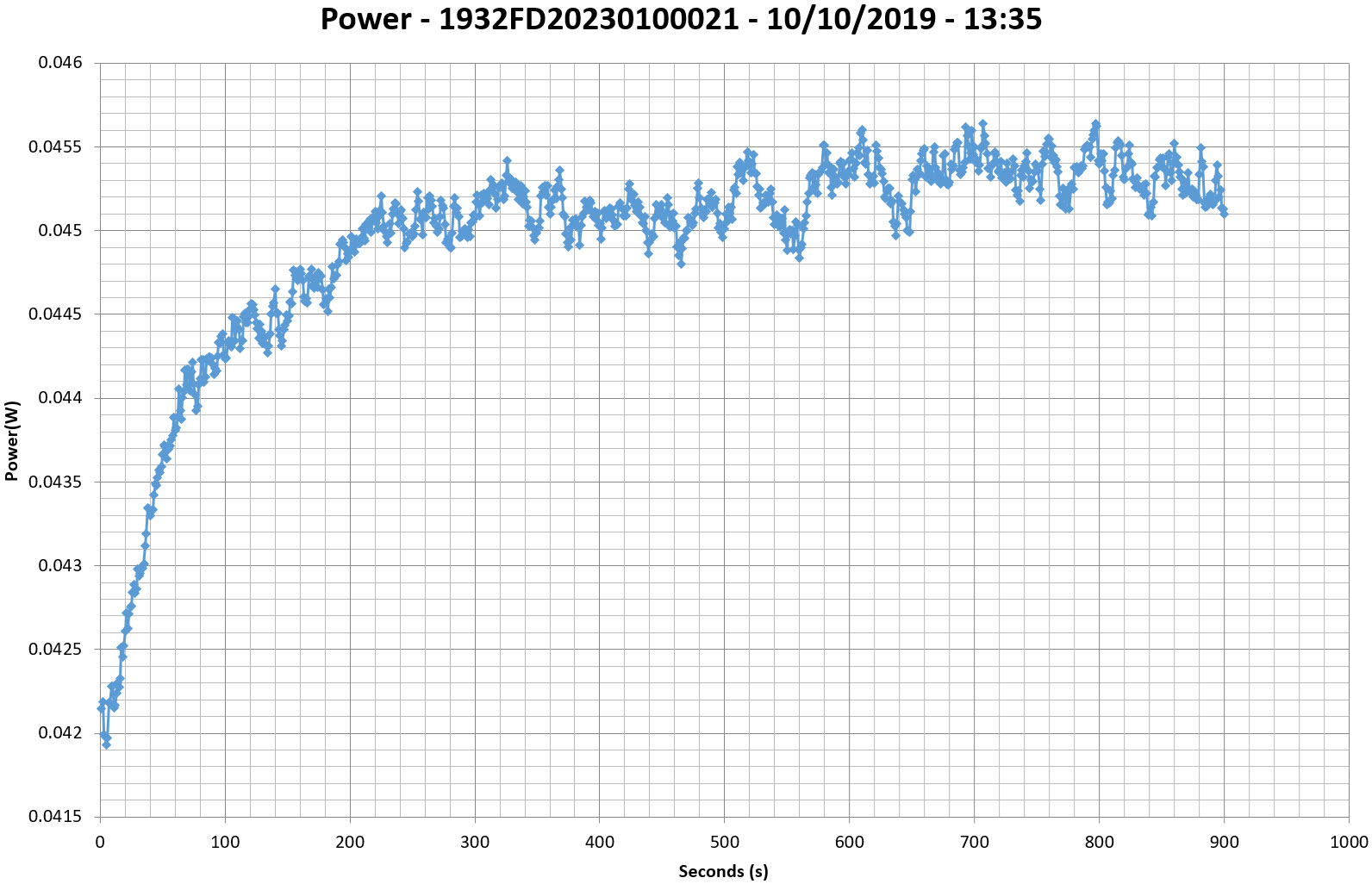

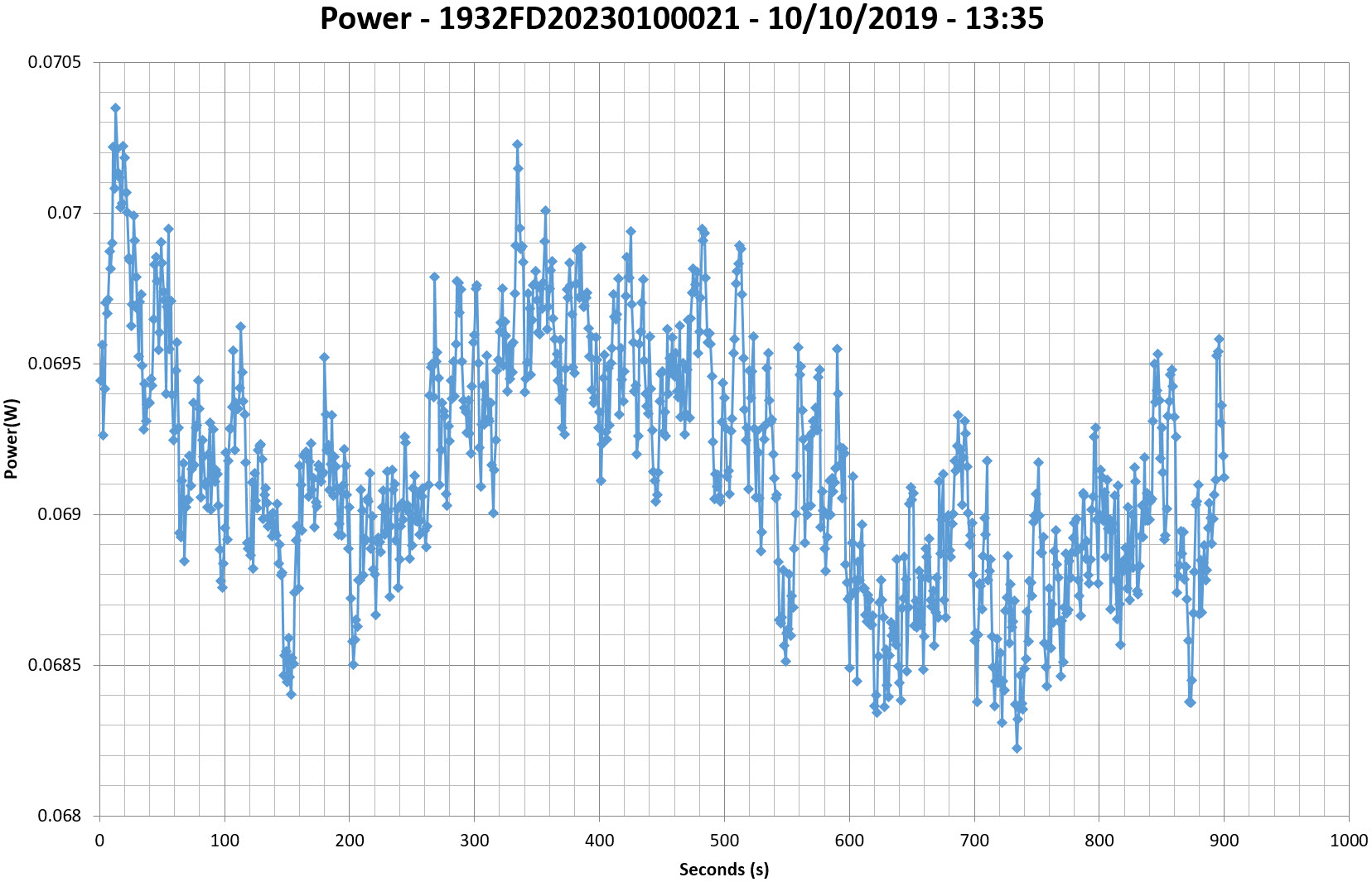

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

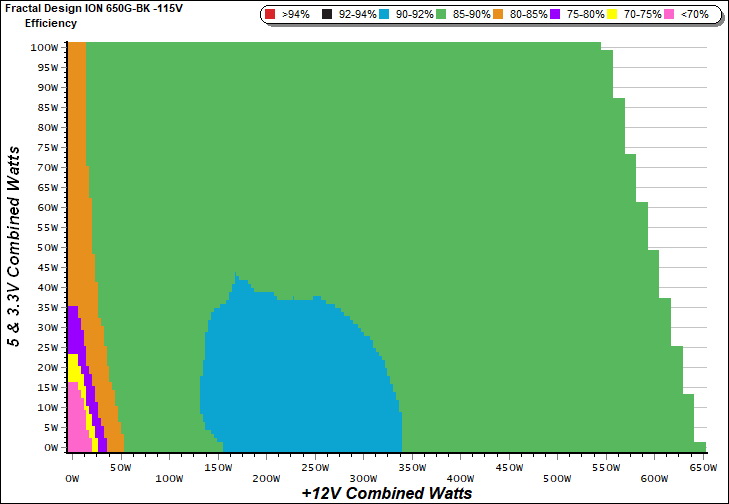

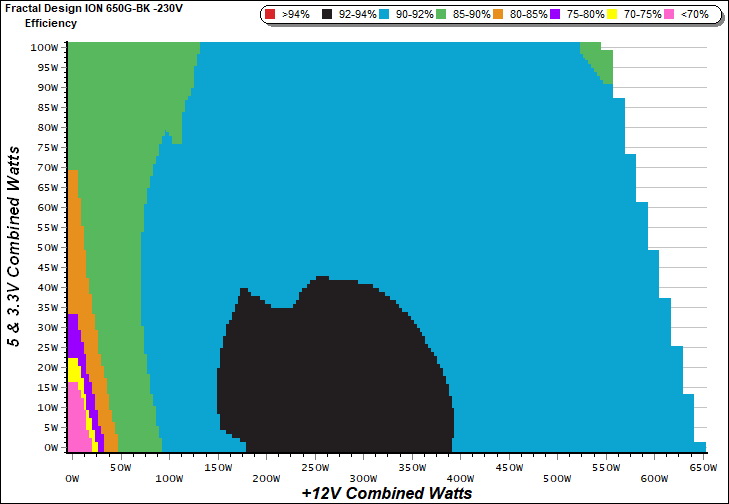

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

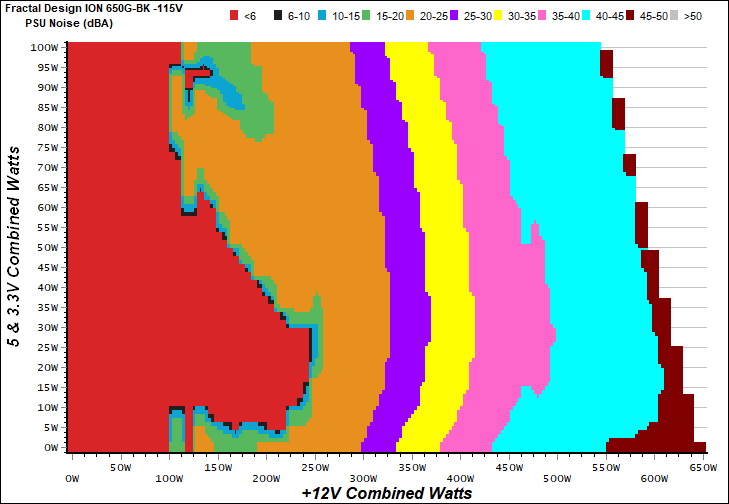

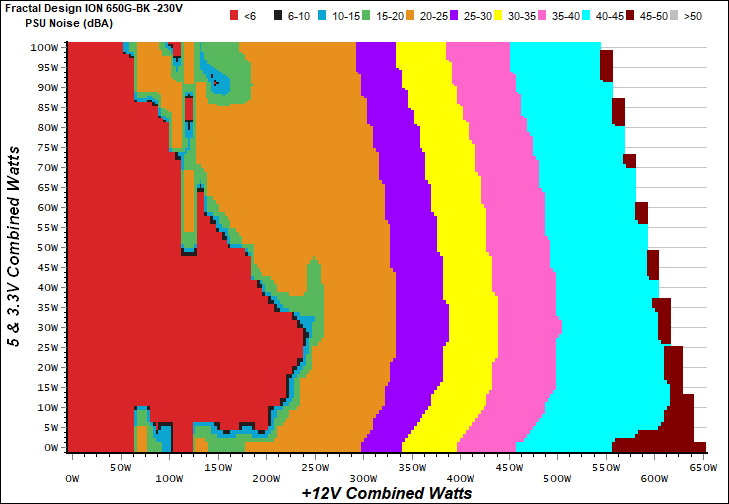

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

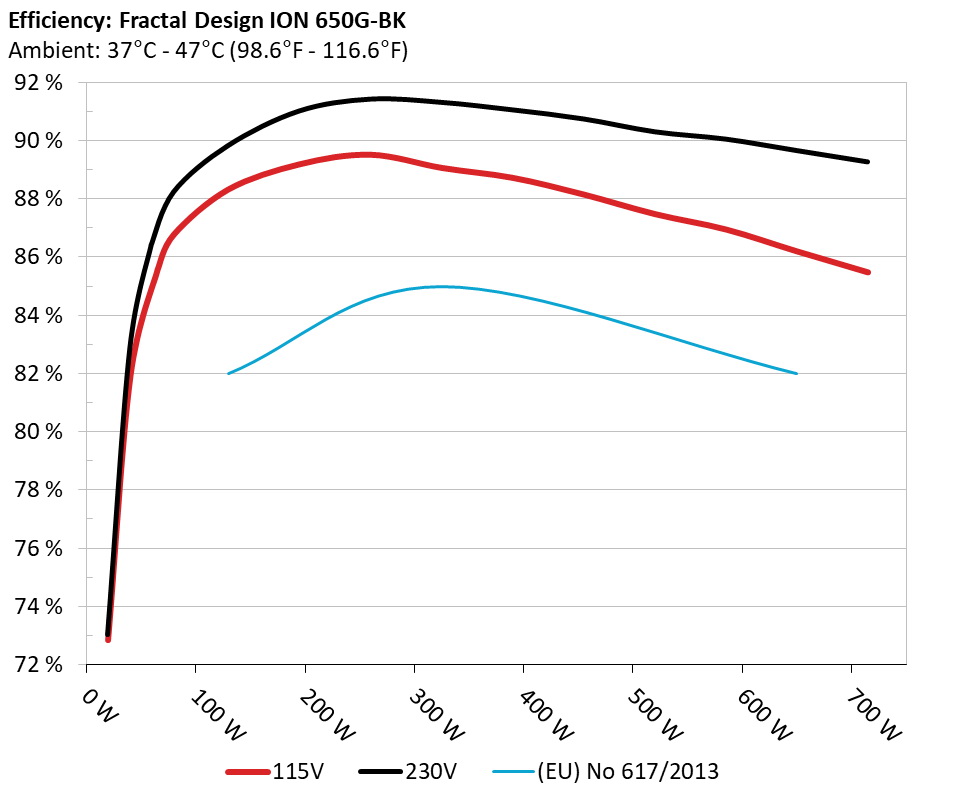

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

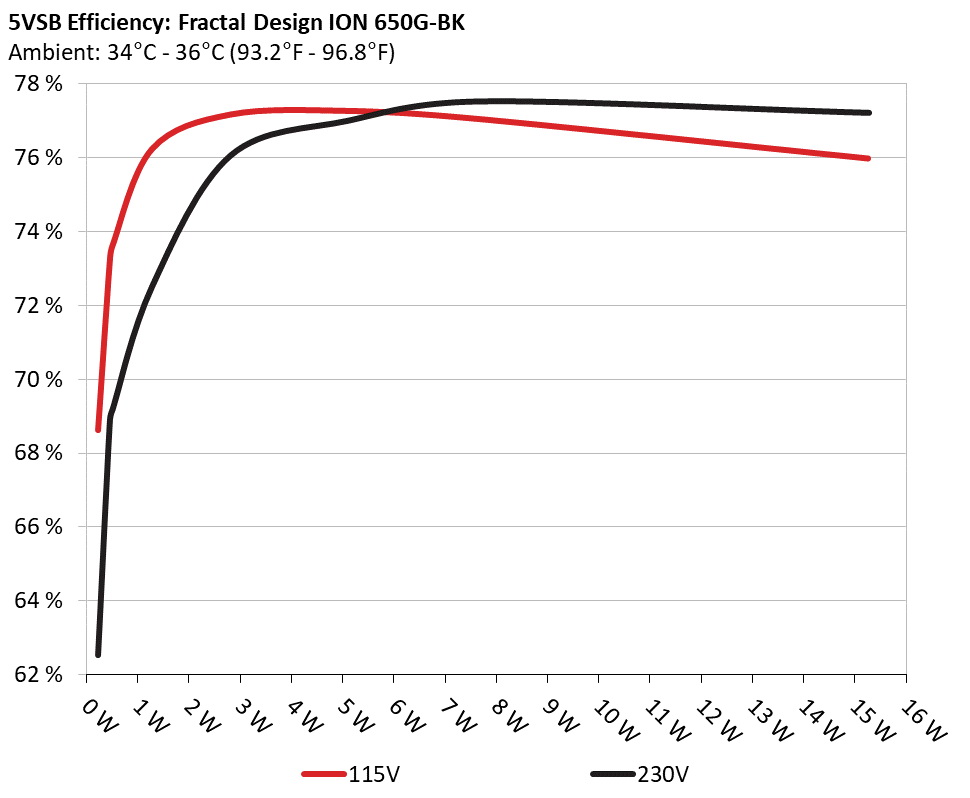

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 68.639% 0.056
5.137V 0.338 115.12V
2 0.090A 0.463 73.259% 0.101
5.136V 0.632 115.12V
3 0.550A 2.821 77.182% 0.338
5.128V 3.655 115.12V
4 1.000A 5.122 77.278% 0.407
5.122V 6.628 115.12V
5 1.500A 7.672 77.059% 0.442
5.114V 9.956 115.12V
6 3.000A 15.265 75.991% 0.487
5.088V 20.088 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 62.534% 0.019
5.137V 0.371 230.24V
2 0.090A 0.463 68.899% 0.034
5.136V 0.672 230.24V
3 0.550A 2.821 76.058% 0.163
5.128V 3.709 230.24V
4 1.000A 5.122 76.999% 0.244
5.121V 6.652 230.25V
5 1.500A 7.672 77.518% 0.299
5.114V 9.897 230.25V
6 3.000A 15.275 77.209% 0.376
5.091V 19.784 230.24V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.634A 1.971A 1.972A 0.977A 64.936 84.894% 876 20.0 40.09°C 0.927
11.920V 5.077V 3.351V 5.121V 76.491 44.57°C 115.12V
2 8.268A 2.959A 2.961A 1.174A 129.453 88.310% 896 20.8 40.43°C 0.952
11.918V 5.071V 3.346V 5.113V 146.590 45.25°C 115.12V
3 13.306A 3.454A 3.441A 1.371A 194.553 89.177% 907 21.5 41.06°C 0.966
11.915V 5.069V 3.343V 5.105V 218.164 46.20°C 115.12V
4 18.341A 3.949A 3.951A 1.570A 259.748 89.508% 1048 26.4 41.22°C 0.973
11.915V 5.068V 3.341V 5.097V 290.196 47.03°C 115.12V
5 23.048A 4.937A 4.940A 1.769A 325.093 89.054% 1551 37.1 42.81°C 0.979
11.913V 5.067V 3.341V 5.089V 365.052 49.14°C 115.12V
6 27.691A 5.926A 5.931A 1.969A 389.594 88.716% 1704 40.5 42.92°C 0.981
11.909V 5.065V 3.339V 5.080V 439.149 50.01°C 115.12V
7 32.398A 6.913A 6.923A 2.169A 454.888 88.141% 1980 43.6 43.56°C 0.982
11.907V 5.065V 3.338V 5.072V 516.089 51.24°C 115.12V
8 37.106A 7.902A 7.912A 2.371A 520.206 87.465% 2044 45.8 44.19°C 0.984
11.906V 5.064V 3.337V 5.063V 594.759 52.45°C 115.12V
9 42.213A 8.397A 8.394A 2.373A 585.108 86.938% 2049 45.9 44.27°C 0.986
11.906V 5.063V 3.336V 5.058V 673.021 53.19°C 115.11V
10 47.058A 8.891A 8.906A 2.975A 649.946 86.187% 2056 46.2 45.71°C 0.988
11.905V 5.063V 3.335V 5.043V 754.113 54.90°C 115.12V
11 52.503A 8.891A 8.904A 2.978A 714.774 85.466% 2055 46.2 46.54°C 0.990
11.905V 5.063V 3.336V 5.039V 836.325 56.25°C 115.11V
CL1 0.148A 12.003A 12.000A 0.000A 102.687 82.995% 1457 35.5 42.96°C 0.946
11.927V 5.066V 3.343V 5.125V 123.727 49.60°C 115.13V
CL2 54.021A 1.003A 1.001A 1.000A 656.529 86.852% 2058 46.2 45.51°C 0.988
11.903V 5.073V 3.343V 5.082V 755.914 54.84°C 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.638A 1.971A 1.969A 0.977A 64.966 86.410% 0 <6.0 44.40°C 0.769
11.920V 5.076V 3.349V 5.120V 75.183 40.56°C 230.27V
2 8.271A 2.960A 2.959A 1.174A 129.495 89.809% 897 20.8 40.87°C 0.879
11.918V 5.073V 3.347V 5.112V 144.189 45.10°C 230.27V
3 13.309A 3.454A 3.441A 1.372A 194.605 91.001% 902 20.9 41.15°C 0.918
11.916V 5.069V 3.343V 5.105V 213.849 46.24°C 230.28V
4 18.350A 3.949A 3.951A 1.570A 259.815 91.412% 1019 25.3 41.47°C 0.937
11.913V 5.067V 3.341V 5.097V 284.223 47.12°C 230.28V
5 23.053A 4.937A 4.941A 1.769A 325.124 91.301% 1389 34.6 42.67°C 0.950
11.912V 5.066V 3.340V 5.089V 356.103 48.70°C 230.28V
6 27.691A 5.926A 5.932A 1.969A 389.652 91.045% 1667 39.0 42.76°C 0.958
11.911V 5.065V 3.339V 5.080V 427.977 49.19°C 230.28V
7 32.396A 6.914A 6.921A 2.169A 454.952 90.732% 1914 42.7 43.46°C 0.963
11.910V 5.064V 3.338V 5.072V 501.422 50.25°C 230.28V
8 37.103A 7.901A 7.913A 2.371A 520.243 90.290% 2046 45.8 43.74°C 0.967
11.908V 5.064V 3.337V 5.063V 576.194 51.25°C 230.28V
9 42.207A 8.396A 8.394A 2.373A 585.125 90.038% 2049 45.9 44.28°C 0.970
11.908V 5.064V 3.336V 5.059V 649.864 52.61°C 230.28V
10 47.049A 8.892A 8.904A 2.974A 649.940 89.645% 2057 46.2 45.63°C 0.972
11.907V 5.063V 3.336V 5.045V 725.019 54.73°C 230.27V
11 52.493A 8.888A 8.905A 2.977A 714.754 89.258% 2058 46.2 46.60°C 0.975
11.907V 5.064V 3.336V 5.040V 800.773 56.33°C 230.27V
CL1 0.146A 12.003A 11.999A 0.000A 102.648 84.854% 1273 31.7 42.24°C 0.860
11.926V 5.066V 3.342V 5.125V 120.970 48.84°C 230.27V
CL2 54.020A 1.002A 0.999A 1.000A 656.503 90.294% 2058 46.2 45.51°C 0.972
11.903V 5.071V 3.342V 5.083V 727.074 54.45°C 230.26V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.222A 0.493A 0.476A 0.195A 19.665 72.831% 0 <6.0 0.815
11.917V 5.082V 3.354V 5.136V 27.001 115.13V
2 2.496A 0.983A 0.985A 0.390A 40.042 81.889% 0 <6.0 0.896
11.917V 5.080V 3.352V 5.132V 48.898 115.13V
3 3.705A 1.478A 1.461A 0.585A 59.553 85.554% 0 <6.0 0.921
11.918V 5.077V 3.350V 5.127V 69.609 115.13V
4 4.979A 1.970A 1.970A 0.781A 79.942 86.770% 0 <6.0 0.932
11.919V 5.076V 3.349V 5.123V 92.131 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.221A 0.493A 0.478A 0.195A 19.659 73.030% 0 <6.0 0.518
11.918V 5.080V 3.352V 5.135V 26.919 230.27V
2 2.495A 0.986A 0.984A 0.390A 40.041 82.880% 0 <6.0 0.673
11.918V 5.078V 3.351V 5.131V 48.312 230.27V
3 3.705A 1.478A 1.464A 0.585A 59.561 86.323% 0 <6.0 0.752
11.918V 5.076V 3.349V 5.127V 68.998 230.27V
4 4.980A 1.972A 1.970A 0.781A 79.956 88.224% 0 <6.0 0.807
11.918V 5.075V 3.348V 5.122V 90.628 230.27V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 18.3 mV 8.8 mV 10.3 mV 6.4 mV Pass
20% Load 17.8 mV 10.8 mV 13.3 mV 7.3 mV Pass
30% Load 16.0 mV 11.5 mV 14.9 mV 8.2 mV Pass
40% Load 16.0 mV 12.1 mV 15.4 mV 8.8 mV Pass
50% Load 16.9 mV 11.9 mV 15.6 mV 9.5 mV Pass
60% Load 17.5 mV 12.7 mV 16.3 mV 9.9 mV Pass
70% Load 17.9 mV 13.3 mV 16.9 mV 11.2 mV Pass
80% Load 18.3 mV 13.6 mV 18.4 mV 11.3 mV Pass
90% Load 17.4 mV 14.1 mV 17.8 mV 11.7 mV Pass
100% Load 26.5 mV 15.0 mV 17.7 mV 13.8 mV Pass
110% Load 27.4 mV 14.8 mV 18.1 mV 14.6 mV Pass
Crossload 1 24.7 mV 12.2 mV 15.1 mV 7.6 mV Pass
Crossload 2 26.1 mV 13.0 mV 16.1 mV 13.0 mV Pass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load18.20mV8.40mV8.00mV5.90mVPass
20% Load18.30mV9.30mV10.40mV6.60mVPass
30% Load15.10mV10.50mV11.20mV7.30mVPass
40% Load15.50mV11.00mV12.50mV8.20mVPass
50% Load16.20mV11.10mV12.90mV8.40mVPass
60% Load16.50mV12.10mV14.10mV8.80mVPass
70% Load16.90mV12.90mV14.80mV9.20mVPass
80% Load17.40mV13.00mV15.60mV10.00mVPass
90% Load17.60mV13.40mV16.40mV10.60mVPass
100% Load25.30mV14.90mV17.10mV12.90mVPass
110% Load26.40mV14.70mV17.00mV12.50mVPass
Crossload123.00mV11.10mV12.50mV7.30mVPass
Crossload224.20mV13.40mV15.20mV11.10mVPass

The results above are not used in the certification process

Fractal Design ION SFX G 650

Top side

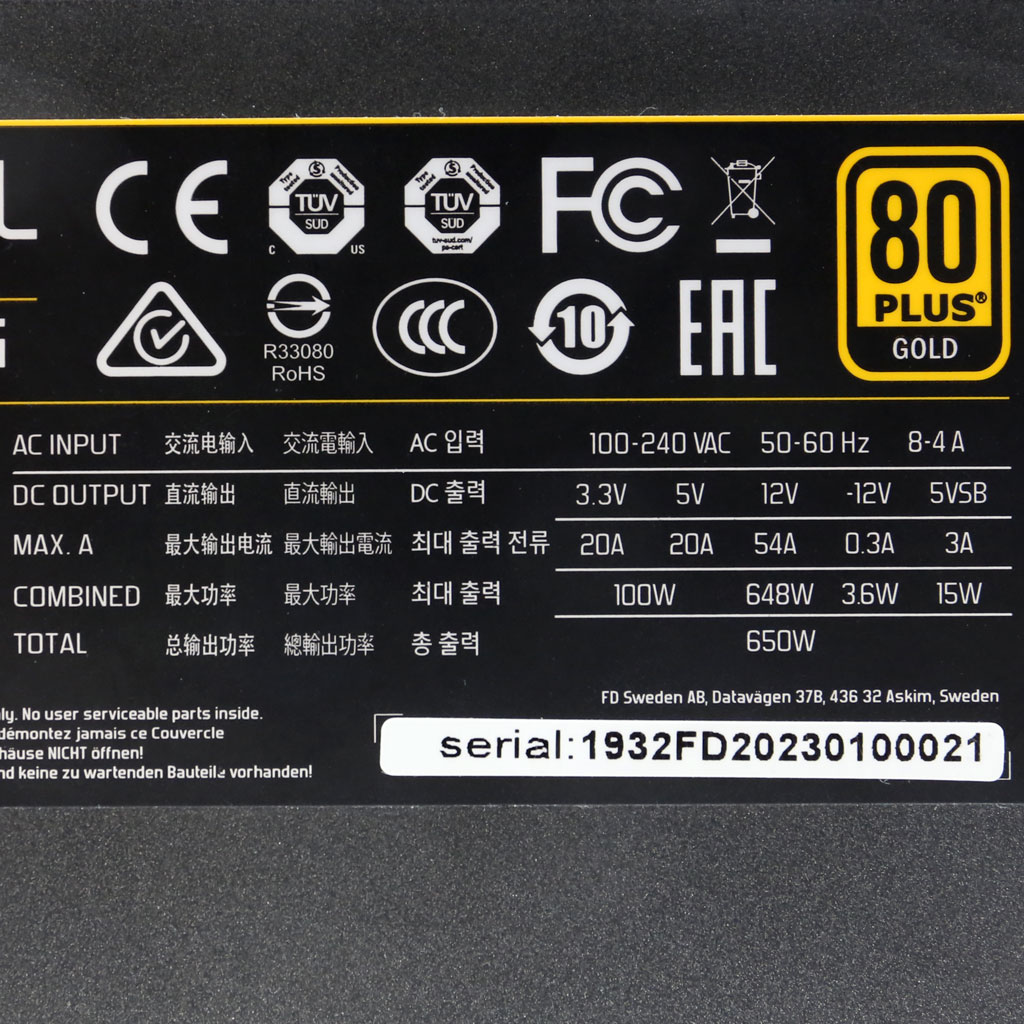

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
