CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Super Flower Leadex III Gold 650W rev.3 (mode 1)
Serial NumberS1906198802
Lab IDSF19650062
  • Report:
  • Receipt Date: Jun 20, 2019
  • Test Date: Feb 7, 2019
  • Report Date: Jul 17, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III Gold
Model NumberSF-650F14HG rev.3
Serial NumberS1906198802
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling130mm Fluid Dynamic Bearing
(S1282412L)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.130.5
Watts100649.2156
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (550mm+150mm) 2 4 18-20AWG Yes
SATA (550mm+120mm+120mm) 2 6 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
Platform Model Leadex III
PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA50R199CP (550V, 11A @ 100°C, 0.199Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8R06D (600V, 8A @ 130°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2000h @ 105°C, KMQ)
Main Switchers 2x Infineon IPA50R199CP (550V, 11A @ 100°C, 0.199Ohm)
APFC Controller SF29603
Resonant Controllers SF29605 & S9602
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP041N04N (40V, 80A @ 100°C, 4.1mOhm)
5V & 3.3V DC-DC Converters:6x Alpha & Omega AON6516 (30V, 25A @ 100°C, 8mOhm)
PWM Controllers: 2x ON Semiconductor NCP1587A
Filtering Capacitors Electrolytics: 7x Nichicon (2-5,000h @ 105°C, HD), 2x Nichicon (4-10,000h @ 105°C, HE), 2x Nichicon (5-6,000h @ 105°C, HV), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Nippon Chemi-Con (1-2,000h @ 105°C, KMG), 8x United Chemi-Con (1,000h @ 105°C, KRG)
Polymers: 3x FPCAP, 7x Teapo
Supervisor IC SF29603
Fan Model Globe Fan S1282412L (130mm, 12V, 0.18A, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier 1x PFC Device PFR20L60CT SBR (60V, 20A)
Standby PWM Controller SF29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.9
AC Loss to PWR_OK Hold Up Time (ms)22.4
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Graphs

INFO

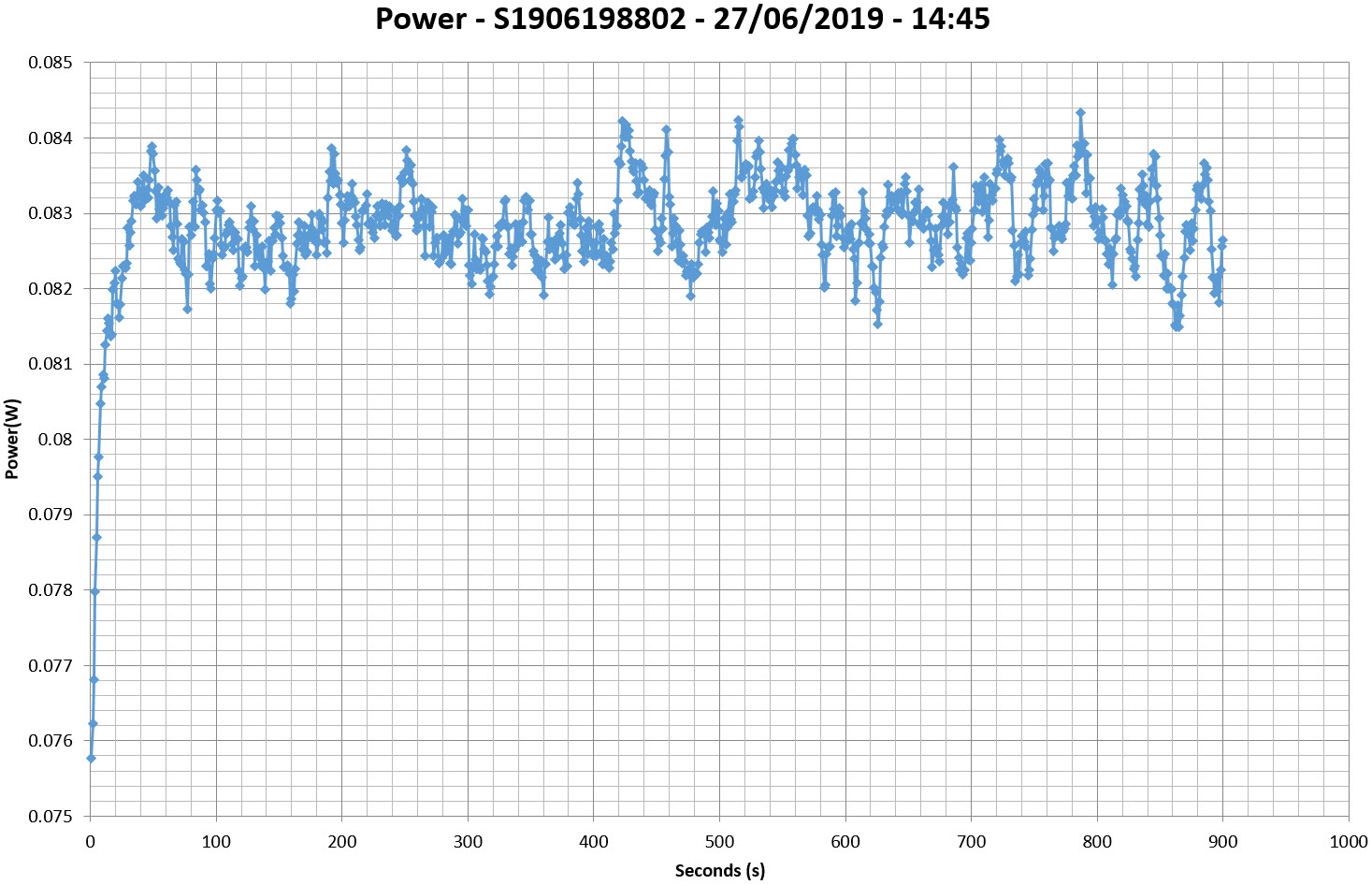

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

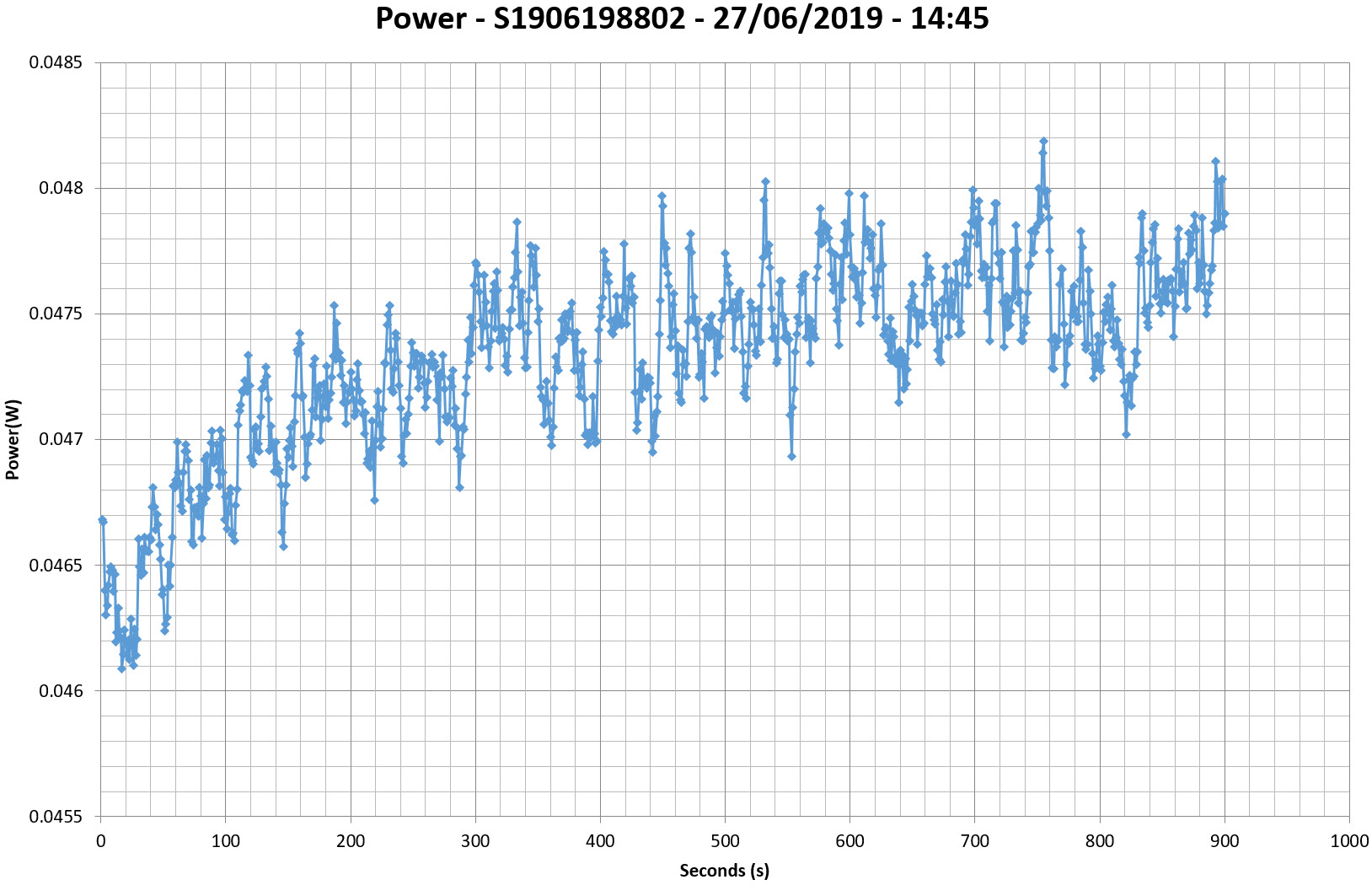

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

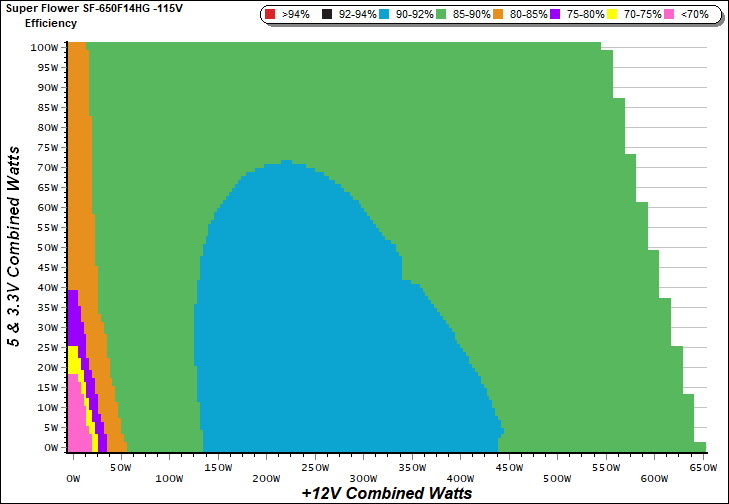

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

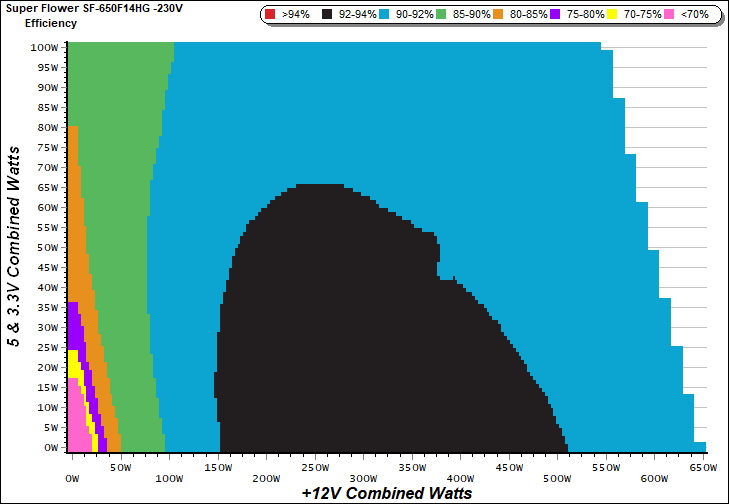

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

INFO

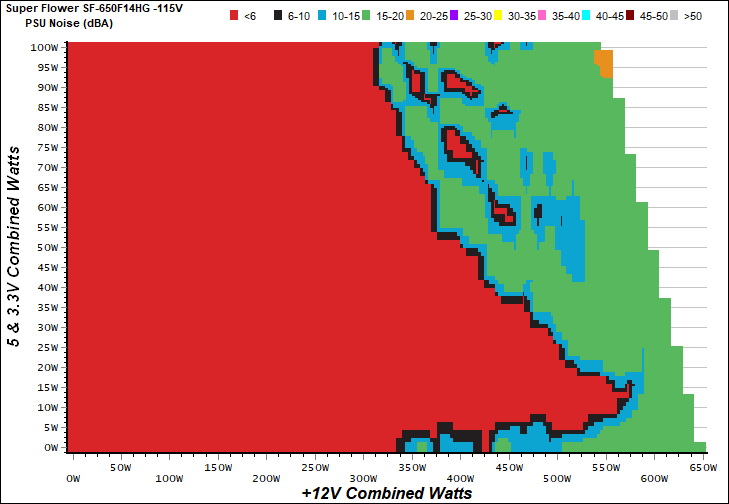

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

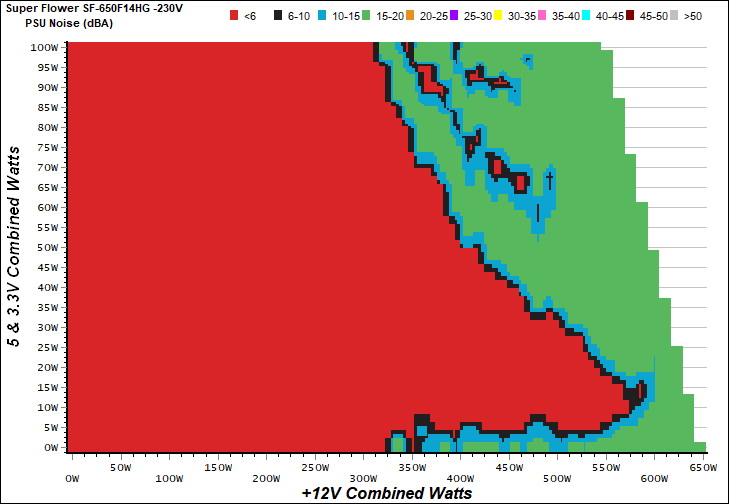

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

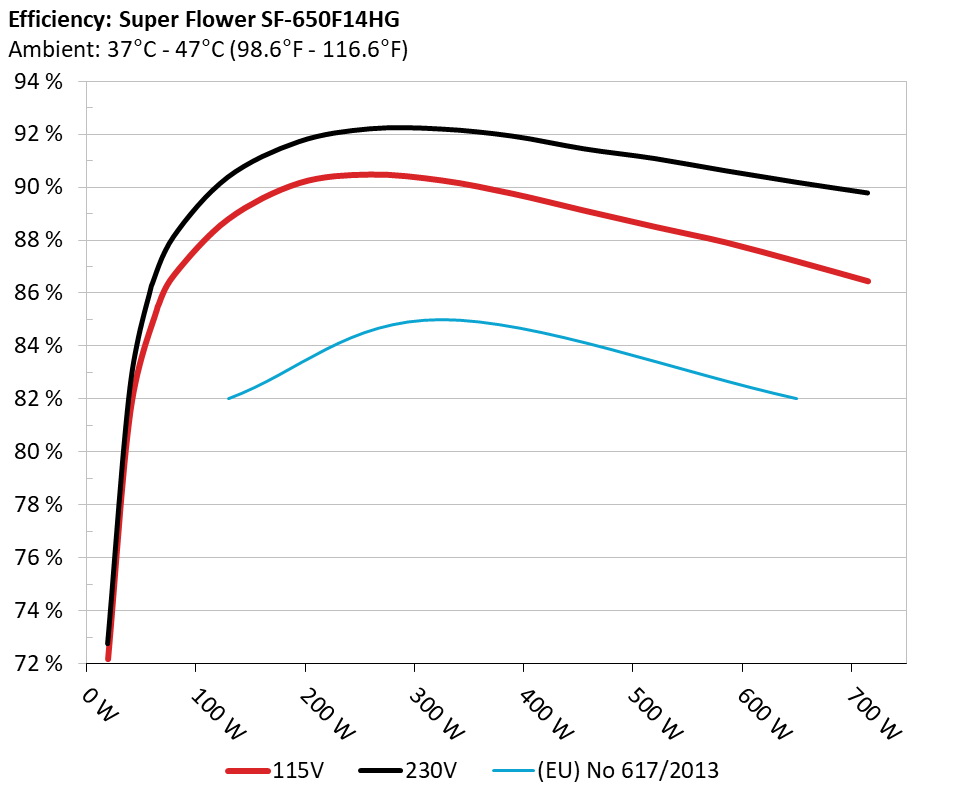

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

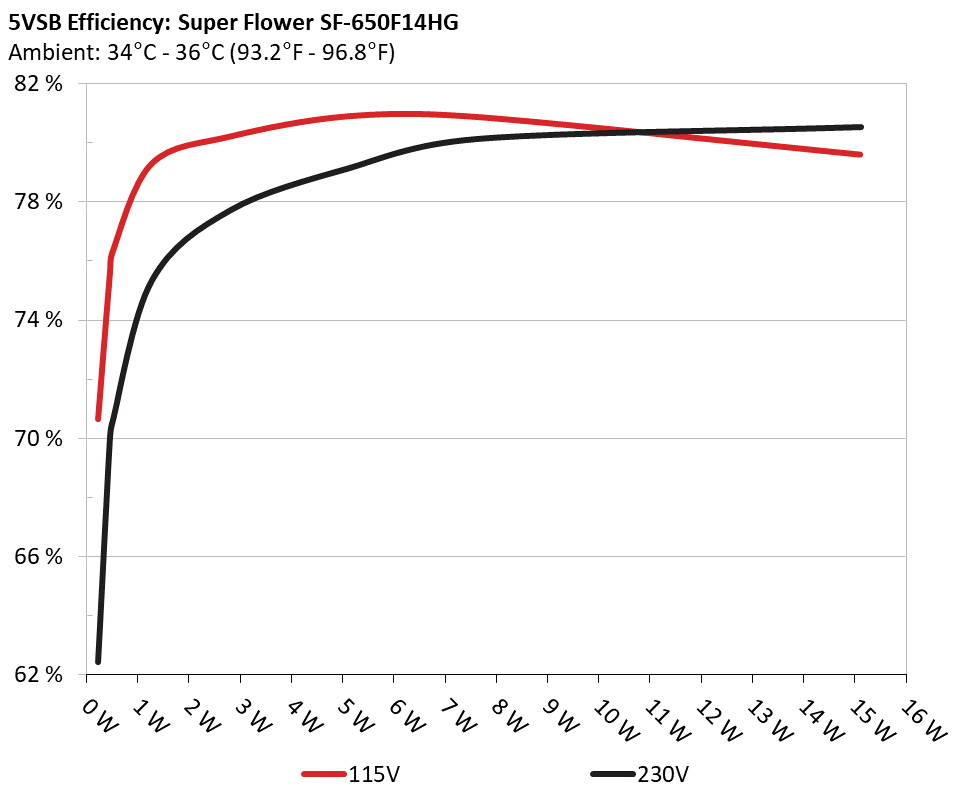

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 70.642% 0.025
5.123V 0.327 115.17V
2 0.090A 0.461 75.574% 0.046
5.122V 0.610 115.17V
3 0.550A 2.811 80.223% 0.221
5.110V 3.504 115.17V
4 1.000A 5.098 80.908% 0.318
5.098V 6.301 115.17V
5 1.500A 7.625 80.885% 0.380
5.083V 9.427 115.16V
6 2.999A 15.097 79.609% 0.463
5.034V 18.964 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 62.432% 0.008
5.123V 0.370 230.35V
2 0.090A 0.462 70.000% 0.015
5.122V 0.660 230.36V
3 0.550A 2.811 77.716% 0.080
5.110V 3.617 230.36V
4 1.000A 5.098 79.125% 0.135
5.098V 6.443 230.36V
5 1.500A 7.625 80.128% 0.187
5.083V 9.516 230.36V
6 3.000A 15.111 80.528% 0.292
5.037V 18.765 230.36V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.565A 1.988A 1.993A 0.983A 64.925 85.146% 0 <6.0 47.32°C 0.934
12.154V 5.029V 3.310V 5.088V 76.251 40.52°C 115.16V
2 8.111A 2.986A 2.994A 1.182A 129.436 88.776% 0 <6.0 48.04°C 0.965
12.147V 5.026V 3.308V 5.076V 145.801 40.84°C 115.16V
3 13.065A 3.485A 3.480A 1.383A 194.537 90.141% 0 <6.0 49.70°C 0.982
12.134V 5.022V 3.305V 5.064V 215.813 41.40°C 115.16V
4 18.028A 3.984A 3.997A 1.584A 259.768 90.462% 0 <6.0 50.80°C 0.989
12.124V 5.019V 3.302V 5.052V 287.156 41.92°C 115.16V
5 22.665A 4.986A 5.001A 1.786A 325.073 90.238% 0 <6.0 52.94°C 0.992
12.114V 5.016V 3.299V 5.040V 360.241 42.55°C 115.16V
6 27.243A 5.988A 6.008A 1.990A 389.594 89.738% 0 <6.0 54.76°C 0.993
12.105V 5.012V 3.296V 5.027V 434.144 42.97°C 115.16V
7 31.900A 6.989A 7.012A 2.194A 454.944 89.104% 0 <6.0 55.46°C 0.995
12.095V 5.010V 3.294V 5.014V 510.578 43.41°C 115.16V
8 36.511A 7.988A 8.017A 2.399A 520.267 88.484% 713 13.8 43.77°C 0.996
12.102V 5.008V 3.293V 5.005V 587.980 57.10°C 115.16V
9 41.518A 8.493A 8.511A 2.400A 585.177 87.894% 1011 22.9 44.23°C 0.996
12.107V 5.005V 3.291V 5.001V 665.775 58.17°C 115.16V
10 46.274A 9.000A 9.032A 3.014A 650.023 87.180% 1259 30.5 45.23°C 0.996
12.108V 5.003V 3.289V 4.978V 745.613 59.68°C 115.16V
11 51.617A 9.003A 9.037A 3.016A 714.855 86.434% 1629 36.5 46.87°C 0.996
12.111V 5.000V 3.287V 4.974V 827.051 61.73°C 115.16V
CL1 0.149A 12.001A 12.000A 0.000A 101.543 83.345% 0 <6.0 52.90°C 0.960
12.120V 5.016V 3.295V 5.093V 121.834 42.06°C 115.18V
CL2 54.133A 1.004A 1.000A 1.000A 668.490 87.511% 1400 31.9 45.51°C 0.996
12.102V 5.008V 3.296V 5.049V 763.891 59.30°C 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.566A 1.990A 1.994A 0.983A 64.920 86.254% 0 <6.0 46.81°C 0.660
12.147V 5.027V 3.309V 5.087V 75.266 40.20°C 230.35V
2 8.115A 2.987A 2.992A 1.183A 129.413 90.370% 0 <6.0 47.47°C 0.842
12.139V 5.024V 3.307V 5.075V 143.204 40.53°C 230.37V
3 13.067A 3.487A 3.479A 1.383A 194.522 91.712% 0 <6.0 48.49°C 0.913
12.131V 5.021V 3.304V 5.064V 212.102 41.01°C 230.36V
4 18.034A 3.987A 3.999A 1.584A 259.779 92.201% 0 <6.0 49.76°C 0.939
12.120V 5.017V 3.301V 5.052V 281.752 41.22°C 230.52V
5 22.672A 4.988A 5.002A 1.786A 325.061 92.189% 0 <6.0 51.23°C 0.954
12.110V 5.013V 3.298V 5.040V 352.601 42.05°C 230.37V
6 27.250A 5.990A 6.008A 1.990A 389.590 91.926% 0 <6.0 53.28°C 0.964
12.102V 5.010V 3.295V 5.027V 423.806 42.56°C 230.40V
7 31.888A 6.993A 7.015A 2.194A 454.922 91.446% 0 <6.0 54.40°C 0.971
12.099V 5.007V 3.292V 5.015V 497.477 43.30°C 230.39V
8 36.515A 7.993A 8.020A 2.399A 520.243 91.076% 623 12.3 43.75°C 0.976
12.100V 5.005V 3.292V 5.004V 571.220 55.67°C 230.41V
9 41.523A 8.496A 8.512A 2.400A 585.148 90.612% 1020 22.9 44.73°C 0.979
12.105V 5.003V 3.290V 5.001V 645.775 56.83°C 230.39V
10 46.275A 9.001A 9.034A 3.014A 650.010 90.179% 1245 30.2 45.53°C 0.982
12.108V 5.000V 3.288V 4.978V 720.797 58.35°C 230.82V
11 51.612A 9.004A 9.038A 3.016A 714.837 89.777% 1570 35.4 46.70°C 0.985
12.112V 4.999V 3.286V 4.974V 796.237 60.09°C 230.39V
CL1 0.147A 12.001A 12.002A 0.000A 101.549 84.953% 0 <6.0 51.50°C 0.802
12.123V 5.017V 3.296V 5.092V 119.536 41.83°C 230.39V
CL2 54.118A 1.003A 1.001A 1.000A 668.466 90.683% 1385 31.6 45.68°C 0.983
12.105V 5.006V 3.294V 5.050V 737.147 58.65°C 230.39V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.191A 0.498A 0.482A 0.196A 19.599 72.164% 0 <6.0 0.725
12.168V 5.033V 3.314V 5.116V 27.159 115.16V
2 2.440A 0.995A 0.995A 0.392A 39.982 81.518% 0 <6.0 0.876
12.163V 5.032V 3.313V 5.108V 49.047 115.16V
3 3.626A 1.493A 1.478A 0.588A 59.496 85.470% 0 <6.0 0.934
12.160V 5.030V 3.312V 5.101V 69.610 115.16V
4 4.881A 1.989A 1.991A 0.786A 79.929 86.668% 0 <6.0 0.938
12.156V 5.029V 3.310V 5.093V 92.224 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.191A 0.498A 0.479A 0.196A 19.572 72.753% 0 <6.0 0.380
12.156V 5.031V 3.313V 5.115V 26.902 230.34V
2 2.443A 0.994A 0.995A 0.392A 39.990 82.435% 0 <6.0 0.523
12.154V 5.030V 3.312V 5.108V 48.511 230.35V
3 3.632A 1.490A 1.479A 0.588A 59.518 86.072% 0 <6.0 0.634
12.151V 5.028V 3.310V 5.100V 69.149 230.35V
4 4.880A 1.990A 1.996A 0.786A 79.894 88.125% 0 <6.0 0.724
12.148V 5.027V 3.309V 5.093V 90.660 230.35V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.4 mV 3.5 mV 13.5 mV 8.5 mV Pass
20% Load 5.5 mV 4.2 mV 13.3 mV 8.5 mV Pass
30% Load 6.3 mV 4.9 mV 17.1 mV 9.2 mV Pass
40% Load 6.2 mV 5.2 mV 14.4 mV 7.5 mV Pass
50% Load 6.5 mV 6.0 mV 14.9 mV 7.7 mV Pass
60% Load 6.9 mV 6.5 mV 18.9 mV 8.9 mV Pass
70% Load 7.6 mV 7.0 mV 18.3 mV 8.8 mV Pass
80% Load 7.9 mV 7.8 mV 18.7 mV 9.5 mV Pass
90% Load 7.8 mV 8.1 mV 17.9 mV 10.1 mV Pass
100% Load 10.5 mV 7.7 mV 18.9 mV 11.1 mV Pass
110% Load 11.8 mV 7.9 mV 19.5 mV 11.4 mV Pass
Crossload 1 6.9 mV 4.6 mV 32.7 mV 12.4 mV Pass
Crossload 2 10.7 mV 7.0 mV 19.3 mV 10.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.0 mV 3.4 mV 13.2 mV 7.9 mV Pass
20% Load 5.5 mV 4.1 mV 13.3 mV 7.9 mV Pass
30% Load 6.1 mV 4.9 mV 14.6 mV 7.9 mV Pass
40% Load 6.0 mV 5.4 mV 18.4 mV 8.0 mV Pass
50% Load 6.7 mV 6.0 mV 26.1 mV 8.2 mV Pass
60% Load 6.9 mV 5.7 mV 14.3 mV 8.6 mV Pass
70% Load 7.2 mV 7.1 mV 16.9 mV 8.7 mV Pass
80% Load 7.4 mV 7.9 mV 15.8 mV 9.2 mV Pass
90% Load 7.6 mV 8.3 mV 17.2 mV 8.8 mV Pass
100% Load 11.0 mV 8.2 mV 19.2 mV 10.8 mV Pass
110% Load 11.0 mV 8.1 mV 18.9 mV 10.7 mV Pass
Crossload 1 7.0 mV 4.6 mV 16.0 mV 12.4 mV Pass
Crossload 2 10.8 mV 7.4 mV 18.2 mV 9.8 mV Pass

The results above are not used in the certification process

Super Flower Leadex III Gold 650W rev.3 (mode 1)

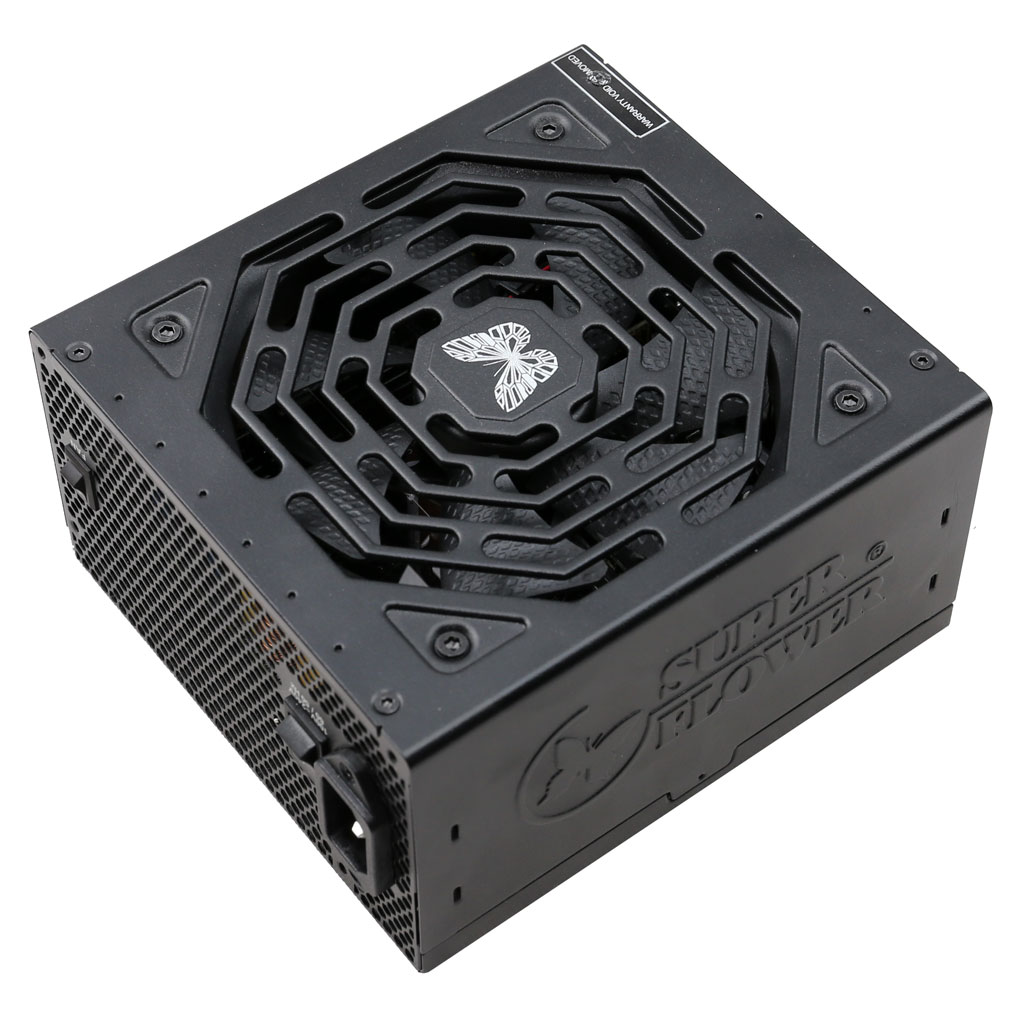

Top side

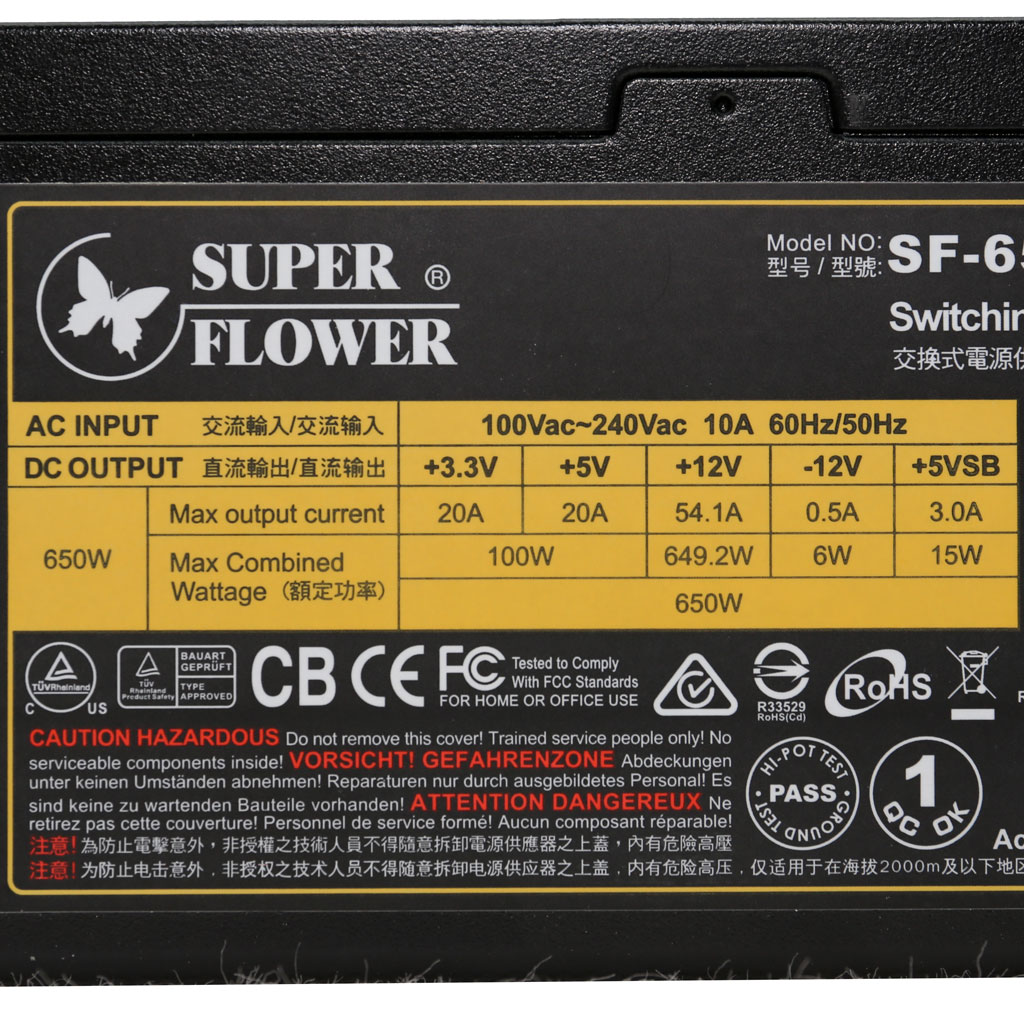

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
