CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology Inc. Hydro G Pro 850W
Serial NumberS9131000005
Lab IDFS19850065
  • Report:
  • Receipt Date: Jan 7, 2019
  • Test Date: May 7, 2019
  • Report Date: Jul 16, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesHydro G Pro
Model NumberHG2-850
Serial NumberS9131000005
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5.5
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(MGA12012XF-O25)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.832.50.3
Watts12085012.53.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (650mm+150mm) 1 2 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (520mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (500mm+150mm) / 4 pin Molex (+150mm+100mm) 2 4 / 4 18AWG No
SATA (500mm+150mm) / 4 pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 2x Gas Discharge Tubes
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x HY GBJ2506 (600V, 25A @ 100°C)
APFC MOSFETS 2x Infineon IPA60R180P7 (650V, 11A @ 100°C, 0.18Ohm)
APFC Boost Diode 1x STMicroelectronics STPSC6H065 (650V, 6A @ 110°C)
Hold-up Cap(s) 1x Nippon Chemi-Con(450V, 680uF, 3,000h @ 105°C, KHS)
Main Switchers 2x STMicroelectronics STF28N60M2 (650V, 14A @ 100°C, 0.15Ohm)
APFC Controller Infineon ICE2PCS02
Resonant Controllers Champion CM6901T2X
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Toshiba TPHR8504PL (40V, 150A @ 25°C, 0.85mOhm)
5V & 3.3V DC-DC Converters:6x Diodes Incorporated DMN3009SK3 (30V, 60A @ 70°C, 5.5mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytics: 5x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 1x Rubycon (3-6,000h @ 105°C, YXG), 5x Rubycon (6-10,000h @ 105°C, ZLH), 2x Rubycon (6-10,000h @ 105°C, ZLJ)
Polymers: 30x United Chemi-Con
Supervisor IC SITI PS223H (OCP, OTP, OVP, UVP, SCP, PG)
Fan Model Protechnic Electric MGA12012XF-O25(120mm, 12V, 0.52A, Fluid Dynamic Fan)
Fan Controller APW9010
5VSB Circuit
Rectifier CET CEF04N7G FET(700V, 4A @ 25°C, 3.3Ohm) & PFC P15L50SP SBR(50V, 15A)
Standby PWM Controller -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.1
AC Loss to PWR_OK Hold Up Time (ms)13.7
PWR_OK Inactive to DC Loss Delay (ms)3.4

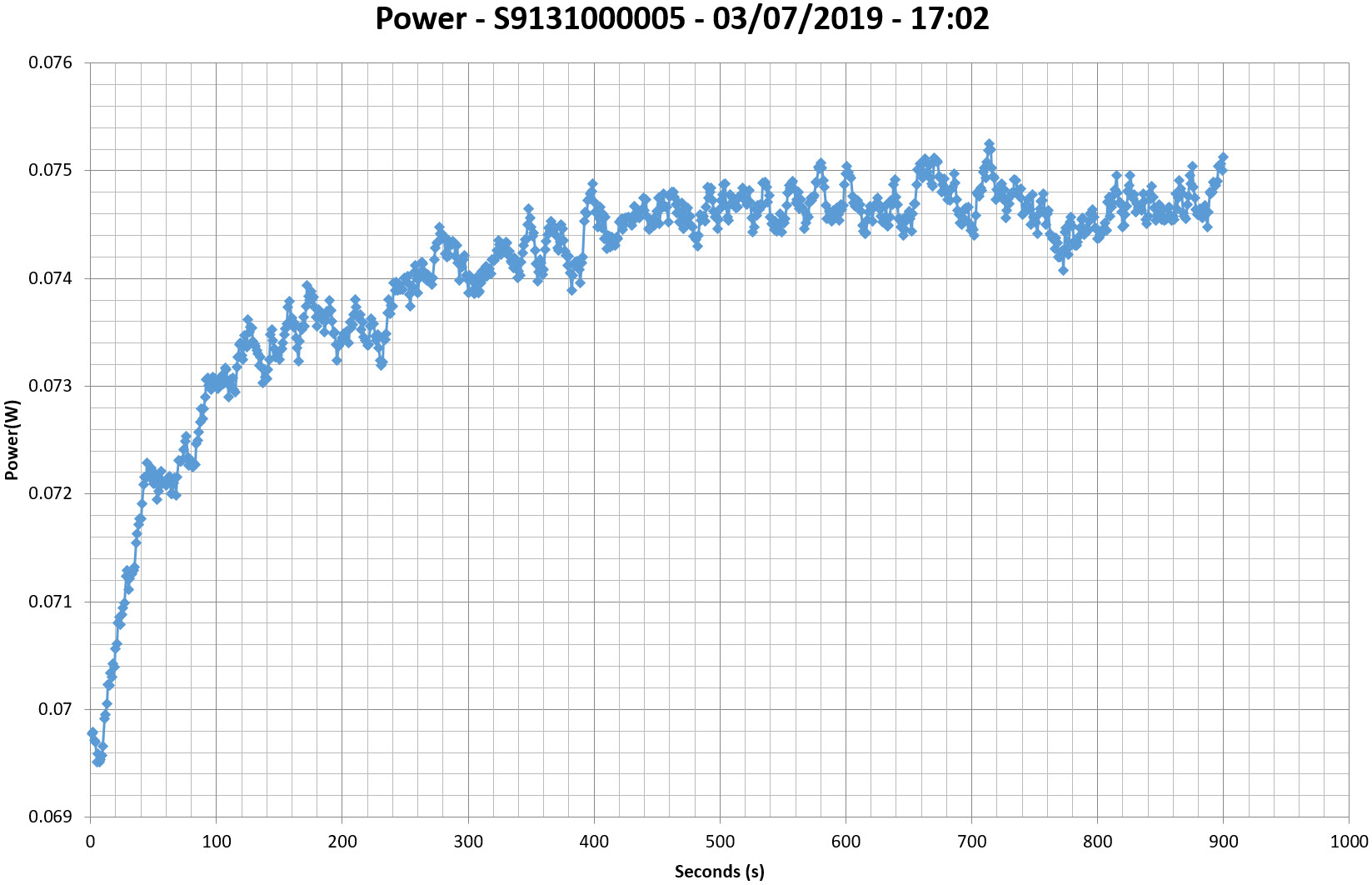

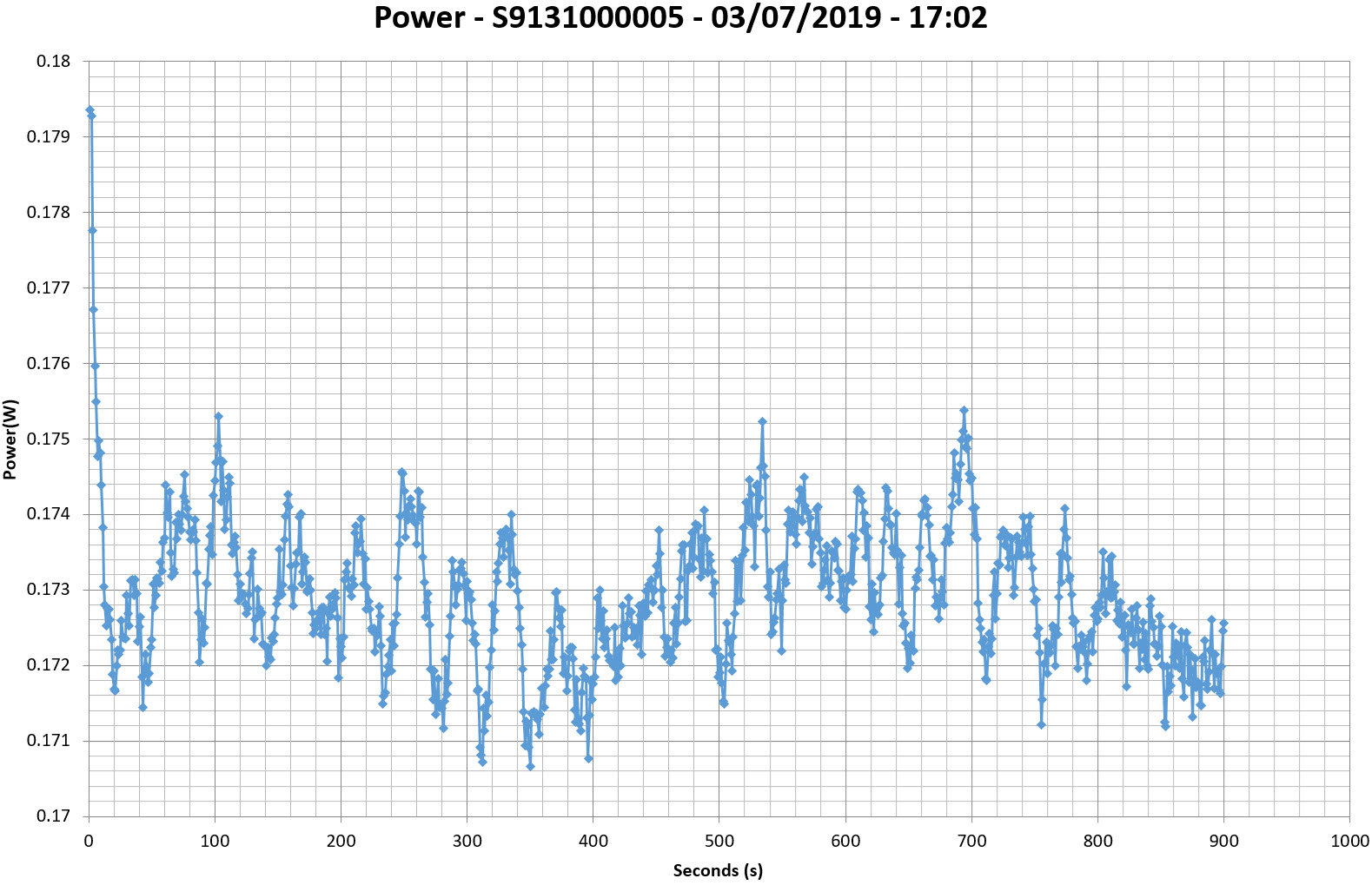

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

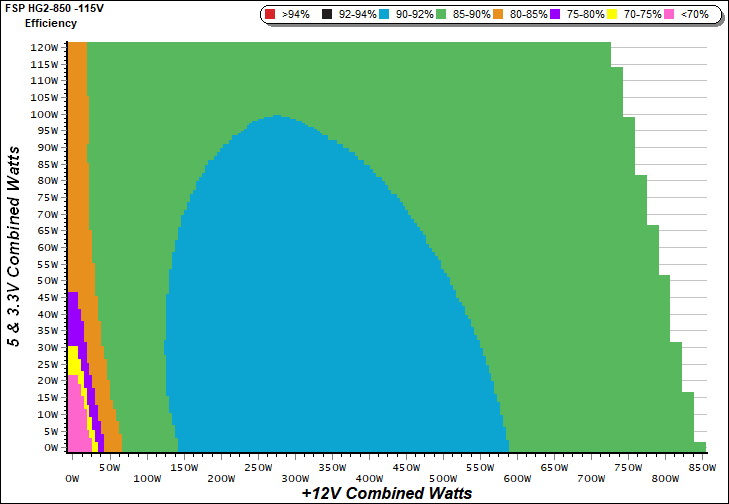

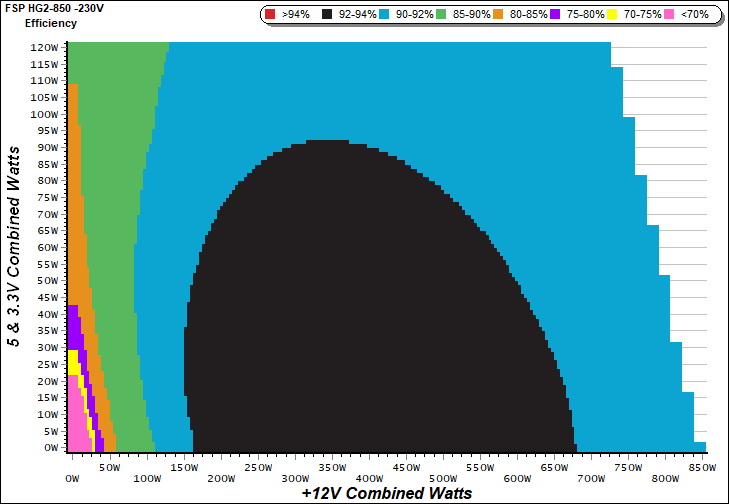

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

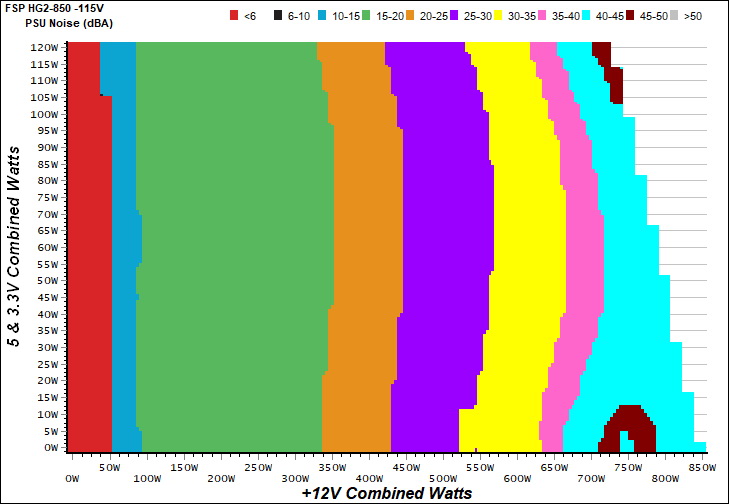

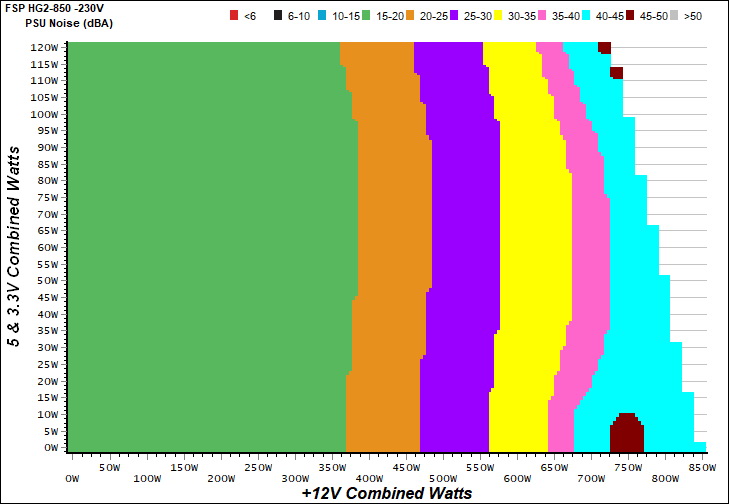

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

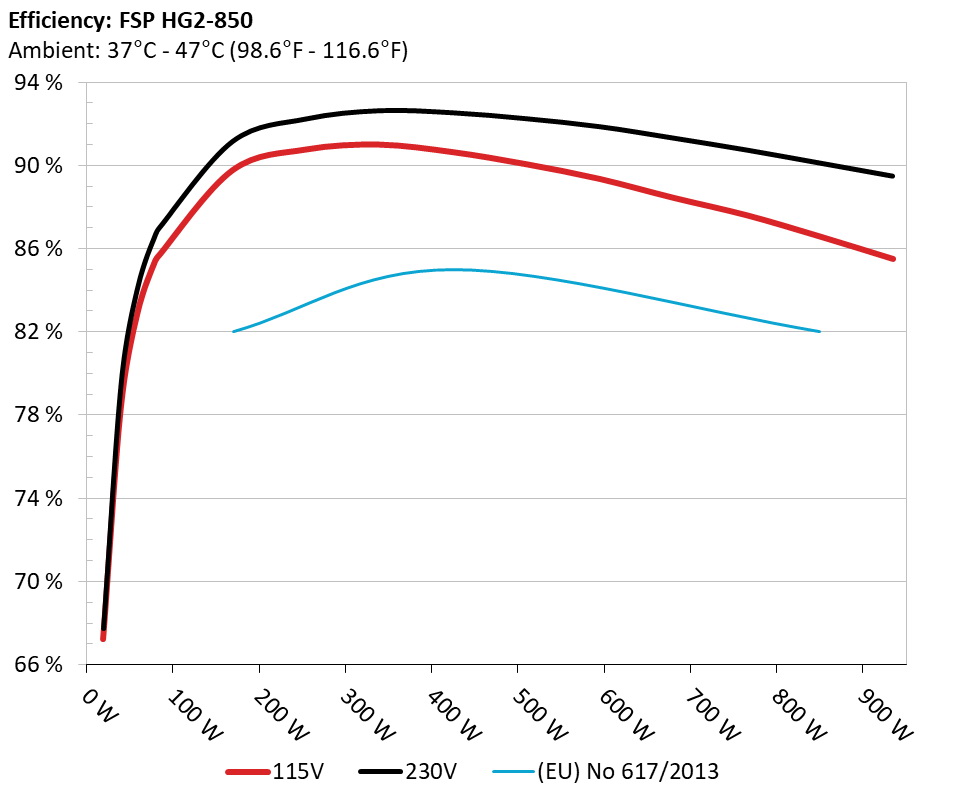

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

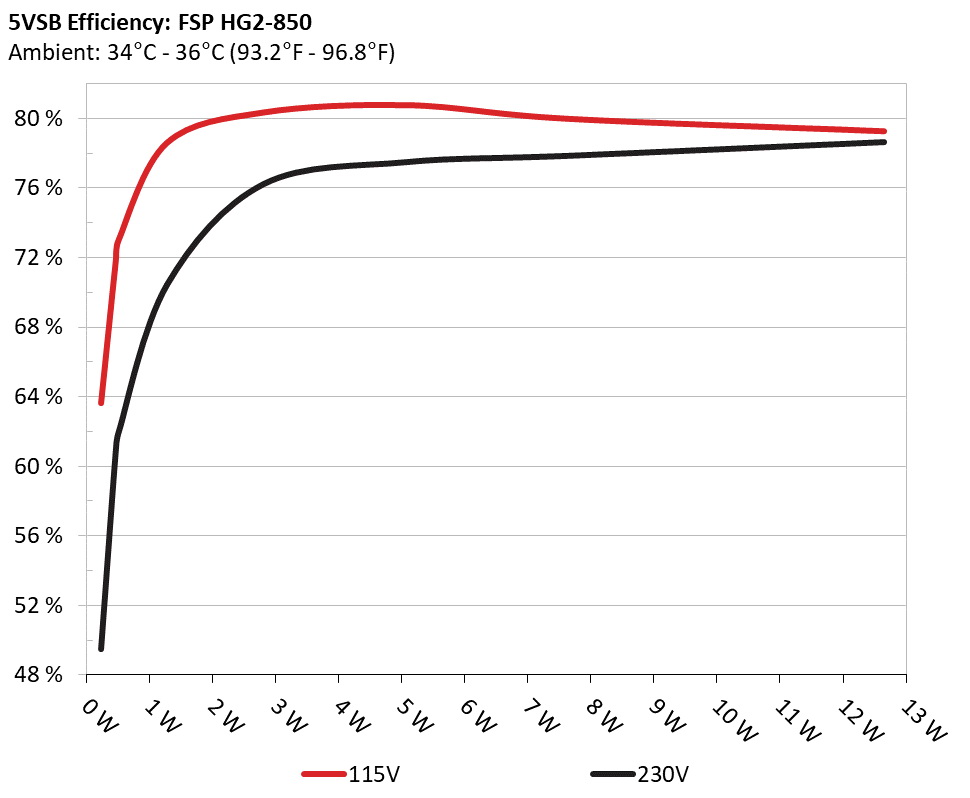

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 63.636% 0.036
5.117V 0.363 115.12V
2 0.090A 0.461 71.695% 0.060
5.115V 0.643 115.12V
3 0.550A 2.808 80.343% 0.253
5.104V 3.495 115.12V
4 1.000A 5.096 80.761% 0.346
5.095V 6.310 115.12V
5 1.500A 7.627 79.981% 0.403
5.084V 9.536 115.12V
6 2.501A 12.656 79.263% 0.458
5.061V 15.967 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 49.465% 0.014
5.116V 0.467 230.27V
2 0.090A 0.461 60.738% 0.022
5.115V 0.759 230.27V
3 0.550A 2.808 76.242% 0.101
5.104V 3.683 230.27V
4 1.000A 5.096 77.517% 0.168
5.095V 6.574 230.27V
5 1.500A 7.627 77.874% 0.225
5.084V 9.794 230.27V
6 2.500A 12.657 78.664% 0.302
5.062V 16.090 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.243A 1.976A 1.969A 0.983A 84.935 85.698% 729 15.6 40.16°C 0.978
12.079V 5.063V 3.353V 5.085V 99.110 42.86°C 115.11V
2 11.482A 2.967A 2.956A 1.183A 169.430 89.753% 734 15.6 40.40°C 0.994
12.064V 5.059V 3.349V 5.072V 188.774 43.59°C 115.11V
3 18.133A 3.463A 3.437A 1.383A 254.523 90.747% 752 16.2 41.40°C 0.994
12.051V 5.055V 3.345V 5.061V 280.474 45.15°C 115.11V
4 24.798A 3.961A 3.949A 1.585A 339.720 90.982% 861 21.6 41.90°C 0.995
12.038V 5.051V 3.341V 5.048V 373.393 46.23°C 115.11V
5 31.146A 4.958A 4.948A 1.788A 425.026 90.618% 975 24.8 42.14°C 0.995
12.024V 5.046V 3.336V 5.035V 469.032 47.44°C 115.10V
6 37.450A 5.952A 5.944A 1.992A 509.553 90.041% 1106 29.8 42.80°C 0.995
12.009V 5.042V 3.331V 5.023V 565.912 48.91°C 115.10V
7 43.835A 6.952A 6.947A 2.197A 594.877 89.335% 1283 33.1 43.02°C 0.995
11.994V 5.037V 3.325V 5.009V 665.897 49.38°C 115.10V
8 50.241A 7.952A 7.952A 2.403A 680.208 88.428% 1801 48.6 43.74°C 0.994
11.978V 5.032V 3.320V 4.996V 769.221 50.76°C 115.10V
9 57.059A 8.456A 8.446A 2.407A 765.124 87.592% 2273 48.0 44.76°C 0.993
11.963V 5.028V 3.316V 4.987V 873.509 52.02°C 115.09V
10 63.835A 8.961A 8.973A 2.512A 849.797 86.574% 2745 53.5 45.52°C 0.992
11.946V 5.024V 3.310V 4.977V 981.587 53.55°C 115.10V
11 71.021A 8.966A 8.985A 2.516A 934.567 85.498% 2752 53.6 46.94°C 0.991
11.931V 5.021V 3.305V 4.969V 1093.091 55.60°C 115.09V
CL1 0.143A 14.005A 13.998A 0.000A 118.868 83.465% 1075 28.0 42.30°C 0.989
12.066V 5.040V 3.326V 5.088V 142.417 47.82°C 115.11V
CL2 70.842A 1.001A 1.000A 1.000A 860.380 87.028% 2613 51.8 45.27°C 0.992
11.956V 5.040V 3.327V 5.021V 988.620 53.80°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.248A 1.977A 1.969A 0.984A 84.999 87.050% 730 15.6 40.42°C 0.858
12.078V 5.063V 3.352V 5.084V 97.644 42.85°C 230.26V
2 11.488A 2.967A 2.960A 1.183A 169.492 91.177% 736 15.7 40.72°C 0.943
12.063V 5.058V 3.346V 5.072V 185.894 43.77°C 230.26V
3 18.139A 3.464A 3.442A 1.384A 254.575 92.254% 770 17.4 41.43°C 0.968
12.049V 5.055V 3.342V 5.060V 275.950 44.82°C 230.25V
4 24.805A 3.962A 3.957A 1.585A 339.774 92.651% 883 21.3 41.90°C 0.978
12.036V 5.051V 3.338V 5.048V 366.725 45.84°C 230.25V
5 31.157A 4.956A 4.952A 1.788A 425.085 92.547% 986 25.7 42.14°C 0.982
12.022V 5.046V 3.333V 5.035V 459.317 46.71°C 230.25V
6 37.460A 5.954A 5.952A 1.992A 509.602 92.266% 1101 29.1 42.44°C 0.984
12.007V 5.041V 3.327V 5.022V 552.317 47.99°C 230.25V
7 43.843A 6.952A 6.956A 2.197A 594.929 91.882% 1290 33.6 43.11°C 0.984
11.993V 5.037V 3.321V 5.008V 647.494 49.25°C 230.26V
8 50.245A 7.952A 7.965A 2.403A 680.256 91.333% 1759 44.3 43.59°C 0.982
11.978V 5.032V 3.315V 4.995V 744.811 50.60°C 230.26V
9 57.068A 8.458A 8.460A 2.407A 765.181 90.760% 2267 48.0 44.69°C 0.980
11.962V 5.027V 3.311V 4.987V 843.085 52.56°C 230.26V
10 63.840A 8.962A 8.984A 2.513A 849.863 90.133% 2744 53.4 45.75°C 0.978
11.946V 5.024V 3.306V 4.976V 942.899 54.15°C 230.26V
11 71.027A 8.968A 8.993A 2.517A 934.651 89.504% 2753 53.6 46.75°C 0.977
11.931V 5.021V 3.302V 4.968V 1044.257 55.65°C 230.26V
CL1 0.153A 14.004A 13.999A 0.000A 118.931 84.758% 1190 32.0 42.12°C 0.917
12.067V 5.039V 3.323V 5.087V 140.319 46.91°C 230.26V
CL2 70.854A 1.002A 1.000A 1.000A 860.527 90.554% 2631 52.0 45.26°C 0.978
11.956V 5.040V 3.326V 5.020V 950.287 53.92°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.494A 0.476A 0.196A 19.563 67.255% 0 <6.0 0.873
12.090V 5.068V 3.359V 5.109V 29.088 115.12V
2 2.458A 0.988A 0.981A 0.392A 40.006 78.336% 718 15.2 0.943
12.086V 5.066V 3.357V 5.103V 51.070 115.11V
3 3.649A 1.482A 1.461A 0.589A 59.500 82.928% 722 15.3 0.966
12.083V 5.064V 3.355V 5.096V 71.749 115.12V
4 4.910A 1.976A 1.966A 0.786A 79.907 85.409% 726 15.4 0.978
12.079V 5.063V 3.354V 5.090V 93.558 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.204A 0.495A 0.475A 0.196A 19.658 67.737% 723 15.3 0.501
12.088V 5.067V 3.357V 5.109V 29.021 230.26V
2 2.463A 0.991A 0.985A 0.392A 40.088 79.541% 724 15.3 0.687
12.085V 5.066V 3.352V 5.103V 50.399 230.26V
3 3.656A 1.483A 1.460A 0.589A 59.576 84.194% 726 15.4 0.780
12.081V 5.064V 3.354V 5.096V 70.760 230.26V
4 4.915A 1.976A 1.971A 0.786A 79.974 86.708% 728 15.5 0.844
12.078V 5.063V 3.352V 5.089V 92.234 230.25V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.7 mV 8.4 mV 15.8 mV 8.9 mV Pass
20% Load 12.6 mV 7.8 mV 16.7 mV 9.0 mV Pass
30% Load 12.7 mV 8.7 mV 17.4 mV 9.6 mV Pass
40% Load 12.7 mV 9.8 mV 18.7 mV 9.7 mV Pass
50% Load 13.1 mV 11.2 mV 20.8 mV 10.1 mV Pass
60% Load 14.5 mV 11.4 mV 21.9 mV 11.1 mV Pass
70% Load 14.3 mV 12.7 mV 23.4 mV 11.6 mV Pass
80% Load 15.0 mV 14.9 mV 24.6 mV 12.8 mV Pass
90% Load 15.9 mV 18.7 mV 26.6 mV 12.8 mV Pass
100% Load 25.7 mV 19.5 mV 28.3 mV 15.5 mV Pass
110% Load 26.8 mV 19.8 mV 29.9 mV 16.2 mV Pass
Crossload 1 18.7 mV 11.4 mV 19.0 mV 20.1 mV Pass
Crossload 2 25.3 mV 13.5 mV 26.8 mV 14.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.1 mV 8.5 mV 16.9 mV 8.7 mV Pass
20% Load 12.1 mV 7.6 mV 16.1 mV 8.8 mV Pass
30% Load 11.4 mV 8.4 mV 17.3 mV 9.2 mV Pass
40% Load 12.0 mV 10.0 mV 18.8 mV 9.3 mV Pass
50% Load 13.5 mV 10.8 mV 19.6 mV 9.8 mV Pass
60% Load 13.6 mV 10.3 mV 21.5 mV 10.4 mV Pass
70% Load 14.4 mV 11.4 mV 23.3 mV 10.6 mV Pass
80% Load 15.0 mV 13.6 mV 24.1 mV 11.5 mV Pass
90% Load 15.7 mV 17.7 mV 24.8 mV 11.8 mV Pass
100% Load 25.0 mV 18.9 mV 27.2 mV 13.1 mV Pass
110% Load 26.3 mV 19.3 mV 30.2 mV 13.4 mV Pass
Crossload 1 17.4 mV 11.5 mV 20.2 mV 20.0 mV Pass
Crossload 2 24.5 mV 12.4 mV 26.2 mV 11.8 mV Pass

The results above are not used in the certification process

FSP Technology Inc. Hydro G Pro 850W

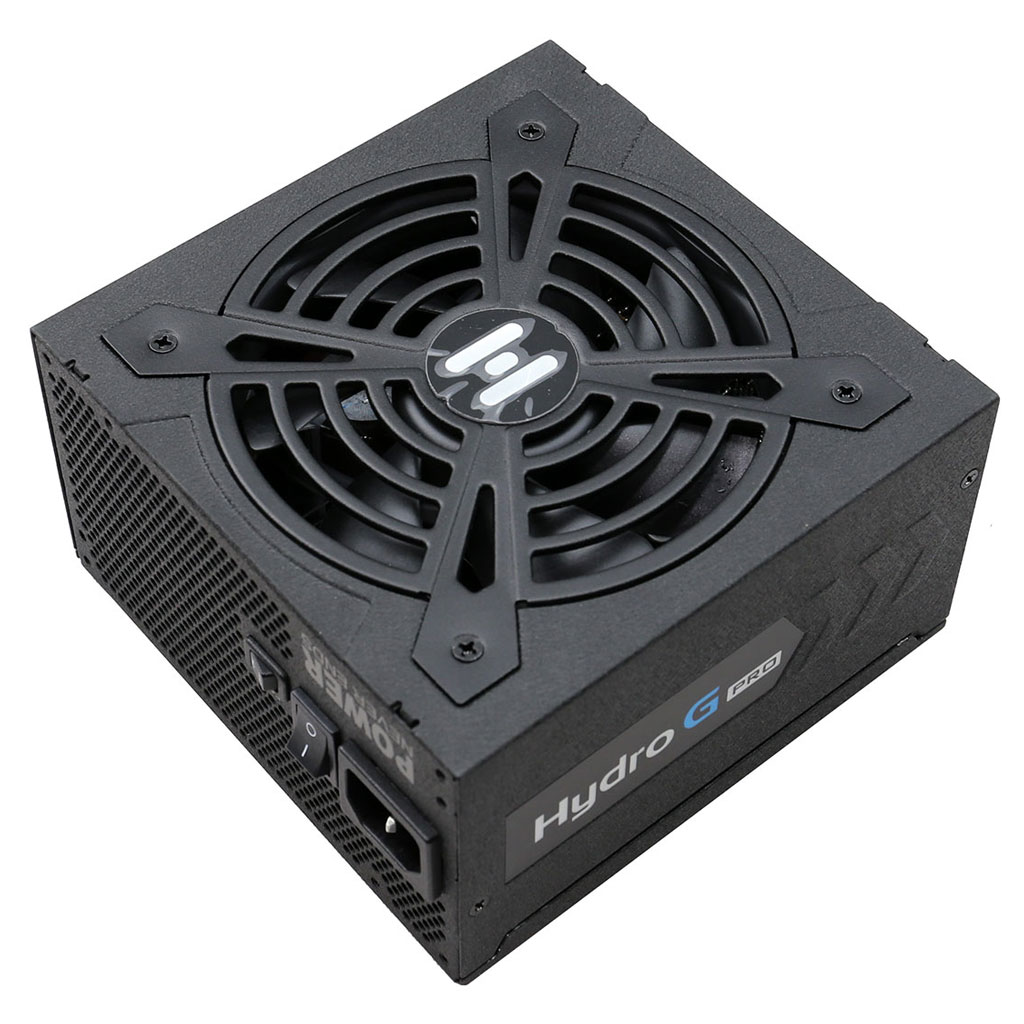

Top side
Power specifications table
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
