Super Flower Leadex III 850W rev.2 (mode 1)
Serial NumberS1906198807
Lab IDSF19850061
  • Report:
  • Receipt Date: Jun 20, 2019
  • Test Date: Jan 7, 2019
  • Report Date: Mar 7, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III Gold
Model NumberSF-850F14HG rev.2
Serial NumberS1906198807
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling130mm Fluid Dynamic Bearing Fan
(S1282412H)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70.8 3 0.5
Watts 100 849.6 15 6.0
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (550mm+150mm) 3 6 18-20AWG Yes
SATA (550mm+120mm+120mm) 3 9 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 23.6
AC Loss to PWR_OK Hold Up Time  (ms) 22.0
PWR_OK Inactive to DC Loss Delay (ms) 1.6

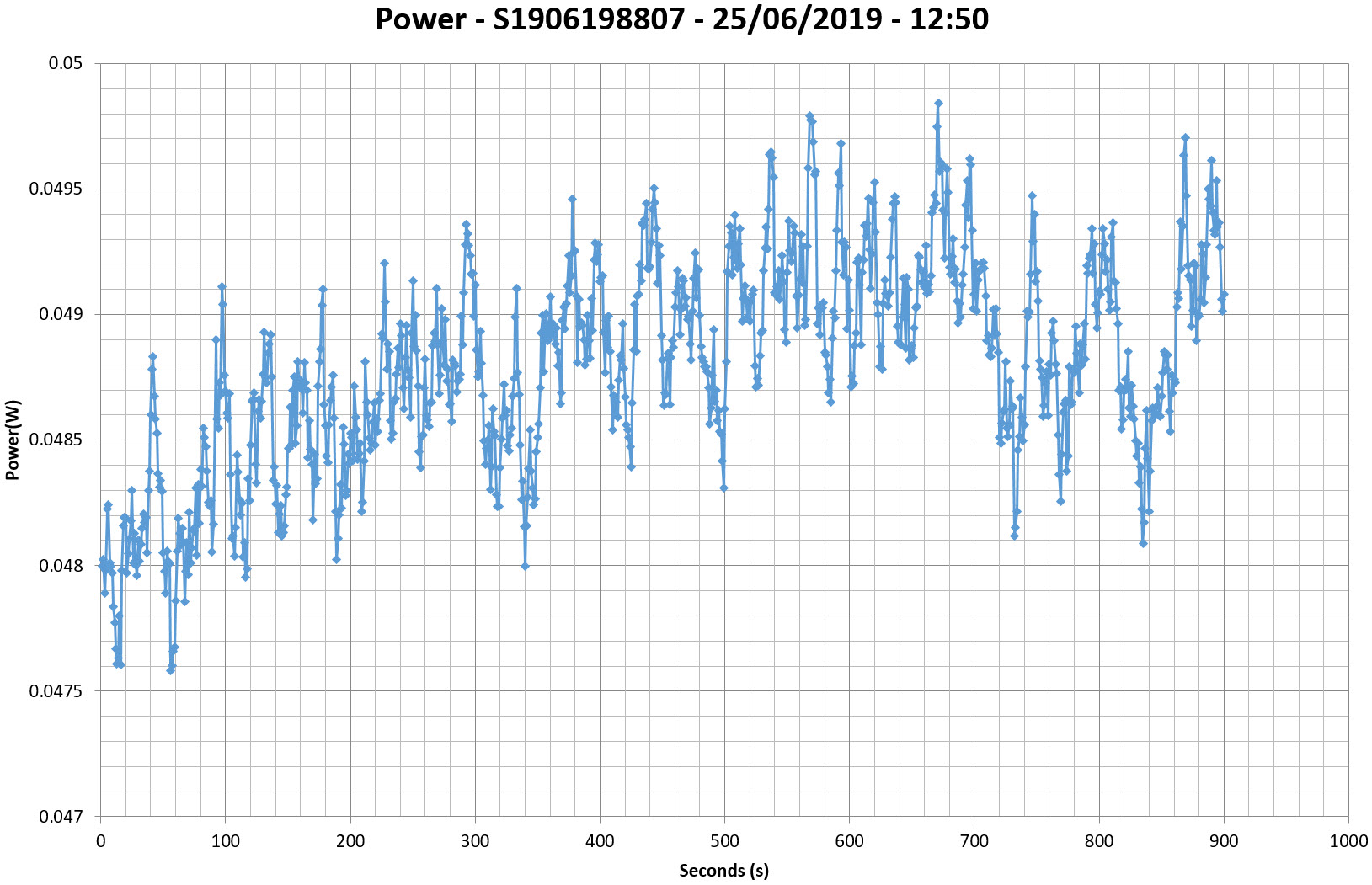

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

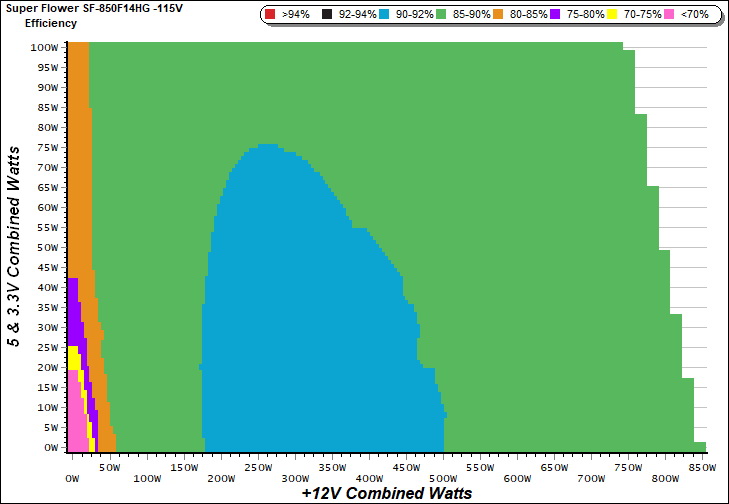

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

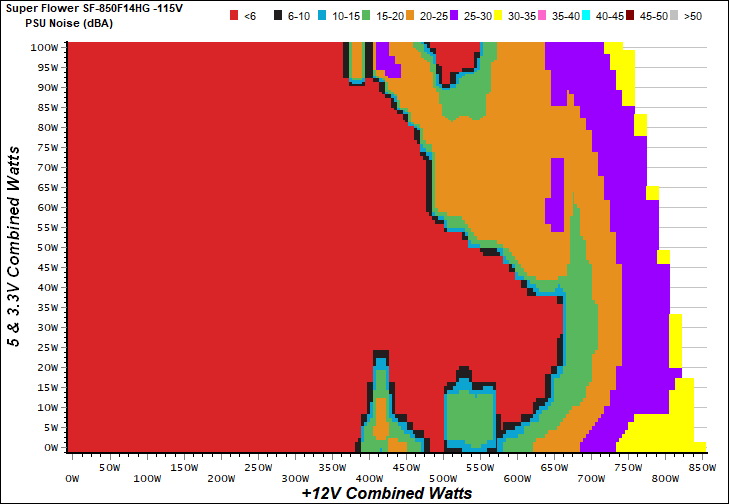

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

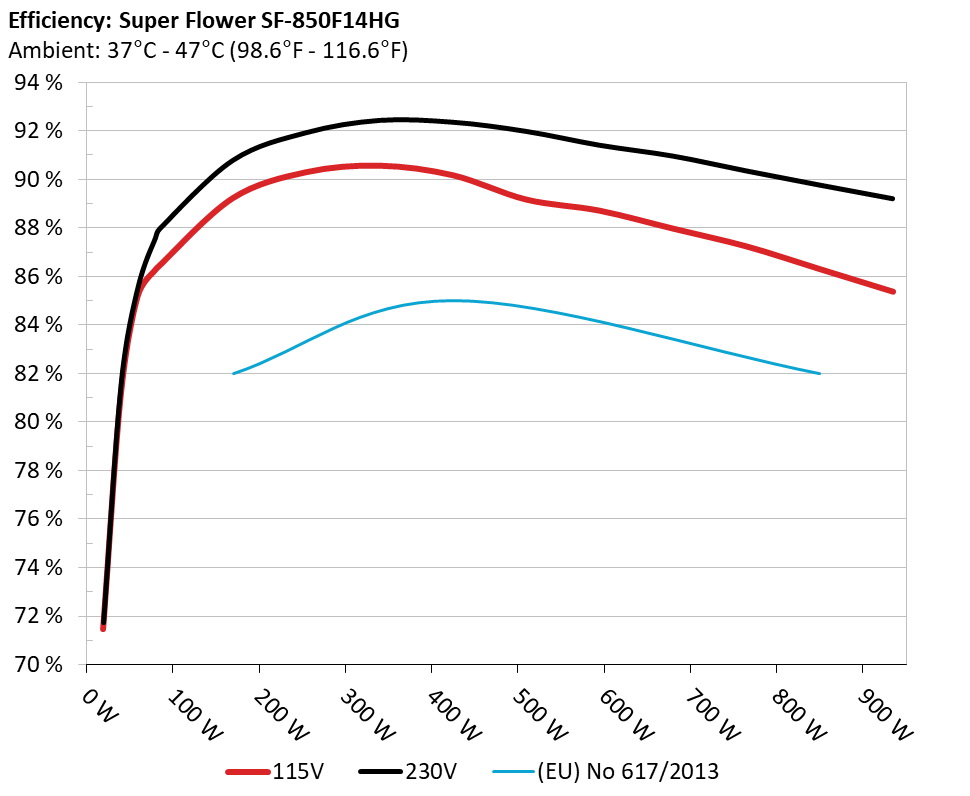

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

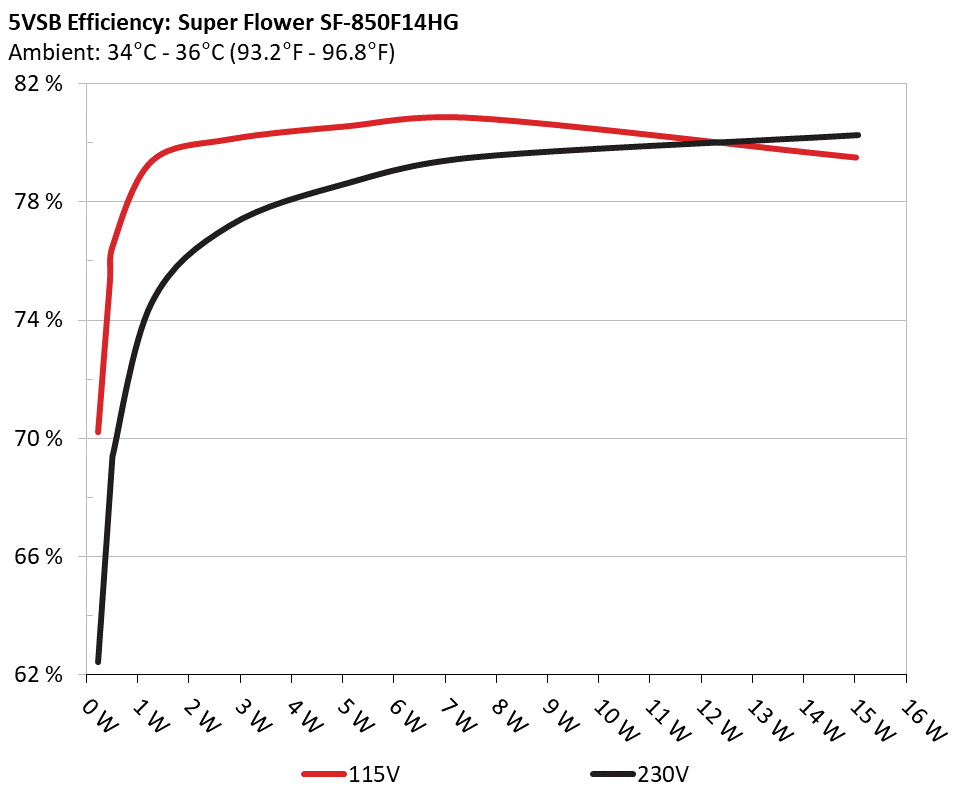

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 70.213% 0.023
5.106V 0.329 115.14V
2 0.090A 0.460 75.286% 0.043
5.105V 0.611 115.14V
3 0.550A 2.800 80.137% 0.210
5.089V 3.494 115.13V
4 1.000A 5.077 80.575% 0.309
5.076V 6.301 115.14V
5 1.500A 7.594 80.856% 0.373
5.062V 9.392 115.13V
6 3.000A 15.032 79.518% 0.455
5.010V 18.904 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 62.432% 0.008
5.105V 0.370 230.32V
2 0.090A 0.460 69.382% 0.015
5.104V 0.663 230.32V
3 0.550A 2.802 77.190% 0.077
5.093V 3.630 230.32V
4 1.000A 5.080 78.613% 0.130
5.079V 6.462 230.32V
5 1.500A 7.598 79.502% 0.181
5.064V 9.557 230.32V
6 3.001A 15.055 80.246% 0.285
5.017V 18.761 230.32V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.204A 1.996A 1.993A 0.987A 84.953 86.461% 0 <6.0 41.48°C 0.945
12.174V 5.012V 3.308V 5.069V 98.256 39.03°C 115.12V
2 11.389A 2.998A 2.997A 1.187A 169.438 89.234% 0 <6.0 43.42°C 0.976
12.163V 5.007V 3.303V 5.057V 189.881 40.53°C 115.12V
3 17.986A 3.498A 3.487A 1.388A 254.529 90.311% 0 <6.0 44.40°C 0.986
12.150V 5.002V 3.298V 5.045V 281.837 41.01°C 115.12V
4 24.601A 4.005A 4.006A 1.590A 339.740 90.584% 0 <6.0 45.56°C 0.992
12.135V 4.997V 3.293V 5.033V 375.054 41.71°C 115.12V
5 30.911A 5.012A 5.020A 1.794A 425.064 90.185% 0 <6.0 46.57°C 0.994
12.117V 4.990V 3.287V 5.019V 471.323 42.26°C 115.12V
6 37.158A 6.021A 6.036A 1.999A 509.572 89.187% 0 <6.0 47.77°C 0.996
12.104V 4.983V 3.281V 5.005V 571.354 42.89°C 115.11V
7 43.476A 7.029A 7.046A 2.203A 594.866 88.726% 956 19.5 43.24°C 0.996
12.093V 4.981V 3.278V 4.995V 670.451 48.92°C 115.11V
8 49.731A 8.041A 8.063A 2.408A 680.217 87.983% 1004 21.4 43.60°C 0.997
12.101V 4.977V 3.274V 4.985V 773.122 49.76°C 115.11V
9 56.386A 8.548A 8.560A 2.410A 765.134 87.250% 1362 31.6 44.61°C 0.996
12.106V 4.974V 3.271V 4.982V 876.942 51.27°C 115.11V
10 62.787A 9.060A 9.092A 3.026A 849.951 86.314% 1736 38.6 45.49°C 0.996
12.108V 4.969V 3.267V 4.958V 984.723 52.59°C 115.10V
11 69.801A 9.065A 9.104A 3.029A 934.718 85.385% 2049 44.2 46.62°C 0.997
12.106V 4.965V 3.262V 4.953V 1094.713 54.42°C 115.10V
CL1 0.141A 12.003A 11.999A 0.000A 101.034 82.797% 0 <6.0 46.41°C 0.955
12.132V 4.985V 3.291V 5.083V 122.026 42.17°C 115.13V
CL2 70.887A 1.002A 1.002A 1.000A 870.969 86.599% 1845 40.4 45.28°C 0.997
12.099V 4.988V 3.277V 5.026V 1005.751 52.21°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.206A 1.996A 1.995A 0.987A 84.951 87.953% 0 <6.0 43.33°C 0.732
12.167V 5.013V 3.309V 5.068V 96.587 40.03°C 230.28V
2 11.399A 2.998A 2.998A 1.187A 169.465 90.763% 0 <6.0 44.48°C 0.890
12.155V 5.005V 3.303V 5.056V 186.712 40.74°C 230.28V
3 17.996A 3.501A 3.485A 1.388A 254.546 91.904% 0 <6.0 45.41°C 0.939
12.144V 5.001V 3.298V 5.044V 276.970 41.32°C 230.28V
4 24.611A 4.003A 4.009A 1.590A 339.758 92.411% 0 <6.0 46.57°C 0.954
12.131V 4.996V 3.293V 5.032V 367.658 41.60°C 230.28V
5 30.919A 5.013A 5.021A 1.794A 425.070 92.335% 0 <6.0 47.58°C 0.967
12.114V 4.989V 3.287V 5.019V 460.355 42.02°C 230.28V
6 37.158A 6.024A 6.035A 1.999A 509.584 91.960% 0 <6.0 48.87°C 0.974
12.104V 4.983V 3.281V 5.005V 554.137 42.91°C 230.27V
7 43.467A 7.030A 7.046A 2.203A 594.895 91.388% 898 18.5 43.35°C 0.980
12.096V 4.980V 3.279V 4.995V 650.953 49.73°C 230.28V
8 49.737A 8.042A 8.064A 2.409A 680.238 90.939% 1017 22.3 43.79°C 0.983
12.100V 4.975V 3.274V 4.985V 748.016 50.81°C 230.28V
9 56.390A 8.550A 8.560A 2.410A 765.172 90.329% 1418 32.6 44.96°C 0.985
12.106V 4.972V 3.271V 4.981V 847.099 52.39°C 230.27V
10 62.805A 9.062A 9.094A 3.027A 849.983 89.749% 1792 40.4 45.76°C 0.987
12.105V 4.968V 3.266V 4.958V 947.067 53.72°C 230.28V
11 69.813A 9.068A 9.103A 3.030A 934.750 89.188% 2052 44.2 46.65°C 0.989
12.104V 4.965V 3.263V 4.953V 1048.066 54.96°C 230.28V
CL1 0.145A 12.002A 12.000A 0.000A 101.045 84.287% 0 <6.0 47.88°C 0.793
12.132V 4.983V 3.290V 5.082V 119.882 42.56°C 230.29V
CL2 70.882A 1.002A 1.002A 1.000A 870.904 90.115% 1837 40.0 45.52°C 0.988
12.099V 4.985V 3.275V 5.026V 966.431 53.19°C 230.28V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.192A 0.499A 0.483A 0.196A 19.637 71.459% 0 <6.0 0.728
12.191V 5.020V 3.314V 5.098V 27.480 115.13V
2 2.439A 0.997A 0.998A 0.393A 40.034 81.101% 0 <6.0 0.879
12.187V 5.018V 3.312V 5.091V 49.363 115.12V
3 3.621A 1.495A 1.479A 0.590A 59.505 85.182% 0 <6.0 0.938
12.182V 5.016V 3.310V 5.084V 69.856 115.12V
4 4.870A 1.996A 1.997A 0.788A 79.918 86.277% 0 <6.0 0.942
12.178V 5.013V 3.308V 5.076V 92.630 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.193A 0.500A 0.485A 0.196A 19.638 71.729% 0 <6.0 0.381
12.173V 5.019V 3.314V 5.097V 27.378 230.27V
2 2.443A 0.998A 0.998A 0.393A 40.045 81.571% 0 <6.0 0.525
12.171V 5.016V 3.312V 5.090V 49.092 230.27V
3 3.629A 1.497A 1.482A 0.591A 59.570 85.531% 0 <6.0 0.631
12.168V 5.013V 3.310V 5.082V 69.647 230.28V
4 4.879A 1.996A 1.997A 0.789A 79.960 87.586% 0 <6.0 0.714
12.164V 5.011V 3.308V 5.075V 91.293 230.28V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.3 mV 7.9 mV 10.2 mV 10.9 mV Pass
20% Load 8.7 mV 8.1 mV 10.1 mV 9.7 mV Pass
30% Load 9.0 mV 8.9 mV 11.5 mV 10.1 mV Pass
40% Load 10.4 mV 9.9 mV 12.1 mV 11.8 mV Pass
50% Load 12.0 mV 11.4 mV 15.2 mV 12.7 mV Pass
60% Load 12.7 mV 12.8 mV 15.3 mV 14.0 mV Pass
70% Load 13.4 mV 13.0 mV 16.2 mV 14.1 mV Pass
80% Load 12.6 mV 13.5 mV 18.2 mV 14.1 mV Pass
90% Load 12.8 mV 14.1 mV 18.3 mV 15.8 mV Pass
100% Load 15.9 mV 15.7 mV 17.8 mV 16.1 mV Pass
110% Load 18.4 mV 15.1 mV 18.7 mV 18.2 mV Pass
Crossload 1 9.8 mV 8.9 mV 10.7 mV 14.8 mV Pass
Crossload 2 16.6 mV 14.7 mV 17.5 mV 14.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.9 mV 8.0 mV 9.4 mV 9.7 mV Pass
20% Load 9.0 mV 8.3 mV 9.6 mV 9.5 mV Pass
30% Load 8.7 mV 9.2 mV 11.0 mV 10.6 mV Pass
40% Load 9.4 mV 9.6 mV 11.4 mV 10.2 mV Pass
50% Load 9.6 mV 10.2 mV 13.8 mV 10.3 mV Pass
60% Load 10.8 mV 10.9 mV 12.8 mV 10.9 mV Pass
70% Load 11.1 mV 12.2 mV 16.6 mV 11.3 mV Pass
80% Load 11.5 mV 12.6 mV 14.9 mV 11.9 mV Pass
90% Load 11.7 mV 13.0 mV 16.1 mV 12.0 mV Pass
100% Load 14.0 mV 13.6 mV 15.1 mV 13.0 mV Pass
110% Load 14.5 mV 15.3 mV 15.9 mV 13.3 mV Pass
Crossload 1 10.1 mV 8.8 mV 11.5 mV 14.6 mV Pass
Crossload 2 14.0 mV 13.4 mV 15.5 mV 11.8 mV Pass

The results above are not used in the certification process

Super Flower Leadex III 850W rev.2 (mode 1)

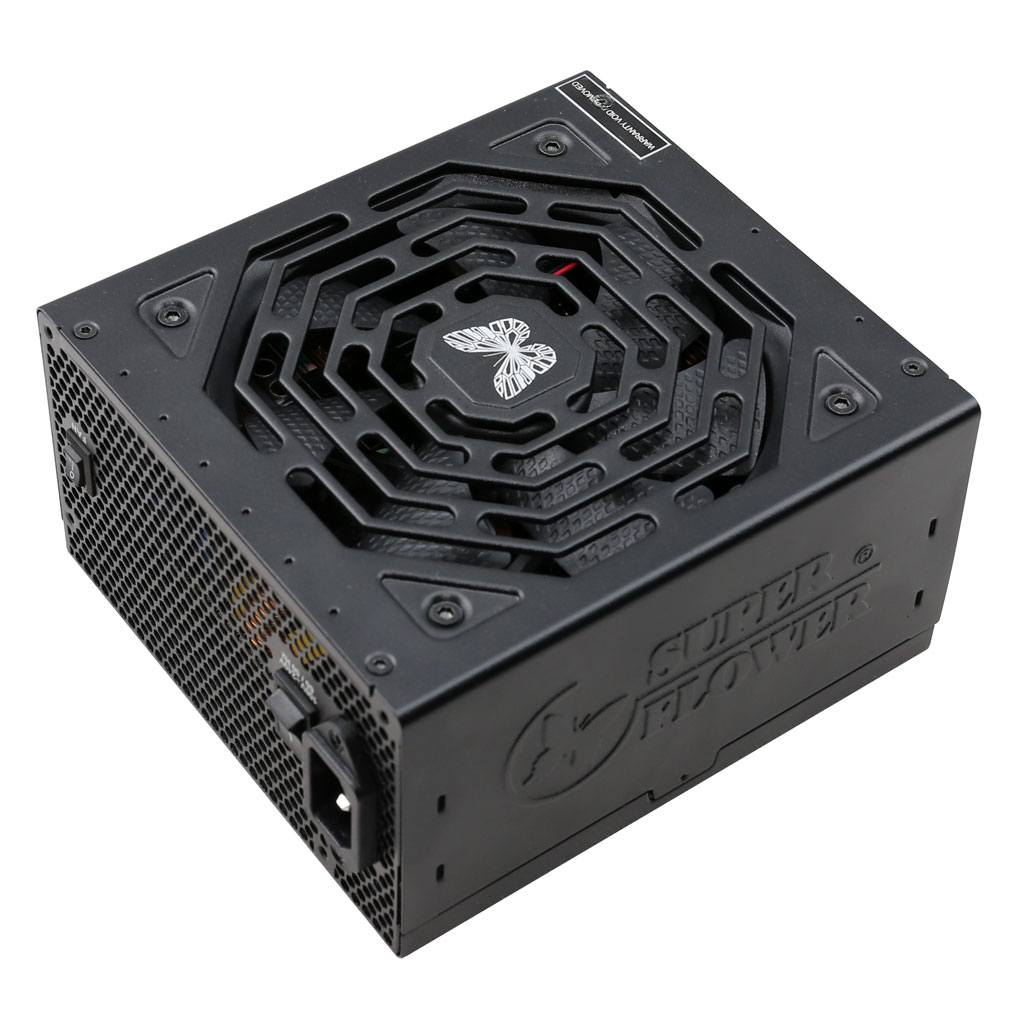

Top side

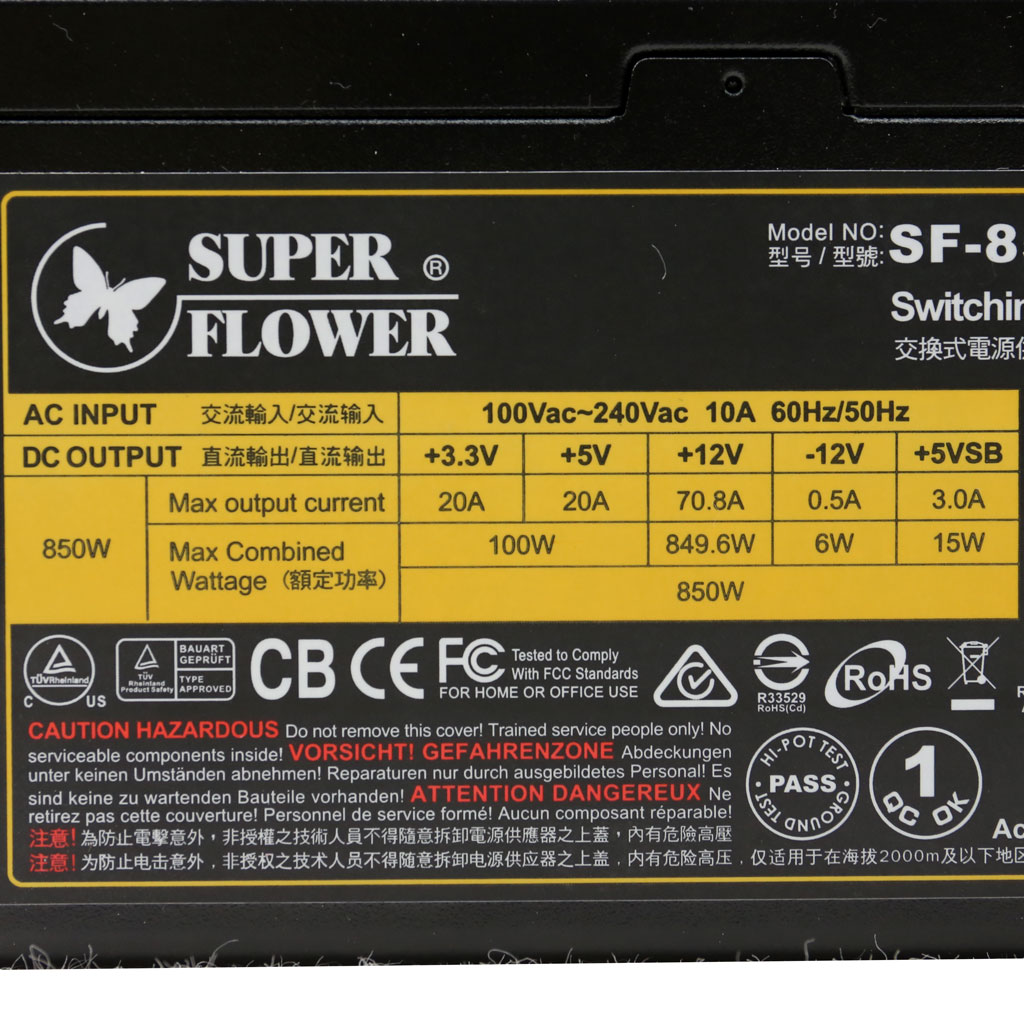

Power specifications label
