CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Kolink Enclave 500W
Serial Number#CK035
Lab IDKL19500057
  • Report: 19PS743A
  • Receipt Date: Nov 6, 2019
  • Test Date: Jun 24, 2019
  • Report Date: Jun 28, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKolink
Manufacturer (OEM)Kolink
SeriesEnclave
Model NumberKL-G500FM
Serial Number#CK035
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)
Rated Frequency (Hz)50-60
Rated Power (W)500
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps16164130.5
Watts100492156
Total Max. Power (W)500

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (500mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (600mm+100mm) 1 2 18AWG No
SATA (450mm+120mm+120mm) 1 3 20AWG No
SATA (450mm) / 4 pin Molex (+120mm+120mm) 2 2 / 4 18-20AWG No

Parts Description

General Data
Manufacturer (OEM) Kolink
PCB Type Double Sided
Primary Side
Transient Filter 5x Y caps, 3x X caps, 2x CM chokes
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Advanced Power AP65SL380AI (650V, 6.5A @ 100°C, 0.38Ohm)
APFC Boost Diode 1x Infineon IDH06G65C6 (650V, 6A @ 145°C)
Hold-up Cap(s) 1x Teapo (420V, 330uF, 2000h @ 105°C, LG)
Main Switchers 4x Great Power GPT10N50AD (500V, 9.7A, 0.7Ohm)
APFC Controller On Semiconductor NCP1654
Resonant Controllers Champion CM6901T6
Topology Primary side: Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN2R6-40YS (40V, 100A @ 100°C, 5.3mOhm @ 175°C)
5V & 3.3V DC-DC Converters:4x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, 9.5mOhm)
PWM Controllers: ANPEC APW7159
Filtering Capacitors Electrolytics: 10x Teapo (1-3,000h @ 105°C, SC), 1x CapXon (2-5,000h @ 105°C, KF)
Polymers: CapXon
Supervisor IC IN1S313I-DAG & UTC393
Fan Model DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Rectifier 1x MBR2045CT SBR (45V, 20A)
Standby PWM Controller Infineon ICE2QR4765

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.4
AC Loss to PWR_OK Hold Up Time (ms)15.6
PWR_OK Inactive to DC Loss Delay (ms)4.8

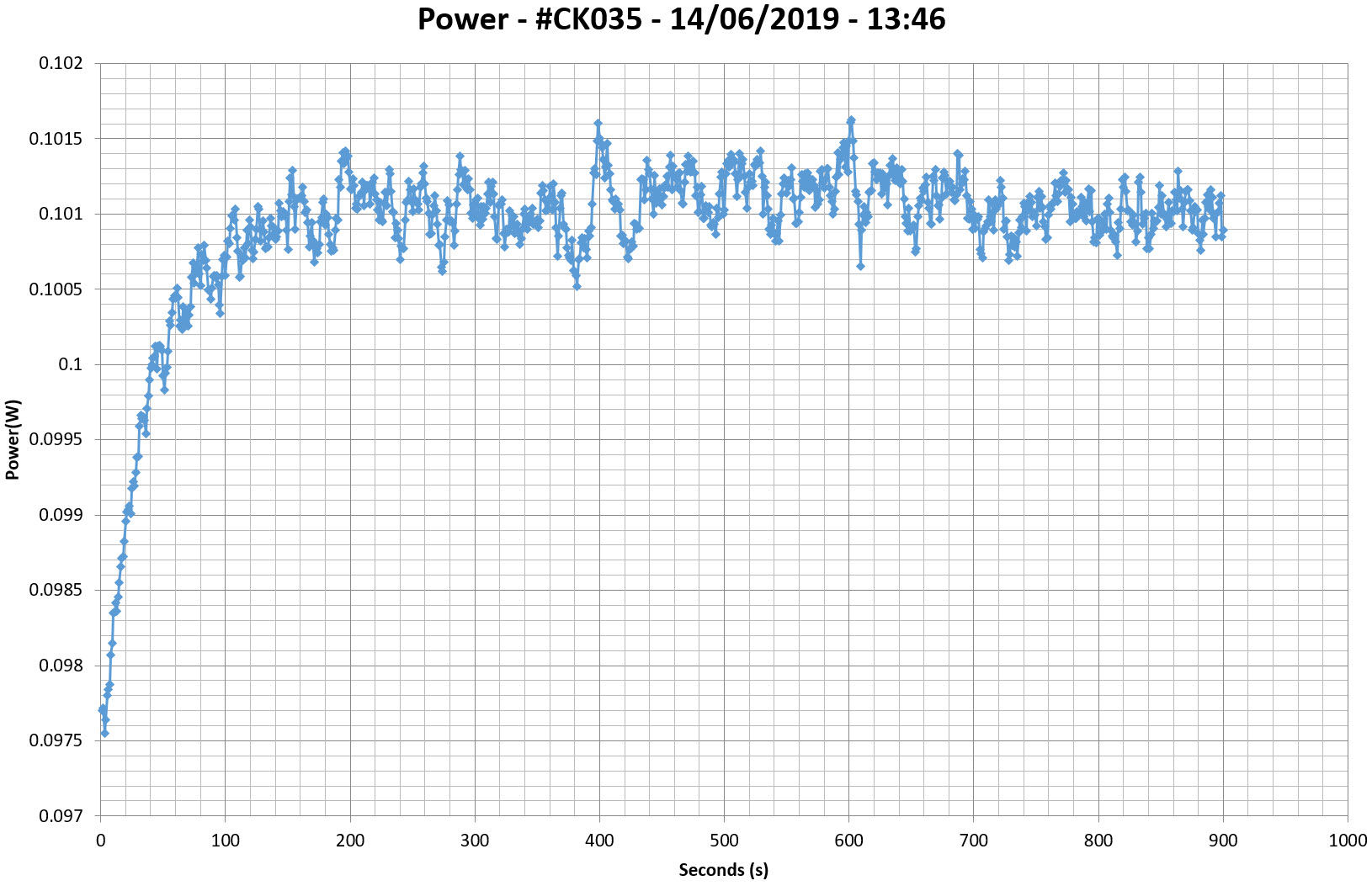

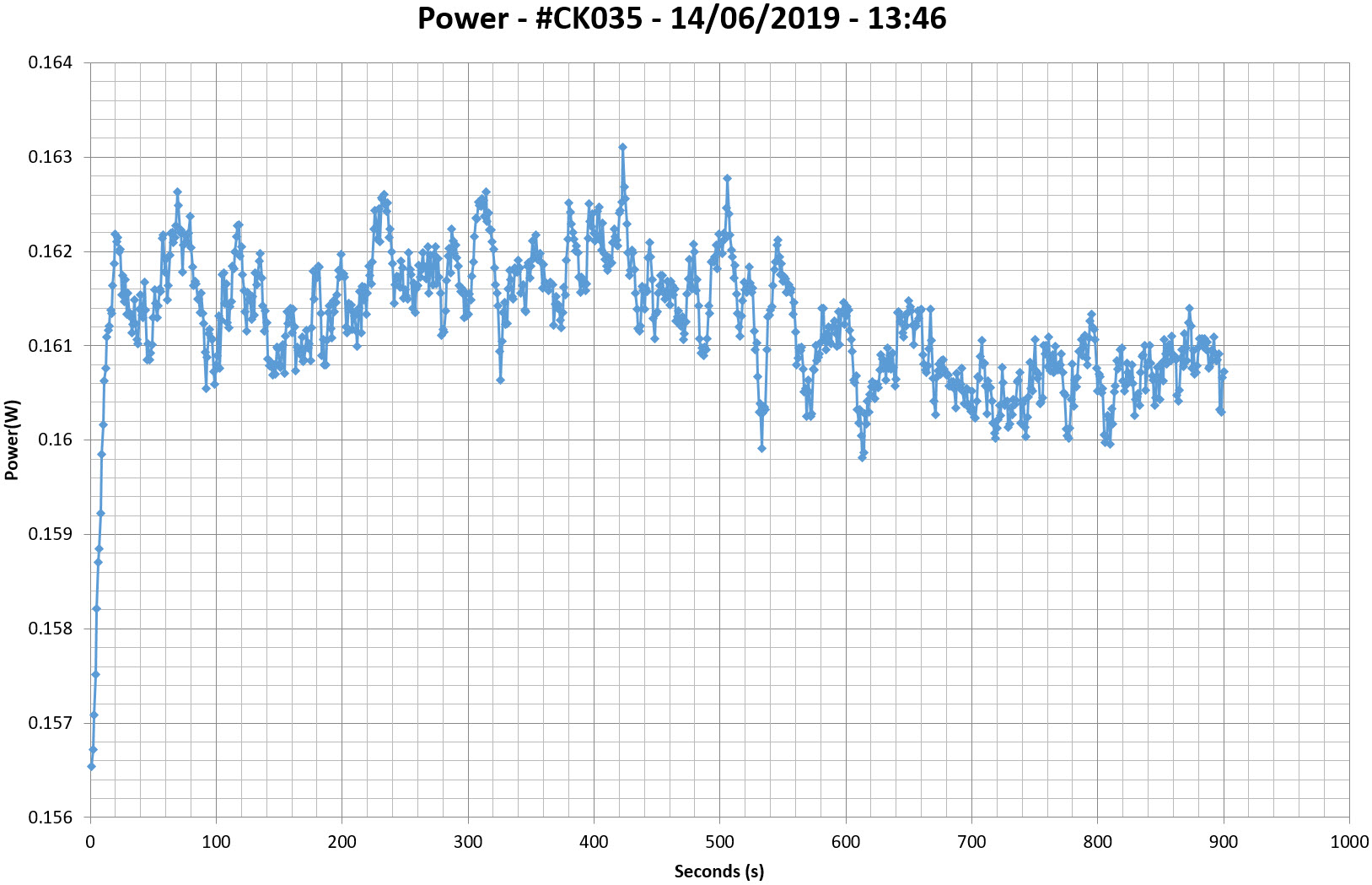

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

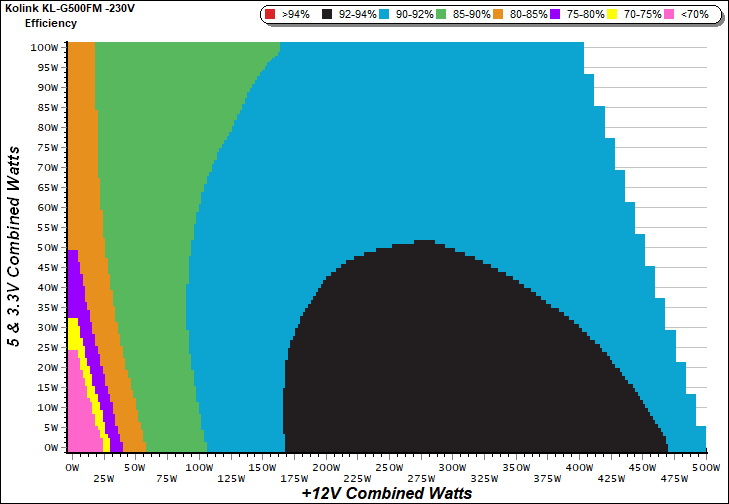

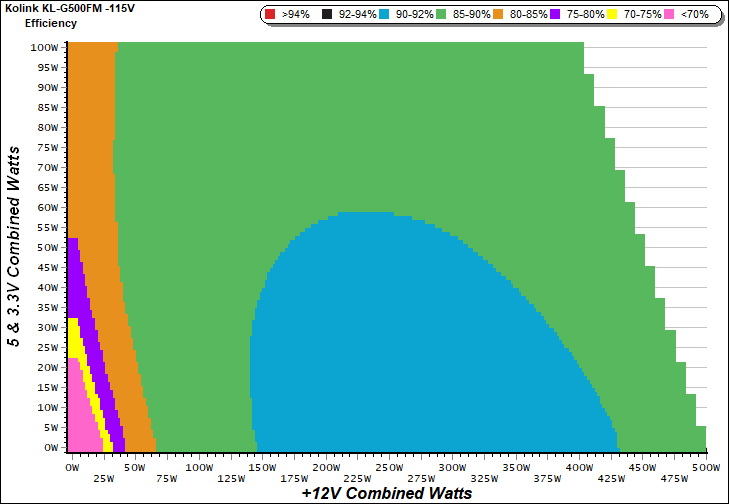

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

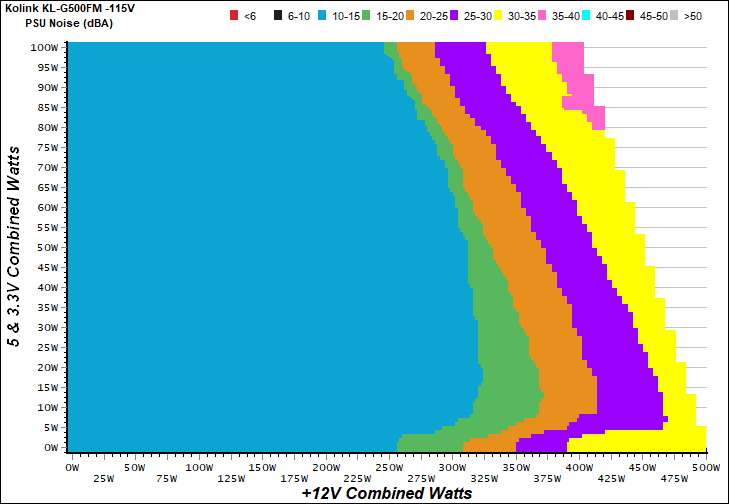

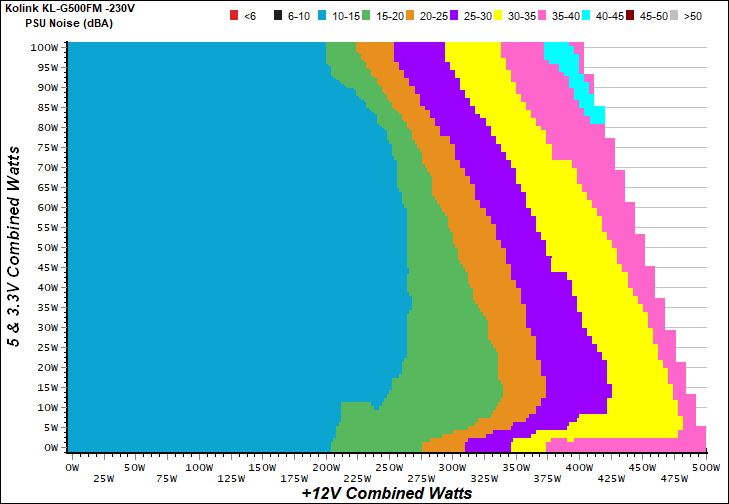

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

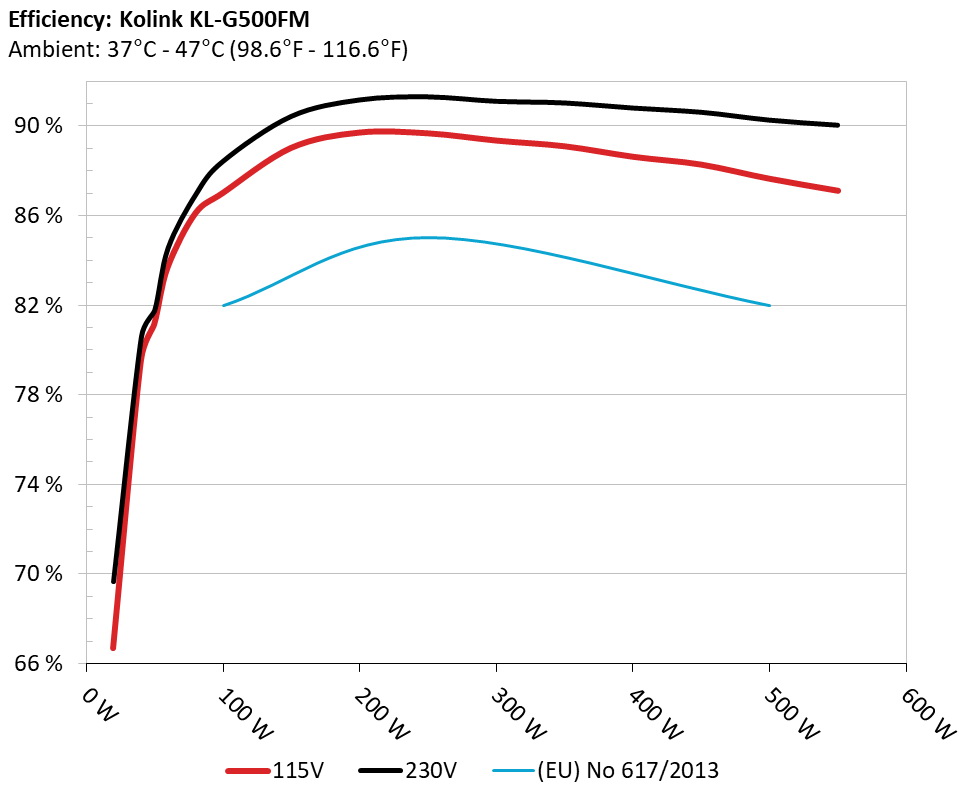

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

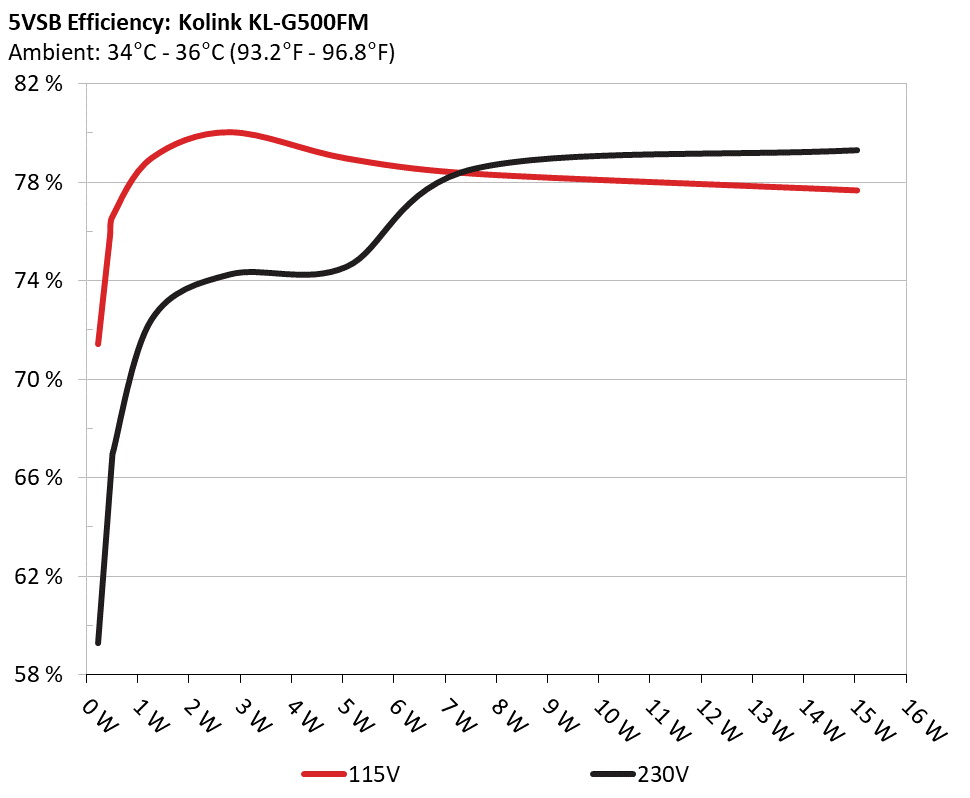

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 71.429% 0.045
5.100V 0.322 115.12V
2 0.090A 0.460 75.783% 0.082
5.099V 0.607 115.12V
3 0.550A 2.798 80.034% 0.316
5.085V 3.496 115.13V
4 1.000A 5.073 78.969% 0.401
5.072V 6.424 115.12V
5 1.500A 7.587 78.346% 0.445
5.057V 9.684 115.12V
6 3.000A 15.041 77.671% 0.496
5.013V 19.365 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 59.278% 0.016
5.101V 0.388 230.24V
2 0.090A 0.460 66.958% 0.029
5.099V 0.687 230.24V
3 0.550A 2.798 74.257% 0.143
5.085V 3.768 230.25V
4 1.000A 5.074 74.563% 0.224
5.073V 6.805 230.25V
5 1.500A 7.588 78.559% 0.277
5.058V 9.659 230.25V
6 3.000A 15.046 79.306% 0.367
5.015V 18.972 230.25V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.310A 1.984A 1.940A 0.988A 49.759 81.164% 787 15.1 40.03°C 0.948
12.190V 5.041V 3.401V 5.062V 61.307 42.63°C 115.12V
2 5.664A 2.986A 2.925A 1.189A 99.864 87.016% 792 15.4 40.64°C 0.978
12.174V 5.026V 3.386V 5.045V 114.765 43.62°C 115.12V
3 9.354A 3.492A 3.407A 1.392A 149.751 89.026% 799 15.5 41.27°C 0.985
12.160V 5.014V 3.374V 5.030V 168.210 44.72°C 115.12V
4 13.053A 4.000A 3.926A 1.596A 199.744 89.710% 1026 23.3 41.53°C 0.985
12.146V 5.001V 3.361V 5.014V 222.654 45.53°C 115.12V
5 16.435A 5.015A 4.931A 1.801A 249.865 89.677% 1509 33.7 42.16°C 0.987
12.130V 4.986V 3.347V 4.997V 278.627 46.68°C 115.12V
6 19.824A 6.038A 5.943A 2.009A 299.958 89.355% 1872 40.3 42.63°C 0.990
12.114V 4.970V 3.331V 4.980V 335.692 47.51°C 115.12V
7 23.222A 7.068A 6.968A 2.218A 350.067 89.097% 1877 40.4 43.06°C 0.992
12.098V 4.954V 3.316V 4.962V 392.907 48.55°C 115.12V
8 26.635A 8.103A 8.000A 2.429A 400.171 88.630% 1882 40.4 43.76°C 0.993
12.080V 4.938V 3.300V 4.943V 451.505 49.88°C 115.12V
9 30.449A 8.632A 8.517A 2.434A 449.882 88.280% 1881 40.4 44.34°C 0.994
12.065V 4.925V 3.287V 4.933V 509.606 51.22°C 115.12V
10 34.038A 9.167A 9.074A 3.060A 499.883 87.647% 1884 40.4 45.10°C 0.995
12.050V 4.911V 3.273V 4.904V 570.335 52.52°C 115.12V
11 38.342A 9.182A 9.092A 3.064A 549.869 87.114% 1881 40.4 46.68°C 0.995
12.001V 4.903V 3.267V 4.897V 631.204 55.11°C 115.11V
CL1 0.141A 12.002A 11.998A 0.000A 101.760 81.738% 1877 40.4 42.30°C 0.987
12.147V 4.984V 3.353V 5.058V 124.496 46.63°C 115.12V
CL2 41.009A 1.001A 1.000A 1.000A 506.803 88.821% 1881 40.4 45.38°C 0.995
12.035V 4.954V 3.312V 4.989V 570.592 52.55°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.310A 1.984A 1.940A 0.988A 49.753 81.784% 785 15.1 40.22°C 0.741
12.188V 5.040V 3.401V 5.062V 60.835 43.33°C 230.28V
2 5.667A 2.985A 2.923A 1.189A 99.863 88.442% 790 15.3 40.64°C 0.859
12.169V 5.026V 3.387V 5.045V 112.913 44.45°C 230.28V
3 9.361A 3.492A 3.407A 1.392A 149.752 90.443% 799 15.5 41.42°C 0.912
12.151V 5.013V 3.375V 5.030V 165.576 45.55°C 230.28V
4 13.066A 4.001A 3.927A 1.596A 199.747 91.178% 1088 24.8 41.92°C 0.938
12.133V 5.001V 3.363V 5.014V 219.074 46.28°C 230.27V
5 16.458A 5.017A 4.928A 1.801A 249.864 91.313% 1510 33.7 42.47°C 0.953
12.113V 4.985V 3.348V 4.997V 273.635 47.46°C 230.28V
6 19.858A 6.040A 5.940A 2.009A 299.957 91.116% 1869 40.3 42.90°C 0.963
12.093V 4.969V 3.333V 4.979V 329.203 48.20°C 230.28V
7 23.269A 7.067A 6.963A 2.218A 350.069 91.041% 1873 40.3 43.48°C 0.969
12.074V 4.954V 3.318V 4.962V 384.519 49.83°C 230.27V
8 26.695A 8.103A 7.994A 2.428A 400.175 90.813% 1875 40.3 43.95°C 0.974
12.053V 4.938V 3.303V 4.944V 440.658 50.87°C 230.28V
9 30.527A 8.632A 8.509A 2.433A 449.873 90.628% 1878 40.4 44.73°C 0.977
12.034V 4.925V 3.290V 4.934V 496.394 51.95°C 230.27V
10 34.141A 9.166A 9.066A 3.059A 499.887 90.276% 1880 40.4 45.67°C 0.979
12.014V 4.911V 3.276V 4.904V 553.734 53.49°C 230.26V
11 38.365A 9.187A 9.095A 3.065A 549.902 90.049% 1883 40.4 46.50°C 0.982
11.995V 4.900V 3.265V 4.895V 610.669 55.27°C 230.27V
CL1 0.142A 12.002A 11.998A 0.000A 101.736 83.052% 1874 40.3 42.54°C 0.873
12.147V 4.982V 3.352V 5.057V 122.497 47.76°C 230.27V
CL2 41.010A 1.002A 1.000A 1.000A 506.653 91.515% 1881 40.4 45.03°C 0.979
12.031V 4.953V 3.311V 4.988V 553.627 53.48°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.192A 0.495A 0.468A 0.197A 19.639 66.709% 763 14.2 0.857
12.194V 5.055V 3.414V 5.094V 29.440 115.10V
2 2.439A 0.992A 0.968A 0.394A 40.054 79.576% 772 14.8 0.933
12.196V 5.047V 3.407V 5.083V 50.334 115.12V
3 3.620A 1.489A 1.442A 0.592A 59.537 83.704% 776 14.8 0.961
12.189V 5.041V 3.401V 5.073V 71.128 115.12V
4 4.871A 1.987A 1.944A 0.790A 79.946 86.122% 783 15.0 0.978
12.183V 5.035V 3.394V 5.063V 92.829 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.189A 0.495A 0.468A 0.196A 19.607 69.677% 772 14.8 0.554
12.202V 5.055V 3.414V 5.093V 28.140 230.27V
2 2.437A 0.992A 0.968A 0.394A 40.025 80.618% 776 14.8 0.693
12.194V 5.048V 3.407V 5.083V 49.648 230.27V
3 3.620A 1.489A 1.440A 0.592A 59.519 84.556% 776 14.8 0.771
12.186V 5.041V 3.401V 5.073V 70.390 230.27V
4 4.873A 1.985A 1.945A 0.790A 79.939 86.962% 781 14.9 0.822
12.178V 5.034V 3.395V 5.063V 91.924 230.27V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.1 mV 9.5 mV 10.4 mV 11.7 mV Pass
20% Load 26.1 mV 9.8 mV 10.8 mV 13.6 mV Pass
30% Load 36.5 mV 10.2 mV 11.0 mV 12.9 mV Pass
40% Load 42.2 mV 10.5 mV 11.2 mV 13.2 mV Pass
50% Load 46.9 mV 12.0 mV 11.0 mV 11.8 mV Pass
60% Load 47.6 mV 12.5 mV 11.4 mV 11.5 mV Pass
70% Load 42.7 mV 13.4 mV 12.0 mV 12.5 mV Pass
80% Load 37.4 mV 14.0 mV 13.1 mV 13.6 mV Pass
90% Load 35.9 mV 14.7 mV 13.6 mV 13.7 mV Pass
100% Load 48.5 mV 15.9 mV 14.2 mV 14.6 mV Pass
110% Load 49.0 mV 16.7 mV 14.4 mV 14.4 mV Pass
Crossload 1 34.1 mV 13.3 mV 15.9 mV 16.4 mV Pass
Crossload 2 47.7 mV 13.4 mV 11.2 mV 24.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 21.7 mV 9.1 mV 10.9 mV 19.4 mV Pass
20% Load 33.0 mV 9.7 mV 11.4 mV 11.3 mV Pass
30% Load 42.1 mV 10.3 mV 11.1 mV 11.3 mV Pass
40% Load 49.7 mV 10.5 mV 11.0 mV 12.6 mV Pass
50% Load 54.8 mV 12.0 mV 11.9 mV 12.4 mV Pass
60% Load 53.9 mV 13.2 mV 12.0 mV 11.6 mV Pass
70% Load 47.6 mV 13.0 mV 11.9 mV 12.0 mV Pass
80% Load 41.4 mV 13.6 mV 13.2 mV 12.5 mV Pass
90% Load 38.9 mV 14.8 mV 13.8 mV 12.9 mV Pass
100% Load 50.2 mV 16.3 mV 14.4 mV 13.5 mV Pass
110% Load 52.7 mV 17.2 mV 16.3 mV 14.3 mV Pass
Crossload 1 39.7 mV 13.4 mV 17.0 mV 16.6 mV Pass
Crossload 2 48.3 mV 14.0 mV 11.9 mV 23.0 mV Pass

The results above are not used in the certification process

Kolink Enclave 500W

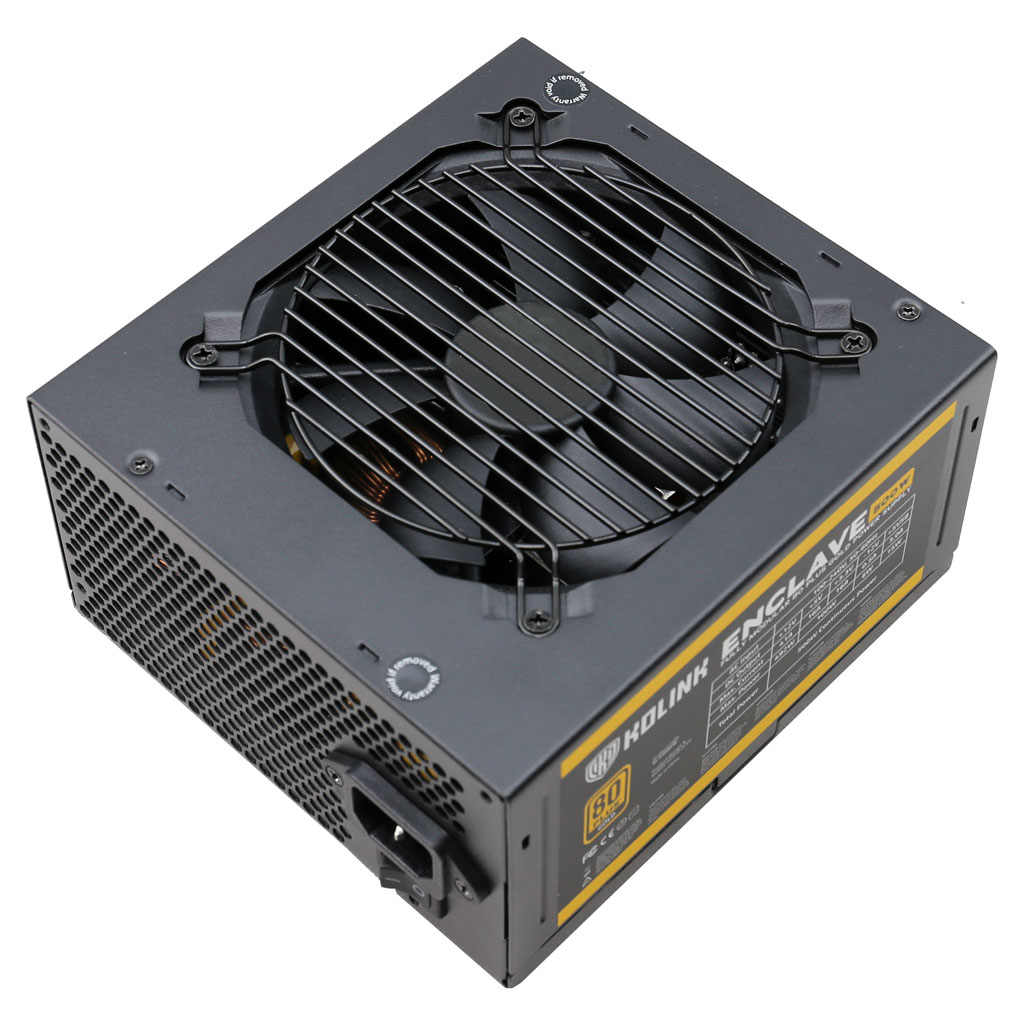

Top side

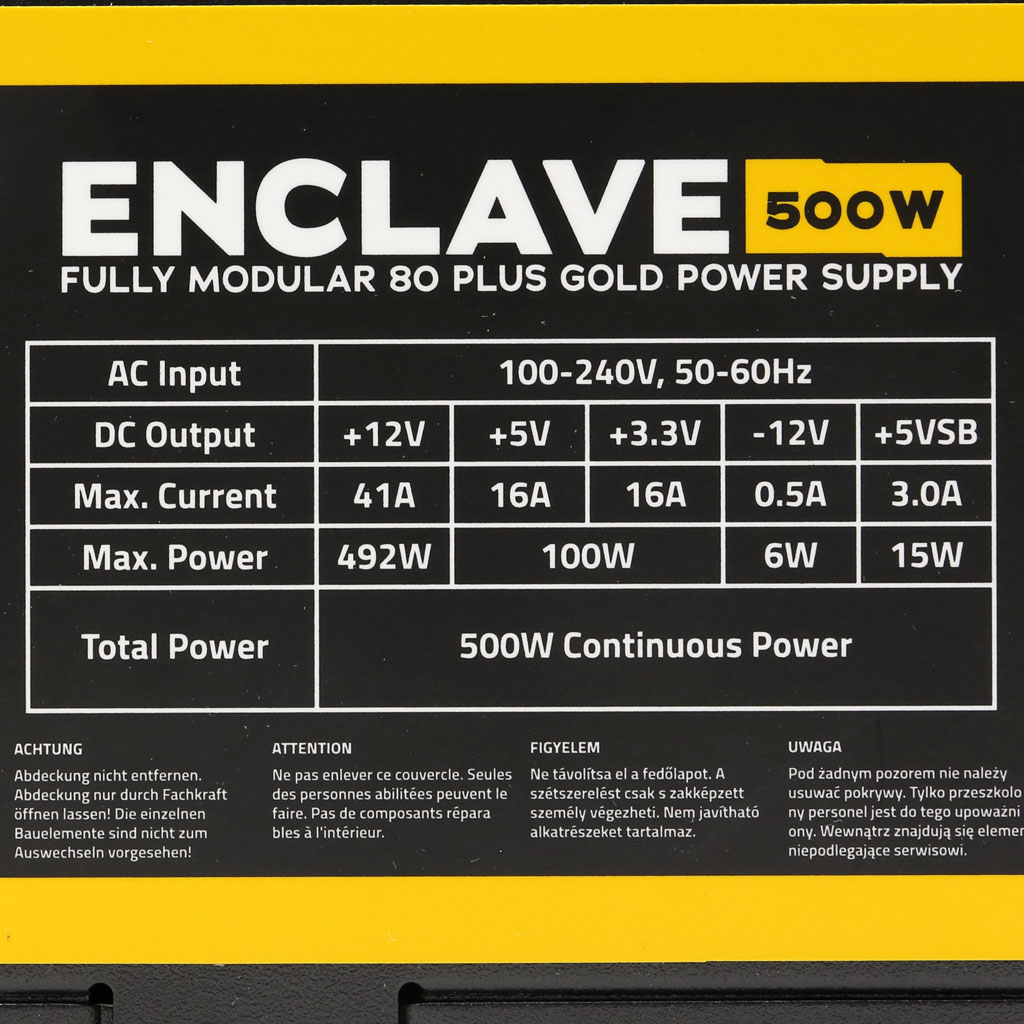

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
