CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Kolink Enclave 600W
Serial Number#CK033
Lab IDKL19600056
  • Report: 19PS742A
  • Receipt Date: Nov 6, 2019
  • Test Date: Jun 14, 2019
  • Report Date: Jun 28, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKolink
Manufacturer (OEM)Kolink
SeriesEnclave
Model NumberKL-G600FM
Serial Number#CK033
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps16164830.5
Watts103576156
Total Max. Power (W)600

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (500mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (600mm+100mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 20AWG No
SATA (450mm) / 4 pin Molex (+120mm+120mm) 2 2 / 4 18-20AWG No

Parts Description

General Data
Manufacturer (OEM) Kolink
PCB Type Double Sided
Primary Side
Transient Filter 5x Y caps, 3x X caps, 2x CM chokes
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA50R190CE (550V, 15.7A @ 100°C, 0.19Ohm)
APFC Boost Diode 1x Infineon IDH06G65C6 (650V, 6A @ 145°C)
Hold-up Cap(s) 1x Teapo (420V, 390uF, 2000h @ 105°C, LG)
Main Switchers 4x Great Power GPT10N50AD (500V, 9.7A, 0.7Ohm)
APFC Controller On Semiconductor NCP1654
Resonant Controllers Champion CM6901T6
Topology Primary side: Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN2R6-40YS (40V, 100A @ 100°C, 5.3mOhm @ 175°C)
5V & 3.3V DC-DC Converters:4x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, 9.5mOhm)
PWM Controllers: ANPEC APW7159
Filtering Capacitors Electrolytics: 10x Teapo (1-3,000h @ 105°C, SC), 1x CapXon (2-5,000h @ 105°C, KF)
Polymers: CapXon
Supervisor IC IN1S313I-DAG & UTC393
Fan Model DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Rectifier 1x MBR2045CT SBR (45V, 20A)
Standby PWM Controller Infineon ICE2QR4765

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.8
AC Loss to PWR_OK Hold Up Time (ms)15.4
PWR_OK Inactive to DC Loss Delay (ms)4.4

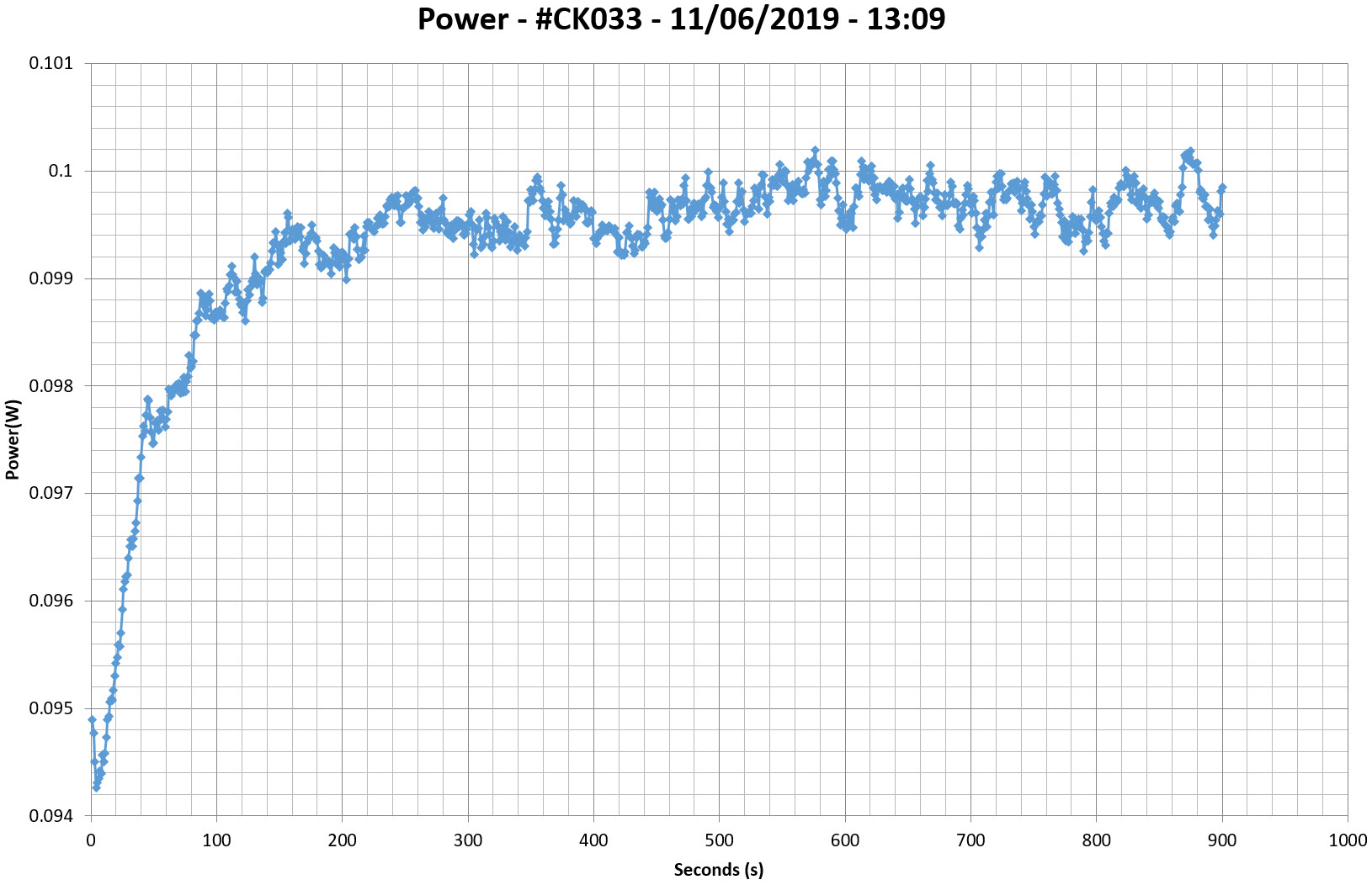

Vampire Power

Graphs

INFO

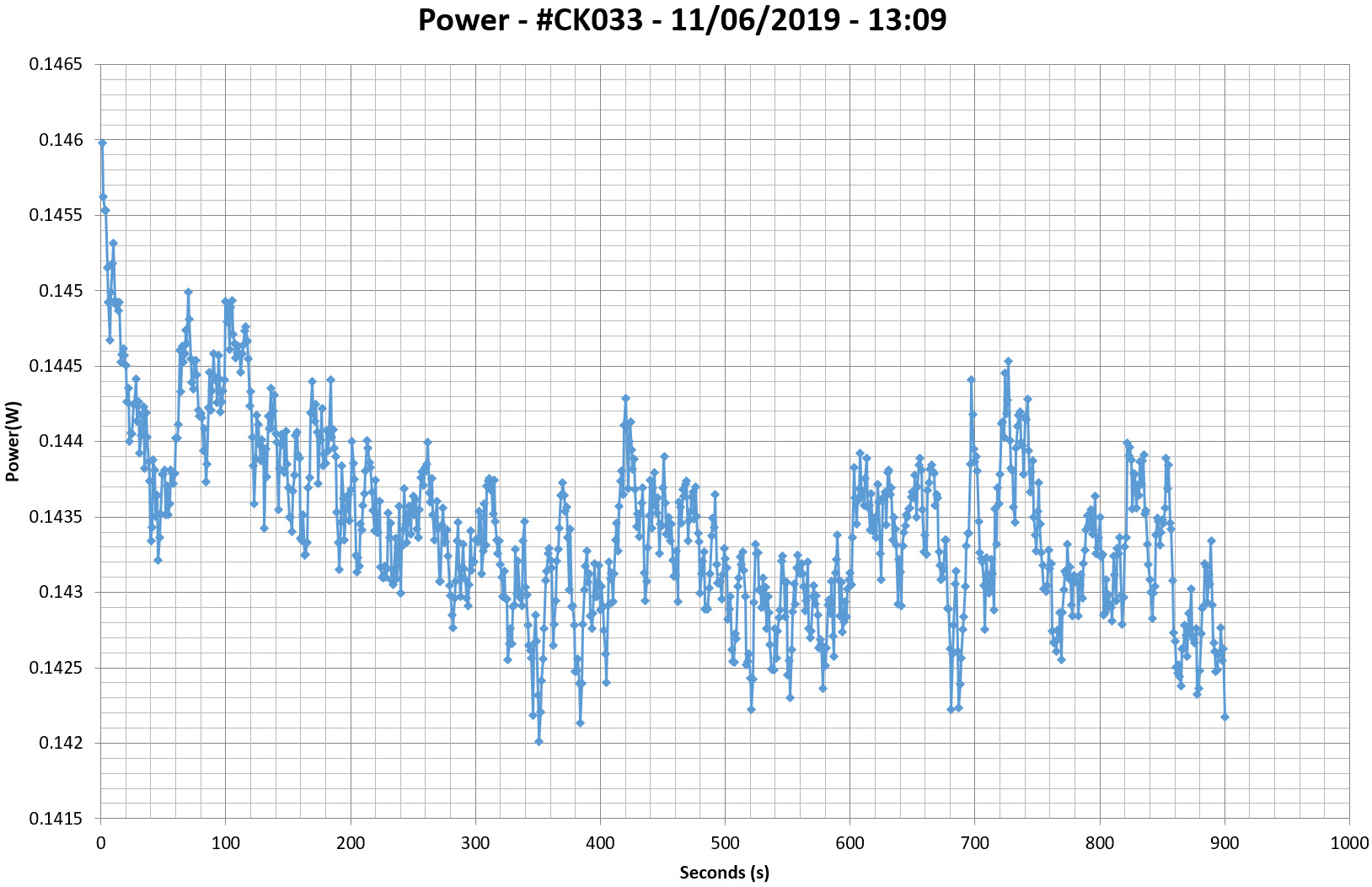

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

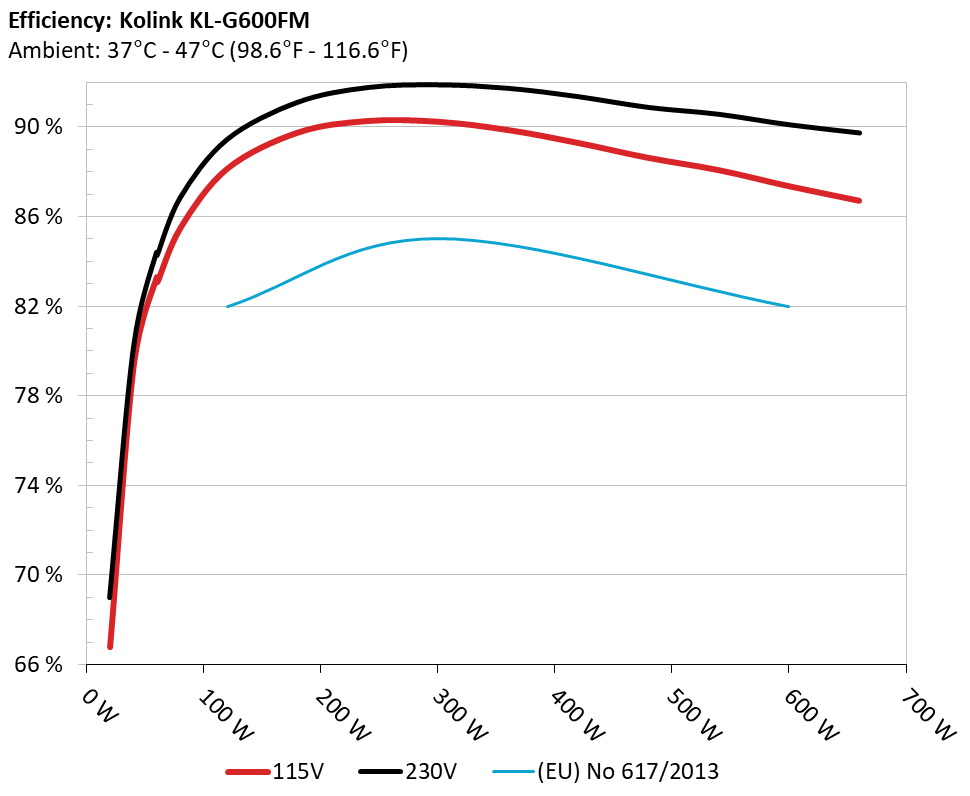

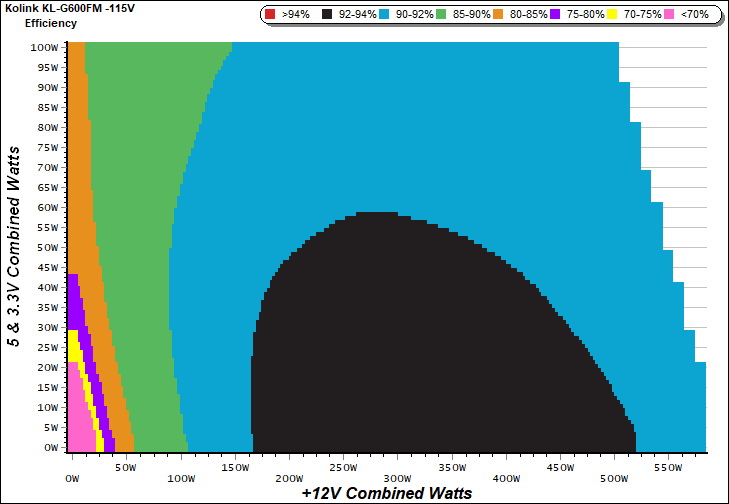

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

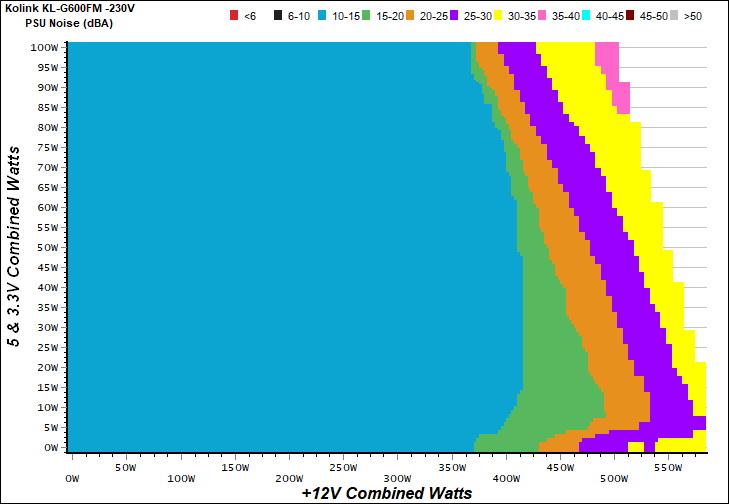

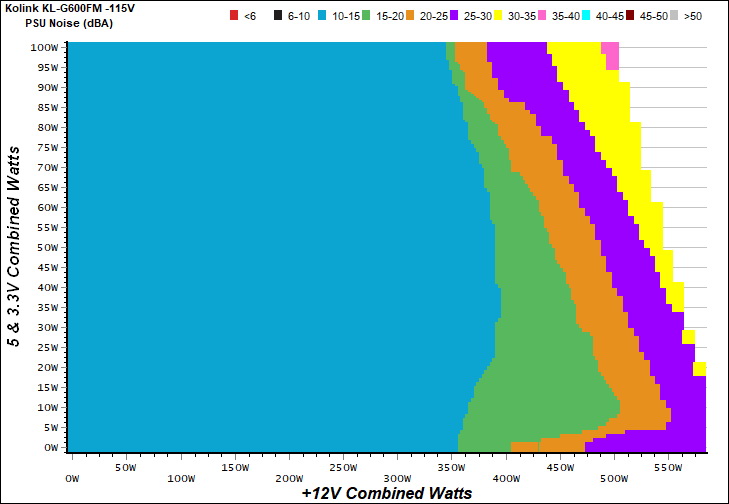

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

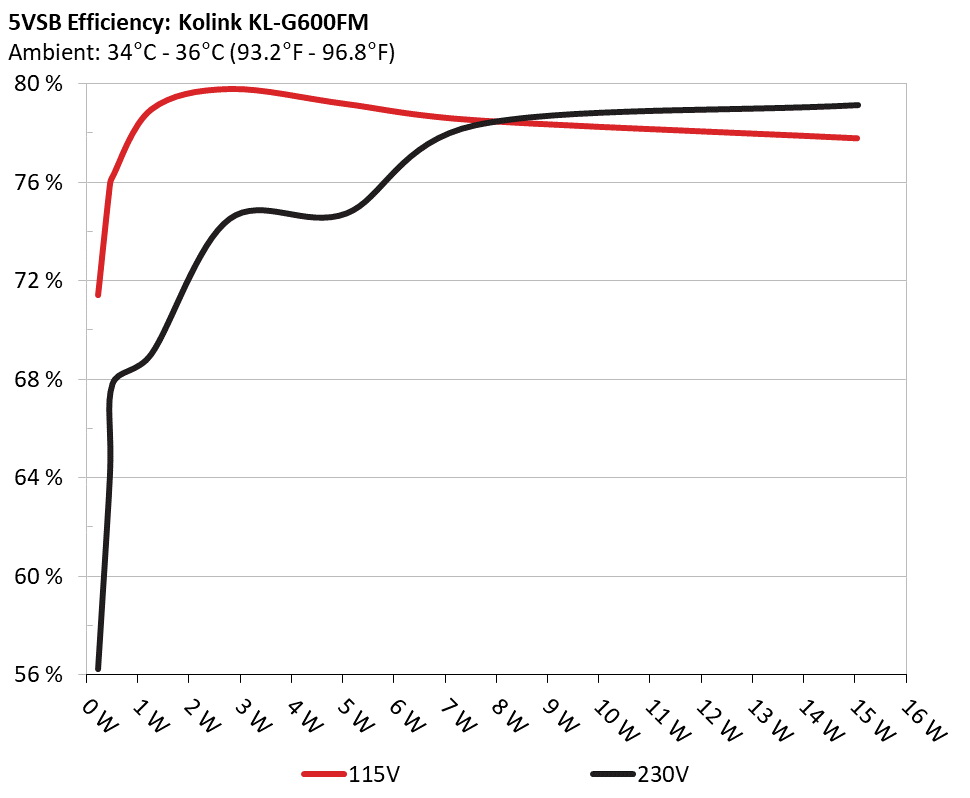

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 71.429% 0.045
5.101V 0.322 115.13V
2 0.090A 0.460 75.908% 0.082
5.099V 0.606 115.13V
3 0.550A 2.798 79.806% 0.312
5.086V 3.506 115.13V
4 1.000A 5.074 79.195% 0.393
5.073V 6.407 115.13V
5 1.500A 7.590 78.539% 0.436
5.059V 9.664 115.13V
6 3.001A 15.051 77.803% 0.493
5.016V 19.345 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 56.235% 0.017
5.101V 0.409 230.27V
2 0.090A 0.460 64.067% 0.030
5.099V 0.718 230.27V
3 0.550A 2.798 74.534% 0.141
5.086V 3.754 230.28V
4 1.000A 5.075 74.753% 0.222
5.074V 6.789 230.28V
5 1.500A 7.590 78.336% 0.276
5.059V 9.689 230.28V
6 3.001A 15.054 79.152% 0.364
5.017V 19.019 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.171A 1.982A 1.951A 0.988A 60.152 83.084% 767 14.5 40.08°C 0.957
12.156V 5.048V 3.382V 5.063V 72.399 43.62°C 115.13V
2 7.326A 2.982A 2.940A 1.189A 119.852 88.137% 770 14.7 40.75°C 0.986
12.140V 5.033V 3.369V 5.047V 135.984 44.72°C 115.12V
3 11.853A 3.487A 3.425A 1.391A 179.747 89.740% 774 14.8 41.12°C 0.982
12.127V 5.021V 3.357V 5.032V 200.297 45.57°C 115.12V
4 16.393A 3.996A 3.945A 1.595A 239.757 90.265% 778 14.9 41.76°C 0.985
12.112V 5.008V 3.344V 5.016V 265.615 46.46°C 115.12V
5 20.613A 5.010A 4.955A 1.800A 299.851 90.232% 783 15.0 42.43°C 0.989
12.096V 4.993V 3.330V 5.000V 332.312 47.55°C 115.12V
6 24.845A 6.030A 5.972A 2.008A 359.949 89.862% 993 22.7 42.63°C 0.991
12.080V 4.977V 3.316V 4.983V 400.556 48.54°C 115.12V
7 29.060A 7.057A 7.000A 2.216A 419.663 89.288% 1447 33.1 43.09°C 0.993
12.063V 4.961V 3.300V 4.965V 470.012 49.25°C 115.12V
8 33.356A 8.091A 8.034A 2.426A 480.178 88.618% 1831 39.6 43.75°C 0.994
12.045V 4.945V 3.285V 4.948V 541.851 50.31°C 115.12V
9 37.986A 8.620A 8.556A 2.431A 539.485 88.077% 1848 39.9 44.25°C 0.995
12.030V 4.932V 3.272V 4.938V 612.516 51.47°C 115.12V
10 42.465A 9.155A 9.118A 3.057A 599.903 87.358% 1857 40.1 45.53°C 0.995
12.014V 4.917V 3.258V 4.909V 686.717 53.63°C 115.12V
11 47.522A 9.177A 9.149A 3.063A 659.932 86.709% 1864 40.2 46.61°C 0.996
11.999V 4.905V 3.246V 4.899V 761.089 55.54°C 115.12V
CL1 0.147A 12.001A 11.999A 0.000A 101.948 83.153% 832 16.1 42.78°C 0.986
12.127V 5.000V 3.347V 5.062V 122.603 47.65°C 115.13V
CL2 48.010A 1.002A 1.001A 1.000A 591.238 88.456% 1857 40.1 45.39°C 0.995
12.039V 4.957V 3.287V 4.989V 668.399 53.88°C 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.171A 1.981A 1.953A 0.988A 60.151 84.284% 765 14.3 40.45°C 0.764
12.155V 5.048V 3.382V 5.063V 71.367 44.17°C 230.27V
2 7.327A 2.982A 2.937A 1.189A 119.850 89.456% 768 14.5 40.80°C 0.876
12.140V 5.033V 3.368V 5.046V 133.976 45.20°C 230.27V
3 11.856A 3.485A 3.427A 1.391A 179.748 91.115% 771 14.7 41.42°C 0.919
12.125V 5.020V 3.356V 5.031V 197.275 46.20°C 230.27V
4 16.397A 3.995A 3.946A 1.595A 239.767 91.777% 774 14.8 41.68°C 0.941
12.110V 5.007V 3.344V 5.016V 261.250 47.15°C 230.26V
5 20.614A 5.012A 4.956A 1.801A 299.848 91.898% 781 14.9 42.25°C 0.955
12.095V 4.992V 3.329V 4.999V 326.283 48.37°C 230.27V
6 24.849A 6.031A 5.973A 2.008A 359.948 91.745% 903 19.4 42.52°C 0.964
12.078V 4.977V 3.315V 4.982V 392.334 49.24°C 230.27V
7 29.065A 7.057A 6.999A 2.216A 419.661 91.372% 1371 31.1 43.09°C 0.970
12.061V 4.961V 3.300V 4.965V 459.290 50.20°C 230.27V
8 33.360A 8.094A 8.036A 2.426A 480.171 90.887% 1830 39.6 43.57°C 0.973
12.043V 4.944V 3.285V 4.947V 528.316 51.47°C 230.27V
9 37.990A 8.623A 8.559A 2.432A 539.476 90.586% 1847 39.9 44.97°C 0.977
12.028V 4.931V 3.272V 4.937V 595.540 53.05°C 230.27V
10 42.468A 9.157A 9.119A 3.058A 599.894 90.117% 1858 40.1 45.93°C 0.979
12.013V 4.916V 3.257V 4.908V 665.686 54.40°C 230.27V
11 47.524A 9.178A 9.153A 3.064A 659.920 89.753% 1865 40.2 46.63°C 0.980
11.998V 4.905V 3.245V 4.898V 735.262 55.49°C 230.27V
CL1 0.147A 12.003A 11.998A 0.000A 101.942 84.333% 831 16.1 42.52°C 0.862
12.126V 4.999V 3.347V 5.062V 120.881 48.58°C 230.27V
CL2 48.016A 1.002A 1.002A 1.000A 591.216 91.210% 1858 40.1 46.12°C 0.979
12.037V 4.956V 3.287V 4.988V 648.191 54.08°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.199A 0.494A 0.471A 0.196A 19.678 66.807% 774 14.8 0.856
12.159V 5.063V 3.395V 5.094V 29.455 115.13V
2 2.448A 0.991A 0.974A 0.394A 40.085 79.449% 765 14.3 0.930
12.162V 5.055V 3.389V 5.085V 50.454 115.13V
3 3.630A 1.487A 1.449A 0.591A 59.538 83.290% 764 14.2 0.956
12.156V 5.050V 3.384V 5.075V 71.483 115.13V
4 4.883A 1.984A 1.952A 0.790A 79.933 85.504% 765 14.3 0.970
12.150V 5.044V 3.379V 5.066V 93.484 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.192A 0.494A 0.471A 0.196A 19.600 69.012% 754 14.0 0.551
12.166V 5.063V 3.395V 5.094V 28.401 230.27V
2 2.447A 0.988A 0.974A 0.394A 40.053 80.217% 754 14.0 0.686
12.160V 5.055V 3.388V 5.084V 49.931 230.27V
3 3.630A 1.485A 1.449A 0.591A 59.524 84.416% 757 14.0 0.761
12.155V 5.050V 3.384V 5.075V 70.513 230.27V
4 4.883A 1.984A 1.954A 0.790A 79.934 86.867% 761 14.2 0.814
12.149V 5.044V 3.378V 5.066V 92.019 230.27V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.8 mV 9.6 mV 10.8 mV 12.0 mV Pass
20% Load 25.4 mV 10.7 mV 11.2 mV 12.4 mV Pass
30% Load 33.3 mV 11.2 mV 12.0 mV 11.8 mV Pass
40% Load 36.8 mV 11.7 mV 11.0 mV 12.2 mV Pass
50% Load 35.9 mV 13.1 mV 11.9 mV 12.8 mV Pass
60% Load 30.0 mV 15.9 mV 12.4 mV 12.8 mV Pass
70% Load 27.7 mV 15.2 mV 13.3 mV 13.4 mV Pass
80% Load 27.1 mV 17.3 mV 15.2 mV 15.5 mV Pass
90% Load 30.5 mV 18.0 mV 15.4 mV 15.6 mV Pass
100% Load 46.3 mV 19.7 mV 18.1 mV 16.8 mV Pass
110% Load 50.6 mV 20.9 mV 16.7 mV 18.9 mV Pass
Crossload 1 29.8 mV 15.1 mV 16.3 mV 16.3 mV Pass
Crossload 2 45.5 mV 16.3 mV 13.9 mV 16.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 22.2 mV 9.7 mV 11.2 mV 12.1 mV Pass
20% Load 30.7 mV 10.4 mV 10.8 mV 12.2 mV Pass
30% Load 39.8 mV 11.1 mV 11.2 mV 12.3 mV Pass
40% Load 46.3 mV 11.6 mV 11.0 mV 12.9 mV Pass
50% Load 41.5 mV 12.6 mV 11.5 mV 13.6 mV Pass
60% Load 33.1 mV 14.0 mV 12.4 mV 12.5 mV Pass
70% Load 29.3 mV 15.3 mV 13.2 mV 13.5 mV Pass
80% Load 29.7 mV 16.2 mV 14.9 mV 14.2 mV Pass
90% Load 31.2 mV 17.5 mV 14.6 mV 16.1 mV Pass
100% Load 47.1 mV 18.8 mV 16.0 mV 15.7 mV Pass
110% Load 49.9 mV 19.6 mV 18.3 mV 16.7 mV Pass
Crossload 1 35.3 mV 14.8 mV 15.6 mV 17.3 mV Pass
Crossload 2 46.0 mV 15.2 mV 12.7 mV 15.9 mV Pass

The results above are not used in the certification process

Kolink Enclave 600W

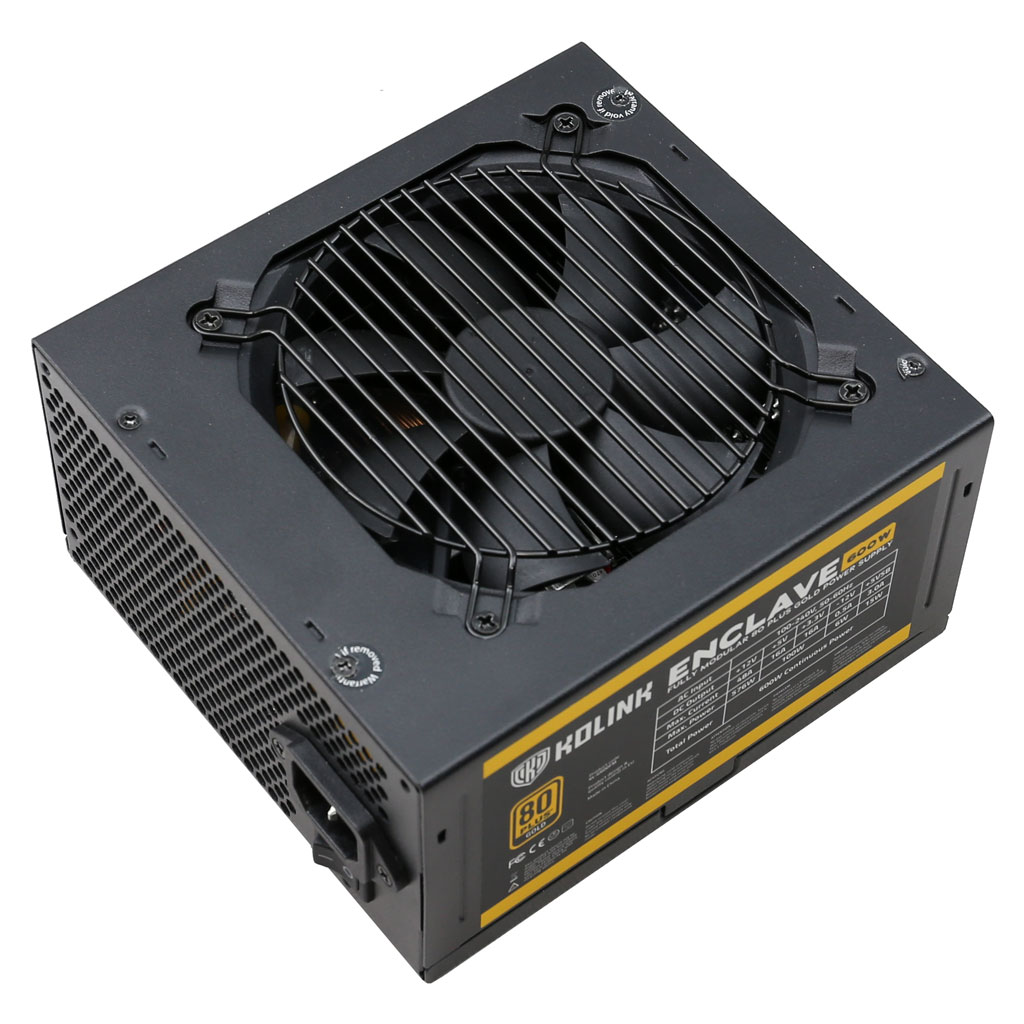

Top side

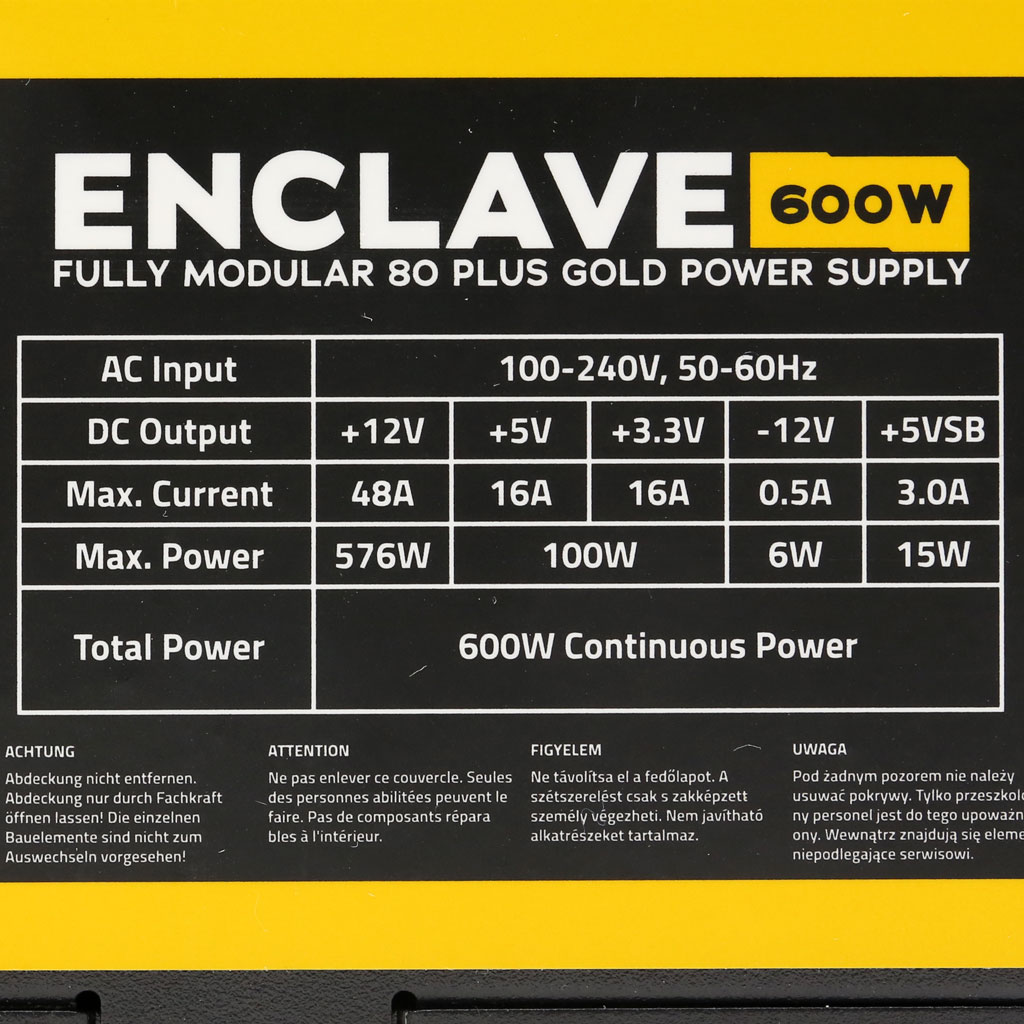

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
