Thermal Control DF1202512SELN (120mm, 12V, 0.25A, Rifle Bearing Fan)
5VSB Circuit
Rectifier
-
Standby PWM Controller
On-Bright OB2365SP
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary 230V
Efficiency Rating
Noise Rating
A-
Average Efficiency (>1450 load combinations)
87.767%
Average Noise Output (>1450 Load Combinations)
27.86dBA
Average PF (>1450 Load Combinations)
0.901
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.2042W
12V Ripple (Full Load)
48.33mV
5V Ripple (Full Load)
22.77mV
3.3V Ripple (Full Load)
25.97mV
5VSB Ripple (Full Load)
23.16mV
12V Load Regulation
1.64%
5V Load Regulation
2.74%
3.3V Load Regulation
2.98%
5VSB Load Regulation
4.04%
Inrush Current
68.818A
Hold-Up Time & Power Ok Signal
15.80ms
AC Loss to PWR_OK Hold Up Time
16.60ms
PWR_OK Inactive to DC Loss Delay
-0.80ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
130.41%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
15.8
AC Loss to PWR_OK Hold Up Time (ms)
16.6
PWR_OK Inactive to DC Loss Delay (ms)
-0.8

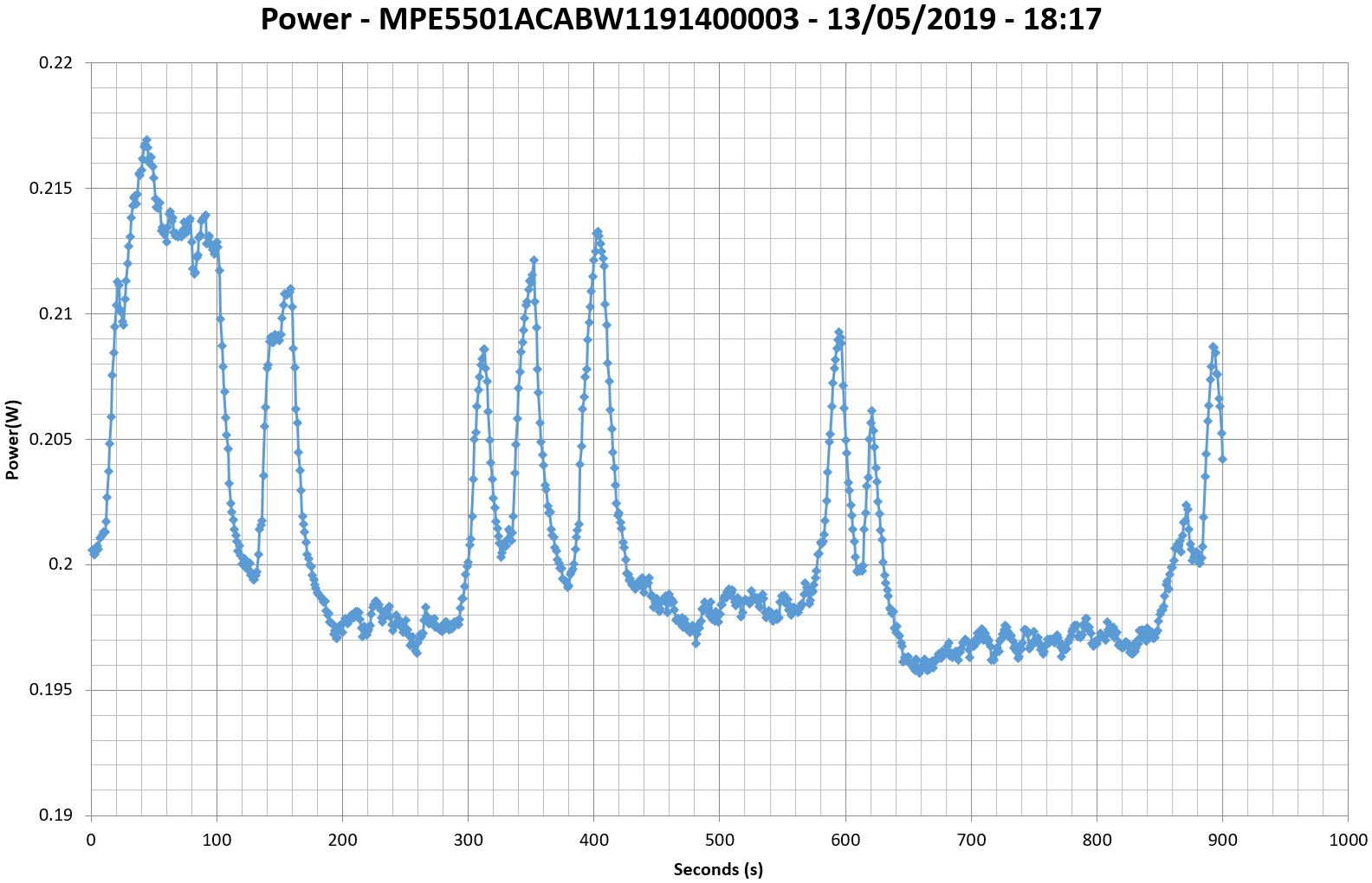

Vampire Power
Tables 230V
Graphs 230V
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

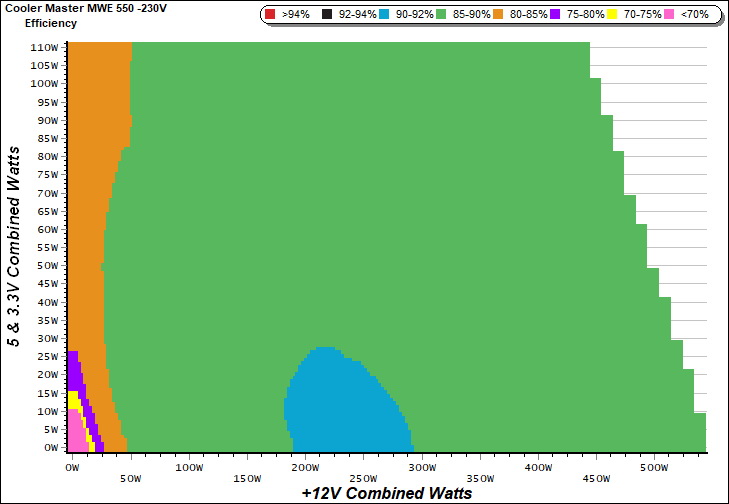

Efficiency Graph
230V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

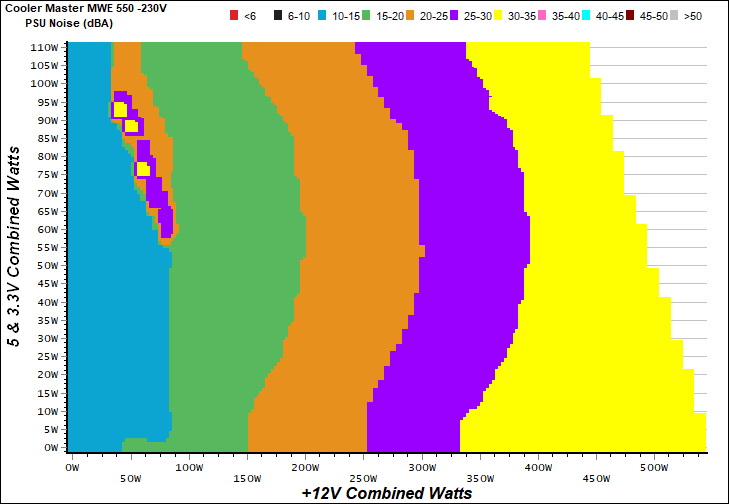

Noise Graph
230V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

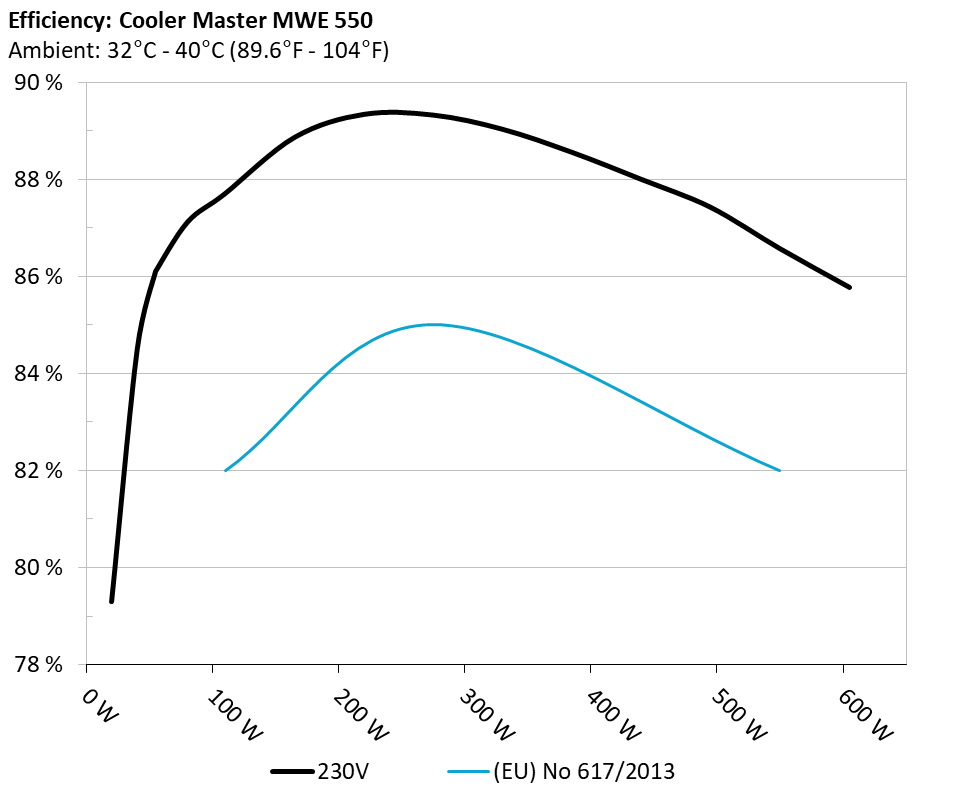

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

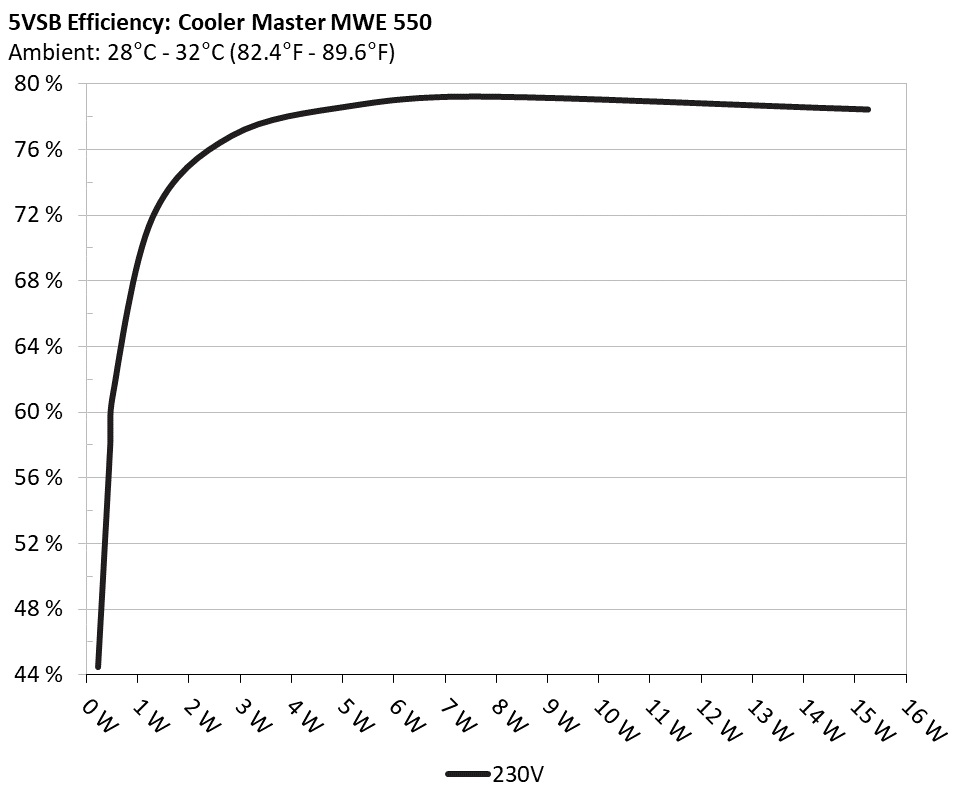

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.234
44.487%
0.010
5.188V
0.526
230.27V
2
0.090A
0.467
57.726%
0.016
5.187V
0.809
230.27V
3
0.550A
2.845
76.809%
0.071
5.172V
3.704
230.25V
4
1.000A
5.158
78.616%
0.121
5.157V
6.561
230.27V
5
1.500A
7.710
79.191%
0.168
5.140V
9.736
230.27V
6
3.000A
15.264
78.402%
0.271
5.088V
19.469
230.27V
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
2.702A
2.000A
1.966A
0.973A
54.408
85.027%
0
<6.0
41.23°C
0.649
12.143V
5.000V
3.354V
5.141V
63.989
35.36°C
230.29V
2
6.490A
3.006A
2.959A
1.172A
109.318
87.704%
0
<6.0
42.08°C
0.803
12.086V
4.985V
3.343V
5.122V
124.644
35.92°C
230.29V
3
10.658A
3.522A
3.451A
1.371A
164.819
88.870%
951
20.1
36.39°C
0.872
12.086V
4.971V
3.332V
5.106V
185.460
43.23°C
230.29V
4
14.788A
4.034A
3.972A
1.572A
219.625
89.341%
1072
23.8
36.80°C
0.904
12.066V
4.957V
3.322V
5.090V
245.829
44.48°C
230.29V
5
18.599A
5.060A
4.983A
1.775A
274.540
89.327%
1146
27.8
37.48°C
0.922
12.046V
4.941V
3.310V
5.071V
307.342
45.63°C
230.29V
6
22.422A
6.092A
6.003A
1.980A
329.453
89.036%
1226
27.9
37.94°C
0.934
12.026V
4.925V
3.298V
5.053V
370.023
46.49°C
230.30V
7
26.293A
7.130A
7.028A
2.186A
384.754
88.559%
1433
32.8
38.28°C
0.945
12.005V
4.909V
3.287V
5.034V
434.463
47.50°C
230.29V
8
30.176A
8.177A
8.061A
2.394A
440.063
87.999%
1443
32.9
38.55°C
0.949
11.985V
4.892V
3.275V
5.013V
500.075
48.64°C
230.29V
9
34.442A
8.709A
8.575A
2.400A
494.601
87.429%
1443
32.9
38.86°C
0.954
11.965V
4.880V
3.265V
5.002V
565.716
49.63°C
230.30V
10
38.522A
9.248A
9.125A
3.020A
549.819
86.575%
1446
32.9
39.44°C
0.958
11.944V
4.867V
3.255V
4.967V
635.079
50.59°C
230.30V
11
43.222A
9.266A
9.149A
3.028A
605.042
85.777%
1443
32.9
40.32°C
0.961
11.923V
4.857V
3.246V
4.955V
705.364
51.89°C
230.30V
CL1
0.140A
13.000A
12.998A
0.000A
108.635
81.821%
1262
28.8
37.53°C
0.808
12.076V
4.916V
3.311V
5.130V
132.771
45.51°C
230.29V
CL2
45.007A
1.004A
0.998A
1.000A
551.307
87.609%
1441
32.9
39.68°C
0.958
11.954V
4.931V
3.287V
5.062V
629.278
50.34°C
230.30V
The results above are not used in the certification process
Light Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.191A
0.498A
0.473A
0.193A
19.526
79.306%
0
<6.0
0.366
12.122V
5.016V
3.364V
5.178V
24.621
230.31V
2
2.442A
0.999A
0.981A
0.387A
39.956
84.518%
0
<6.0
0.565
12.145V
5.009V
3.359V
5.167V
47.275
230.30V
3
3.628A
1.500A
1.457A
0.582A
59.394
86.109%
0
<6.0
0.674
12.129V
5.002V
3.354V
5.156V
68.975
230.30V
4
4.886A
1.999A
1.968A
0.778A
79.815
87.124%
0
<6.0
0.744
12.123V
4.996V
3.350V
5.144V
91.611
230.29V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
84.5 mV
21.0 mV
15.1 mV
15.0 mV
Pass
20% Load
91.5 mV
23.0 mV
15.7 mV
15.2 mV
Pass
30% Load
38.5 mV
19.6 mV
16.3 mV
15.1 mV
Pass
40% Load
36.0 mV
19.0 mV
17.9 mV
15.7 mV
Pass
50% Load
35.2 mV
19.2 mV
17.0 mV
15.6 mV
Pass
60% Load
34.5 mV
19.3 mV
20.0 mV
18.1 mV
Pass
70% Load
35.9 mV
19.2 mV
20.5 mV
18.0 mV
Pass
80% Load
42.7 mV
21.1 mV
25.5 mV
19.1 mV
Pass
90% Load
34.7 mV
20.9 mV
26.5 mV
19.9 mV
Pass
100% Load
48.3 mV
22.8 mV
26.0 mV
23.2 mV
Pass
110% Load
51.0 mV
22.5 mV
27.3 mV
24.0 mV
Pass
Crossload 1
106.2 mV
27.3 mV
29.0 mV
19.0 mV
Pass
Crossload 2
46.2 mV
21.6 mV
17.9 mV
19.0 mV
Pass
The results above are not used in the certification process

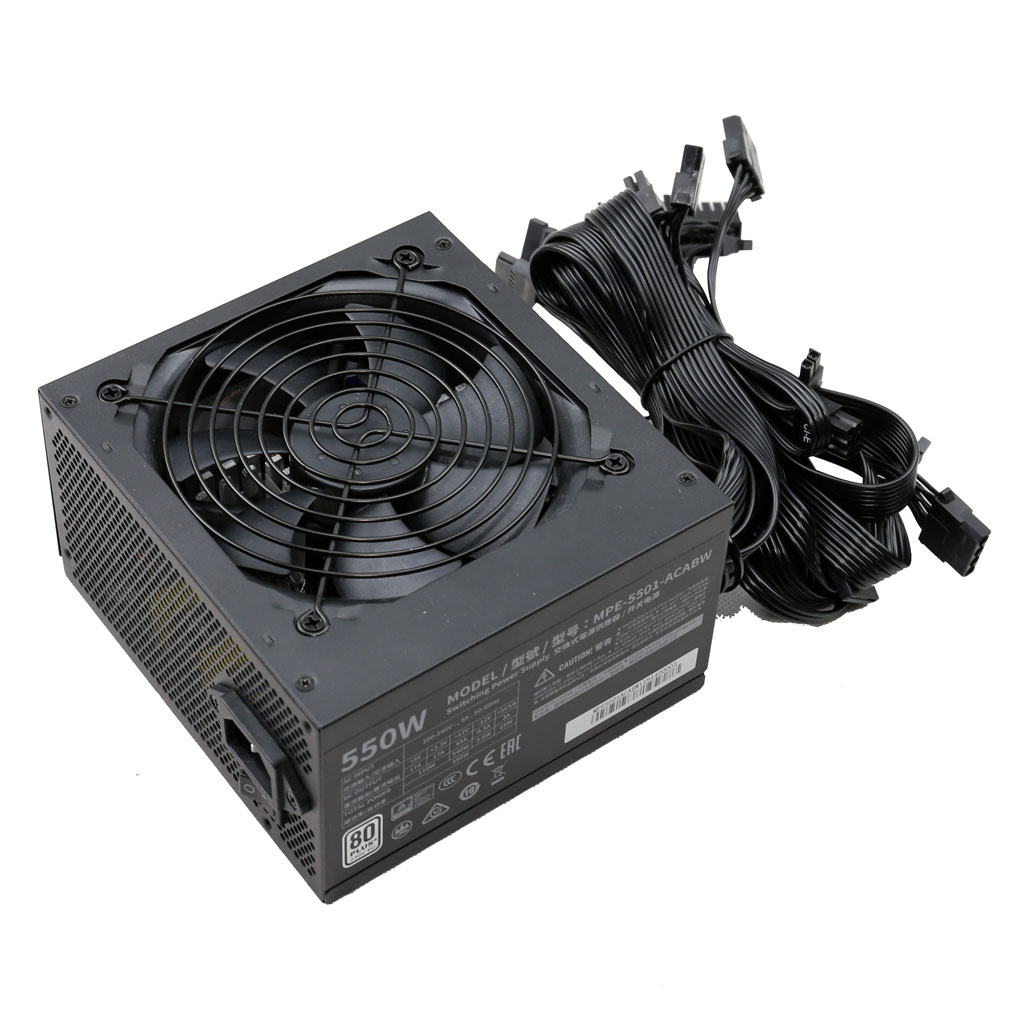

Cooler Master MWE 550
Top side

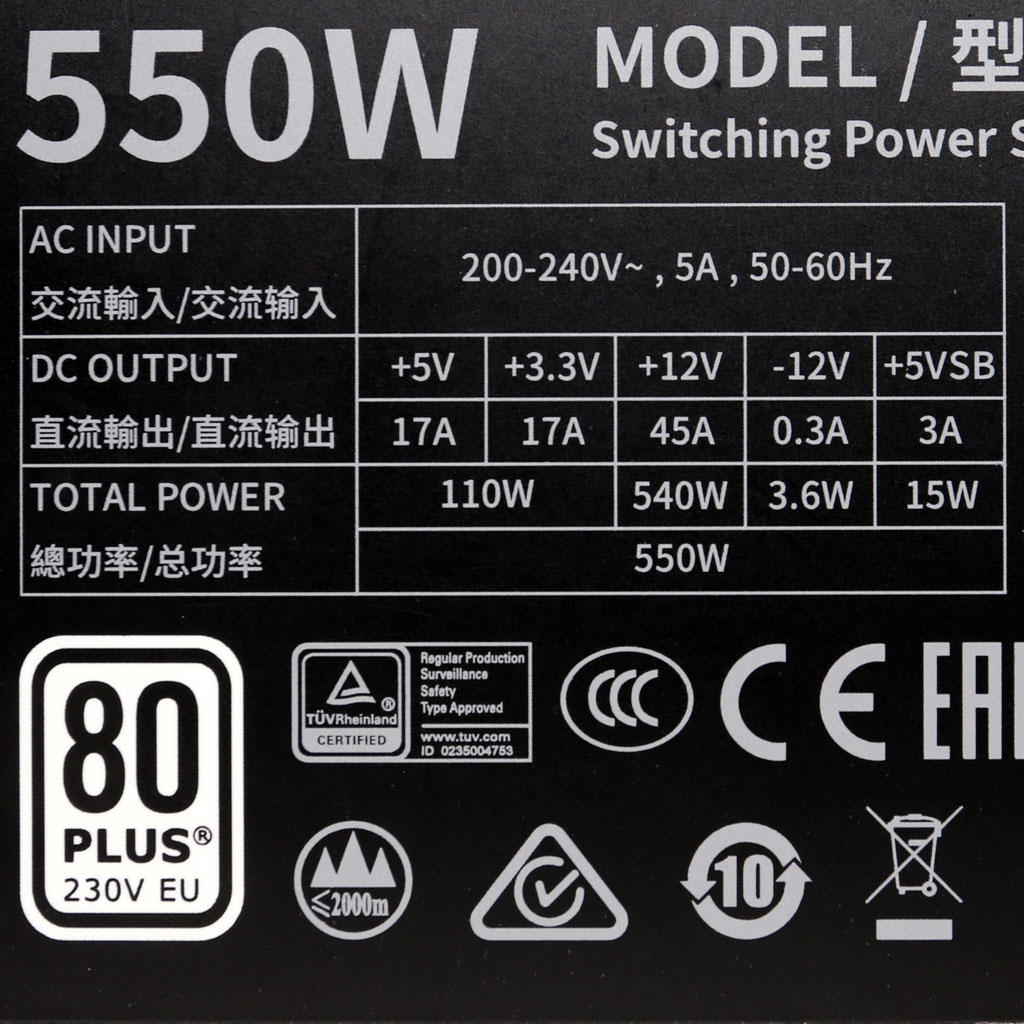

Power specifications label
