Thermal Control DF1202512SELN (120mm, 12V, 0.25A, Rifle Bearing Fan)
5VSB Circuit
Rectifier
-
Standby PWM Controller
On-Bright OB2365SP
Test Results
Temperature & Compliance Info
(°C /°F)
30-32 / 86-89.6
✓
✓
Performance Summary 230V
效率評比
噪音評比
Standard++
(>1450 load combinations)
86.735%
Average Noise Output (>1450 Load Combinations)
30.74dBA
(>1450 Load Combinations)
0.884
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
0.1826W
12V Ripple (Full Load)
65.00mV
5V Ripple (Full Load)
31.43mV
3.3V Ripple (Full Load)
21.98mV
5VSB Ripple (Full Load)
25.19mV
12V Load Regulation
1.11%
5V Load Regulation
2.28%
3.3V Load Regulation
2.36%
5VSB Load Regulation
3.11%
Inrush Current
122.936A
16.20ms
AC Loss to PWR_OK Hold Up Time
15.20ms
PWR_OK Inactive to DC Loss Delay
1.00ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
130.77%
0.00%
Hold-Up Time (ms)
16.2
AC Loss to PWR_OK Hold Up Time (ms)
15.2
PWR_OK Inactive to DC Loss Delay (ms)
1.0
待機電源消耗
Tables 230V
Graphs 230V

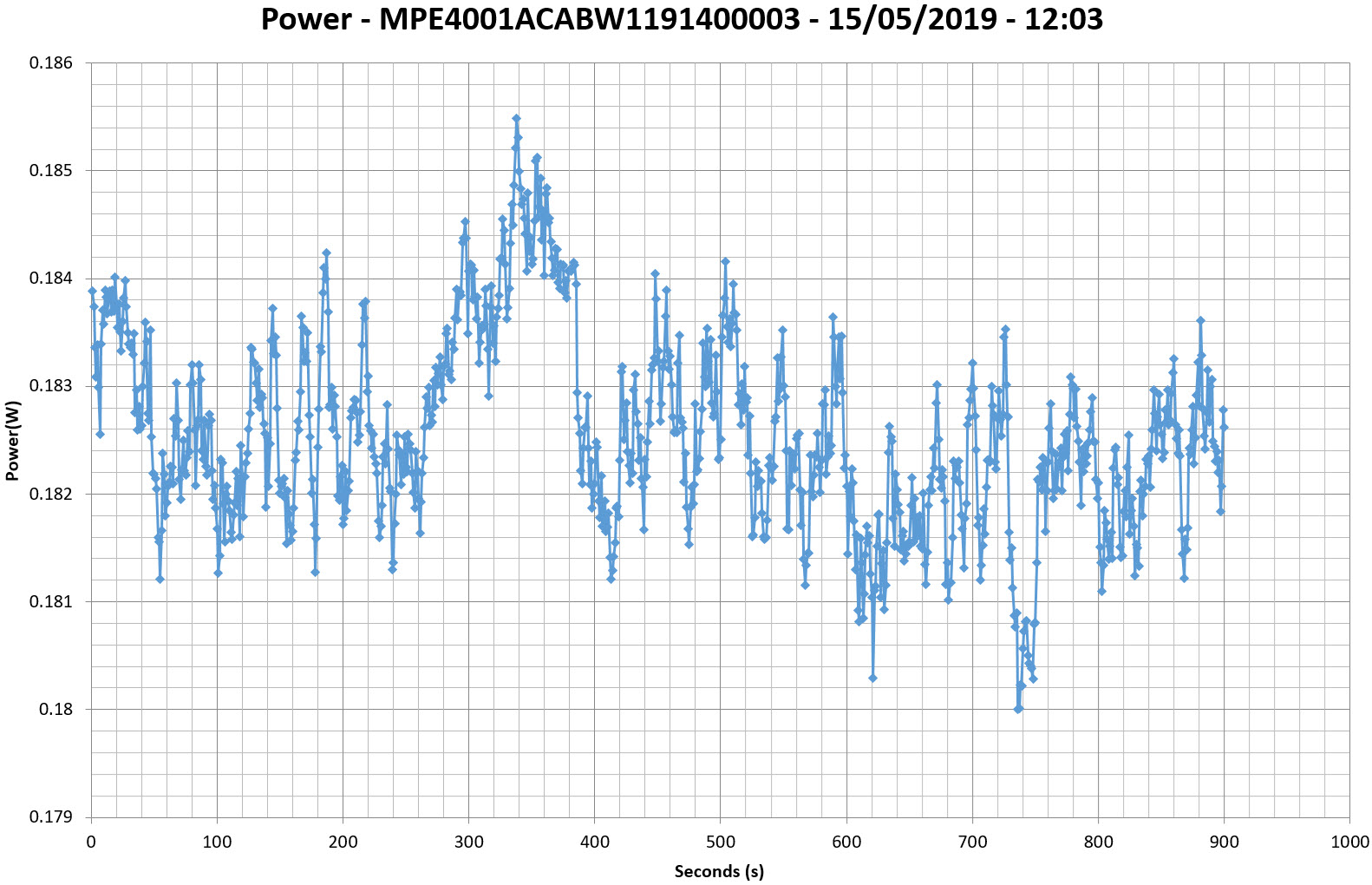

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
230V

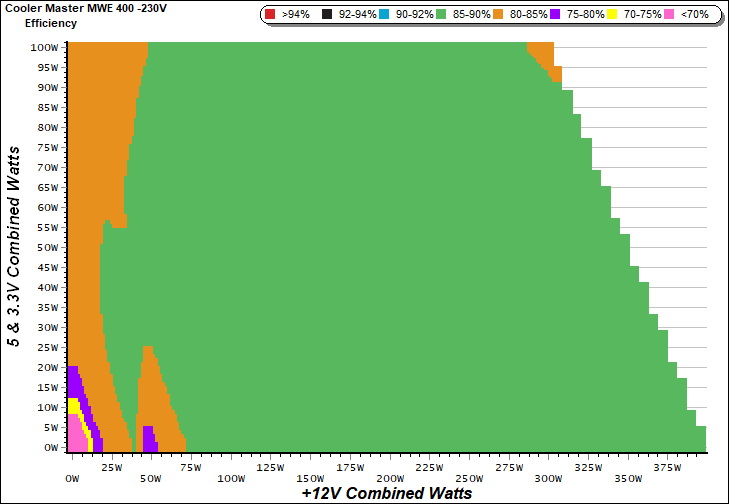

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
230V

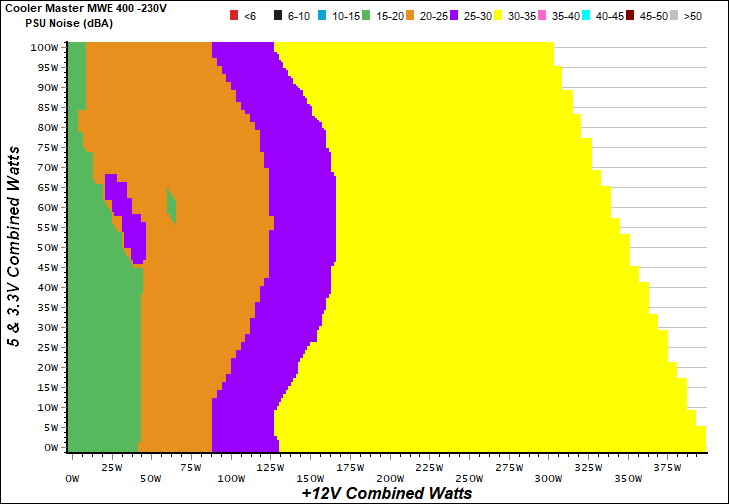

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

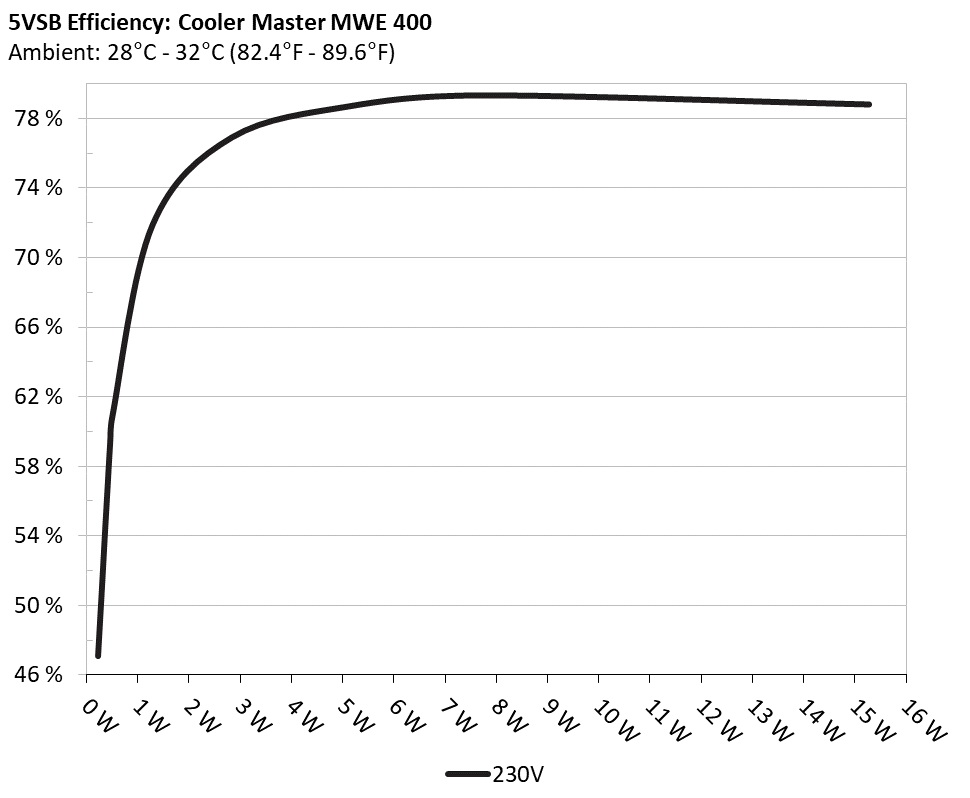

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.234
47.082%
0.009
5.180V
0.497
230.31V
2
0.090A
0.467
59.264%
0.015
5.179V
0.788
230.31V
3
0.550A
2.842
76.894%
0.067
5.165V
3.696
230.31V
4
1.000A
5.152
78.693%
0.115
5.151V
6.547
230.31V
5
1.500A
7.705
79.310%
0.160
5.136V
9.715
230.32V
6
3.000A
15.271
78.790%
0.261
5.090V
19.382
230.32V
Supplementary Tests (For Reference)
230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.532A
2.019A
1.973A
0.973A
40.111
83.914%
0
<6.0
40.86°C
0.552
12.084V
4.953V
3.343V
5.142V
47.800
34.01°C
230.25V
2
4.050A
3.037A
2.969A
1.170A
79.751
86.772%
0
<6.0
42.08°C
0.747
12.062V
4.940V
3.334V
5.128V
91.909
34.79°C
230.24V
3
6.910A
3.551A
3.457A
1.369A
119.273
87.514%
1085
24.8
35.02°C
0.838
12.050V
4.930V
3.326V
5.115V
136.290
43.51°C
230.25V
4
9.846A
4.066A
3.979A
1.568A
159.676
88.142%
1266
27.9
35.57°C
0.876
12.033V
4.919V
3.317V
5.102V
181.157
44.27°C
230.24V
5
12.421A
5.097A
4.988A
1.769A
199.776
88.074%
1431
32.8
36.27°C
0.906
12.018V
4.906V
3.307V
5.088V
226.828
45.51°C
230.24V
6
15.002A
6.133A
6.000A
1.972A
239.884
87.807%
1433
32.8
36.60°C
0.925
12.004V
4.893V
3.298V
5.073V
273.194
46.36°C
230.24V
7
17.553A
7.174A
7.022A
2.175A
279.576
87.354%
1433
32.8
37.33°C
0.939
11.991V
4.879V
3.289V
5.058V
320.049
47.58°C
230.23V
8
20.177A
8.224A
8.048A
2.380A
320.069
86.710%
1432
32.8
37.55°C
0.948
11.977V
4.865V
3.280V
5.043V
369.124
48.50°C
230.24V
9
23.144A
8.755A
8.554A
2.384A
359.378
86.053%
1433
32.8
38.11°C
0.954
11.963V
4.855V
3.273V
5.035V
417.623
49.42°C
230.24V
10
25.947A
9.291A
9.097A
2.996A
399.786
85.093%
1432
32.8
39.28°C
0.959
11.950V
4.845V
3.265V
5.008V
469.821
50.98°C
230.24V
11
29.326A
9.300A
9.113A
3.001A
439.800
84.087%
1437
32.8
40.38°C
0.962
11.938V
4.839V
3.259V
5.000V
523.027
52.54°C
230.23V
CL1
0.135A
12.002A
11.999A
0.000A
99.661
82.097%
1430
32.8
36.58°C
0.817
12.049V
4.868V
3.301V
5.140V
121.394
45.41°C
230.26V
CL2
33.007A
1.001A
1.000A
1.000A
407.863
85.918%
1436
32.8
39.31°C
0.959
11.954V
4.910V
3.294V
5.088V
474.713
50.69°C
230.24V
The results above are not used in the certification process
230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.202A
0.504A
0.478A
0.193A
19.609
81.119%
0
<6.0
0.345
12.069V
4.967V
3.351V
5.172V
24.173
230.27V
2
2.459A
1.009A
0.986A
0.388A
40.016
85.178%
0
<6.0
0.546
12.081V
4.961V
3.346V
5.162V
46.979
230.26V
3
3.650A
1.514A
1.467A
0.582A
59.468
86.499%
0
<6.0
0.666
12.073V
4.954V
3.342V
5.152V
68.750
230.26V
4
4.918A
2.021A
1.976A
0.778A
79.905
87.329%
0
<6.0
0.746
12.060V
4.948V
3.337V
5.142V
91.499
230.26V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
71.3 mV
19.2 mV
12.4 mV
14.7 mV
Pass
20% Load
54.0 mV
19.5 mV
12.2 mV
14.9 mV
Pass
30% Load
59.5 mV
20.0 mV
13.5 mV
15.0 mV
Pass
40% Load
57.1 mV
19.6 mV
13.6 mV
16.6 mV
Pass
50% Load
55.0 mV
22.0 mV
14.6 mV
18.4 mV
Pass
60% Load
54.2 mV
23.4 mV
16.1 mV
18.6 mV
Pass
70% Load
55.9 mV
24.9 mV
17.5 mV
20.0 mV
Pass
80% Load
54.9 mV
27.1 mV
19.9 mV
21.4 mV
Pass
90% Load
53.1 mV
28.1 mV
21.1 mV
21.9 mV
Pass
100% Load
65.0 mV
31.4 mV
22.0 mV
25.2 mV
Pass
110% Load
60.9 mV
30.7 mV
22.4 mV
27.8 mV
Pass
Crossload 1
62.7 mV
33.7 mV
22.4 mV
16.1 mV
Pass
Crossload 2
58.5 mV
22.6 mV
15.6 mV
23.1 mV
Pass
The results above are not used in the certification process
