CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

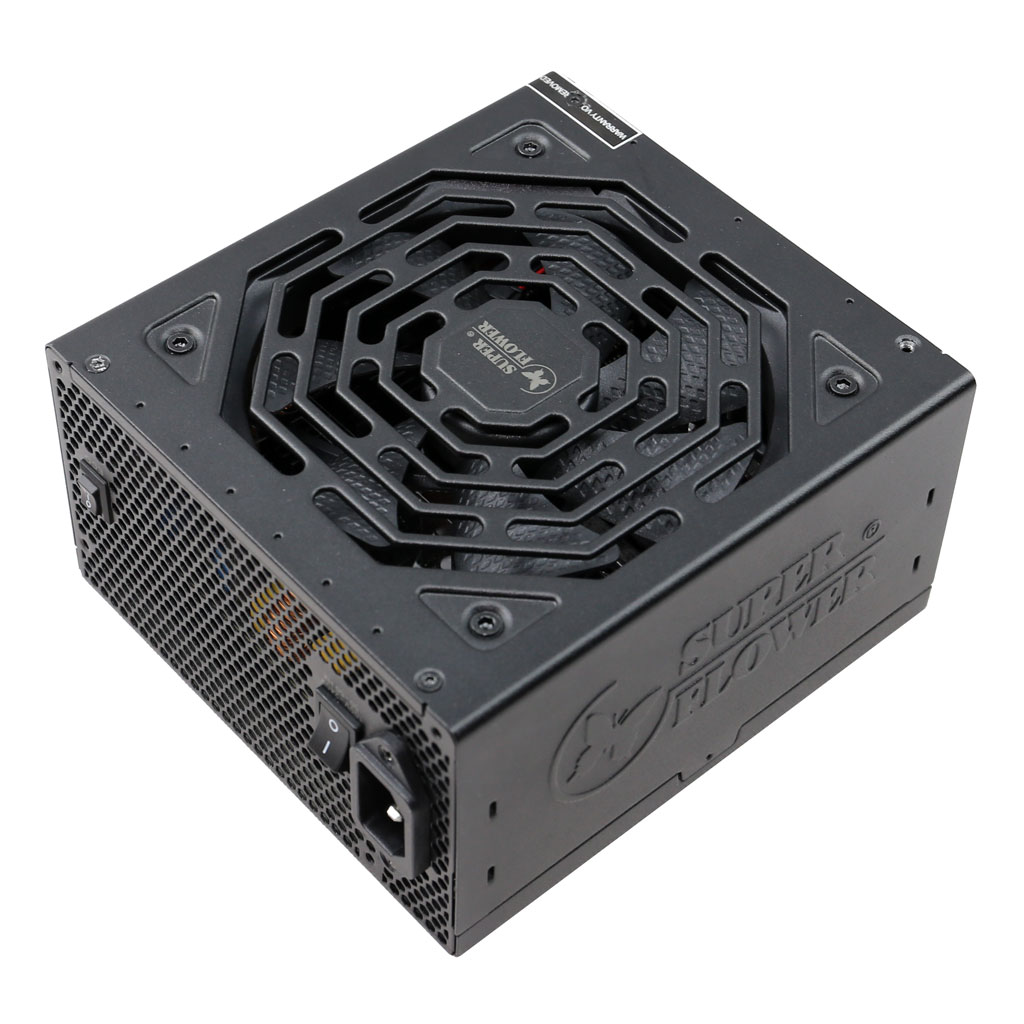

Super Flower Leadex III Gold 650W rev.2
Serial NumberS1901188890
Lab IDSF19650024
  • Report:
  • Receipt Date: Apr 15, 2019
  • Test Date: Apr 23, 2019
  • Report Date: Apr 24, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III Gold
Model NumberSF-650F14HG rev.2
Serial NumberS1901188890
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling130mm Fluid Dynamic Bearing
(S1282412L)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.130.5
Watts100649.2156
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (550mm+150mm) 2 4 18-20AWG Yes
SATA (550mm+120mm+120mm+120mm) 2 8 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No

Parts Description

General Data
Manufacturer (OEM) Super Flower
Platform Model Leadex II
PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA50R199CP (550V, 11A @ 100°C, 0.199Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8R06D (600V, 8A @ 130°C)
Hold-up Cap(s) 1x Nippon Chemi-con (400V, 470uF, 2000h @ 105 °C, KMQ)
Main Switchers 2x Infineon IPA50R199CP (550V, 11A @ 100°C, 0.199Ohm)
APFC Controller SF29603
Resonant Controller SF29605 & S9602
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP041N04N (40V, 80A @ 100°C, 4.1mOhm)
5V & 3.3V DC-DC Converters: 4x AON6516 (30V, 25A @ 100°C, 8mOhm)
PWM Controller: 2x NCP1587A
Filtering Capacitors Electrolytics: 7x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Nippon Chemi-Con (1-2,000h @ 105°C, KMG), 8x Nippon Chemi-Con (1,000h @ 105°C, KRG)
Polymers: Nippon Chemi-con
Supervisor IC SF29603 & LM339A
Fan Model Globe Fan S1282412L (12V, 0.18A, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier 1x PFR40V60CT (60V, 40A) SBR
Standby PWM Controller 29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 25.60
AC Loss to PWR_OK Hold Up Time  (ms) 21.30
PWR_OK Inactive to DC Loss Delay (ms) 4.30

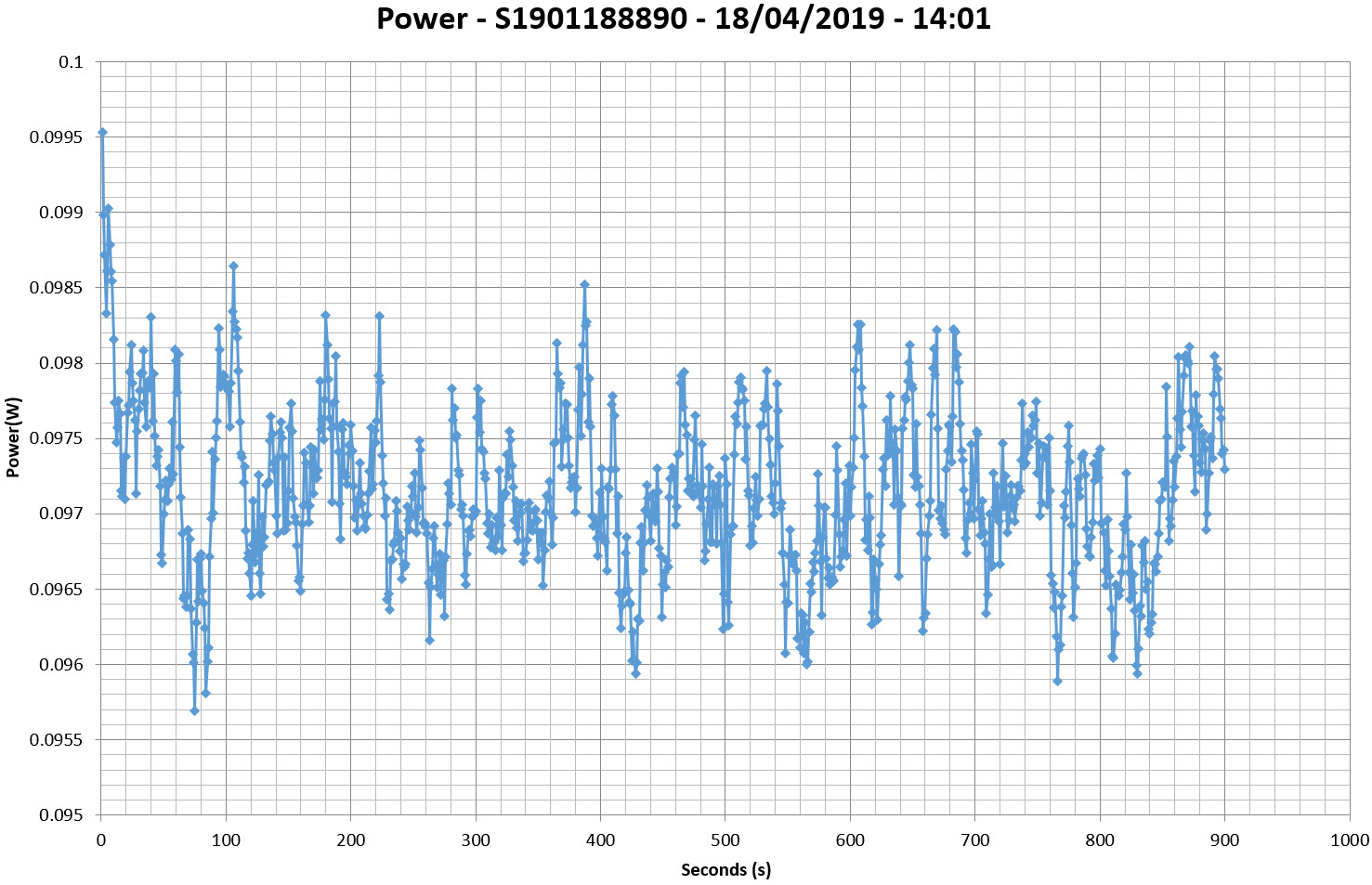

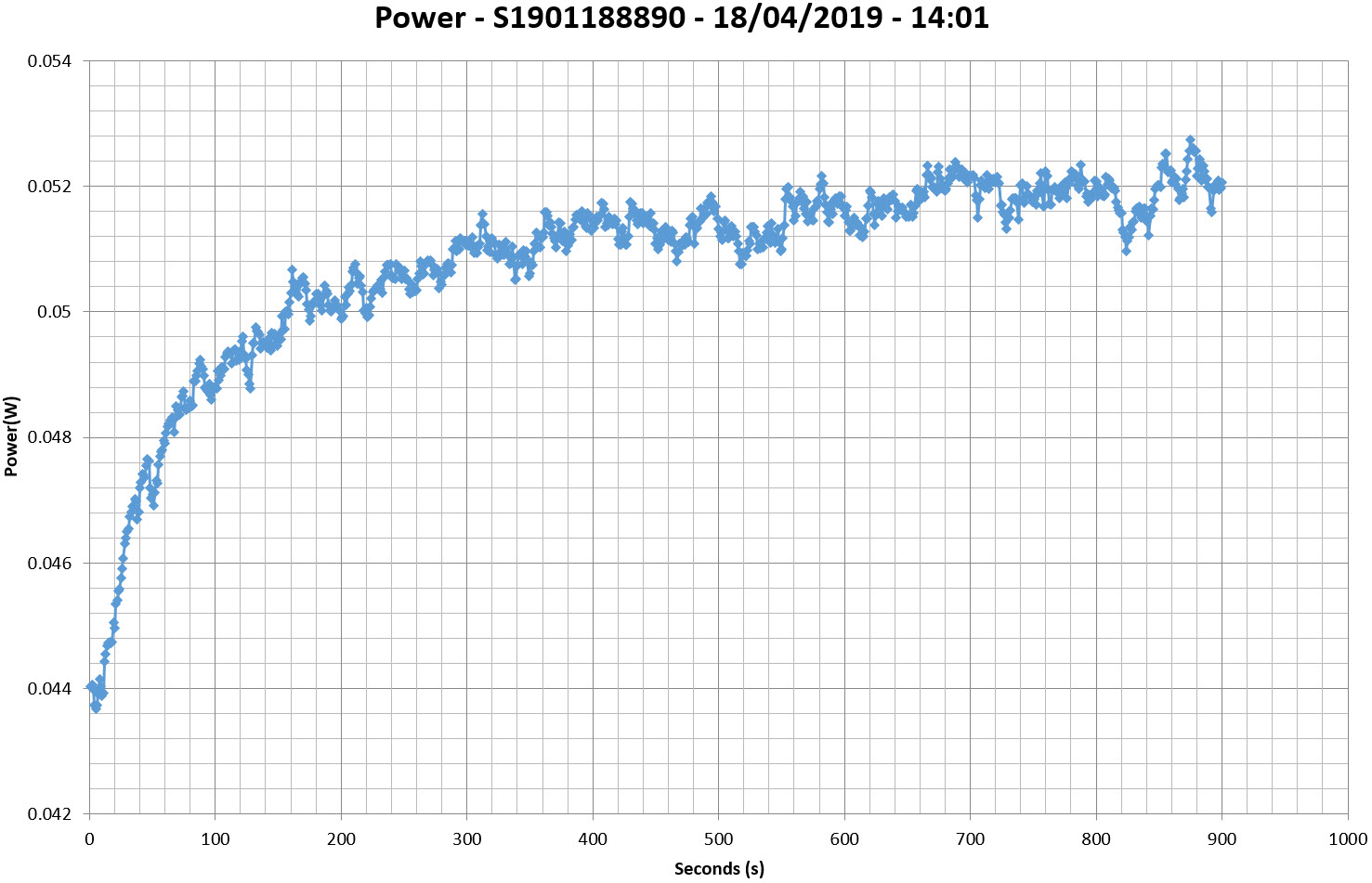

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

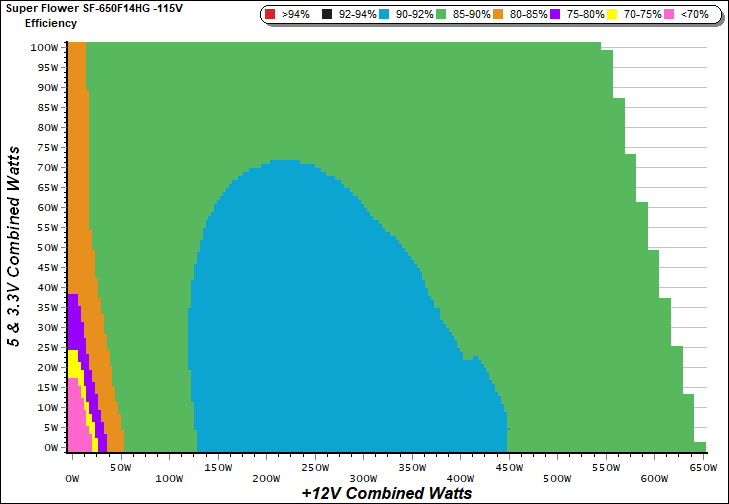

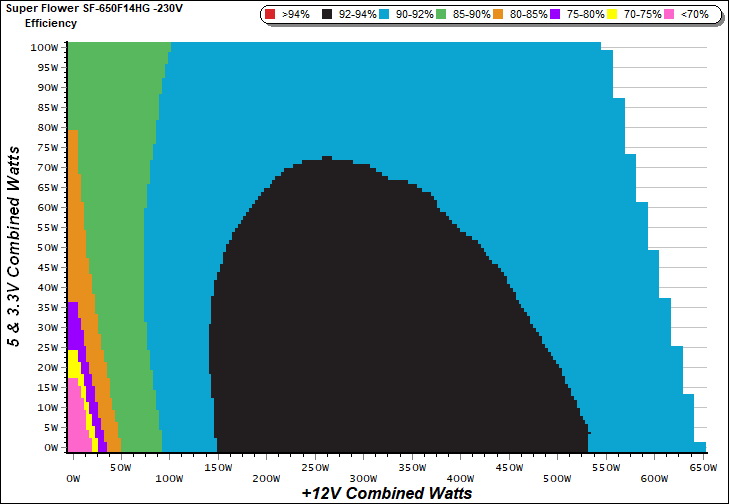

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

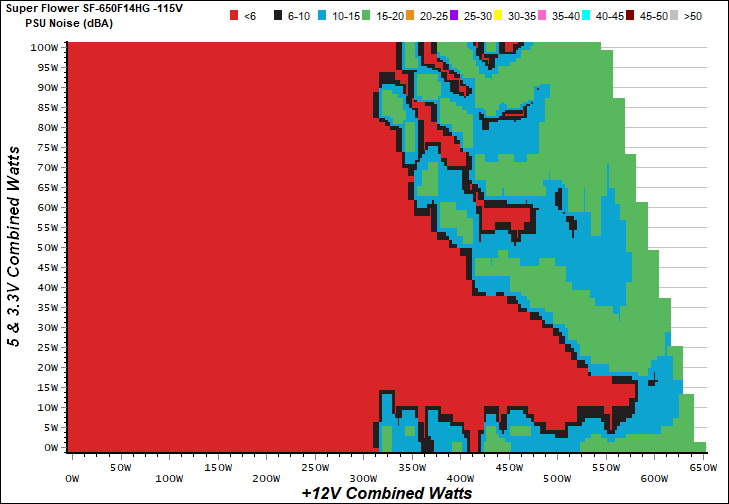

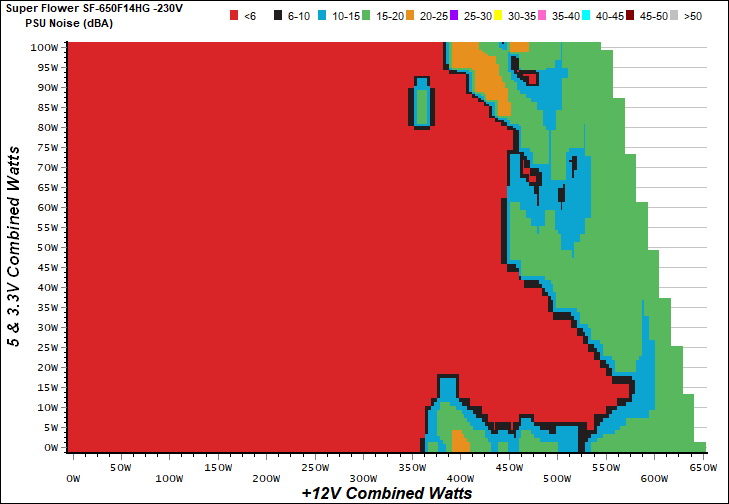

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

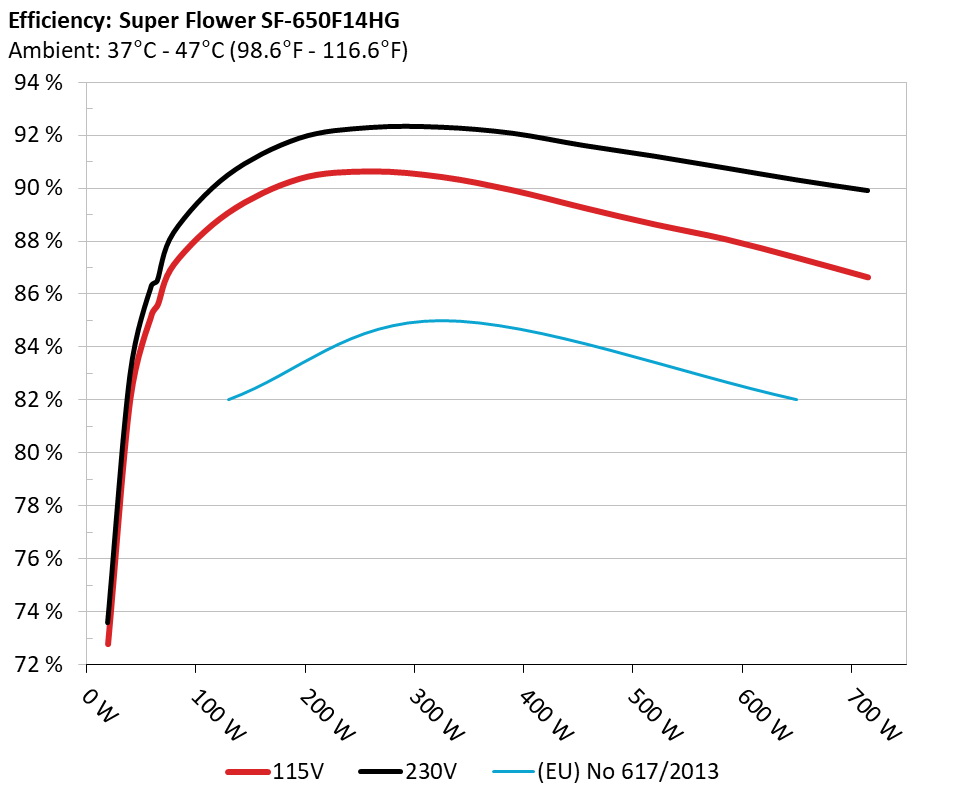

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

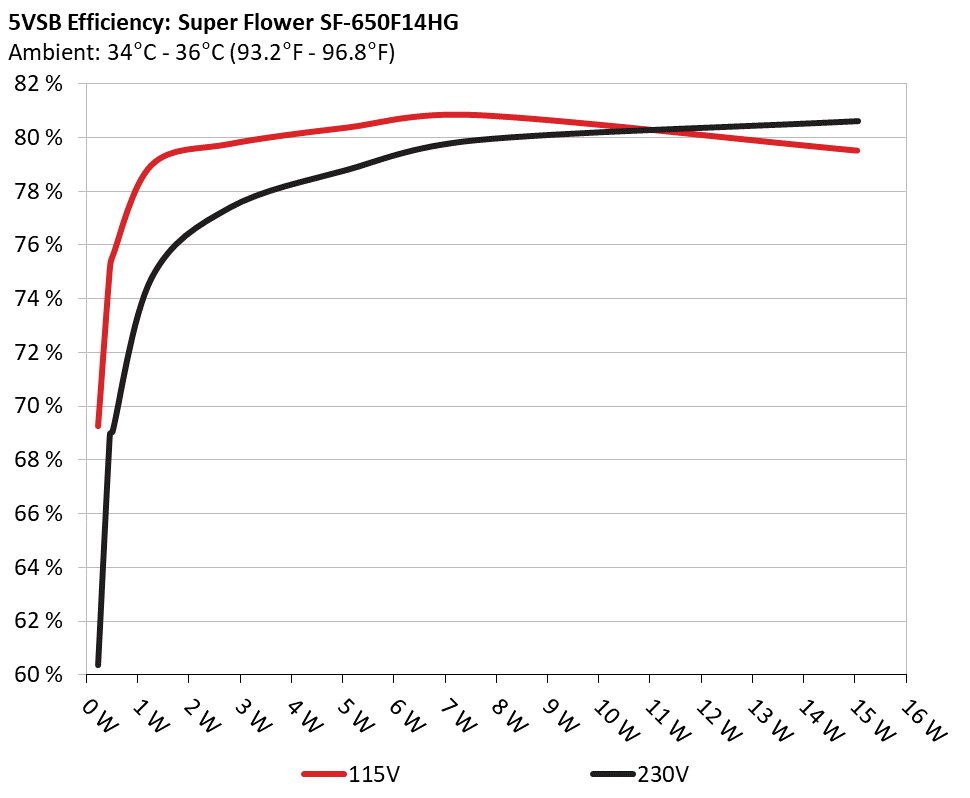

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 69.277% 0.025
5.105V 0.332 115.13V
2 0.090A 0.460 75.163% 0.046
5.104V 0.612 115.12V
3 0.550A 2.801 79.778% 0.223
5.092V 3.511 115.12V
4 1.000A 5.081 80.383% 0.322
5.080V 6.321 115.12V
5 1.500A 7.600 80.851% 0.384
5.066V 9.400 115.12V
6 3.000A 15.038 79.528% 0.466
5.013V 18.909 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 60.367% 0.009
5.105V 0.381 230.28V
2 0.090A 0.460 68.966% 0.015
5.104V 0.667 230.30V
3 0.550A 2.801 77.397% 0.080
5.092V 3.619 230.30V
4 1.000A 5.080 78.796% 0.136
5.079V 6.447 230.30V
5 1.500A 7.599 79.905% 0.187
5.065V 9.510 230.30V
6 3.000A 15.058 80.615% 0.293
5.020V 18.679 230.30V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.553A 1.993A 1.994A 0.987A 64.867 85.583% 0 <6.0 47.04°C 0.944
12.177V 5.020V 3.306V 5.070V 75.794 40.15°C 115.12V
2 8.090A 2.992A 2.998A 1.187A 129.368 89.074% 0 <6.0 48.45°C 0.965
12.170V 5.016V 3.303V 5.057V 145.236 40.98°C 115.12V
3 13.031A 3.493A 3.482A 1.388A 194.485 90.359% 0 <6.0 49.95°C 0.982
12.162V 5.012V 3.300V 5.046V 215.236 41.62°C 115.12V
4 17.979A 3.994A 4.002A 1.590A 259.718 90.639% 0 <6.0 51.42°C 0.988
12.154V 5.008V 3.297V 5.034V 286.542 42.00°C 115.12V
5 22.605A 4.998A 5.010A 1.793A 325.042 90.427% 0 <6.0 52.91°C 0.991
12.145V 5.003V 3.293V 5.021V 359.452 42.65°C 115.12V
6 27.165A 6.001A 6.020A 1.998A 389.561 89.926% 0 <6.0 54.88°C 0.993
12.139V 4.999V 3.289V 5.008V 433.201 43.30°C 115.12V
7 31.785A 7.007A 7.028A 2.203A 454.879 89.262% 0 <6.0 56.30°C 0.994
12.137V 4.996V 3.286V 4.995V 509.600 44.15°C 115.12V
8 36.391A 8.007A 8.034A 2.409A 520.201 88.633% 717 14.0 44.72°C 0.995
12.140V 4.997V 3.286V 4.983V 586.919 58.17°C 115.12V
9 41.389A 8.511A 8.526A 2.411A 585.143 88.071% 968 21.4 45.06°C 0.996
12.144V 4.995V 3.284V 4.979V 664.400 59.31°C 115.12V
10 46.124A 9.016A 9.052A 3.027A 649.986 87.374% 1260 30.5 45.84°C 0.996
12.147V 4.992V 3.282V 4.956V 743.911 60.97°C 115.12V
11 51.451A 9.020A 9.057A 3.030A 714.796 86.637% 1554 35.2 46.54°C 0.996
12.149V 4.990V 3.280V 4.951V 825.045 62.61°C 115.12V
CL1 0.143A 12.000A 12.000A 0.000A 101.219 83.755% 0 <6.0 52.38°C 0.962
12.158V 5.002V 3.288V 5.074V 120.851 42.37°C 115.13V
CL2 54.102A 0.999A 0.999A 1.000A 670.272 87.751% 1374 31.4 45.67°C 0.996
12.143V 5.000V 3.292V 5.028V 763.835 60.46°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.553A 1.992A 1.994A 0.987A 64.841 86.496% 0 <6.0 47.14°C 0.661
12.173V 5.019V 3.305V 5.069V 74.964 40.03°C 230.29V
2 8.090A 2.992A 2.995A 1.187A 129.329 90.492% 0 <6.0 48.58°C 0.840
12.167V 5.015V 3.302V 5.057V 142.917 40.79°C 230.28V
3 13.031A 3.493A 3.484A 1.388A 194.457 91.884% 0 <6.0 49.98°C 0.910
12.160V 5.011V 3.299V 5.046V 211.634 41.01°C 230.29V
4 17.977A 3.996A 4.002A 1.590A 259.681 92.293% 0 <6.0 51.51°C 0.942
12.153V 5.007V 3.297V 5.034V 281.365 41.60°C 230.29V
5 22.601A 4.999A 5.011A 1.793A 325.003 92.302% 0 <6.0 53.19°C 0.956
12.145V 5.003V 3.293V 5.021V 352.110 42.39°C 230.30V
6 27.160A 6.003A 6.019A 1.997A 389.523 92.078% 0 <6.0 54.68°C 0.964
12.140V 4.998V 3.289V 5.008V 423.038 42.72°C 230.31V
7 31.780A 7.008A 7.029A 2.203A 454.855 91.615% 0 <6.0 56.49°C 0.972
12.138V 4.995V 3.286V 4.996V 496.485 43.15°C 230.31V
8 36.393A 8.011A 8.038A 2.409A 520.183 91.207% 687 13.1 43.66°C 0.976
12.139V 4.994V 3.284V 4.983V 570.330 57.73°C 230.32V
9 41.391A 8.512A 8.527A 2.411A 585.127 90.763% 974 21.7 44.47°C 0.979
12.143V 4.994V 3.284V 4.979V 644.678 59.11°C 230.32V
10 46.128A 9.016A 9.050A 3.027A 649.964 90.314% 1220 29.0 45.64°C 0.982
12.146V 4.991V 3.281V 4.956V 719.675 60.83°C 230.33V
11 51.448A 9.021A 9.053A 3.030A 714.746 89.912% 1566 35.4 46.53°C 0.985
12.149V 4.989V 3.280V 4.952V 794.936 62.36°C 230.32V
CL1 0.139A 12.002A 12.000A 0.000A 101.168 85.213% 0 <6.0 53.56°C 0.796
12.159V 5.001V 3.288V 5.075V 118.723 42.79°C 230.30V
CL2 54.107A 1.002A 1.000A 1.000A 670.405 90.866% 1305 30.8 45.65°C 0.982
12.144V 4.999V 3.292V 5.029V 737.792 60.45°C 230.30V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.186A 0.498A 0.482A 0.196A 19.546 72.778% 0 <6.0 0.717
12.184V 5.025V 3.310V 5.097V 26.857 115.11V
2 2.435A 0.996A 0.996A 0.393A 39.962 82.051% 0 <6.0 0.871
12.182V 5.023V 3.308V 5.090V 48.704 115.11V
3 3.617A 1.494A 1.480A 0.591A 59.453 85.230% 0 <6.0 0.930
12.179V 5.022V 3.307V 5.082V 69.756 115.11V
4 4.867A 1.993A 1.996A 0.788A 79.863 87.129% 0 <6.0 0.949
12.176V 5.020V 3.306V 5.074V 91.661 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.185A 0.498A 0.482A 0.196A 19.530 73.604% 0 <6.0 0.377
12.180V 5.026V 3.311V 5.097V 26.534 230.26V
2 2.435A 0.995A 0.996A 0.393A 39.945 82.958% 0 <6.0 0.527
12.178V 5.022V 3.308V 5.090V 48.151 230.27V
3 3.617A 1.494A 1.479A 0.591A 59.433 86.305% 0 <6.0 0.631
12.175V 5.021V 3.307V 5.082V 68.864 230.27V
4 4.866A 1.993A 1.994A 0.789A 79.831 88.322% 0 <6.0 0.723
12.173V 5.019V 3.305V 5.074V 90.386 230.28V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 4.3 mV 3.1 mV 13.4 mV 9.0 mV Pass
20% Load 4.9 mV 3.6 mV 13.2 mV 10.2 mV Pass
30% Load 5.7 mV 4.0 mV 14.8 mV 10.5 mV Pass
40% Load 5.9 mV 4.6 mV 13.3 mV 10.2 mV Pass
50% Load 6.5 mV 5.2 mV 15.9 mV 10.3 mV Pass
60% Load 6.8 mV 5.8 mV 14.3 mV 11.5 mV Pass
70% Load 7.8 mV 6.2 mV 16.0 mV 11.6 mV Pass
80% Load 7.0 mV 6.7 mV 16.0 mV 12.4 mV Pass
90% Load 7.3 mV 7.2 mV 16.6 mV 13.1 mV Pass
100% Load 10.5 mV 7.8 mV 17.8 mV 13.7 mV Pass
110% Load 10.9 mV 8.5 mV 19.6 mV 14.9 mV Pass
Crossload 1 6.4 mV 4.2 mV 14.5 mV 14.5 mV Pass
Crossload 2 10.2 mV 9.1 mV 18.0 mV 13.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 4.3 mV 3.3 mV 11.4 mV 9.1 mV Pass
20% Load 4.7 mV 3.7 mV 11.3 mV 9.1 mV Pass
30% Load 5.2 mV 4.1 mV 11.6 mV 9.7 mV Pass
40% Load 5.7 mV 4.7 mV 12.2 mV 9.6 mV Pass
50% Load 5.8 mV 5.4 mV 13.0 mV 9.5 mV Pass
60% Load 6.1 mV 5.8 mV 13.2 mV 10.1 mV Pass
70% Load 6.3 mV 6.2 mV 14.0 mV 10.6 mV Pass
80% Load 7.1 mV 6.6 mV 15.2 mV 11.5 mV Pass
90% Load 7.1 mV 7.4 mV 16.5 mV 11.2 mV Pass
100% Load 10.0 mV 8.0 mV 19.6 mV 13.6 mV Pass
110% Load 10.8 mV 8.5 mV 18.2 mV 13.2 mV Pass
Crossload 1 6.4 mV 4.3 mV 13.7 mV 14.0 mV Pass
Crossload 2 9.9 mV 8.8 mV 17.8 mV 12.2 mV Pass

The results above are not used in the certification process

Super Flower Leadex III Gold 650W rev.2

Top side

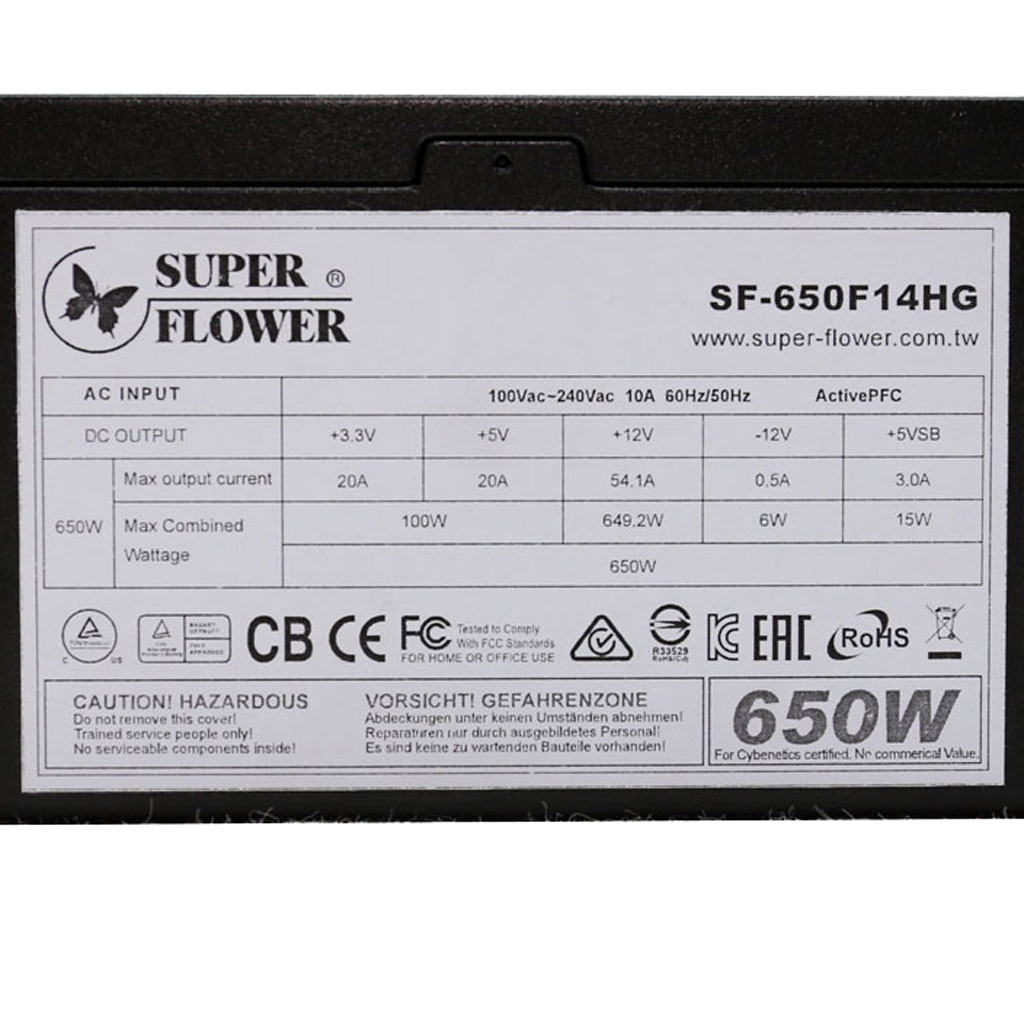

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
