CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

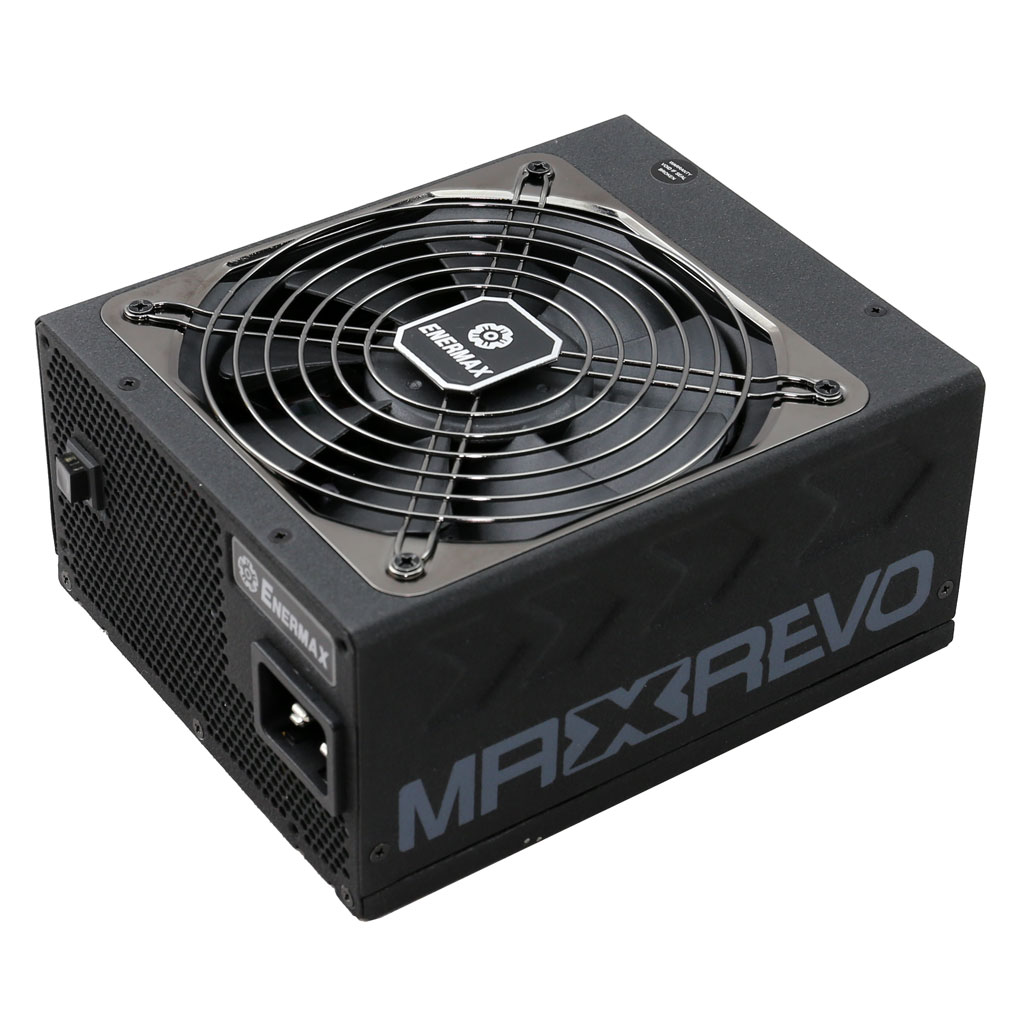

Enermax MaxRevo 1800W
Serial Number18A7100210018
Lab IDEM19180019
  • Report:
  • Receipt Date: Apr 4, 2019
  • Test Date: Mar 26, 2019
  • Report Date: Mar 26, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEnermax
Manufacturer (OEM)Enermax
SeriesMaxRevo
Model NumberEMR1800EXT
Serial Number18A7100210018
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-240
Rated Current (Arms)16-8
Rated Frequency (Hz)50-60
Rated Power (W)1800
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(ADN512XB-A91)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V(1)12V(2)12V(3)12V(4)12V(5)12V(6)5VSB-12V
Max. PowerAmps252520353535353540.5
Watts1401800206
Total Max. Power (W)1800

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) / 8 pin EPS12V (650mm) 1 1 / 1 16-22AWG No
8 pin EPS12V (600mm) / 4 pin ATX (600) 1 1 / 1 16AWG No
2 x 6+2 pin PCIe (500mm) 6 12 16-18AWG No
SATA (450mm+150mm+150mm+150mm) 3 12 18AWG No
SATA (450mm+150mm) / 4 pin Molex (+150mm+150mm) 1 2 / 2 18AWG No
4 pin Molex (450mm+150mm+150mm+150mm) / FDD (+150mm) 2 8 / 2 18-20AWG No
AC Power Cord (1444mm) - C14 coupler 1 1 14AWG -

Parts Description

General Data
Manufacturer (OEM) Enermax
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes,1x DM chokes,1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x Bridge
APFC MOSFETS 2x Infineon SPW35N60C3 (650V, 21.9A @ 100°C, 0.1Ohm)
APFC Boost Diode 1x CREE C3D10060A (600V, 14A @ 135°C)
Hold-up Cap(s) 3x Chemi-Con (420V, 390uF, 2000h @ 105°C, KMR)
Main Switchers 4x Toshiba TK18A60V (600V, 18A @ 150°C, 0.19Ohm)
IC Driver Texas Instuments UCC27324
APFC Controller Infineon 2PCS02 & CM03X Green PFC Controller
Main Controller Texas Instuments UCC28950
Topology Primary side: Interleaved PFC, Phase Shift ZVT Full-Bridge
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon IPP015N04N (40V, 120A @ 100°C, 1.5mOhm)
5V & 3.3V DC-DC Converters: 8x Sinopower SM3116NAU  (30V, 48A @ 100°C, 6.9mOhm @ 125°C)
PWM Controllers: 2x ANPEC APW7073
Filtering Capacitors Electrolytics: 8x Chemi-Con (4 - 10,000h @ 105°C, KY), 10x Rubycon (4 - 5,000h @ 105°C, ZLK)
Polymers: 3x Elite (CS CAP), 8x Apaq
Supervisor IC SITI PS238 (OCP, OVP, UVP, SCP, PG)
Fan Model ADDA ADN512XB-A91 (135mm, 12V, 0.66A, Double Ball Bearing Fan)
5VSB Circuit
Rectifier TSF10U60C SBR (60V, 10A)
Standby PWM Controller Power Integrations TOP265EG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)12.5
AC Loss to PWR_OK Hold Up Time (ms)14.9
PWR_OK Inactive to DC Loss Delay (ms)-2.4

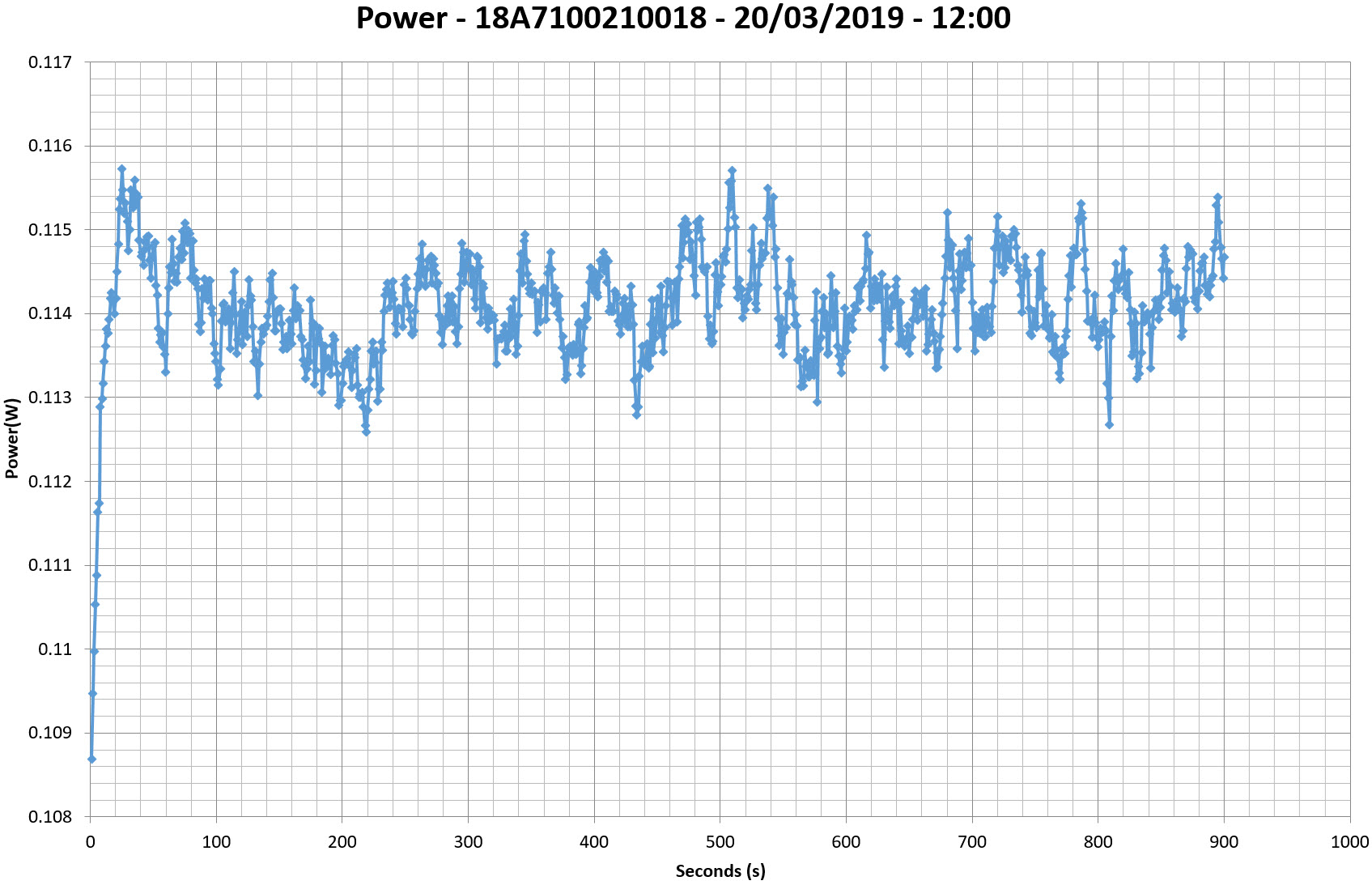

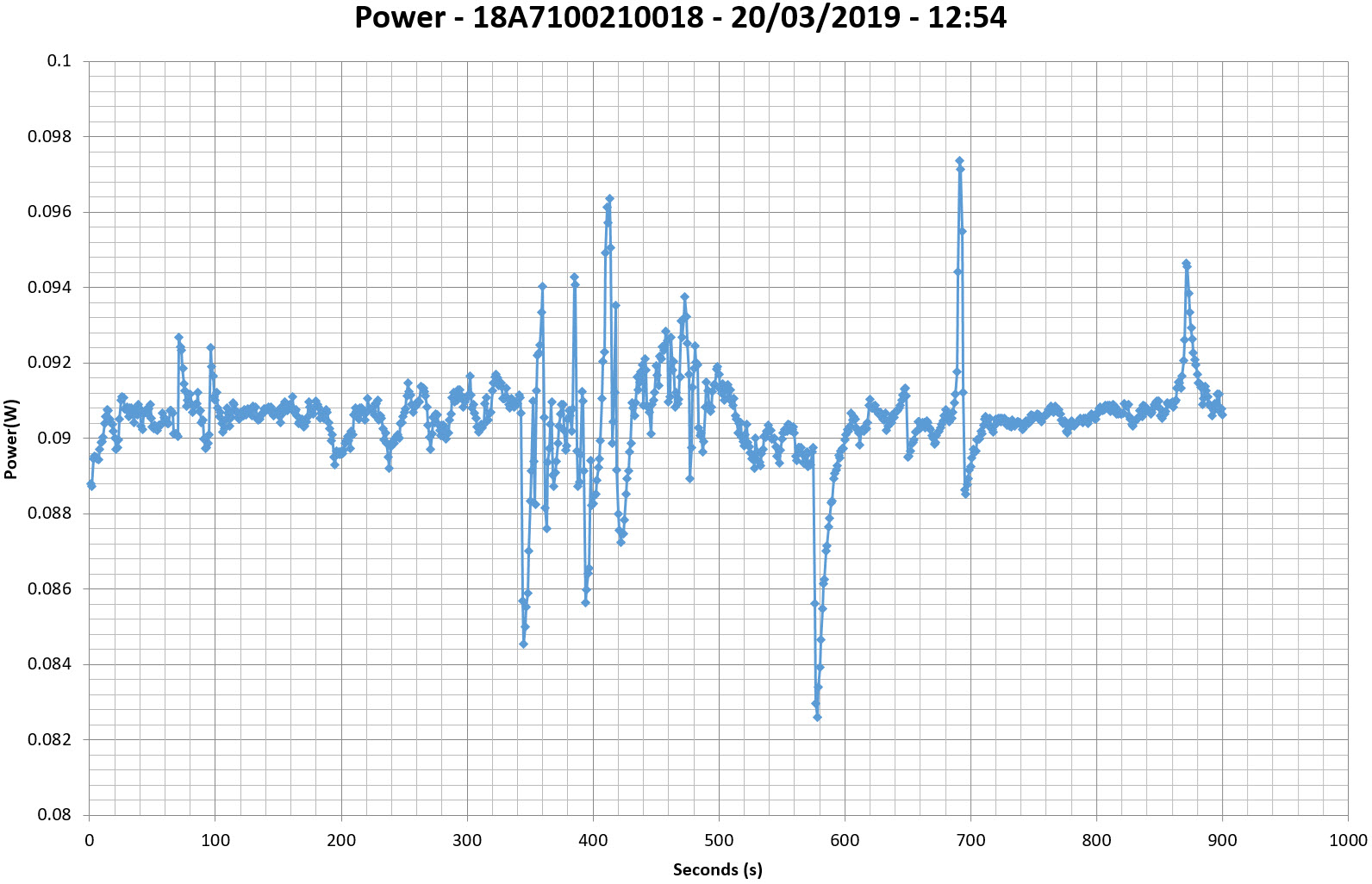

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

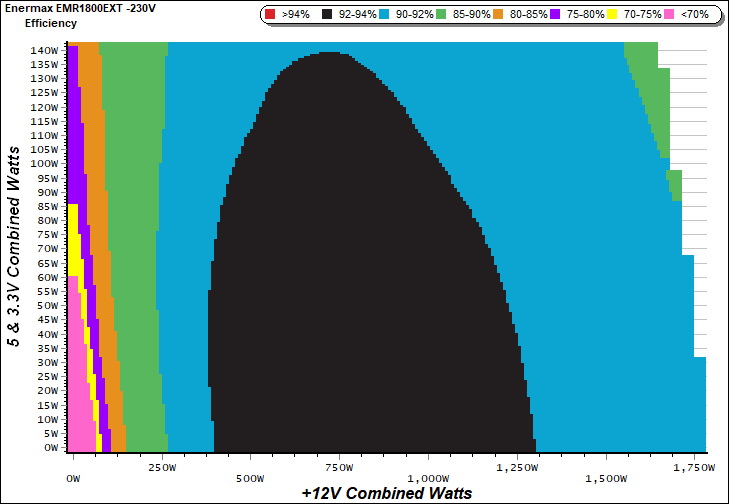

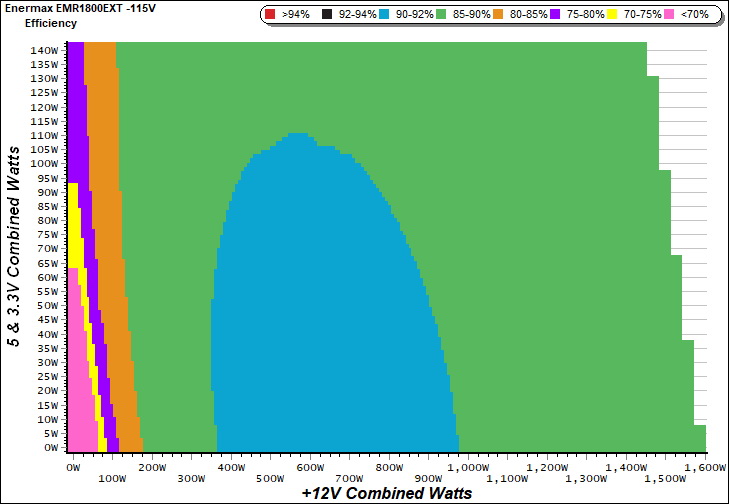

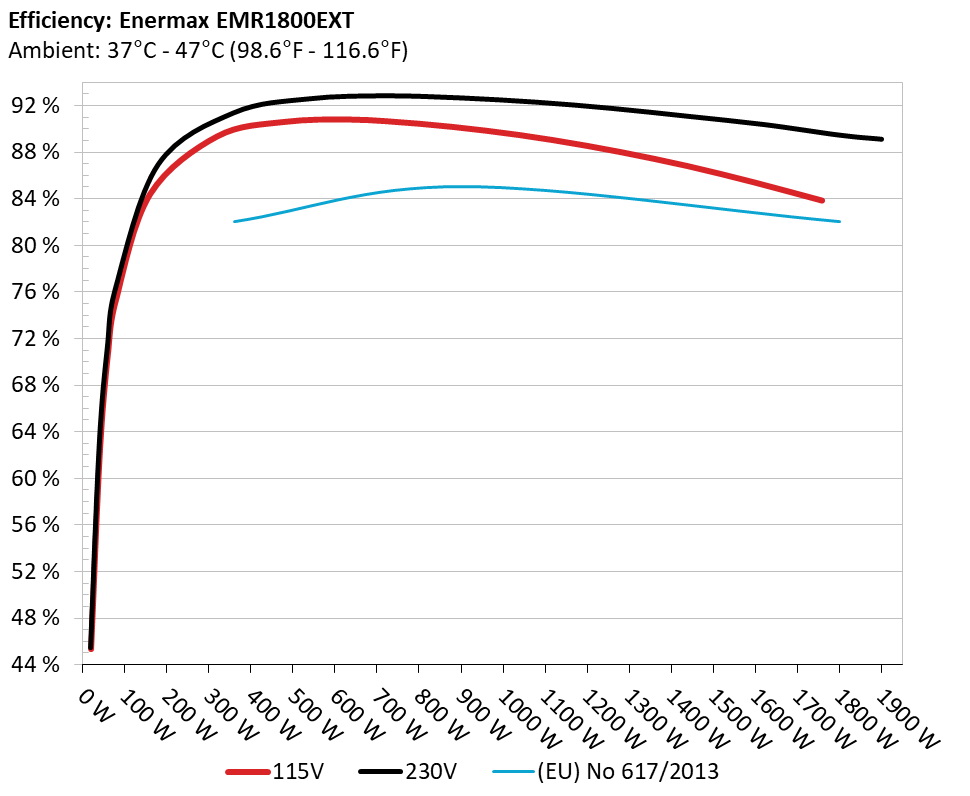

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

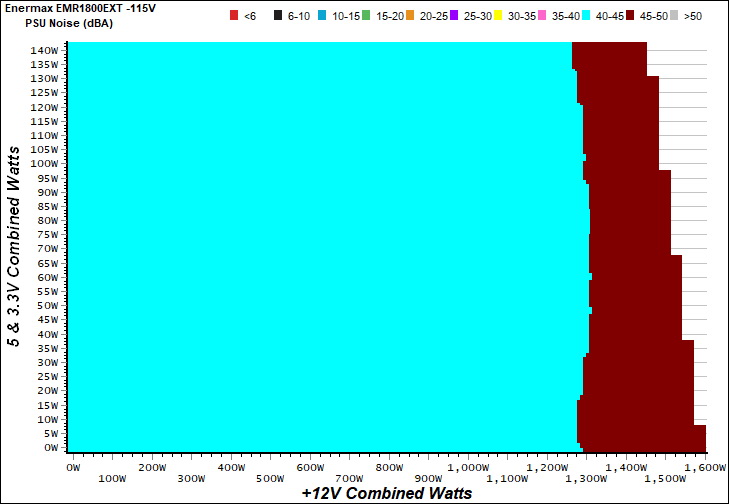

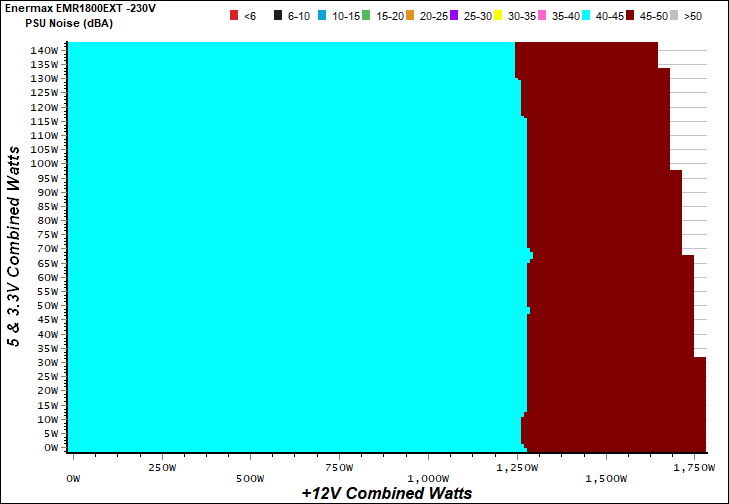

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

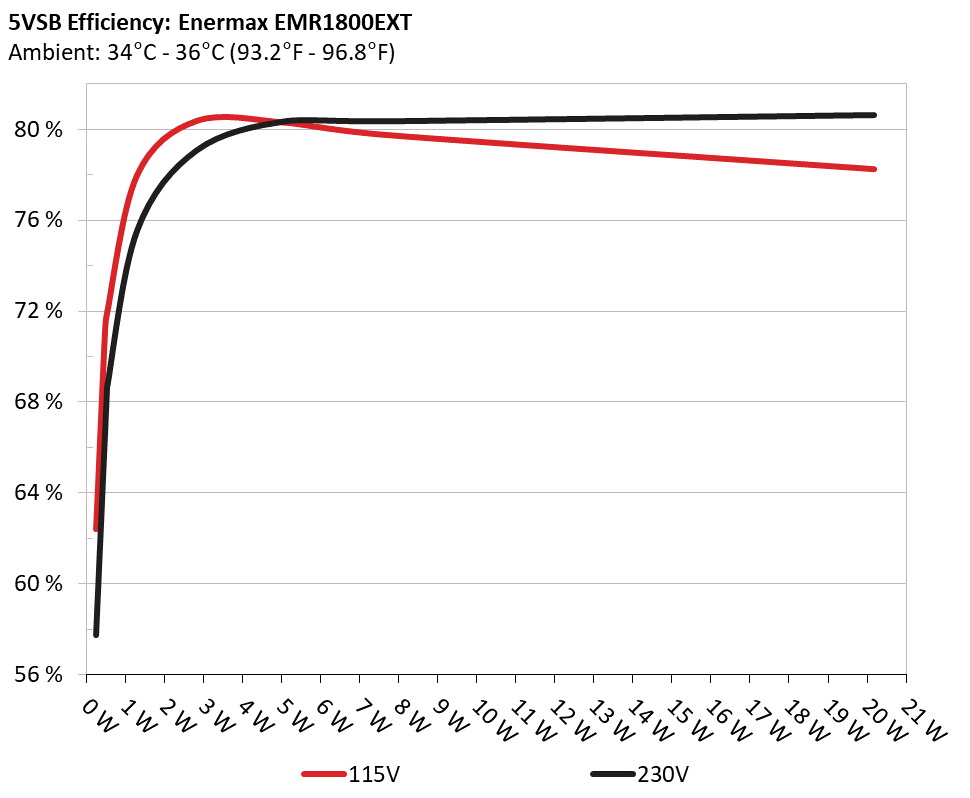

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 62.432% 0.059
5.123V 0.370 115.09V
2 0.090A 0.461 71.142% 0.101
5.122V 0.648 115.09V
3 0.550A 2.813 80.348% 0.340
5.114V 3.501 115.08V
4 1.000A 5.106 80.270% 0.418
5.106V 6.361 115.08V
5 1.500A 7.646 79.737% 0.459
5.096V 9.589 115.08V
6 4.000A 20.186 78.231% 0.528
5.047V 25.803 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 57.750% 0.017
5.123V 0.400 230.25V
2 0.090A 0.462 68.648% 0.028
5.122V 0.673 230.25V
3 0.550A 2.813 79.061% 0.141
5.114V 3.558 230.25V
4 1.000A 5.106 80.346% 0.222
5.105V 6.355 230.26V
5 1.500A 7.645 80.338% 0.285
5.096V 9.516 230.26V
6 4.001A 20.188 80.610% 0.411
5.046V 25.044 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 11.352A 1.963A 1.948A 0.981A 159.946 84.363% 1960 42.1 40.18°C 0.994
12.188V 5.092V 3.385V 5.095V 189.592 42.36°C 115.10V
2 23.744A 2.950A 2.926A 1.181A 319.665 89.318% 1972 42.2 40.92°C 0.998
12.162V 5.085V 3.379V 5.083V 357.896 43.50°C 115.11V
3 36.517A 3.446A 3.408A 1.381A 479.207 90.561% 1991 42.4 41.10°C 0.999
12.137V 5.078V 3.374V 5.071V 529.152 44.20°C 115.11V
4 49.416A 3.943A 3.916A 1.581A 639.667 90.762% 2021 43.5 41.86°C 0.999
12.111V 5.072V 3.369V 5.059V 704.777 45.55°C 115.11V
5 62.007A 4.937A 4.907A 1.784A 799.857 90.411% 2053 44.4 42.07°C 0.999
12.085V 5.064V 3.362V 5.047V 884.694 46.28°C 115.12V
6 74.649A 5.934A 5.900A 1.987A 959.928 89.814% 2090 44.7 42.64°C 0.999
12.058V 5.056V 3.357V 5.034V 1068.797 47.86°C 115.12V
7 87.322A 6.934A 6.896A 2.191A 1119.684 89.005% 2121 44.9 43.18°C 0.999
12.031V 5.049V 3.350V 5.021V 1258.002 49.44°C 115.12V
8 100.116A 7.937A 7.896A 2.397A 1280.206 87.979% 2170 45.4 43.80°C 0.999
12.004V 5.041V 3.343V 5.009V 1455.120 51.94°C 115.12V
9 113.317A 8.444A 8.386A 2.401A 1439.578 86.778% 2239 45.6 44.35°C 0.999
11.976V 5.033V 3.338V 4.999V 1658.928 54.03°C 115.14V
10 125.985A 8.956A 8.911A 4.038A 1599.856 85.361% 2307 46.5 45.25°C 0.999
11.947V 5.025V 3.333V 4.955V 1874.232 55.66°C 115.15V
11 139.724A 8.968A 8.923A 4.045A 1759.943 83.818% 2393 47.8 46.67°C 0.999
11.918V 5.018V 3.329V 4.946V 2099.720 58.05°C 115.14V
CL1 0.157A 17.001A 16.998A 0.000A 144.981 79.019% 2109 44.8 42.22°C 0.994
12.170V 5.069V 3.347V 5.100V 183.476 46.60°C 115.15V
CL2 133.357A 1.003A 1.000A 1.000A 1608.243 85.593% 2306 46.5 45.56°C 0.999
11.959V 5.035V 3.353V 5.024V 1878.947 55.65°C 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 13.003A 1.965A 1.950A 0.982A 180.019 86.969% 1970 42.2 40.34°C 0.955
12.183V 5.090V 3.384V 5.094V 206.991 42.41°C 230.31V
2 27.056A 2.952A 2.929A 1.181A 359.735 91.416% 1982 42.3 40.62°C 0.985
12.154V 5.082V 3.378V 5.081V 393.516 43.20°C 230.33V
3 41.505A 3.449A 3.409A 1.381A 539.286 92.622% 2005 42.6 41.05°C 0.994
12.126V 5.075V 3.372V 5.068V 582.244 44.20°C 230.33V
4 56.095A 3.947A 3.918A 1.583A 719.774 92.879% 2040 43.9 41.92°C 0.995
12.097V 5.067V 3.367V 5.055V 774.959 45.13°C 230.33V
5 70.390A 4.942A 4.912A 1.786A 899.900 92.693% 2076 44.7 42.46°C 0.996
12.067V 5.059V 3.359V 5.041V 970.844 46.40°C 230.33V
6 84.748A 5.940A 5.905A 1.990A 1079.993 92.331% 2111 44.8 42.72°C 0.997
12.038V 5.050V 3.352V 5.028V 1169.694 46.86°C 230.33V
7 99.174A 6.944A 6.905A 2.195A 1259.790 91.793% 2182 45.5 43.31°C 0.998
12.006V 5.041V 3.345V 5.013V 1372.428 48.99°C 230.33V
8 113.730A 7.949A 7.910A 2.401A 1440.330 91.117% 2249 46.0 43.81°C 0.998
11.975V 5.033V 3.338V 4.999V 1580.741 50.77°C 230.33V
9 128.685A 8.460A 8.401A 2.406A 1619.658 90.413% 2321 46.7 44.93°C 0.998
11.945V 5.025V 3.333V 4.989V 1791.409 52.96°C 230.33V
10 143.173A 8.975A 8.928A 4.047A 1799.899 89.498% 2406 47.9 45.69°C 0.998
11.910V 5.015V 3.326V 4.943V 2011.114 54.91°C 230.33V
11 151.780A 8.980A 8.935A 4.051A 1899.831 89.144% 2384 47.8 46.84°C 0.998
11.893V 5.012V 3.324V 4.938V 2131.195 57.11°C 230.33V
CL1 0.152A 17.000A 17.001A 0.000A 144.908 80.289% 2113 44.8 42.22°C 0.946
12.169V 5.069V 3.346V 5.100V 180.482 46.22°C 230.34V
CL2 150.020A 1.003A 0.999A 1.000A 1802.390 89.788% 2380 47.7 45.53°C 0.998
11.925V 5.028V 3.349V 5.014V 2007.393 54.57°C 230.33V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.186A 0.489A 0.470A 0.195A 19.565 45.347% 1945 42.0 0.935
12.210V 5.097V 3.391V 5.118V 43.145 115.12V
2 2.425A 0.980A 0.971A 0.391A 39.887 61.926% 1939 42.0 0.961
12.207V 5.097V 3.389V 5.113V 64.411 115.11V
3 3.598A 1.472A 1.445A 0.587A 59.306 70.587% 1942 42.0 0.976
12.204V 5.096V 3.388V 5.108V 84.018 115.11V
4 4.847A 1.963A 1.947A 0.784A 79.727 75.434% 1953 42.1 0.979
12.200V 5.094V 3.386V 5.103V 105.691 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.179A 0.489A 0.469A 0.196A 19.482 45.458% 1941 42.0 0.662
12.210V 5.097V 3.391V 5.118V 42.857 230.29V
2 2.425A 0.980A 0.970A 0.391A 39.879 62.857% 1944 42.0 0.768
12.206V 5.096V 3.389V 5.112V 63.444 230.29V
3 3.601A 1.472A 1.443A 0.588A 59.333 71.309% 1952 42.1 0.836
12.203V 5.095V 3.387V 5.107V 83.205 230.30V
4 4.852A 1.962A 1.947A 0.784A 79.776 76.484% 1961 42.1 0.879
12.199V 5.094V 3.386V 5.102V 104.304 230.31V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.1 mV 7.9 mV 12.1 mV 14.0 mV Pass
20% Load 12.3 mV 9.8 mV 11.8 mV 16.0 mV Pass
30% Load 13.0 mV 10.8 mV 12.3 mV 17.5 mV Pass
40% Load 13.8 mV 12.3 mV 13.4 mV 17.8 mV Pass
50% Load 14.5 mV 14.4 mV 14.2 mV 19.3 mV Pass
60% Load 16.0 mV 15.7 mV 14.6 mV 20.4 mV Pass
70% Load 15.9 mV 17.0 mV 15.1 mV 22.5 mV Pass
80% Load 16.9 mV 18.9 mV 18.3 mV 25.1 mV Pass
90% Load 30.6 mV 30.2 mV 43.8 mV 39.8 mV Pass
100% Load 30.7 mV 30.5 mV 41.4 mV 43.3 mV Pass
110% Load 31.6 mV 32.4 mV 42.9 mV 47.0 mV Pass
Crossload 1 14.1 mV 19.5 mV 23.3 mV 13.5 mV Pass
Crossload 2 27.9 mV 26.2 mV 35.9 mV 36.4 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.1 mV 7.6 mV 11.8 mV 13.6 mV Pass
20% Load 12.7 mV 9.7 mV 11.5 mV 15.4 mV Pass
30% Load 13.2 mV 11.5 mV 13.3 mV 17.0 mV Pass
40% Load 13.8 mV 13.0 mV 13.6 mV 17.3 mV Pass
50% Load 15.0 mV 14.8 mV 13.9 mV 19.1 mV Pass
60% Load 15.5 mV 16.2 mV 15.0 mV 20.5 mV Pass
70% Load 16.5 mV 17.9 mV 15.6 mV 22.8 mV Pass
80% Load 17.7 mV 19.6 mV 18.0 mV 25.6 mV Pass
90% Load 18.4 mV 20.5 mV 18.8 mV 27.1 mV Pass
100% Load 19.7 mV 22.1 mV 20.1 mV 34.1 mV Pass
110% Load 21.1 mV 22.8 mV 21.0 mV 35.3 mV Pass
Crossload 1 14.8 mV 13.9 mV 23.5 mV 12.0 mV Pass
Crossload 2 19.9 mV 18.3 mV 16.5 mV 30.2 mV Pass

The results above are not used in the certification process

Enermax MaxRevo 1800W

Top side

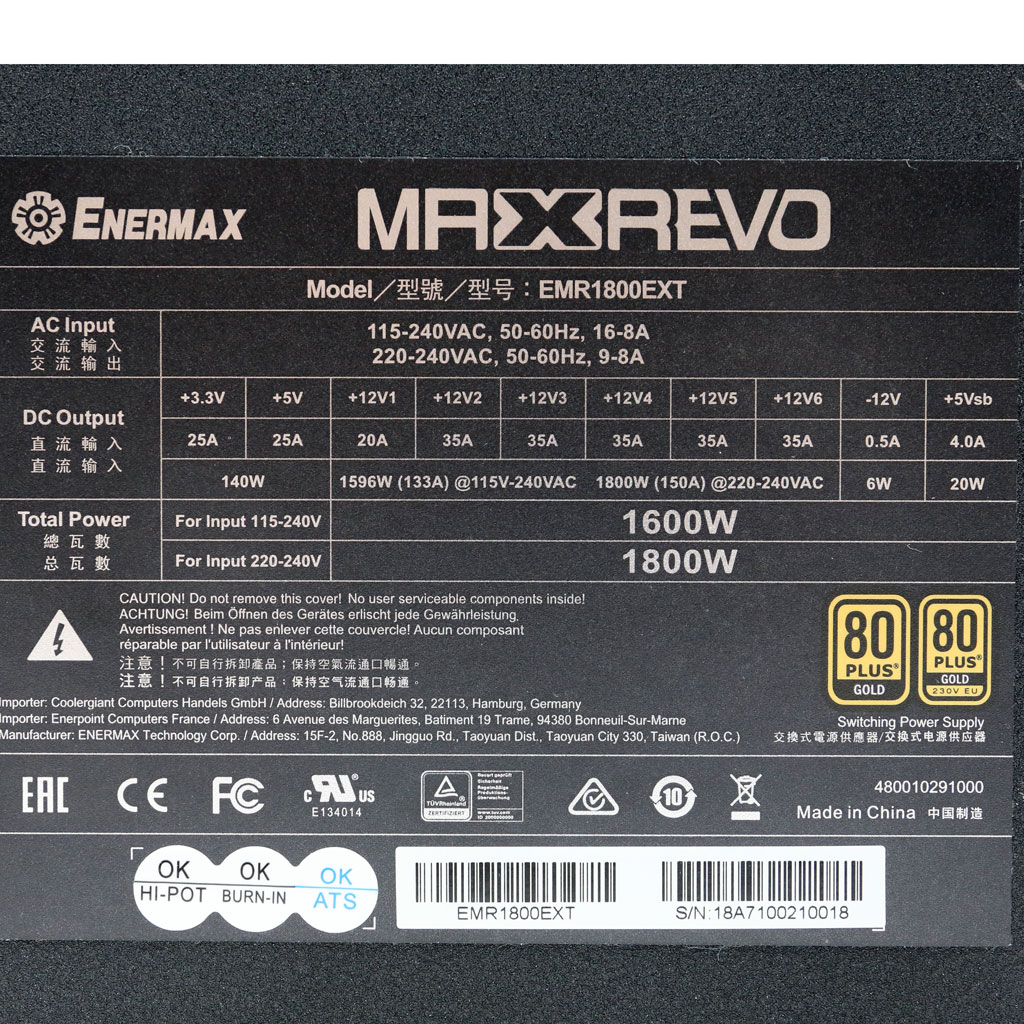

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
