ErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary
Efficiency Rating
BRONZE
Noise Rating
A-
Average Efficiency (>1450 load combinations)
83.819%
Average Noise Output (>1450 Load Combinations)
29.41dBA
Average PF (>1450 Load Combinations)
0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load
57.752%
Standby Power Consumption
0.1092W
12V Ripple (Full Load)
52.46mV
5V Ripple (Full Load)
29.73mV
3.3V Ripple (Full Load)
26.46mV
5VSB Ripple (Full Load)
90.68mV
12V Load Regulation
0.54%
5V Load Regulation
3.41%
3.3V Load Regulation
2.08%
5VSB Load Regulation
3.04%
Inrush Current
97.492A
Efficiency Rating
Noise Rating
Average Efficiency (>1450 load combinations)
85.077%
Average Noise Output (>1450 Load Combinations)
0.00dBA
Average PF (>1450 Load Combinations)
0.000
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1947W
12V Ripple (Full Load)
47.34mV
5V Ripple (Full Load)
25.44mV
3.3V Ripple (Full Load)
28.35mV
5VSB Ripple (Full Load)
92.00mV
12V Load Regulation
0.70%
5V Load Regulation
3.86%
3.3V Load Regulation
2.58%
5VSB Load Regulation
3.44%
Inrush Current
63.262A
Hold-Up Time & Power Ok Signal
16.20ms
AC Loss to PWR_OK Hold Up Time
11.20ms
PWR_OK Inactive to DC Loss Delay
5.00ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
0.00%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
16.2
AC Loss to PWR_OK Hold Up Time (ms)
11.2
PWR_OK Inactive to DC Loss Delay (ms)
5.0

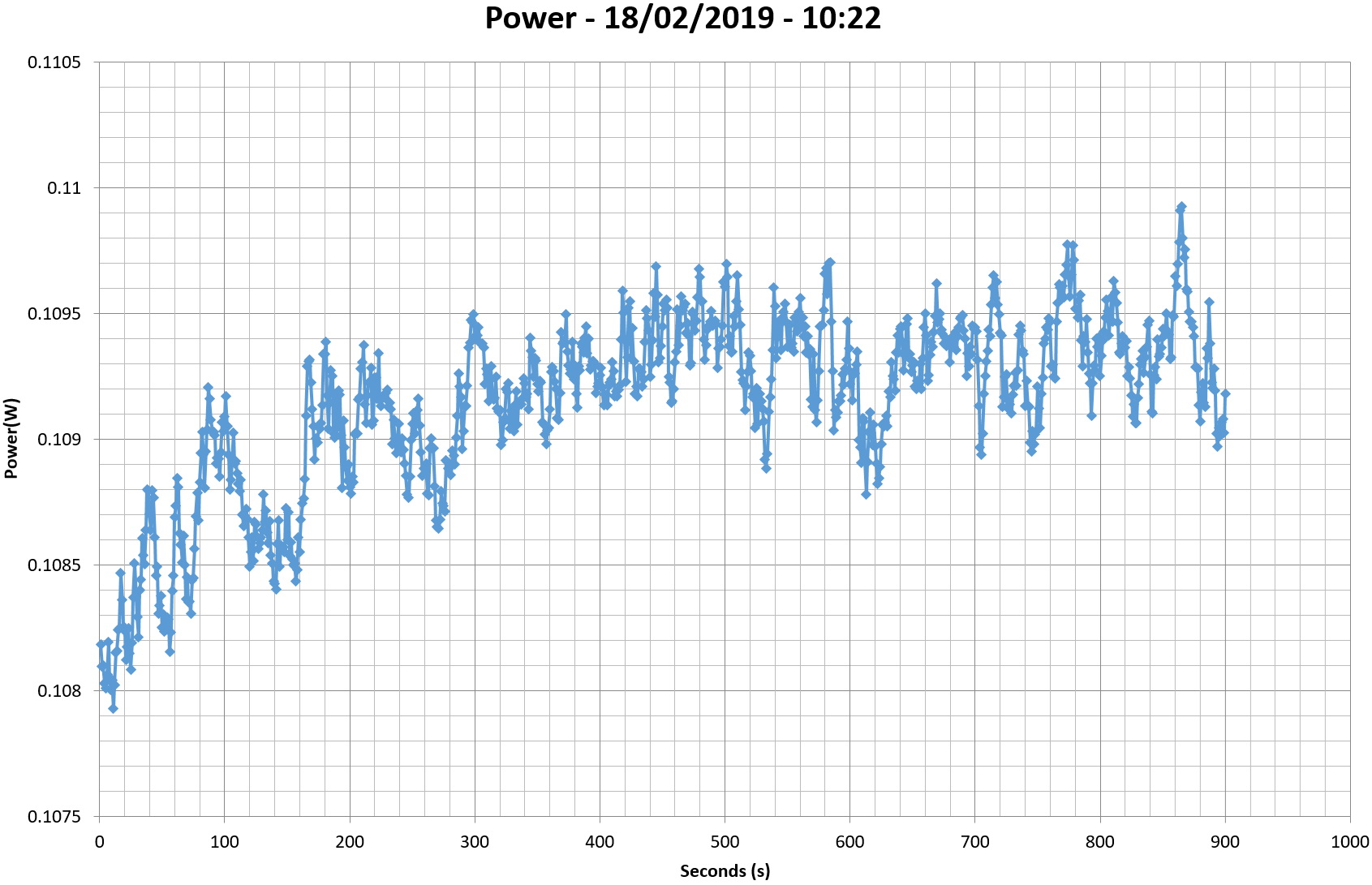

Vampire Power
Tables
Graphs
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

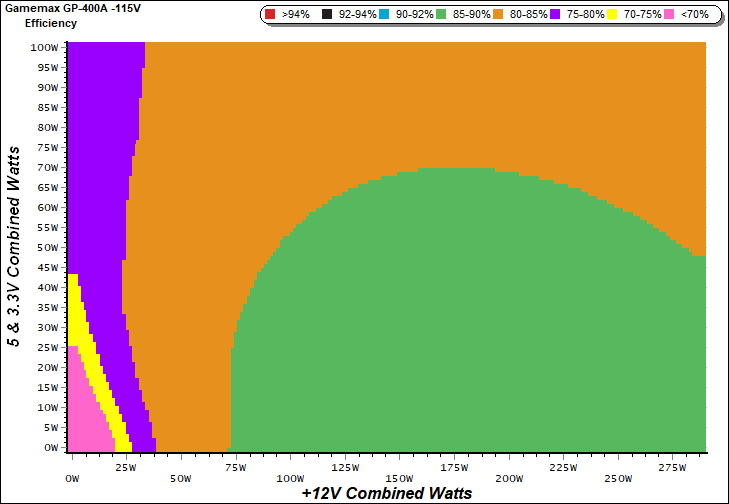

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

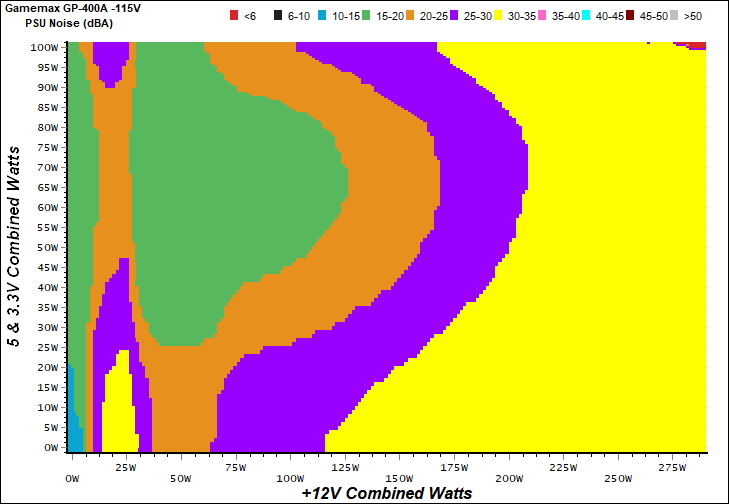

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

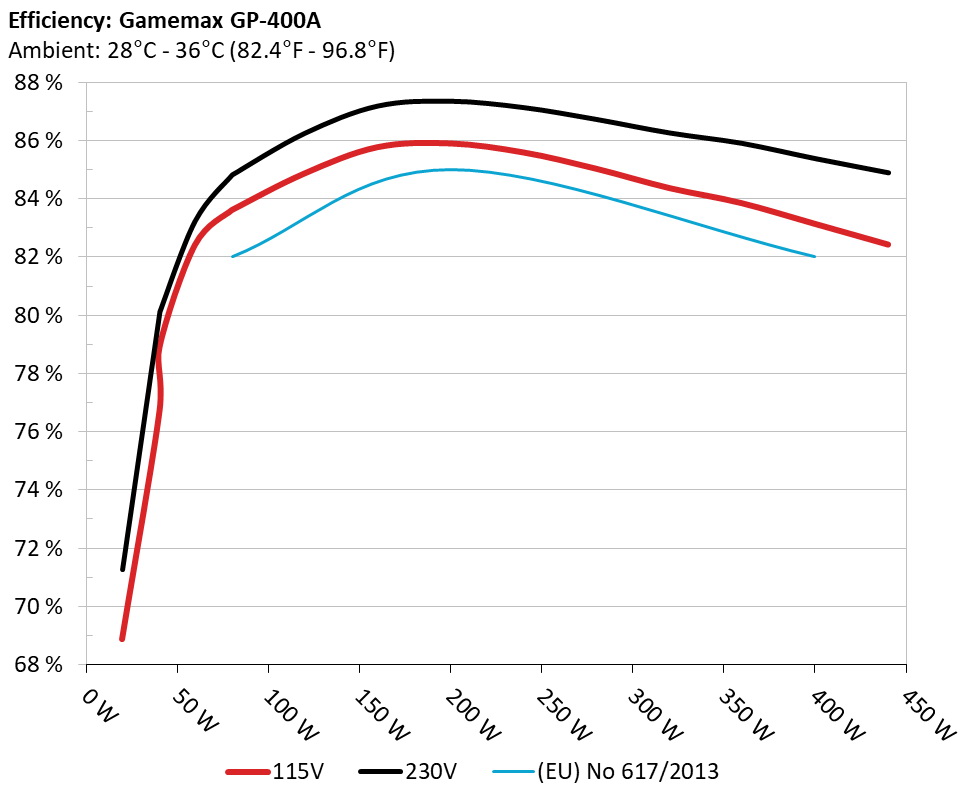

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

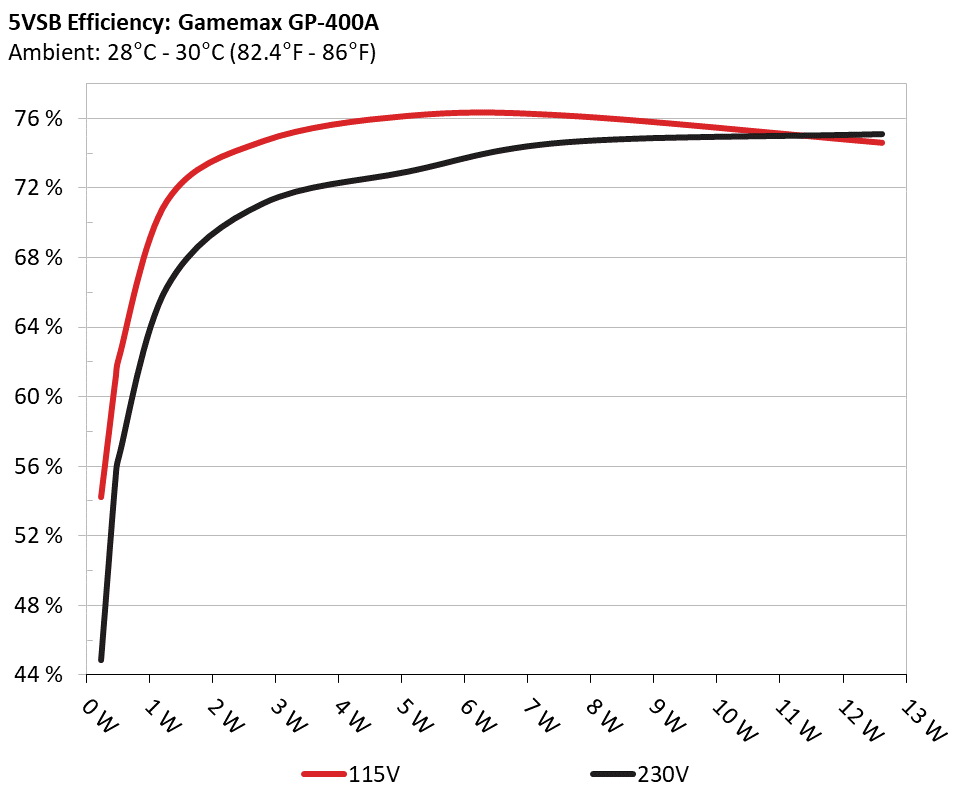

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.230
54.245%
0.058
5.110V
0.424
115.09V
2
0.090A
0.460
61.089%
0.100
5.107V
0.753
115.09V
3
0.550A
2.803
74.727%
0.281
5.095V
3.751
115.09V
4
1.000A
5.084
76.176%
0.330
5.083V
6.674
115.09V
5
1.500A
7.608
76.194%
0.356
5.071V
9.985
115.09V
6
2.500A
12.614
74.635%
0.387
5.045V
16.901
115.09V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.230
44.834%
0.022
5.109V
0.513
230.23V
2
0.090A
0.460
55.355%
0.035
5.107V
0.831
230.23V
3
0.550A
2.802
71.135%
0.144
5.094V
3.939
230.25V
4
1.000A
5.084
72.952%
0.212
5.083V
6.969
230.25V
5
1.500A
7.607
74.652%
0.258
5.070V
10.190
230.25V
6
2.500A
12.614
75.119%
0.309
5.045V
16.792
230.24V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.488A
1.972A
1.957A
0.986A
39.991
76.738%
815
14.4
30.05°C
0.947
12.368V
5.067V
3.370V
5.071V
52.114
34.57°C
115.11V
2
3.944A
2.972A
2.944A
1.187A
79.687
82.629%
819
14.5
30.79°C
0.990
12.370V
5.048V
3.361V
5.056V
96.439
35.77°C
115.10V
3
6.735A
3.475A
3.430A
1.389A
119.208
84.858%
827
14.8
31.18°C
0.993
12.353V
5.038V
3.353V
5.042V
140.480
37.18°C
115.10V
4
9.597A
3.978A
3.944A
1.591A
159.577
85.768%
1063
20.9
31.67°C
0.996
12.336V
5.027V
3.345V
5.028V
186.057
38.46°C
115.10V
5
12.091A
4.994A
4.942A
1.796A
199.708
85.898%
1293
26.3
32.30°C
0.997
12.341V
5.006V
3.337V
5.012V
232.494
39.56°C
115.10V
6
14.585A
6.016A
5.945A
2.001A
239.808
85.589%
1511
31.1
32.55°C
0.998
12.343V
4.986V
3.329V
4.997V
280.187
40.38°C
115.10V
7
17.048A
7.046A
6.952A
2.208A
279.523
85.032%
1604
33.4
32.90°C
0.998
12.344V
4.966V
3.322V
4.981V
328.726
41.17°C
115.11V
8
19.585A
8.088A
7.964A
2.417A
320.057
84.364%
1611
33.6
33.45°C
0.998
12.339V
4.946V
3.314V
4.965V
379.378
42.78°C
115.12V
9
22.463A
8.612A
8.459A
2.421A
359.323
83.854%
1613
33.6
34.52°C
0.998
12.324V
4.935V
3.309V
4.956V
428.511
44.47°C
115.11V
10
25.425A
9.138A
8.990A
2.529A
400.021
83.135%
1615
33.7
35.46°C
0.998
12.304V
4.924V
3.303V
4.944V
481.172
46.55°C
115.11V
11
28.779A
9.139A
9.000A
2.532A
440.052
82.426%
1617
33.7
36.03°C
0.998
12.261V
4.924V
3.299V
4.937V
533.878
48.82°C
115.10V
CL1
0.134A
12.000A
11.999A
0.000A
99.145
76.151%
1518
31.2
32.52°C
0.993
12.938V
4.780V
3.338V
5.058V
130.195
39.72°C
115.11V
CL2
24.002A
1.001A
0.996A
1.000A
301.167
86.021%
1571
32.6
35.78°C
0.998
11.986V
5.124V
3.336V
5.027V
350.109
46.51°C
115.10V
The results above are not used in the certification process
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.168A
0.489A
0.471A
0.196A
19.419
68.886%
810
14.2
0.828
12.265V
5.120V
3.377V
5.099V
28.190
115.10V
2
2.406A
0.981A
0.977A
0.393A
39.898
78.890%
809
14.2
0.947
12.303V
5.098V
3.373V
5.088V
50.574
115.10V
3
3.568A
1.475A
1.453A
0.591A
59.334
82.405%
810
14.2
0.986
12.315V
5.084V
3.368V
5.079V
72.003
115.10V
4
4.805A
1.971A
1.959A
0.789A
79.794
83.613%
814
14.3
0.990
12.322V
5.072V
3.364V
5.069V
95.432
115.10V
The results above are not used in the certification process
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
18.3 mV
12.6 mV
15.9 mV
16.4 mV
Pass
20% Load
22.7 mV
13.2 mV
17.0 mV
49.2 mV
Pass
30% Load
27.6 mV
15.4 mV
20.7 mV
53.2 mV
Fail
40% Load
31.1 mV
15.8 mV
23.7 mV
54.4 mV
Fail
50% Load
33.8 mV
16.0 mV
23.2 mV
52.3 mV
Fail
60% Load
30.1 mV
15.8 mV
18.6 mV
46.8 mV
Pass
70% Load
41.9 mV
20.0 mV
22.3 mV
70.0 mV
Fail
80% Load
44.1 mV
22.3 mV
24.5 mV
80.2 mV
Fail
90% Load
48.3 mV
25.0 mV
25.3 mV
84.0 mV
Fail
100% Load
52.5 mV
29.7 mV
26.5 mV
90.7 mV
Fail
110% Load
59.3 mV
32.9 mV
25.5 mV
97.2 mV
Fail
Crossload 1
36.4 mV
66.1 mV
27.7 mV
23.2 mV
Fail
Crossload 2
35.2 mV
19.5 mV
18.5 mV
48.9 mV
Pass
The results above are not used in the certification process
The results above are not used in the certification process
Gamemax GP-400A rev.2 (#2)

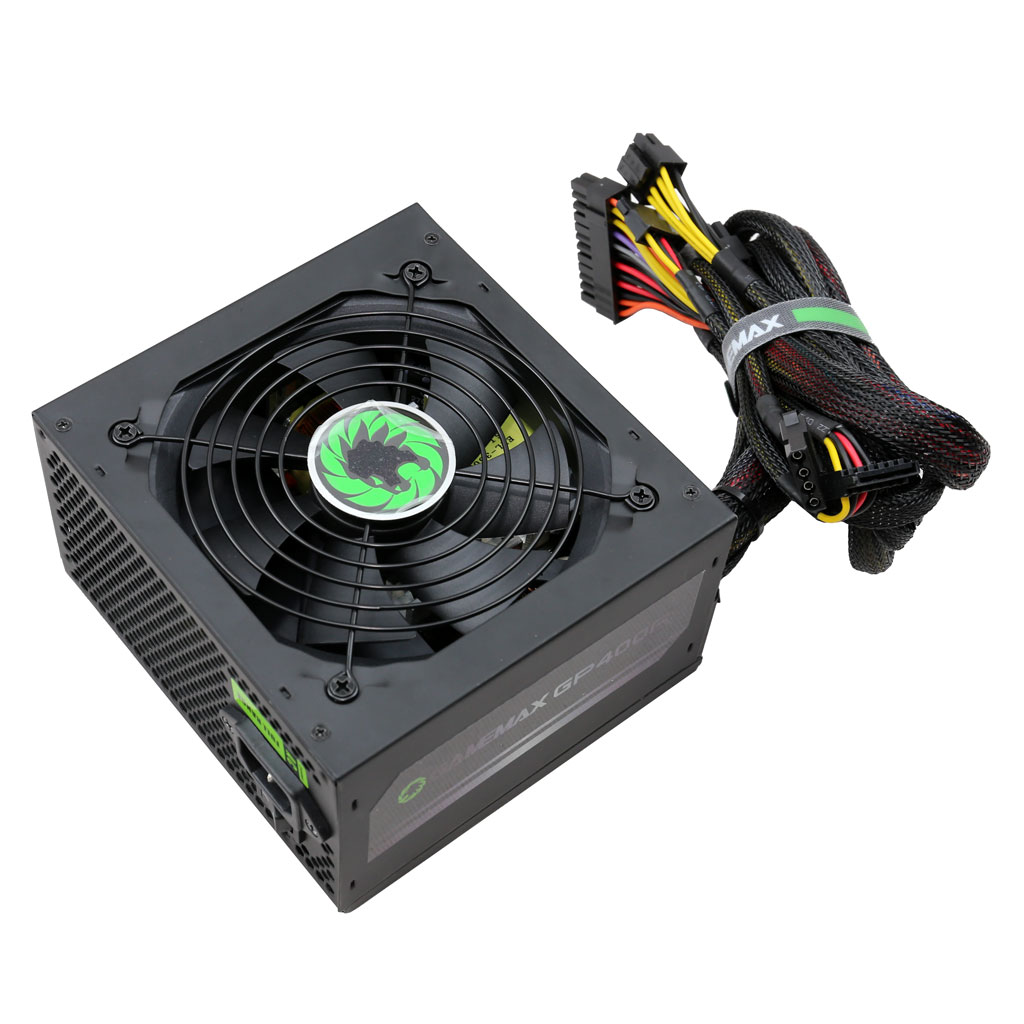

Top side

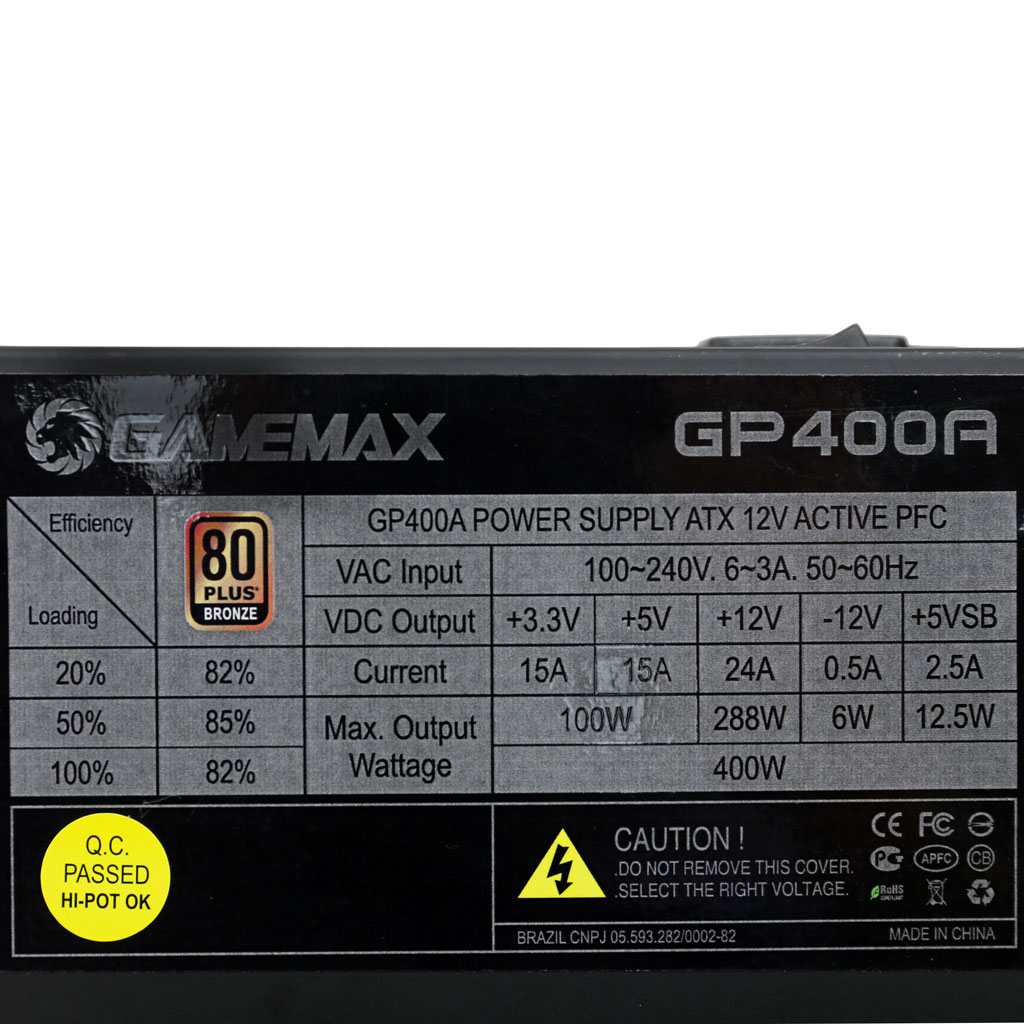

Power specifications label
