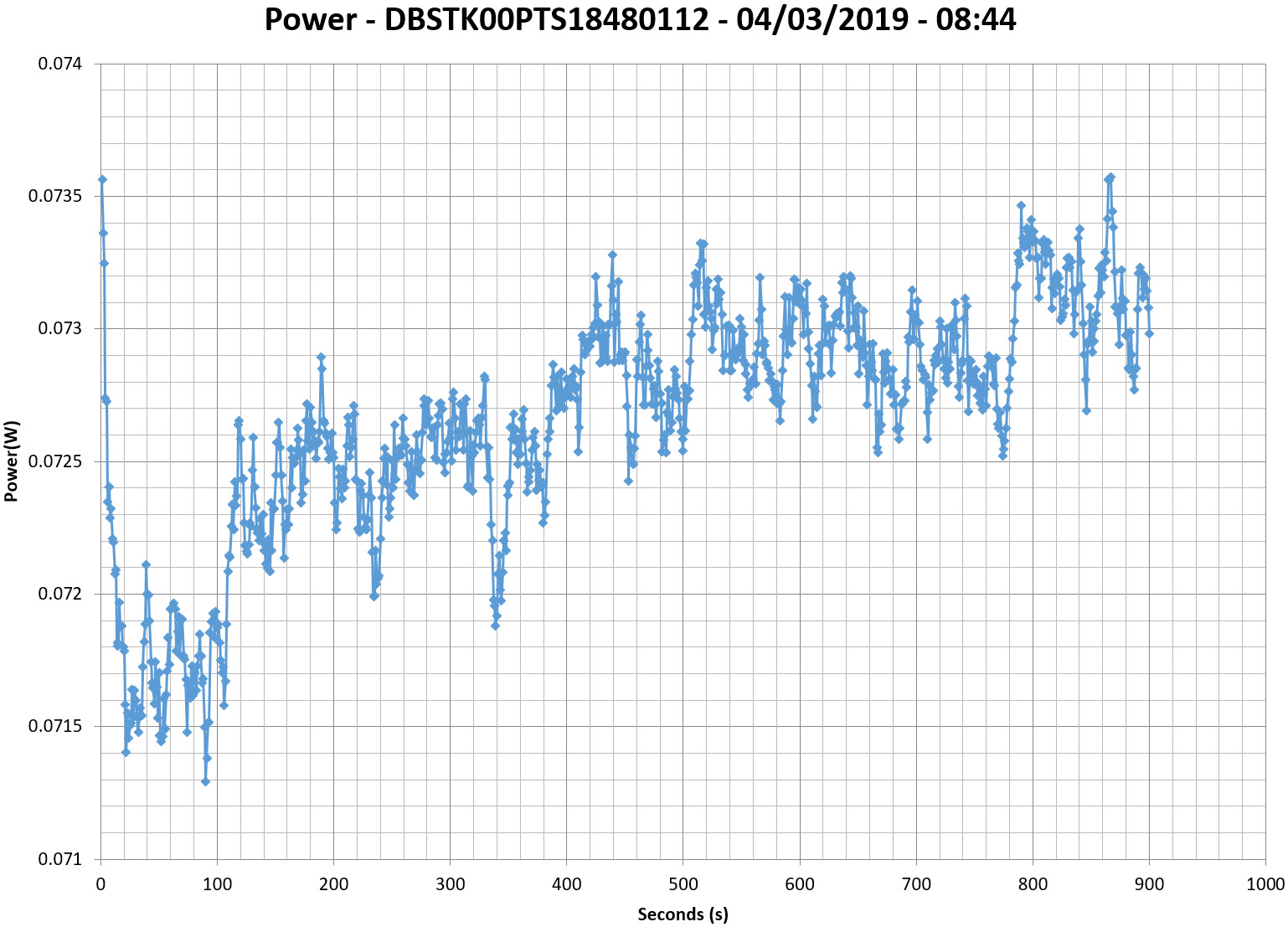

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO

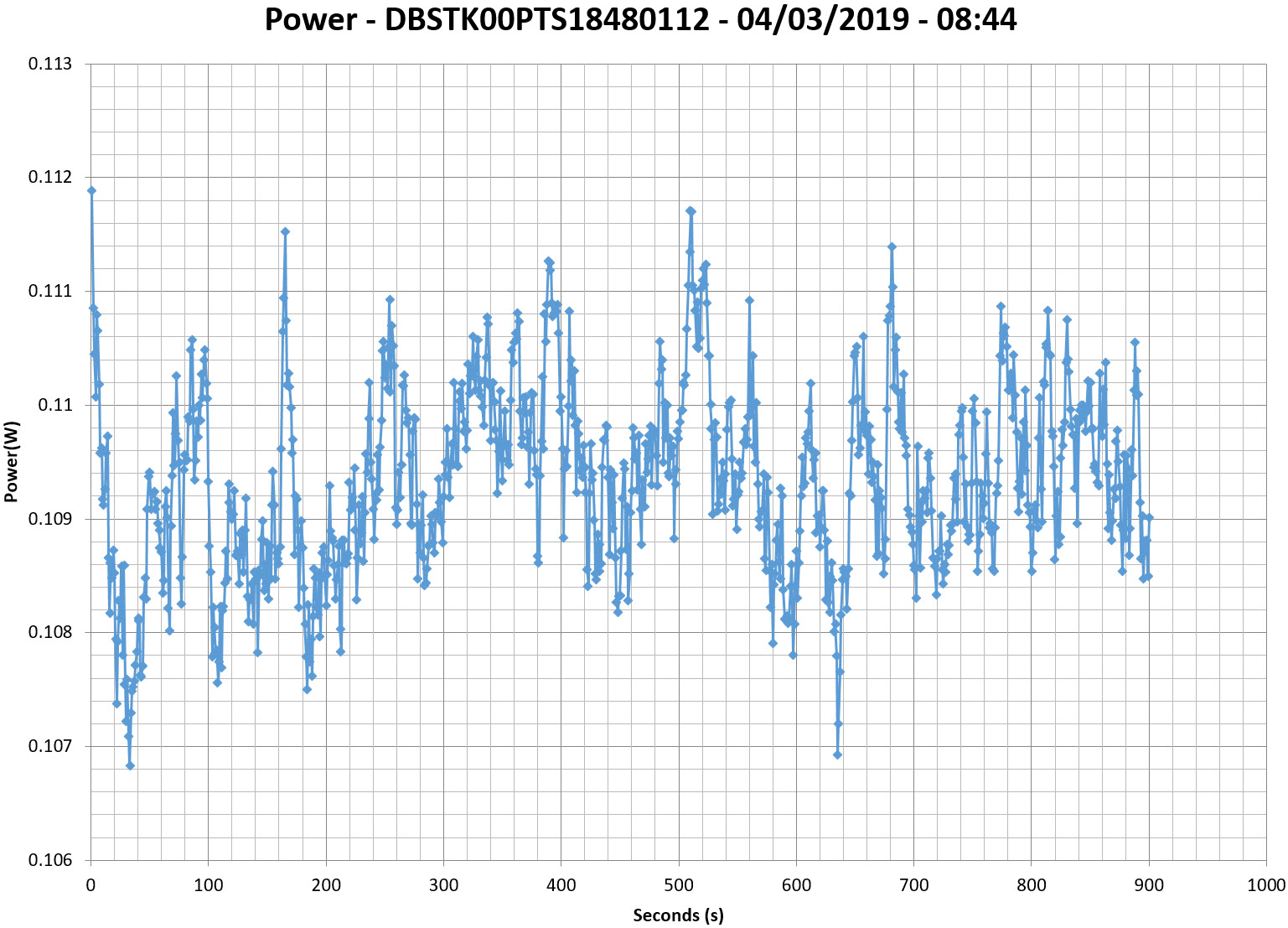

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
INFO

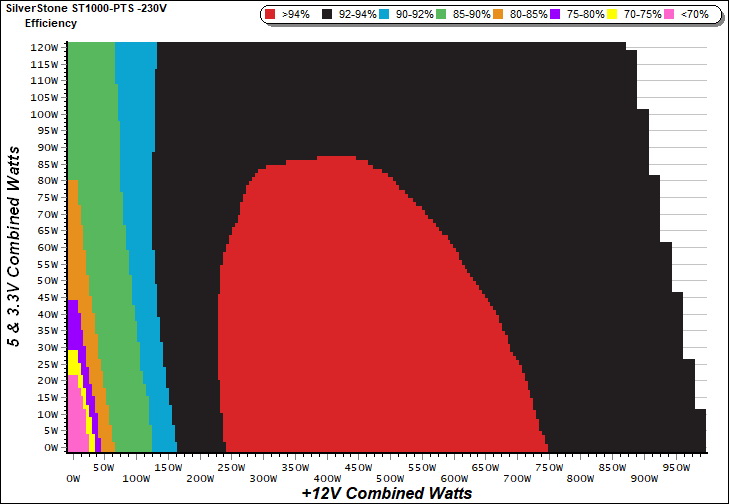

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO

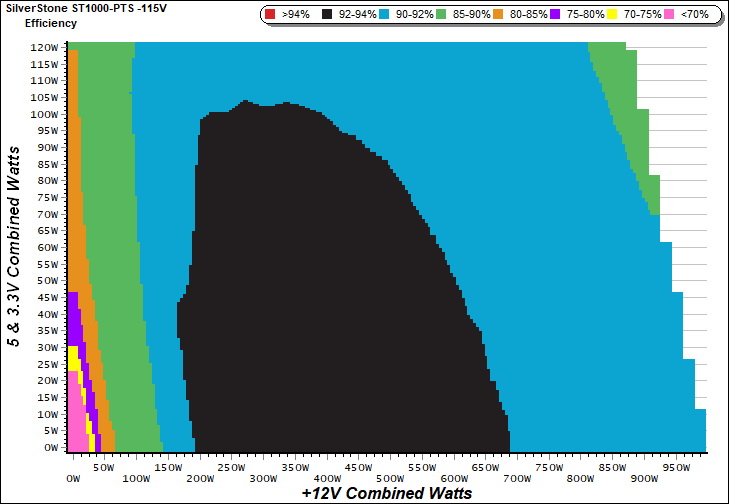

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
INFO

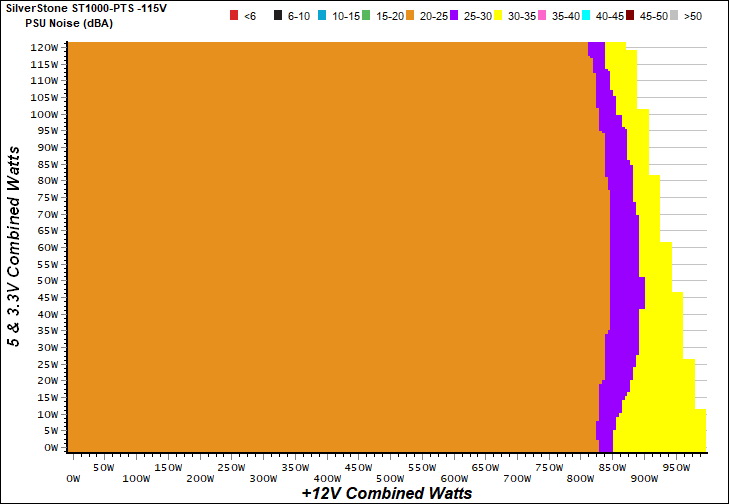

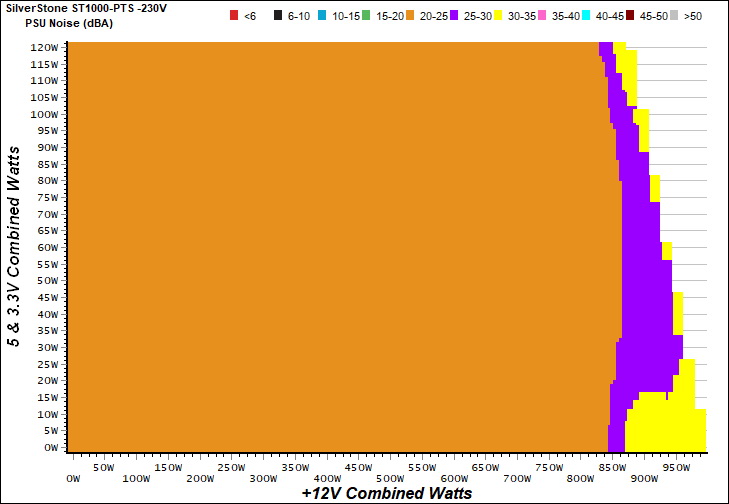

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
Efficiency under high ambient temperature
INFO

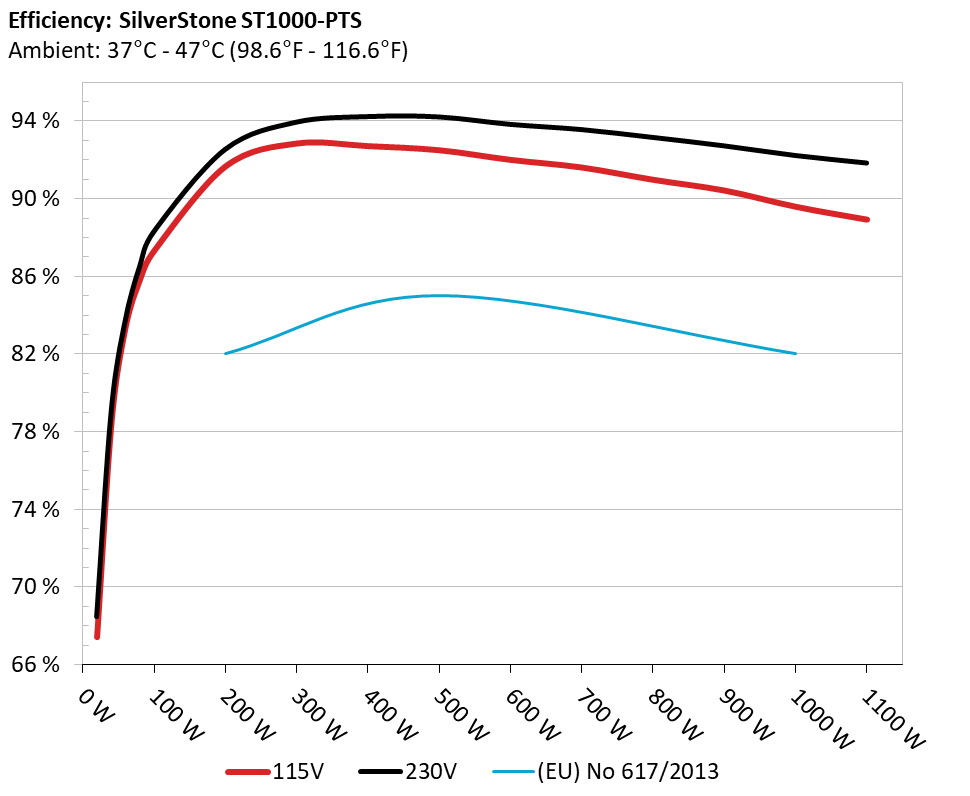

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
5VSB Efficiency
INFO

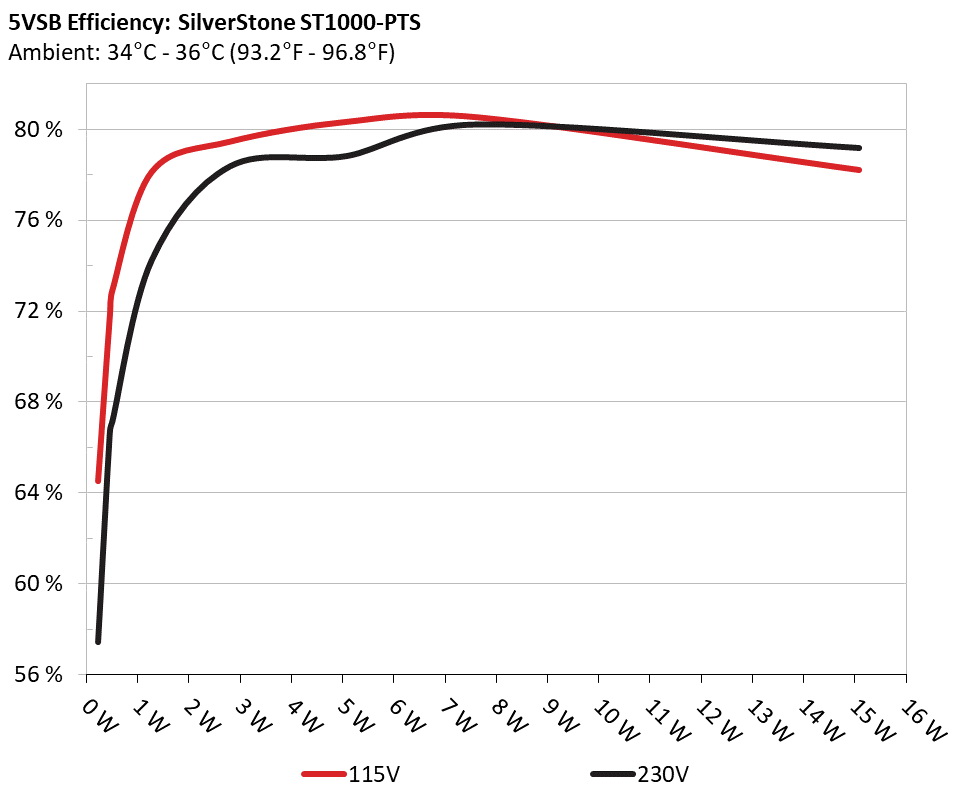

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231
64.525%
0.017
5.118V
0.358
115.11V
2
0.090A
0.461
71.807%
0.031
5.117V
0.642
115.10V
3
0.550A
2.807
79.451%
0.158
5.103V
3.533
115.11V
4
1.000A
5.090
80.322%
0.259
5.089V
6.337
115.10V
5
1.500A
7.611
80.523%
0.342
5.073V
9.452
115.10V
6
3.000A
15.079
78.202%
0.479
5.027V
19.282
115.10V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231
57.463%
0.006
5.118V
0.402
230.29V
2
0.090A
0.461
66.715%
0.010
5.117V
0.691
230.26V
3
0.550A
2.807
78.386%
0.051
5.103V
3.581
230.26V
4
1.000A
5.090
78.841%
0.090
5.089V
6.456
230.28V
5
1.500A
7.611
80.226%
0.129
5.074V
9.487
230.28V
6
3.000A
15.080
79.193%
0.234
5.026V
19.042
230.28V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
6.519A
1.989A
1.994A
0.985A
100.026
87.331%
940
21.5
39.55°C
0.968
12.031V
5.029V
3.306V
5.077V
114.537
43.04°C
115.10V
2
14.040A
2.990A
3.002A
1.185A
199.739
91.659%
938
21.5
40.84°C
0.990
12.026V
5.018V
3.295V
5.063V
217.915
44.98°C
115.10V
3
21.915A
3.494A
3.499A
1.387A
299.240
92.839%
941
21.5
41.14°C
0.995
12.012V
5.008V
3.286V
5.048V
322.323
45.83°C
115.10V
4
29.881A
4.001A
4.027A
1.590A
399.687
92.705%
944
21.6
41.56°C
0.997
11.997V
4.999V
3.278V
5.033V
431.140
46.85°C
115.12V
5
37.493A
5.014A
5.050A
1.794A
499.792
92.493%
946
21.6
42.36°C
0.998
11.983V
4.989V
3.267V
5.017V
540.359
48.56°C
115.12V
6
45.130A
6.028A
6.080A
2.000A
599.923
91.997%
952
21.8
42.73°C
0.999
11.968V
4.978V
3.256V
5.002V
652.114
49.32°C
115.12V
7
52.748A
7.048A
7.120A
2.207A
699.613
91.604%
976
22.5
43.47°C
0.999
11.953V
4.967V
3.245V
4.986V
763.733
51.11°C
115.12V
8
60.453A
8.073A
8.163A
2.416A
800.162
90.970%
1480
32.7
43.74°C
0.999
11.939V
4.956V
3.234V
4.969V
879.592
52.36°C
115.12V
9
68.520A
8.595A
8.685A
2.419A
899.468
90.419%
1933
39.7
44.26°C
0.999
11.923V
4.945V
3.224V
4.961V
994.782
53.91°C
115.12V
10
76.431A
9.121A
9.239A
3.042A
999.863
89.582%
2175
42.6
45.26°C
0.999
11.908V
4.935V
3.215V
4.933V
1116.142
55.53°C
115.12V
11
84.947A
9.133A
9.256A
3.048A
1099.895
88.919%
2181
42.6
46.64°C
0.999
11.892V
4.928V
3.208V
4.923V
1236.960
58.04°C
115.13V
CL1
0.146A
13.999A
13.999A
0.000A
117.137
84.516%
987
22.6
42.52°C
0.983
12.035V
4.991V
3.251V
5.089V
138.597
48.63°C
115.10V
CL2
83.006A
1.002A
1.000A
1.000A
1002.007
89.943%
2175
42.6
45.39°C
0.999
11.912V
4.964V
3.254V
5.011V
1114.042
55.85°C
115.13V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
6.523A
1.990A
1.998A
0.985A
100.073
88.339%
949
21.6
40.15°C
0.799
12.030V
5.028V
3.301V
5.077V
113.283
43.84°C
230.30V
2
14.046A
2.990A
3.005A
1.186A
199.787
92.558%
950
21.7
40.97°C
0.929
12.024V
5.017V
3.293V
5.061V
215.851
44.85°C
230.30V
3
21.926A
3.496A
3.503A
1.387A
299.317
93.960%
950
21.7
41.23°C
0.964
12.009V
5.007V
3.284V
5.047V
318.558
45.52°C
230.30V
4
29.893A
4.003A
4.030A
1.590A
399.739
94.250%
950
21.7
41.58°C
0.978
11.994V
4.997V
3.275V
5.032V
424.128
46.82°C
230.31V
5
37.514A
5.015A
5.056A
1.795A
499.886
94.232%
957
22.1
42.41°C
0.986
11.979V
4.986V
3.263V
5.016V
530.485
48.13°C
230.31V
6
45.153A
6.032A
6.088A
2.001A
600.025
93.850%
961
22.2
42.51°C
0.990
11.964V
4.976V
3.252V
4.998V
639.345
49.18°C
230.32V
7
52.777A
7.052A
7.129A
2.209A
699.739
93.584%
999
23.5
43.22°C
0.991
11.949V
4.964V
3.240V
4.981V
747.715
51.04°C
230.32V
8
60.488A
8.081A
8.179A
2.417A
800.225
93.177%
1472
32.7
43.76°C
0.994
11.933V
4.952V
3.228V
4.966V
858.824
52.29°C
230.32V
9
68.556A
8.602A
8.699A
2.421A
899.478
92.746%
1974
42.4
44.21°C
0.995
11.917V
4.941V
3.218V
4.957V
969.826
53.38°C
230.30V
10
76.481A
9.127A
9.258A
3.045A
999.908
92.248%
2180
42.6
45.65°C
0.997
11.901V
4.931V
3.208V
4.927V
1083.940
55.76°C
230.28V
11
84.992A
9.144A
9.277A
3.051A
1099.921
91.862%
2184
42.6
46.59°C
0.997
11.886V
4.922V
3.201V
4.918V
1197.362
57.86°C
230.28V
CL1
0.146A
14.001A
13.998A
0.000A
117.017
85.165%
994
23.5
42.71°C
0.849
12.032V
4.988V
3.245V
5.088V
137.401
48.48°C
230.28V
CL2
83.003A
1.002A
0.997A
1.000A
1001.536
92.657%
2181
42.6
45.24°C
0.997
11.907V
4.960V
3.251V
5.008V
1080.903
55.23°C
230.27V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.197A
0.496A
0.481A
0.196A
19.510
67.415%
934
21.4
0.779
12.041V
5.039V
3.317V
5.111V
28.940
115.12V
2
2.465A
0.993A
0.994A
0.392A
39.968
78.574%
934
21.4
0.897
12.038V
5.036V
3.313V
5.103V
50.867
115.11V
3
3.658A
1.490A
1.479A
0.589A
59.417
83.363%
933
21.4
0.935
12.035V
5.032V
3.310V
5.094V
71.275
115.11V
4
4.919A
1.989A
1.996A
0.787A
79.799
85.832%
936
21.4
0.962
12.033V
5.030V
3.307V
5.086V
92.971
115.10V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.196A
0.496A
0.481A
0.196A
19.496
68.501%
943
21.5
0.356
12.041V
5.038V
3.317V
5.111V
28.461
230.29V
2
2.465A
0.994A
0.994A
0.392A
39.972
79.090%
942
21.5
0.525
12.038V
5.035V
3.313V
5.102V
50.540
230.29V
3
3.659A
1.491A
1.479A
0.589A
59.430
83.708%
943
21.5
0.652
12.034V
5.032V
3.309V
5.094V
70.997
230.29V
4
4.923A
1.989A
1.994A
0.787A
79.831
86.523%
948
21.6
0.743
12.032V
5.029V
3.306V
5.085V
92.266
230.29V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.4 mV
9.7 mV
20.3 mV
10.4 mV
Pass
20% Load
13.6 mV
10.0 mV
20.8 mV
10.9 mV
Pass
30% Load
13.5 mV
9.7 mV
22.6 mV
11.6 mV
Pass
40% Load
18.3 mV
10.3 mV
24.6 mV
12.4 mV
Pass
50% Load
22.2 mV
12.6 mV
23.6 mV
13.1 mV
Pass
60% Load
26.5 mV
13.5 mV
26.4 mV
13.9 mV
Pass
70% Load
31.3 mV
16.1 mV
31.6 mV
15.1 mV
Pass
80% Load
34.8 mV
16.6 mV
30.3 mV
16.7 mV
Pass
90% Load
39.8 mV
14.8 mV
29.3 mV
18.3 mV
Pass
100% Load
45.8 mV
16.4 mV
29.9 mV
23.1 mV
Pass
110% Load
52.3 mV
17.1 mV
32.0 mV
25.1 mV
Pass
Crossload 1
32.5 mV
12.7 mV
25.1 mV
35.0 mV
Pass
Crossload 2
47.3 mV
13.8 mV
26.7 mV
20.3 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.4 mV
8.4 mV
19.3 mV
10.3 mV
Pass
20% Load
13.6 mV
9.8 mV
22.7 mV
11.2 mV
Pass
30% Load
13.6 mV
10.3 mV
22.6 mV
11.2 mV
Pass
40% Load
17.6 mV
11.2 mV
24.4 mV
12.2 mV
Pass
50% Load
22.2 mV
11.6 mV
25.1 mV
13.0 mV
Pass
60% Load
26.5 mV
13.2 mV
27.9 mV
13.4 mV
Pass
70% Load
30.9 mV
14.8 mV
32.5 mV
14.2 mV
Pass
80% Load
34.8 mV
15.9 mV
31.0 mV
16.4 mV
Pass
90% Load
39.2 mV
15.6 mV
29.3 mV
17.2 mV
Pass
100% Load
47.1 mV
15.7 mV
30.2 mV
20.9 mV
Pass
110% Load
52.1 mV
17.1 mV
30.2 mV
22.1 mV
Pass
Crossload 1
34.1 mV
13.2 mV
26.8 mV
37.3 mV
Pass
Crossload 2
46.8 mV
12.6 mV
25.2 mV
17.9 mV
Pass
The results above are not used in the certification process
SilverStone Strider Platinum 1000W

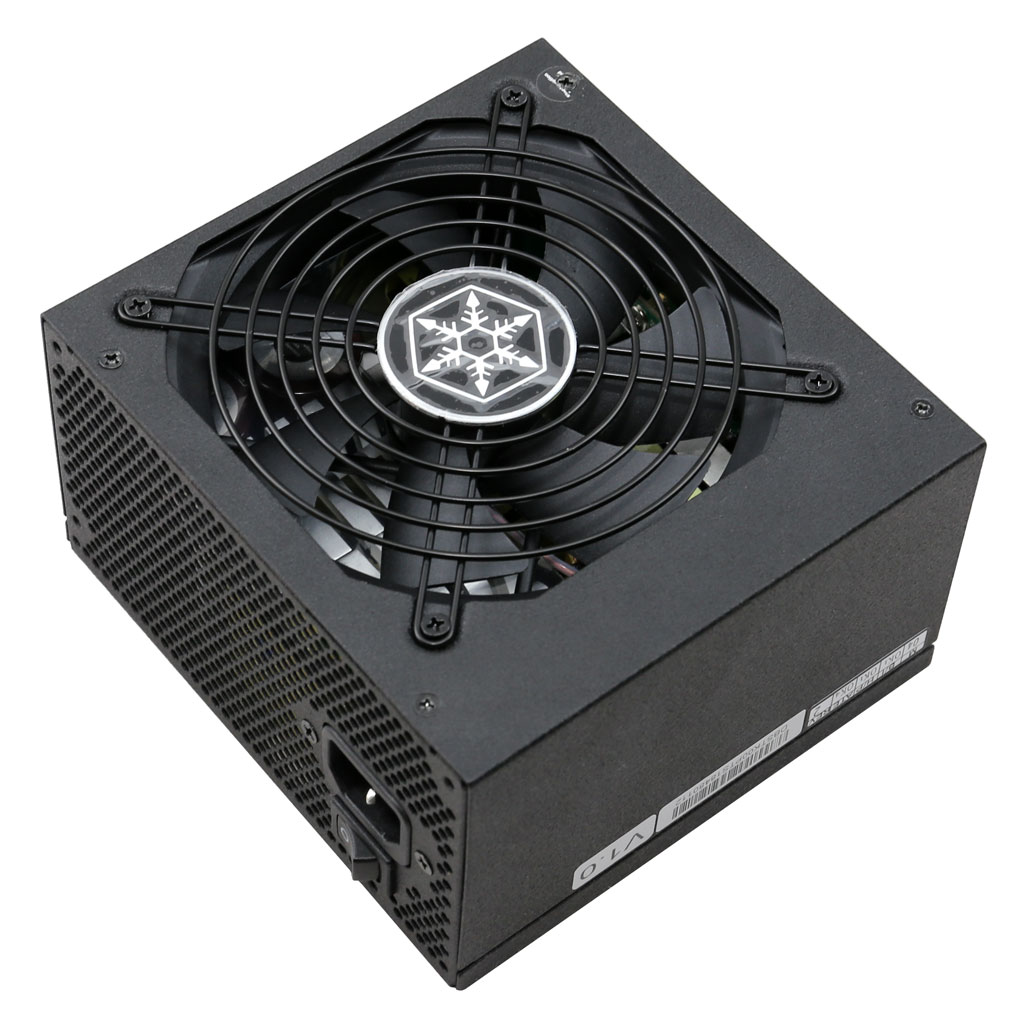

Top side

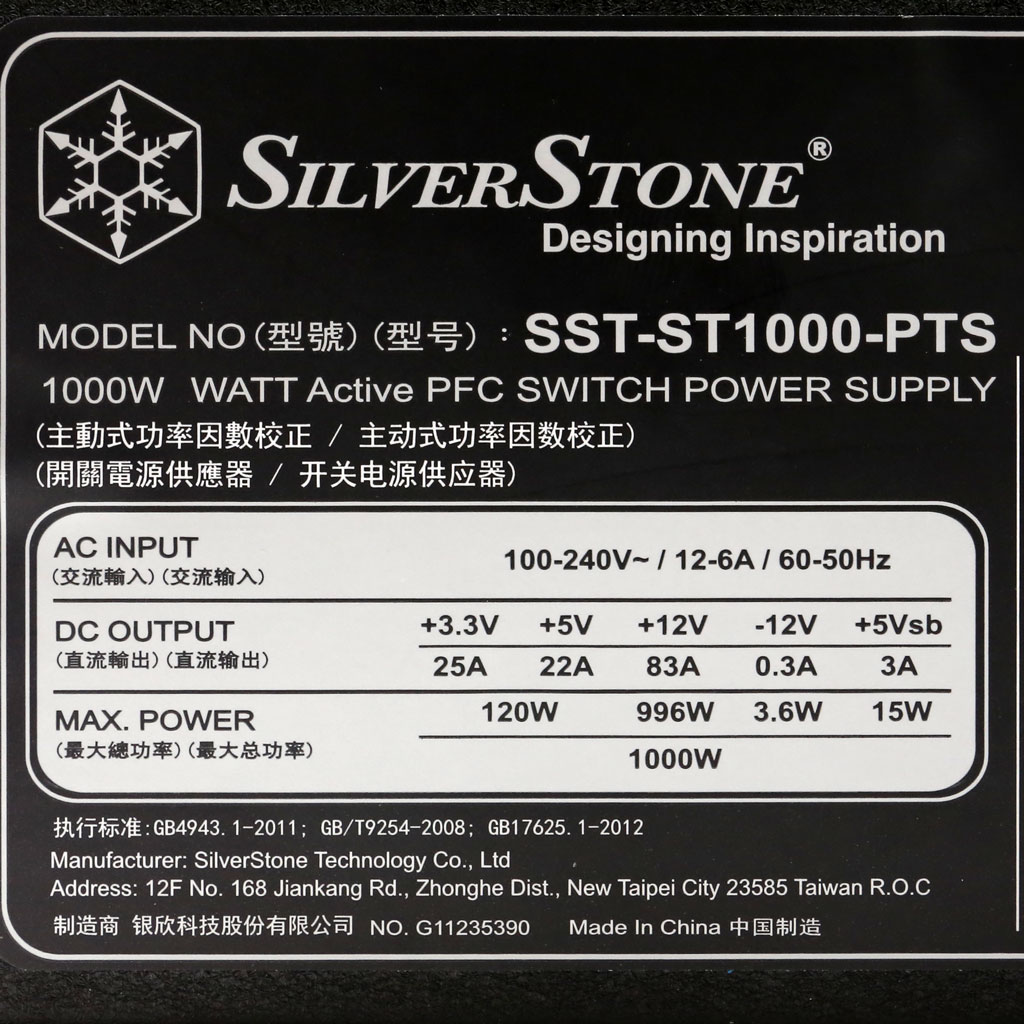

Power specifications label
