SilverStone SFX Gold 700W (#2)
Serial NumberDE18440028SX700G00
Lab ID621
  • Report:
  • Receipt Date: Jul 17, 2019
  • Test Date: Jul 29, 2019
  • Report Date: Aug 2, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)High Power
SeriesSFX
Model NumberSX700-G
Serial NumberDE18440028SX700G00
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)700
TypeSFX
Cooling92mm Fluid Dynamic Bearing Fan
(S0921512HB)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 58.4 2.5 0.3
Watts 110 700 12.5 3.6
Total Max. Power (W) 700

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (300mm) 1 1 18-22AWG No
4+4 pin EPS12V (400mm) 1 1 16AWG No
6+2 pin PCIe (400mm+150mm) 1 1 16-18AWG No
6+2 pin PCIe (550mm+150mm) 1 1 16-18AWG No
SATA (300mm+200mm+100mm) 2 6 18AWG No
4 pin Molex (300mm+200mm+200mm) 1 3 18AWG No
FDD Adapter (105mm) 1 1 22AWG No
AC Power Cord (1420mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1506L (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA50R140CP (550V, 15A @ 150°C, 0.14Ohm)
APFC Boost Diode 1x Infineon IDH08G65C5 (650V, 8A @ 145°C)
Hold-up Cap(s) 1x Rubycon (420V, 470uF, 3000h @ 85°C, USH)
Main Switchers 2x Infineon IPA50R140CP (550V, 15A @ 150°C, 0.14Ohm)
High-side/Low-Side Driver Silicon Labs Si8233BD
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Toshiba TPHR85 04PL (SOP Advance Series, 40V, 150A @ 25C, 0.85mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: 1x Nippon Chemi-Con (4-10,000 @ 105°C, KY), 4x Rubycon (3-6,000 @ 105°C, YXG), 2x Nichicon (4-10,000 @ 105°C, HE)
Polymers: Nippon Chemi-Con
Supervisor IC SITI PS224 (OVP, UVP, OCP,SCP, PG)
Micro Controller STC 15W408AS
Fan Model Globe Fan S0921512HB (92mm, 12V, 0.45A, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier 1x DK5V45R15 SBR (50V, 60A)
Standby PWM Controller Sanken STR-A6069H
-12V Circuit
Rectifier KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.8
AC Loss to PWR_OK Hold Up Time (ms)14
PWR_OK Inactive to DC Loss Delay (ms)0.8

Vampire Power

Graphs 115V

INFO

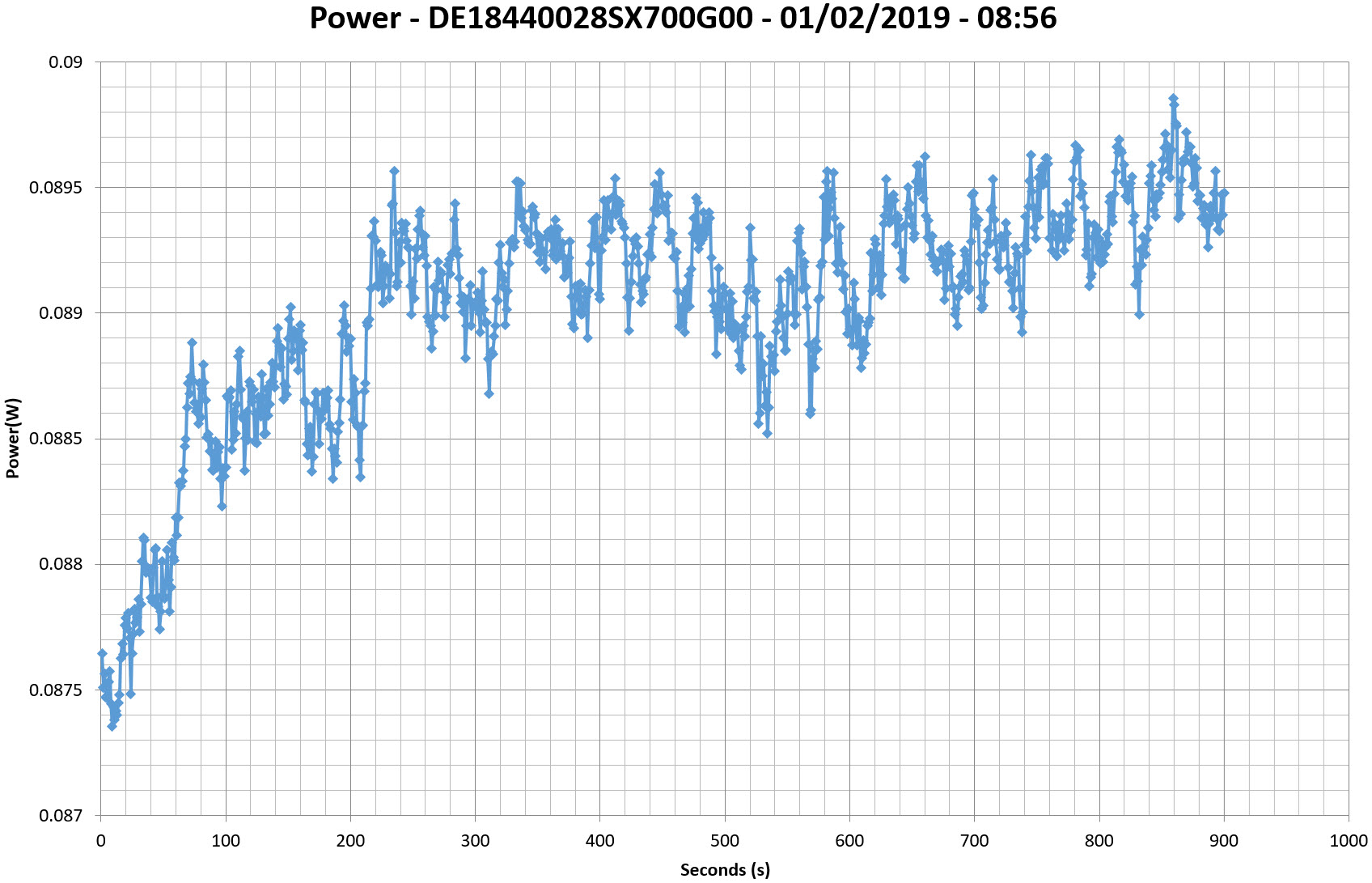

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

115V

INFO

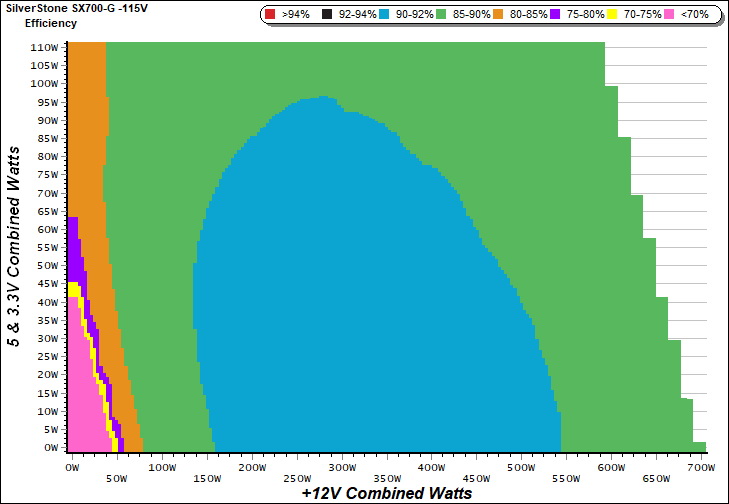

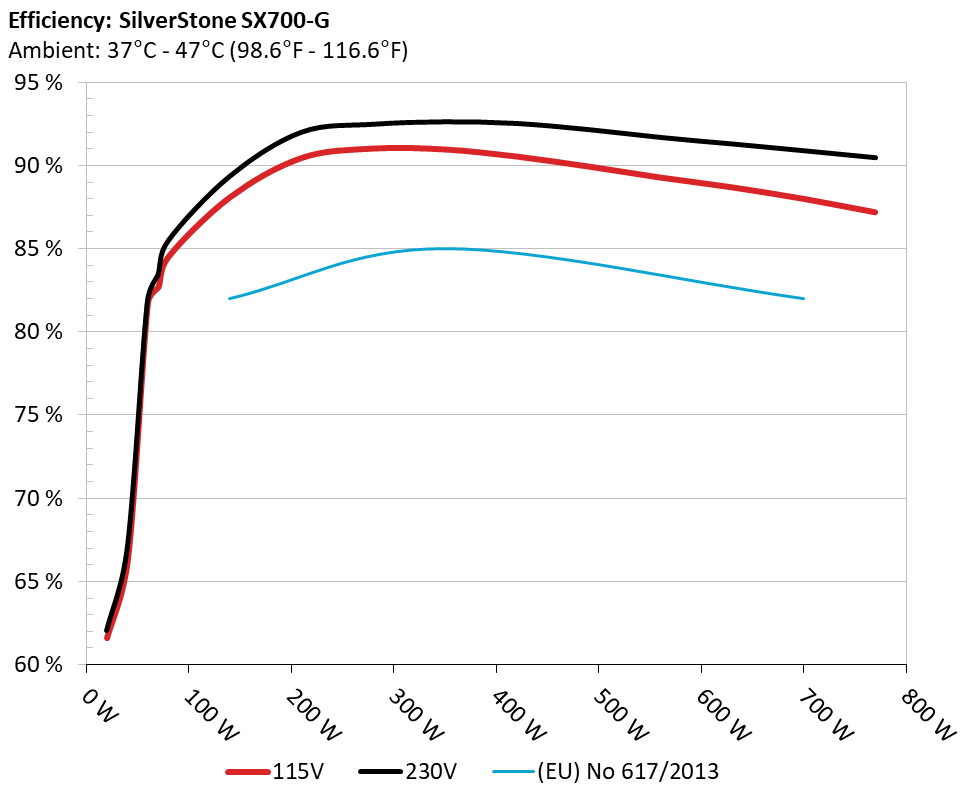

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

115V

INFO

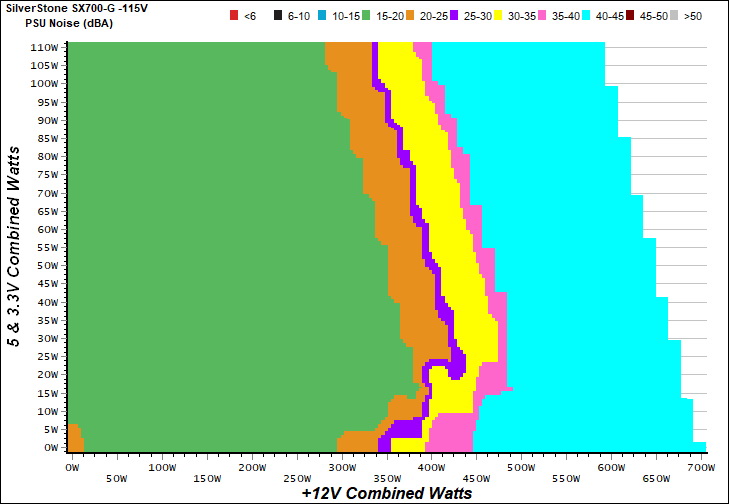

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

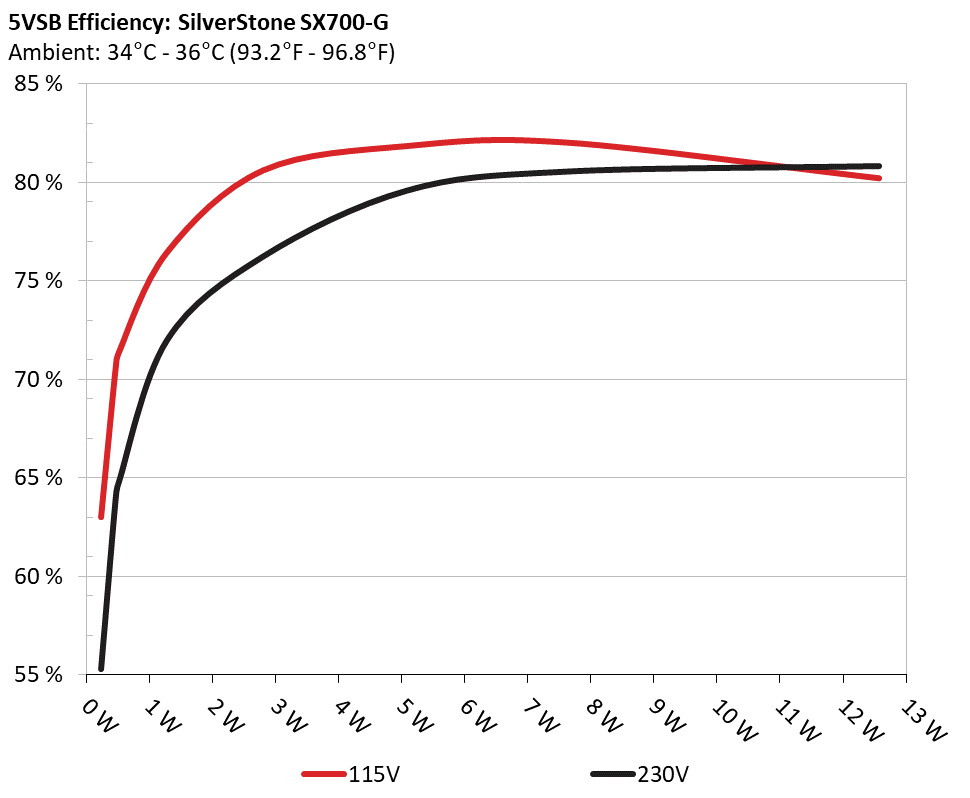

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 63.014% 0.062
5.110V 0.365 115.13V
2 0.090A 0.460 70.552% 0.106
5.108V 0.652 115.13V
3 0.550A 2.802 80.610% 0.313
5.093V 3.476 115.12V
4 1.000A 5.080 81.843% 0.370
5.079V 6.207 115.12V
5 1.500A 7.597 82.023% 0.402
5.064V 9.262 115.13V
6 2.500A 12.569 80.211% 0.435
5.027V 15.670 115.13V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.927A 1.973A 1.960A 0.987A 69.666 82.678% 1302 17.1 40.24°C 0.959
12.241V 5.065V 3.367V 5.069V 84.262 45.29°C 115.12V
2 8.900A 2.966A 2.949A 1.187A 139.747 88.085% 1306 17.1 40.66°C 0.989
12.230V 5.057V 3.357V 5.056V 158.650 46.60°C 115.11V
3 14.209A 3.467A 3.433A 1.388A 209.677 90.440% 1306 17.1 41.10°C 0.994
12.222V 5.051V 3.350V 5.045V 231.842 47.51°C 115.11V
4 19.537A 3.966A 3.949A 1.589A 279.669 91.003% 1311 17.2 41.74°C 0.995
12.206V 5.044V 3.342V 5.034V 307.319 48.81°C 115.11V
5 24.544A 4.964A 4.949A 1.793A 349.757 90.947% 1311 17.2 42.18°C 0.996
12.193V 5.036V 3.332V 5.021V 384.572 49.73°C 115.11V
6 29.570A 5.968A 5.960A 1.998A 419.884 90.522% 1651 23.5 42.84°C 0.997
12.177V 5.028V 3.322V 5.007V 463.847 51.19°C 115.10V
7 34.607A 6.974A 6.976A 2.203A 490.034 89.921% 2147 33.6 43.17°C 0.997
12.163V 5.020V 3.311V 4.994V 544.963 52.31°C 115.10V
8 39.664A 7.984A 7.999A 2.409A 560.096 89.263% 2662 40.3 43.68°C 0.998
12.144V 5.011V 3.301V 4.983V 627.468 53.80°C 115.10V
9 45.131A 8.494A 8.503A 2.411A 629.819 88.678% 2937 43.4 44.75°C 0.998
12.127V 5.005V 3.293V 4.978V 710.230 55.40°C 115.10V
10 50.605A 9.007A 9.042A 2.517A 700.143 87.983% 2931 43.3 45.58°C 0.998
12.112V 4.998V 3.284V 4.968V 795.774 57.41°C 115.10V
11 56.428A 9.014A 9.062A 2.520A 769.760 87.182% 2931 43.3 46.56°C 0.994
12.096V 4.992V 3.278V 4.962V 882.937 59.06°C 115.10V
CL1 0.141A 13.003A 13.000A 0.000A 110.149 81.954% 1352 17.9 41.91°C 0.985
12.249V 5.026V 3.313V 5.088V 134.403 49.44°C 115.12V
CL2 58.336A 1.003A 1.000A 1.000A 719.836 88.404% 2932 43.3 45.81°C 0.998
12.110V 5.026V 3.321V 5.025V 814.257 57.08°C 115.09V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.179A 0.493A 0.471A 0.196A 19.532 61.623% 1288 16.8 0.855
12.249V 5.073V 3.377V 5.100V 31.696 115.12V
2 2.420A 0.986A 0.976A 0.393A 39.933 66.390% 1295 16.9 0.931
12.249V 5.070V 3.373V 5.090V 60.149 115.12V
3 3.597A 1.480A 1.452A 0.590A 59.440 81.752% 1296 16.9 0.957
12.246V 5.068V 3.370V 5.082V 72.708 115.12V
4 4.838A 1.975A 1.959A 0.788A 79.811 84.526% 1297 17.0 0.959
12.240V 5.064V 3.366V 5.075V 94.422 115.12V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 22.7 mV 9.8 mV 6.1 mV 6.6 mV Pass
20% Load 40.1 mV 5.9 mV 6.8 mV 8.6 mV Pass
30% Load 12.1 mV 6.9 mV 7.5 mV 10.7 mV Pass
40% Load 11.2 mV 13.5 mV 10.8 mV 11.3 mV Pass
50% Load 12.7 mV 17.9 mV 14.7 mV 12.0 mV Pass
60% Load 13.4 mV 7.5 mV 12.8 mV 14.5 mV Pass
70% Load 15.5 mV 9.0 mV 14.3 mV 17.1 mV Pass
80% Load 18.8 mV 9.9 mV 17.3 mV 19.3 mV Pass
90% Load 21.2 mV 11.0 mV 19.2 mV 20.8 mV Pass
100% Load 27.8 mV 12.2 mV 22.6 mV 24.3 mV Pass
110% Load 38.6 mV 12.5 mV 24.4 mV 26.8 mV Pass
Crossload 1 55.2 mV 12.9 mV 22.2 mV 20.0 mV Pass
Crossload 2 35.6 mV 10.4 mV 14.7 mV 20.2 mV Pass

The results above are not used in the certification process

SilverStone SFX Gold 700W (#2)

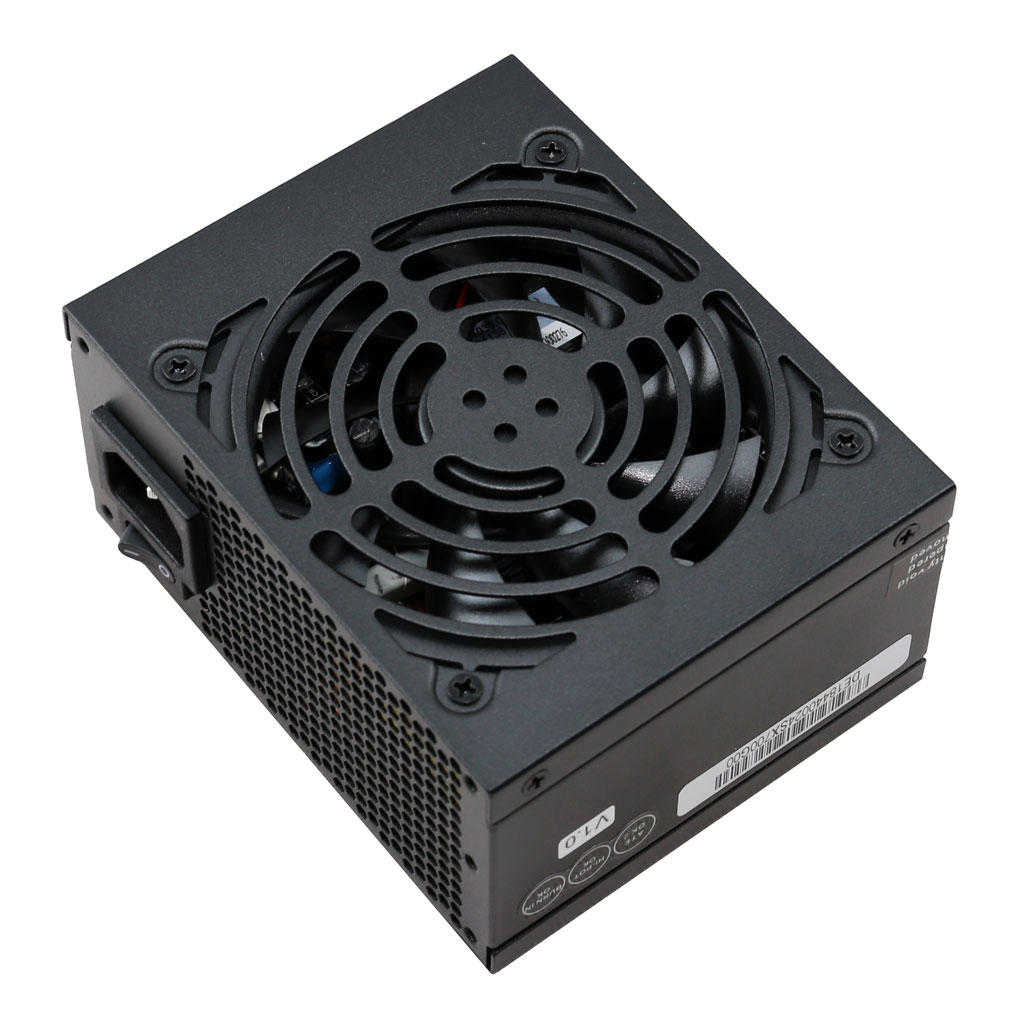

Top side

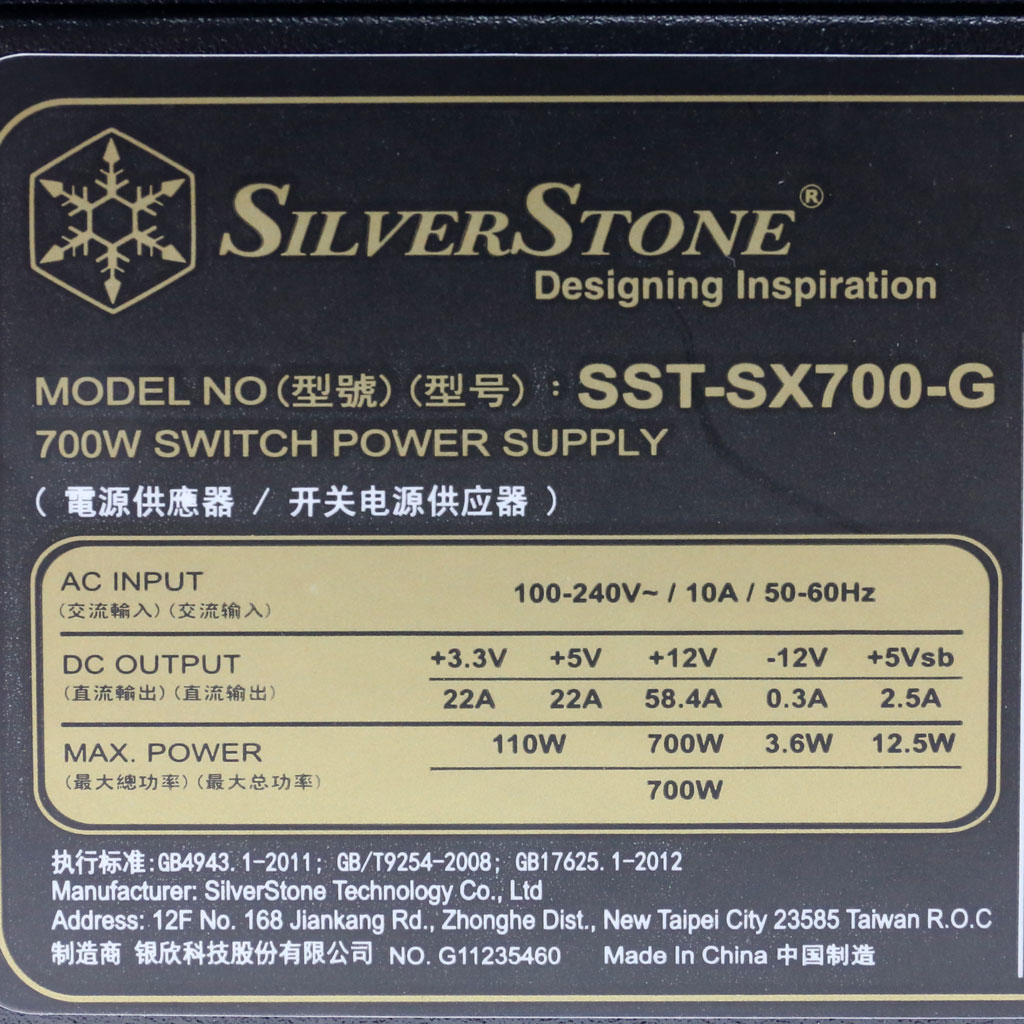

Power specifications label
