CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

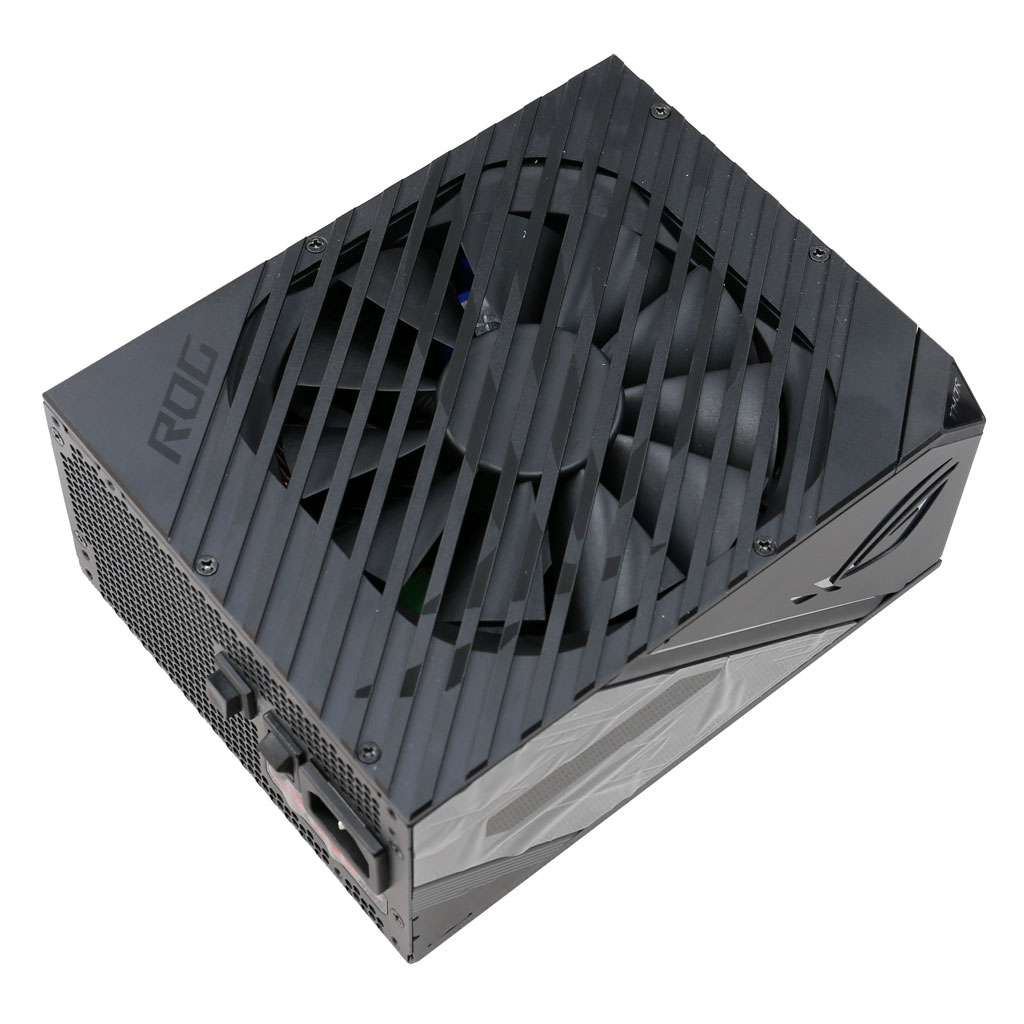

Asus ROG-THOR-1200P (#4)
Serial NumberJ9YEKG0000137U6
Lab ID620
  • Report: 19PS620A
  • Receipt Date: Mar 21, 2019
  • Test Date: Mar 31, 2019
  • Report Date: Apr 2, 2019
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Seasonic
SeriesRog Thor Platinum
Model NumberRTSS01-1200P1
Serial NumberJ9YEKG0000137U6
DUT NotesRTSS01-1200P1

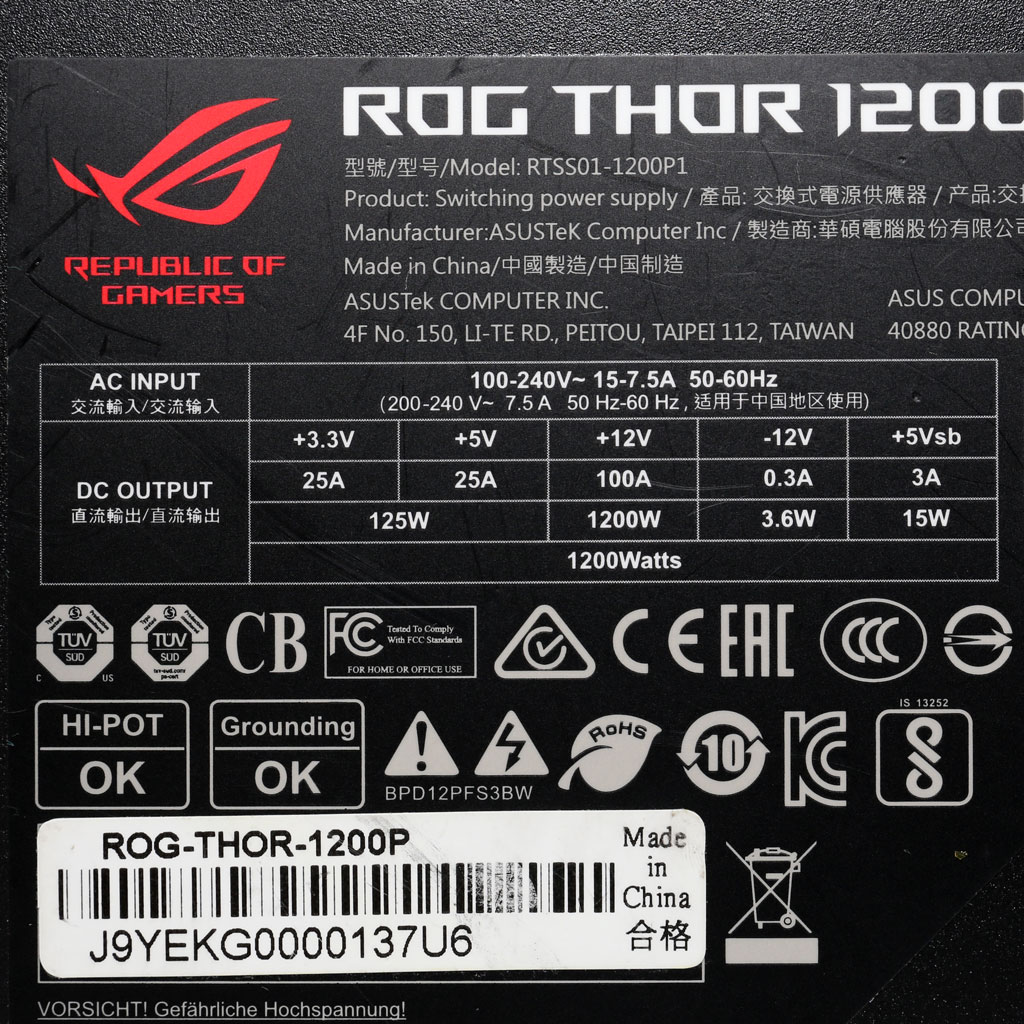

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(PLA13525B12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1251200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm) 4 4 18AWG No
6+2 pin PCIe (680mm+70mm) 2 4 18AWG Yes
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (400mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex to 2xSATA (150mm) 1 2 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
RGB Cable (800mm) 1 1 22AWG No
RGB Sinc Cable (800mm) 1 1 24AWG No
AC Power Cord Type (1380mm) 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model Prime Ultra Platinum
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Shindengen LL25XB60C (600V, 25A @ 105°C)
APFC MOSFETS 2x Infineon IPP60R099CP (650V, 19A @ 100°C, 0.099 Ohm)
APFC Boost Diode 1x STMicroelectronics STPSC10H065D (650V, 10A @ 135°C)
Hold-up Cap(s) Hitachi (400V, 1x 820uF & 1x 470uF, 2000h @ 105°C, HU)
Main Switchers 4x Infineon IPP50R199CP
(550V, 11A @ 100°C, 0.199 Ohm)
Drivers For Main Switchers 2x Silicon Labs Si8230BD
APFC Controller ON Semiconductor NPC1654
Current Sensor IC Allegro ACS725T
Switching Controller Champion CM69016X
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Nexperia PSMN1R0-40YLD (40V, 200A @ 100°C, 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (105°C, W), Chemi-Con (4,000-10,000h @ 105°C, KY, KYB), 1x Rubycon (5VSB circuit, 105°C, YXD)
Polymers: FPCAP, Nippon Chemi-Con
Micro Controller Microchip ATmega8A
Flash Memory Microchip SST26VF016B
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG ) & AS393M
Fan Model Power Logic PLA13525B12M (135mm, 12V, 0.40A, 2000 RPM, 111.1 CFM, 41.6 dB[A], Double Ball Bearing)
5VSB Circuit
Buck Converter Leadtrend LD7750R
Rectifiers STMicroelectronics STU6N65K3 (650V, 3A @ 100°C, 1.3Ohm)
-12V Circuit
Buck Converter Lite-On LSP5523 (3A max output current )

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.6
AC Loss to PWR_OK Hold Up Time (ms)20.5
PWR_OK Inactive to DC Loss Delay (ms)3.1

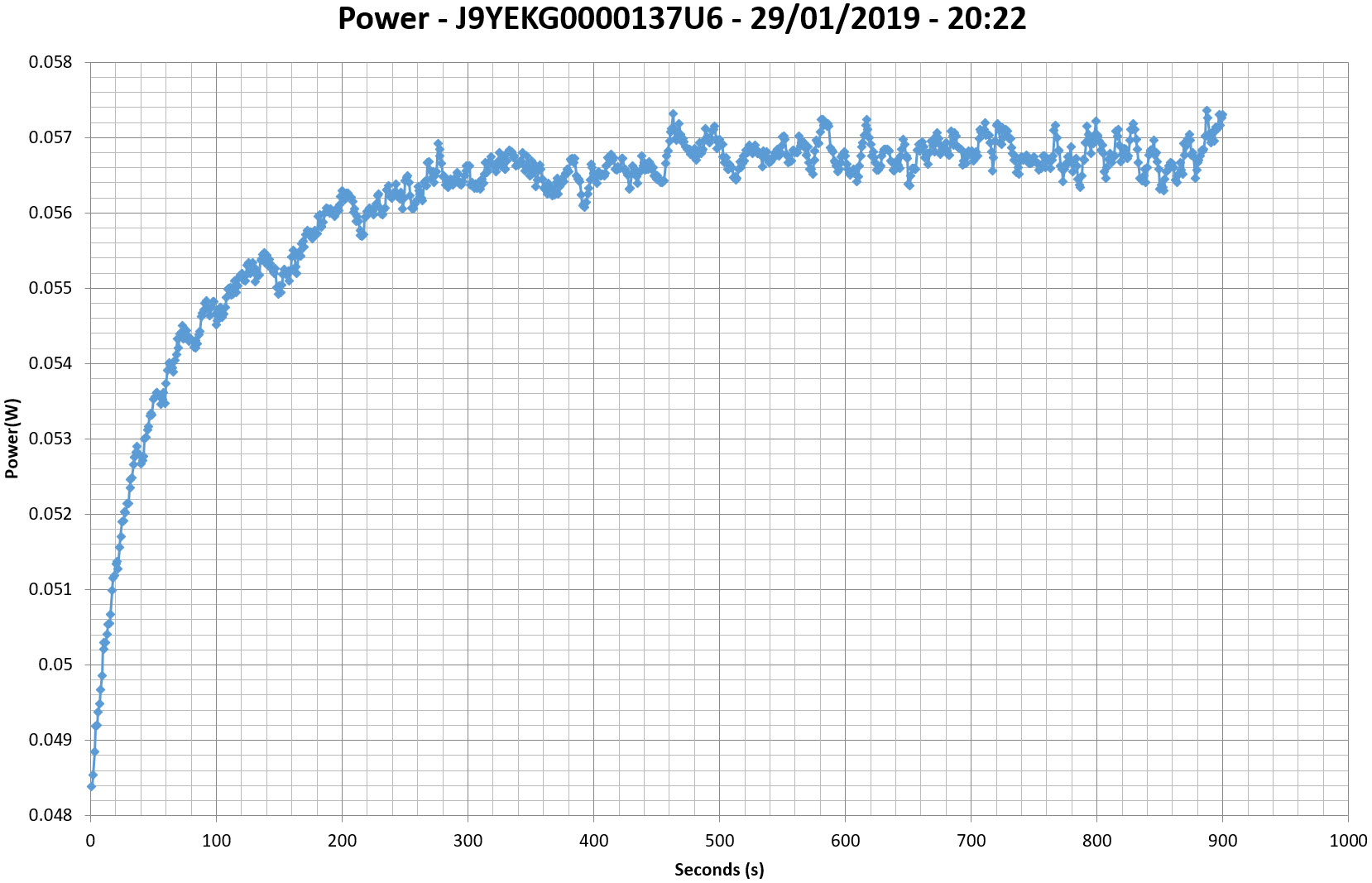

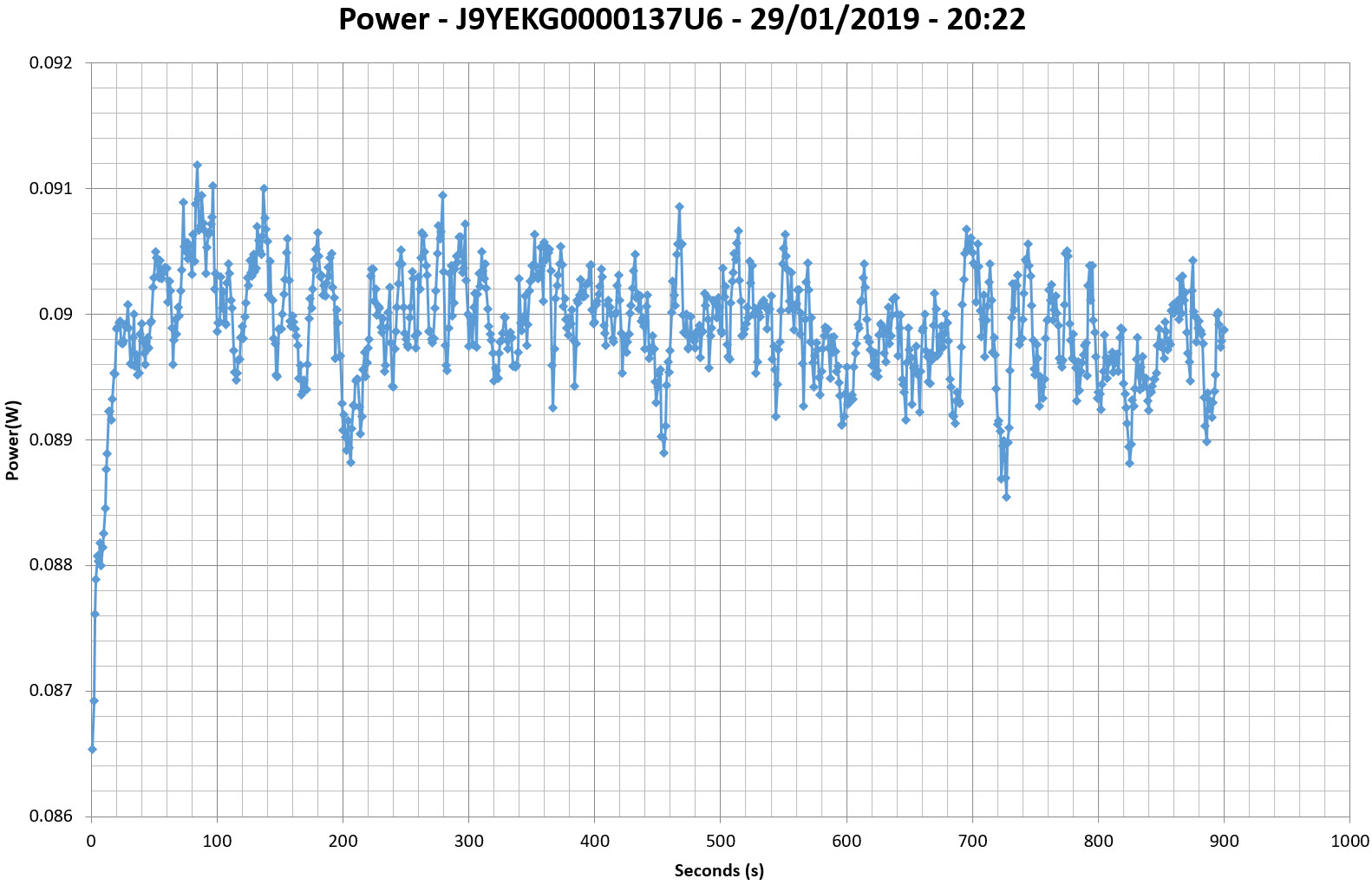

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

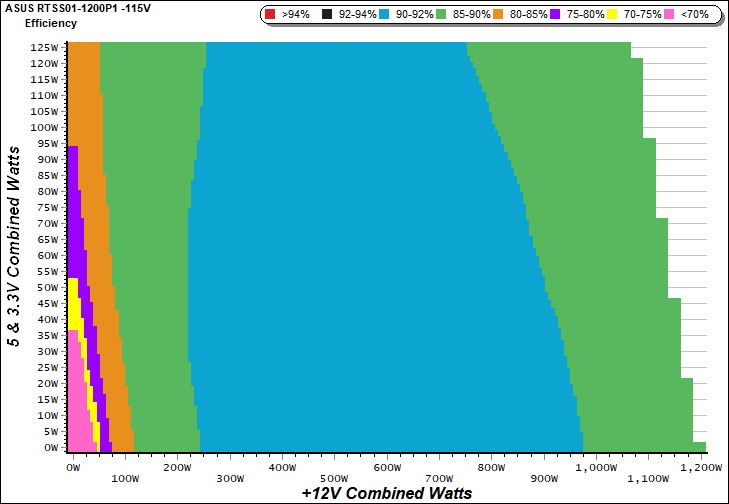

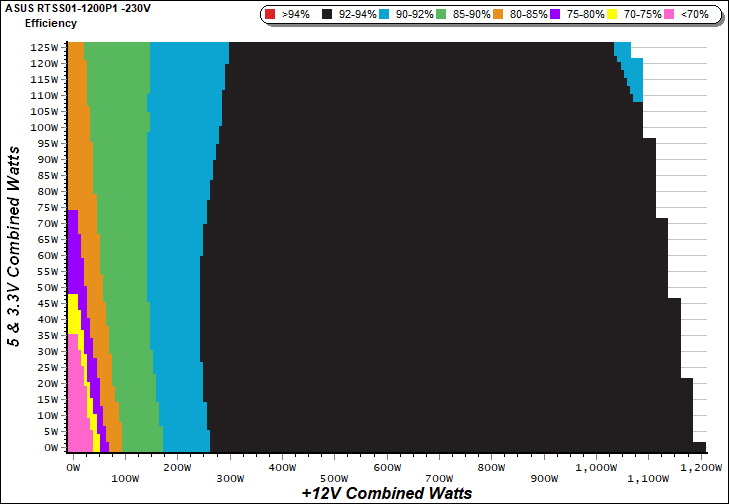

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

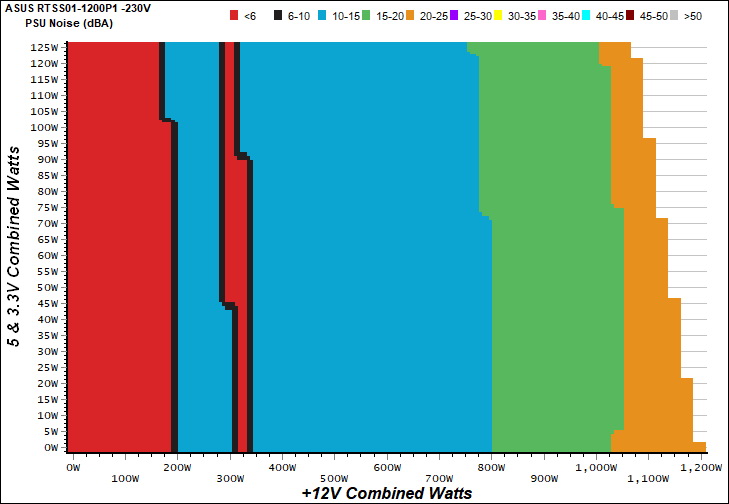

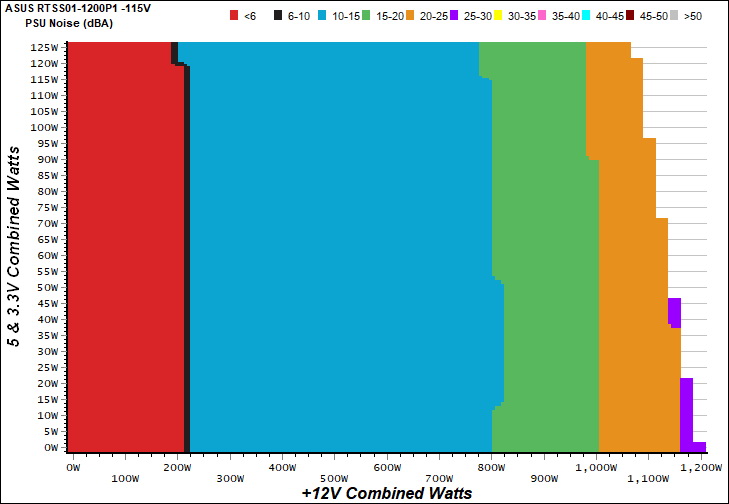

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

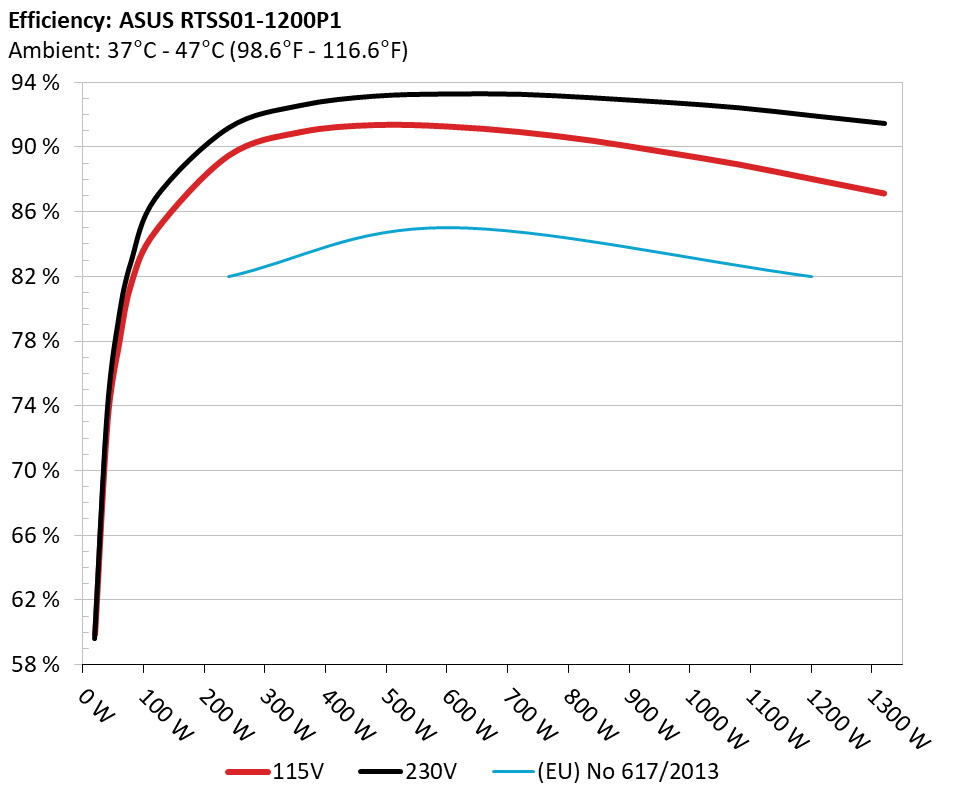

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

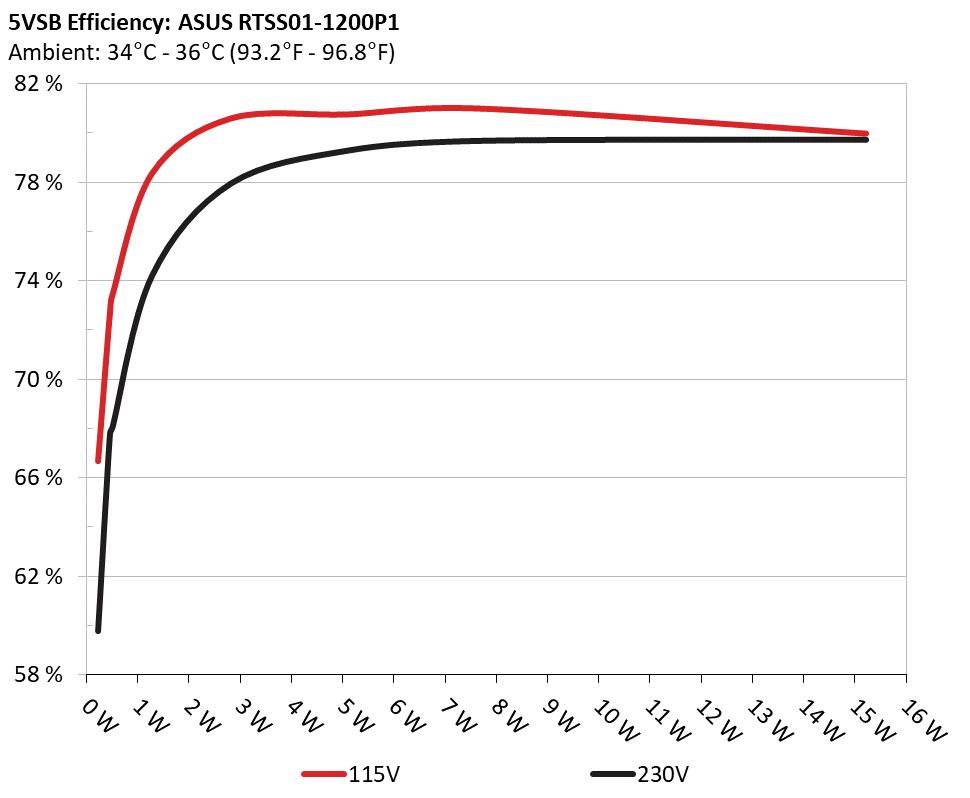

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 66.667% 0.037
5.139V 0.348 115.11V
2 0.090A 0.463 72.684% 0.067
5.138V 0.637 115.11V
3 0.550A 2.821 80.577% 0.277
5.128V 3.501 115.11V
4 1.000A 5.119 80.741% 0.371
5.118V 6.340 115.11V
5 1.500A 7.663 80.979% 0.424
5.107V 9.463 115.11V
6 3.000A 15.225 79.963% 0.493
5.075V 19.040 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 59.794% 0.013
5.139V 0.388 230.29V
2 0.090A 0.463 67.789% 0.022
5.138V 0.683 230.29V
3 0.550A 2.820 77.965% 0.110
5.127V 3.617 230.29V
4 1.000A 5.118 79.312% 0.180
5.117V 6.453 230.29V
5 1.500A 7.660 79.700% 0.240
5.106V 9.611 230.29V
6 3.000A 15.215 79.747% 0.345
5.071V 19.079 230.29V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.069A 1.997A 1.980A 0.979A 119.989 84.836% 574 11.4 40.28°C 0.983
12.195V 5.005V 3.330V 5.106V 141.436 46.61°C 115.12V
2 17.127A 3.000A 2.971A 1.178A 239.688 89.464% 577 11.5 40.89°C 0.985
12.191V 5.001V 3.329V 5.093V 267.916 47.67°C 115.11V
3 26.518A 3.501A 3.454A 1.378A 359.196 90.923% 580 11.6 41.23°C 0.990
12.188V 4.998V 3.328V 5.081V 395.053 48.93°C 115.11V
4 35.982A 4.003A 3.967A 1.579A 479.632 91.352% 584 11.8 41.86°C 0.994
12.185V 4.995V 3.326V 5.068V 525.037 50.25°C 115.11V
5 45.090A 5.009A 4.961A 1.781A 599.789 91.266% 618 13.0 42.23°C 0.996
12.182V 4.992V 3.325V 5.054V 657.191 51.83°C 115.12V
6 54.203A 6.014A 5.957A 1.984A 719.939 90.921% 687 15.8 42.71°C 0.997
12.179V 4.989V 3.323V 5.041V 791.827 53.18°C 115.12V
7 63.285A 7.020A 6.953A 2.188A 839.657 90.382% 766 18.9 43.49°C 0.997
12.176V 4.986V 3.322V 5.027V 929.006 54.64°C 115.13V
8 72.436A 8.030A 7.950A 2.394A 960.163 89.669% 851 22.0 43.76°C 0.998
12.173V 4.982V 3.320V 5.013V 1070.791 55.78°C 115.13V
9 81.923A 8.536A 8.434A 2.398A 1079.498 88.924% 953 25.3 44.94°C 0.998
12.170V 4.979V 3.319V 5.005V 1213.953 57.51°C 115.13V
10 91.264A 9.044A 8.952A 3.012A 1199.945 88.028% 1423 37.9 45.69°C 0.998
12.165V 4.977V 3.318V 4.981V 1363.136 59.24°C 115.14V
11 101.168A 9.048A 8.952A 3.017A 1320.008 87.128% 1799 44.5 46.74°C 0.998
12.161V 4.974V 3.317V 4.974V 1515.023 60.84°C 115.14V
CL1 0.149A 15.001A 14.999A 0.000A 126.603 82.327% 769 18.9 42.80°C 0.989
12.198V 4.997V 3.322V 5.111V 153.780 51.98°C 115.13V
CL2 100.020A 1.002A 0.997A 1.000A 1229.983 88.265% 1476 39.3 45.23°C 0.998
12.164V 4.981V 3.322V 5.037V 1393.505 58.68°C 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.069A 1.998A 1.979A 0.979A 119.991 86.865% 574 11.4 40.29°C 0.868
12.195V 5.005V 3.330V 5.106V 138.135 46.93°C 230.30V
2 17.125A 2.999A 2.970A 1.178A 239.658 91.184% 578 11.6 40.84°C 0.940
12.191V 5.002V 3.329V 5.093V 262.830 47.83°C 230.29V
3 26.514A 3.501A 3.453A 1.378A 359.148 92.583% 580 11.7 41.49°C 0.964
12.188V 4.999V 3.328V 5.081V 387.919 49.05°C 230.28V
4 35.979A 4.004A 3.966A 1.579A 479.602 93.152% 584 11.8 41.91°C 0.977
12.185V 4.996V 3.326V 5.068V 514.859 50.14°C 230.28V
5 45.089A 5.008A 4.963A 1.781A 599.778 93.289% 621 13.2 42.11°C 0.983
12.182V 4.992V 3.325V 5.055V 642.927 51.33°C 230.29V
6 54.202A 6.014A 5.957A 1.984A 719.925 93.270% 688 15.8 42.79°C 0.987
12.179V 4.989V 3.323V 5.041V 771.873 52.65°C 230.29V
7 63.293A 7.019A 6.953A 2.188A 839.686 93.054% 766 18.8 43.02°C 0.988
12.175V 4.986V 3.322V 5.027V 902.367 53.65°C 230.29V
8 72.447A 8.028A 7.952A 2.394A 960.167 92.775% 834 21.2 43.93°C 0.989
12.171V 4.983V 3.321V 5.014V 1034.939 55.43°C 230.30V
9 81.930A 8.535A 8.435A 2.398A 1079.507 92.439% 927 24.4 44.56°C 0.990
12.169V 4.980V 3.319V 5.005V 1167.806 57.09°C 230.30V
10 91.266A 9.043A 8.950A 3.012A 1199.957 91.951% 1406 37.6 45.49°C 0.990
12.165V 4.977V 3.318V 4.981V 1305.001 58.61°C 230.31V
11 101.169A 9.048A 8.954A 3.017A 1320.037 91.468% 1775 44.4 46.65°C 0.991
12.161V 4.975V 3.317V 4.974V 1443.172 60.70°C 230.31V
CL1 0.147A 15.001A 14.999A 0.000A 126.581 84.299% 754 18.3 42.78°C 0.880
12.198V 4.997V 3.322V 5.110V 150.157 51.22°C 230.32V
CL2 100.016A 1.002A 0.999A 1.000A 1229.944 92.192% 1416 37.8 45.44°C 0.991
12.164V 4.982V 3.323V 5.037V 1334.115 58.44°C 230.32V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.498A 0.477A 0.195A 19.521 59.899% 0 <6.0 0.862
12.192V 5.011V 3.335V 5.131V 32.590 115.13V
2 2.432A 0.999A 0.987A 0.390A 39.938 72.958% 570 11.2 0.937
12.191V 5.007V 3.332V 5.125V 54.741 115.12V
3 3.611A 1.498A 1.469A 0.586A 59.410 77.914% 570 11.2 0.956
12.190V 5.006V 3.331V 5.119V 76.251 115.12V
4 4.854A 1.998A 1.979A 0.782A 79.786 81.647% 572 11.3 0.975
12.195V 5.005V 3.331V 5.113V 97.721 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.186A 0.499A 0.477A 0.195A 19.547 59.627% 568 11.1 0.552
12.188V 5.013V 3.335V 5.132V 32.782 230.32V
2 2.434A 1.000A 0.989A 0.390A 39.969 73.516% 569 11.2 0.690
12.188V 5.008V 3.332V 5.126V 54.368 230.32V
3 3.614A 1.499A 1.469A 0.586A 59.457 79.481% 570 11.2 0.761
12.191V 5.007V 3.331V 5.120V 74.807 230.32V
4 4.859A 1.999A 1.978A 0.782A 79.845 82.961% 572 11.3 0.812
12.194V 5.006V 3.331V 5.113V 96.244 230.32V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.8 mV 6.5 mV 14.2 mV 10.6 mV Pass
20% Load 13.6 mV 7.0 mV 14.7 mV 10.7 mV Pass
30% Load 7.5 mV 6.6 mV 14.6 mV 10.8 mV Pass
40% Load 7.7 mV 7.3 mV 15.9 mV 11.6 mV Pass
50% Load 8.2 mV 7.7 mV 15.8 mV 12.7 mV Pass
60% Load 9.3 mV 7.4 mV 15.7 mV 15.0 mV Pass
70% Load 10.2 mV 8.4 mV 16.4 mV 16.1 mV Pass
80% Load 11.1 mV 8.1 mV 18.4 mV 16.8 mV Pass
90% Load 11.7 mV 8.5 mV 19.7 mV 19.4 mV Pass
100% Load 19.2 mV 10.9 mV 21.8 mV 23.6 mV Pass
110% Load 24.1 mV 12.5 mV 22.3 mV 25.9 mV Pass
Crossload 1 17.6 mV 10.3 mV 21.4 mV 13.2 mV Pass
Crossload 2 19.7 mV 8.5 mV 15.4 mV 22.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.7 mV 6.5 mV 13.5 mV 9.3 mV Pass
20% Load 15.4 mV 7.0 mV 14.6 mV 10.0 mV Pass
30% Load 7.9 mV 7.0 mV 15.4 mV 9.9 mV Pass
40% Load 7.1 mV 7.2 mV 15.0 mV 11.3 mV Pass
50% Load 7.7 mV 7.5 mV 16.3 mV 11.8 mV Pass
60% Load 9.2 mV 7.6 mV 15.7 mV 13.1 mV Pass
70% Load 10.2 mV 7.9 mV 16.4 mV 16.2 mV Pass
80% Load 11.1 mV 8.2 mV 19.7 mV 15.4 mV Pass
90% Load 11.9 mV 10.2 mV 30.0 mV 31.1 mV Pass
100% Load 18.9 mV 11.1 mV 20.4 mV 20.3 mV Pass
110% Load 24.4 mV 12.1 mV 22.0 mV 20.9 mV Pass
Crossload 1 20.3 mV 10.2 mV 21.6 mV 12.0 mV Pass
Crossload 2 19.4 mV 7.7 mV 15.0 mV 18.9 mV Pass

The results above are not used in the certification process

Asus ROG-THOR-1200P (#4)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
