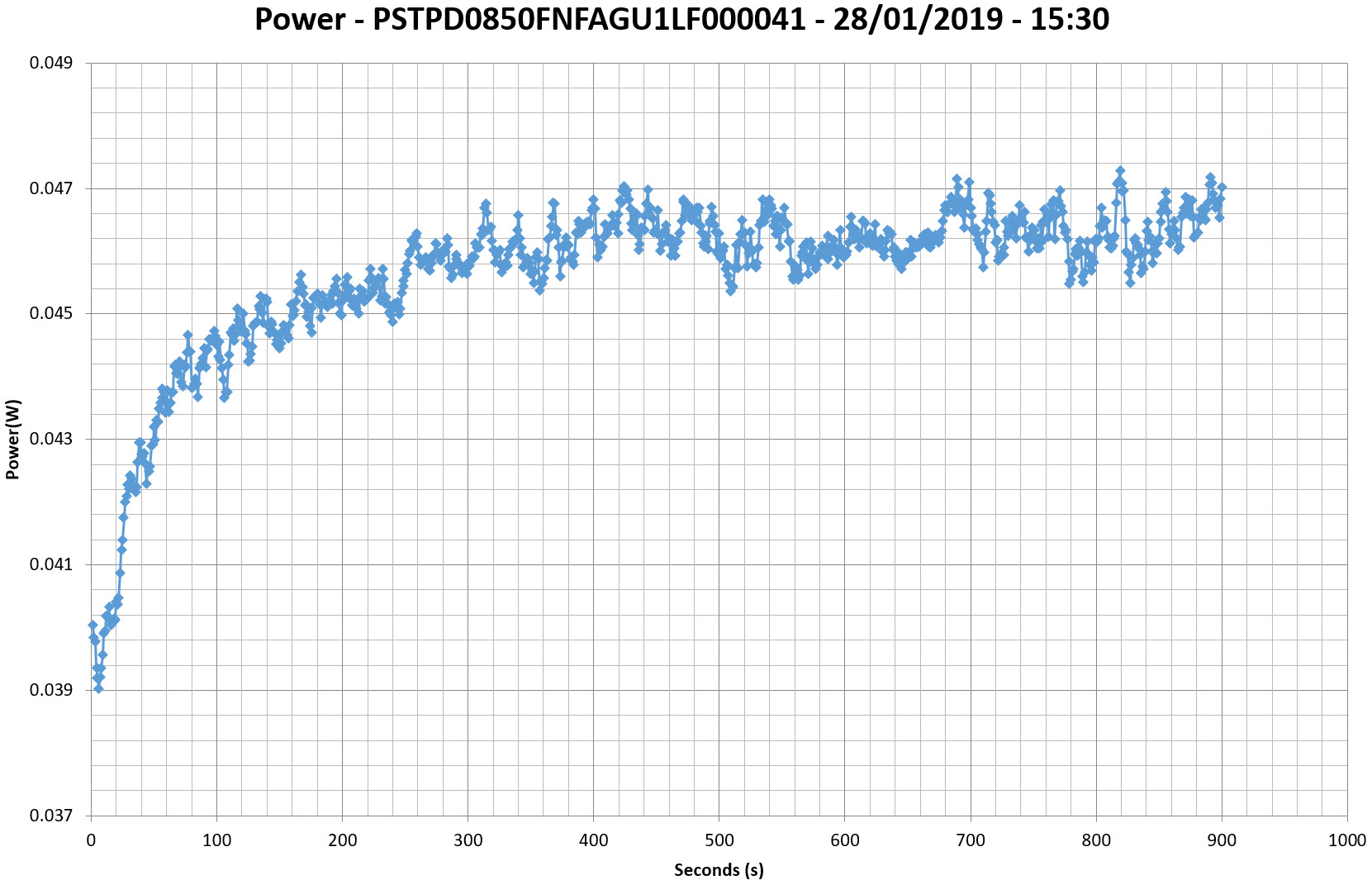

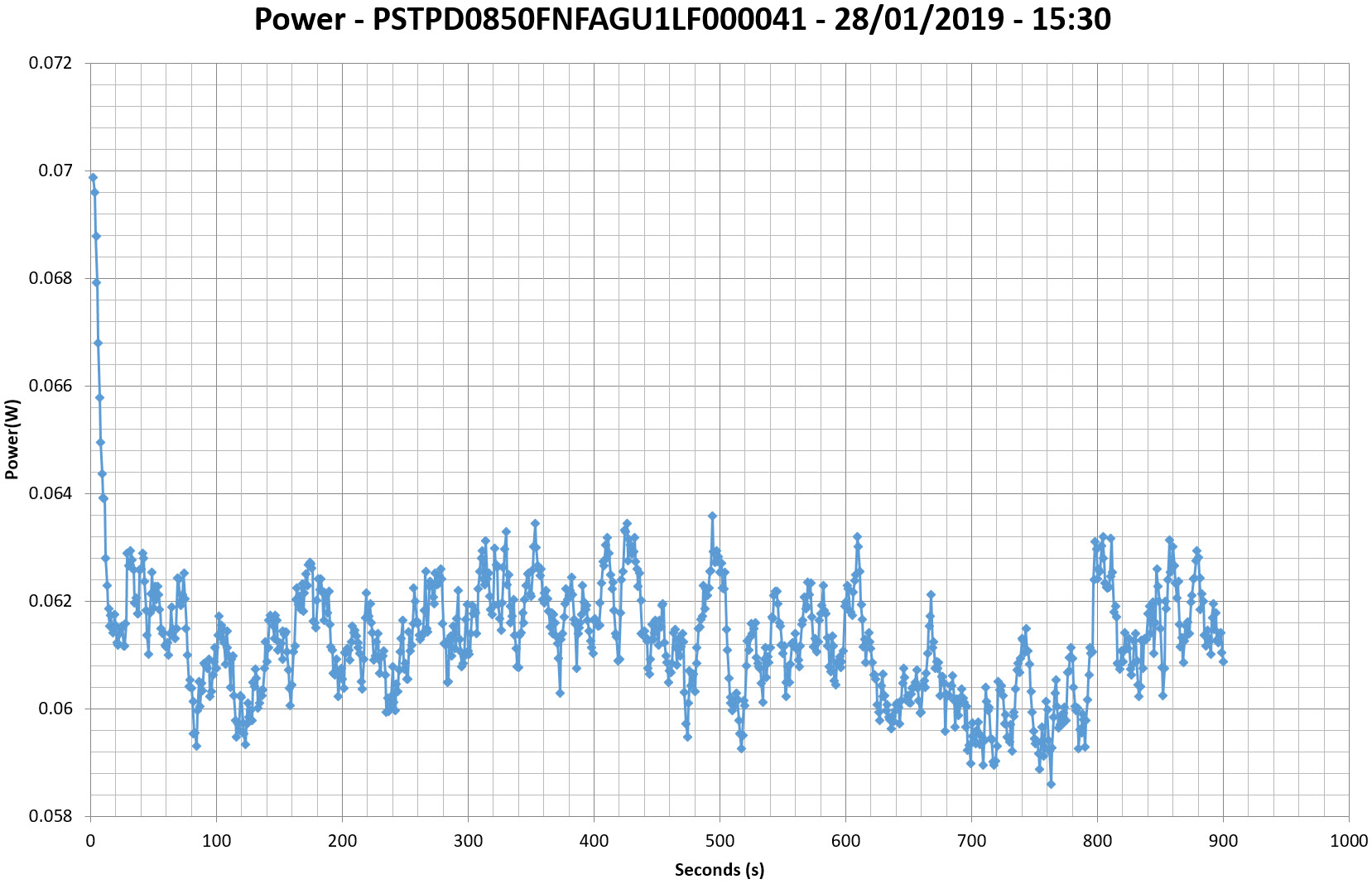

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
INFO

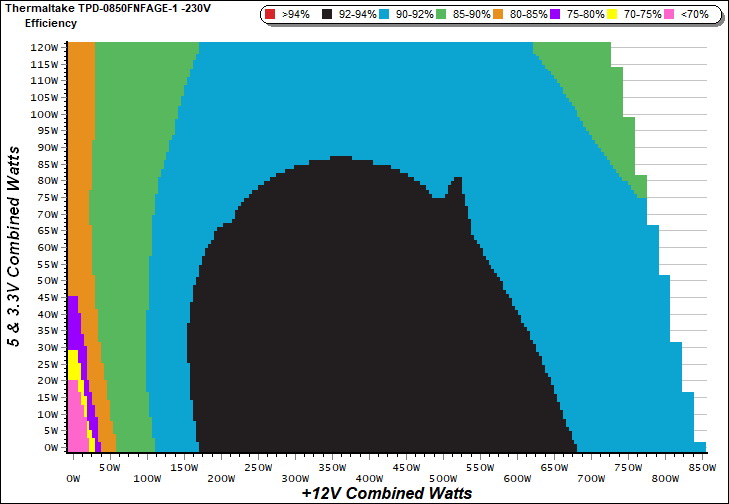

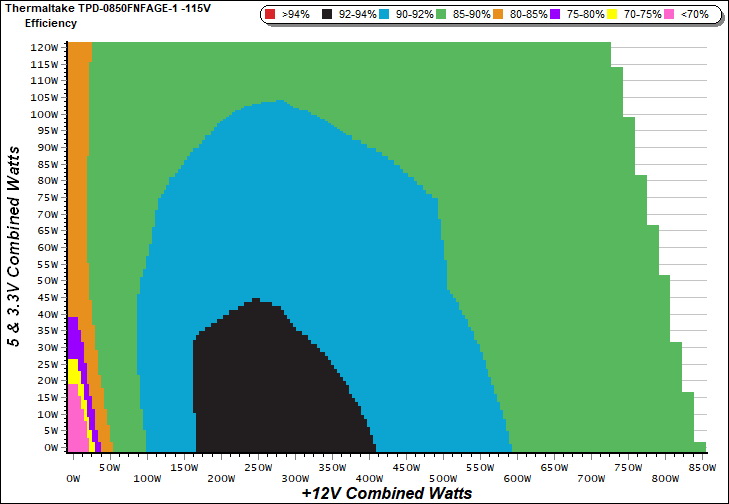

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

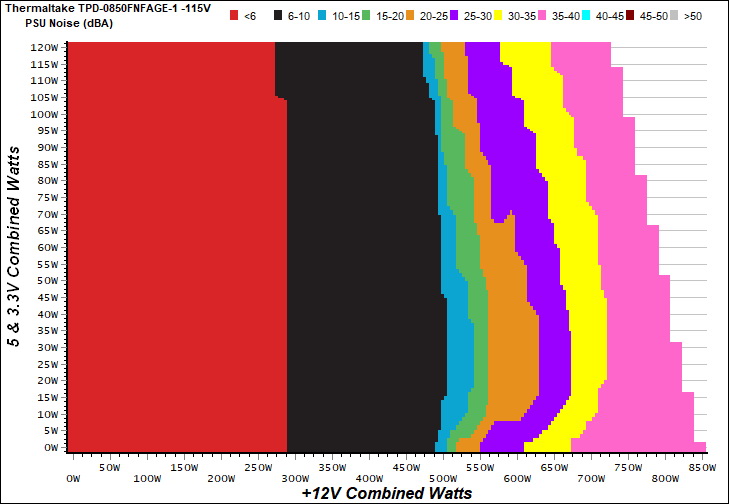

Noise Graph
INFO

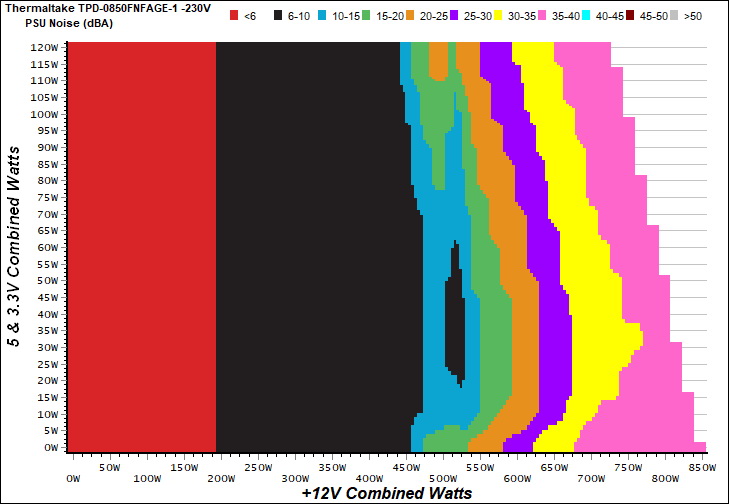

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

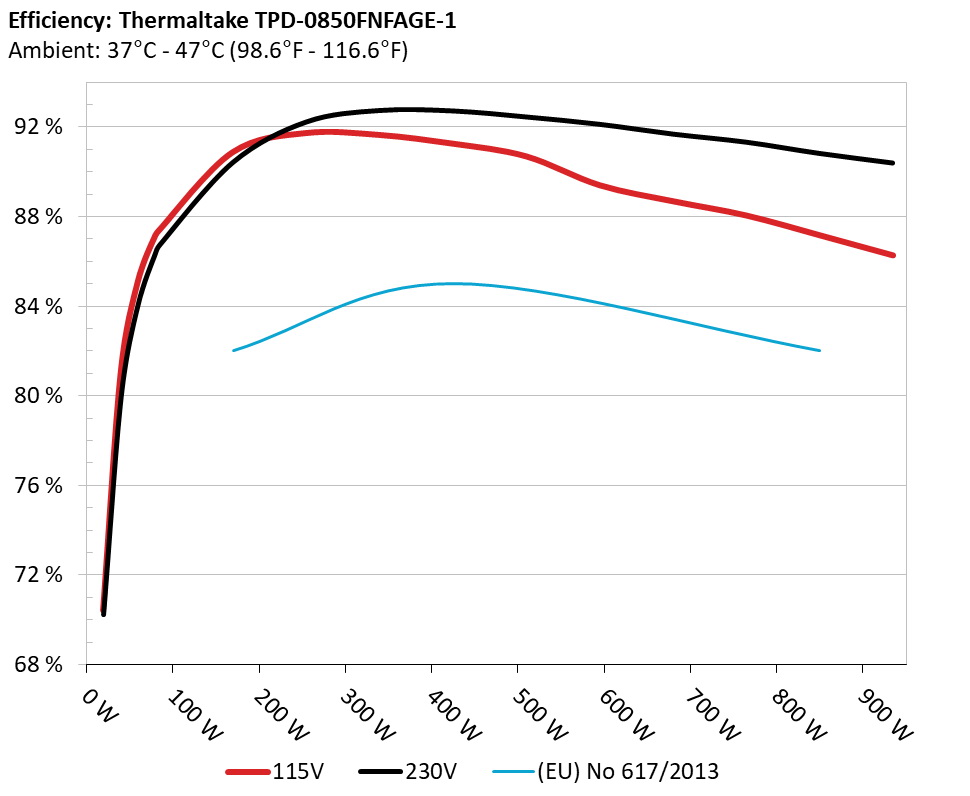

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

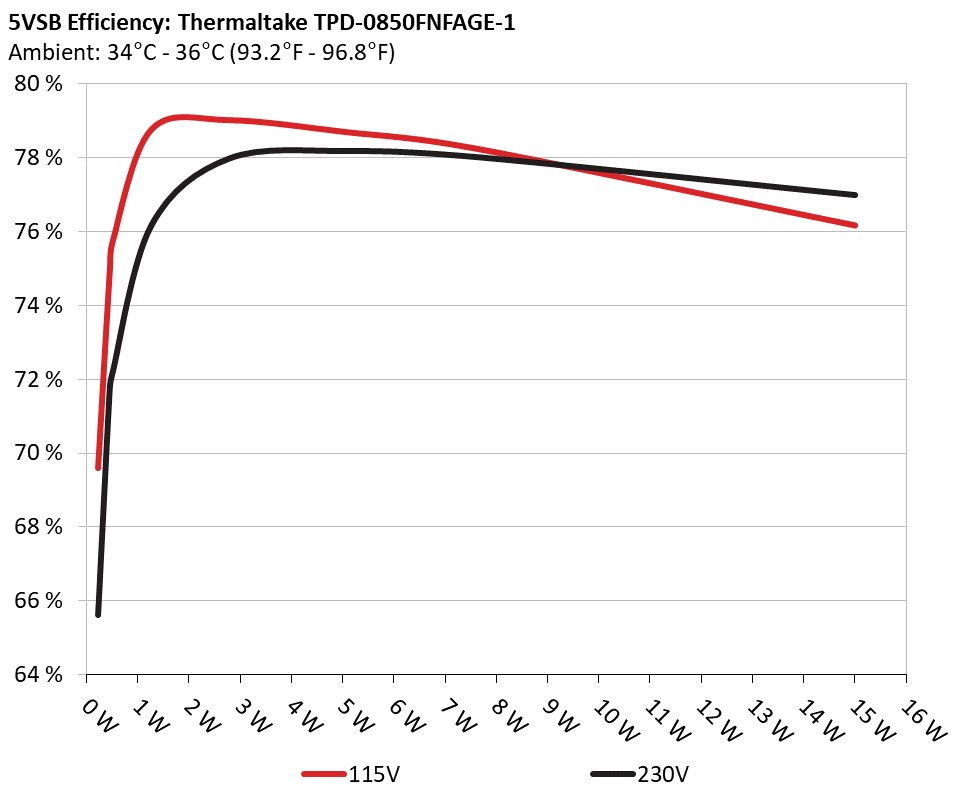

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.229
69.605%
0.033
5.078V
0.329
115.14V
2
0.090A
0.458
74.959%
0.061
5.078V
0.611
115.14V
3
0.550A
2.788
79.025%
0.264
5.067V
3.528
115.12V
4
1.000A
5.056
78.705%
0.356
5.055V
6.424
115.13V
5
1.500A
7.566
78.266%
0.409
5.044V
9.667
115.13V
6
3.000A
15.012
76.176%
0.472
5.004V
19.707
115.14V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.229
65.616%
0.011
5.078V
0.349
230.24V
2
0.090A
0.457
71.743%
0.019
5.078V
0.637
230.24V
3
0.550A
2.787
77.980%
0.101
5.067V
3.574
230.24V
4
1.000A
5.056
78.182%
0.169
5.055V
6.467
230.24V
5
1.500A
7.563
78.025%
0.227
5.042V
9.693
230.24V
6
3.000A
15.007
76.991%
0.330
5.002V
19.492
230.22V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.264A
1.994A
1.996A
0.991A
84.845
87.408%
0
<6.0
43.65°C
0.962
12.015V
5.014V
3.305V
5.048V
97.068
39.46°C
115.11V
2
11.527A
2.992A
2.994A
1.191A
169.337
90.870%
0
<6.0
44.87°C
0.980
12.010V
5.014V
3.304V
5.040V
186.350
40.25°C
115.11V
3
18.196A
3.491A
3.483A
1.391A
254.429
91.733%
0
<6.0
46.04°C
0.983
12.004V
5.013V
3.302V
5.034V
277.359
40.92°C
115.11V
4
24.879A
3.992A
3.997A
1.591A
339.629
91.648%
536
8.8
41.46°C
0.979
11.995V
5.012V
3.301V
5.030V
370.581
47.97°C
115.11V
5
31.239A
4.990A
4.998A
1.792A
424.995
91.257%
578
9.6
42.17°C
0.978
11.988V
5.011V
3.300V
5.024V
465.713
48.49°C
115.11V
6
37.528A
5.990A
6.003A
1.993A
509.470
90.694%
795
18.8
42.80°C
0.980
11.982V
5.010V
3.298V
5.019V
561.749
49.79°C
115.11V
7
43.901A
6.991A
7.010A
2.195A
594.793
89.402%
1304
33.6
43.34°C
0.982
11.974V
5.008V
3.296V
5.014V
665.299
51.30°C
115.11V
8
50.281A
7.993A
8.014A
2.396A
680.123
88.683%
1526
37.6
43.82°C
0.983
11.967V
5.006V
3.294V
5.008V
766.918
52.37°C
115.11V
9
57.064A
8.493A
8.504A
2.397A
765.046
88.046%
1526
37.6
44.20°C
0.985
11.961V
5.005V
3.292V
5.007V
868.914
53.31°C
115.11V
10
63.585A
8.995A
9.023A
3.007A
849.866
87.163%
1525
37.6
45.50°C
0.986
11.955V
5.004V
3.291V
4.989V
975.033
55.32°C
115.10V
11
70.699A
8.995A
9.025A
3.009A
934.632
86.267%
1524
37.6
46.86°C
0.988
11.951V
5.004V
3.290V
4.987V
1083.419
57.04°C
115.11V
CL1
0.144A
14.003A
13.999A
0.000A
118.082
83.744%
540
8.9
42.35°C
0.972
12.007V
5.009V
3.301V
5.069V
141.004
48.35°C
115.13V
CL2
70.836A
1.002A
1.001A
1.000A
860.699
87.776%
1525
37.6
45.19°C
0.987
11.962V
5.011V
3.295V
5.039V
980.567
55.22°C
115.11V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.265A
1.994A
1.995A
0.991A
84.811
86.742%
0
<6.0
43.83°C
0.805
12.007V
5.015V
3.305V
5.046V
97.774
39.34°C
230.24V
2
11.534A
2.990A
2.996A
1.191A
169.286
90.411%
536
8.8
40.68°C
0.909
11.999V
5.013V
3.304V
5.040V
187.241
45.42°C
230.24V
3
18.198A
3.492A
3.482A
1.390A
254.394
92.224%
537
8.8
41.08°C
0.937
12.001V
5.012V
3.302V
5.036V
275.843
46.78°C
230.24V
4
24.879A
3.991A
3.998A
1.591A
339.595
92.739%
537
8.8
41.61°C
0.951
11.994V
5.011V
3.300V
5.031V
366.185
47.88°C
230.24V
5
31.233A
4.989A
5.001A
1.791A
424.919
92.718%
587
10.1
42.16°C
0.957
11.988V
5.011V
3.299V
5.025V
458.292
49.02°C
230.24V
6
37.528A
5.990A
6.001A
1.993A
509.422
92.452%
963
25.0
42.79°C
0.961
11.981V
5.009V
3.298V
5.019V
551.012
50.36°C
230.25V
7
43.900A
6.991A
7.005A
2.194A
594.759
92.122%
1272
33.3
43.19°C
0.963
11.974V
5.008V
3.296V
5.014V
645.619
51.24°C
230.24V
8
50.279A
7.992A
8.014A
2.397A
680.099
91.684%
1527
37.6
43.79°C
0.964
11.967V
5.006V
3.294V
5.008V
741.782
52.82°C
230.25V
9
57.056A
8.493A
8.503A
2.397A
765.003
91.325%
1527
37.6
44.58°C
0.967
11.962V
5.005V
3.292V
5.006V
837.673
54.46°C
230.24V
10
63.581A
8.994A
9.025A
3.007A
849.828
90.821%
1526
37.6
45.61°C
0.969
11.955V
5.005V
3.291V
4.989V
935.715
55.86°C
230.24V
11
70.696A
8.994A
9.026A
3.008A
934.589
90.396%
1526
37.6
46.58°C
0.970
11.951V
5.004V
3.290V
4.987V
1033.884
57.57°C
230.24V
CL1
0.141A
14.001A
13.998A
0.000A
118.030
83.099%
572
<6.0
42.60°C
0.875
11.998V
5.009V
3.301V
5.069V
142.035
49.32°C
230.24V
CL2
70.832A
1.001A
0.999A
1.000A
860.566
91.492%
1525
37.6
45.95°C
0.969
11.961V
5.009V
3.295V
5.039V
940.591
55.61°C
230.24V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.205A
0.499A
0.481A
0.197A
19.563
70.416%
0
<6.0
0.786
12.009V
5.015V
3.306V
5.071V
27.782
115.10V
2
2.466A
0.997A
0.997A
0.395A
39.931
81.032%
0
<6.0
0.904
12.018V
5.014V
3.305V
5.065V
49.278
115.11V
3
3.666A
1.496A
1.483A
0.593A
59.453
85.049%
0
<6.0
0.943
12.016V
5.014V
3.305V
5.060V
69.904
115.10V
4
4.929A
1.994A
1.997A
0.792A
79.827
87.145%
0
<6.0
0.959
12.016V
5.014V
3.305V
5.054V
91.603
115.11V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.205A
0.494A
0.483A
0.197A
19.550
70.230%
0
<6.0
0.431
12.013V
5.016V
3.307V
5.069V
27.837
230.26V
2
2.465A
0.996A
0.998A
0.395A
39.900
79.933%
0
<6.0
0.600
12.010V
5.016V
3.306V
5.063V
49.917
230.25V
3
3.665A
1.495A
1.480A
0.593A
59.398
84.032%
0
<6.0
0.720
12.008V
5.015V
3.305V
5.058V
70.685
230.24V
4
4.933A
1.993A
1.995A
0.792A
79.818
86.373%
0
<6.0
0.792
12.007V
5.014V
3.305V
5.053V
92.411
230.24V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
26.1 mV
12.5 mV
6.2 mV
7.6 mV
Pass
20% Load
9.0 mV
11.8 mV
6.8 mV
5.6 mV
Pass
30% Load
8.8 mV
12.1 mV
7.2 mV
5.5 mV
Pass
40% Load
8.7 mV
13.2 mV
7.8 mV
7.5 mV
Pass
50% Load
8.3 mV
13.1 mV
8.2 mV
9.3 mV
Pass
60% Load
8.1 mV
13.7 mV
8.8 mV
9.8 mV
Pass
70% Load
8.4 mV
14.0 mV
9.6 mV
10.8 mV
Pass
80% Load
9.7 mV
25.7 mV
20.2 mV
12.4 mV
Pass
90% Load
9.4 mV
15.4 mV
12.7 mV
11.7 mV
Pass
100% Load
14.0 mV
15.1 mV
11.9 mV
13.9 mV
Pass
110% Load
13.8 mV
16.0 mV
12.4 mV
13.4 mV
Pass
Crossload 1
10.9 mV
14.4 mV
9.8 mV
5.4 mV
Pass
Crossload 2
13.7 mV
13.4 mV
9.1 mV
12.0 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
2.7 mV
11.5 mV
6.4 mV
8.0 mV
Pass
20% Load
8.1 mV
12.1 mV
7.0 mV
5.1 mV
Pass
30% Load
11.8 mV
12.2 mV
7.7 mV
5.3 mV
Pass
40% Load
9.4 mV
12.6 mV
8.1 mV
7.7 mV
Pass
50% Load
8.6 mV
13.9 mV
9.0 mV
10.1 mV
Pass
60% Load
8.3 mV
14.4 mV
9.9 mV
10.6 mV
Pass
70% Load
9.1 mV
14.0 mV
9.5 mV
11.4 mV
Pass
80% Load
9.6 mV
26.6 mV
20.7 mV
11.9 mV
Pass
90% Load
9.3 mV
15.7 mV
12.3 mV
12.6 mV
Pass
100% Load
13.1 mV
15.3 mV
12.1 mV
12.2 mV
Pass
110% Load
14.0 mV
16.2 mV
12.8 mV
13.3 mV
Pass
Crossload 1
5.4 mV
14.0 mV
10.1 mV
5.2 mV
Pass
Crossload 2
13.5 mV
13.7 mV
9.5 mV
11.1 mV
Pass
The results above are not used in the certification process

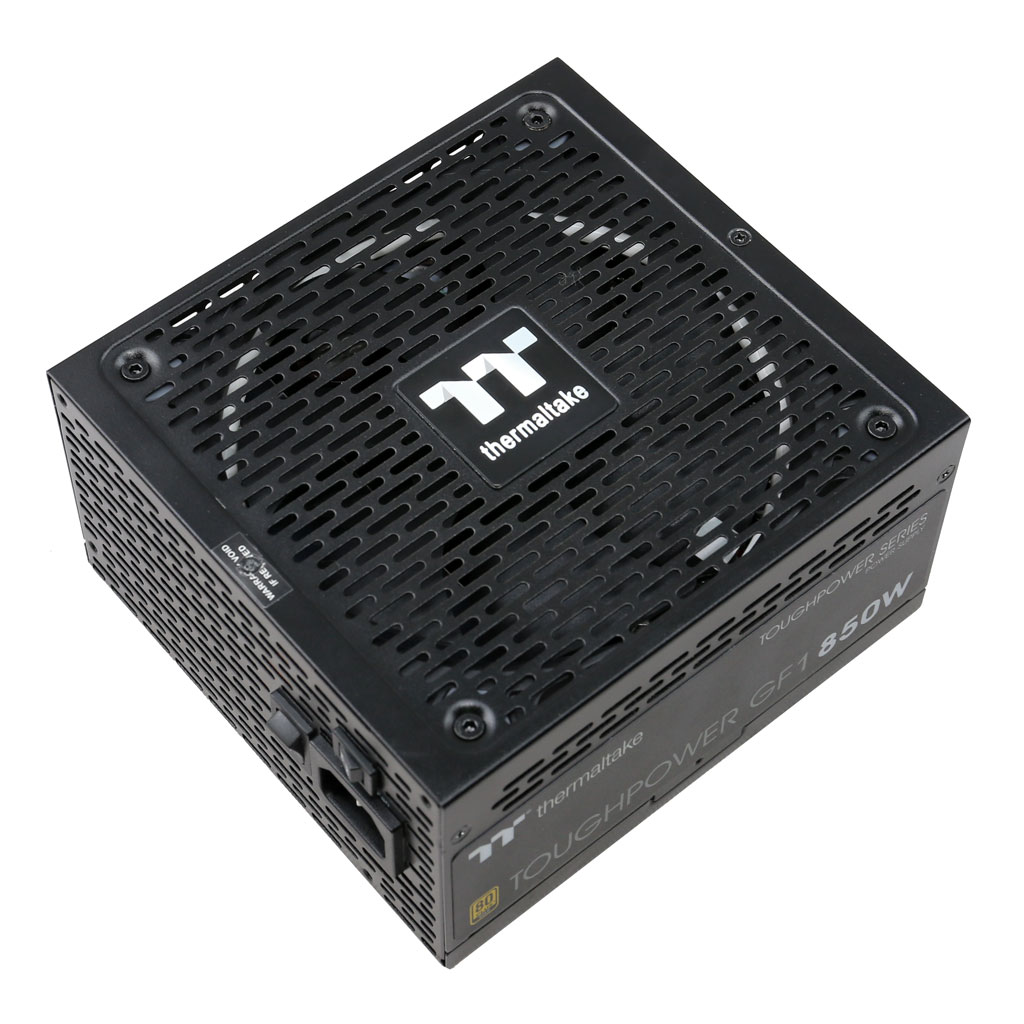

Thermaltake Toughpower GF1 850W (#2)
Top side

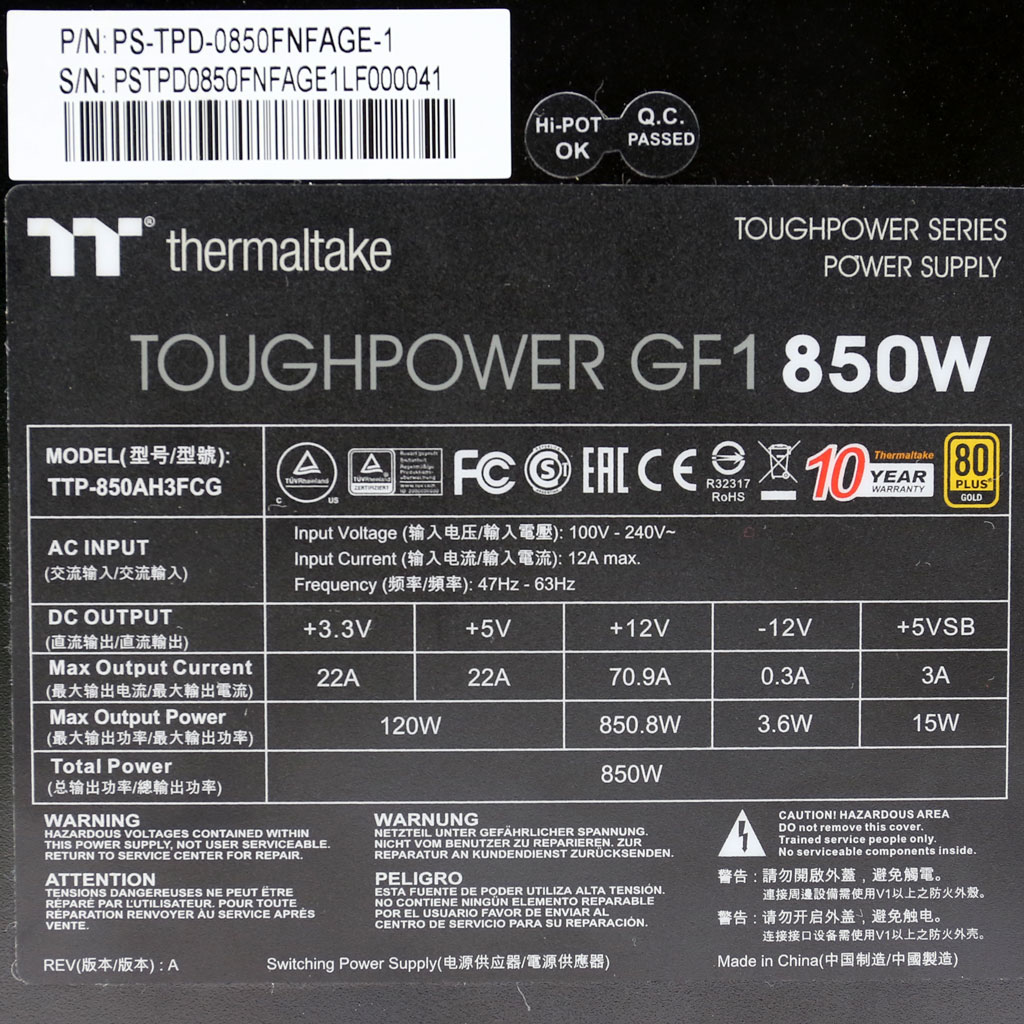

Power specifications label
