DC-DC Converters: 4x Infineon BSC0902NS (30 V, 67 A @ 100 °C, 2.6 mOhm) PWM Controller: APW7159
Filtering Capacitors
Electrolytics: Nippon Chemi-Con (105 °C, KY, KZE) Polymers: Nippon Chemi-Con
Supervisor IC
SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model
PowerYear PY-12015H12S (120 mm, 12 V, 0.22 A, 1900 RPM, Sleeve Bearing)
5VSB Circuit
Rectifier
2x Infineon IPD060N03L G (30 V, 50 A @ 100 °C, 6 mOhm)
Standby PWM Controller
Sanken STR-A6069H
-12V Circuit
Regulator
KEC KIA7912PI
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
89.780%
Average Noise Output (>1450 Load Combinations)
30.13dBA
Average PF (>1450 Load Combinations)
0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0732W
12V Ripple (Full Load)
83.09mV
5V Ripple (Full Load)
27.17mV
3.3V Ripple (Full Load)
31.49mV
5VSB Ripple (Full Load)
15.30mV
12V Load Regulation
1.03%
5V Load Regulation
2.47%
3.3V Load Regulation
1.25%
5VSB Load Regulation
3.78%
Inrush Current
0.000A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
9.6
AC Loss to PWR_OK Hold Up Time (ms)
12.2
PWR_OK Inactive to DC Loss Delay (ms)
-2.6
Vampire Power
Tables 115V
Graphs 115V
INFO

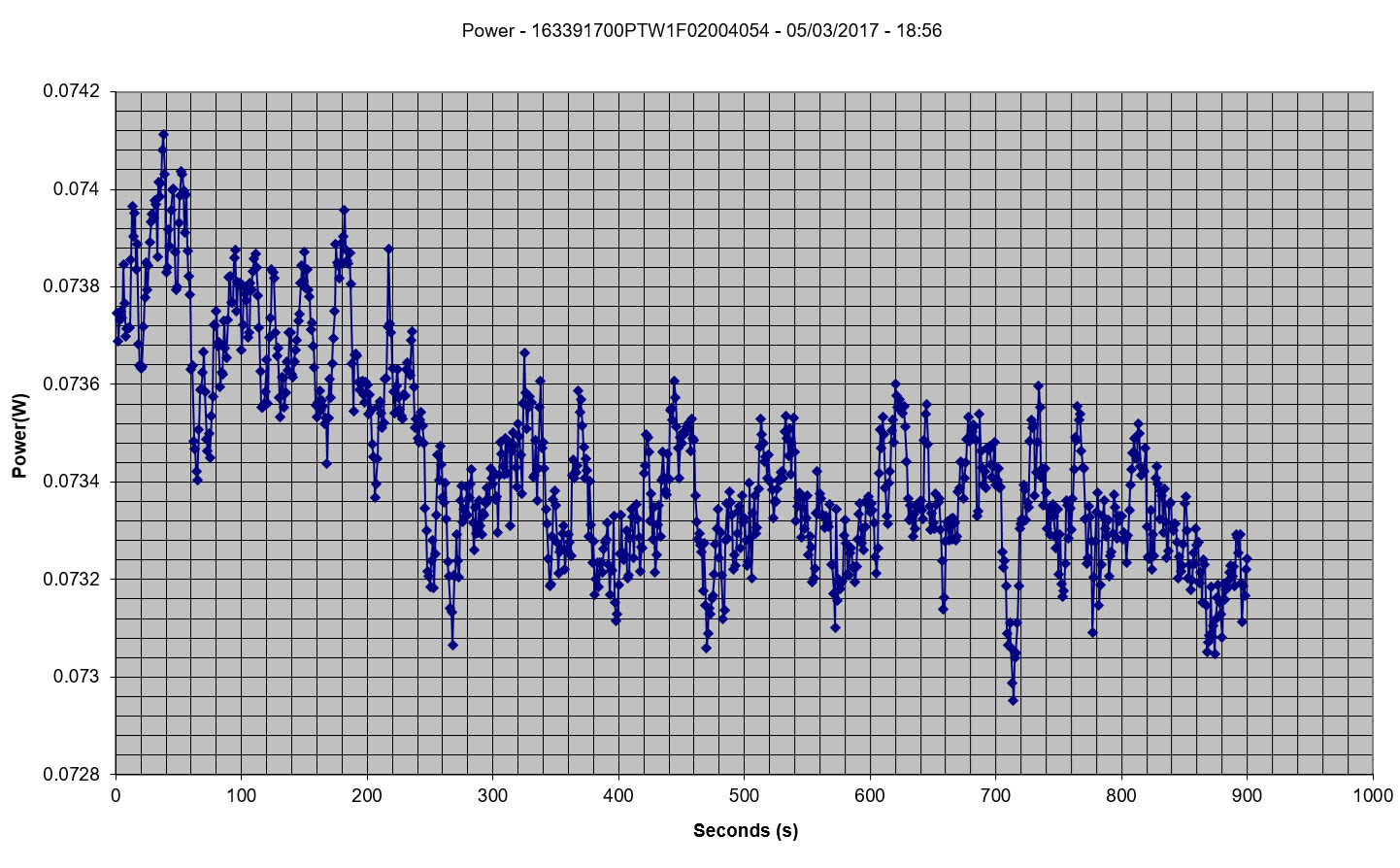

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

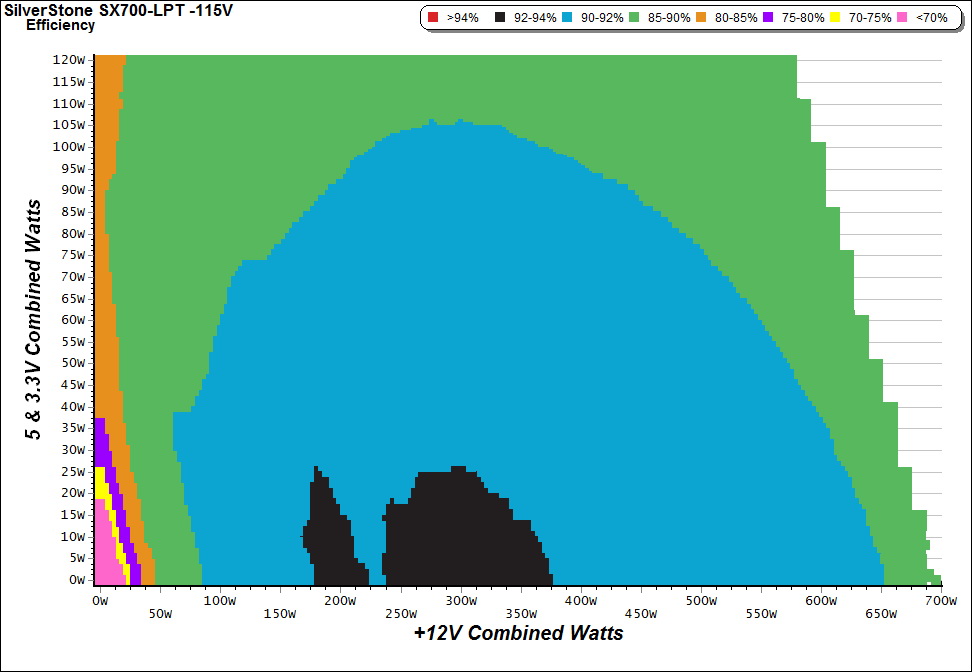

Efficiency Graph
115V
INFO
This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

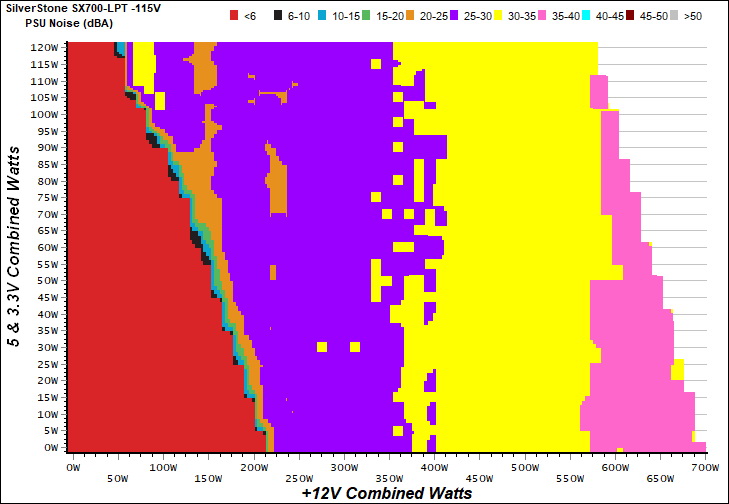

Noise Graph
115V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

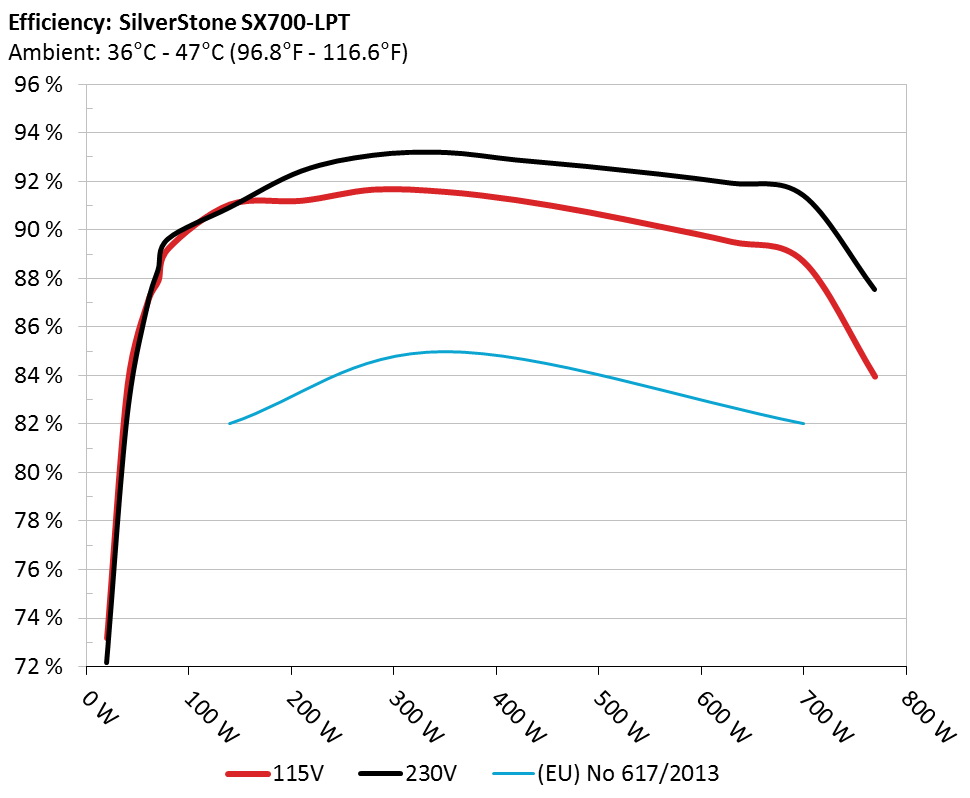

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

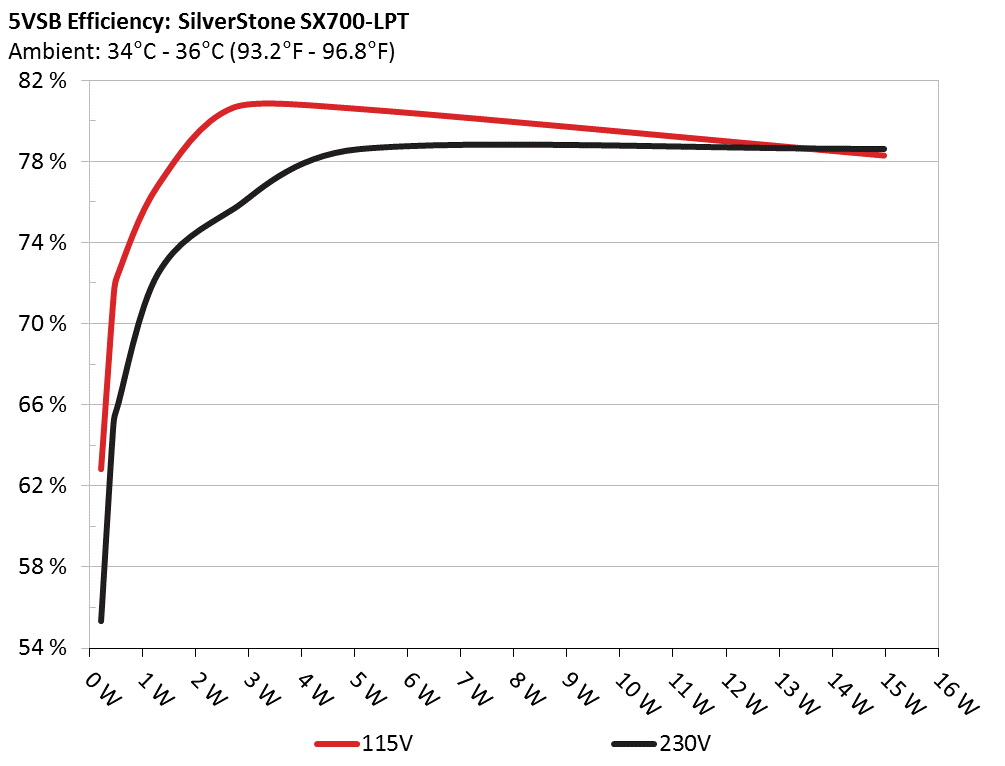

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.213
62.832%
0.048
5.121V
0.339
115.13V
2
0.087A
0.446
71.246%
0.086
5.119V
0.626
115.13V
3
0.532A
2.713
80.648%
0.266
5.101V
3.364
115.12V
4
3.002A
14.983
78.281%
0.380
4.992V
19.140
115.11V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.920A
1.976A
1.961A
0.996A
69.772
87.894%
0
<6.0
44.94°C
0.971
12.296V
5.052V
3.360V
5.021V
79.382
39.32°C
115.08V
2
8.865A
2.969A
2.947A
1.195A
139.741
91.042%
0
<6.0
46.32°C
0.989
12.286V
5.037V
3.356V
5.005V
153.491
40.17°C
115.08V
3
14.177A
3.488A
3.462A
1.400A
209.907
91.198%
1567
33.2
38.24°C
0.994
12.260V
5.024V
3.348V
4.988V
230.167
47.19°C
115.09V
4
19.474A
3.987A
3.944A
1.606A
279.740
91.656%
1595
33.6
38.84°C
0.996
12.251V
5.015V
3.343V
4.972V
305.208
48.04°C
115.10V
5
24.460A
4.997A
4.938A
1.815A
349.731
91.563%
1645
34.4
39.63°C
0.997
12.235V
4.999V
3.339V
4.956V
381.958
49.36°C
115.09V
6
29.448A
6.017A
5.931A
2.019A
419.640
91.220%
1720
35.9
40.36°C
0.998
12.221V
4.985V
3.336V
4.941V
460.030
51.17°C
115.10V
7
34.441A
7.040A
6.928A
2.230A
489.623
90.723%
1800
37.4
41.45°C
0.998
12.211V
4.970V
3.333V
4.925V
539.688
53.71°C
115.10V
8
39.468A
8.075A
7.928A
2.443A
559.642
90.129%
1845
38.8
42.56°C
0.999
12.193V
4.956V
3.330V
4.907V
620.935
57.02°C
115.10V
9
44.912A
8.595A
8.449A
2.445A
629.697
89.500%
1875
39.2
43.96°C
0.999
12.182V
4.946V
3.324V
4.901V
703.572
61.12°C
115.10V
10
50.106A
9.119A
8.949A
3.079A
699.523
88.691%
1940
39.8
45.54°C
0.999
12.171V
4.935V
3.318V
4.868V
788.718
65.28°C
115.10V
11
55.836A
9.135A
8.972A
3.086A
769.383
83.949%
1960
39.9
47.35°C
0.999
12.173V
4.927V
3.310V
4.856V
916.489
71.90°C
115.09V
CL1
0.100A
14.023A
14.005A
0.007A
118.210
83.685%
0
0
55.27°C
0.988
12.284V
4.954V
3.390V
5.051V
141.256
44.02°C
115.09V
CL2
58.243A
1.002A
1.003A
1.002A
722.646
89.226%
1907
39.5
40.58°C
0.999
12.179V
5.002V
3.305V
4.969V
809.907
62.07°C
115.09V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.190A
0.491A
0.475A
0.195A
19.704
73.167%
0
<6.0
0.856
12.299V
5.065V
3.360V
5.059V
26.930
115.06V
2
2.400A
0.979A
0.981A
0.396A
39.765
83.608%
0
<6.0
0.944
12.298V
5.060V
3.360V
5.049V
47.561
115.07V
3
3.613A
1.476A
1.486A
0.595A
59.873
87.079%
0
<6.0
0.961
12.295V
5.056V
3.359V
5.039V
68.757
115.07V
4
4.816A
1.978A
1.964A
0.797A
79.803
89.237%
0
<6.0
0.979
12.294V
5.050V
3.359V
5.029V
89.428
115.08V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
9.80mV
10.00mV
12.20mV
7.20mV
Pass
20% Load
14.90mV
12.20mV
14.00mV
7.70mV
Pass
30% Load
15.90mV
14.10mV
14.50mV
6.60mV
Pass
40% Load
19.60mV
16.60mV
16.30mV
7.30mV
Pass
50% Load
24.70mV
17.90mV
19.30mV
8.10mV
Pass
60% Load
28.70mV
20.40mV
21.30mV
9.00mV
Pass
70% Load
34.20mV
22.40mV
24.70mV
10.40mV
Pass
80% Load
38.30mV
24.00mV
25.40mV
12.10mV
Pass
90% Load
54.70mV
26.20mV
29.00mV
12.70mV
Pass
100% Load
83.10mV
27.20mV
31.50mV
15.30mV
Pass
110% Load
513.10mV
76.70mV
77.10mV
58.50mV
Fail
Crossload1
17.50mV
22.00mV
27.50mV
10.20mV
Pass
Crossload2
142.00mV
27.70mV
27.30mV
21.80mV
Fail
The results above are not used in the certification process
SilverStone SFX-L 700W

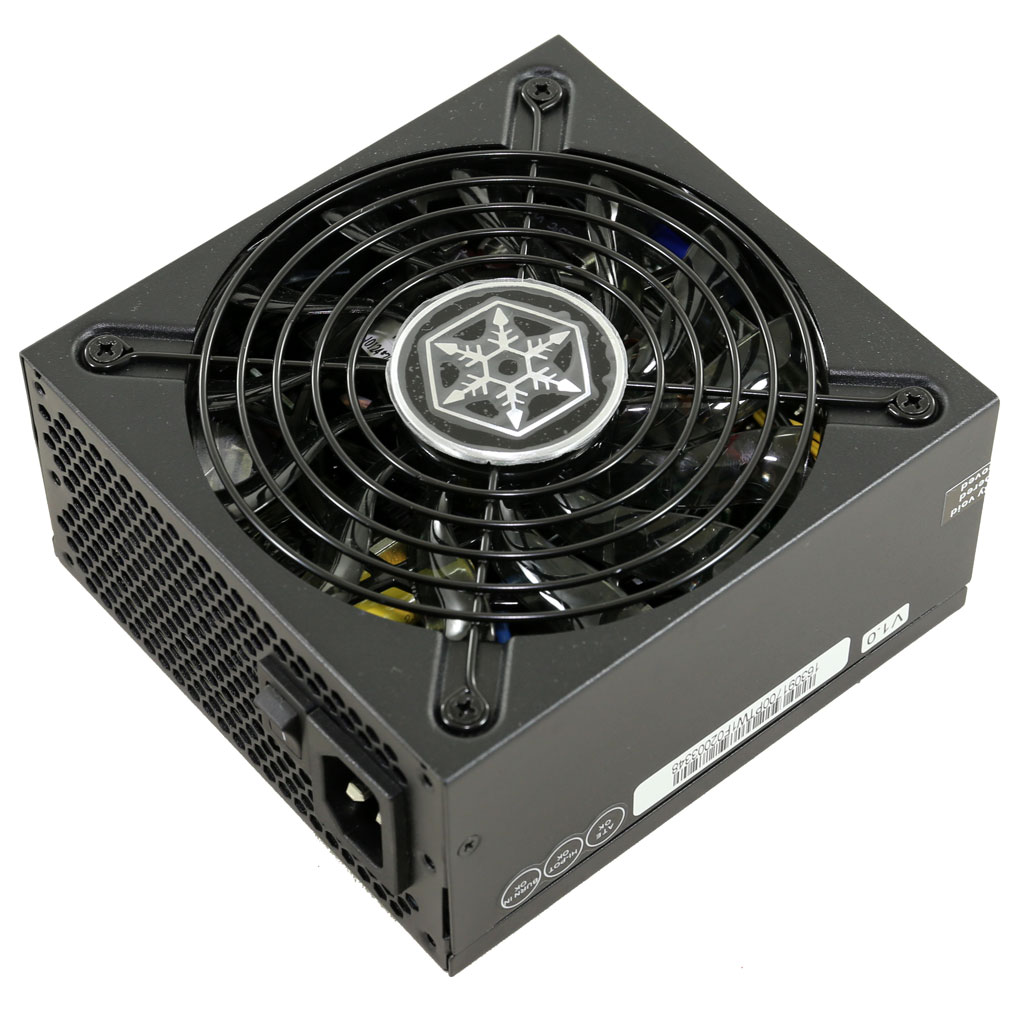

Top side

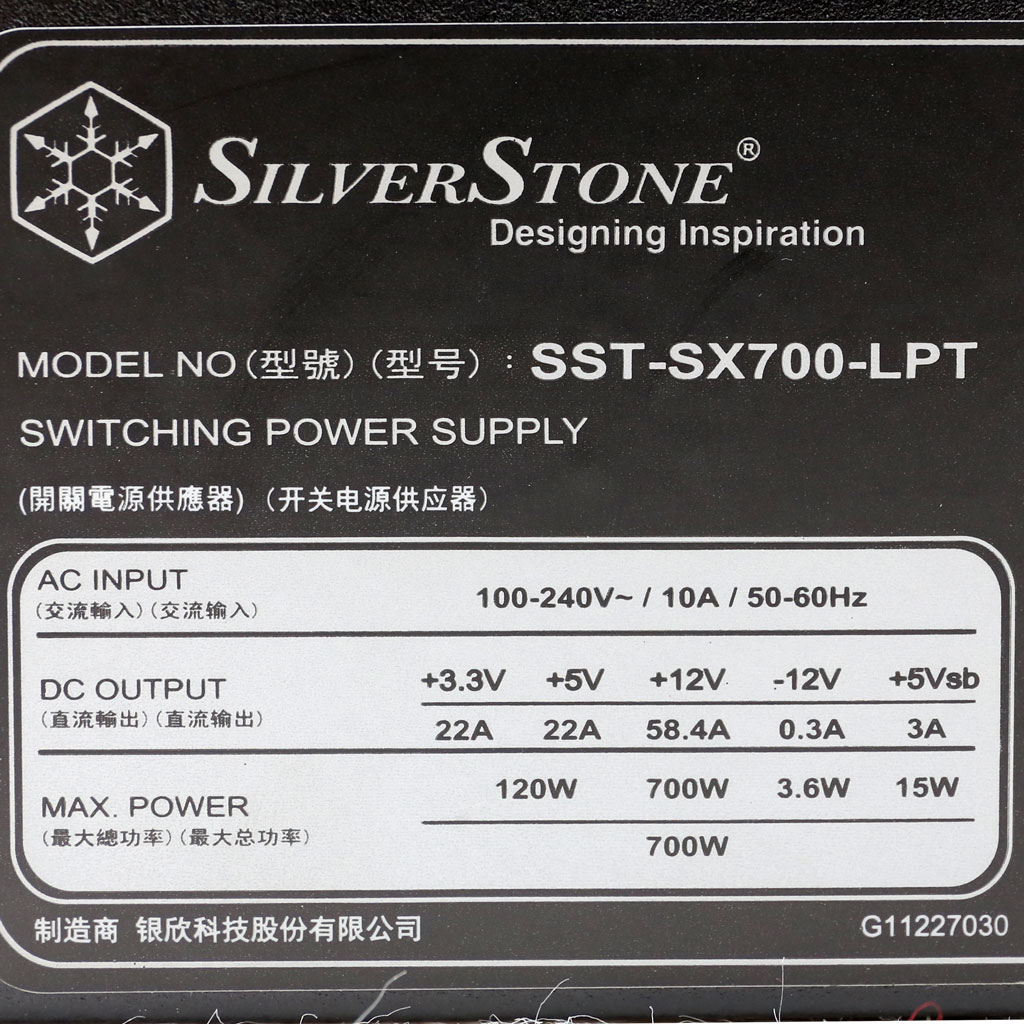

Power specifications table
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
