SATA (500mm+150mm) / 4-pin Molex (150mm) / FDD (+150mm)
1
2 / 1 / 1
18-22AWG
No
AC Power Cord (1400mm) - C13 coupler
1
1
16AWG
No
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
89.869%
Average Noise Output (>1450 Load Combinations)
22.47dBA
Average PF (>1450 Load Combinations)
0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load
63.091%
Standby Power Consumption
0.0481W
12V Ripple (Full Load)
31.82mV
5V Ripple (Full Load)
8.53mV
3.3V Ripple (Full Load)
17.32mV
5VSB Ripple (Full Load)
21.99mV
12V Load Regulation
0.84%
5V Load Regulation
2.01%
3.3V Load Regulation
2.61%
5VSB Load Regulation
3.31%
Inrush Current
35.843A
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
91.857%
Average Noise Output (>1450 Load Combinations)
22.76dBA
Average PF (>1450 Load Combinations)
0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1098W
12V Ripple (Full Load)
29.47mV
5V Ripple (Full Load)
8.39mV
3.3V Ripple (Full Load)
16.48mV
5VSB Ripple (Full Load)
22.52mV
12V Load Regulation
0.84%
5V Load Regulation
1.99%
3.3V Load Regulation
2.58%
5VSB Load Regulation
3.28%
Inrush Current
51.793A
Hold-Up Time & Power Ok Signal
13.10ms
AC Loss to PWR_OK Hold Up Time
9.60ms
PWR_OK Inactive to DC Loss Delay
3.50ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
0.00%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
13.1
AC Loss to PWR_OK Hold Up Time (ms)
9.6
PWR_OK Inactive to DC Loss Delay (ms)
3.5

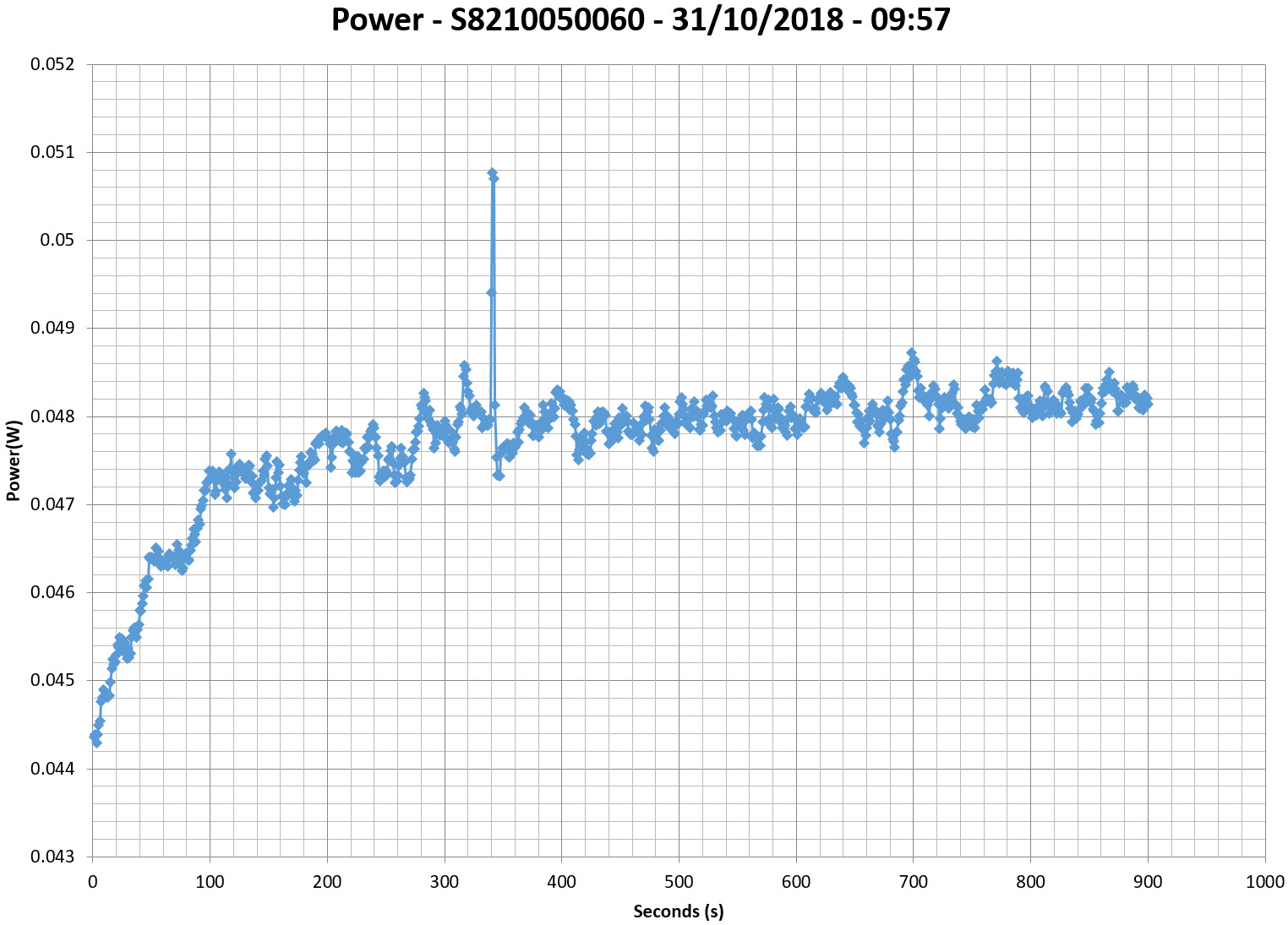

Vampire Power
Tables
Graphs
INFO

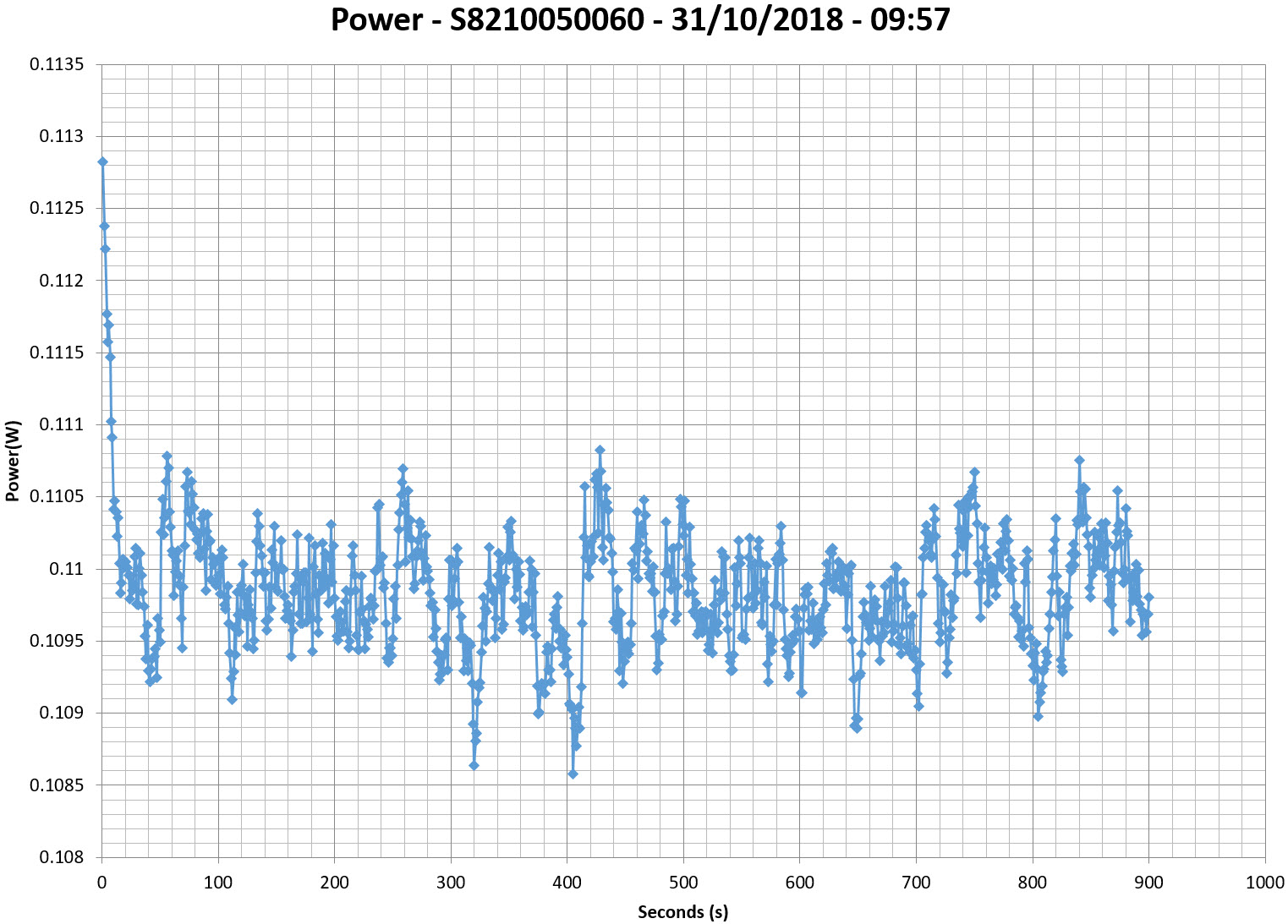

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

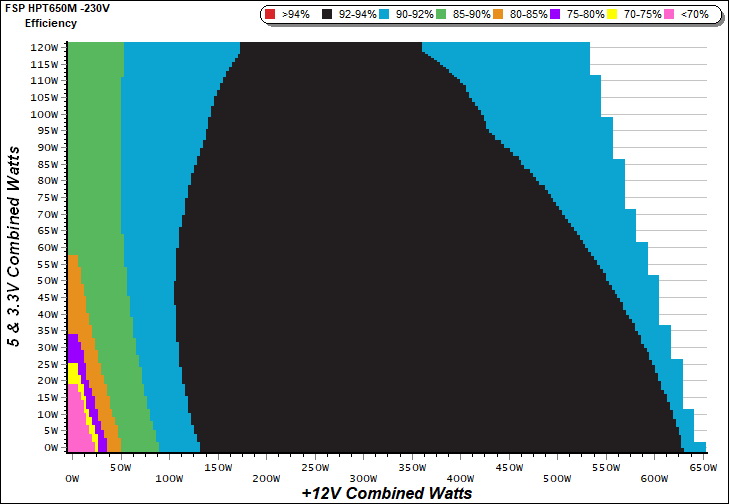

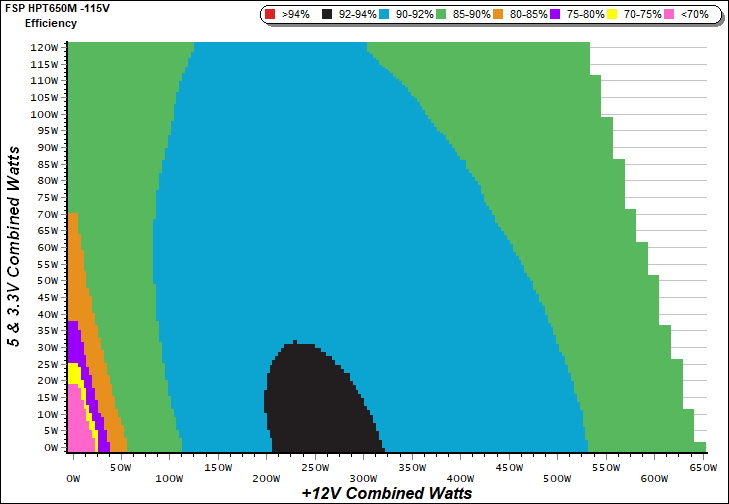

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

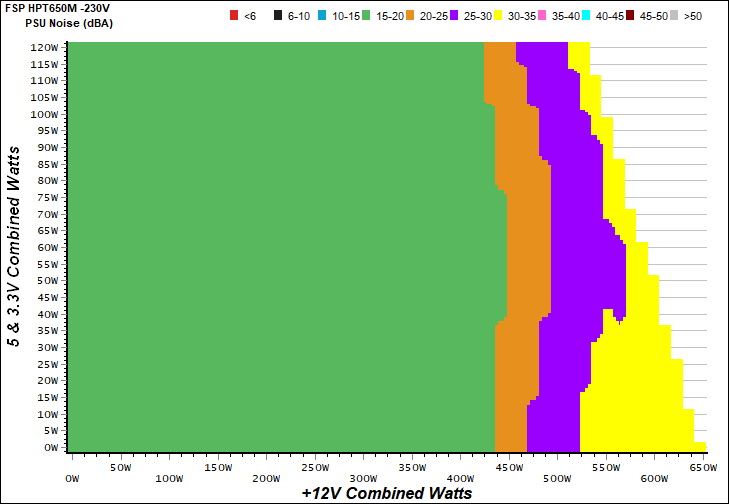

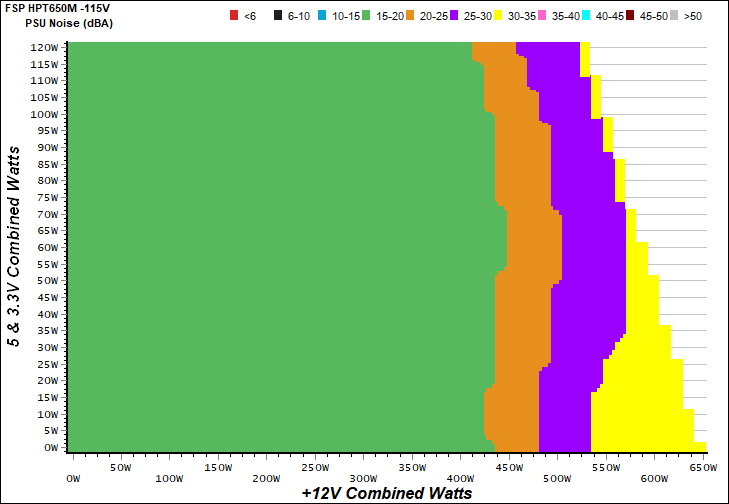

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

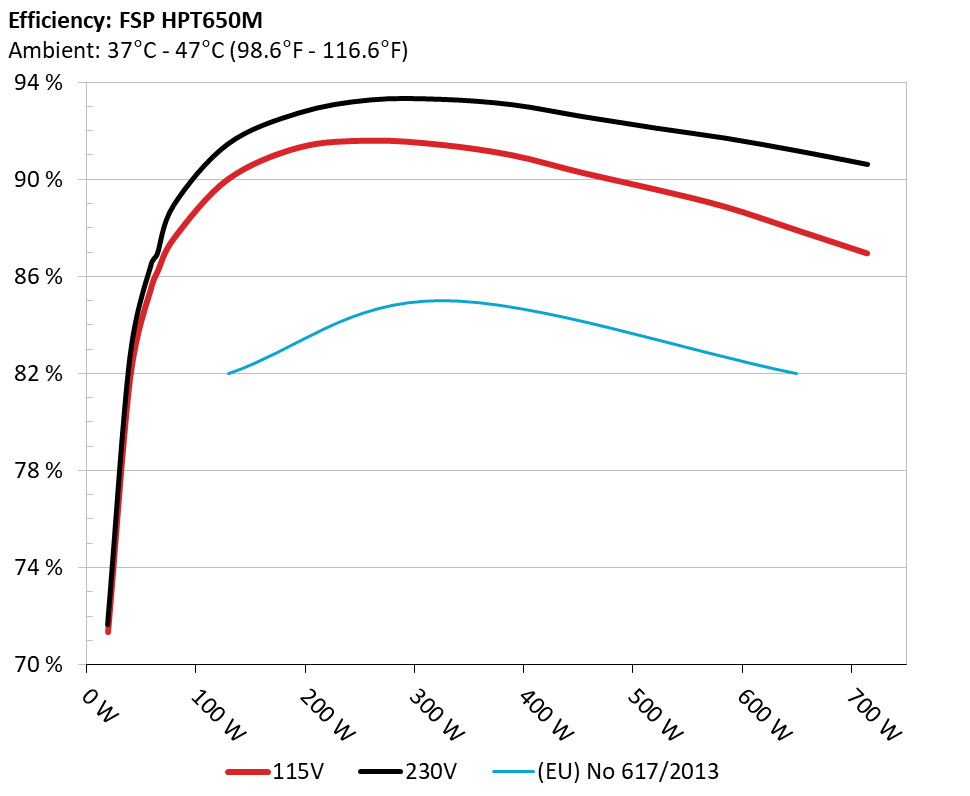

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

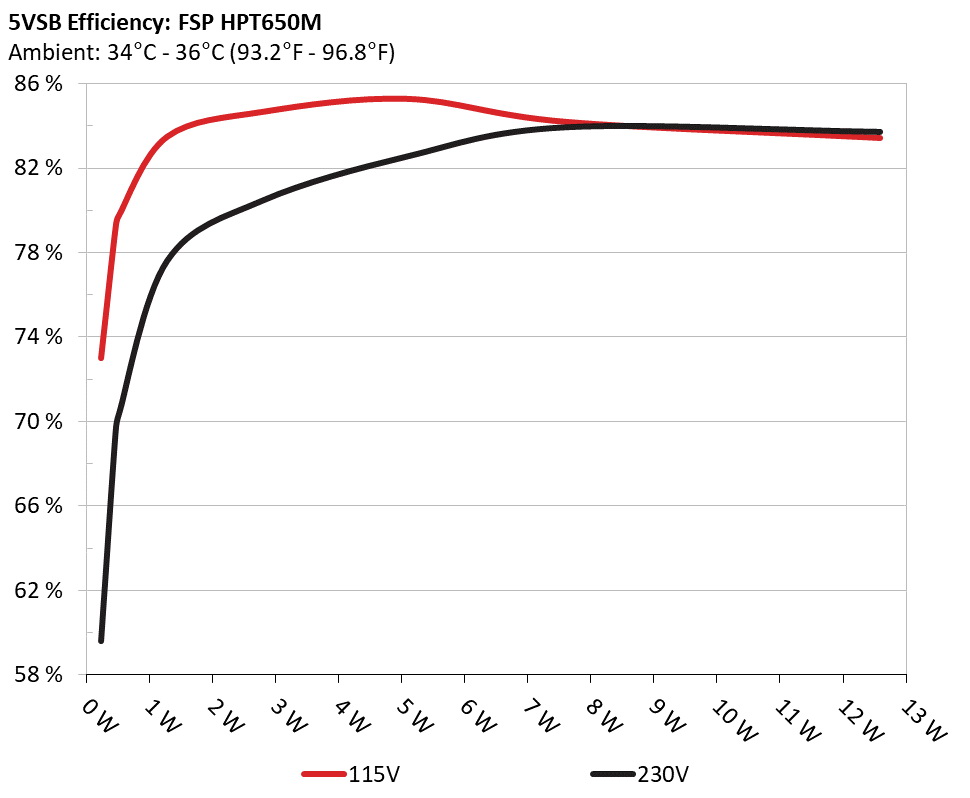

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.230
73.016%
0.052
5.117V
0.315
115.09V
2
0.090A
0.461
79.210%
0.093
5.117V
0.582
115.10V
3
0.550A
2.803
84.657%
0.324
5.096V
3.311
115.09V
4
1.000A
5.081
85.266%
0.396
5.081V
5.959
115.09V
5
1.500A
7.602
84.177%
0.436
5.067V
9.031
115.09V
6
2.500A
12.581
83.417%
0.475
5.032V
15.082
115.09V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.230
59.585%
0.174
5.075V
0.386
230.26V
2
0.090A
0.461
69.532%
0.033
5.116V
0.663
230.26V
3
0.550A
2.805
80.465%
0.153
5.100V
3.486
230.25V
4
1.000A
5.080
82.535%
0.231
5.079V
6.155
230.25V
5
1.500A
7.605
83.922%
0.286
5.069V
9.062
230.25V
6
2.500A
12.585
83.699%
0.351
5.033V
15.036
230.25V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.549A
1.971A
1.963A
0.989A
64.883
86.197%
700
16.9
39.17°C
0.979
12.194V
5.074V
3.363V
5.060V
75.273
43.66°C
115.14V
2
8.081A
2.963A
2.951A
1.187A
129.357
90.011%
700
16.9
40.21°C
0.991
12.184V
5.063V
3.353V
5.056V
143.713
45.22°C
115.13V
3
13.015A
3.463A
3.435A
1.390A
194.438
91.318%
697
16.9
41.35°C
0.995
12.174V
5.054V
3.345V
5.037V
212.924
47.17°C
115.12V
4
17.957A
3.966A
3.953A
1.593A
259.644
91.605%
695
16.8
41.66°C
0.997
12.165V
5.044V
3.337V
5.023V
283.438
48.50°C
115.11V
5
22.576A
4.968A
4.958A
1.798A
324.936
91.428%
695
16.8
42.07°C
0.997
12.156V
5.033V
3.327V
5.007V
355.401
49.61°C
115.11V
6
27.142A
5.975A
5.968A
2.005A
389.445
91.002%
697
16.9
42.88°C
0.998
12.145V
5.022V
3.317V
4.989V
427.952
50.89°C
115.11V
7
31.788A
6.987A
6.985A
2.214A
454.761
90.268%
935
25.7
43.17°C
0.998
12.132V
5.010V
3.307V
4.970V
503.791
51.62°C
115.10V
8
36.433A
8.003A
8.005A
2.423A
520.080
89.602%
1100
30.3
43.95°C
0.998
12.123V
4.999V
3.297V
4.954V
580.436
52.82°C
115.10V
9
41.480A
8.520A
8.511A
2.427A
584.990
88.874%
1272
34.8
44.42°C
0.998
12.114V
4.989V
3.289V
4.945V
658.226
54.25°C
115.10V
10
46.476A
9.040A
9.056A
2.535A
649.719
87.920%
1465
38.0
45.79°C
0.998
12.103V
4.979V
3.280V
4.933V
738.993
56.19°C
115.10V
11
51.873A
9.055A
9.075A
2.539A
714.553
86.961%
1535
39.5
46.68°C
0.998
12.094V
4.970V
3.272V
4.925V
821.695
57.88°C
115.10V
CL1
0.139A
14.001A
14.001A
0.000A
118.725
85.995%
835
21.9
42.19°C
0.991
12.164V
5.032V
3.327V
5.064V
138.060
49.49°C
115.11V
CL2
54.173A
1.002A
0.997A
1.000A
669.713
88.203%
1422
37.4
45.55°C
0.998
12.117V
5.002V
3.301V
4.996V
759.283
56.39°C
115.10V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.536A
1.970A
1.962A
0.989A
64.732
86.899%
700
16.9
39.73°C
0.884
12.198V
5.075V
3.363V
5.060V
74.491
45.76°C
230.25V
2
8.072A
2.963A
2.951A
1.187A
129.264
91.442%
703
17.0
40.33°C
0.952
12.186V
5.064V
3.353V
5.055V
141.362
46.69°C
230.25V
3
13.008A
3.464A
3.437A
1.391A
194.394
92.730%
695
16.8
41.27°C
0.975
12.176V
5.054V
3.345V
5.036V
209.635
48.11°C
230.26V
4
17.951A
3.964A
3.955A
1.593A
259.618
93.266%
700
16.9
41.49°C
0.985
12.168V
5.044V
3.336V
5.023V
278.364
49.02°C
230.27V
5
22.580A
4.969A
4.961A
1.798A
324.948
93.288%
693
16.8
42.09°C
0.989
12.154V
5.033V
3.326V
5.006V
348.329
50.32°C
230.28V
6
27.149A
5.976A
5.970A
2.006A
389.483
93.070%
695
16.8
42.25°C
0.990
12.143V
5.021V
3.317V
4.987V
418.484
51.13°C
230.28V
7
31.795A
6.988A
6.985A
2.214A
454.815
92.571%
955
26.3
43.28°C
0.992
12.131V
5.010V
3.307V
4.969V
491.315
52.77°C
230.30V
8
36.446A
8.004A
8.010A
2.424A
520.170
92.108%
1140
31.6
43.72°C
0.993
12.121V
4.998V
3.296V
4.952V
564.737
53.94°C
230.33V
9
41.497A
8.522A
8.516A
2.428A
585.083
91.685%
1290
35.1
44.26°C
0.994
12.111V
4.988V
3.288V
4.944V
638.145
54.80°C
230.35V
10
46.488A
9.042A
9.058A
2.535A
649.813
91.170%
1475
38.2
45.75°C
0.994
12.102V
4.978V
3.279V
4.932V
712.749
56.69°C
230.31V
11
51.888A
9.057A
9.079A
2.539A
714.633
90.606%
1657
41.1
46.84°C
0.995
12.092V
4.969V
3.271V
4.924V
788.727
58.24°C
230.31V
CL1
0.144A
14.002A
14.000A
0.000A
118.773
87.347%
837
22.0
42.28°C
0.949
12.163V
5.032V
3.326V
5.064V
135.979
50.67°C
230.32V
CL2
54.181A
1.003A
0.999A
1.000A
669.712
91.513%
1440
37.7
45.85°C
0.994
12.115V
5.002V
3.300V
4.995V
731.819
56.44°C
230.30V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.190A
0.492A
0.473A
0.196A
19.622
71.361%
700
16.9
0.919
12.206V
5.085V
3.372V
5.102V
27.497
115.14V
2
2.435A
0.984A
0.979A
0.393A
40.017
81.898%
700
16.9
0.958
12.205V
5.081V
3.368V
5.092V
48.862
115.14V
3
3.614A
1.478A
1.455A
0.591A
59.490
85.608%
700
16.9
0.975
12.200V
5.077V
3.365V
5.076V
69.491
115.14V
4
4.864A
1.973A
1.962A
0.790A
79.918
87.574%
700
16.9
0.984
12.194V
5.073V
3.361V
5.067V
91.258
115.14V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.172A
0.491A
0.472A
0.196A
19.397
71.636%
700
16.9
0.647
12.209V
5.085V
3.371V
5.101V
27.077
230.20V
2
2.417A
0.983A
0.977A
0.393A
39.790
82.665%
700
16.9
0.805
12.206V
5.082V
3.368V
5.091V
48.134
230.21V
3
3.598A
1.476A
1.454A
5.075A
59.289
86.496%
700
16.9
0.871
12.202V
5.077V
3.365V
5.075V
68.545
230.23V
4
4.849A
1.971A
1.959A
0.790A
79.728
88.917%
700
16.9
0.909
12.197V
5.073V
3.361V
5.066V
89.666
230.24V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.9 mV
5.4 mV
10.7 mV
13.9 mV
Pass
20% Load
15.0 mV
5.5 mV
10.7 mV
14.2 mV
Pass
30% Load
14.1 mV
5.7 mV
11.6 mV
18.1 mV
Pass
40% Load
14.8 mV
5.7 mV
11.8 mV
17.5 mV
Pass
50% Load
16.2 mV
6.8 mV
12.2 mV
25.7 mV
Pass
60% Load
18.4 mV
6.7 mV
12.9 mV
17.6 mV
Pass
70% Load
17.7 mV
7.5 mV
13.9 mV
19.0 mV
Pass
80% Load
17.2 mV
7.5 mV
14.5 mV
16.7 mV
Pass
90% Load
18.0 mV
7.8 mV
15.3 mV
17.4 mV
Pass
100% Load
31.8 mV
8.5 mV
17.3 mV
22.0 mV
Pass
110% Load
34.1 mV
9.9 mV
19.4 mV
22.5 mV
Pass
Crossload 1
18.6 mV
6.1 mV
17.8 mV
11.4 mV
Pass
Crossload 2
32.4 mV
8.6 mV
14.5 mV
15.9 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.9 mV
5.2 mV
10.7 mV
13.7 mV
Pass
20% Load
14.3 mV
5.4 mV
11.4 mV
14.8 mV
Pass
30% Load
14.5 mV
5.5 mV
11.2 mV
18.0 mV
Pass
40% Load
14.6 mV
6.2 mV
11.4 mV
21.5 mV
Pass
50% Load
16.1 mV
6.1 mV
11.1 mV
25.7 mV
Pass
60% Load
16.6 mV
6.1 mV
11.9 mV
17.6 mV
Pass
70% Load
16.9 mV
6.9 mV
13.1 mV
19.1 mV
Pass
80% Load
17.8 mV
7.6 mV
15.2 mV
17.8 mV
Pass
90% Load
18.1 mV
7.4 mV
15.4 mV
18.6 mV
Pass
100% Load
29.5 mV
8.4 mV
16.5 mV
22.5 mV
Pass
110% Load
34.5 mV
9.7 mV
17.0 mV
22.5 mV
Pass
Crossload 1
17.3 mV
6.1 mV
17.2 mV
10.5 mV
Pass
Crossload 2
32.3 mV
8.4 mV
12.9 mV
15.7 mV
Pass
The results above are not used in the certification process
FSP Technology HPT650M Hydro
Top side

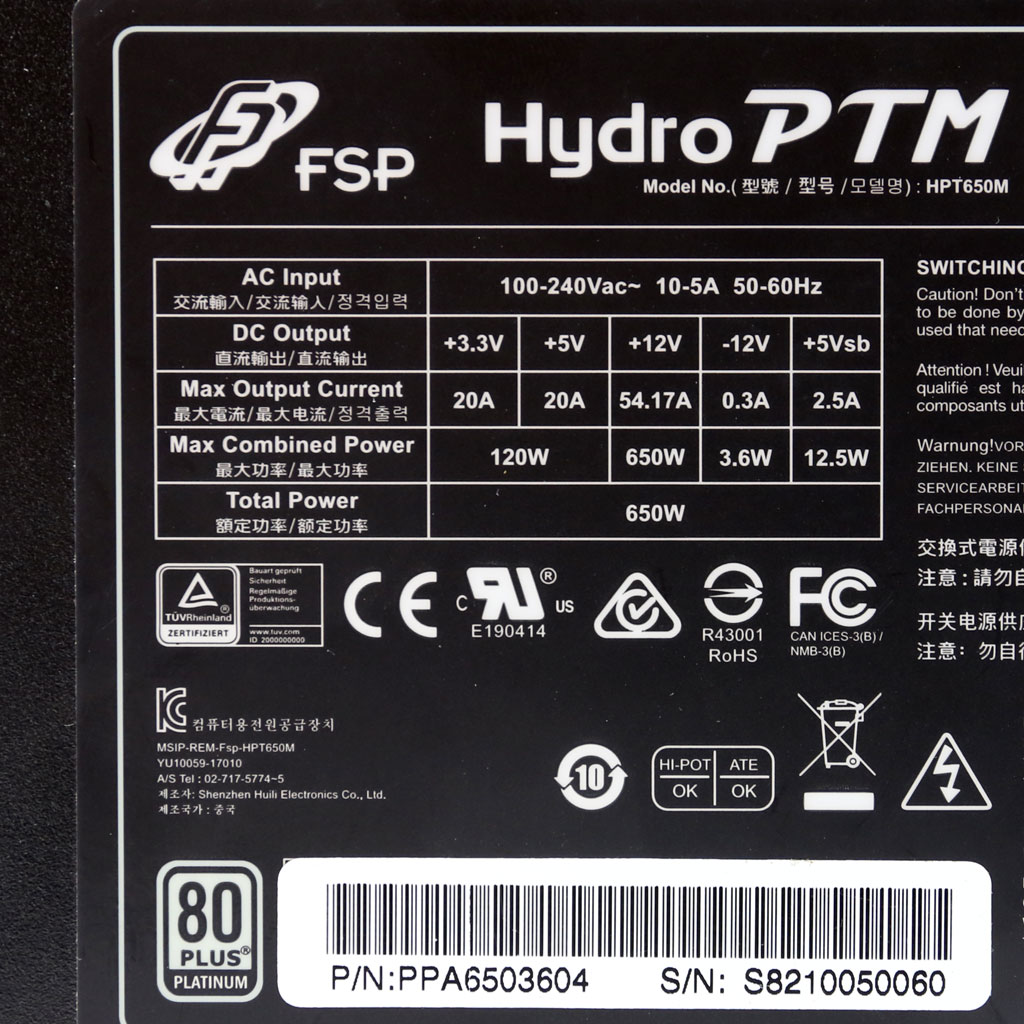

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
