be quiet! System Power U9 600W (#2)
Serial Number608L8100000125
Lab ID502
  • Report: 20PS502A
  • Receipt Date: Oct 7, 2018
  • Test Date: Oct 14, 2018
  • Report Date: Oct 17, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

Brandbe quiet!
Manufacturer (OEM)CWT
SeriesSystem Power U9
Model NumberSU9-600
Serial Number608L8100000125
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Sleeve Bearing Fan
(D12SM-12)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V1 12V2 5VSB -12V
Max. Power Amps 24 18 28 22 3 0.3
48
Watts 120 576 15 3.6
Total Max. Power (W) 600

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (610mm) 1 1 18AWG No
6+2 pin PCIe (520mm+150mm) 2 4 18AWG No
SATA (540mm+120mm+120mm)+4 pin Molex (+120mm) 1 3 / 1 18AWG No
SATA (340mm+120mm+120mm)+4 pin Molex (+120mm) 1 3 / 1 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)10.8
AC Loss to PWR_OK Hold Up Time (ms)9.7
PWR_OK Inactive to DC Loss Delay (ms)1.1

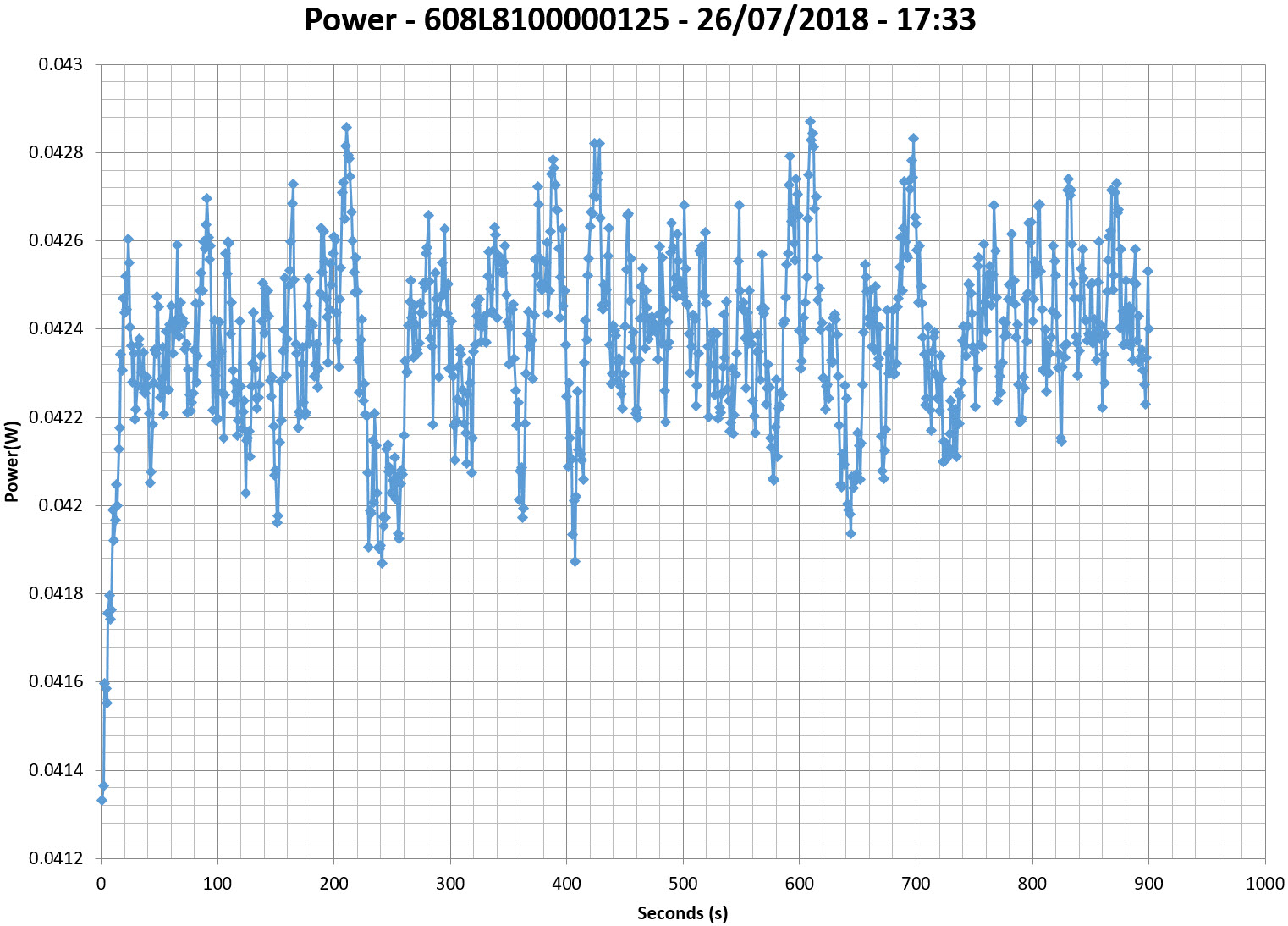

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

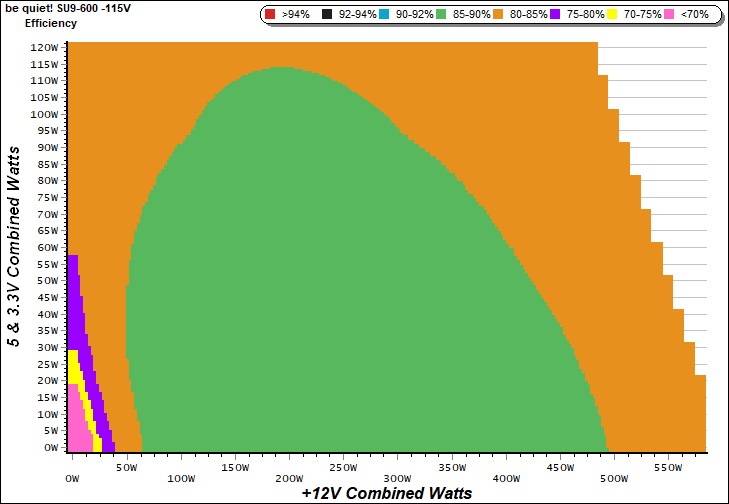

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

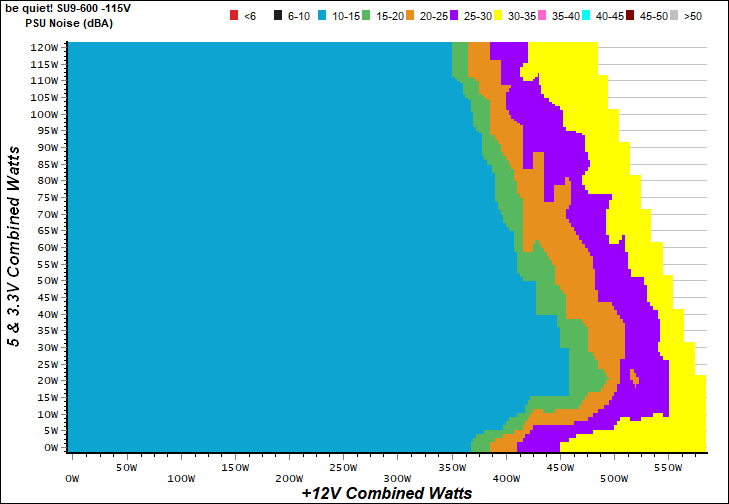

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

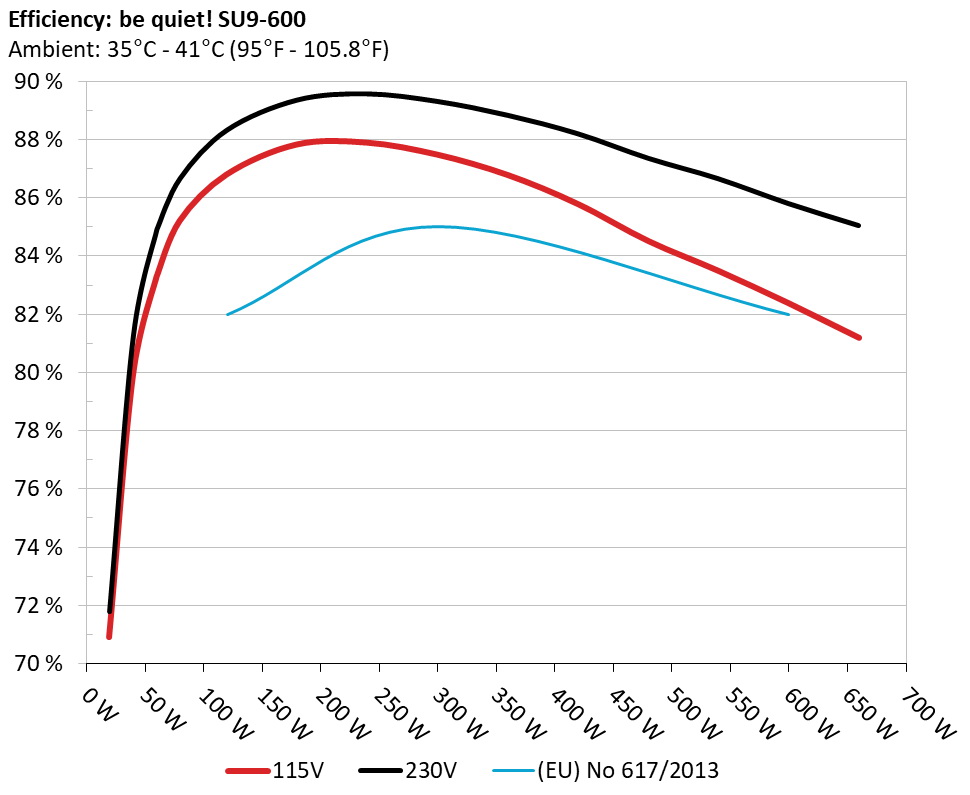

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 72.930% 0.044
5.102V 0.314 115.14V
2 0.090A 0.459 77.013% 0.081
5.101V 0.596 115.14V
3 0.550A 2.801 80.396% 0.296
5.093V 3.484 115.14V
4 1.000A 5.085 81.113% 0.365
5.085V 6.269 115.11V
5 1.500A 7.614 79.437% 0.405
5.076V 9.585 115.14V
6 3.000A 15.151 78.458% 0.455
5.050V 19.311 115.10V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.156A 1.988A 1.995A 0.985A 59.931 82.774% 635 10.1 36.34°C 0.940
12.149V 5.028V 3.304V 5.077V 72.403 39.56°C 115.09V
2 7.315A 2.985A 2.996A 1.185A 119.674 86.782% 630 10.0 36.79°C 0.960
12.137V 5.025V 3.301V 5.066V 137.902 40.27°C 115.08V
3 11.840A 3.483A 3.484A 1.385A 179.568 87.816% 642 10.4 37.26°C 0.973
12.127V 5.021V 3.299V 5.056V 204.483 41.25°C 115.08V
4 16.376A 3.987A 4.002A 1.585A 239.591 87.880% 628 9.9 37.56°C 0.980
12.115V 5.017V 3.297V 5.046V 272.633 42.23°C 115.08V
5 20.589A 4.987A 5.006A 1.788A 299.706 87.467% 624 9.9 37.86°C 0.985
12.104V 5.013V 3.295V 5.035V 342.651 43.01°C 115.07V
6 24.809A 5.989A 6.014A 1.990A 359.817 86.768% 628 9.9 38.07°C 0.988
12.093V 5.010V 3.292V 5.024V 414.690 44.38°C 115.07V
7 29.001A 6.993A 7.022A 2.195A 419.553 85.775% 768 14.4 38.89°C 0.990
12.084V 5.005V 3.290V 5.013V 489.130 45.60°C 115.07V
8 33.271A 7.997A 8.029A 2.400A 480.059 84.497% 1045 22.9 39.22°C 0.992
12.072V 5.003V 3.288V 5.001V 568.140 46.66°C 115.07V
9 37.891A 8.500A 8.520A 2.403A 539.395 83.482% 1415 32.7 39.74°C 0.993
12.058V 5.001V 3.286V 4.994V 646.118 47.84°C 115.07V
10 42.353A 9.005A 9.042A 3.015A 599.804 82.364% 1804 39.1 40.06°C 0.993
12.044V 4.998V 3.284V 4.976V 728.233 48.61°C 115.07V
11 47.389A 9.010A 9.046A 3.019A 659.842 81.177% 1800 39.1 40.93°C 0.994
12.031V 4.995V 3.283V 4.969V 812.843 50.21°C 115.08V
CL1 0.137A 14.001A 14.000A 0.000A 117.771 79.946% 644 10.4 37.74°C 0.966
12.143V 5.004V 3.289V 5.066V 147.313 43.23°C 115.09V
CL2 48.007A 1.002A 1.000A 1.000A 591.719 83.350% 1560 34.9 40.49°C 0.993
12.048V 5.003V 3.291V 5.027V 709.925 48.98°C 115.07V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.182A 0.496A 0.481A 0.196A 19.454 70.897% 622 9.8 0.891
12.155V 5.033V 3.307V 5.097V 27.440 115.10V
2 2.435A 0.993A 0.996A 0.393A 39.876 79.902% 633 10.0 0.905
12.150V 5.032V 3.306V 5.090V 49.906 115.09V
3 3.621A 1.491A 1.480A 0.590A 59.375 83.273% 624 9.9 0.938
12.148V 5.029V 3.304V 5.084V 71.302 115.09V
4 4.870A 1.989A 1.996A 0.788A 79.744 85.196% 628 9.9 0.949
12.145V 5.028V 3.304V 5.078V 93.601 115.09V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.8 mV 9.0 mV 13.9 mV 9.7 mV Pass
20% Load 12.5 mV 8.7 mV 15.2 mV 9.4 mV Pass
30% Load 13.9 mV 8.8 mV 15.4 mV 11.3 mV Pass
40% Load 15.1 mV 8.9 mV 16.5 mV 10.3 mV Pass
50% Load 17.1 mV 9.6 mV 18.4 mV 17.8 mV Pass
60% Load 20.1 mV 11.5 mV 20.7 mV 14.7 mV Pass
70% Load 24.9 mV 11.5 mV 21.1 mV 15.0 mV Pass
80% Load 29.5 mV 11.7 mV 26.3 mV 19.6 mV Pass
90% Load 33.4 mV 11.6 mV 27.1 mV 20.6 mV Pass
100% Load 47.0 mV 15.4 mV 28.3 mV 18.6 mV Pass
110% Load 53.8 mV 18.7 mV 30.3 mV 18.9 mV Pass
Crossload 1 14.2 mV 12.3 mV 31.3 mV 10.5 mV Pass
Crossload 2 45.8 mV 12.7 mV 15.4 mV 13.9 mV Pass

The results above are not used in the certification process

be quiet! System Power U9 600W (#2)

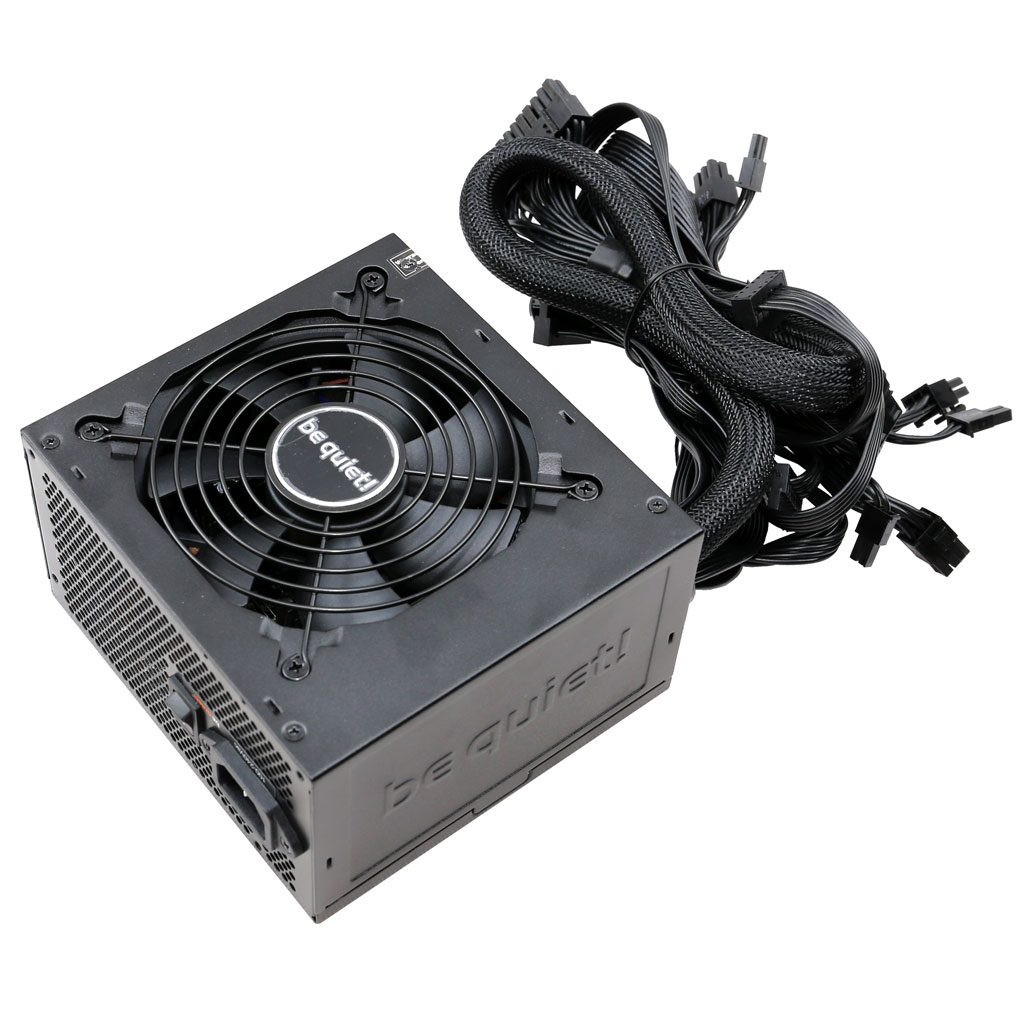

Top side

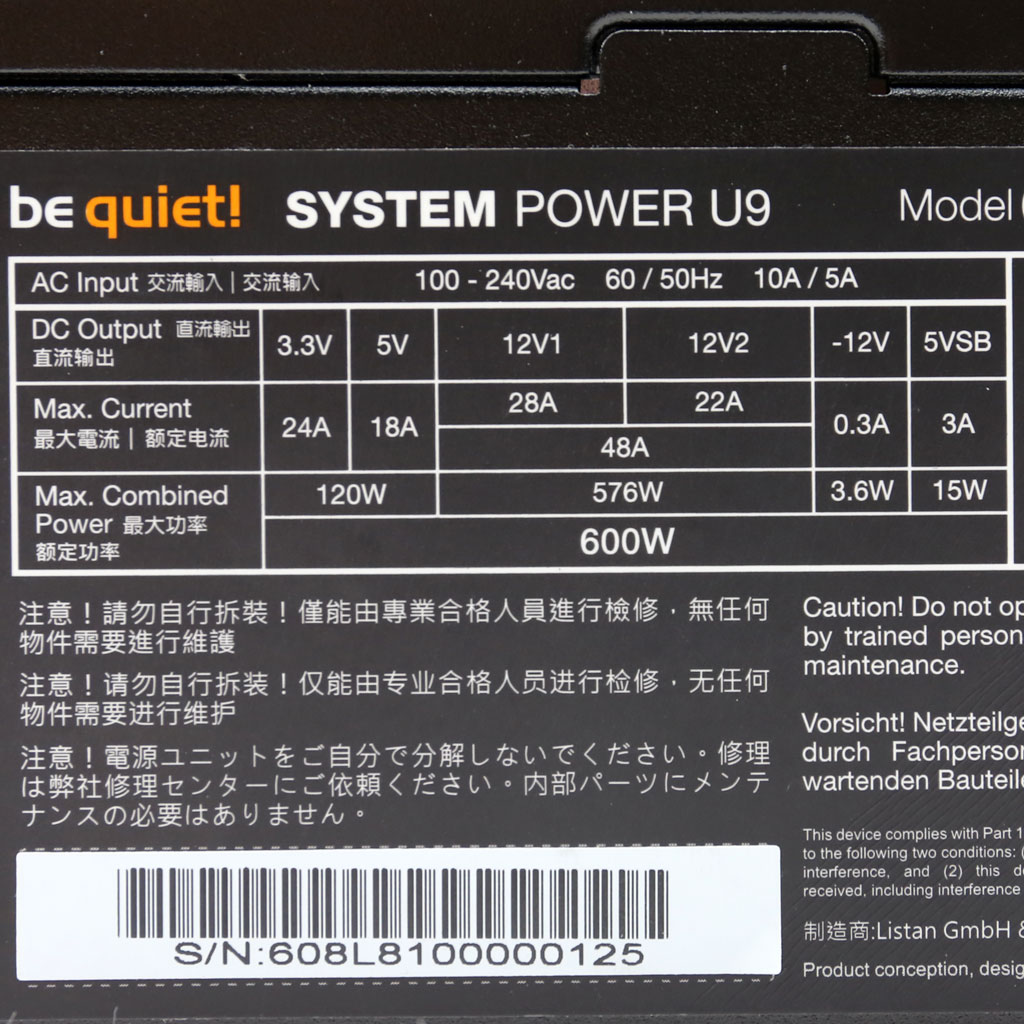

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
