CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Thermaltake Toughpower Grand Gold 850W
Serial NumberPSTPG0850FPCGUSSLA000243
Lab ID478
  • Report:
  • Receipt Date: Sep 11, 2018
  • Test Date: Sep 19, 2018
  • Report Date: Sep 22, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Sirfa
SeriesToughpower Grand Gold
Model NumberTPG-0850F-S
Serial NumberPSTPG0850FPCGUSSLA000243
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling140mm Hydro Dynamic Bearing Fan
(TT-1425 (A1425L12S))
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 70.9 3 0.3
Watts 120 850 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm+155mm) 1 2 16-18AWG No
6+2 pin PCIe (500mm+155mm) 3 6 16-18AWG No
SATA (500mm+155mm+155mm+155mm) 3 12 18AWG No
4-pin Molex (500mm+155mm+155mm+155mm) 1 4 18AWG No
RGB Cable (580mm+80mm) 1 1 26AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) Sirfa / High Power
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Champion CMD02X
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBU1506L (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Boost Diode 1x UnitedSiC UJD06508TS (650V, 8A @ 152°C)
Hold-up Cap(s) 1x Rubycon (400V, 680uF, 2000h @ 105 °C, MXH)
Main Switchers 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Controller Infineon ICE3PCS01G
LLC Resonant Controller Champion CM6901X
Primary MCU STC 15W408AS
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Infineon BSC027N04LS G (40V, 88A @ 100°C, 2.7mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY), 1x Rubycon (4-10,000 @ 105°C, ZLH)
Polymers: Nippon Chemi-Con, FPCAP
Supervisor IC SITI PS224 (OVP, UVP, OCP,SCP, PG)
Serial EEPROM ATMEL AT24C02N
Fan Model Thermaltake TT-1425 (Hong Sheng OEM, A1425L12S, 140mm, 12V, 0.30A, 1560 RPM, Hydro Dynamic Bearing)
5VSB Circuit
Rectifiers 1x PCF P10V45 SBR (45V, 10A)
2x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
Standby PWM Controller Sanken STR-A6069H
-12V Circuit
Rectifier KEC KIA7912PI

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16
AC Loss to PWR_OK Hold Up Time (ms)13.9
PWR_OK Inactive to DC Loss Delay (ms)2.1

Vampire Power

Graphs

INFO

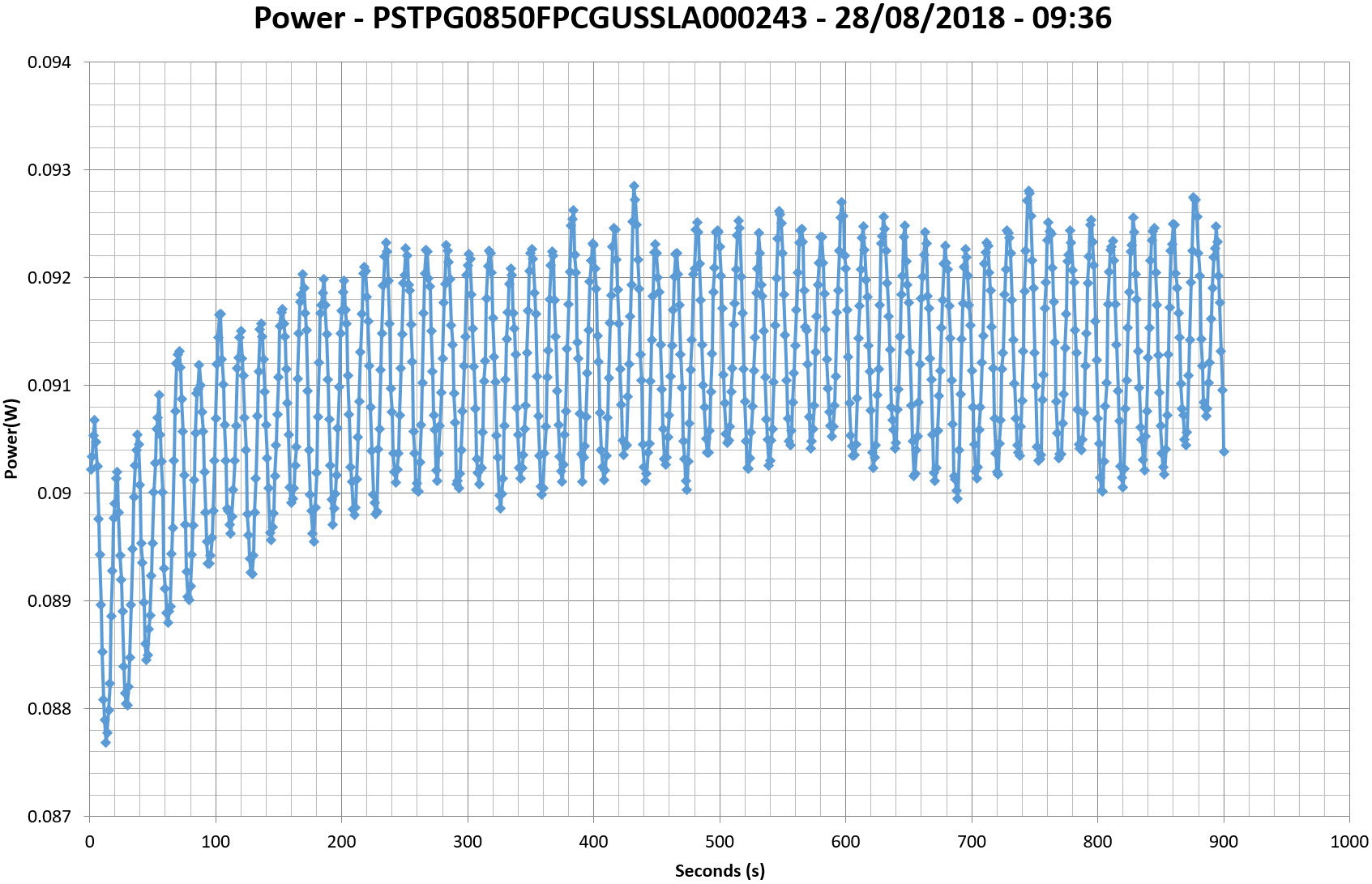

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

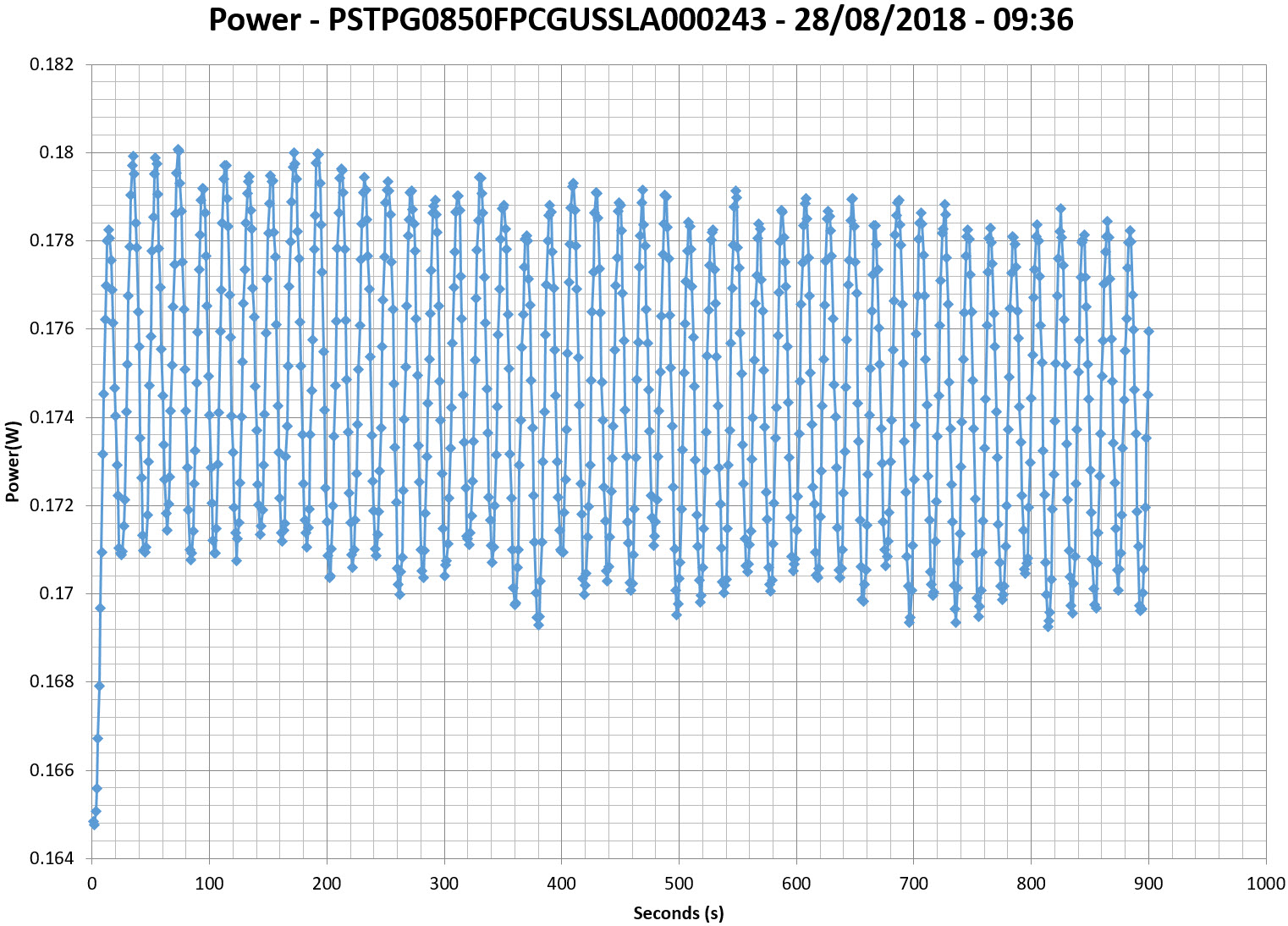

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

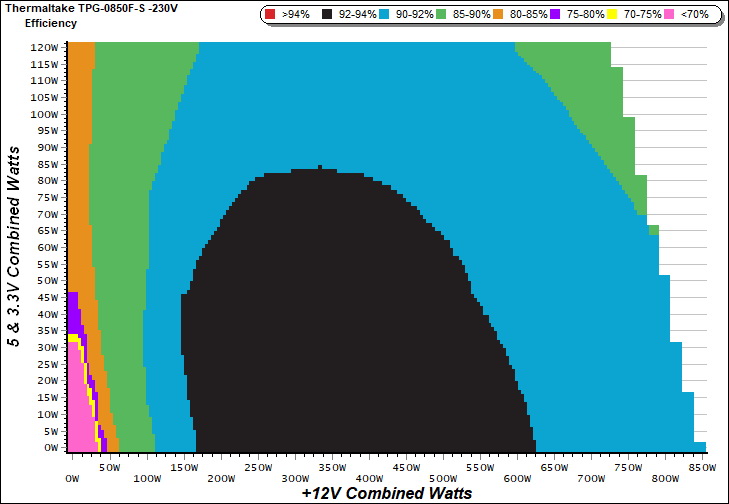

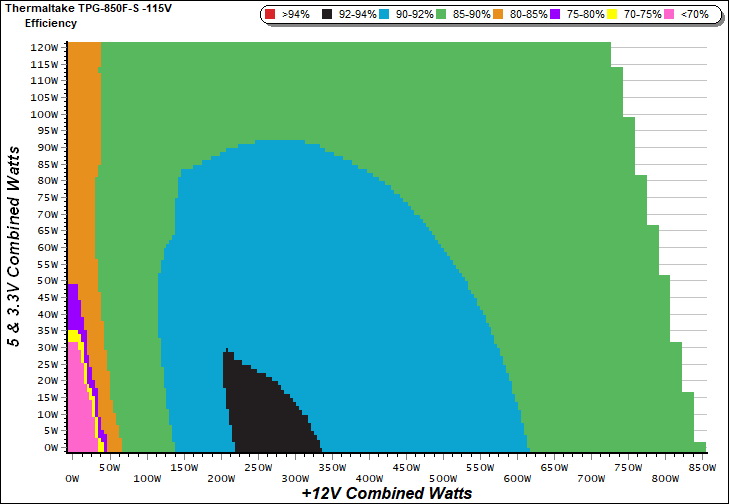

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

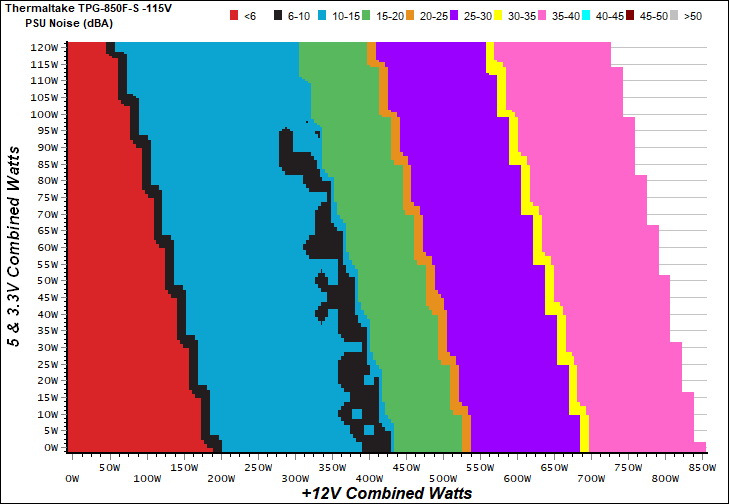

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

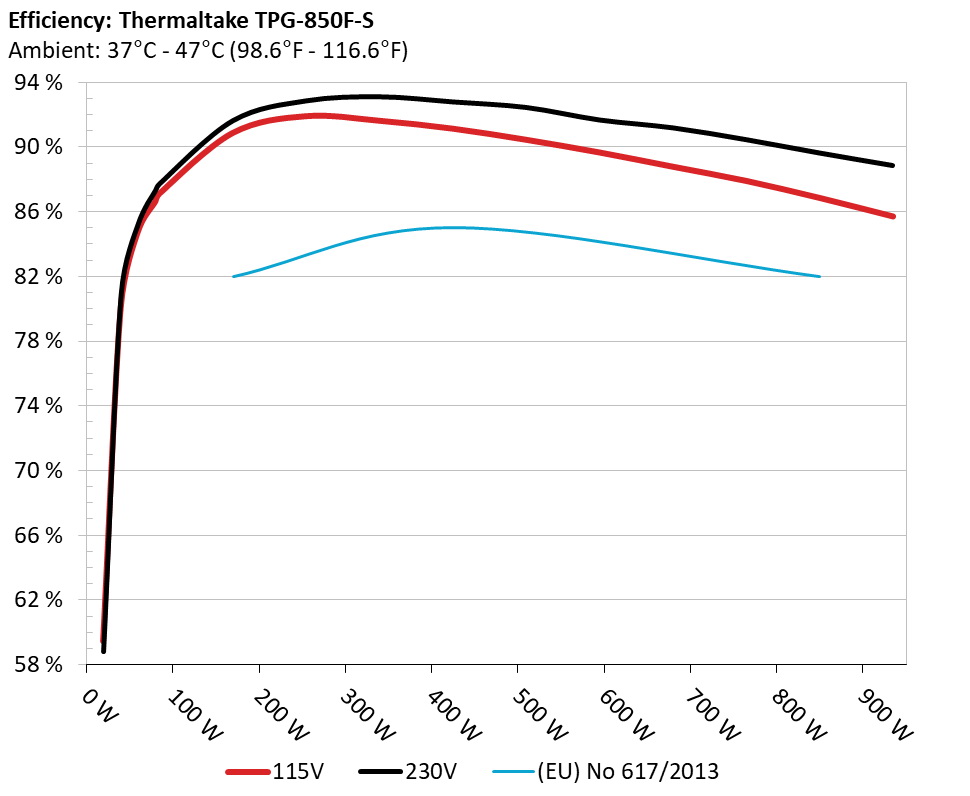

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

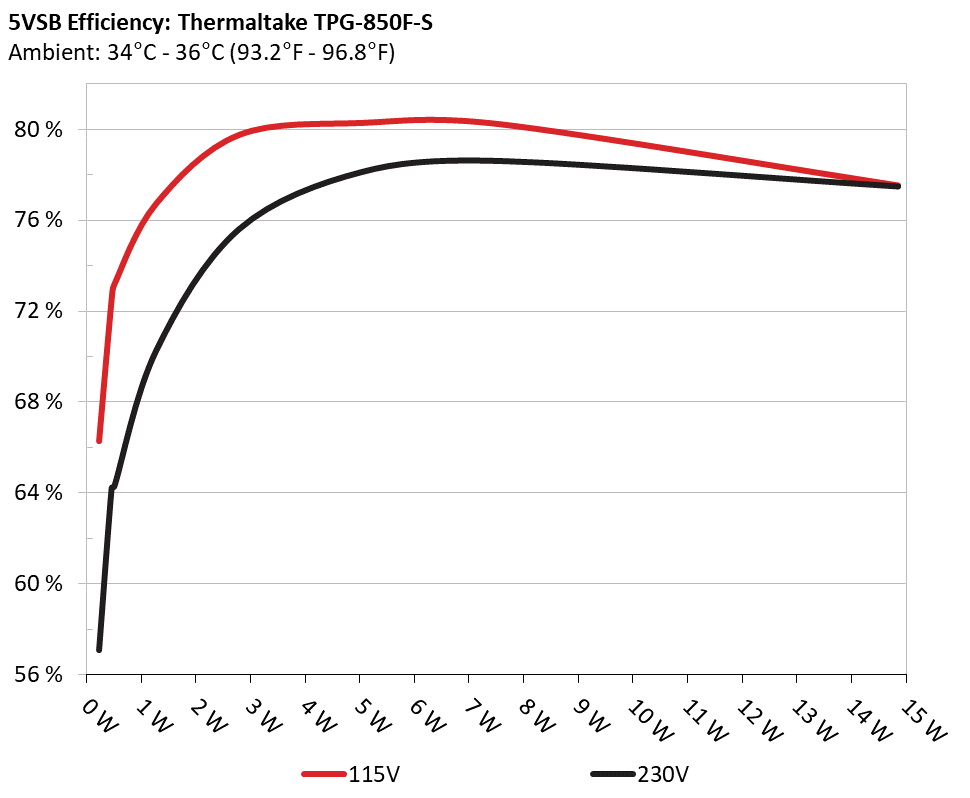

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.046A 0.230 66.282% 0.199
5.023V 0.347 115.36V
2 0.090A 0.459 72.512% 0.048
5.091V 0.633 115.37V
3 0.550A 2.789 79.731% 0.211
5.069V 3.498 115.37V
4 1.000A 5.050 80.261% 0.290
5.049V 6.292 115.37V
5 1.500A 7.540 80.213% 0.335
5.026V 9.400 115.36V
6 3.000A 14.852 77.516% 0.395
4.950V 19.160 115.35V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 57.072% 0.011
5.094V 0.403 230.93V
2 0.090A 0.459 64.196% 0.019
5.091V 0.715 230.93V
3 0.550A 2.788 75.576% 0.095
5.068V 3.689 230.92V
4 1.000A 5.048 78.106% 0.155
5.048V 6.463 230.92V
5 1.500A 7.538 78.586% 0.207
5.024V 9.592 230.92V
6 3.000A 14.861 77.466% 0.300
4.953V 19.184 230.91V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.230A 1.982A 1.960A 1.000A 84.927 87.123% 415 6.9 40.31°C 0.934
12.108V 5.048V 3.367V 4.999V 97.479 47.67°C 115.05V
2 11.464A 2.980A 2.953A 1.205A 169.458 90.859% 542 8.9 40.71°C 0.982
12.086V 5.035V 3.353V 4.979V 186.507 48.67°C 115.05V
3 18.099A 3.485A 3.441A 1.412A 254.535 91.901% 565 9.4 41.37°C 0.995
12.074V 5.024V 3.341V 4.959V 276.967 49.72°C 115.04V
4 24.756A 3.992A 3.965A 1.620A 339.719 91.622% 565 9.4 41.72°C 0.994
12.058V 5.013V 3.329V 4.938V 370.785 50.74°C 115.04V
5 31.096A 5.002A 4.977A 1.830A 425.035 91.130% 562 9.3 42.48°C 0.996
12.044V 5.001V 3.315V 4.918V 466.405 52.39°C 115.04V
6 37.388A 6.017A 5.999A 2.043A 509.561 90.449% 805 19.0 43.06°C 0.996
12.029V 4.988V 3.301V 4.897V 563.367 53.39°C 115.04V
7 43.758A 7.038A 7.029A 2.257A 594.877 89.659% 990 26.0 43.66°C 0.997
12.015V 4.975V 3.287V 4.876V 663.488 54.34°C 115.03V
8 50.150A 8.063A 8.069A 2.473A 680.214 88.776% 1105 29.8 44.23°C 0.997
12.000V 4.962V 3.272V 4.854V 766.212 55.73°C 115.03V
9 56.956A 8.588A 8.590A 2.478A 765.134 87.901% 1380 35.8 44.94°C 0.998
11.985V 4.950V 3.260V 4.844V 870.453 57.10°C 115.03V
10 63.512A 9.114A 9.149A 3.130A 849.960 86.850% 1385 35.9 45.81°C 0.998
11.970V 4.939V 3.246V 4.795V 978.652 58.65°C 115.03V
11 70.676A 9.131A 9.181A 3.138A 934.721 85.710% 1390 35.9 46.88°C 0.984
11.956V 4.929V 3.236V 4.781V 1090.561 60.10°C 115.09V
CL1 0.146A 14.005A 14.001A 0.000A 118.289 81.716% 678 13.2 42.46°C 0.964
12.101V 5.007V 3.314V 5.067V 144.757 52.27°C 115.05V
CL2 70.842A 1.001A 1.001A 1.000A 861.155 87.409% 1388 35.9 45.68°C 0.998
11.970V 4.970V 3.284V 4.915V 985.197 58.33°C 115.03V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.230A 1.981A 1.961A 1.000A 84.933 87.713% 147 5.0 39.67°C 0.847
12.109V 5.048V 3.367V 5.000V 96.831 46.55°C 230.02V
2 11.465A 2.980A 2.952A 1.205A 169.470 91.597% 520 8.3 40.21°C 0.891
12.086V 5.035V 3.353V 4.980V 185.017 47.73°C 230.20V
3 18.100A 3.484A 3.443A 1.412A 254.549 92.823% 565 9.4 40.83°C 0.920
12.074V 5.024V 3.341V 4.960V 274.231 48.81°C 230.20V
4 24.758A 3.991A 3.964A 1.620A 339.737 93.073% 562 9.3 41.22°C 0.964
12.058V 5.013V 3.329V 4.939V 365.022 49.48°C 230.19V
5 31.100A 5.002A 4.977A 1.830A 425.050 92.759% 558 9.3 41.81°C 0.978
12.043V 5.001V 3.315V 4.918V 458.228 50.43°C 230.19V
6 37.390A 6.016A 5.998A 2.043A 509.576 92.417% 805 19.0 42.29°C 0.986
12.029V 4.988V 3.301V 4.897V 551.389 51.50°C 230.02V
7 43.763A 7.038A 7.029A 2.257A 594.893 91.643% 990 26.0 43.05°C 0.989
12.014V 4.975V 3.287V 4.876V 649.145 52.74°C 230.18V
8 50.145A 8.062A 8.069A 2.472A 680.097 91.155% 1105 29.8 43.63°C 0.992
11.999V 4.962V 3.272V 4.855V 746.087 53.93°C 230.02V
9 56.956A 8.589A 8.590A 2.478A 765.092 90.424% 1385 35.9 44.13°C 0.995
11.984V 4.951V 3.260V 4.844V 846.117 55.26°C 230.02V
10 63.513A 9.115A 9.147A 3.130A 849.966 89.603% 1385 35.9 45.40°C 0.997
11.970V 4.939V 3.246V 4.794V 948.594 57.22°C 230.18V
11 70.681A 9.133A 9.182A 3.138A 934.727 88.832% 1390 35.9 46.92°C 0.997
11.955V 4.929V 3.236V 4.782V 1052.239 59.77°C 230.19V
CL1 0.148A 14.004A 14.000A 0.000A 118.305 82.522% 678 13.2 41.84°C 0.867
12.101V 5.007V 3.314V 5.067V 143.362 50.94°C 230.19V
CL2 70.846A 1.001A 1.002A 1.000A 861.136 90.180% 1392 35.9 45.34°C 0.997
11.969V 4.970V 3.284V 4.915V 954.909 57.29°C 230.19V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.192A 0.495A 0.474A 0.198A 19.626 59.480% 0 <6.0 0.878
12.178V 5.062V 3.382V 5.053V 32.996 115.05V
2 2.449A 0.990A 0.979A 0.397A 40.023 80.075% 0 <6.0 0.876
12.131V 5.058V 3.377V 5.039V 49.982 115.05V
3 3.641A 1.484A 1.454A 0.597A 59.514 84.717% 377 6.8 0.921
12.115V 5.053V 3.373V 5.026V 70.250 115.05V
4 4.899A 1.983A 1.961A 0.798A 79.938 86.625% 388 6.8 0.926
12.109V 5.049V 3.368V 5.012V 92.280 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.193A 0.494A 0.472A 0.198A 19.622 58.798% 0 <6.0 0.634
12.175V 5.062V 3.382V 5.052V 33.372 230.19V
2 2.450A 0.989A 0.977A 0.397A 40.024 80.870% 0 <6.0 0.751
12.131V 5.058V 3.377V 5.039V 49.492 230.19V
3 3.642A 1.484A 1.452A 0.597A 59.521 85.167% 0 <6.0 0.813
12.115V 5.054V 3.373V 5.027V 69.887 230.20V
4 4.900A 1.982A 1.958A 0.798A 79.951 87.297% 460 7.4 0.841
12.111V 5.050V 3.369V 5.013V 91.585 230.02V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 23.0 mV 8.1 mV 7.3 mV 5.0 mV Pass
20% Load 8.4 mV 8.9 mV 8.4 mV 4.3 mV Pass
30% Load 10.4 mV 9.1 mV 9.1 mV 4.3 mV Pass
40% Load 10.7 mV 9.9 mV 10.2 mV 5.0 mV Pass
50% Load 12.5 mV 14.6 mV 12.7 mV 9.2 mV Pass
60% Load 13.9 mV 14.1 mV 12.7 mV 6.6 mV Pass
70% Load 15.5 mV 15.5 mV 13.8 mV 7.2 mV Pass
80% Load 17.1 mV 17.2 mV 17.1 mV 8.8 mV Pass
90% Load 18.9 mV 18.4 mV 18.3 mV 8.9 mV Pass
100% Load 21.2 mV 20.3 mV 19.8 mV 10.5 mV Pass
110% Load 24.5 mV 22.3 mV 21.2 mV 12.0 mV Pass
Crossload 1 23.8 mV 12.9 mV 15.5 mV 4.9 mV Pass
Crossload 2 21.0 mV 16.3 mV 13.0 mV 9.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 23.1 mV 8.1 mV 7.0 mV 4.7 mV Pass
20% Load 8.7 mV 8.5 mV 8.4 mV 4.3 mV Pass
30% Load 9.7 mV 9.0 mV 9.0 mV 4.3 mV Pass
40% Load 9.6 mV 9.7 mV 10.1 mV 5.2 mV Pass
50% Load 11.6 mV 14.7 mV 13.6 mV 9.0 mV Pass
60% Load 13.0 mV 13.9 mV 12.8 mV 6.5 mV Pass
70% Load 14.2 mV 15.6 mV 13.9 mV 7.3 mV Pass
80% Load 15.6 mV 17.1 mV 16.8 mV 8.6 mV Pass
90% Load 18.0 mV 18.2 mV 17.9 mV 8.8 mV Pass
100% Load 20.0 mV 20.7 mV 19.5 mV 11.1 mV Pass
110% Load 22.4 mV 22.3 mV 20.9 mV 12.4 mV Pass
Crossload 1 22.4 mV 13.2 mV 15.9 mV 4.7 mV Pass
Crossload 2 19.1 mV 16.7 mV 12.8 mV 9.4 mV Pass

The results above are not used in the certification process

Thermaltake Toughpower Grand Gold 850W

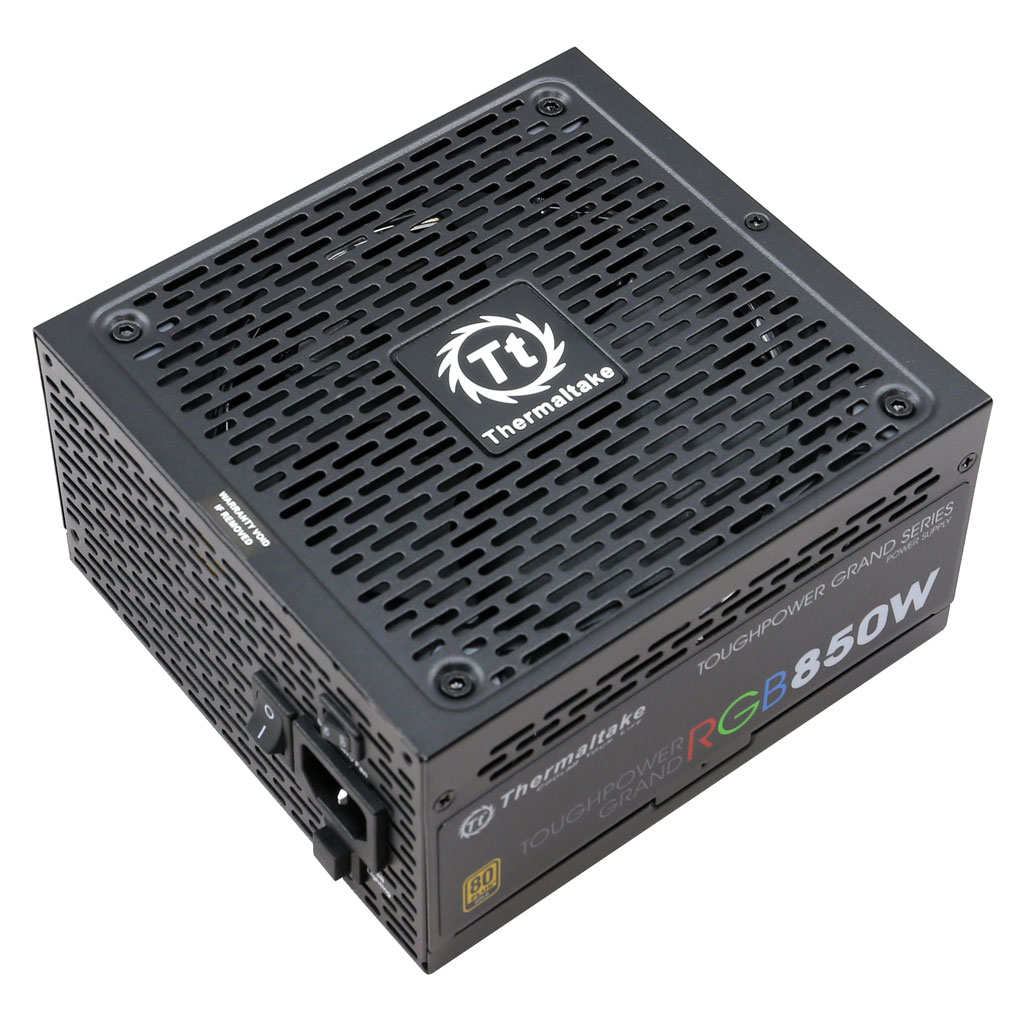

Top side

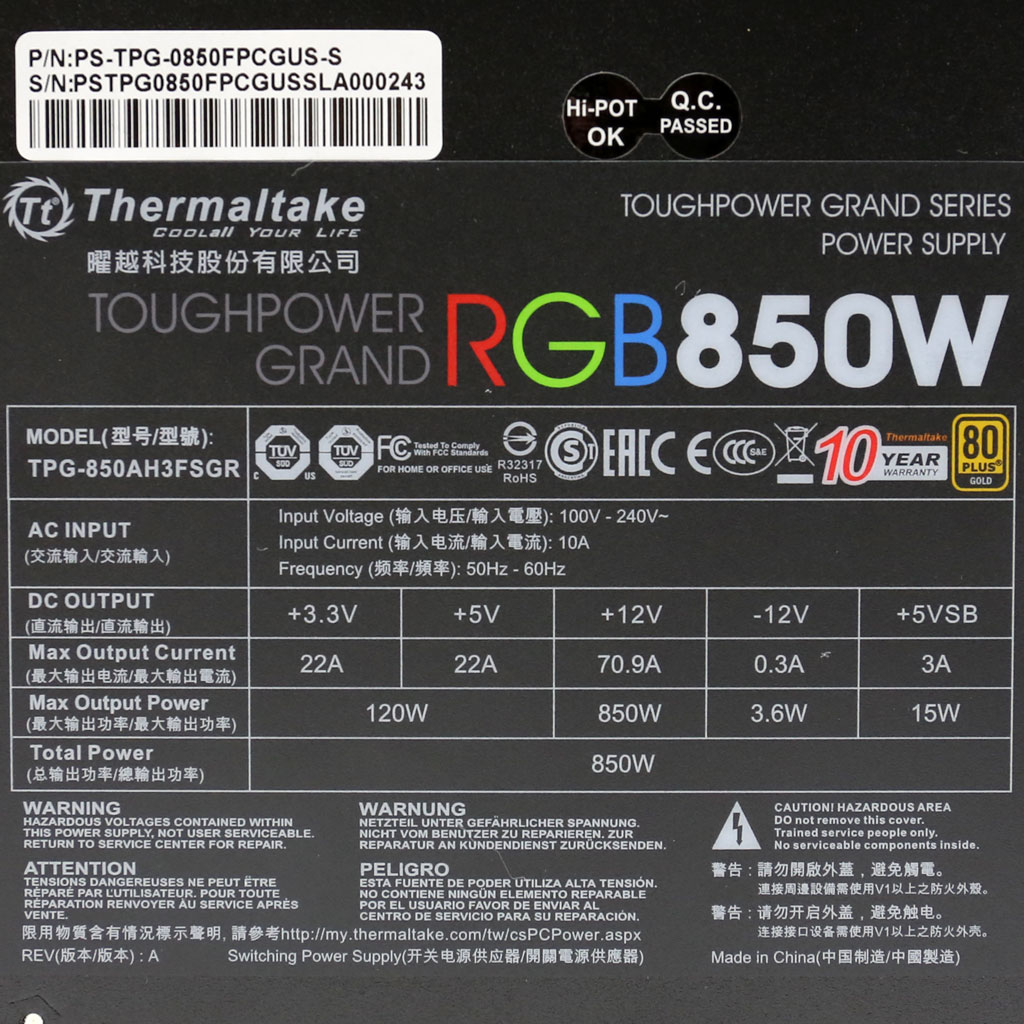

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
