CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Casecom CK-A500
Serial Number
Lab ID461
  • Report:
  • Receipt Date: Aug 11, 2018
  • Test Date: Aug 17, 2018
  • Report Date: Aug 21, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCasecom
Manufacturer (OEM)Casecom
SeriesCK-A
Model NumberCK-A500
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-230
Rated Current (Arms)7
Rated Frequency (Hz)47-63
Rated Power (W)500
TypeATX12V
Cooling120mm Sleeve Bearing Fan
(W12025HZ12SEMA)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 18 15 40 2.5 0.3
Watts 100 480 12.5 3.6
Total Max. Power (W) 500

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (430mm) 1 1 18-22AWG No
4+4 pin EPS12V (430mm) 1 1 18AWG No
6+2 pin PCIe (420mm+180mm) 1 2 18AWG No
4 pin Molex (440mm)+SATA (+150mm+150mm) 2 2 / 4 18AWG No
4 pin Molex (440mm)+SATA (+150mm)+FDD (+150mm) 1 1 / 1 / 1 18-20AWG No

Parts Description

General Data
Manufacturer (OEM) Casecom
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 1x GBU1508 (800V, 15A @ 100°C)
APFC MOSFETS 1x 0SG55R140H
APFC Boost Diode 1x BYC15-600P (600V, 15A @ 121°C)
Hold-up Cap(s) 1x ChengX (450V, 270uF, 3000h @ 105 °C, CP)
Main Switchers 2x PTA20N50
(500V, 20A @ 100°C, 0.26Ohm)
Combo APFC/PWM Controller Champion CM6805BSX
Topology Primary side: Double Forward
Secondary side: Passive Rectification & Group Regulation
Secondary Side
+12V MOSFETS 2x APEC PFC PFR40L60PT (60V, 40A @ 50% duty cycle)
5V & 3.3V 5V: 1x MBR2045CTG (45V, 20A @ 165°C)
3.3V: 1x MBR2045CTG (45V, 20A @ 165°C)
Filtering Capacitors Electrolytics: ChengX (2-4,000 @ 105°C, GR), 2x Asia'x (105°C, TMX)
Supervisor IC Grenergy GR8313 (OVP, UVP, SCP, PG)
Fan Model Xiongli Electronic W12025HZ12SEMA (120mm, 12V, 0.20A, Sleeve Bearing)
5VSB Circuit
Standby PWM Controller Sanken STR-A6059H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 16.80
AC Loss to PWR_OK Hold Up Time  (ms) 28.30
PWR_OK Inactive to DC Loss Delay (ms) -11.50

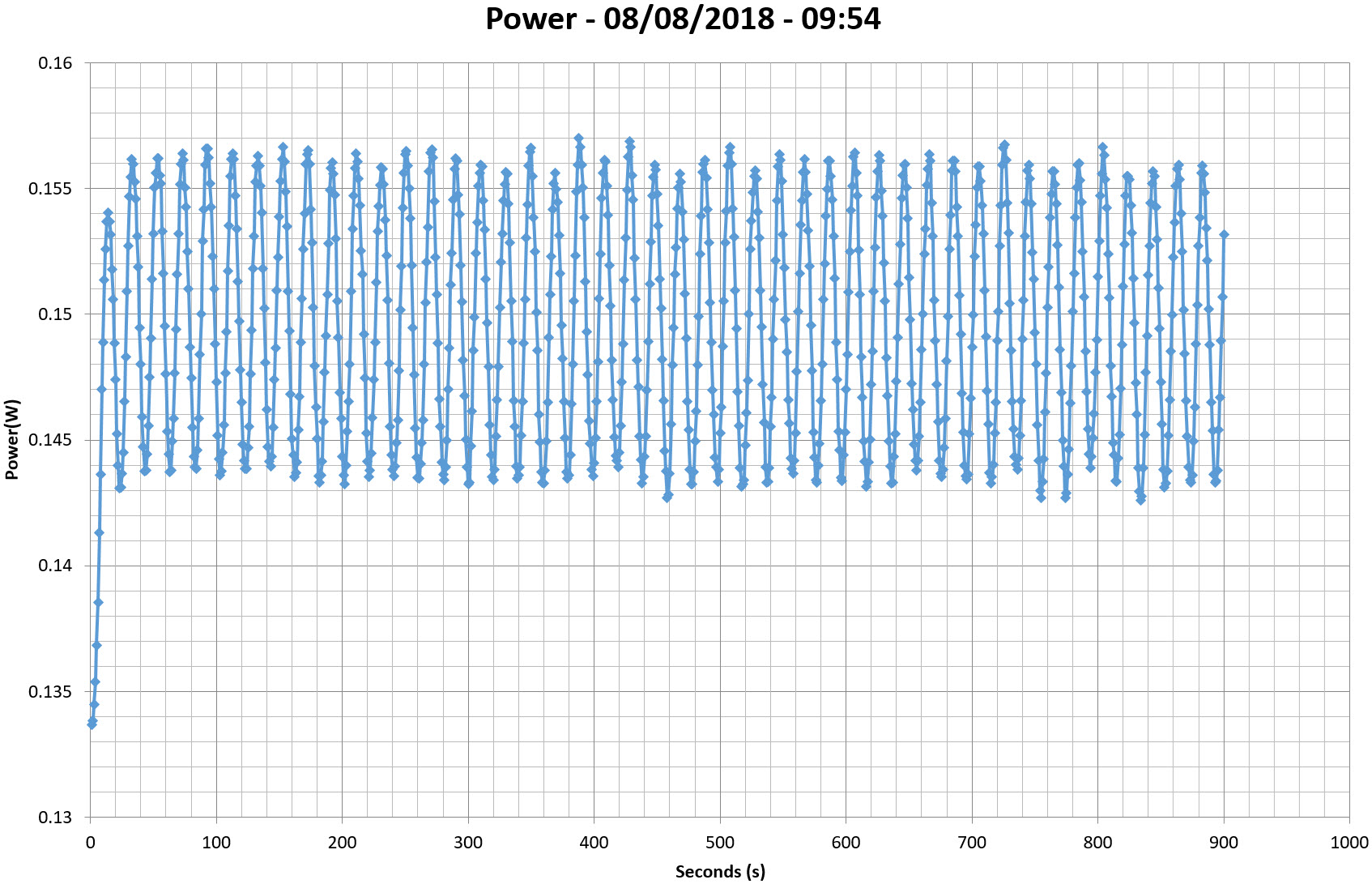

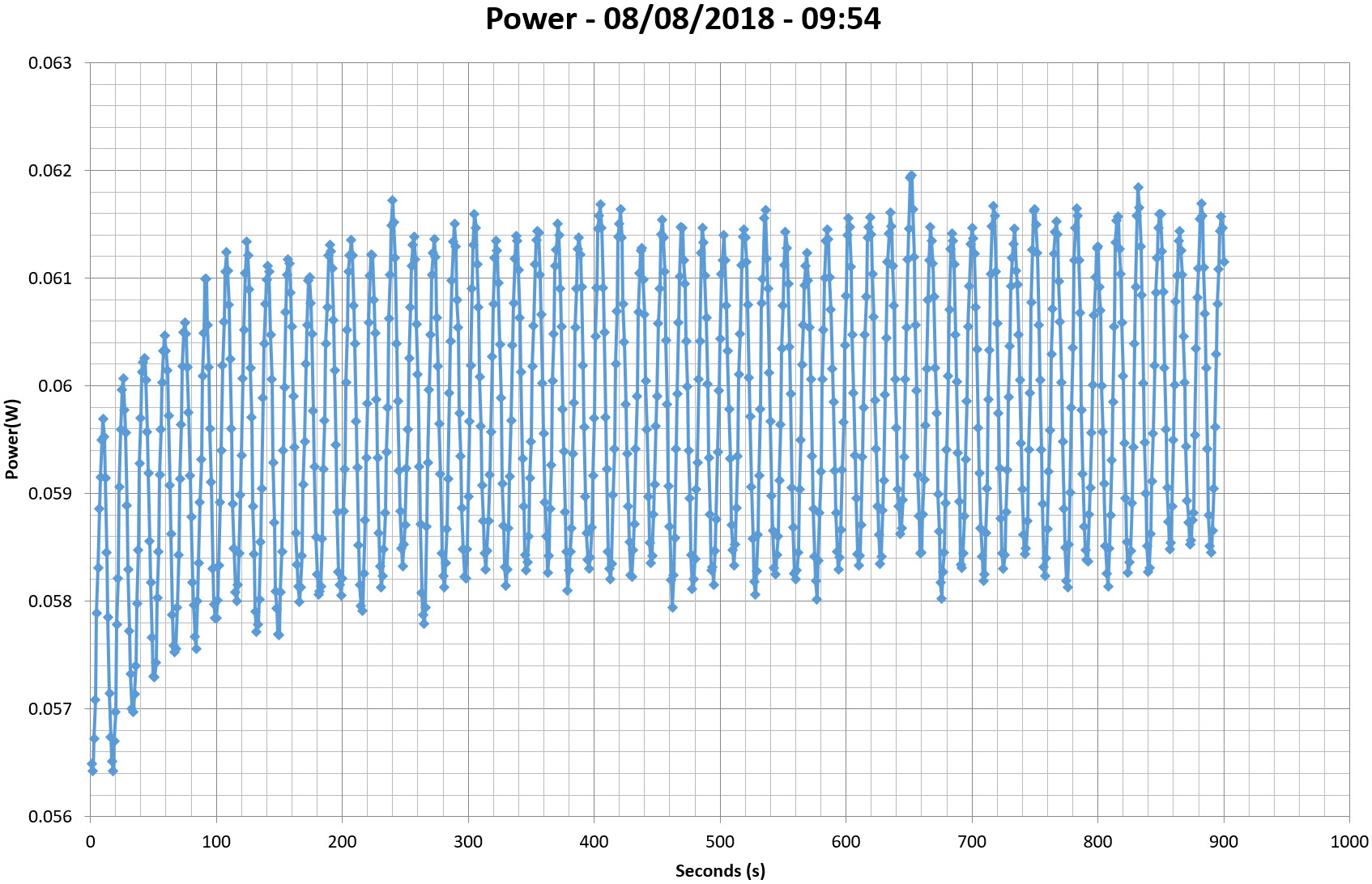

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

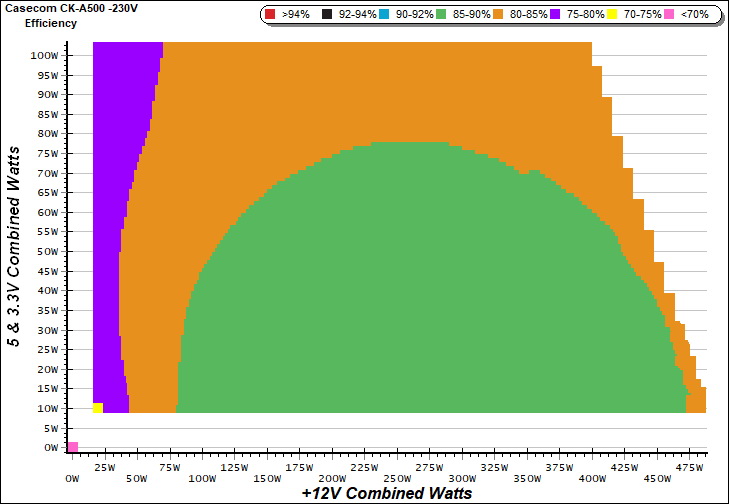

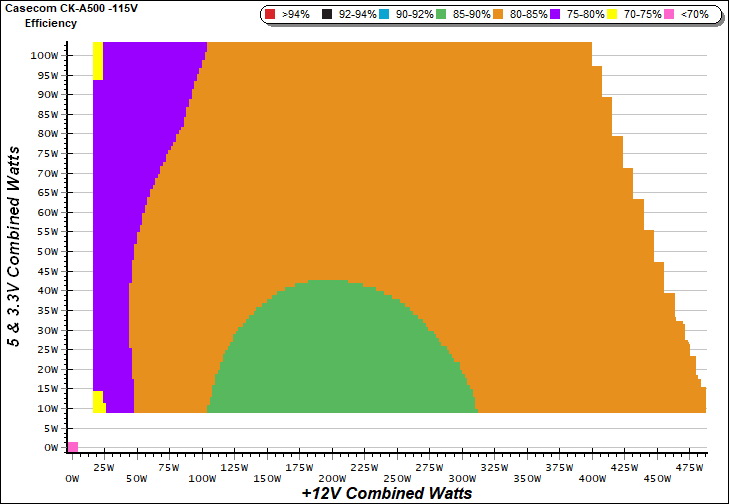

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

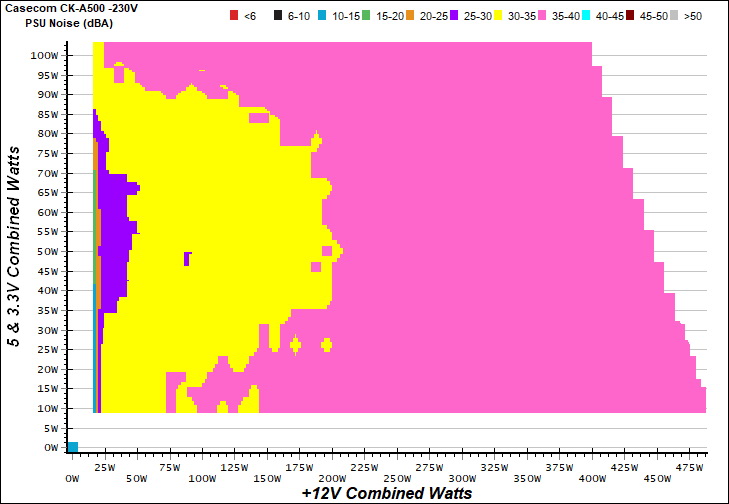

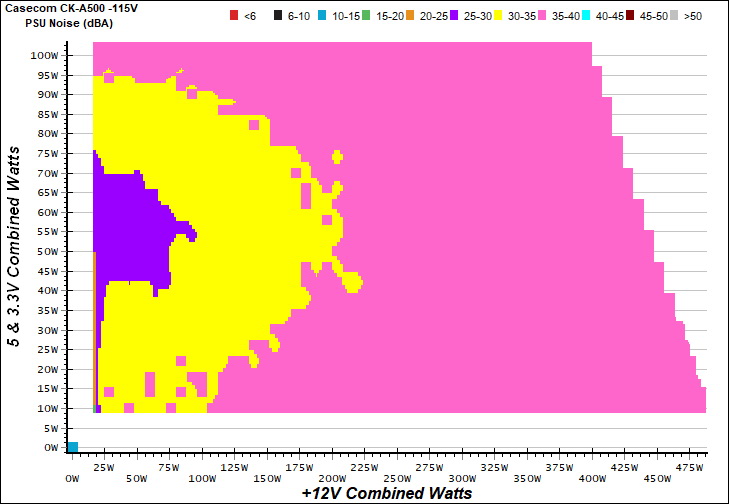

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

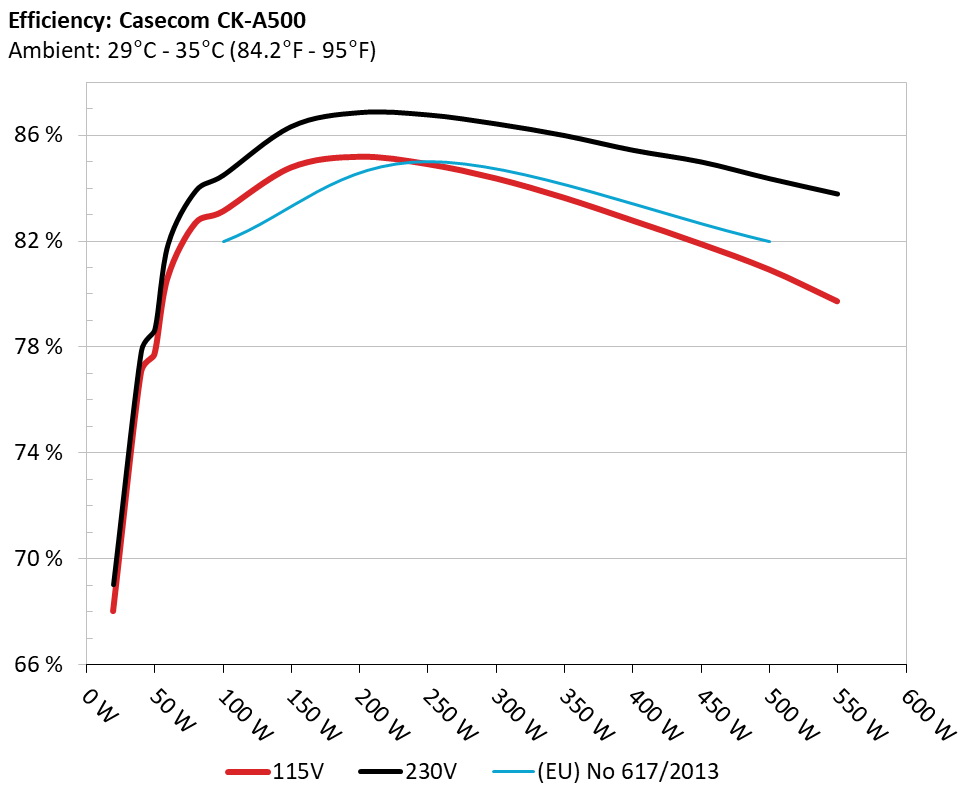

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

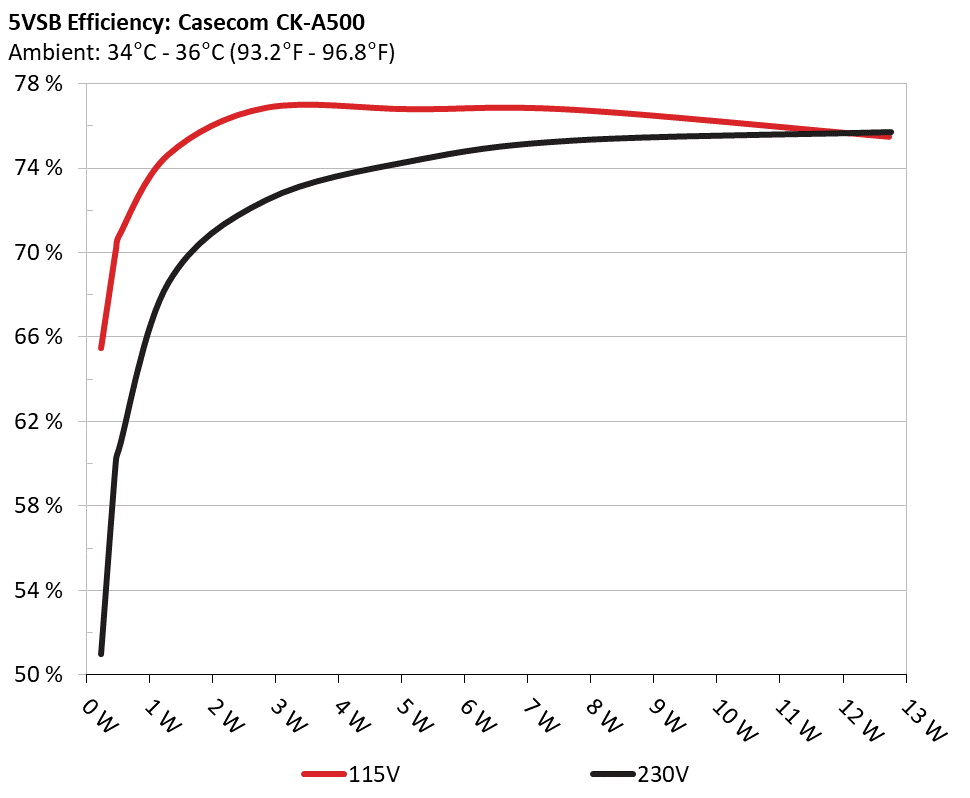

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235 65.460% 0.029
5.206V 0.359 115.38V
2 0.090A 0.469 70.105% 0.053
5.205V 0.669 115.38V
3 0.550A 2.855 76.851% 0.240
5.191V 3.715 115.37V
4 1.000A 5.171 76.778% 0.339
5.170V 6.735 115.37V
5 1.500A 7.720 76.755% 0.398
5.146V 10.058 115.36V
6 2.500A 12.735 75.476% 0.456
5.093V 16.873 115.36V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235 50.976% 0.012
5.206V 0.461 230.84V
2 0.090A 0.469 60.128% 0.021
5.205V 0.780 230.84V
3 0.550A 2.854 72.492% 0.101
5.188V 3.937 230.83V
4 1.000A 5.170 74.346% 0.166
5.170V 6.954 230.83V
5 1.500A 7.724 75.312% 0.224
5.149V 10.256 230.83V
6 2.500A 12.755 75.711% 0.303
5.101V 16.847 230.83V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.248A 1.977A 1.971A 0.969A 49.694 77.716% 890 15.3 30.48°C 0.884
12.495V 5.061V 3.348V 5.161V 63.943 32.17°C 115.30V
2 5.516A 2.972A 2.961A 1.166A 99.762 83.135% 1105 21.9 30.92°C 0.940
12.483V 5.051V 3.341V 5.147V 120.000 33.22°C 115.23V
3 9.132A 3.463A 3.447A 1.364A 149.674 84.798% 1430 28.6 31.36°C 0.967
12.447V 5.056V 3.336V 5.132V 176.507 34.16°C 115.16V
4 12.758A 3.959A 3.963A 1.565A 199.689 85.207% 1575 31.2 31.79°C 0.978
12.422V 5.054V 3.330V 5.114V 234.358 35.12°C 115.19V
5 16.051A 4.963A 4.965A 1.765A 249.799 84.930% 1745 34.1 31.89°C 0.984
12.416V 5.039V 3.323V 5.101V 294.124 35.86°C 115.11V
6 19.348A 5.974A 5.969A 1.967A 299.896 84.386% 1830 35.2 32.10°C 0.986
12.409V 5.024V 3.316V 5.084V 355.384 36.92°C 115.04V
7 22.647A 6.982A 6.991A 2.173A 349.997 83.651% 1845 35.3 32.44°C 0.986
12.403V 5.009V 3.309V 5.062V 418.403 37.54°C 114.95V
8 25.955A 8.012A 7.997A 2.379A 400.099 82.790% 1870 35.6 32.92°C 0.986
12.394V 4.993V 3.302V 5.045V 483.271 38.45°C 114.97V
9 29.721A 8.510A 8.497A 2.383A 449.800 81.908% 1850 35.4 33.14°C 0.985
12.358V 4.995V 3.295V 5.037V 549.150 39.26°C 114.89V
10 33.503A 9.007A 9.033A 2.489A 500.104 80.936% 1850 35.4 33.86°C 0.984
12.324V 4.997V 3.288V 5.024V 617.898 40.47°C 114.80V
11 37.717A 8.979A 9.051A 2.492A 549.737 79.739% 1848 35.3 34.78°C 0.983
12.263V 5.013V 3.281V 5.018V 689.417 41.12°C 114.70V
CL1 0.135A 12.004A 11.999A 0.000A 97.135 72.294% 1940 36.2 31.79°C 0.951
13.177V 4.616V 3.329V 5.174V 134.362 35.65°C 115.22V
CL2 40.006A 1.002A 0.999A 1.000A 486.490 81.871% 1800 34.9 33.17°C 0.985
11.817V 5.323V 3.303V 5.106V 594.212 39.29°C 114.85V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.247A 1.974A 1.971A 0.969A 49.665 78.642% 880 15.1 30.52°C 0.629
12.495V 5.061V 3.348V 5.160V 63.153 32.76°C 230.91V
2 5.515A 2.969A 2.961A 1.166A 99.730 84.487% 1070 22.9 30.74°C 0.832
12.482V 5.051V 3.342V 5.146V 118.042 33.37°C 230.88V
3 9.131A 3.461A 3.445A 1.364A 149.650 86.335% 1310 27.7 31.12°C 0.893
12.448V 5.055V 3.336V 5.132V 173.337 34.47°C 230.84V
4 12.756A 3.959A 3.962A 1.565A 199.673 86.865% 1525 30.6 31.47°C 0.927
12.423V 5.054V 3.330V 5.114V 229.866 35.22°C 230.80V
5 16.048A 4.963A 4.965A 1.765A 249.779 86.777% 1680 33.0 31.70°C 0.948
12.417V 5.039V 3.323V 5.101V 287.840 36.36°C 230.75V
6 19.346A 5.974A 5.969A 1.967A 299.878 86.437% 1833 35.2 32.17°C 0.958
12.409V 5.024V 3.317V 5.084V 346.931 37.64°C 230.72V
7 22.644A 6.990A 6.979A 2.173A 349.982 85.994% 1850 35.4 32.45°C 0.966
12.404V 5.009V 3.309V 5.062V 406.984 38.28°C 230.67V
8 25.950A 8.013A 7.995A 2.379A 400.084 85.440% 1870 35.6 32.65°C 0.971
12.396V 4.993V 3.302V 5.044V 468.263 39.06°C 230.73V
9 29.709A 8.510A 8.493A 2.383A 449.775 85.001% 1860 35.5 33.27°C 0.975
12.362V 4.996V 3.296V 5.037V 529.139 40.66°C 230.69V
10 33.506A 9.009A 9.033A 2.489A 500.118 84.364% 1850 35.4 33.60°C 0.978
12.323V 4.997V 3.288V 5.024V 592.809 41.95°C 230.64V
11 37.720A 8.977A 9.050A 2.492A 549.740 83.789% 1848 35.3 34.32°C 0.979
12.262V 5.014V 3.282V 5.018V 656.101 43.01°C 230.60V
CL1 0.133A 12.003A 12.000A 0.000A 97.083 73.589% 1935 36.1 31.19°C 0.849
13.181V 4.614V 3.329V 5.174V 131.926 35.92°C 230.69V
CL2 40.011A 1.002A 1.000A 1.000A 486.078 84.978% 1800 34.9 33.06°C 0.977
11.805V 5.327V 3.301V 5.108V 572.002 41.35°C 230.65V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.161A 0.488A 0.476A 0.193A 19.542 68.010% 830 14.1 0.755
12.446V 5.107V 3.355V 5.196V 28.734 115.35V
2 2.380A 0.982A 0.982A 0.386A 39.935 77.053% 845 14.3 0.878
12.453V 5.095V 3.352V 5.186V 51.828 115.32V
3 3.539A 1.475A 1.461A 0.580A 59.477 80.641% 865 14.8 0.895
12.456V 5.085V 3.349V 5.175V 73.755 115.30V
4 4.754A 1.970A 1.973A 0.774A 79.818 82.700% 890 15.3 0.920
12.457V 5.076V 3.345V 5.166V 96.515 115.27V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.162A 0.489A 0.475A 0.193A 19.554 69.020% 830 14.1 0.375
12.444V 5.106V 3.354V 5.196V 28.331 230.93V
2 2.380A 0.980A 0.984A 0.386A 39.929 77.846% 840 14.2 0.557
12.452V 5.095V 3.352V 5.186V 51.292 230.91V
3 3.538A 1.474A 1.463A 0.580A 59.465 81.882% 855 14.5 0.695
12.456V 5.085V 3.349V 5.175V 72.623 230.74V
4 4.753A 1.970A 1.971A 0.774A 79.794 83.908% 885 15.2 0.798
12.456V 5.076V 3.345V 5.166V 95.097 230.89V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.2 mV 8.4 mV 21.0 mV 7.2 mV Pass
20% Load 8.9 mV 9.2 mV 23.2 mV 12.8 mV Pass
30% Load 11.8 mV 10.7 mV 25.4 mV 14.7 mV Pass
40% Load 13.1 mV 12.5 mV 26.7 mV 16.0 mV Pass
50% Load 14.5 mV 14.6 mV 29.6 mV 16.5 mV Pass
60% Load 17.9 mV 16.2 mV 32.7 mV 17.2 mV Pass
70% Load 21.2 mV 19.3 mV 35.3 mV 16.5 mV Pass
80% Load 28.2 mV 23.8 mV 39.6 mV 18.6 mV Pass
90% Load 39.7 mV 30.3 mV 41.0 mV 19.6 mV Pass
100% Load 46.8 mV 36.0 mV 45.0 mV 21.9 mV Pass
110% Load 56.9 mV 43.2 mV 46.8 mV 26.3 mV Pass
Crossload 1 30.8 mV 97.8 mV 30.0 mV 10.4 mV Fail
Crossload 2 44.9 mV 40.3 mV 33.2 mV 17.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.8 mV 8.3 mV 20.5 mV 7.3 mV Pass
20% Load 8.9 mV 9.0 mV 22.6 mV 11.1 mV Pass
30% Load 10.3 mV 10.3 mV 25.0 mV 10.6 mV Pass
40% Load 12.6 mV 12.7 mV 26.8 mV 10.8 mV Pass
50% Load 15.8 mV 15.2 mV 29.5 mV 16.3 mV Pass
60% Load 18.3 mV 16.5 mV 32.6 mV 14.5 mV Pass
70% Load 20.9 mV 19.4 mV 34.5 mV 12.3 mV Pass
80% Load 24.8 mV 22.2 mV 38.5 mV 15.3 mV Pass
90% Load 27.4 mV 25.9 mV 39.0 mV 15.3 mV Pass
100% Load 33.8 mV 30.1 mV 40.7 mV 15.8 mV Pass
110% Load 40.0 mV 35.4 mV 41.6 mV 16.8 mV Pass
Crossload 1 26.6 mV 88.1 mV 30.7 mV 9.1 mV Fail
Crossload 2 32.5 mV 39.4 mV 31.4 mV 12.4 mV Pass

The results above are not used in the certification process

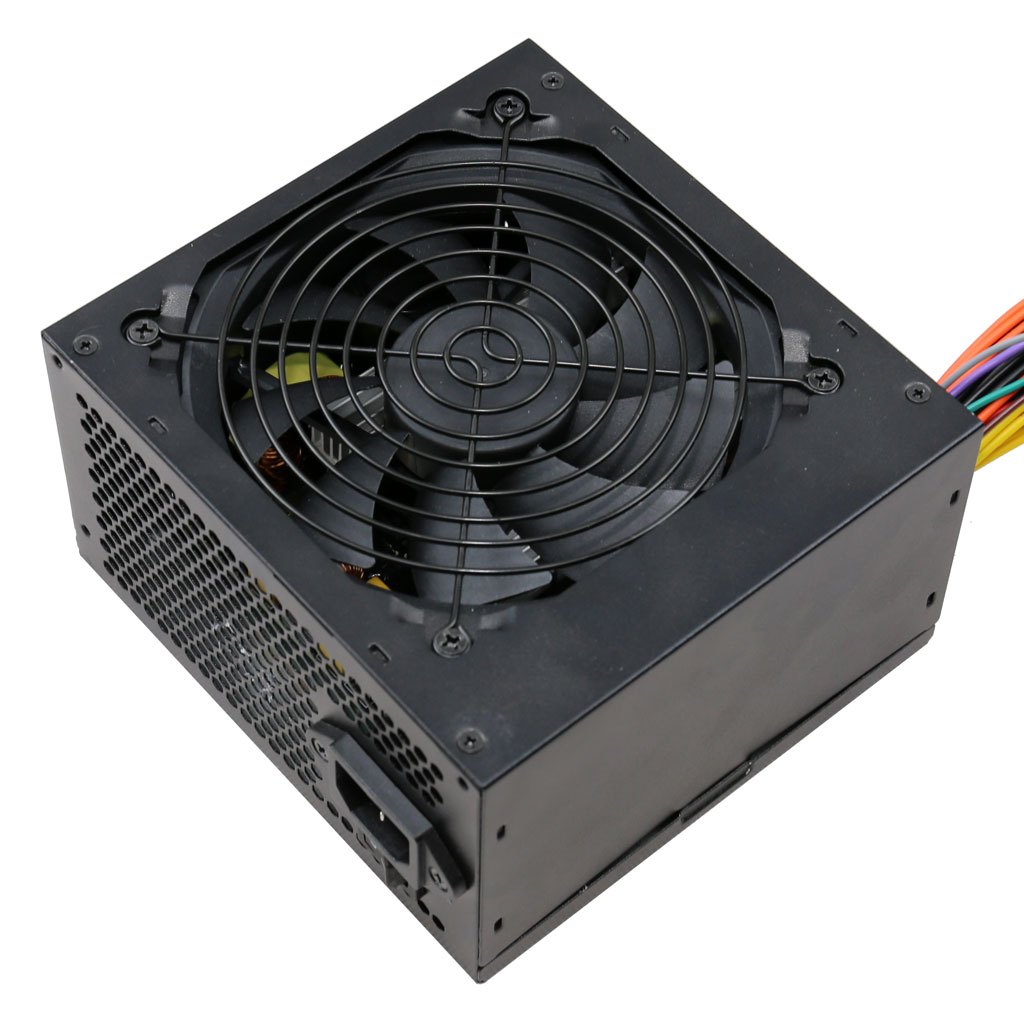

Casecom CK-A500

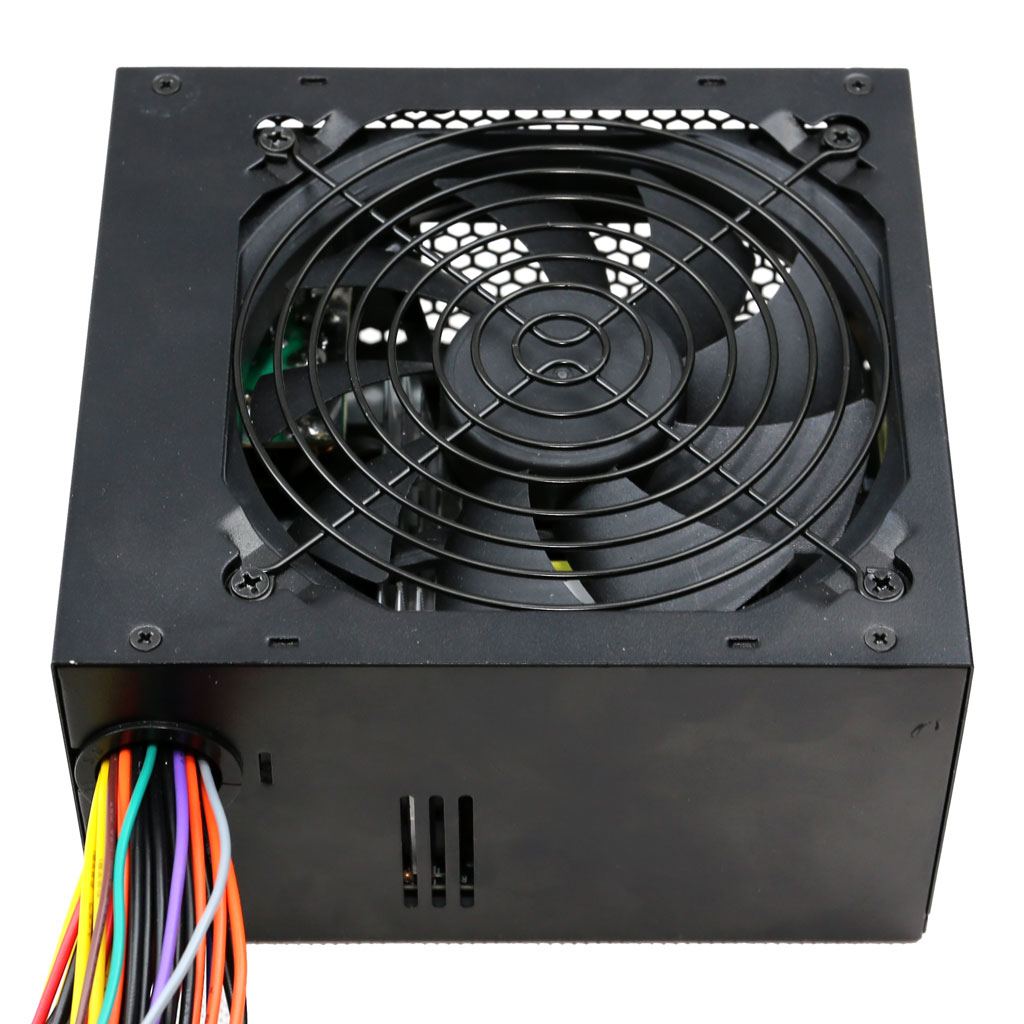

Top side
Back side
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
