Asus ROG-THOR-850P (#1)
Serial NumberAX19030003
Lab ID448
  • Report:
  • Receipt Date: Jul 31, 2018
  • Test Date: Aug 6, 2018
  • Report Date: Aug 8, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Seasonic
SeriesRog Thor Platinum
Model NumberRTSS02-850P1
Serial NumberAX19030003
DUT NotesRTSS02-850P1

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(PLA13525B12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 71 3 0.3
Watts 100 852 15 3.6
Total Max. Power (W) 852

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm) 2 2 18AWG No
6+2 pin PCIe (680mm+70mm) 1 2 18-20AWG Yes
SATA (450mm+115mm) 1 2 18AWG No
SATA (450mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
4 pin Molex (450mm+115mm+115mm) 1 3 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
RGB Cable (800mm) 1 1 22AWG No

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model Focus Plus Platinum
Primary Side
Transient Filter 4x Y caps, 1x X caps, 2x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x APD ALB2560U (600V, 25A)
APFC MOSFETS 2x Infineon IPP60R125CP (650V, 16A @ 100°C, 0.125 Ohm)
APFC Boost Diode 1x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap Hitachi (400V, 820uF, 2000h @ 105°C, HU)
Main Switchers 4x Infineon IPP50R199CP
(550V, 11A @ 100°C, 0.199 Ohm)
APFC Controller Champion CM6500UNX
Current Sensor IC Allegro ACS725T
Switching Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia MOSFETs
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mΩ)
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (4,000-10,000h @ 105°C, KY), Chemi-Con (1,000-5,000h @ 105°C, KZE), 3x Nichicon (4,000-10,000h @ 105°C, HE), Rubycon (5VSB circuit, 105°C, YXD)
Polymers: FPCAP, Nippon Chemi-Con
Micro Controller Microchip ATmega8A
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG )
Fan Model Power Logic PLA13525B12M (135mm, 12V, 0.40A, 2000 RPM, 111.1 CFM, 41.6 dB[A], Double Ball Bearing)
5VSB Circuit
PWM Controller Excelliance EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.3
AC Loss to PWR_OK Hold Up Time (ms)20.1
PWR_OK Inactive to DC Loss Delay (ms)4.2

Vampire Power

Graphs

INFO

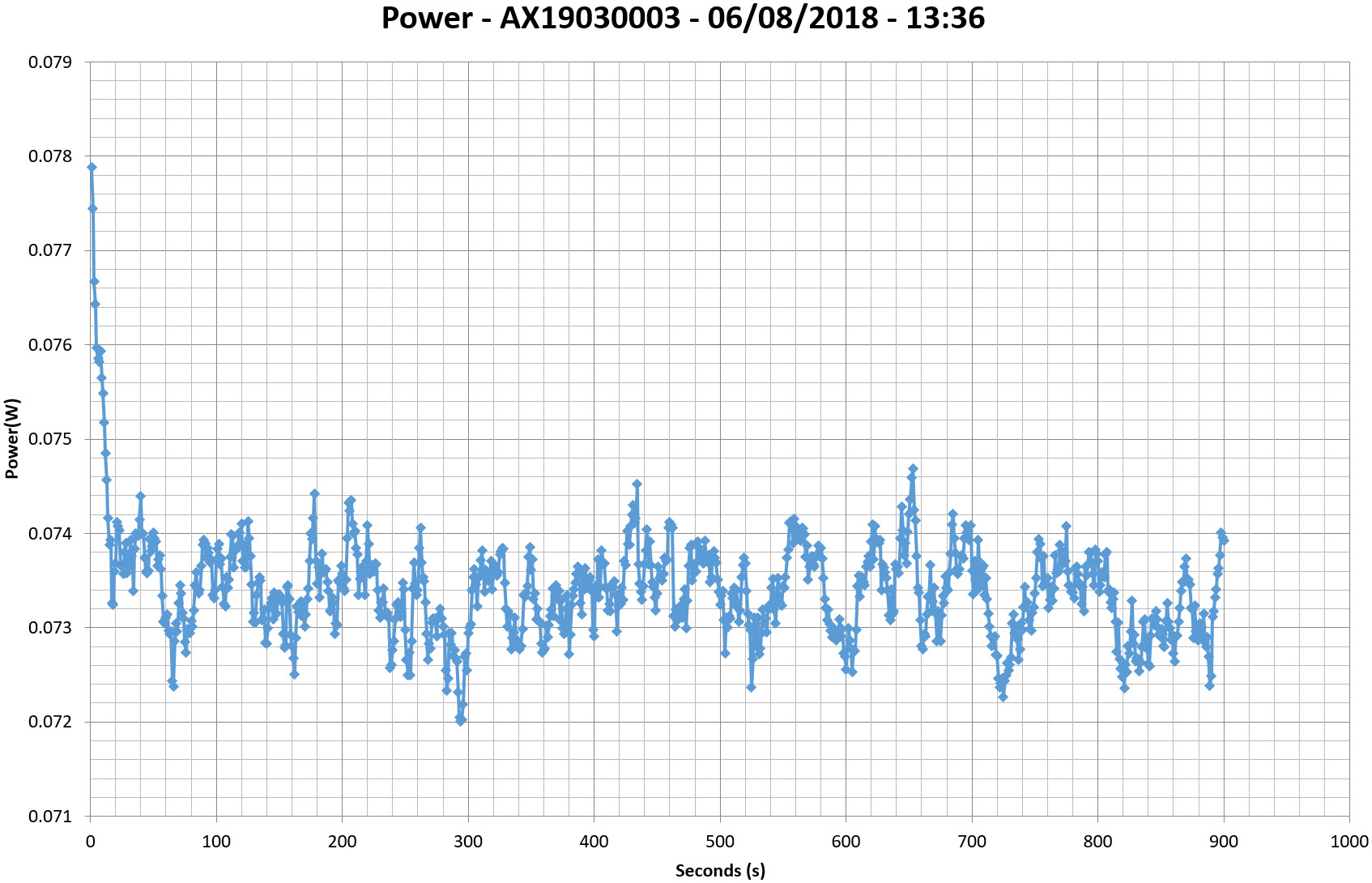

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

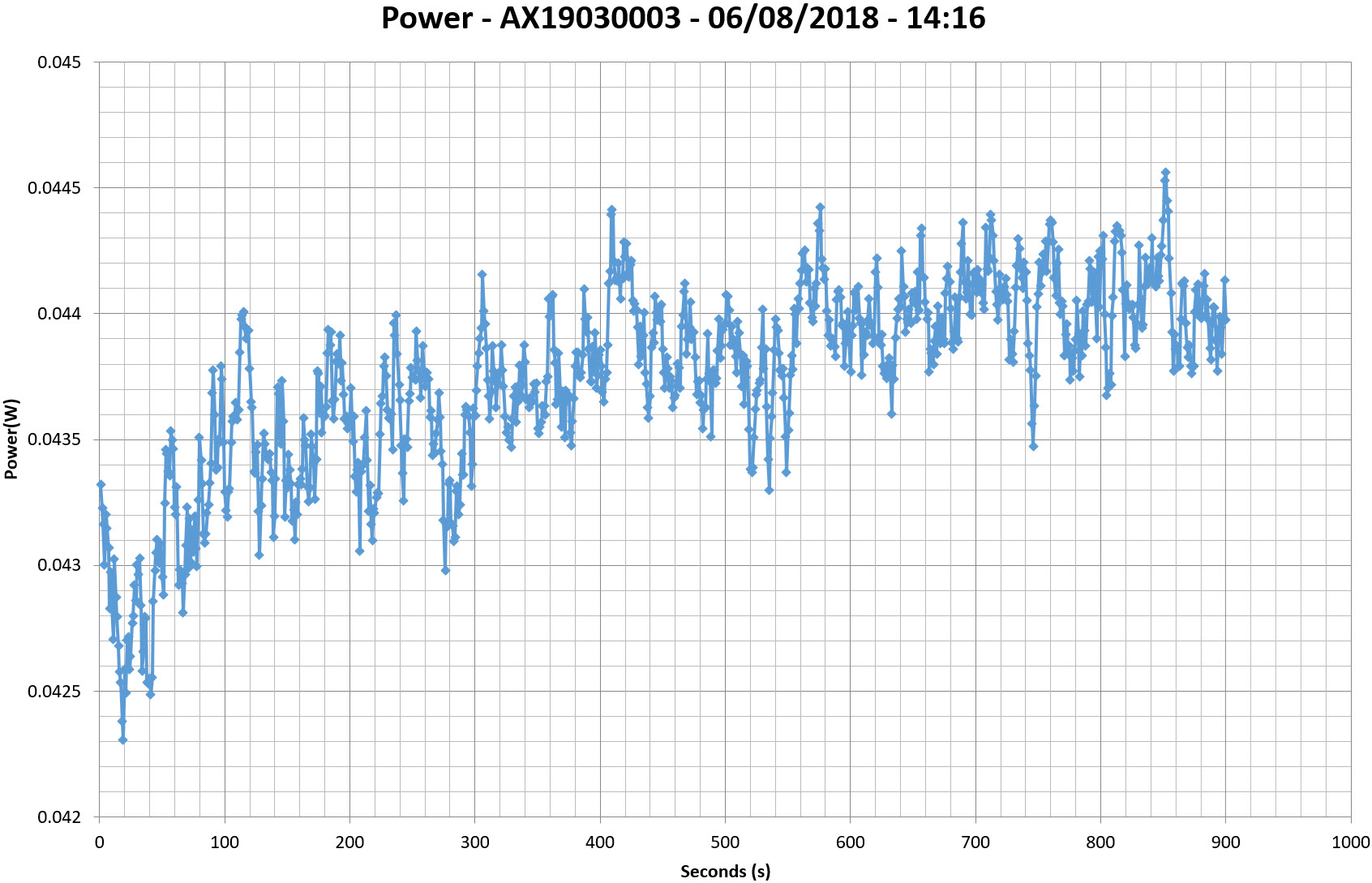

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

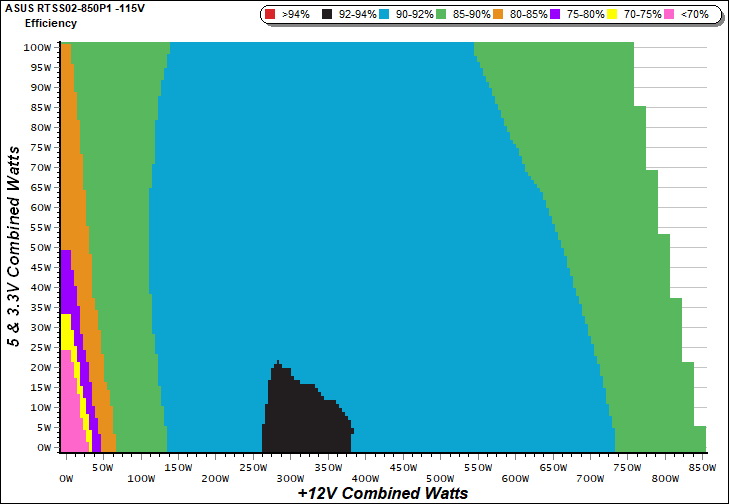

Efficiency Graph

INFO

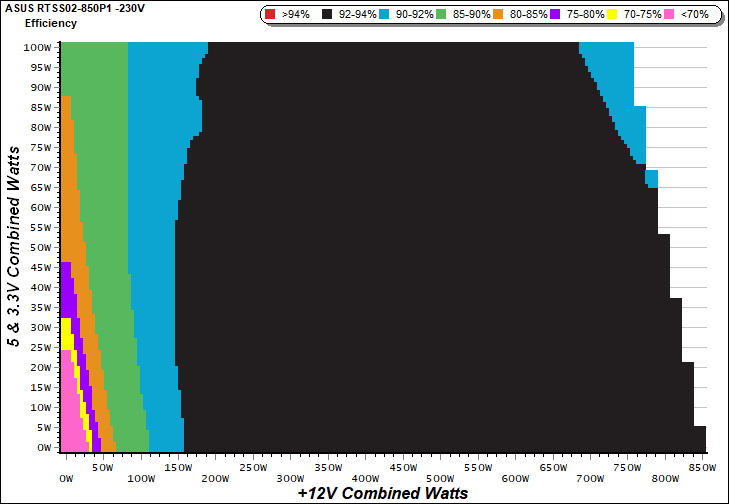

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

INFO

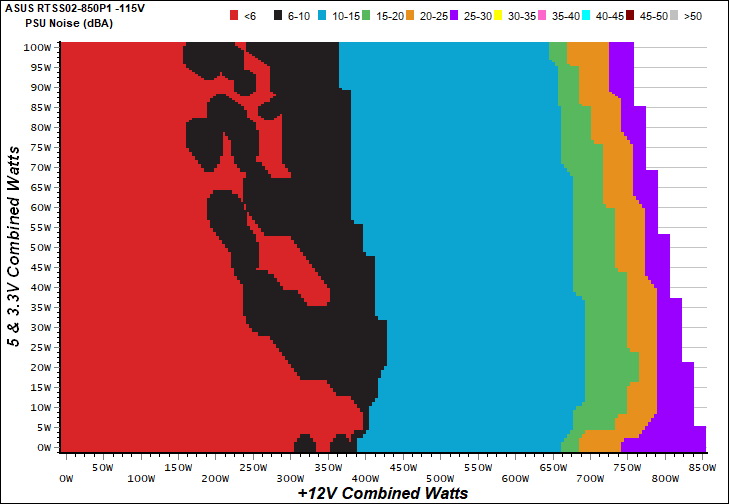

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

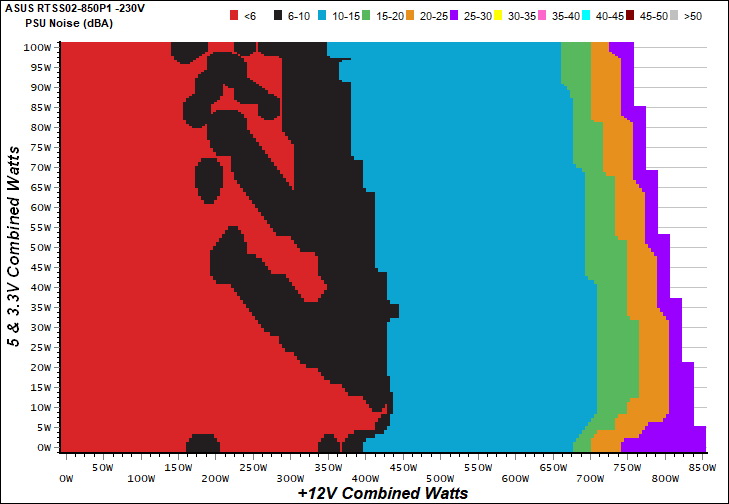

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

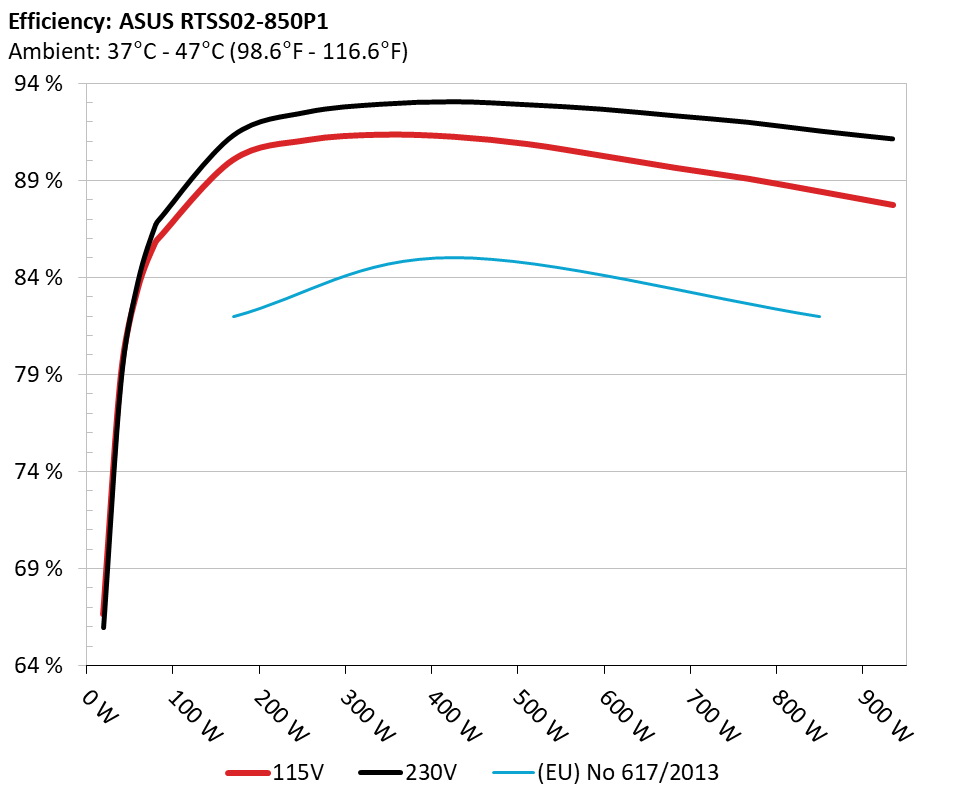

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

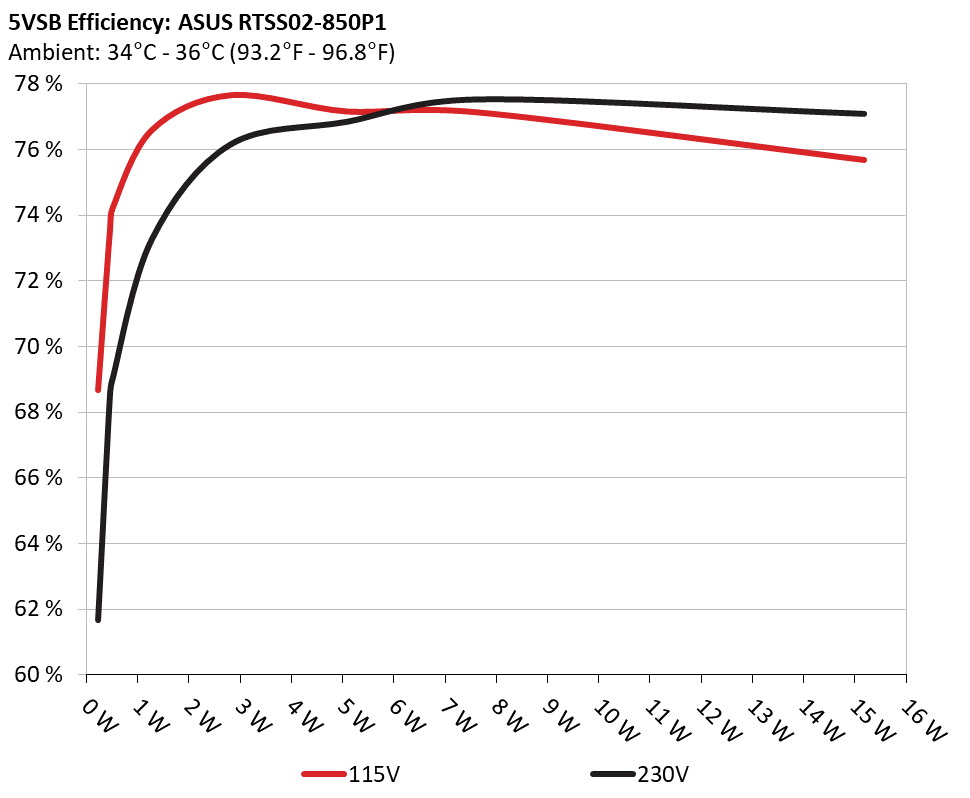

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 68.657% 0.055
5.121V 0.335 115.10V
2 0.090A 0.461 73.525% 0.099
5.120V 0.627 115.10V
3 0.550A 2.811 77.652% 0.328
5.112V 3.620 115.10V
4 1.000A 5.103 77.155% 0.398
5.102V 6.614 115.10V
5 1.500A 7.639 77.130% 0.435
5.092V 9.904 115.10V
6 3.000A 15.179 75.679% 0.481
5.059V 20.057 115.10V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 61.662% 0.019
5.121V 0.373 230.25V
2 0.090A 0.461 68.499% 0.033
5.120V 0.673 230.25V
3 0.550A 2.811 76.138% 0.160
5.111V 3.692 230.25V
4 1.000A 5.102 76.837% 0.241
5.102V 6.640 230.25V
5 1.500A 7.639 77.514% 0.296
5.092V 9.855 230.25V
6 3.000A 15.187 77.076% 0.373
5.062V 19.704 230.25V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.212A 1.977A 1.983A 0.982A 84.782 86.091% 0 <6.0 48.02°C 0.969
12.123V 5.057V 3.327V 5.094V 98.480 39.01°C 115.11V
2 11.485A 2.967A 2.975A 1.180A 170.101 90.079% 587 11.9 40.20°C 0.984
12.121V 5.055V 3.326V 5.083V 188.835 49.89°C 115.11V
3 18.089A 3.463A 3.459A 1.380A 255.216 91.091% 408 7.2 40.66°C 0.986
12.119V 5.052V 3.325V 5.072V 280.177 50.72°C 115.14V
4 24.694A 3.962A 3.971A 1.581A 340.420 91.369% 585 11.8 41.20°C 0.987
12.117V 5.049V 3.323V 5.062V 372.576 51.56°C 115.15V
5 30.975A 4.954A 4.966A 1.782A 425.763 91.265% 587 11.9 41.83°C 0.987
12.115V 5.047V 3.322V 5.051V 466.511 52.73°C 115.13V
6 37.259A 5.948A 5.964A 1.985A 511.098 90.889% 592 12.1 42.22°C 0.988
12.112V 5.045V 3.321V 5.039V 562.333 54.23°C 115.09V
7 43.543A 6.943A 6.960A 2.188A 596.418 90.292% 606 12.7 43.26°C 0.989
12.110V 5.043V 3.319V 5.027V 660.546 56.15°C 115.09V
8 49.832A 7.934A 7.955A 2.393A 681.757 89.667% 885 24.1 44.37°C 0.990
12.108V 5.041V 3.318V 5.015V 760.319 58.30°C 115.09V
9 56.518A 8.436A 8.438A 2.396A 766.704 89.103% 1250 35.2 45.50°C 0.991
12.106V 5.039V 3.317V 5.008V 860.467 58.22°C 115.08V
10 62.976A 8.938A 8.956A 3.007A 851.910 88.423% 1570 40.1 45.97°C 0.992
12.103V 5.036V 3.316V 4.989V 963.452 59.20°C 115.08V
11 69.829A 8.939A 8.959A 3.011A 934.702 87.747% 1785 44.5 46.89°C 0.993
12.101V 5.034V 3.315V 4.983V 1065.219 60.56°C 115.08V
CL1 0.147A 12.000A 12.000A 0.000A 102.270 85.158% 590 12.0 42.55°C 0.973
12.121V 5.053V 3.321V 5.098V 120.094 52.52°C 115.12V
CL2 71.013A 1.003A 0.999A 1.000A 872.884 88.769% 1610 40.5 45.96°C 0.992
12.103V 5.040V 3.322V 5.040V 983.317 59.32°C 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.211A 1.977A 1.982A 0.982A 84.763 87.018% 0 <6.0 48.03°C 0.844
12.122V 5.057V 3.327V 5.094V 97.409 38.70°C 230.26V
2 11.483A 2.967A 2.974A 1.181A 170.077 91.313% 0 <6.0 48.65°C 0.922
12.121V 5.055V 3.326V 5.082V 186.257 39.12°C 230.28V
3 18.089A 3.463A 3.459A 1.380A 255.209 92.503% 384 6.7 40.11°C 0.948
12.119V 5.051V 3.324V 5.072V 275.894 49.82°C 230.27V
4 24.693A 3.961A 3.971A 1.581A 340.402 92.912% 583 11.8 40.85°C 0.960
12.117V 5.049V 3.323V 5.061V 366.369 50.80°C 230.27V
5 30.973A 4.954A 4.964A 1.782A 425.725 93.043% 587 11.9 41.28°C 0.969
12.115V 5.047V 3.321V 5.050V 457.557 51.78°C 230.27V
6 37.257A 5.949A 5.964A 1.985A 511.071 92.889% 593 12.1 41.97°C 0.973
12.112V 5.045V 3.320V 5.038V 550.194 52.82°C 230.30V
7 43.540A 6.943A 6.960A 2.189A 596.386 92.661% 603 12.6 42.26°C 0.977
12.110V 5.043V 3.319V 5.026V 643.623 53.60°C 230.27V
8 49.830A 7.937A 7.954A 2.393A 681.742 92.322% 866 23.4 43.51°C 0.979
12.108V 5.041V 3.318V 5.014V 738.439 55.45°C 230.27V
9 56.515A 8.438A 8.441A 2.397A 766.684 91.985% 1190 33.4 44.75°C 0.981
12.106V 5.038V 3.317V 5.008V 833.488 57.25°C 230.26V
10 62.970A 8.938A 8.957A 3.007A 851.901 91.527% 1560 40.0 45.86°C 0.983
12.104V 5.036V 3.316V 4.988V 930.761 58.88°C 230.27V
11 69.828A 8.940A 8.961A 3.011A 934.698 91.131% 1790 44.5 46.75°C 0.984
12.101V 5.034V 3.315V 4.982V 1025.669 60.42°C 230.27V
CL1 0.145A 12.000A 11.999A 0.000A 102.243 85.749% 592 12.1 41.43°C 0.870
12.122V 5.053V 3.321V 5.097V 119.235 52.15°C 230.28V
CL2 71.005A 1.002A 0.999A 1.000A 872.851 91.962% 1625 40.9 45.84°C 0.983
12.104V 5.039V 3.321V 5.040V 949.142 58.97°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.493A 0.479A 0.195A 19.443 66.668% 0 <6.0 0.872
12.124V 5.062V 3.331V 5.117V 29.164 115.11V
2 2.440A 0.986A 0.990A 0.391A 39.862 78.908% 0 <6.0 0.937
12.124V 5.057V 3.328V 5.111V 50.517 115.11V
3 3.627A 1.482A 1.470A 0.588A 59.360 83.397% 0 <6.0 0.952
12.123V 5.058V 3.328V 5.105V 71.178 115.11V
4 4.882A 1.977A 1.980A 0.784A 79.767 85.811% 0 <6.0 0.969
12.123V 5.057V 3.327V 5.099V 92.957 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.494A 0.479A 0.195A 19.447 65.965% 0 <6.0 0.575
12.124V 5.061V 3.330V 5.116V 29.481 230.26V
2 2.439A 0.987A 0.990A 0.391A 39.853 78.706% 0 <6.0 0.705
12.124V 5.057V 3.327V 5.110V 50.635 230.27V
3 3.625A 1.483A 1.471A 0.588A 59.341 83.775% 0 <6.0 0.781
12.123V 5.057V 3.328V 5.104V 70.834 230.26V
4 4.880A 1.976A 1.980A 0.785A 79.743 86.703% 0 <6.0 0.835
12.123V 5.057V 3.327V 5.098V 91.973 230.27V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.0 mV 6.1 mV 11.2 mV 8.3 mV Pass
20% Load 13.5 mV 7.9 mV 11.8 mV 7.9 mV Pass
30% Load 16.0 mV 7.0 mV 12.8 mV 8.7 mV Pass
40% Load 16.6 mV 8.0 mV 13.2 mV 9.3 mV Pass
50% Load 14.3 mV 8.2 mV 14.7 mV 8.2 mV Pass
60% Load 13.4 mV 10.4 mV 15.4 mV 8.8 mV Pass
70% Load 13.6 mV 10.0 mV 16.4 mV 9.1 mV Pass
80% Load 14.3 mV 9.8 mV 17.2 mV 10.4 mV Pass
90% Load 15.9 mV 10.0 mV 17.2 mV 10.3 mV Pass
100% Load 17.1 mV 10.2 mV 18.8 mV 13.4 mV Pass
110% Load 18.8 mV 10.6 mV 19.2 mV 15.2 mV Pass
Crossload 1 11.6 mV 6.9 mV 18.0 mV 6.9 mV Pass
Crossload 2 16.9 mV 9.1 mV 16.0 mV 12.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.9 mV 5.3 mV 10.7 mV 7.3 mV Pass
20% Load 13.6 mV 6.7 mV 10.6 mV 8.7 mV Pass
30% Load 16.1 mV 7.4 mV 11.6 mV 9.2 mV Pass
40% Load 16.7 mV 7.4 mV 11.7 mV 8.7 mV Pass
50% Load 15.2 mV 8.6 mV 13.3 mV 8.4 mV Pass
60% Load 13.8 mV 9.6 mV 14.6 mV 8.6 mV Pass
70% Load 13.9 mV 9.7 mV 15.3 mV 8.3 mV Pass
80% Load 14.8 mV 9.7 mV 17.1 mV 9.2 mV Pass
90% Load 15.9 mV 9.1 mV 16.6 mV 9.0 mV Pass
100% Load 16.7 mV 10.3 mV 18.3 mV 11.0 mV Pass
110% Load 18.0 mV 10.5 mV 18.8 mV 10.5 mV Pass
Crossload 1 11.2 mV 7.1 mV 16.3 mV 7.5 mV Pass
Crossload 2 16.6 mV 9.5 mV 12.8 mV 10.0 mV Pass

The results above are not used in the certification process

Asus ROG-THOR-850P (#1)

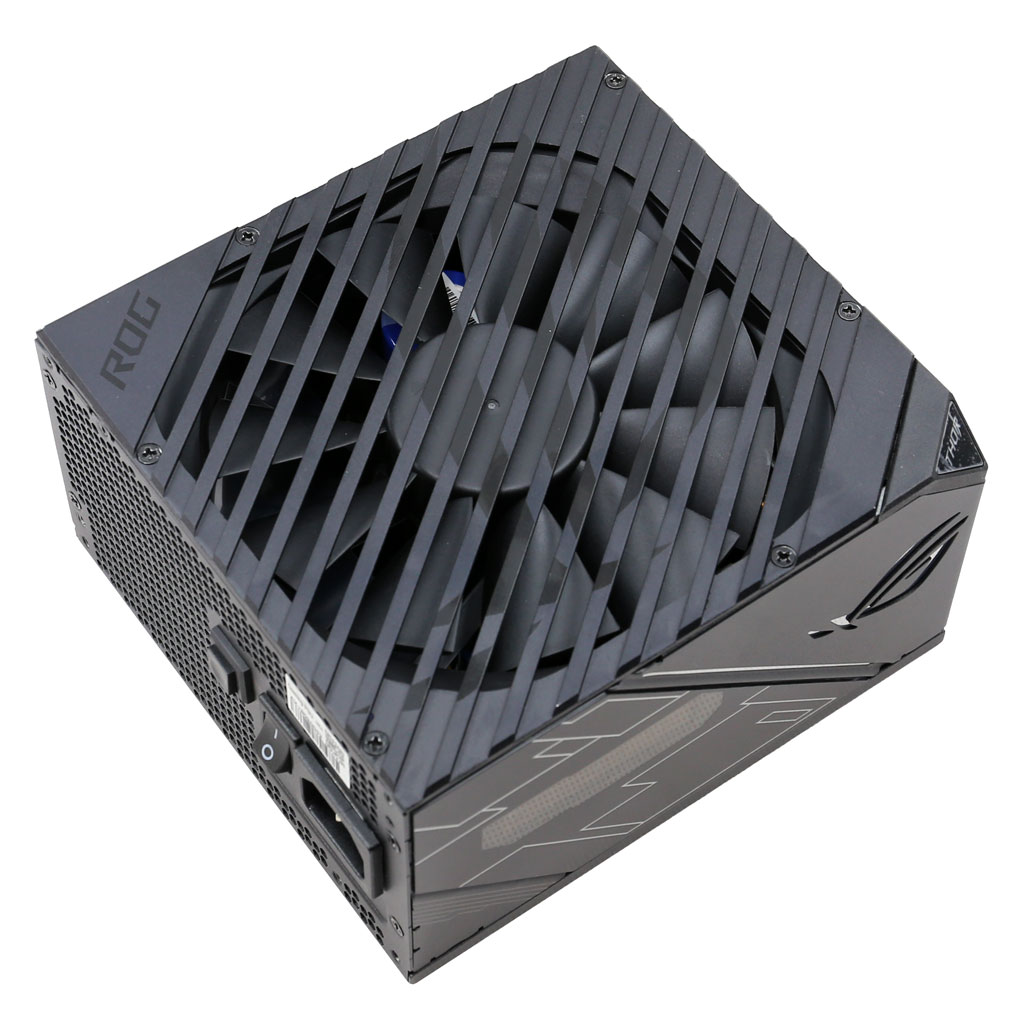

Top side

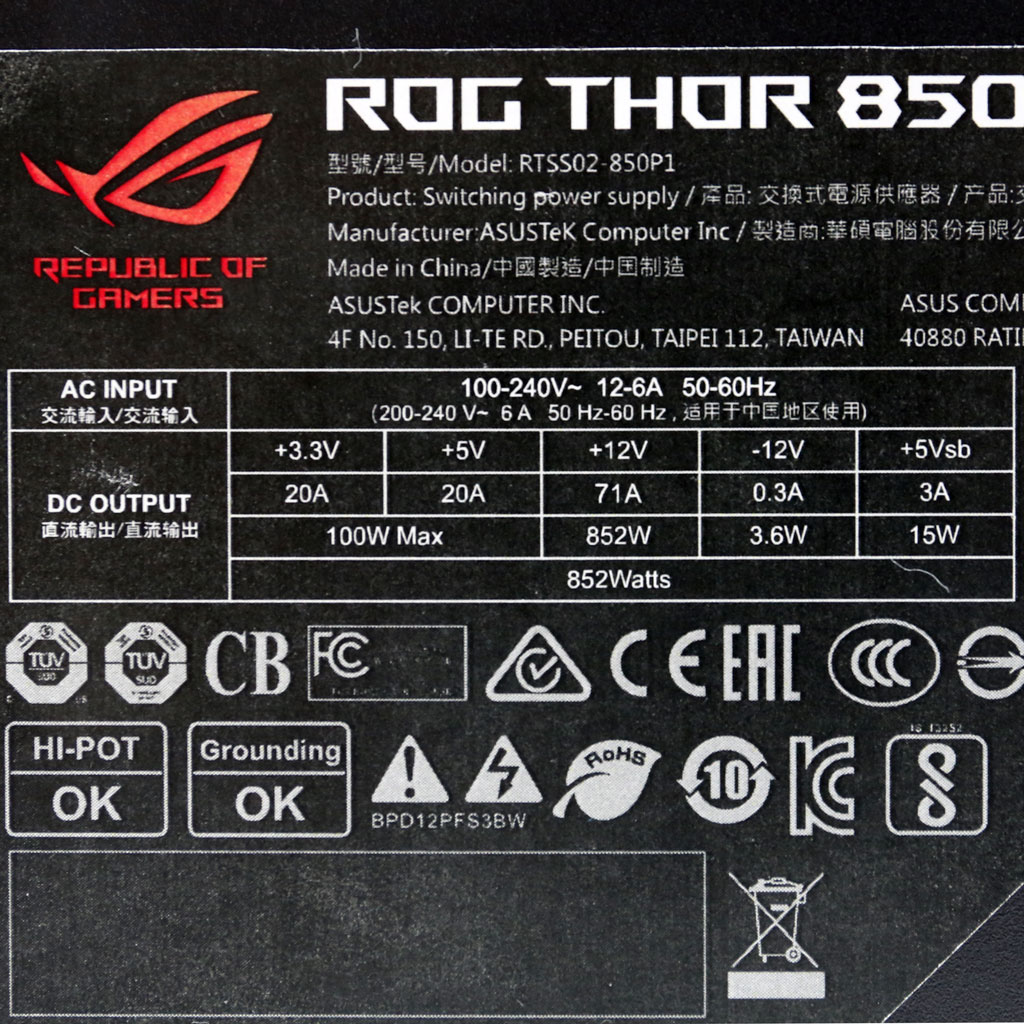

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
