CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PowerSpec Super Power 850W (#2)
Serial Number1805120108991850FGD1F03001437
Lab ID376
  • Report:
  • Receipt Date: Oct 26, 2018
  • Test Date: Nov 3, 2018
  • Report Date: Nov 5, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandPowerSpec
Manufacturer (OEM)Micro Electronics Inc.
SeriesSuper Power
Model NumberPSX 850GFM
Serial Number1805120108991850FGD1F03001437
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Sleeve Bearing Fan
(BDH13525S)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 70.9 3 0.3
Watts 120 850 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm+150mm) 2 2 16-18AWG No
6+2 pin PCIe (500mm+150mm) 3 6 16AWG No
SATA (500mm+150mm+150mm150mm) 3 12 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+150mm) 1 1 22AWG No
RGB Cable (580mm+80mm) 1 2 26AWG No
AC Power Cord (1430mm) - C13 coupler 1 1 14AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15
AC Loss to PWR_OK Hold Up Time (ms)13.5
PWR_OK Inactive to DC Loss Delay (ms)1.5

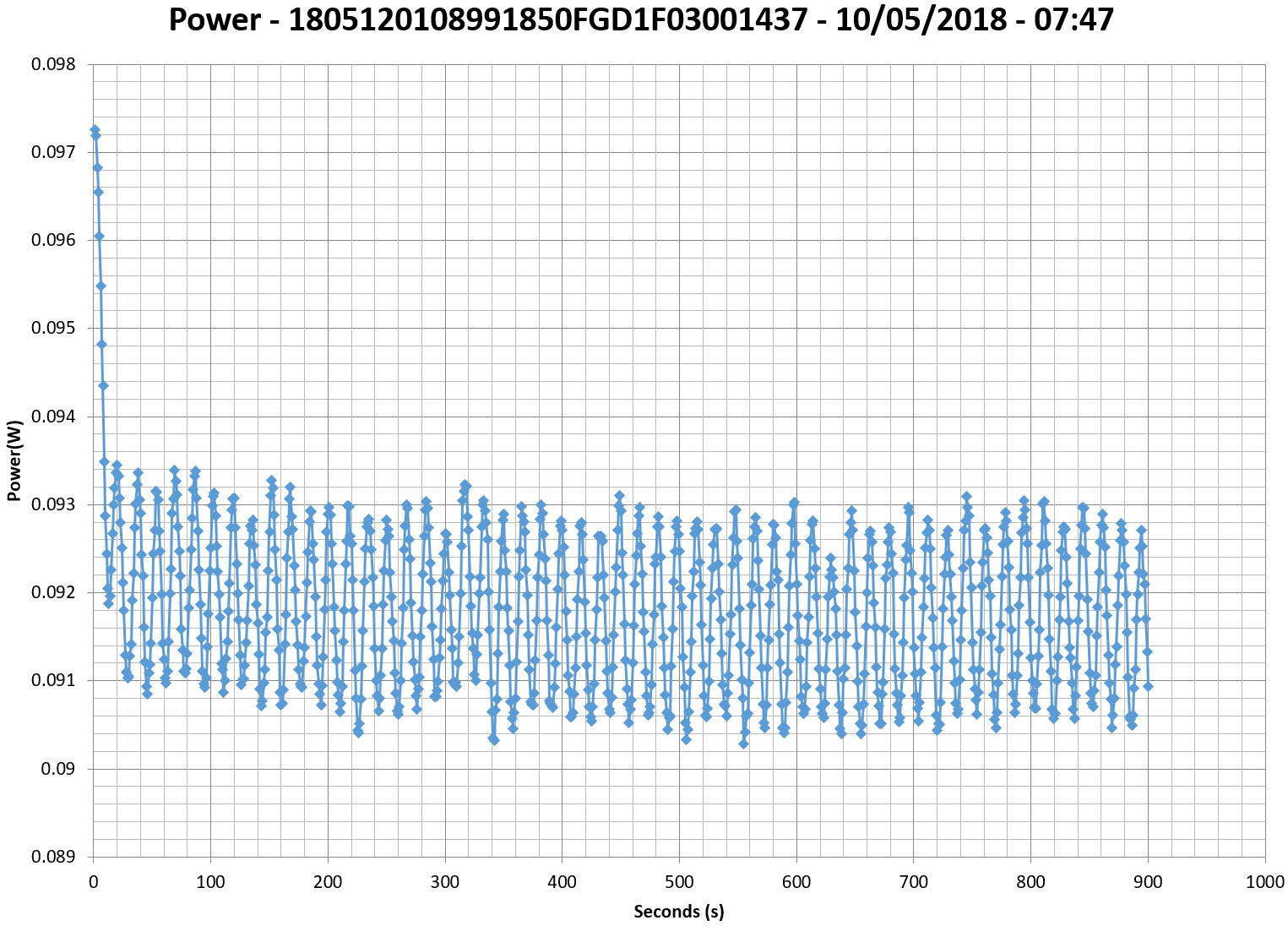

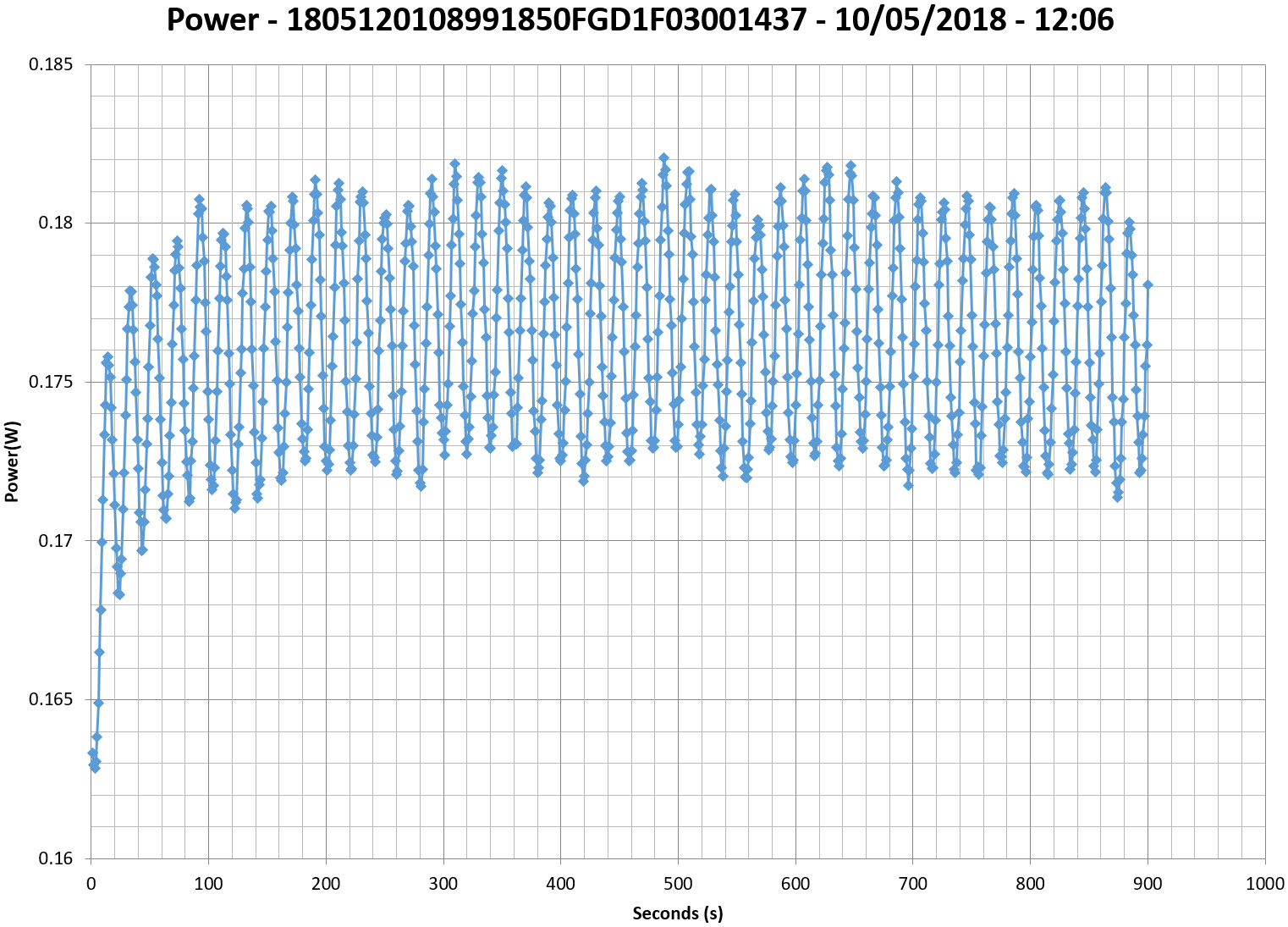

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

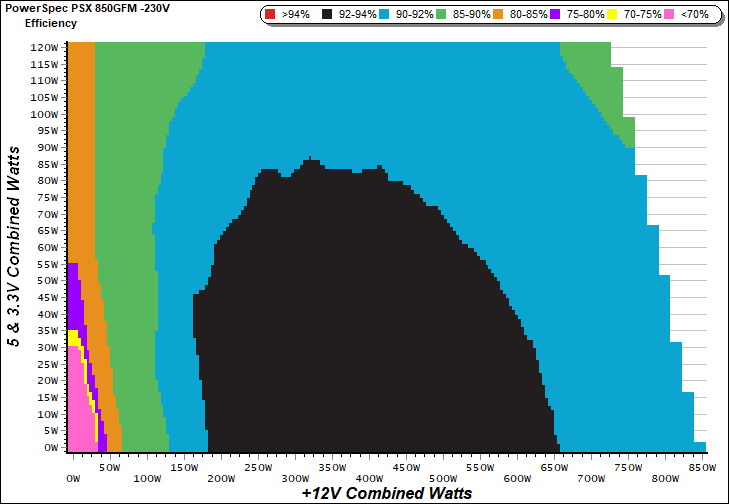

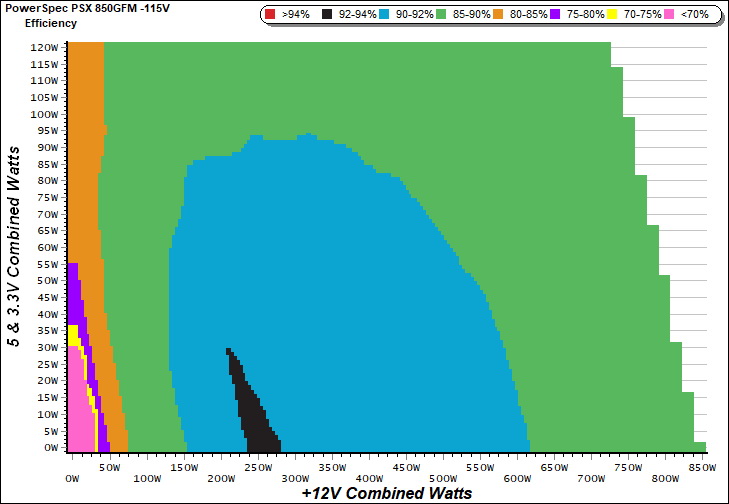

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

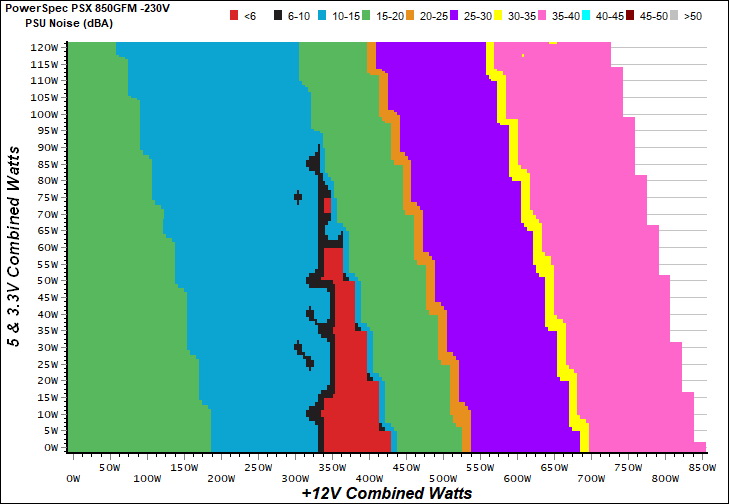

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

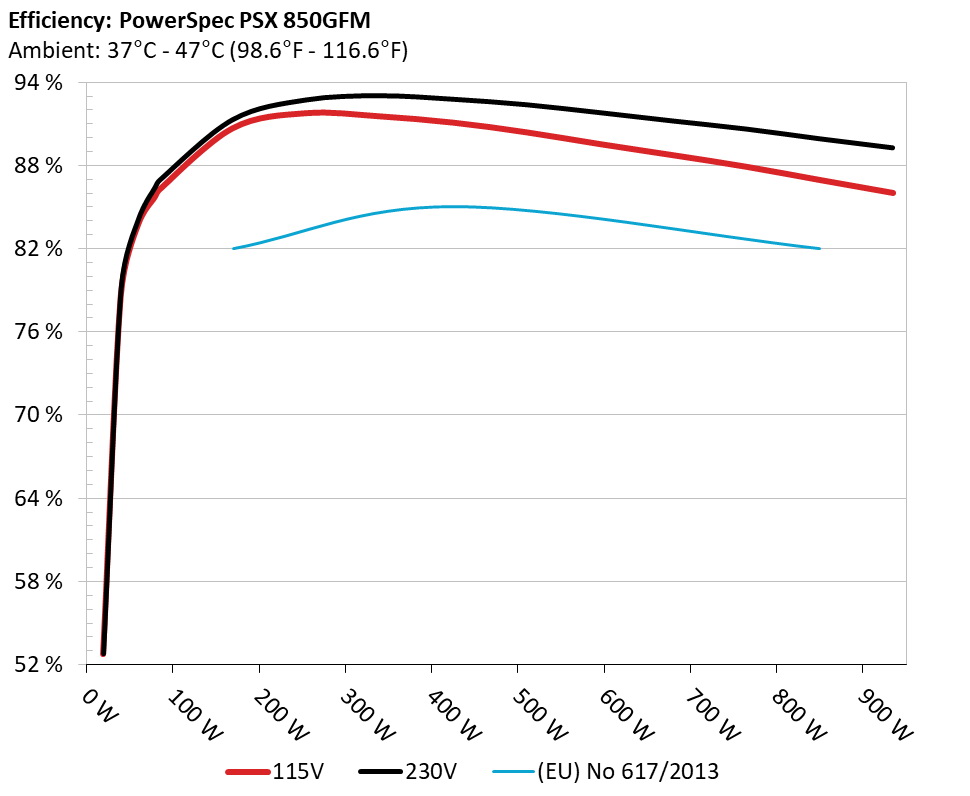

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

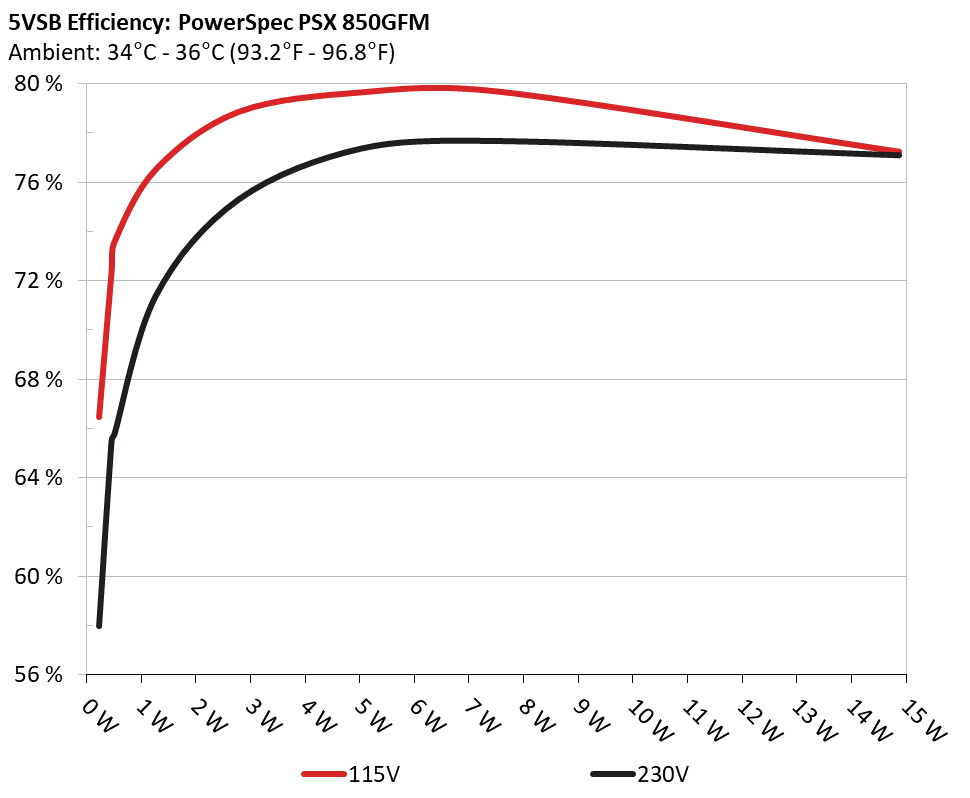

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.474% 0.027
5.091V 0.346 115.37V
2 0.090A 0.458 72.354% 0.048
5.089V 0.633 115.37V
3 0.550A 2.788 78.846% 0.213
5.069V 3.536 115.37V
4 1.000A 5.050 79.640% 0.291
5.049V 6.341 115.37V
5 1.500A 7.541 79.664% 0.335
5.027V 9.466 115.36V
6 3.000A 14.866 77.230% 0.394
4.955V 19.249 115.35V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 57.975% 0.011
5.091V 0.395 230.92V
2 0.090A 0.458 65.522% 0.019
5.089V 0.699 230.92V
3 0.550A 2.787 75.304% 0.096
5.067V 3.701 230.92V
4 1.000A 5.048 77.376% 0.156
5.047V 6.524 230.92V
5 1.500A 7.538 77.671% 0.209
5.024V 9.705 230.91V
6 3.000A 14.868 77.092% 0.300
4.956V 19.286 230.90V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.254A 1.985A 1.956A 1.000A 84.893 86.265% 655 15.4 40.25°C 0.970
12.045V 5.043V 3.373V 5.000V 98.409 44.42°C 115.26V
2 11.512A 2.980A 2.945A 1.204A 169.388 90.680% 650 15.3 40.77°C 0.986
12.030V 5.033V 3.361V 4.984V 186.798 45.54°C 115.16V
3 18.168A 3.483A 3.431A 1.410A 254.477 91.777% 537 12.0 41.13°C 0.996
12.025V 5.025V 3.352V 4.967V 277.278 46.52°C 115.14V
4 24.845A 3.990A 3.952A 1.617A 339.685 91.549% 537 12.0 41.83°C 0.995
12.013V 5.016V 3.341V 4.950V 371.040 48.29°C 115.02V
5 31.202A 4.996A 4.957A 1.825A 425.000 91.095% 533 11.9 42.16°C 0.995
12.002V 5.006V 3.329V 4.933V 466.546 49.39°C 115.01V
6 37.507A 6.008A 5.968A 2.035A 509.517 90.401% 790 19.3 42.78°C 0.996
11.990V 4.995V 3.317V 4.915V 563.617 50.20°C 114.90V
7 43.888A 7.024A 6.990A 2.247A 594.847 89.547% 987 25.6 43.28°C 0.997
11.979V 4.985V 3.304V 4.897V 664.288 51.30°C 114.76V
8 50.285A 8.044A 8.021A 2.461A 680.184 88.742% 1100 29.0 43.68°C 0.997
11.967V 4.974V 3.292V 4.879V 766.471 52.75°C 114.73V
9 57.092A 8.562A 8.535A 2.465A 765.104 87.909% 1395 35.4 44.43°C 0.997
11.956V 4.964V 3.281V 4.871V 870.337 53.86°C 114.60V
10 63.646A 9.086A 9.085A 3.108A 849.923 86.957% 1390 35.4 45.80°C 0.997
11.944V 4.955V 3.270V 4.828V 977.405 55.50°C 114.56V
11 70.809A 9.101A 9.110A 3.115A 934.693 86.021% 1380 35.3 46.76°C 0.998
11.933V 4.947V 3.260V 4.818V 1086.588 56.72°C 114.42V
CL1 0.148A 14.005A 14.000A 0.000A 118.581 81.805% 660 15.4 44.79°C 0.981
12.043V 5.014V 3.327V 5.074V 144.956 53.63°C 115.19V
CL2 70.846A 1.002A 1.002A 1.000A 859.269 87.555% 1390 35.4 45.51°C 0.997
11.942V 4.979V 3.302V 4.929V 981.407 55.18°C 114.56V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.247A 1.983A 1.956A 1.000A 84.797 86.966% 655 15.4 40.14°C 0.830
12.045V 5.043V 3.373V 5.000V 97.506 44.03°C 230.79V
2 11.502A 2.981A 2.945A 1.204A 169.286 91.323% 650 15.3 40.74°C 0.872
12.031V 5.033V 3.362V 4.984V 185.370 45.02°C 230.84V
3 18.159A 3.482A 3.430A 1.410A 254.378 92.743% 537 12.0 41.14°C 0.903
12.026V 5.025V 3.352V 4.967V 274.282 46.30°C 230.77V
4 24.835A 3.988A 3.949A 1.617A 339.572 93.045% 537 12.0 41.99°C 0.952
12.014V 5.016V 3.342V 4.950V 364.953 47.73°C 230.71V
5 31.191A 4.994A 4.954A 1.825A 424.884 92.795% 533 11.9 42.15°C 0.976
12.003V 5.006V 3.330V 4.933V 457.874 48.29°C 230.65V
6 37.495A 6.005A 5.967A 2.035A 509.400 92.400% 790 19.3 42.83°C 0.983
11.991V 4.996V 3.317V 4.916V 551.296 49.35°C 230.68V
7 43.878A 7.023A 6.987A 2.247A 594.721 91.829% 987 25.6 43.22°C 0.990
11.979V 4.985V 3.305V 4.898V 647.642 50.30°C 230.62V
8 50.272A 8.042A 8.019A 2.460A 680.059 91.227% 1100 29.0 43.82°C 0.991
11.968V 4.974V 3.292V 4.880V 745.460 51.64°C 230.55V
9 57.082A 8.560A 8.531A 2.464A 764.976 90.644% 1380 35.3 44.57°C 0.994
11.956V 4.965V 3.282V 4.872V 843.939 52.80°C 230.50V
10 63.632A 9.084A 9.082A 3.108A 849.802 89.944% 1370 35.2 45.44°C 0.996
11.945V 4.955V 3.270V 4.829V 944.810 54.15°C 230.51V
11 70.802A 9.098A 9.106A 3.114A 934.586 89.292% 1380 35.3 46.65°C 0.997
11.933V 4.947V 3.261V 4.818V 1046.662 55.89°C 230.45V
CL1 0.142A 14.001A 13.999A 0.000A 118.500 82.685% 660 15.4 44.24°C 0.846
12.044V 5.014V 3.328V 5.074V 143.315 52.46°C 230.93V
CL2 70.832A 1.001A 1.001A 1.000A 859.166 90.453% 1400 35.5 45.92°C 0.996
11.943V 4.979V 3.303V 4.930V 949.850 54.92°C 230.51V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.494A 0.473A 0.198A 19.548 52.751% 655 15.4 0.901
12.083V 5.053V 3.385V 5.045V 37.057 115.32V
2 2.463A 0.991A 0.976A 0.398A 40.001 78.609% 655 15.4 0.934
12.056V 5.049V 3.381V 5.033V 50.886 115.31V
3 3.658A 1.486A 1.450A 0.598A 59.470 83.650% 655 15.4 0.959
12.048V 5.046V 3.377V 5.022V 71.094 115.29V
4 4.919A 1.983A 1.957A 0.799A 79.855 85.770% 650 15.3 0.969
12.045V 5.043V 3.373V 5.011V 93.104 115.27V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.190A 0.496A 0.473A 0.198A 19.489 52.803% 655 15.4 0.598
12.085V 5.054V 3.386V 5.045V 36.909 230.81V
2 2.457A 0.991A 0.976A 0.398A 39.933 79.169% 655 15.4 0.706
12.057V 5.050V 3.382V 5.033V 50.440 230.82V
3 3.652A 1.485A 1.450A 0.598A 59.399 84.041% 655 15.4 0.788
12.049V 5.047V 3.378V 5.022V 70.679 230.81V
4 4.913A 1.983A 1.955A 0.798A 79.778 86.498% 650 15.3 0.823
12.046V 5.044V 3.374V 5.011V 92.231 230.79V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 21.1 mV 7.5 mV 7.2 mV 3.8 mV Pass
20% Load 12.3 mV 8.5 mV 8.8 mV 4.0 mV Pass
30% Load 10.5 mV 9.7 mV 10.3 mV 4.2 mV Pass
40% Load 10.9 mV 10.8 mV 12.0 mV 5.2 mV Pass
50% Load 12.2 mV 13.0 mV 12.9 mV 6.5 mV Pass
60% Load 14.4 mV 15.6 mV 16.1 mV 8.3 mV Pass
70% Load 15.6 mV 14.4 mV 14.4 mV 6.9 mV Pass
80% Load 17.1 mV 16.5 mV 17.3 mV 8.1 mV Pass
90% Load 19.7 mV 18.1 mV 18.1 mV 9.5 mV Pass
100% Load 21.2 mV 19.0 mV 19.2 mV 8.9 mV Pass
110% Load 28.6 mV 20.3 mV 20.1 mV 9.4 mV Pass
Crossload 1 24.9 mV 12.7 mV 13.2 mV 4.2 mV Pass
Crossload 2 22.6 mV 15.3 mV 15.1 mV 8.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 20.7 mV 7.2 mV 7.0 mV 3.9 mV Pass
20% Load 13.1 mV 8.6 mV 8.8 mV 4.1 mV Pass
30% Load 10.7 mV 9.6 mV 10.6 mV 4.5 mV Pass
40% Load 10.3 mV 10.7 mV 11.3 mV 4.8 mV Pass
50% Load 11.5 mV 13.2 mV 13.4 mV 6.3 mV Pass
60% Load 13.0 mV 14.9 mV 16.5 mV 8.3 mV Pass
70% Load 14.6 mV 14.6 mV 14.8 mV 6.7 mV Pass
80% Load 15.5 mV 16.8 mV 17.0 mV 8.0 mV Pass
90% Load 17.6 mV 18.6 mV 18.2 mV 9.6 mV Pass
100% Load 19.3 mV 19.9 mV 20.0 mV 9.1 mV Pass
110% Load 25.9 mV 19.9 mV 21.0 mV 9.5 mV Pass
Crossload 1 24.2 mV 13.0 mV 13.7 mV 4.3 mV Pass
Crossload 2 20.4 mV 15.2 mV 15.4 mV 8.3 mV Pass

The results above are not used in the certification process

PowerSpec Super Power 850W (#2)

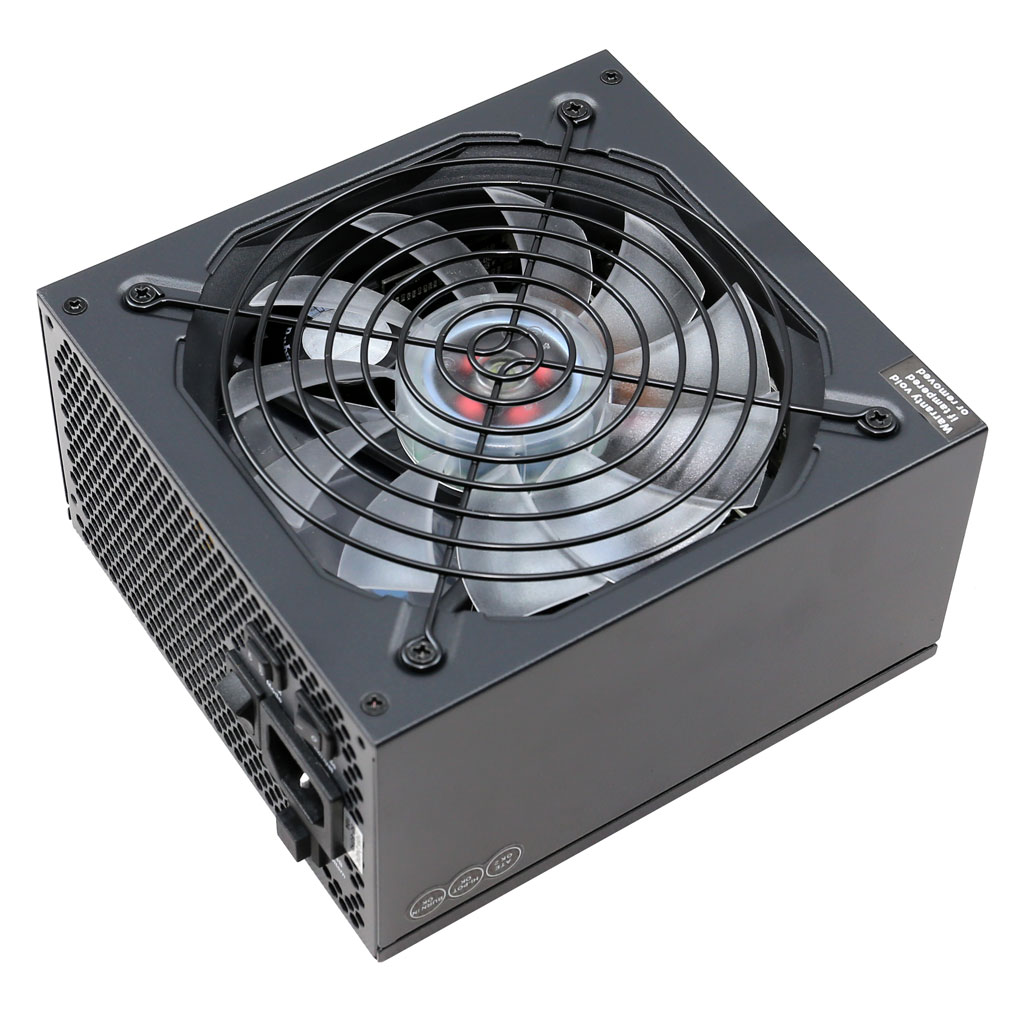

Top side

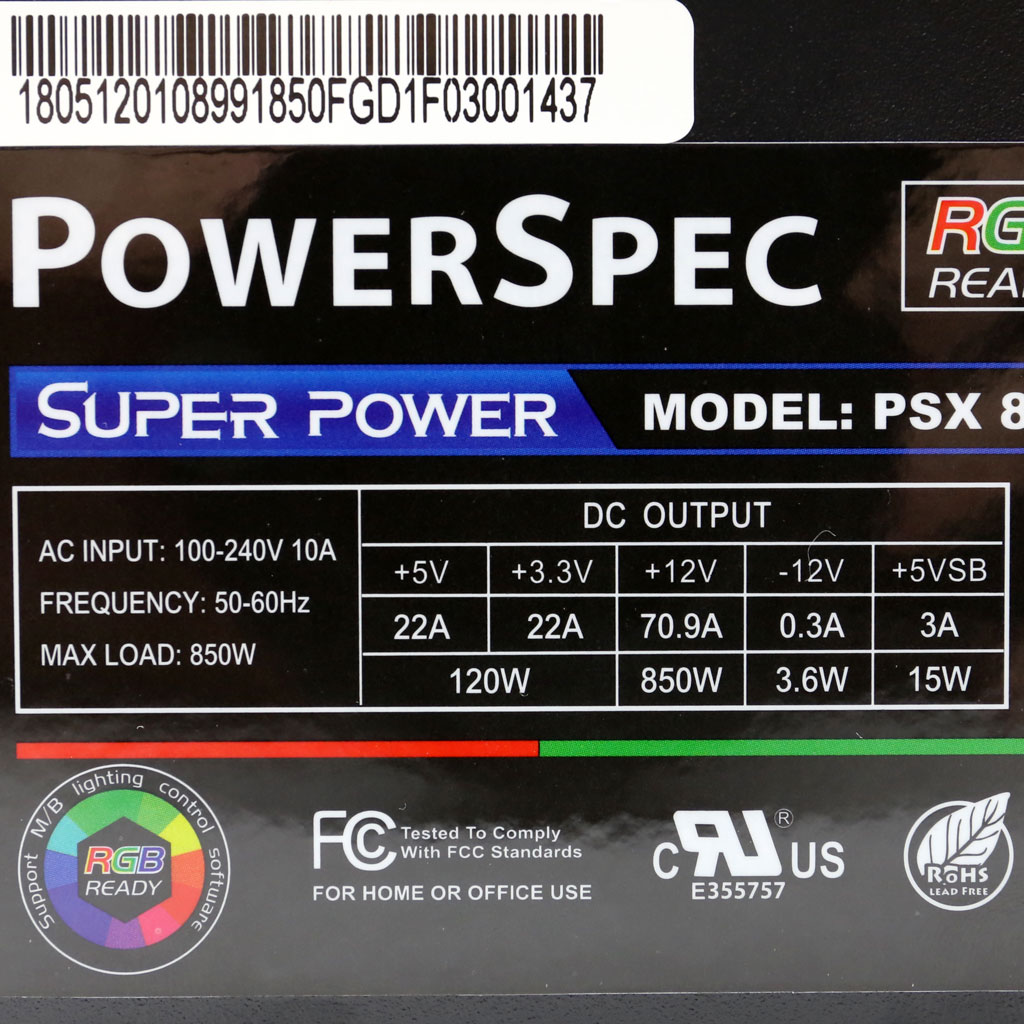

Power specifications table
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
