CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PowerSpec Super Power 850W
Serial Number1805120108991850FGD1F03001480
Lab ID374
  • Report:
  • Receipt Date: Sep 24, 2018
  • Test Date: Oct 1, 2018
  • Report Date: Oct 5, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandPowerSpec
Manufacturer (OEM)High Power
SeriesSuper Power
Model NumberPSX 850GFM
Serial Number1805120108991850FGD1F03001480
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Sleeve Bearing Fan
(BDH13525S)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 70.9 3 0.3
Watts 120 850 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm+150mm) 2 2 16-18AWG No
6+2 pin PCIe (500mm+150mm) 3 6 16AWG No
SATA (500mm+150mm+150mm150mm) 3 12 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+150mm) 1 1 22AWG No
RGB Cable (580mm+80mm) 1 2 26AWG No
AC Power Cord (1430mm) - C13 coupler 1 1 14AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.8
AC Loss to PWR_OK Hold Up Time (ms)14.2
PWR_OK Inactive to DC Loss Delay (ms)0.6

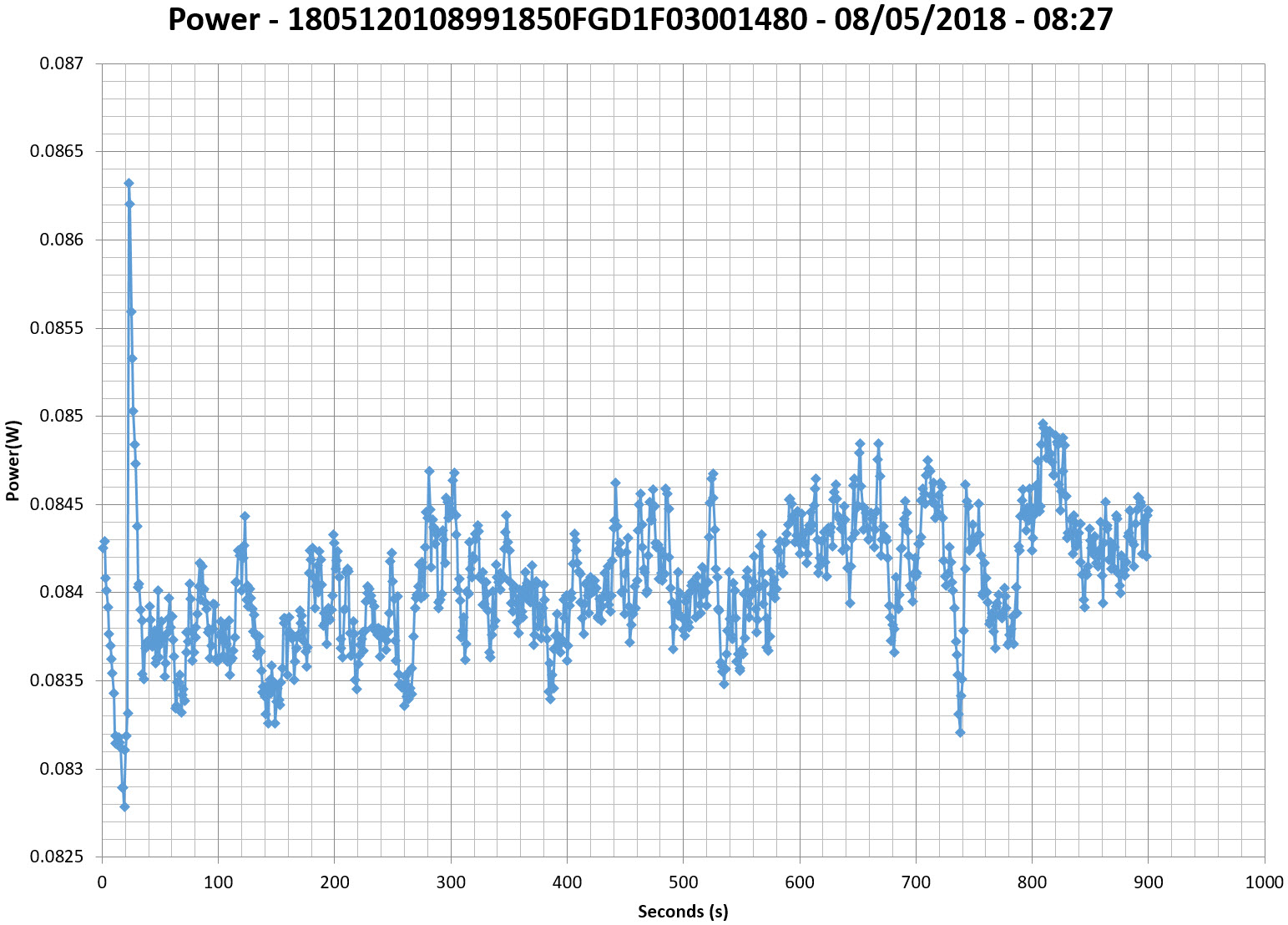

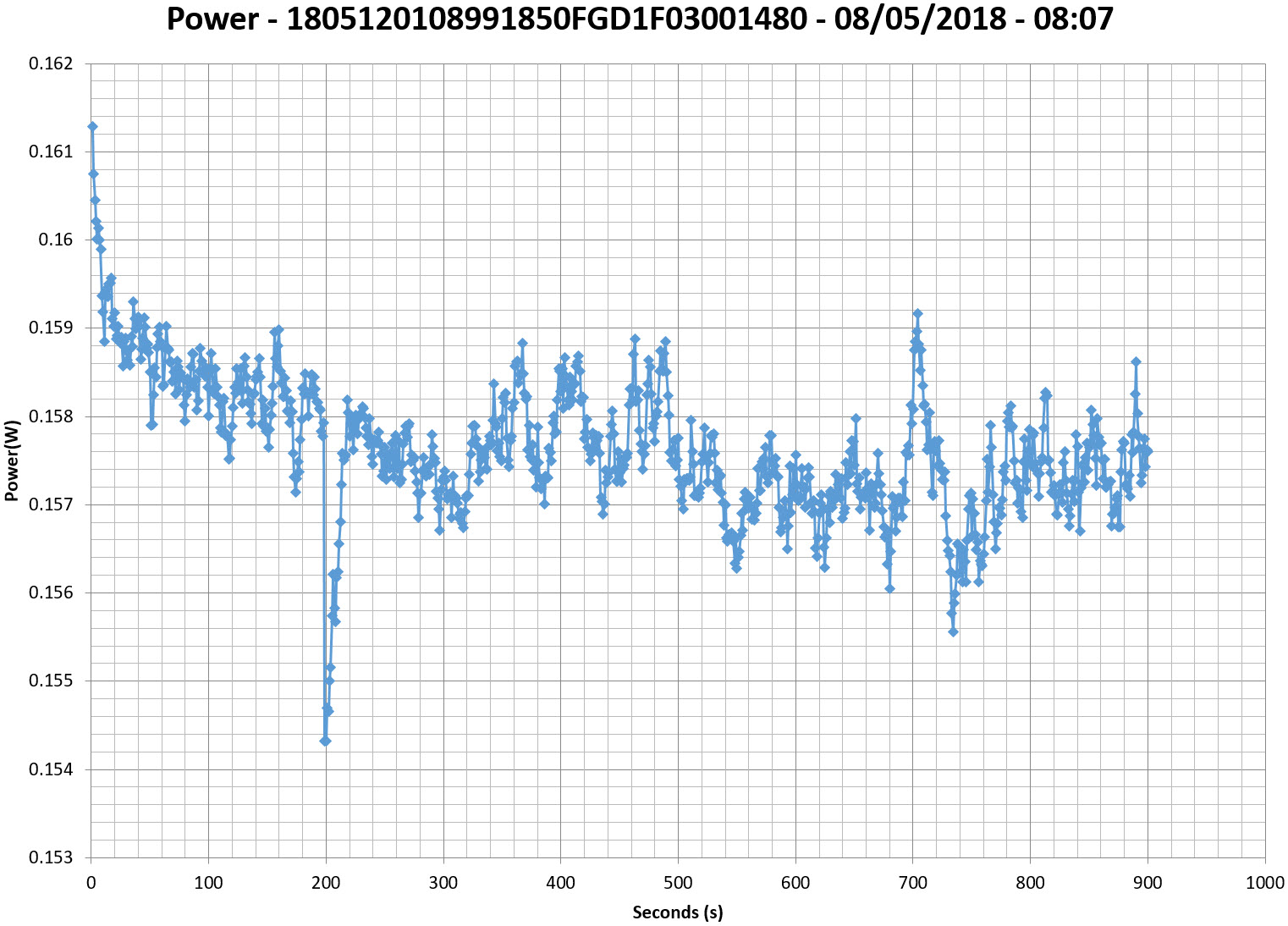

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

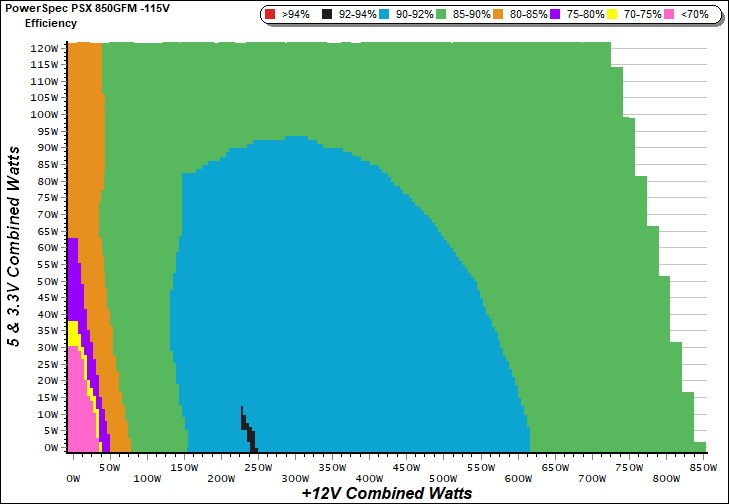

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

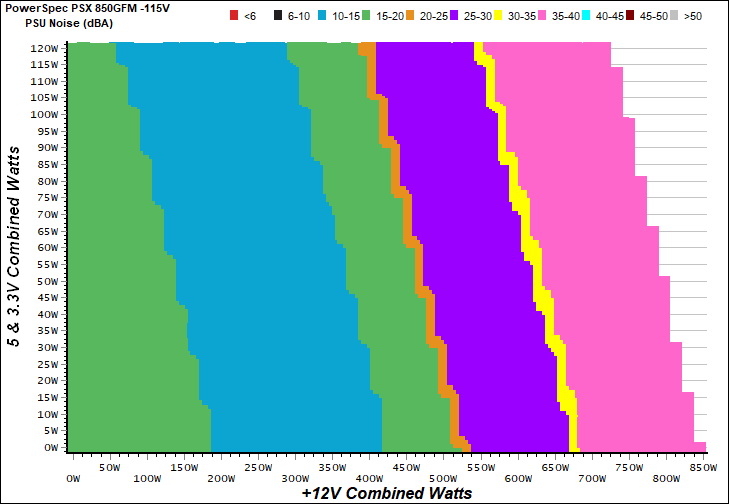

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

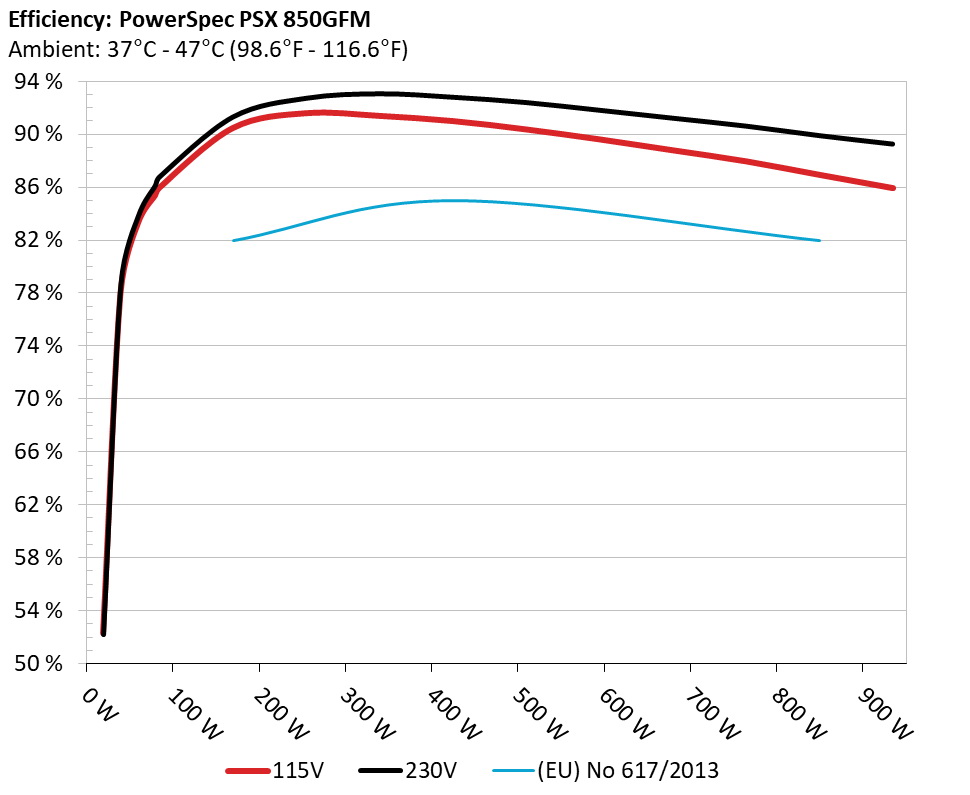

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

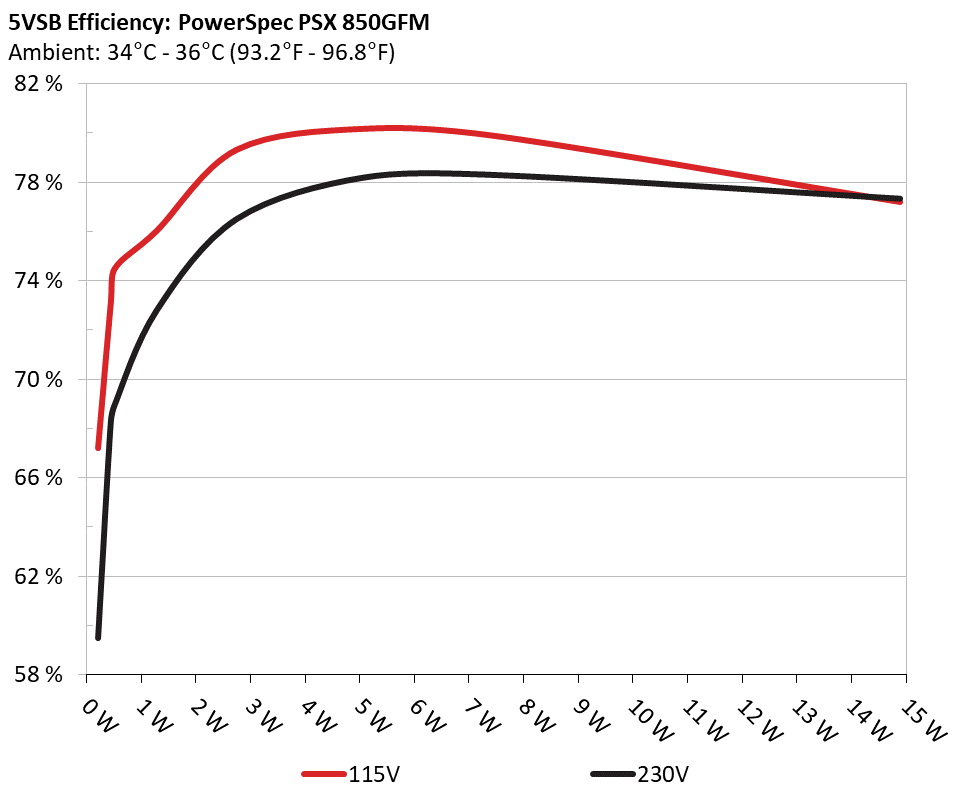

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 67.192% 0.046
5.101V 0.317 115.10V
2 0.087A 0.445 73.071% 0.088
5.099V 0.609 115.10V
3 0.542A 2.753 79.337% 0.268
5.077V 3.470 115.10V
4 1.002A 5.067 80.187% 0.316
5.057V 6.319 115.10V
5 1.502A 7.559 79.871% 0.341
5.034V 9.464 115.10V
6 3.002A 14.888 77.212% 0.378
4.960V 19.282 115.10V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 59.497% 0.013
5.100V 0.358 230.27V
2 0.087A 0.445 68.252% 0.025
5.098V 0.652 230.27V
3 0.542A 2.753 76.515% 0.140
5.076V 3.598 230.27V
4 1.002A 5.065 78.188% 0.205
5.055V 6.478 230.27V
5 1.502A 7.555 78.290% 0.254
5.031V 9.650 230.28V
6 3.001A 14.889 77.337% 0.319
4.961V 19.252 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.252A 1.974A 1.950A 0.997A 84.836 85.983% 660 15.4 40.06°C 0.977
12.043V 5.064V 3.377V 5.020V 98.666 43.59°C 115.10V
2 11.545A 2.959A 2.937A 1.197A 169.674 90.486% 660 15.4 40.78°C 0.989
12.026V 5.055V 3.367V 5.003V 187.514 44.81°C 115.10V
3 18.203A 3.466A 3.449A 1.401A 254.880 91.614% 550 12.2 41.12°C 0.997
12.021V 5.048V 3.358V 4.985V 278.211 45.53°C 115.09V
4 24.857A 3.967A 3.938A 1.609A 339.675 91.410% 550 12.2 41.85°C 0.996
12.009V 5.039V 3.348V 4.968V 371.593 46.80°C 115.08V
5 31.191A 4.971A 4.941A 1.816A 424.714 91.018% 545 12.1 42.04°C 0.996
11.998V 5.029V 3.338V 4.951V 466.624 47.55°C 115.08V
6 37.537A 5.977A 5.951A 2.026A 509.694 90.385% 800 19.5 42.95°C 0.997
11.986V 5.018V 3.325V 4.934V 563.916 48.76°C 115.08V
7 43.888A 6.991A 6.969A 2.236A 594.663 89.633% 995 25.8 43.25°C 0.997
11.975V 5.009V 3.314V 4.915V 663.442 49.50°C 115.07V
8 50.252A 8.006A 7.996A 2.450A 679.628 88.806% 1160 31.5 43.81°C 0.997
11.964V 4.998V 3.302V 4.896V 765.291 50.71°C 115.07V
9 57.066A 8.521A 8.532A 2.453A 764.642 87.971% 1400 35.5 44.69°C 0.998
11.952V 4.988V 3.293V 4.888V 869.200 52.12°C 115.08V
10 63.631A 9.051A 9.047A 3.094A 849.496 86.949% 1400 35.5 45.85°C 0.998
11.940V 4.978V 3.282V 4.846V 977.002 53.53°C 115.07V
11 70.814A 9.063A 9.069A 3.099A 934.466 85.951% 1400 35.5 46.29°C 0.998
11.929V 4.970V 3.274V 4.837V 1087.210 54.58°C 115.07V
CL1 0.102A 14.026A 14.005A 0.005A 118.595 81.714% 667 15.4 43.28°C 0.984
12.040V 5.036V 3.335V 5.091V 145.134 49.55°C 115.11V
CL2 70.792A 1.002A 1.003A 1.002A 858.415 87.467% 1400 35.5 46.00°C 0.998
11.938V 5.003V 3.315V 4.953V 981.418 54.14°C 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.252A 1.976A 1.950A 0.996A 84.836 86.799% 660 15.4 40.16°C 0.858
12.042V 5.064V 3.377V 5.020V 97.739 43.57°C 230.29V
2 11.545A 2.960A 2.937A 1.196A 169.665 91.303% 660 15.4 40.77°C 0.912
12.025V 5.056V 3.367V 5.002V 185.826 44.66°C 230.29V
3 18.204A 3.467A 3.450A 1.401A 254.865 92.719% 550 12.2 41.30°C 0.938
12.019V 5.048V 3.358V 4.985V 274.880 45.56°C 230.30V
4 24.867A 3.969A 3.937A 1.610A 339.753 93.052% 550 12.2 41.70°C 0.972
12.007V 5.038V 3.348V 4.968V 365.120 46.58°C 230.30V
5 31.195A 4.973A 4.940A 1.816A 424.697 92.794% 545 12.1 42.11°C 0.980
11.996V 5.029V 3.337V 4.949V 457.677 47.52°C 230.35V
6 37.540A 5.977A 5.952A 2.025A 509.648 92.391% 806 19.5 42.70°C 0.988
11.984V 5.018V 3.324V 4.934V 551.619 48.87°C 230.36V
7 43.899A 6.993A 6.971A 2.236A 594.625 91.813% 995 25.8 43.22°C 0.991
11.971V 5.009V 3.313V 4.914V 647.651 49.78°C 000.00V
8 50.266A 8.007A 7.997A 2.450A 679.598 91.214% 1110 29.0 43.98°C 0.993
11.960V 4.998V 3.302V 4.895V 745.057 51.20°C 230.30V
9 57.082A 8.521A 8.533A 2.452A 764.603 90.615% 1400 35.5 44.57°C 0.996
11.948V 4.988V 3.293V 4.888V 843.789 52.35°C 230.31V
10 63.655A 9.054A 9.051A 3.095A 849.481 89.898% 1410 35.6 45.47°C 0.997
11.935V 4.977V 3.282V 4.844V 944.943 53.62°C 230.30V
11 70.837A 9.064A 9.073A 3.101A 934.398 89.258% 1400 35.5 46.56°C 0.998
11.924V 4.970V 3.273V 4.835V 1046.848 55.20°C 230.43V
CL1 0.100A 14.029A 14.005A 0.004A 118.568 82.631% 667 15.4 43.43°C 0.891
12.039V 5.036V 3.334V 5.092V 143.491 49.49°C 230.55V
CL2 70.783A 1.003A 1.003A 1.002A 858.026 90.431% 1405 35.5 46.03°C 0.997
11.934V 5.002V 3.314V 4.952V 948.820 54.05°C 230.42V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.209A 0.490A 0.470A 0.196A 19.693 52.305% 663 15.4 0.927
12.094V 5.074V 3.388V 5.065V 37.650 115.10V
2 2.450A 0.980A 0.973A 0.397A 39.803 77.993% 660 15.4 0.946
12.055V 5.070V 3.385V 5.053V 51.034 115.10V
3 3.692A 1.473A 1.474A 0.594A 59.916 83.291% 660 15.4 0.968
12.046V 5.067V 3.381V 5.042V 71.936 115.10V
4 4.921A 1.974A 1.948A 0.795A 79.841 85.411% 660 15.4 0.974
12.043V 5.064V 3.378V 5.031V 93.479 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.207A 0.491A 0.471A 0.196A 19.677 52.231% 663 15.4 0.662
12.094V 5.074V 3.389V 5.065V 37.673 230.28V
2 2.449A 0.980A 0.972A 0.396A 39.782 78.644% 663 15.4 0.738
12.054V 5.071V 3.385V 5.054V 50.585 230.29V
3 3.690A 1.473A 1.474A 0.593A 59.881 83.793% 663 15.4 0.810
12.044V 5.068V 3.381V 5.042V 71.463 230.29V
4 4.921A 1.975A 1.951A 0.796A 79.817 86.138% 660 15.4 0.852
12.036V 5.062V 3.376V 5.029V 92.662 230.33V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.0 mV 9.6 mV 9.3 mV 16.0 mV Pass
20% Load 23.7 mV 10.5 mV 10.3 mV 17.6 mV Pass
30% Load 26.9 mV 11.5 mV 11.1 mV 19.7 mV Pass
40% Load 27.9 mV 13.2 mV 15.8 mV 19.7 mV Pass
50% Load 31.0 mV 15.0 mV 17.7 mV 20.1 mV Pass
60% Load 37.7 mV 17.3 mV 34.0 mV 21.8 mV Pass
70% Load 36.5 mV 19.7 mV 16.9 mV 32.1 mV Pass
80% Load 39.2 mV 21.4 mV 17.9 mV 27.9 mV Pass
90% Load 41.0 mV 23.9 mV 28.2 mV 30.1 mV Pass
100% Load 45.1 mV 29.9 mV 33.9 mV 28.4 mV Pass
110% Load 47.2 mV 31.7 mV 39.7 mV 30.2 mV Pass
Crossload 1 36.2 mV 17.4 mV 11.9 mV 15.1 mV Pass
Crossload 2 37.4 mV 26.8 mV 38.9 mV 33.9 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.2 mV 7.3 mV 10.2 mV 4.9 mV Pass
20% Load 15.8 mV 8.8 mV 11.5 mV 4.6 mV Pass
30% Load 11.3 mV 9.9 mV 11.9 mV 5.1 mV Pass
40% Load 9.5 mV 11.5 mV 12.9 mV 6.0 mV Pass
50% Load 10.8 mV 11.9 mV 14.0 mV 6.0 mV Pass
60% Load 12.2 mV 14.8 mV 16.9 mV 9.3 mV Pass
70% Load 13.9 mV 14.2 mV 15.8 mV 7.3 mV Pass
80% Load 15.4 mV 15.8 mV 16.3 mV 7.5 mV Pass
90% Load 17.2 mV 17.9 mV 16.9 mV 8.7 mV Pass
100% Load 20.1 mV 20.8 mV 18.6 mV 9.6 mV Pass
110% Load 24.0 mV 21.9 mV 19.4 mV 9.9 mV Pass
Crossload 1 25.9 mV 11.6 mV 12.1 mV 4.8 mV Pass
Crossload 2 20.6 mV 17.9 mV 18.5 mV 8.3 mV Pass

The results above are not used in the certification process

PowerSpec Super Power 850W

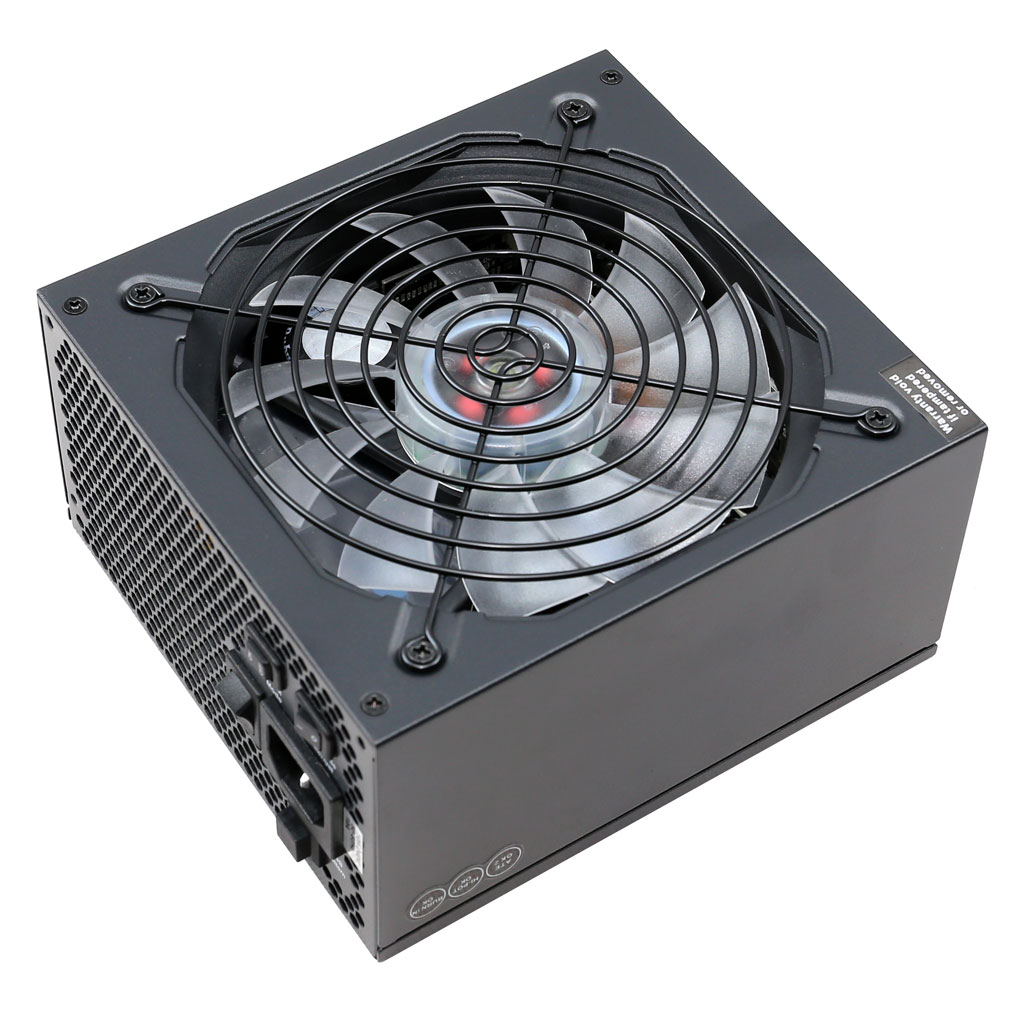

Top side

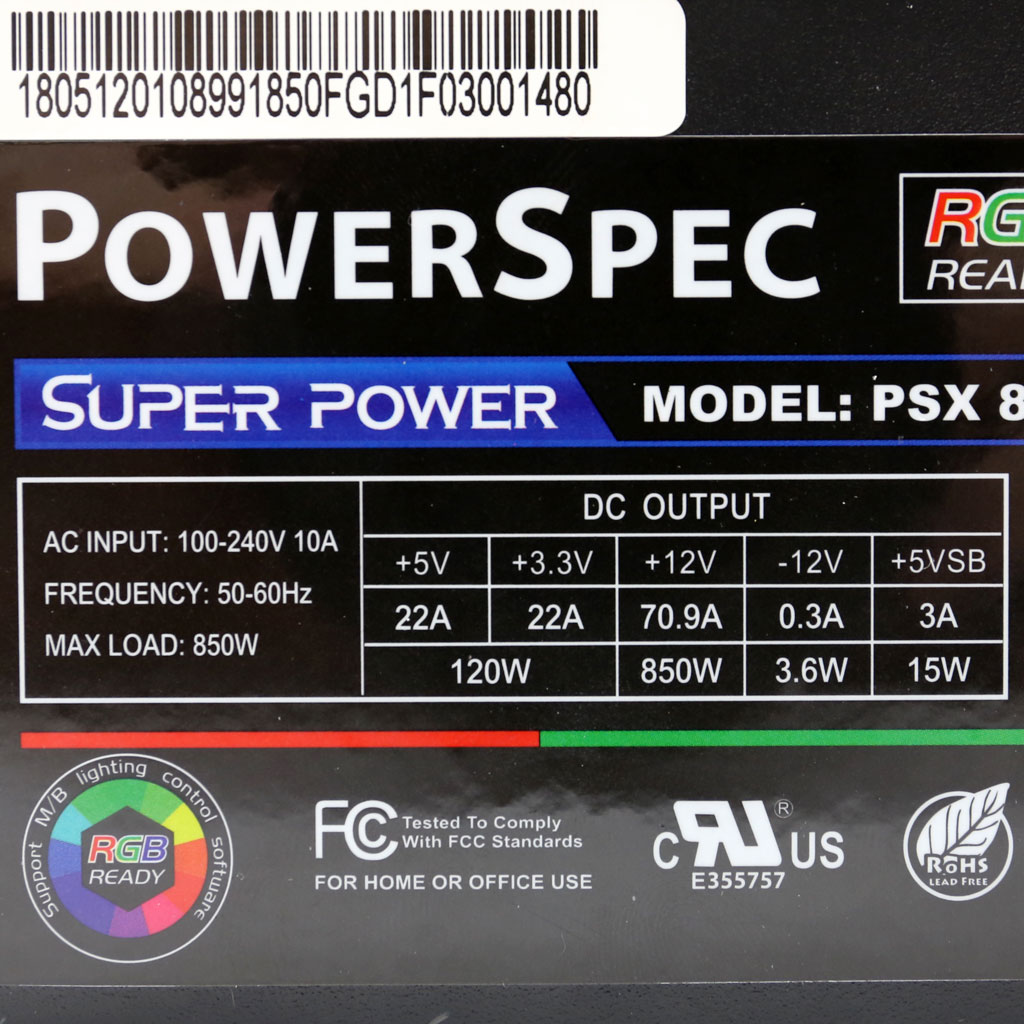

Power specifications table
