CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar GX-F750 (#2)
Serial NumberH1801010998
Lab ID335
  • Report:
  • Receipt Date: Mar 15, 2018
  • Test Date: Mar 21, 2018
  • Report Date: Mar 23, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial NumberH1801010998
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5
Rated Frequency (Hz)47-63
Rated Power (W)750
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 62 3 0.5
Watts 150 744 15 6
Total Max. Power (W) 750

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
SATA (450mm+120mm) 1 2 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1730mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) HEC/Compucase
Platform Model TPK
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x MPS HF81 (X Capacitor Bleeder)
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA60R125P6 (650V, 19A @ 100°C, 0.125Ohm)
APFC Boost Diode 1x Hestia H2S060H006 (600V, 6A @ 152°C)
Hold-up Cap(s) 1x Chemi-Con (400V, 680uF, 2000h @ 105°C, KMW)
Main Switchers 2x Infineon IPP65R150CFD
(700V, 14.2A @ 100°C, 0.15Ohm)
APFC Controller Champion CM6502S
Resonant Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x FETs
5V & 3.3V DC-DC Converters: 2x TI CSD87355Q5D (30V, 45A @ 125°C)
PWM Controller: 2x APW7073
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KY), Teapo (1-3,000h @ 105°C, SC)
Polymers: APAQ
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Globe Fan RL4Z S1352512H (12V, 0.33A, 1550 RPM, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x PFR10L60CT SBR (60V, 10A)
Standby PWM Controller TinySwitch-III TNY280PN
-12V Circuit
Rectifier KIA7912PI

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.6
AC Loss to PWR_OK Hold Up Time (ms)16.3
PWR_OK Inactive to DC Loss Delay (ms)2.3

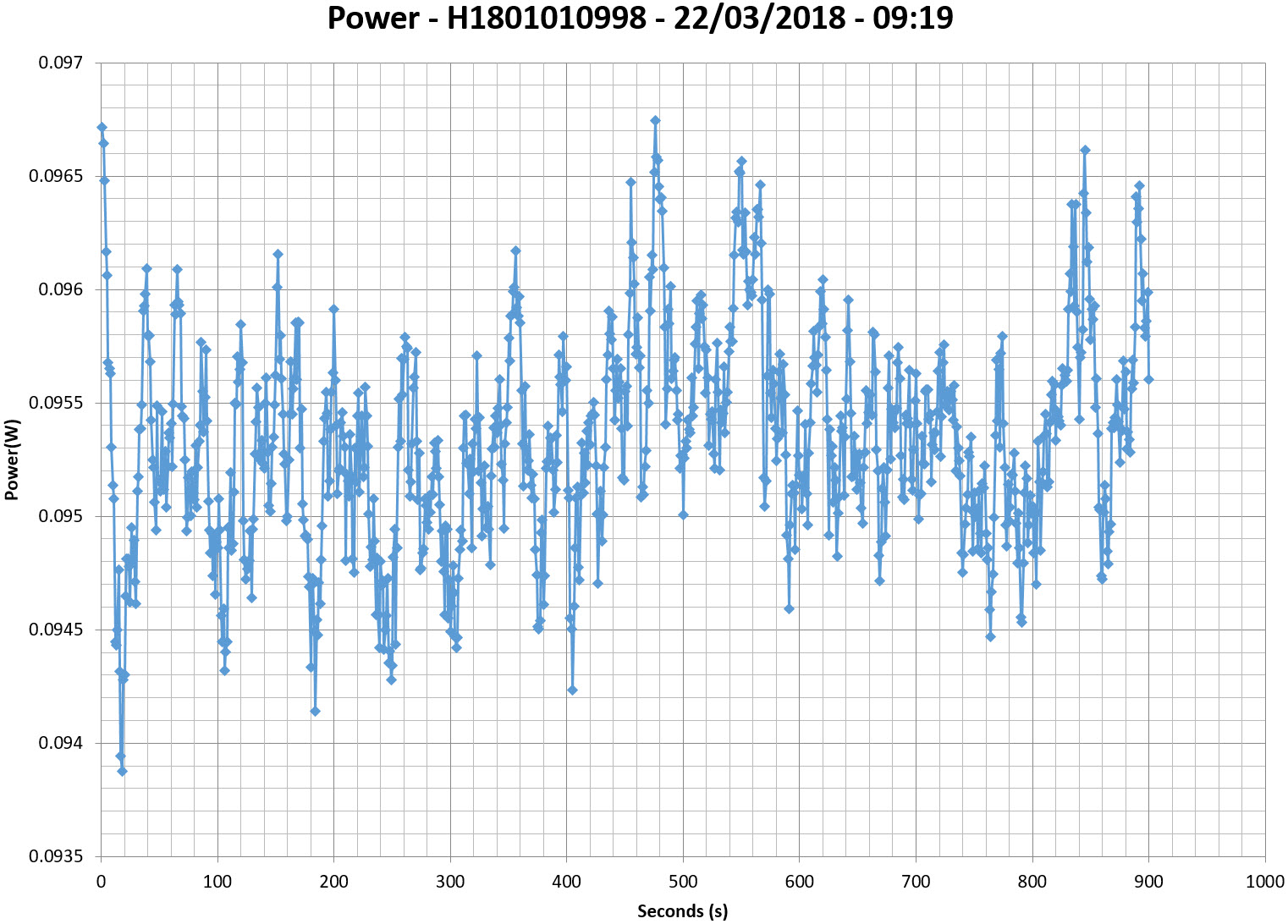

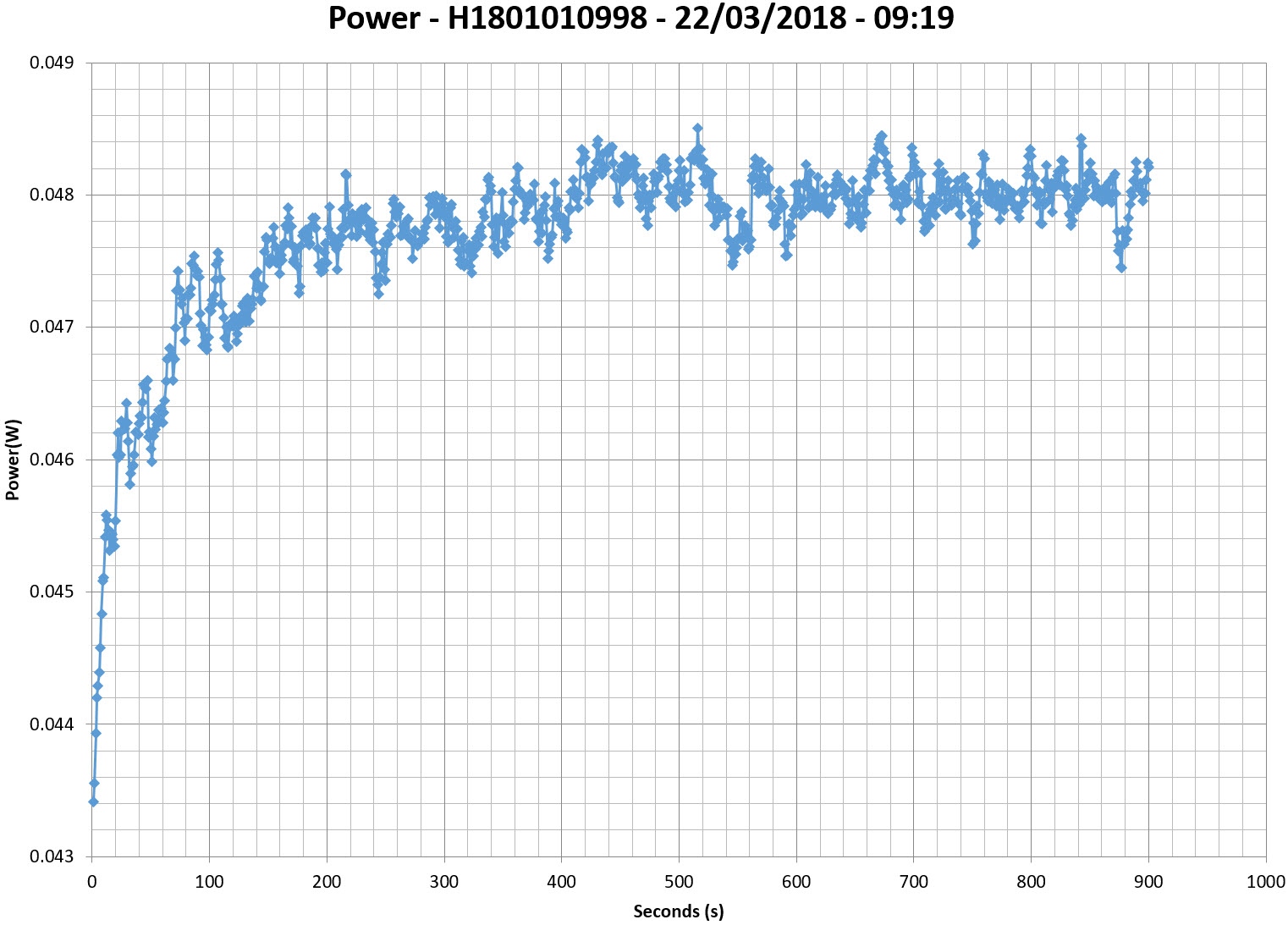

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

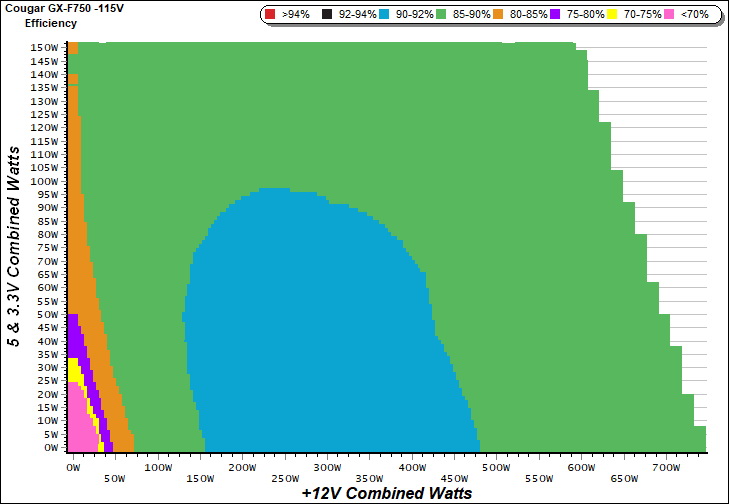

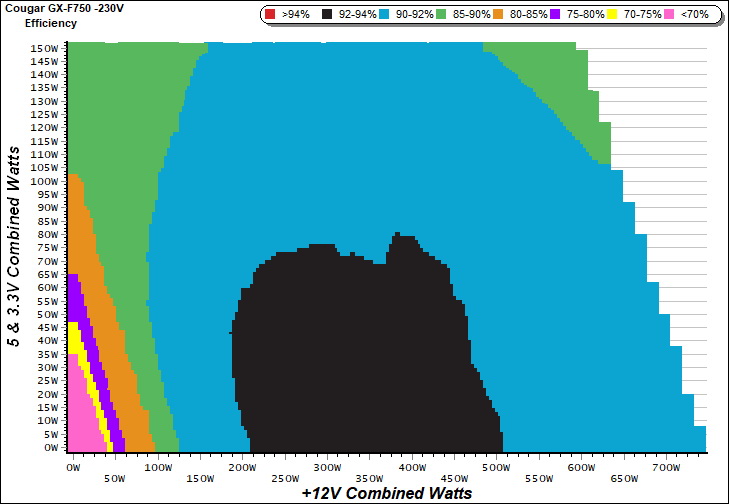

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

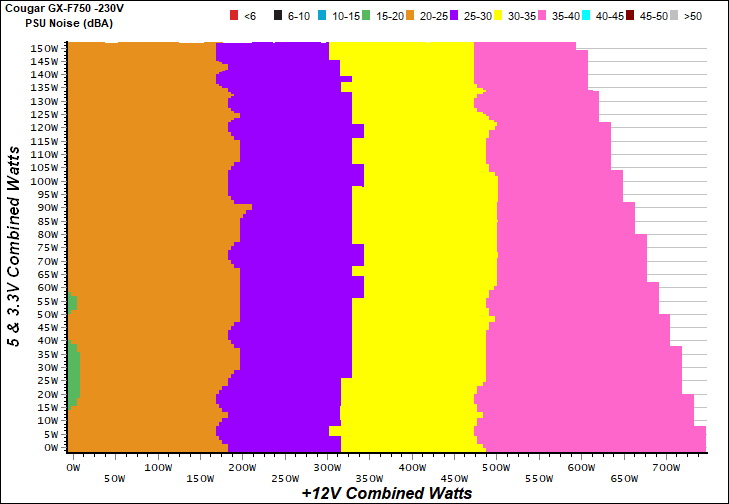

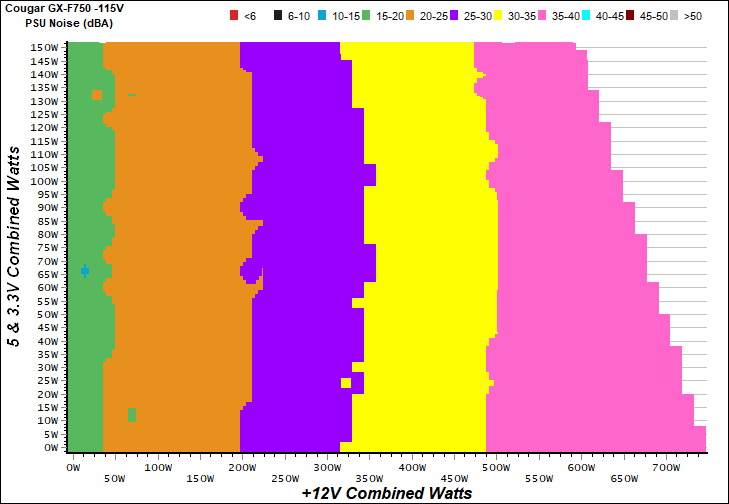

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

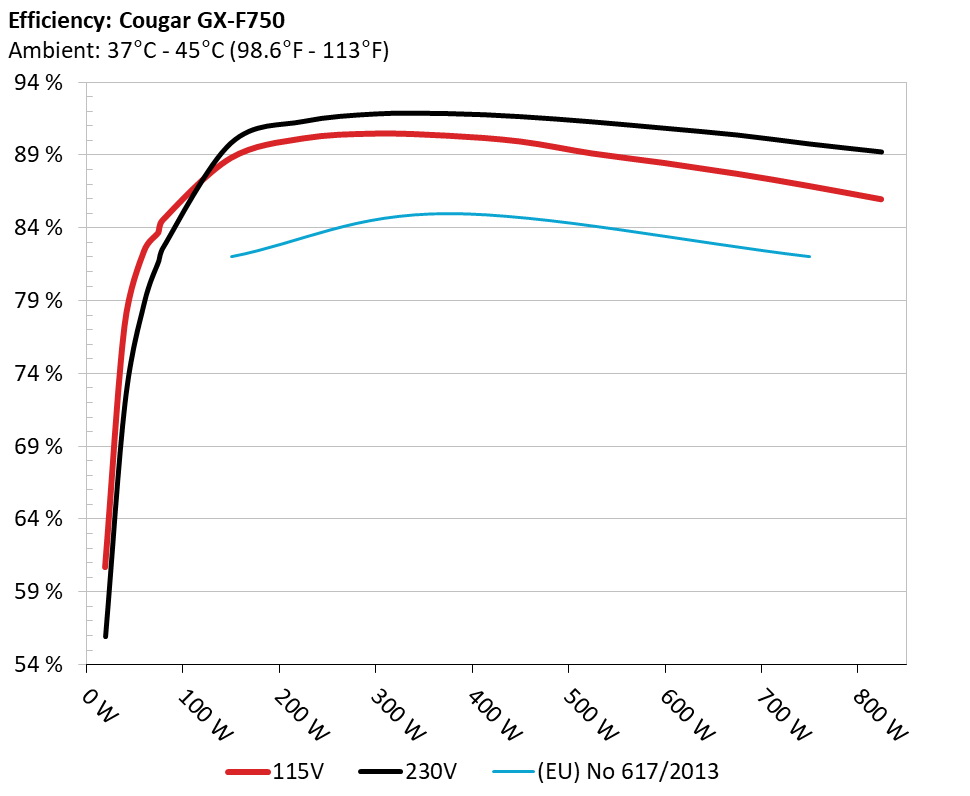

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

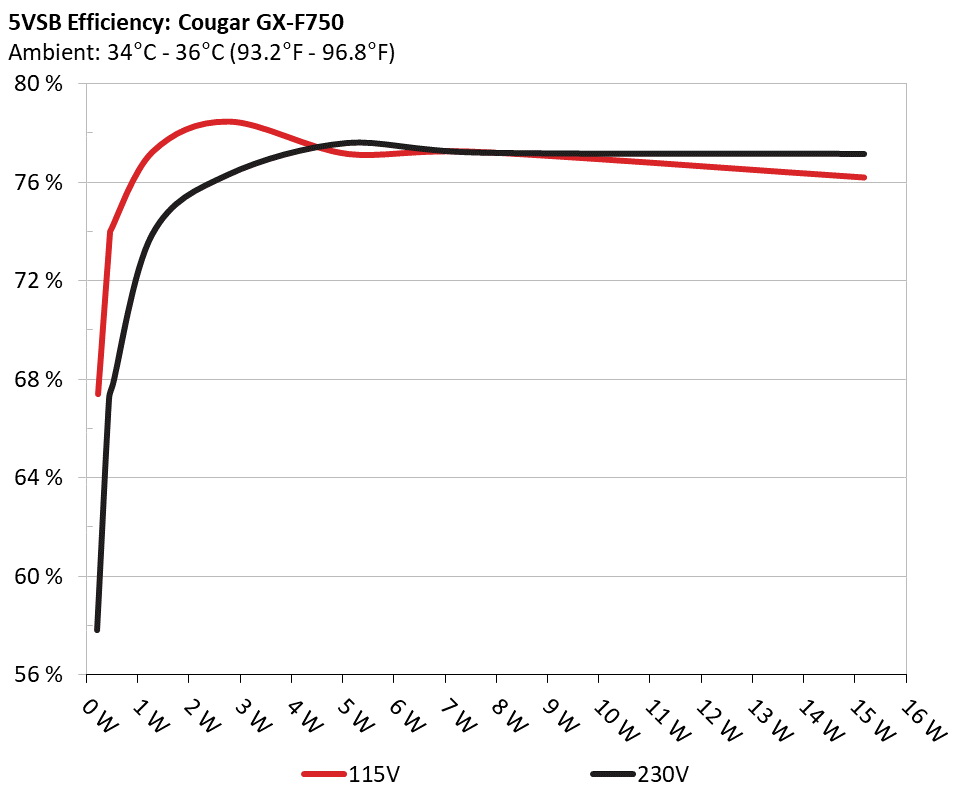

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.215 67.398% 0.032
5.114V 0.319 115.07V
2 0.088A 0.449 73.970% 0.060
5.112V 0.607 115.07V
3 0.542A 2.768 78.480% 0.255
5.104V 3.527 115.07V
4 1.003A 5.108 77.160% 0.342
5.095V 6.620 115.07V
5 1.502A 7.639 77.247% 0.387
5.086V 9.889 115.07V
6 3.002A 15.185 76.207% 0.443
5.059V 19.926 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 57.838% 0.011
5.113V 0.370 230.22V
2 0.087A 0.447 67.218% 0.020
5.112V 0.665 230.22V
3 0.543A 2.769 76.323% 0.103
5.104V 3.628 230.22V
4 1.002A 5.107 77.614% 0.169
5.095V 6.580 230.22V
5 1.502A 7.639 77.224% 0.226
5.086V 9.892 230.23V
6 3.002A 15.186 77.165% 0.318
5.059V 19.680 230.23V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.370A 2.002A 1.970A 0.981A 74.790 83.690% 925 27.8 38.12°C 0.974
12.173V 4.999V 3.347V 5.089V 89.365 41.97°C 115.13V
2 9.786A 3.002A 2.958A 1.181A 149.738 88.814% 955 29.0 38.98°C 0.979
12.147V 4.992V 3.341V 5.079V 168.598 43.15°C 115.13V
3 15.561A 3.509A 3.476A 1.380A 224.869 90.167% 1000 29.8 39.27°C 0.980
12.132V 4.985V 3.335V 5.071V 249.393 43.81°C 115.11V
4 21.332A 4.018A 3.962A 1.580A 299.754 90.500% 1070 31.5 40.14°C 0.985
12.121V 4.977V 3.330V 5.061V 331.220 45.05°C 115.11V
5 26.775A 5.030A 4.964A 1.781A 374.727 90.359% 1155 33.8 40.51°C 0.989
12.110V 4.970V 3.321V 5.052V 414.710 45.91°C 115.11V
6 32.217A 6.047A 5.971A 1.981A 449.651 89.961% 1245 36.4 41.09°C 0.991
12.101V 4.963V 3.315V 5.042V 499.827 46.72°C 115.11V
7 37.642A 7.061A 6.980A 2.185A 524.554 89.137% 1320 37.5 41.69°C 0.991
12.100V 4.956V 3.309V 5.032V 588.479 47.80°C 115.09V
8 43.107A 8.088A 7.995A 2.385A 599.613 88.479% 1407 39.1 42.45°C 0.993
12.091V 4.949V 3.302V 5.023V 677.687 48.86°C 115.10V
9 48.993A 8.600A 8.523A 2.391A 674.580 87.740% 1515 40.9 42.77°C 0.994
12.083V 4.944V 3.295V 5.017V 768.843 49.90°C 115.11V
10 54.644A 9.117A 9.024A 2.999A 749.521 86.898% 1550 42.7 43.30°C 0.995
12.075V 4.937V 3.290V 5.000V 862.527 50.92°C 115.15V
11 60.866A 9.128A 9.040A 3.000A 824.415 85.987% 1560 42.8 44.78°C 0.995
12.071V 4.932V 3.285V 4.995V 958.769 53.11°C 115.13V
CL1 0.100A 18.030A 18.002A 0.004A 150.540 84.395% 1235 36.2 41.68°C 0.979
12.147V 4.964V 3.322V 5.091V 178.375 47.46°C 115.11V
CL2 61.949A 1.002A 1.003A 1.002A 761.552 87.257% 1545 42.2 43.64°C 0.995
12.078V 4.953V 3.304V 5.045V 872.764 50.71°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.340A 2.002A 1.969A 0.981A 74.831 81.733% 985 29.6 38.11°C 0.817
12.267V 4.999V 3.348V 5.088V 91.555 42.42°C 230.23V
2 9.763A 3.001A 2.962A 1.181A 149.778 89.850% 985 29.6 38.51°C 0.917
12.180V 4.990V 3.340V 5.078V 166.697 43.10°C 230.23V
3 15.538A 3.509A 3.474A 1.380A 224.905 91.335% 1000 29.8 39.37°C 0.947
12.153V 4.984V 3.335V 5.070V 246.241 44.37°C 230.23V
4 21.308A 4.019A 3.963A 1.581A 299.768 91.848% 1060 31.3 40.17°C 0.957
12.135V 4.977V 3.329V 5.060V 326.375 45.32°C 230.29V
5 26.748A 5.030A 4.963A 1.781A 374.718 91.873% 1140 33.6 40.81°C 0.964
12.122V 4.970V 3.321V 5.052V 407.866 46.29°C 230.29V
6 32.194A 6.048A 5.971A 1.981A 449.691 91.665% 1235 36.2 41.20°C 0.967
12.111V 4.963V 3.314V 5.041V 490.579 47.24°C 230.24V
7 37.647A 7.060A 6.981A 2.186A 524.609 91.302% 1320 37.5 42.19°C 0.970
12.100V 4.956V 3.308V 5.031V 574.587 48.57°C 230.26V
8 43.108A 8.088A 7.997A 2.386A 599.616 90.867% 1415 39.5 42.98°C 0.973
12.091V 4.949V 3.300V 5.021V 659.885 49.85°C 230.26V
9 48.999A 8.601A 8.525A 2.391A 674.642 90.399% 1518 41.1 43.13°C 0.975
12.083V 4.943V 3.294V 5.015V 746.293 50.64°C 230.28V
10 54.645A 9.119A 9.027A 3.000A 749.496 89.787% 1550 42.7 44.29°C 0.976
12.074V 4.937V 3.290V 4.998V 834.746 52.21°C 230.28V
11 60.880A 9.131A 9.041A 3.000A 824.385 89.237% 1560 42.8 44.84°C 0.977
12.068V 4.930V 3.284V 4.993V 923.813 53.60°C 230.29V
CL1 0.099A 18.030A 18.002A 0.004A 150.529 85.374% 1245 36.4 41.62°C 0.923
12.176V 4.964V 3.322V 5.090V 176.318 47.46°C 230.26V
CL2 61.965A 1.002A 1.003A 1.002A 761.682 90.185% 1545 42.2 43.17°C 0.976
12.077V 4.952V 3.304V 5.045V 844.579 50.48°C 230.29V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.492A 0.474A 0.196A 19.631 60.676% 925 27.8 0.869
12.279V 5.007V 3.355V 5.108V 32.354 115.14V
2 2.416A 0.990A 0.981A 0.391A 39.702 77.235% 885 26.3 0.944
12.195V 5.005V 3.352V 5.102V 51.404 115.13V
3 3.646A 1.490A 1.488A 0.586A 59.832 82.401% 885 26.3 0.968
12.180V 5.002V 3.349V 5.097V 72.611 115.14V
4 4.861A 2.003A 1.968A 0.785A 79.756 84.578% 910 26.9 0.974
12.170V 4.999V 3.347V 5.093V 94.299 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.190A 0.492A 0.473A 0.196A 19.684 55.906% 925 27.8 0.519
12.298V 5.006V 3.354V 5.106V 35.209 230.22V
2 2.407A 0.990A 0.982A 0.392A 39.791 71.957% 945 28.6 0.673
12.275V 5.004V 3.352V 5.100V 55.298 230.23V
3 3.622A 1.489A 1.489A 0.586A 59.870 78.877% 955 29.0 0.770
12.272V 5.002V 3.349V 5.096V 75.903 230.23V
4 4.831A 2.004A 1.969A 0.785A 79.840 82.719% 985 29.6 0.829
12.262V 4.998V 3.347V 5.092V 96.520 230.23V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.2 mV 12.8 mV 9.8 mV 8.0 mV Pass
20% Load 11.0 mV 12.0 mV 11.4 mV 10.2 mV Pass
30% Load 12.9 mV 13.2 mV 15.1 mV 13.5 mV Pass
40% Load 14.6 mV 14.0 mV 16.8 mV 14.0 mV Pass
50% Load 16.6 mV 14.9 mV 19.1 mV 17.5 mV Pass
60% Load 18.7 mV 16.4 mV 21.5 mV 19.9 mV Pass
70% Load 19.6 mV 17.7 mV 22.6 mV 22.3 mV Pass
80% Load 20.7 mV 18.1 mV 24.9 mV 33.3 mV Pass
90% Load 22.8 mV 19.2 mV 26.7 mV 35.4 mV Pass
100% Load 26.4 mV 23.4 mV 36.7 mV 30.9 mV Pass
110% Load 27.8 mV 26.3 mV 37.3 mV 32.9 mV Pass
Crossload 1 12.6 mV 12.1 mV 18.3 mV 7.7 mV Pass
Crossload 2 25.7 mV 22.8 mV 31.1 mV 25.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.4 mV 14.0 mV 14.7 mV 9.4 mV Pass
20% Load 14.1 mV 12.8 mV 15.1 mV 10.3 mV Pass
30% Load 13.8 mV 13.7 mV 16.6 mV 12.6 mV Pass
40% Load 15.2 mV 14.5 mV 18.4 mV 14.5 mV Pass
50% Load 17.6 mV 16.0 mV 21.0 mV 17.2 mV Pass
60% Load 18.2 mV 16.6 mV 22.4 mV 19.2 mV Pass
70% Load 20.2 mV 17.6 mV 24.9 mV 21.7 mV Pass
80% Load 21.1 mV 17.6 mV 24.9 mV 29.1 mV Pass
90% Load 22.7 mV 19.7 mV 26.7 mV 30.7 mV Pass
100% Load 24.9 mV 21.3 mV 33.5 mV 29.2 mV Pass
110% Load 27.4 mV 25.6 mV 32.9 mV 30.9 mV Pass
Crossload 1 15.2 mV 12.1 mV 15.9 mV 7.3 mV Pass
Crossload 2 25.0 mV 21.8 mV 27.8 mV 24.5 mV Pass

The results above are not used in the certification process

Cougar GX-F750 (#2)

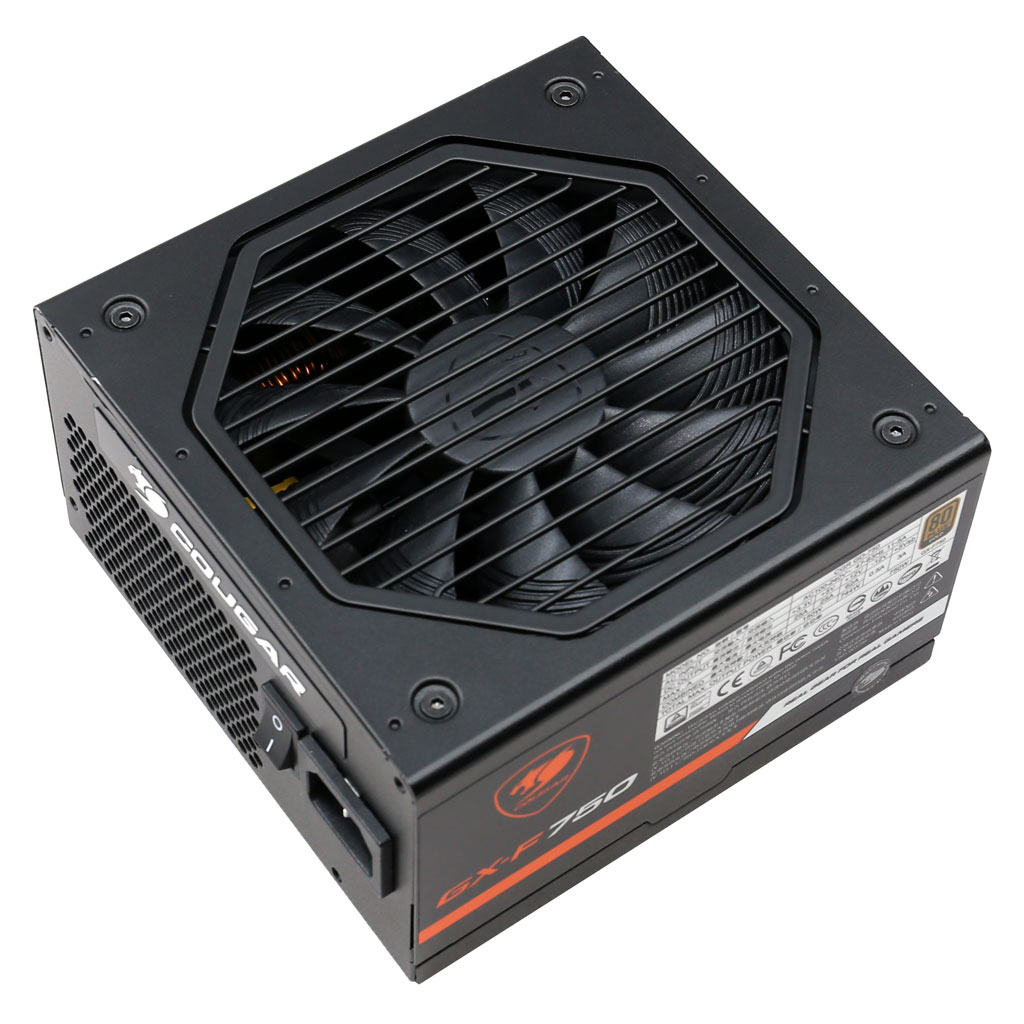

Top side

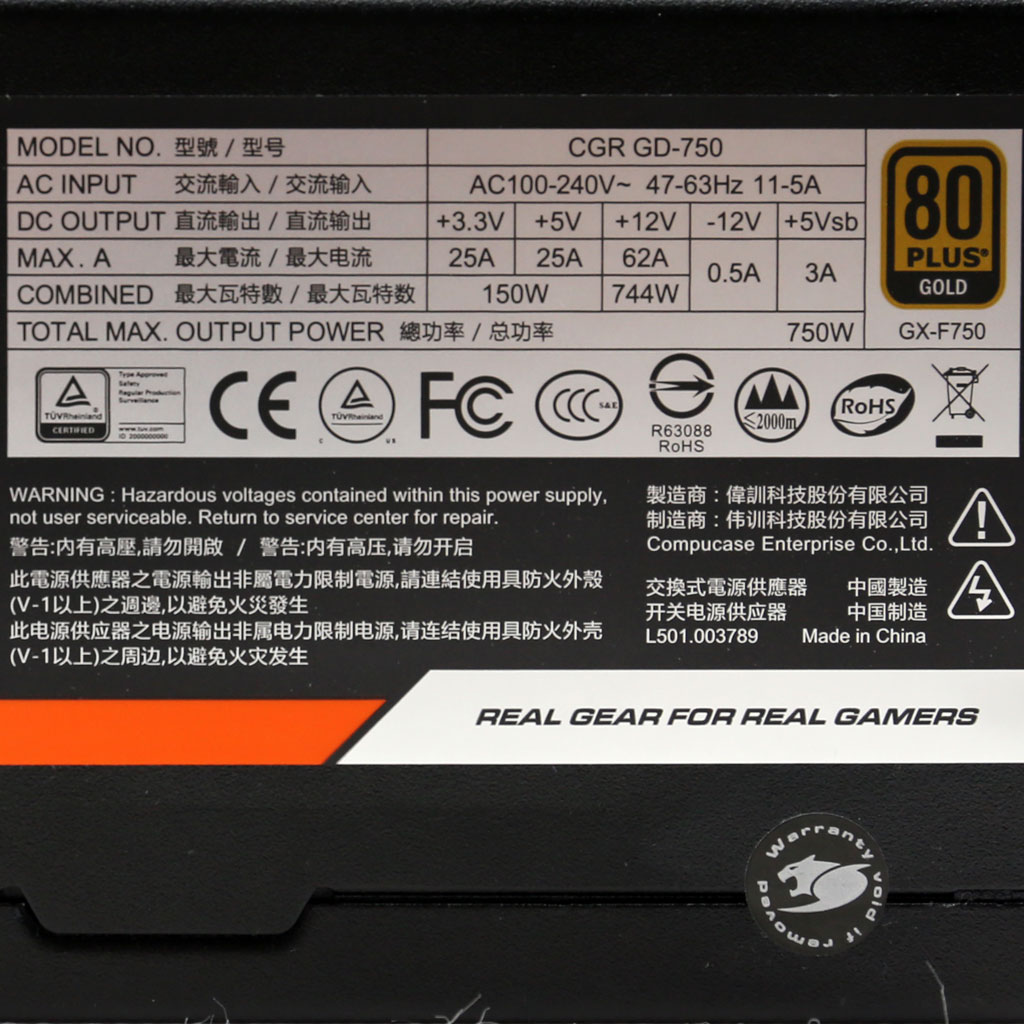

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
