CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Micronics Caslon II 600
Serial Number1746RCA20600PA000132
Lab ID322
  • Report:
  • Receipt Date: Mar 11, 2018
  • Test Date: Mar 14, 2018
  • Report Date: Mar 16, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMicronics
Manufacturer (OEM)High Power
SeriesCaslon II
Model Number
Serial Number1746RCA20600PA000132
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-230
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(S1202512L)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 45 2.5 0.3
Watts 120 540 12.5 3.6
Total Max. Power (W) 600

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) / ATX12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (470mm+150mm) 1 2 18AWG No
SATA (450mm+150mm+150mm) 2 6 18AWG No
4 pin Molex (460mm+150mm) 1 2 18AWG No
4 pin Molex (460mm+150mm) / FDD (+150mm) 1 2 / 1 18-22AWG No
M/B Power Cord (600mm) 1 1 26AWG No
Case S/W Cord (600mm) 1 1 26AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x CMD0X
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 1x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS 2x Infineon IPA60R190P6 (650V, 12.7A @ 100°C, 0.19Ohm)
APFC Boost Diode 1x BYC10-600 (600V, 10A @ 78°C)
Hold-up Cap(s) 1x Teapo (400V, 560uF, 3000h @ 105°C, LM)
Main Switchers 2x MagnaChip MDP18N50B
(500V, 11A @ 100°C, 0.27Ohm)
Combo APFC/PWM Controller Champion CM6805 & CM03X Green PFC controller
Topology Primary side: Double Bridge
Secondary side: Non Synchronous (Passive) Rectification & Group Regulation Scheme
Secondary Side
+12V Rectifiers 4x PFR30L60CT (60V, 30A @ 50% Duty Cycle)
5V & 3.3V 2x Mospec S40D45 (45V, 40A @ 100°C)
Filtering Capacitors Electrolytics: Teapo (3,000 @ 105°C, SC)
Zero Wattage Controller Micronics HM-STB01
Supervisor IC Grenergy GR8313 (OVP, UVP, SCP, PG)
Fan Model Globe Fan S1202512L (120mm, 12V, 0.18A, Fluid Dynamic Bearing)
5VSB Circuit
Standby PWM Controller Power Integrations TNY278PN

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 22.10
AC Loss to PWR_OK Hold Up Time  (ms) 17.90
PWR_OK Inactive to DC Loss Delay (ms) 4.20

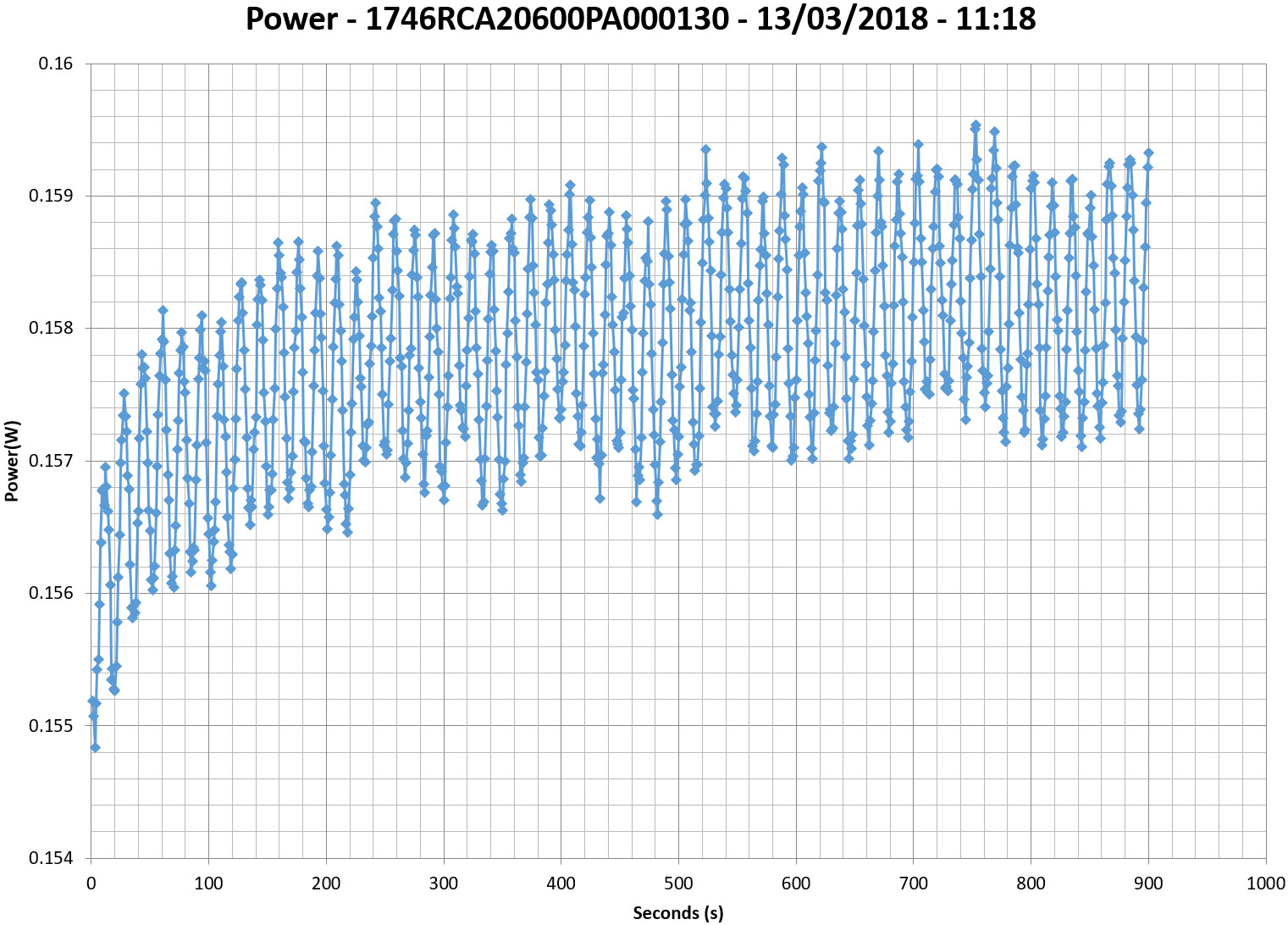

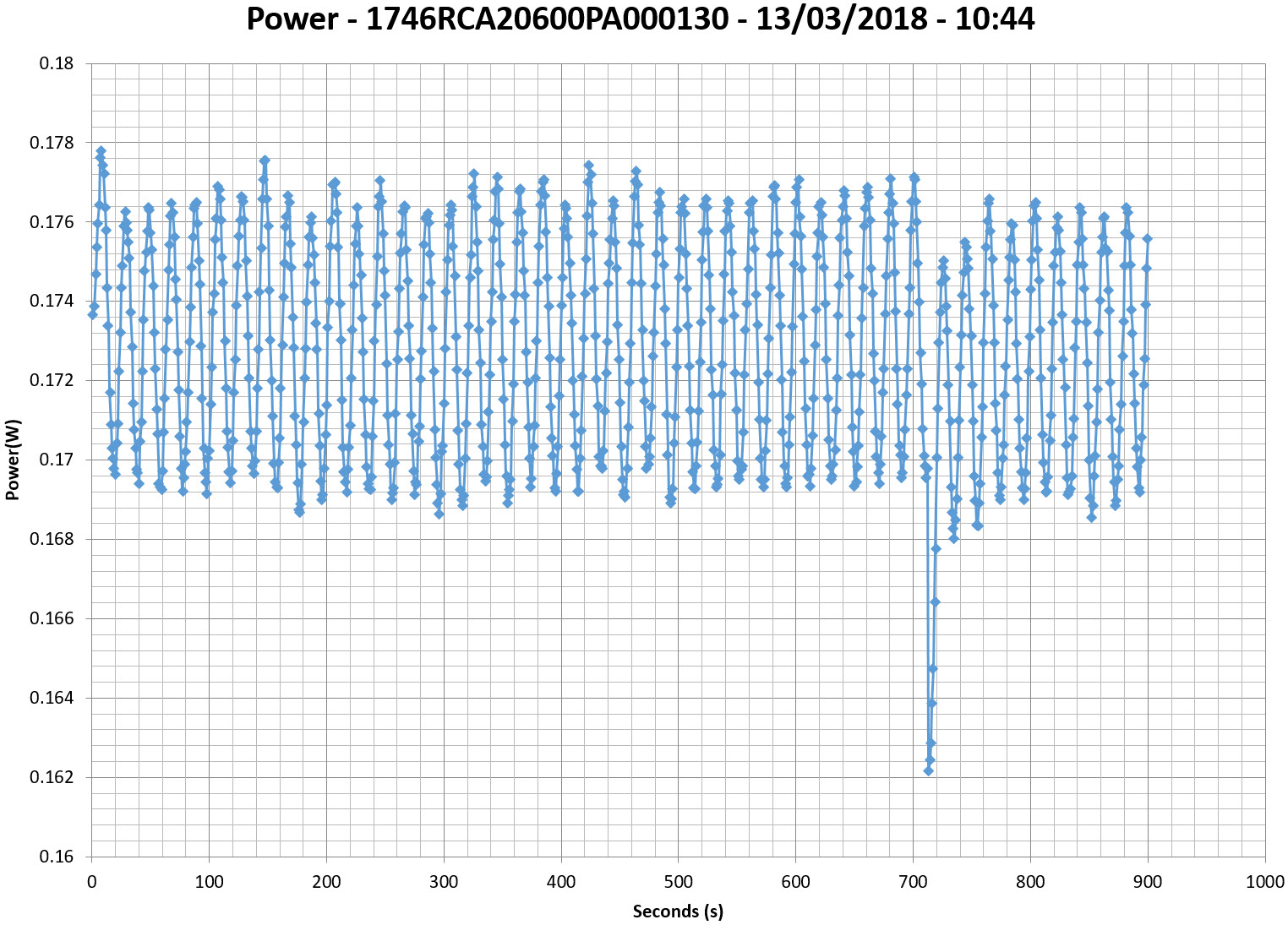

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

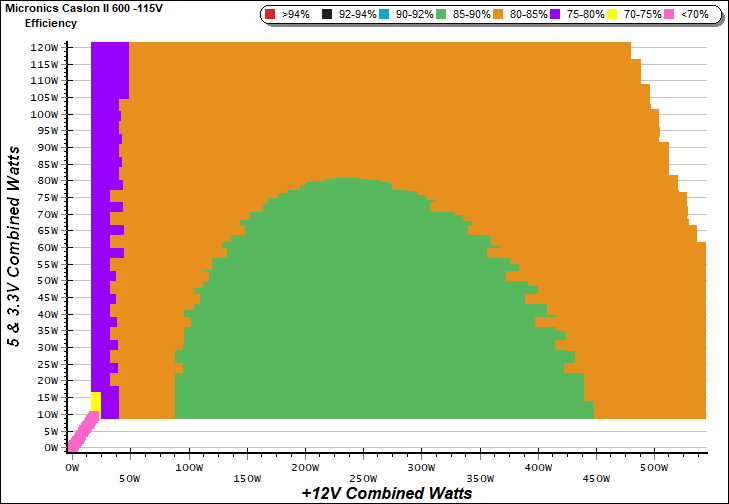

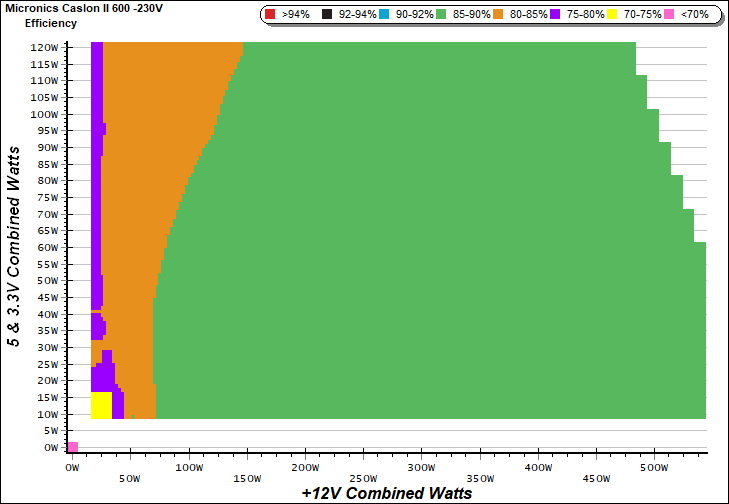

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

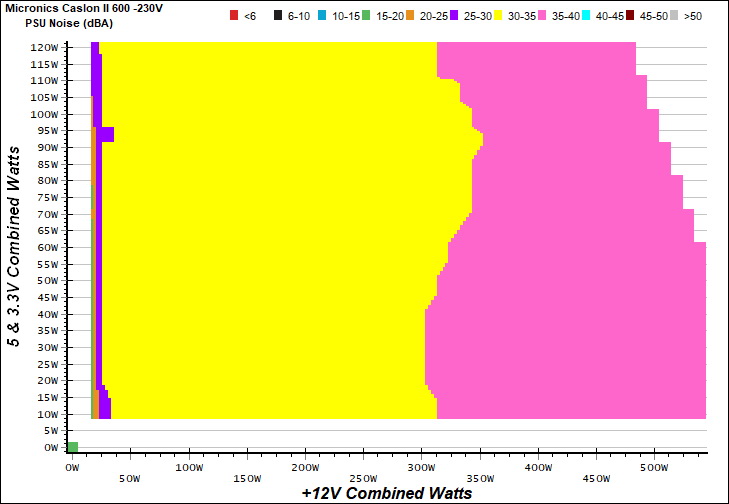

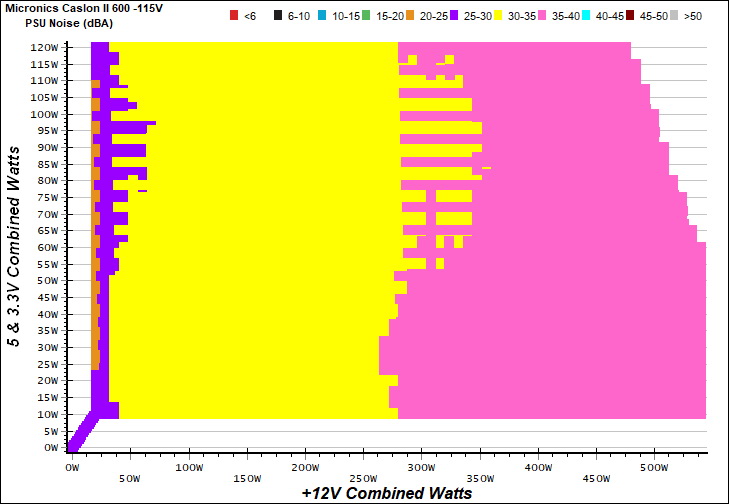

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

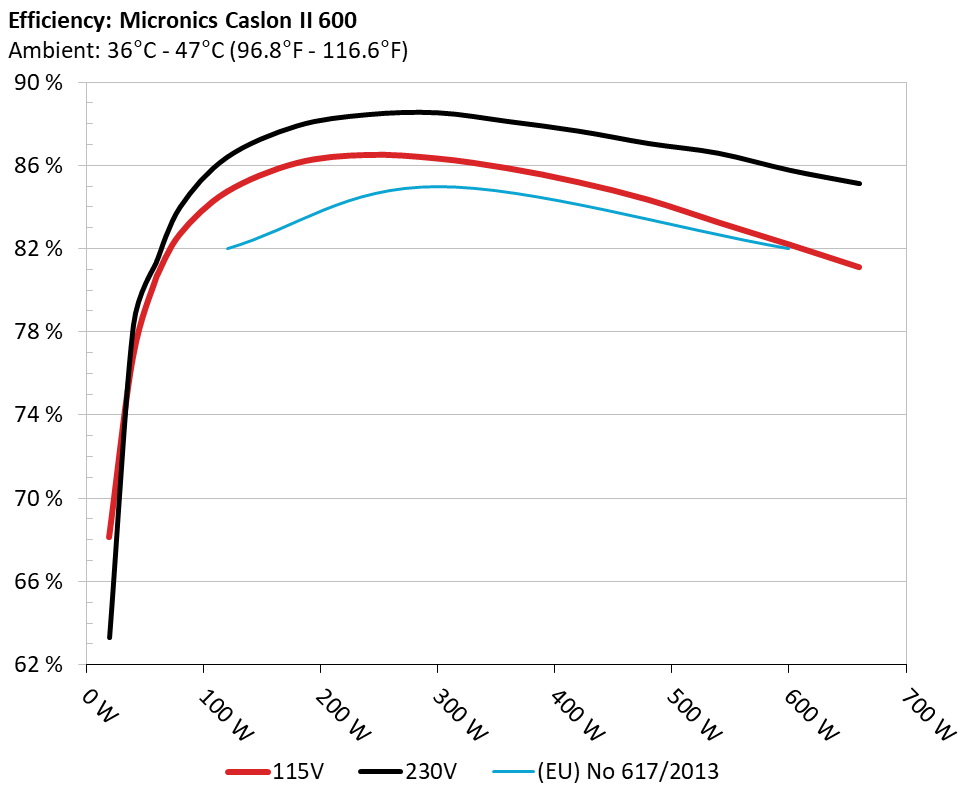

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

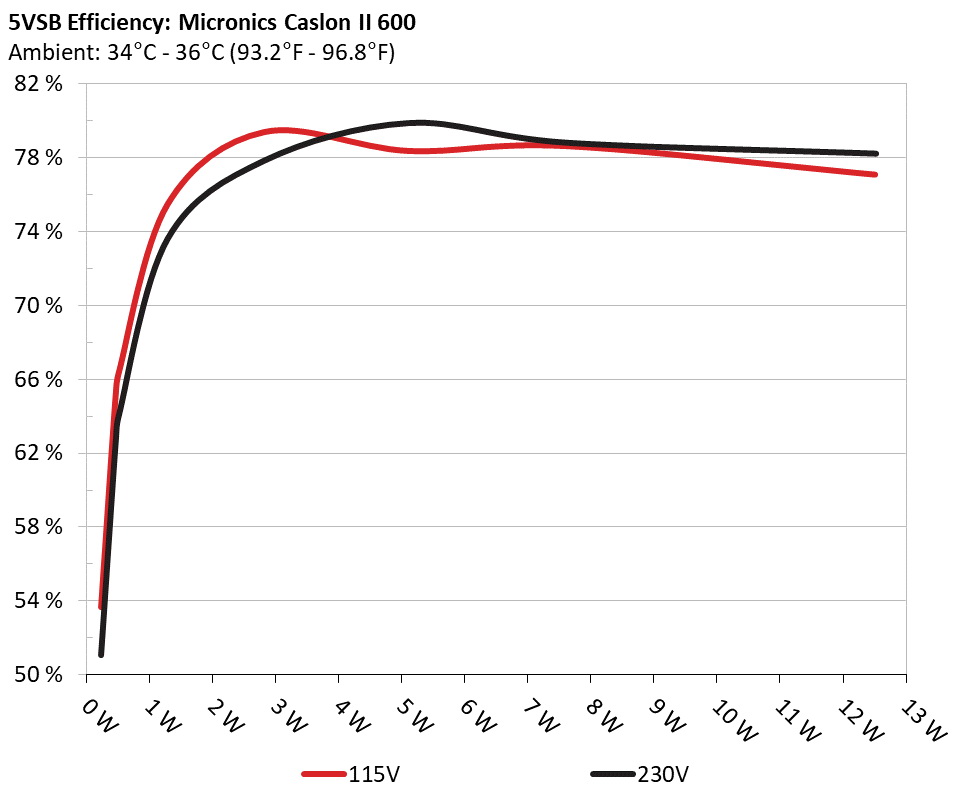

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 53.687% 0.068
5.158V 0.434 115.36V
2 0.090A 0.464 65.169% 0.107
5.155V 0.712 115.36V
3 0.550A 2.821 79.398% 0.307
5.128V 3.553 115.35V
4 1.000A 5.103 78.375% 0.365
5.103V 6.511 115.36V
5 1.500A 7.609 78.638% 0.395
5.072V 9.676 115.35V
6 2.500A 12.508 77.096% 0.429
5.003V 16.224 115.34V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 51.096% 0.023
5.158V 0.456 230.91V
2 0.090A 0.465 62.668% 0.037
5.156V 0.742 230.91V
3 0.550A 2.821 77.864% 0.157
5.128V 3.623 230.91V
4 1.000A 5.102 79.894% 0.231
5.101V 6.386 230.90V
5 1.500A 7.610 78.836% 0.285
5.072V 9.653 230.90V
6 2.500A 12.521 78.242% 0.339
5.008V 16.003 230.90V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.168A 1.947A 1.956A 0.982A 59.856 79.956% 1014 29.0 38.18°C 0.974
12.080V 5.131V 3.373V 5.090V 74.861 43.86°C 115.18V
2 7.342A 2.925A 2.939A 1.182A 119.586 84.749% 1097 30.8 38.77°C 0.970
12.080V 5.127V 3.368V 5.075V 141.106 44.75°C 115.20V
3 11.911A 3.414A 3.418A 1.385A 179.512 86.140% 1191 32.8 39.27°C 0.985
12.049V 5.126V 3.363V 5.055V 208.395 45.63°C 115.11V
4 16.500A 3.903A 3.929A 1.589A 239.524 86.532% 1277 34.6 39.81°C 0.992
12.020V 5.123V 3.358V 5.038V 276.804 46.59°C 115.03V
5 20.756A 4.894A 4.920A 1.794A 299.638 86.360% 1303 34.9 40.12°C 0.995
12.004V 5.106V 3.352V 5.018V 346.962 47.22°C 115.04V
6 25.012A 5.884A 5.916A 2.002A 359.764 85.891% 1440 37.1 41.32°C 0.996
11.993V 5.098V 3.346V 4.997V 418.860 49.08°C 114.95V
7 29.262A 6.885A 6.913A 2.211A 419.480 85.225% 1498 38.3 41.88°C 0.997
11.974V 5.083V 3.341V 4.977V 492.203 50.21°C 114.86V
8 33.559A 7.885A 7.916A 2.422A 480.036 84.370% 1565 38.8 42.10°C 0.997
11.968V 5.073V 3.335V 4.955V 568.962 51.86°C 114.76V
9 38.300A 8.378A 8.411A 2.429A 539.358 83.288% 1630 39.7 44.17°C 0.997
11.928V 5.074V 3.329V 4.942V 647.581 54.90°C 114.75V
10 43.142A 8.876A 8.937A 2.539A 600.082 82.220% 1620 39.6 45.90°C 0.997
11.888V 5.071V 3.323V 4.924V 729.847 56.93°C 114.65V
11 48.352A 8.865A 8.947A 2.542A 660.081 81.123% 1615 39.5 46.79°C 0.997
11.848V 5.077V 3.319V 4.919V 813.676 58.24°C 114.55V
CL1 0.136A 14.004A 13.999A 0.000A 113.853 75.836% 1580 39.0 43.47°C 0.977
12.888V 4.650V 3.356V 5.137V 150.130 52.67°C 115.18V
CL2 44.997A 1.002A 1.000A 1.000A 537.095 83.643% 1590 39.1 45.83°C 0.997
11.633V 5.255V 3.336V 5.043V 642.129 56.69°C 114.76V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.186A 1.949A 1.956A 0.982A 60.091 81.422% 1078 30.4 40.23°C 0.638
12.081V 5.133V 3.372V 5.092V 73.802 44.62°C 230.75V
2 7.359A 2.926A 2.940A 1.182A 119.816 86.381% 1180 32.3 40.77°C 0.868
12.082V 5.129V 3.366V 5.078V 138.706 45.44°C 230.86V
3 11.924A 3.415A 3.420A 1.384A 179.718 87.890% 1244 33.9 41.05°C 0.935
12.052V 5.128V 3.361V 5.060V 204.481 46.54°C 230.82V
4 16.508A 3.905A 3.933A 1.587A 239.717 88.432% 1298 34.9 41.43°C 0.962
12.024V 5.126V 3.357V 5.044V 271.075 47.61°C 230.77V
5 20.764A 4.893A 4.924A 1.792A 299.822 88.523% 1373 35.9 42.03°C 0.975
12.007V 5.110V 3.351V 5.025V 338.695 48.91°C 230.55V
6 25.004A 5.884A 5.919A 1.999A 359.936 88.105% 1446 37.3 42.89°C 0.980
12.003V 5.100V 3.345V 5.005V 408.529 50.30°C 230.61V
7 29.256A 6.883A 6.917A 2.208A 419.633 87.646% 1520 38.6 43.65°C 0.983
11.981V 5.086V 3.340V 4.985V 478.784 51.62°C 230.56V
8 33.557A 7.880A 7.918A 2.420A 480.158 87.045% 1595 39.1 44.53°C 0.986
11.972V 5.077V 3.334V 4.962V 551.621 53.94°C 230.67V
9 38.280A 8.374A 8.414A 2.423A 539.468 86.577% 1625 39.6 45.04°C 0.988
11.937V 5.076V 3.329V 4.954V 623.107 55.02°C 230.44V
10 43.074A 8.885A 8.937A 2.530A 600.148 85.765% 1630 39.7 45.83°C 0.990
11.908V 5.066V 3.324V 4.943V 699.756 56.30°C 230.40V
11 48.369A 8.864A 8.952A 2.536A 660.159 85.117% 1610 39.4 47.35°C 0.991
11.845V 5.078V 3.319V 4.931V 775.590 59.94°C 230.35V
CL1 0.139A 14.004A 14.000A 0.000A 113.893 77.449% 1558 38.8 43.21°C 0.882
12.888V 4.650V 3.356V 5.138V 147.055 52.36°C 230.77V
CL2 44.997A 1.003A 1.001A 1.000A 537.429 86.818% 1585 39.0 45.73°C 0.988
11.640V 5.256V 3.337V 5.051V 619.028 56.35°C 230.63V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.178A 0.482A 0.470A 0.194A 19.298 68.121% 910 25.8 0.788
12.071V 5.170V 3.378V 5.147V 28.329 115.24V
2 2.441A 0.967A 0.974A 0.390A 39.724 76.809% 921 25.9 0.923
12.064V 5.158V 3.376V 5.130V 51.718 115.21V
3 3.636A 1.454A 1.451A 0.587A 59.243 80.680% 930 26.1 0.974
12.063V 5.147V 3.374V 5.115V 73.430 115.18V
4 4.897A 1.945A 1.955A 0.784A 79.674 82.709% 1006 28.5 0.961
12.066V 5.139V 3.372V 5.101V 96.330 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.200A 0.484A 0.476A 0.194A 19.597 63.292% 859 24.0 0.284
12.074V 5.171V 3.377V 5.149V 30.963 230.95V
2 2.462A 0.970A 0.977A 0.390A 40.007 78.319% 946 26.4 0.528
12.065V 5.160V 3.375V 5.131V 51.082 230.74V
3 3.655A 1.456A 1.453A 0.587A 59.494 81.328% 1026 29.3 0.631
12.064V 5.149V 3.373V 5.115V 73.153 230.93V
4 4.915A 1.946A 1.956A 0.784A 79.910 83.992% 1097 30.8 0.727
12.068V 5.141V 3.370V 5.102V 95.140 230.72V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.8 mV 5.3 mV 8.6 mV 8.6 mV Pass
20% Load 9.0 mV 6.5 mV 10.9 mV 10.7 mV Pass
30% Load 11.3 mV 8.4 mV 13.3 mV 13.4 mV Pass
40% Load 15.4 mV 10.8 mV 15.8 mV 20.4 mV Pass
50% Load 21.5 mV 14.4 mV 17.5 mV 18.6 mV Pass
60% Load 25.5 mV 15.9 mV 19.4 mV 21.1 mV Pass
70% Load 28.4 mV 17.9 mV 21.7 mV 23.6 mV Pass
80% Load 30.2 mV 19.6 mV 24.0 mV 30.0 mV Pass
90% Load 36.5 mV 22.1 mV 25.5 mV 34.0 mV Pass
100% Load 44.7 mV 27.7 mV 27.3 mV 37.5 mV Pass
110% Load 67.3 mV 34.5 mV 29.1 mV 42.7 mV Pass
Crossload 1 14.8 mV 41.7 mV 14.4 mV 7.5 mV Pass
Crossload 2 30.3 mV 23.1 mV 23.7 mV 29.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.0 mV 4.9 mV 8.2 mV 7.9 mV Pass
20% Load 9.5 mV 6.3 mV 10.2 mV 9.7 mV Pass
30% Load 9.7 mV 7.2 mV 12.4 mV 12.2 mV Pass
40% Load 10.4 mV 8.6 mV 13.8 mV 17.9 mV Pass
50% Load 11.3 mV 10.2 mV 15.3 mV 16.2 mV Pass
60% Load 12.7 mV 10.5 mV 17.1 mV 19.1 mV Pass
70% Load 14.7 mV 11.7 mV 18.4 mV 21.0 mV Pass
80% Load 19.7 mV 13.6 mV 21.1 mV 27.3 mV Pass
90% Load 20.8 mV 14.9 mV 22.3 mV 29.2 mV Pass
100% Load 26.5 mV 18.7 mV 24.1 mV 28.1 mV Pass
110% Load 30.6 mV 20.4 mV 25.7 mV 31.5 mV Pass
Crossload 1 17.0 mV 43.8 mV 14.4 mV 6.6 mV Pass
Crossload 2 19.5 mV 18.8 mV 19.9 mV 20.1 mV Pass

The results above are not used in the certification process

Micronics Caslon II 600

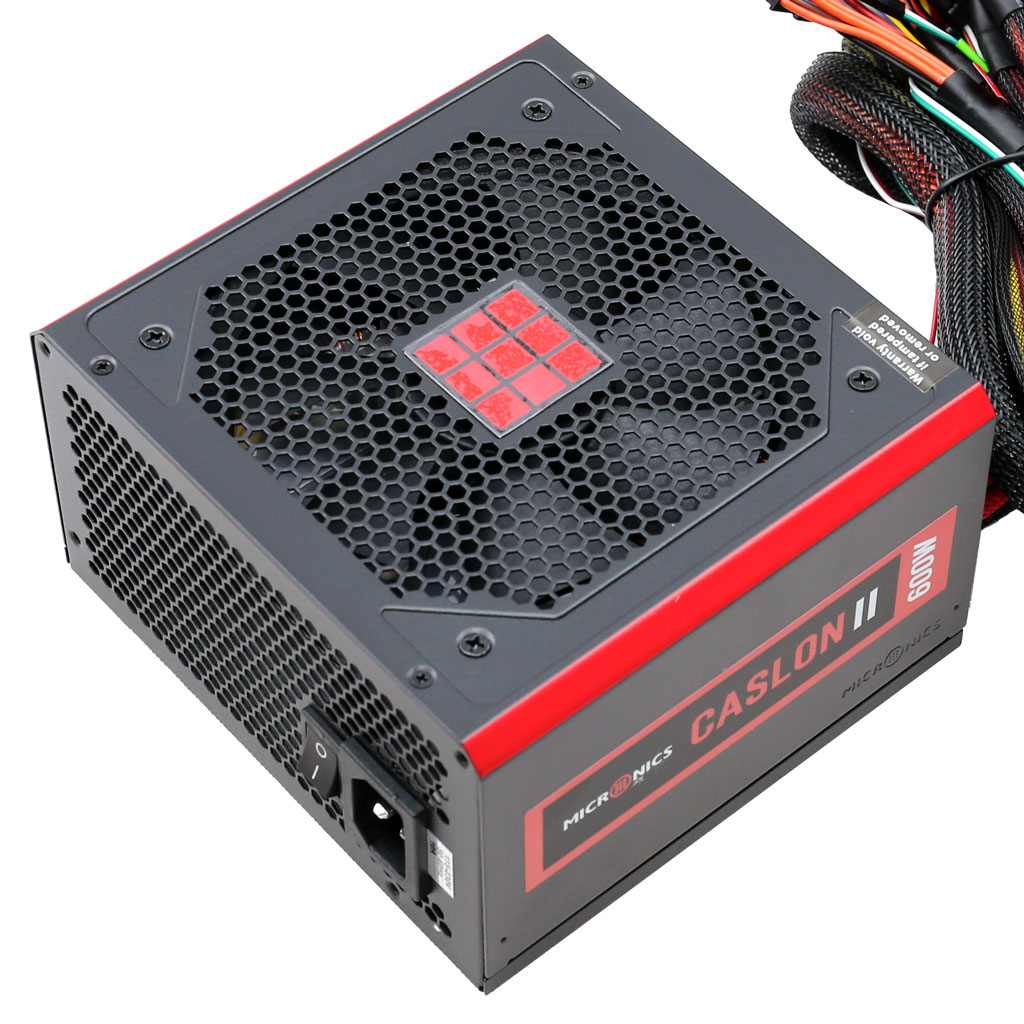

Top side

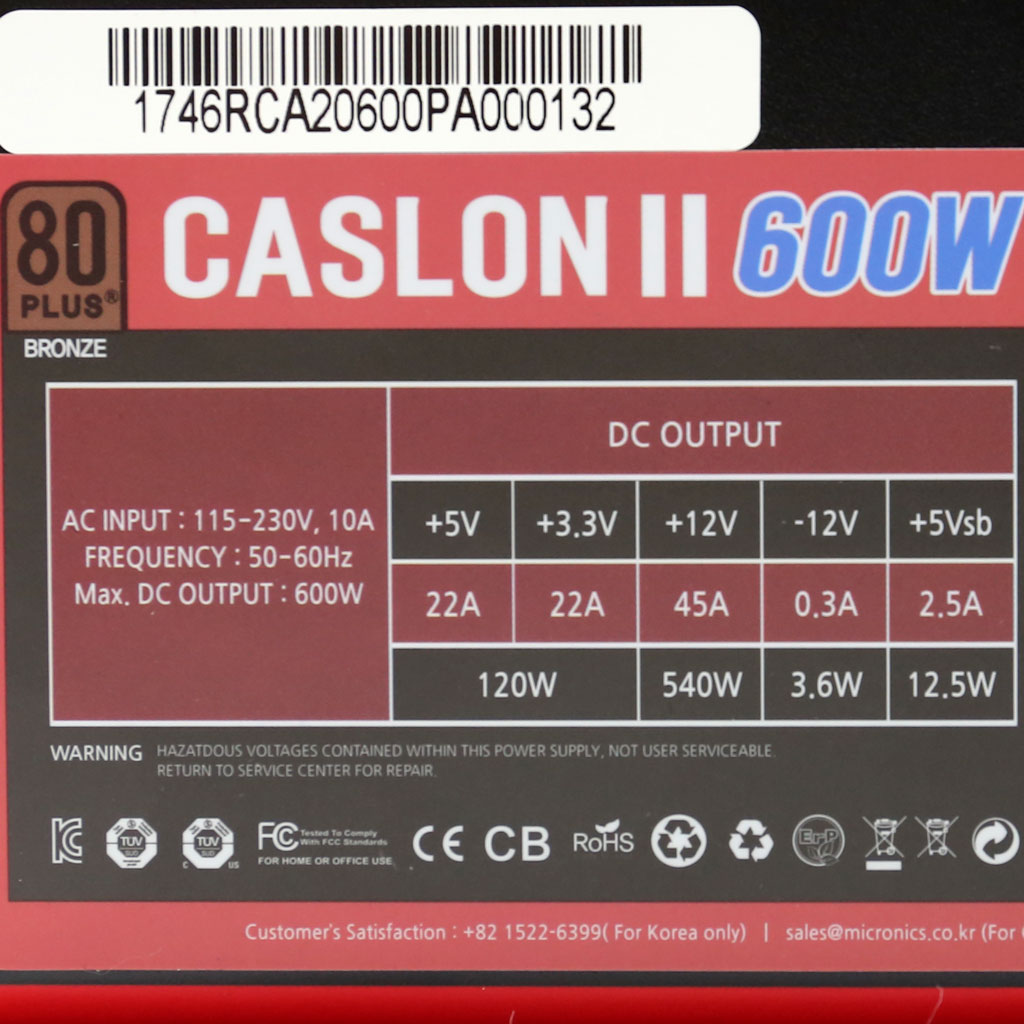

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
