CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Apexgaming AG-850M
Serial NumberGAG850M201712000013
Lab ID302
  • Report: 19PS302A
  • Receipt Date: Dec 24, 2017
  • Test Date: Dec 31, 2017
  • Report Date: Jan 3, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandApexgaming
Manufacturer (OEM)Solytech
SeriesAG Series
Model Number
Serial NumberGAG850M201712000013
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)47-63
Rated Power (W)850
TypeATX12V
Cooling140mm Sleeve Bearing Fan
(AV-F14025HS)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 70 3 0.5
Watts 150 840 15 6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (600mm+150mm) 3 6 18AWG No
SATA (520mm+110mm+110mm) 2 6 18AWG No
SATA (500mm+110mm+110mm+110mm) 1 4 18AWG No
4 pin Molex (450mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1420mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Solytech
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistors
Bridge Rectifier(s) 2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 3x Wuxi Tongfang Microelectronics TPA60R150C (600V, 20A @ 25°C, 0.15Ohm)
APFC Boost Diode 1x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s) 2x Rubycon (400V, 330uF, 2000h @ 105°C, MXH)
Main Switchers 2x Infineon IPA60R125P6
(650V, 1A @ 100°C, 0.125Ohm)
APFC Controller Champion CM6502S
LLC Resonant Controller Monolithic Power Systems HR1001B
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Toshiba TPHR85 04PL (SOP Advance Series, 40V, 150A @ 25°C, 0.85 mOhm )
Synchronous Rectifier Monolithic Power Systems MP6923
5V & 3.3V DC-DC Converters: 6x Ubiq QM3004D (30V, 40A @ 100°C, 8.5mOhm)
PWM Controller: 1x Anpec APW7159C
Filtering Capacitors Electrolytics: 14x Su scon (Chinese, 105°C), 5x Elite (Chinese, 105°C)
Polymers: 8x
Supervisor IC Weltrend WT7527V (OCP, OVP, UVP, SCP, PG) & UTC LM358G
Fan Model AV-F14025HS (140mm, 12V, 0.50A, Sleeve Bearing)
5VSB Circuit
Rectifier 1x PFR10L45CT SBR (45V, 10A)
Standby PWM Controller OB5224AP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 14.70
AC Loss to PWR_OK Hold Up Time  (ms) 12.90
PWR_OK Inactive to DC Loss Delay (ms) 1.80

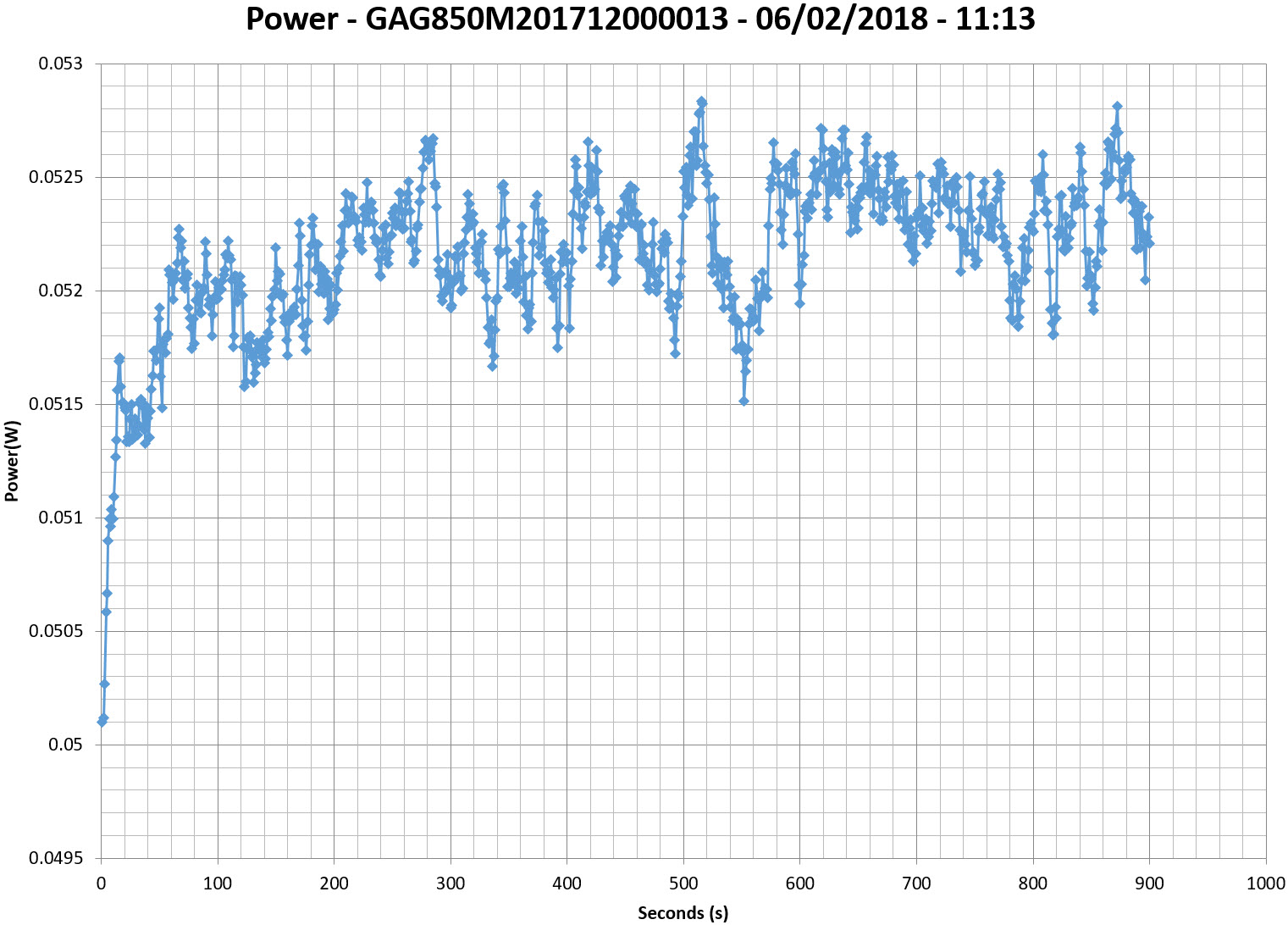

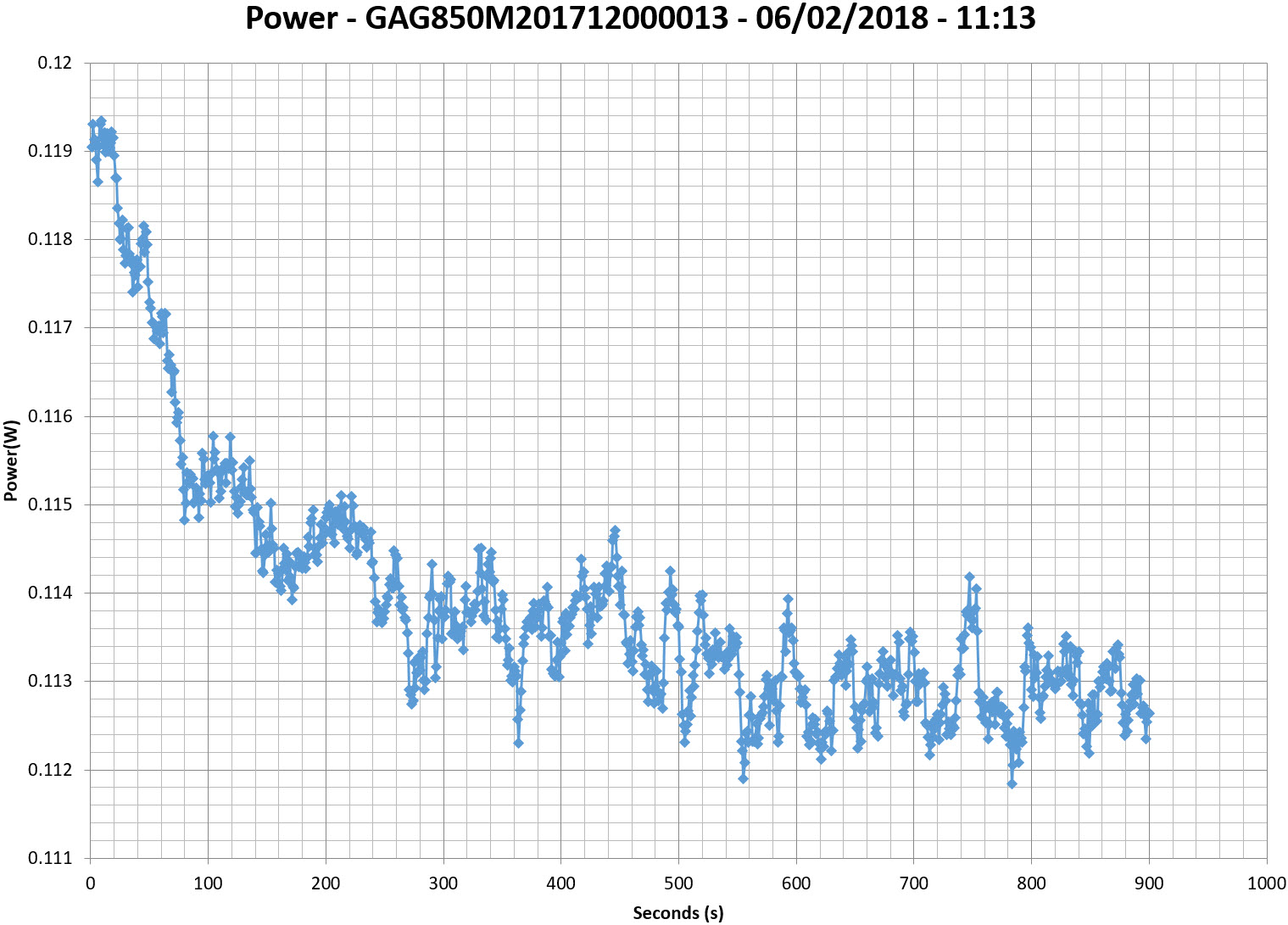

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

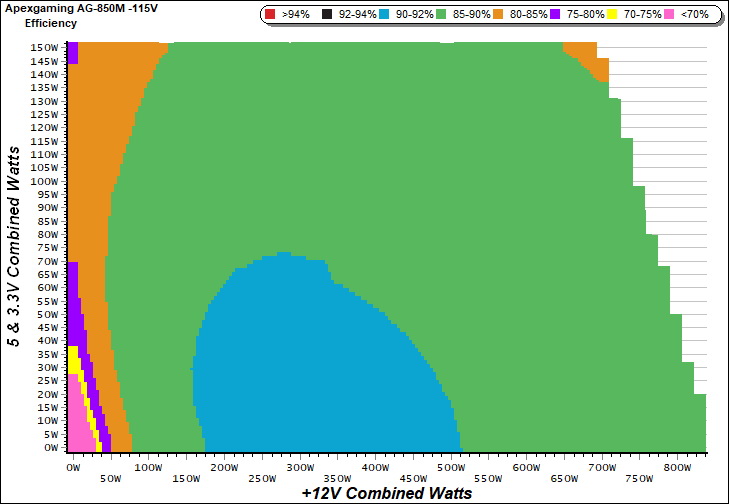

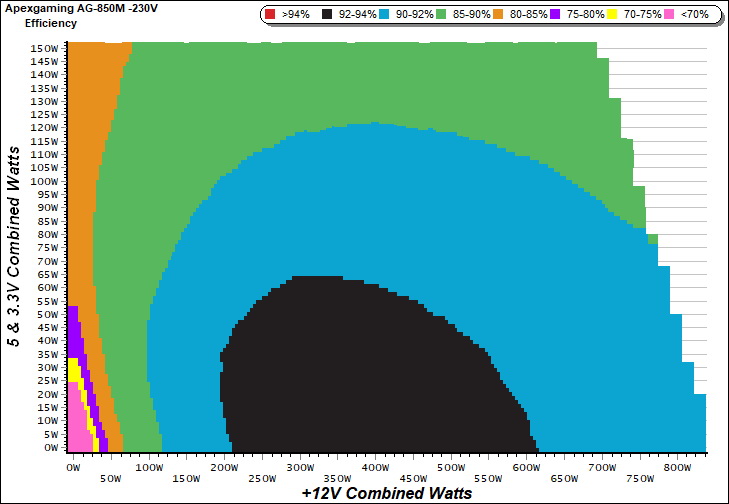

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

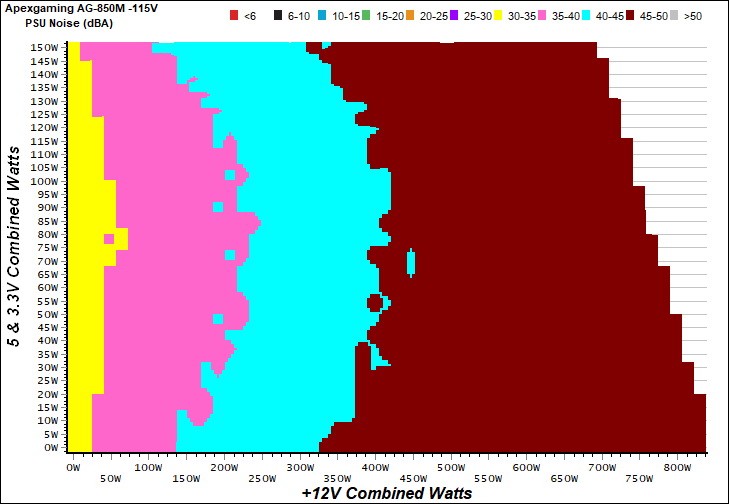

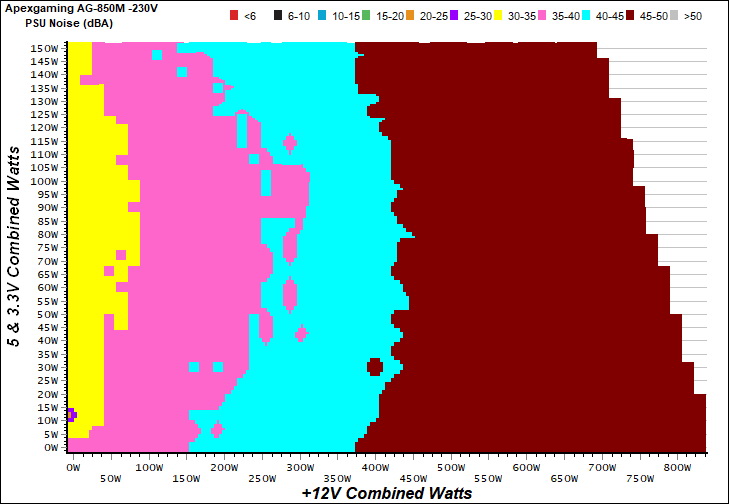

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

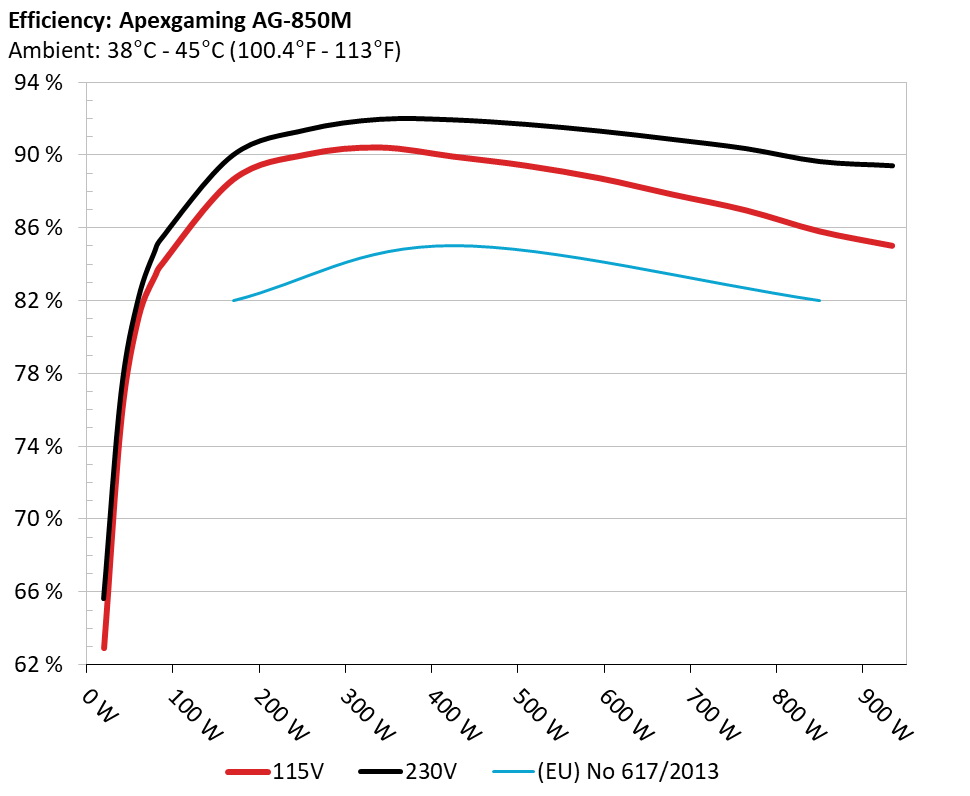

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

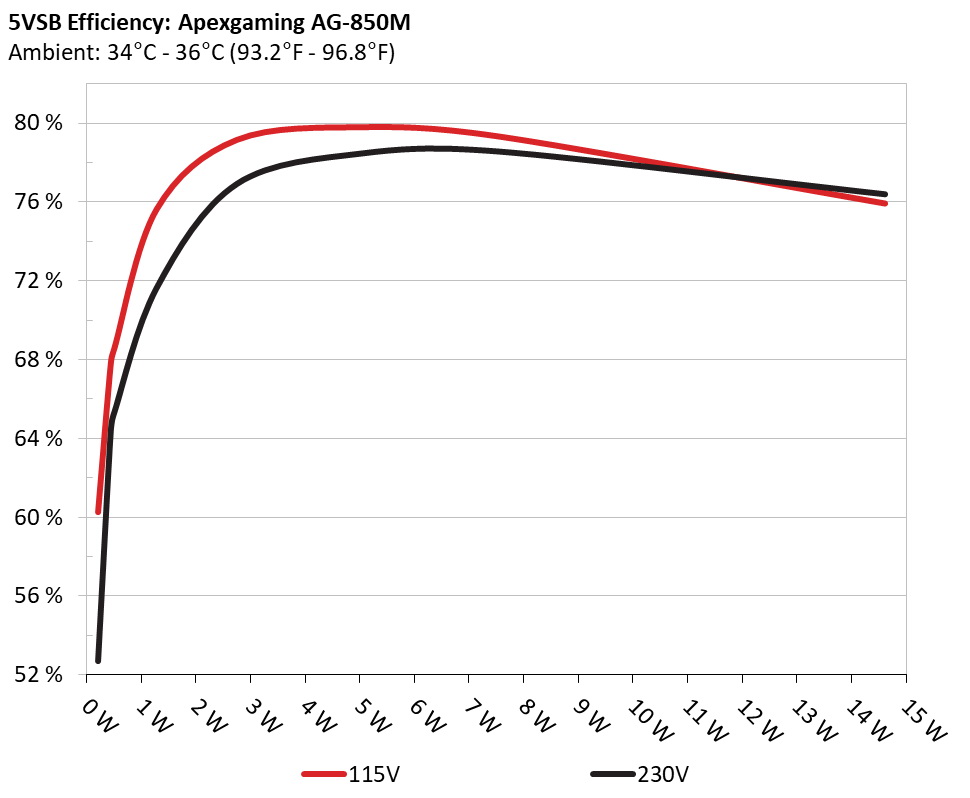

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 60.282% 0.037
5.125V 0.355 115.08V
2 0.087A 0.446 67.781% 0.067
5.122V 0.658 115.08V
3 0.542A 2.755 79.144% 0.245
5.085V 3.481 115.07V
4 1.002A 5.056 79.785% 0.314
5.046V 6.337 115.07V
5 1.502A 7.514 79.329% 0.351
5.004V 9.472 115.07V
6 3.001A 14.623 75.920% 0.403
4.873V 19.261 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 52.709% 0.013
5.125V 0.406 230.25V
2 0.087A 0.447 64.409% 0.022
5.122V 0.694 230.25V
3 0.542A 2.756 76.919% 0.104
5.084V 3.583 230.23V
4 1.002A 5.054 78.466% 0.168
5.045V 6.441 230.23V
5 1.502A 7.511 78.567% 0.220
5.002V 9.560 230.24V
6 3.001A 14.617 76.393% 0.306
4.871V 19.134 230.24V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.241A 1.964A 1.970A 0.991A 84.836 83.911% 1675 44.0 37.94°C 0.980
12.071V 5.078V 3.350V 5.045V 101.102 40.90°C 115.10V
2 11.518A 2.960A 2.964A 1.191A 169.675 88.683% 1795 45.5 38.63°C 0.981
12.052V 5.060V 3.338V 5.028V 191.328 41.83°C 115.09V
3 18.184A 3.467A 3.486A 1.396A 254.887 90.052% 1835 47.4 38.96°C 0.986
12.033V 5.048V 3.324V 5.007V 283.044 42.43°C 115.09V
4 24.852A 3.975A 3.980A 1.600A 339.725 90.438% 1915 48.0 39.49°C 0.990
12.013V 5.033V 3.314V 4.988V 375.646 43.40°C 115.08V
5 31.204A 4.980A 4.999A 1.810A 424.659 89.940% 1985 49.3 40.05°C 0.992
11.992V 5.015V 3.299V 4.969V 472.160 44.25°C 115.07V
6 37.579A 6.007A 6.026A 2.021A 509.636 89.436% 2030 49.5 41.40°C 0.994
11.970V 4.996V 3.287V 4.947V 569.832 45.92°C 115.07V
7 43.984A 7.032A 7.055A 2.231A 594.591 88.747% 2050 49.7 42.43°C 0.995
11.948V 4.975V 3.273V 4.928V 669.983 47.18°C 115.10V
8 50.408A 8.076A 8.101A 2.445A 679.483 87.849% 2050 49.7 43.42°C 0.995
11.924V 4.957V 3.258V 4.905V 773.465 49.00°C 115.09V
9 57.302A 8.602A 8.655A 2.445A 764.547 86.981% 2050 49.7 44.02°C 0.996
11.901V 4.943V 3.246V 4.901V 878.980 50.28°C 115.08V
10 63.944A 9.137A 9.184A 3.095A 849.293 85.834% 2050 49.7 44.20°C 0.996
11.879V 4.927V 3.233V 4.844V 989.457 51.74°C 115.09V
11 71.200A 9.154A 9.208A 3.092A 934.057 85.036% 2050 49.7 44.82°C 0.996
11.859V 4.918V 3.222V 4.854V 1098.425 52.85°C 115.07V
CL1 0.100A 18.030A 18.002A 0.005A 149.488 79.040% 1925 48.1 40.21°C 0.982
12.035V 4.941V 3.287V 5.123V 189.129 45.29°C 115.10V
CL2 69.962A 1.003A 1.004A 1.002A 845.392 86.848% 2050 49.7 43.95°C 0.996
11.893V 4.997V 3.266V 5.032V 973.416 50.28°C 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.236A 1.965A 1.970A 0.991A 84.787 85.272% 1700 44.4 37.20°C 0.854
12.072V 5.078V 3.350V 5.046V 99.431 39.72°C 230.30V
2 11.516A 2.958A 2.964A 1.191A 169.641 89.970% 1720 44.6 37.75°C 0.937
12.052V 5.060V 3.338V 5.028V 188.553 40.31°C 230.28V
3 18.183A 3.467A 3.486A 1.396A 254.876 91.361% 1820 47.0 38.03°C 0.961
12.033V 5.048V 3.324V 5.007V 278.978 41.05°C 230.27V
4 24.856A 3.974A 3.980A 1.601A 339.743 91.941% 1915 48.0 38.62°C 0.971
12.012V 5.033V 3.313V 4.988V 369.523 42.22°C 230.28V
5 31.204A 4.980A 5.000A 1.811A 424.634 91.911% 1950 49.0 39.21°C 0.976
11.991V 5.015V 3.299V 4.968V 462.007 43.20°C 230.27V
6 37.581A 6.007A 6.022A 2.020A 509.639 91.662% 2010 49.1 40.07°C 0.980
11.970V 4.996V 3.286V 4.948V 555.999 44.27°C 230.27V
7 43.979A 7.031A 7.056A 2.231A 594.540 91.297% 2030 49.5 40.75°C 0.983
11.948V 4.976V 3.273V 4.930V 651.212 45.41°C 230.27V
8 50.406A 8.073A 8.100A 2.445A 679.506 90.837% 2030 49.5 41.46°C 0.984
11.925V 4.958V 3.258V 4.907V 748.049 47.50°C 230.26V
9 57.299A 8.599A 8.655A 2.446A 764.576 90.331% 2050 49.7 42.78°C 0.985
11.902V 4.943V 3.247V 4.904V 846.417 51.19°C 230.27V
10 63.951A 9.135A 9.183A 3.095A 849.320 89.624% 2050 49.7 44.83°C 0.987
11.878V 4.928V 3.234V 4.845V 947.647 54.46°C 230.26V
11 71.214A 9.153A 9.212A 3.094A 934.300 89.392% 2050 49.7 45.87°C 0.988
11.860V 4.918V 3.223V 4.847V 1045.176 56.16°C 230.26V
CL1 0.100A 18.029A 18.004A 0.005A 149.490 80.004% 1995 49.2 41.88°C 0.936
12.031V 4.940V 3.288V 5.123V 186.854 46.66°C 230.27V
CL2 69.951A 1.003A 1.003A 1.002A 844.907 90.530% 2050 49.7 43.22°C 0.986
11.888V 4.997V 3.265V 5.032V 933.294 51.68°C 230.25V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.208A 0.491A 0.476A 0.196A 19.705 62.913% 1780 45.2 0.876
12.086V 5.098V 3.363V 5.112V 31.321 115.10V
2 2.442A 0.981A 0.980A 0.391A 39.783 75.502% 1630 42.9 0.948
12.082V 5.092V 3.360V 5.095V 52.691 115.10V
3 3.677A 1.467A 1.489A 0.591A 59.864 81.132% 1615 42.3 0.970
12.077V 5.085V 3.355V 5.079V 73.786 115.10V
4 4.905A 1.966A 1.968A 0.789A 79.789 83.467% 1675 44.0 0.976
12.073V 5.078V 3.350V 5.063V 95.594 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.493A 0.475A 0.196A 19.745 65.611% 1525 41.4 0.519
12.234V 5.097V 3.362V 5.114V 30.094 165.14V
2 2.427A 0.980A 0.981A 0.391A 39.753 76.846% 1595 42.0 0.684
12.145V 5.092V 3.359V 5.096V 51.731 230.28V
3 3.677A 1.467A 1.487A 0.591A 59.863 82.072% 1595 42.0 0.781
12.078V 5.085V 3.356V 5.079V 72.940 265.14V
4 4.905A 1.966A 1.968A 0.789A 79.791 84.792% 1660 43.5 0.844
12.073V 5.078V 3.351V 5.063V 94.102 230.29V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.2 mV 11.7 mV 13.8 mV 26.9 mV Pass
20% Load 14.0 mV 14.0 mV 15.9 mV 35.4 mV Pass
30% Load 17.1 mV 14.9 mV 17.7 mV 35.4 mV Pass
40% Load 18.6 mV 16.5 mV 18.4 mV 38.1 mV Pass
50% Load 21.5 mV 17.6 mV 20.7 mV 51.7 mV Fail
60% Load 23.0 mV 19.0 mV 22.0 mV 51.2 mV Fail
70% Load 25.0 mV 20.4 mV 23.7 mV 60.2 mV Fail
80% Load 26.7 mV 22.4 mV 25.5 mV 68.5 mV Fail
90% Load 30.7 mV 24.1 mV 26.9 mV 66.0 mV Fail
100% Load 37.3 mV 28.7 mV 31.7 mV 70.1 mV Fail
110% Load 38.7 mV 28.9 mV 31.8 mV 74.6 mV Fail
Crossload 1 15.0 mV 31.4 mV 28.7 mV 41.6 mV Pass
Crossload 2 37.0 mV 24.5 mV 27.8 mV 76.8 mV Fail

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.3 mV 12.1 mV 14.2 mV 25.9 mV Pass
20% Load 14.9 mV 13.5 mV 15.5 mV 32.5 mV Pass
30% Load 18.1 mV 14.7 mV 17.5 mV 39.7 mV Pass
40% Load 19.4 mV 15.9 mV 18.8 mV 44.9 mV Pass
50% Load 21.5 mV 18.0 mV 20.8 mV 47.7 mV Pass
60% Load 23.4 mV 19.3 mV 22.5 mV 50.0 mV Fail
70% Load 24.4 mV 21.2 mV 25.5 mV 54.0 mV Fail
80% Load 27.1 mV 22.8 mV 26.1 mV 53.8 mV Fail
90% Load 28.7 mV 24.5 mV 28.0 mV 57.6 mV Fail
100% Load 31.4 mV 25.9 mV 29.1 mV 58.5 mV Fail
110% Load 32.6 mV 27.6 mV 30.3 mV 59.9 mV Fail
Crossload 1 14.4 mV 32.7 mV 26.2 mV 35.6 mV Pass
Crossload 2 29.8 mV 22.4 mV 25.8 mV 56.8 mV Fail

The results above are not used in the certification process

Apexgaming AG-850M

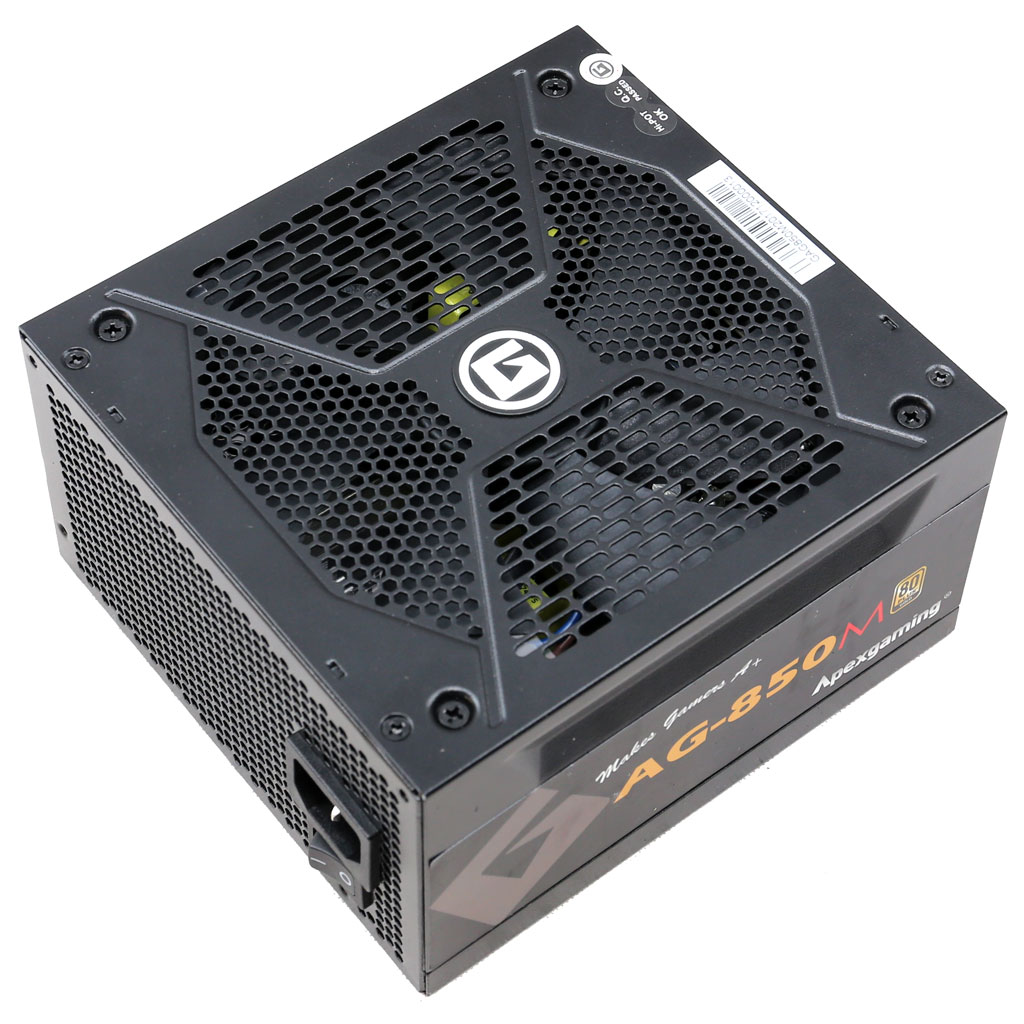

Top side

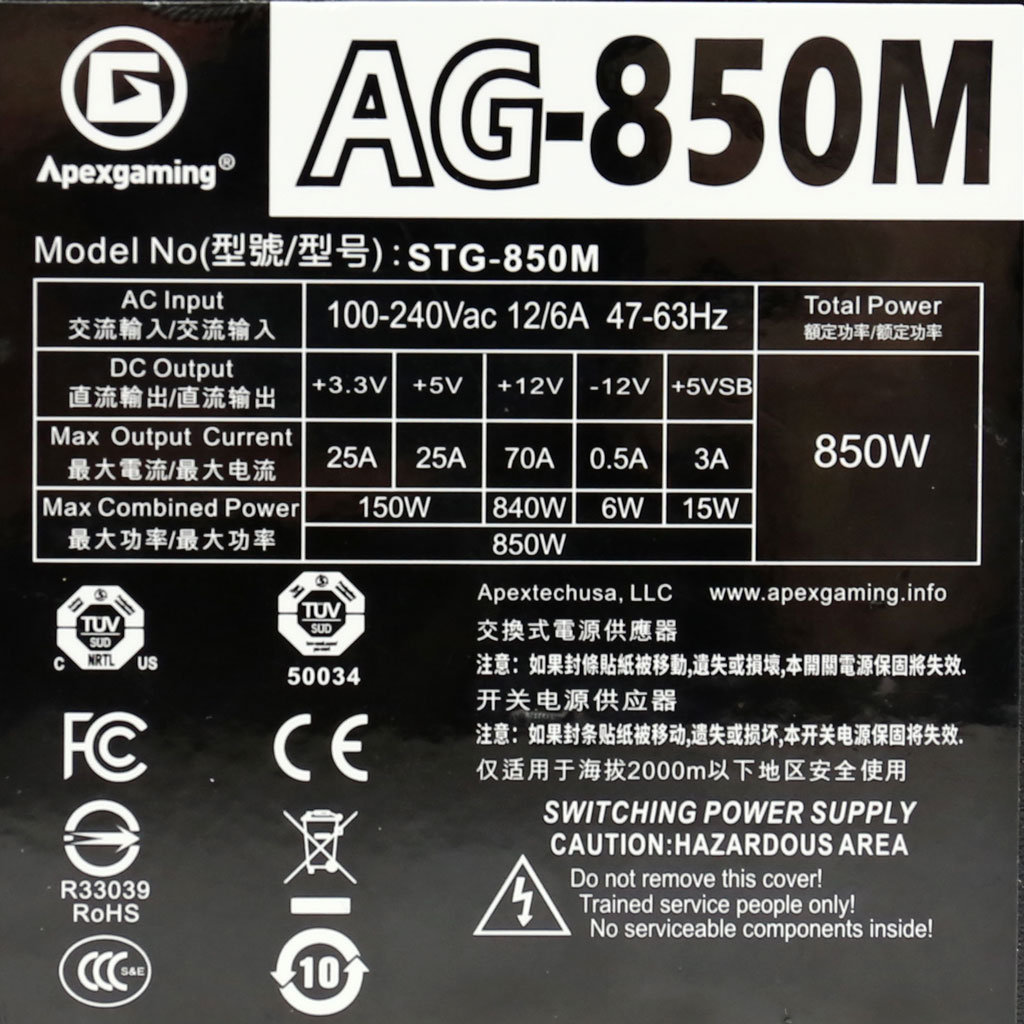

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
