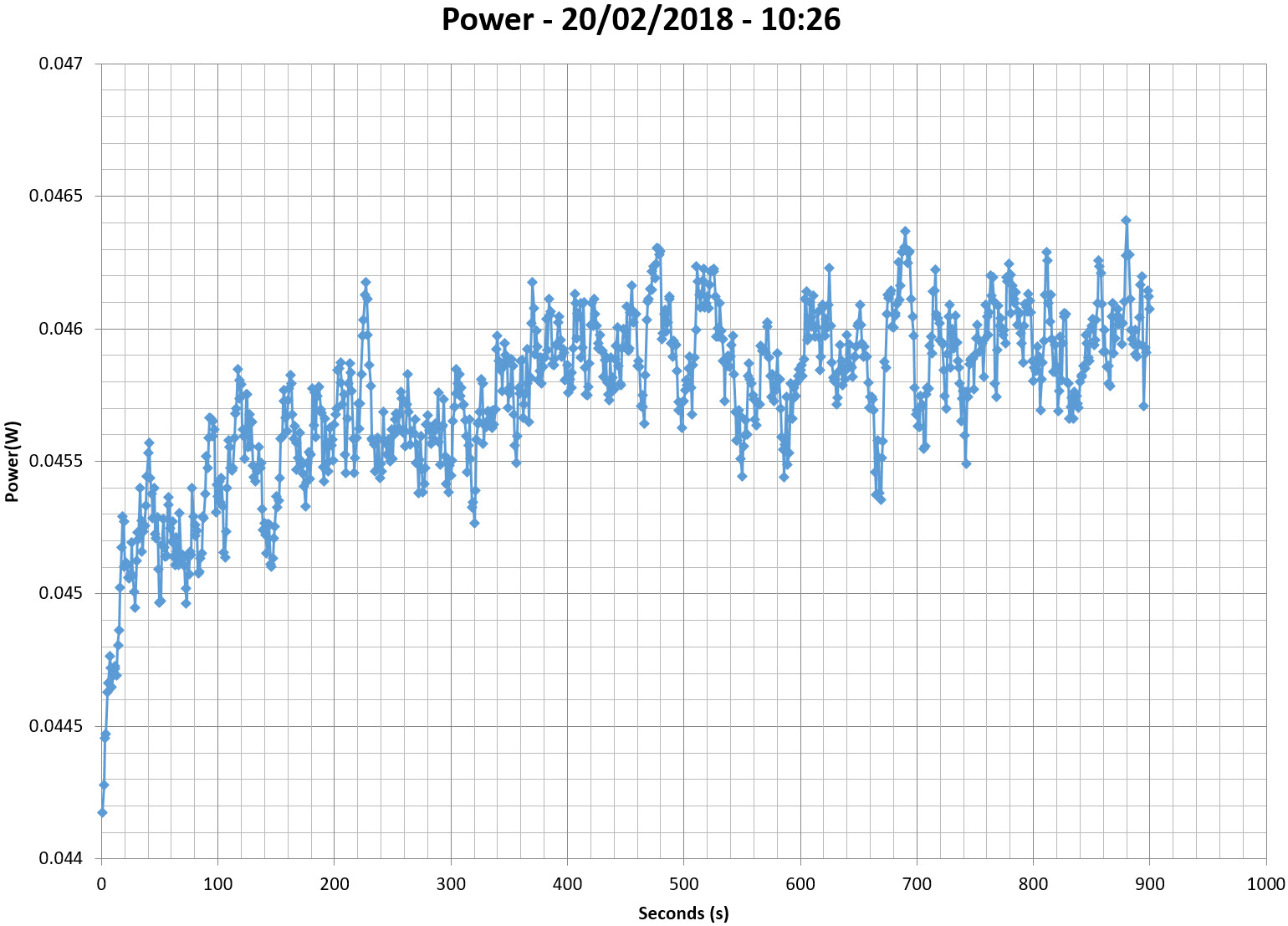

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO

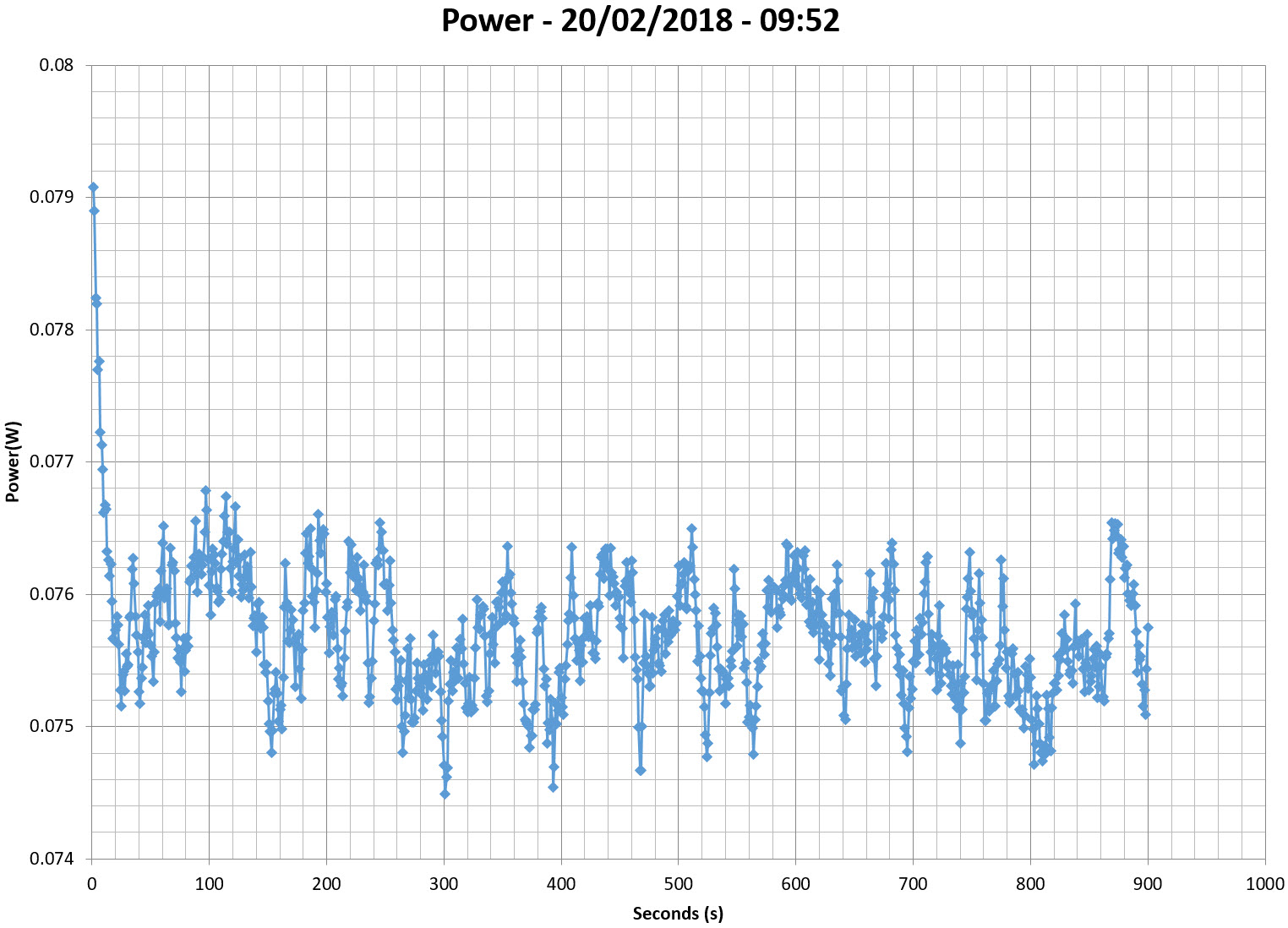

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
INFO

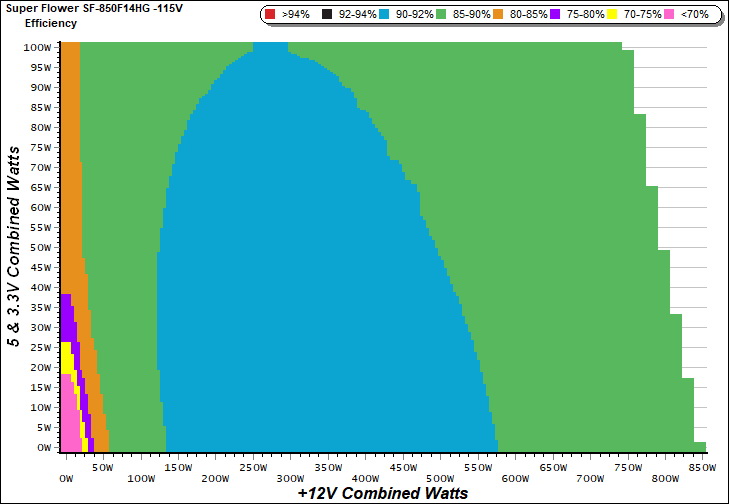

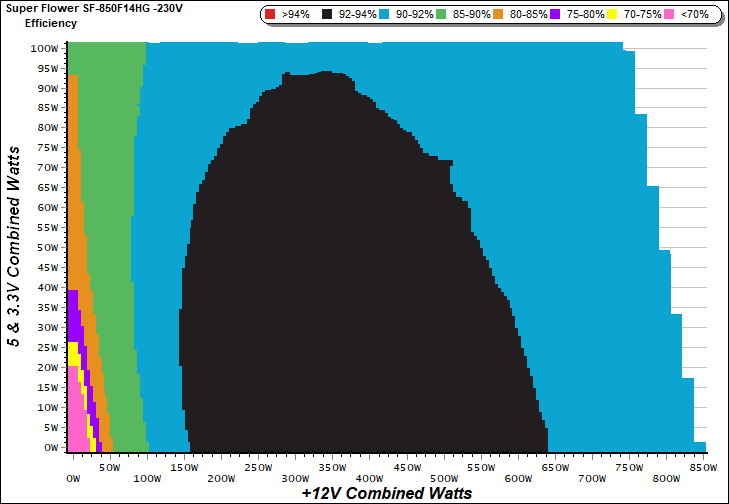

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
INFO

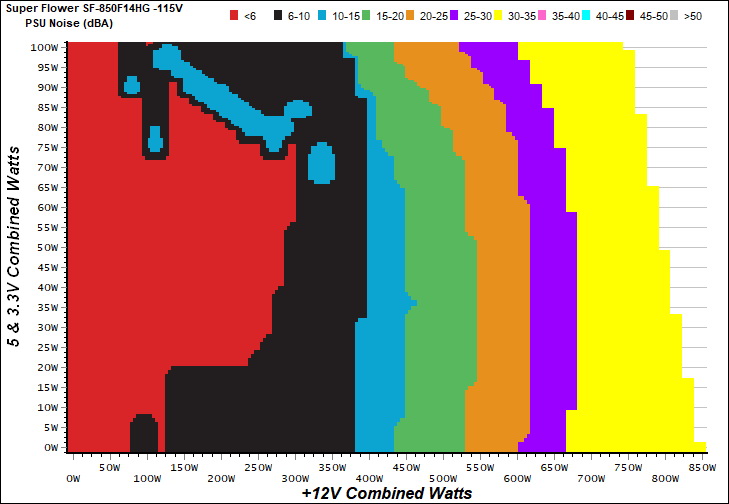

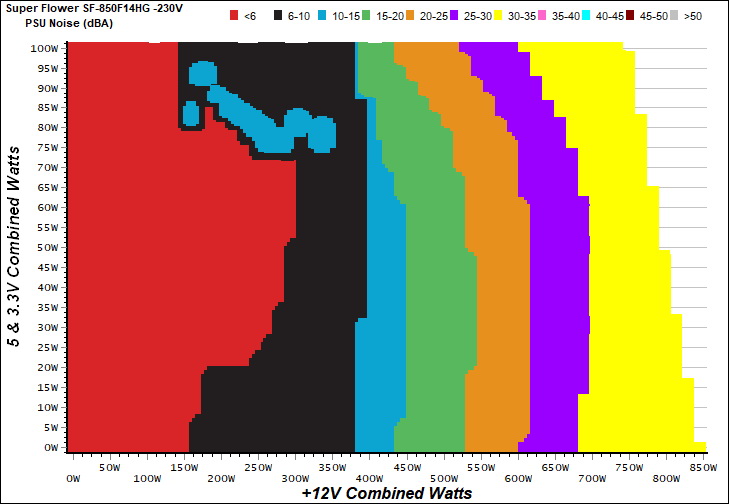

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
Efficiency under high ambient temperature
INFO

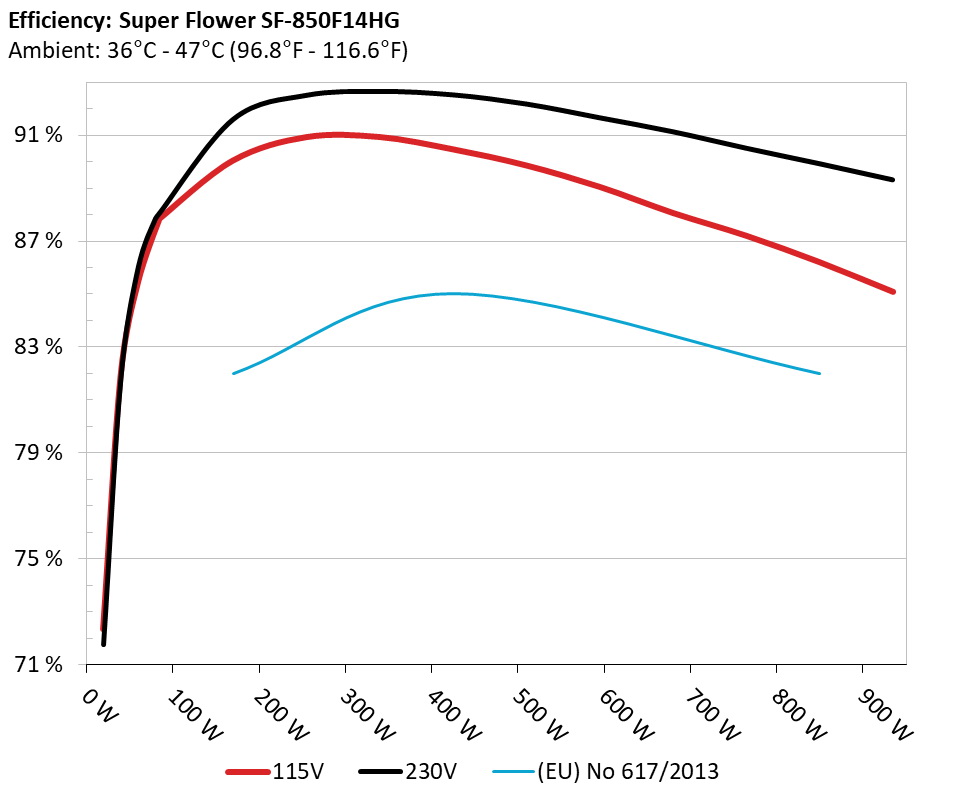

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
5VSB Efficiency
INFO

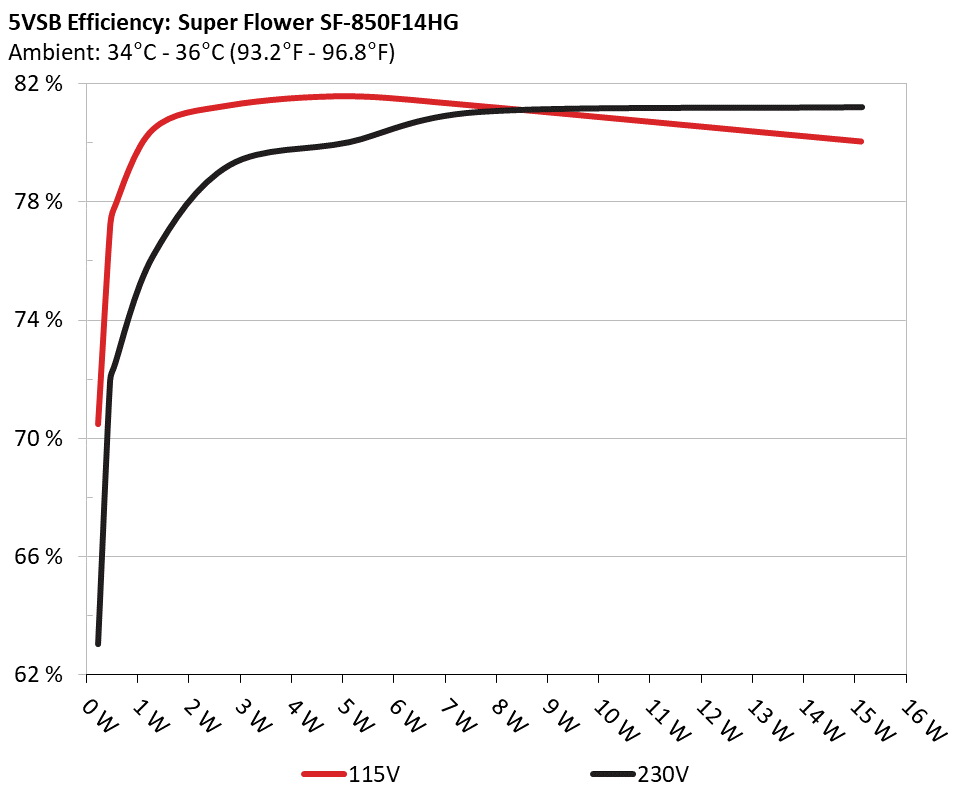

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.215
70.492%
0.023
5.139V
0.305
115.01V
2
0.087A
0.449
77.148%
0.044
5.138V
0.582
115.01V
3
0.543A
2.780
81.263%
0.219
5.124V
3.421
115.01V
4
1.002A
5.121
81.571%
0.321
5.110V
6.278
115.01V
5
1.502A
7.648
81.241%
0.383
5.093V
9.414
115.01V
6
3.001A
15.128
80.042%
0.464
5.041V
18.900
115.00V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.215
63.050%
0.008
5.139V
0.341
230.11V
2
0.087A
0.449
71.955%
0.014
5.138V
0.624
230.11V
3
0.542A
2.779
79.242%
0.078
5.123V
3.507
230.11V
4
1.002A
5.119
80.022%
0.135
5.108V
6.397
230.11V
5
1.502A
7.648
81.043%
0.186
5.093V
9.437
230.11V
6
3.002A
15.132
81.206%
0.292
5.041V
18.634
230.11V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.165A
1.984A
1.989A
0.984A
84.569
86.851%
0
<6.0
47.64°C
0.942
12.197V
5.033V
3.312V
5.080V
97.373
38.73°C
115.16V
2
11.338A
2.979A
2.990A
1.184A
169.094
90.178%
0
<6.0
48.82°C
0.973
12.190V
5.031V
3.310V
5.067V
187.511
39.56°C
115.15V
3
17.909A
3.476A
3.475A
1.385A
254.167
91.033%
625
10.3
39.98°C
0.986
12.183V
5.030V
3.308V
5.056V
279.202
49.46°C
115.04V
4
24.482A
3.975A
3.991A
1.586A
339.373
91.100%
625
10.3
40.59°C
0.991
12.180V
5.029V
3.305V
5.045V
372.527
50.44°C
114.91V
5
30.717A
4.972A
4.993A
1.788A
424.710
90.641%
870
18.1
41.62°C
0.994
12.183V
5.027V
3.303V
5.033V
468.564
51.59°C
114.89V
6
36.888A
5.969A
5.996A
1.992A
509.217
90.098%
1010
22.6
42.26°C
0.995
12.184V
5.024V
3.300V
5.019V
565.181
52.71°C
114.78V
7
43.124A
6.967A
7.002A
2.195A
594.540
89.313%
1170
27.1
42.80°C
0.996
12.185V
5.022V
3.297V
5.011V
665.679
53.52°C
114.64V
8
49.368A
7.968A
8.013A
2.403A
679.894
88.412%
1340
31.6
43.50°C
0.996
12.184V
5.020V
3.294V
4.994V
769.009
54.58°C
114.62V
9
56.012A
8.469A
8.506A
2.406A
764.833
87.614%
1485
34.9
44.78°C
0.996
12.182V
5.018V
3.291V
4.989V
872.953
56.23°C
114.48V
10
62.397A
8.971A
9.029A
3.021A
849.683
86.677%
1590
36.8
45.43°C
0.996
12.180V
5.016V
3.288V
4.966V
980.286
57.19°C
114.45V
11
69.367A
8.974A
9.035A
3.024A
934.438
85.599%
1680
38.3
46.63°C
0.996
12.178V
5.014V
3.286V
4.961V
1091.648
58.72°C
114.31V
CL1
0.130A
12.000A
11.999A
0.000A
101.625
83.245%
960
20.8
43.74°C
0.954
12.186V
5.027V
3.310V
5.104V
122.080
52.39°C
115.21V
CL2
70.796A
1.001A
0.998A
1.000A
875.783
86.779%
1590
36.8
45.89°C
0.996
12.182V
5.021V
3.290V
5.037V
1009.211
56.13°C
114.41V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.183A
1.980A
1.984A
0.981A
84.793
88.083%
0
<6.0
46.83°C
0.735
12.200V
5.034V
3.324V
5.095V
96.265
38.09°C
230.23V
2
11.387A
2.980A
2.978A
1.179A
169.763
91.616%
0
<6.0
47.64°C
0.889
12.197V
5.031V
3.321V
5.084V
185.299
38.72°C
230.24V
3
17.944A
3.483A
3.493A
1.379A
254.902
92.527%
615
10.2
39.45°C
0.941
12.194V
5.028V
3.318V
5.070V
275.489
48.64°C
230.24V
4
24.493A
3.979A
3.977A
1.580A
339.762
92.673%
770
14.0
40.49°C
0.957
12.191V
5.024V
3.315V
5.059V
366.624
49.90°C
230.24V
5
30.695A
4.975A
4.982A
1.781A
424.733
92.544%
870
18.1
41.03°C
0.966
12.193V
5.021V
3.312V
5.047V
458.952
50.51°C
230.25V
6
36.896A
5.975A
5.981A
1.986A
509.676
92.198%
1010
22.6
42.69°C
0.974
12.194V
5.019V
3.308V
5.031V
552.806
52.64°C
230.25V
7
43.097A
6.980A
6.987A
2.188A
594.626
91.679%
1155
26.7
42.88°C
0.979
12.194V
5.016V
3.306V
5.023V
648.597
53.51°C
230.24V
8
49.304A
7.986A
7.994A
2.395A
679.578
91.150%
1320
31.0
43.52°C
0.982
12.193V
5.013V
3.302V
5.004V
745.556
54.59°C
230.25V
9
55.943A
8.484A
8.517A
2.400A
764.643
90.527%
1470
34.7
44.79°C
0.985
12.192V
5.010V
3.298V
4.997V
844.657
56.21°C
230.26V
10
62.340A
8.994A
9.012A
3.014A
849.457
89.943%
1605
37.0
45.51°C
0.987
12.187V
5.007V
3.295V
4.974V
944.439
57.23°C
230.25V
11
69.344A
8.999A
9.020A
3.016A
934.405
89.333%
1690
38.4
46.60°C
0.989
12.181V
5.005V
3.293V
4.968V
1045.983
58.77°C
230.27V
CL1
0.099A
12.013A
12.005A
0.004A
101.462
84.493%
990
22.2
43.83°C
0.795
12.190V
5.026V
3.320V
5.123V
120.084
52.32°C
230.31V
CL2
70.770A
1.003A
1.004A
1.002A
876.086
90.214%
1605
37.0
45.23°C
0.988
12.190V
5.012V
3.300V
5.049V
971.118
56.99°C
230.27V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.159A
0.493A
0.479A
0.196A
19.221
71.118%
0
<6.0
0.710
12.208V
5.037V
3.315V
5.111V
27.027
115.24V
2
2.408A
0.991A
0.992A
0.392A
39.665
81.374%
0
<6.0
0.867
12.204V
5.036V
3.314V
5.104V
48.744
115.21V
3
3.588A
1.487A
1.475A
0.589A
59.155
85.271%
0
<6.0
0.930
12.202V
5.035V
3.313V
5.095V
69.373
115.19V
4
4.836A
1.983A
1.988A
0.786A
79.561
86.695%
0
<6.0
0.938
12.199V
5.034V
3.313V
5.087V
91.771
115.16V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.196A
0.491A
0.478A
0.193A
19.650
71.768%
0
<6.0
0.385
12.204V
5.037V
3.327V
5.129V
27.380
230.22V
2
2.414A
0.990A
0.990A
0.391A
39.734
81.841%
0
<6.0
0.531
12.202V
5.035V
3.325V
5.121V
48.550
230.23V
3
3.643A
1.478A
1.502A
0.586A
59.869
86.025%
0
<6.0
0.638
12.199V
5.034V
3.324V
5.112V
69.595
230.23V
4
4.854A
1.985A
1.984A
0.781A
79.787
87.863%
0
<6.0
0.718
12.200V
5.033V
3.323V
5.103V
90.808
230.23V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
4.6 mV
3.8 mV
8.1 mV
4.7 mV
Pass
20% Load
6.1 mV
4.5 mV
8.8 mV
4.3 mV
Pass
30% Load
6.8 mV
5.4 mV
12.4 mV
6.5 mV
Pass
40% Load
7.3 mV
5.3 mV
10.1 mV
7.4 mV
Pass
50% Load
7.2 mV
5.7 mV
10.7 mV
8.9 mV
Pass
60% Load
7.2 mV
6.1 mV
11.4 mV
8.7 mV
Pass
70% Load
7.7 mV
6.7 mV
13.7 mV
7.4 mV
Pass
80% Load
7.6 mV
7.7 mV
14.3 mV
12.7 mV
Pass
90% Load
7.7 mV
8.4 mV
15.8 mV
13.6 mV
Pass
100% Load
8.6 mV
9.3 mV
15.3 mV
13.7 mV
Pass
110% Load
9.0 mV
9.7 mV
15.7 mV
15.1 mV
Pass
Crossload 1
6.6 mV
5.6 mV
10.0 mV
14.5 mV
Pass
Crossload 2
8.0 mV
8.0 mV
13.2 mV
8.1 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
4.3 mV
3.8 mV
7.2 mV
4.1 mV
Pass
20% Load
5.9 mV
4.3 mV
8.4 mV
4.2 mV
Pass
30% Load
6.3 mV
4.9 mV
11.3 mV
5.9 mV
Pass
40% Load
6.0 mV
4.9 mV
8.9 mV
7.2 mV
Pass
50% Load
6.6 mV
5.5 mV
9.2 mV
8.3 mV
Pass
60% Load
7.2 mV
6.3 mV
9.5 mV
7.9 mV
Pass
70% Load
7.3 mV
7.5 mV
11.6 mV
6.8 mV
Pass
80% Load
7.8 mV
7.2 mV
12.6 mV
12.6 mV
Pass
90% Load
8.5 mV
8.3 mV
14.1 mV
12.7 mV
Pass
100% Load
8.7 mV
8.7 mV
15.0 mV
12.6 mV
Pass
110% Load
8.8 mV
8.9 mV
14.1 mV
11.7 mV
Pass
Crossload 1
6.3 mV
5.8 mV
9.2 mV
14.1 mV
Pass
Crossload 2
8.4 mV
7.6 mV
11.6 mV
6.7 mV
Pass
The results above are not used in the certification process

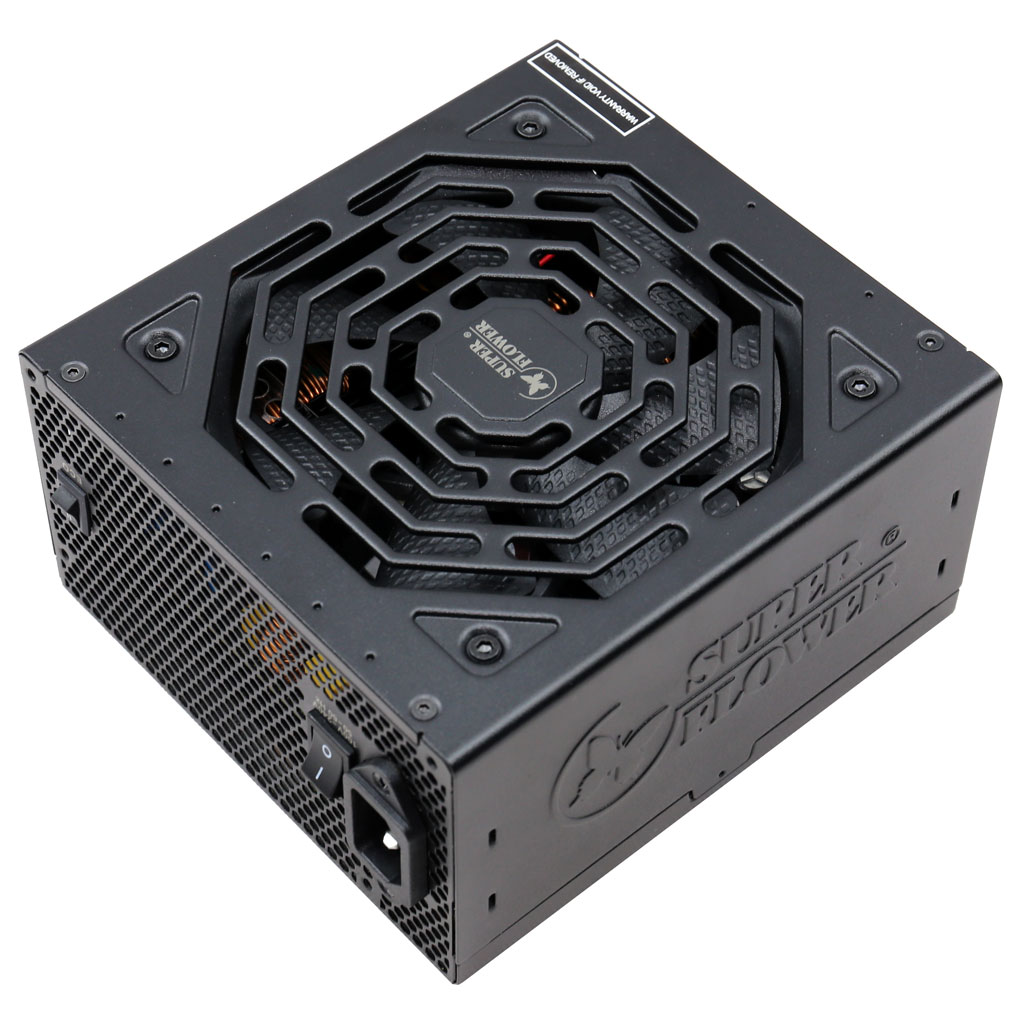

Super Flower Leadex III 850W rev.1
Top side

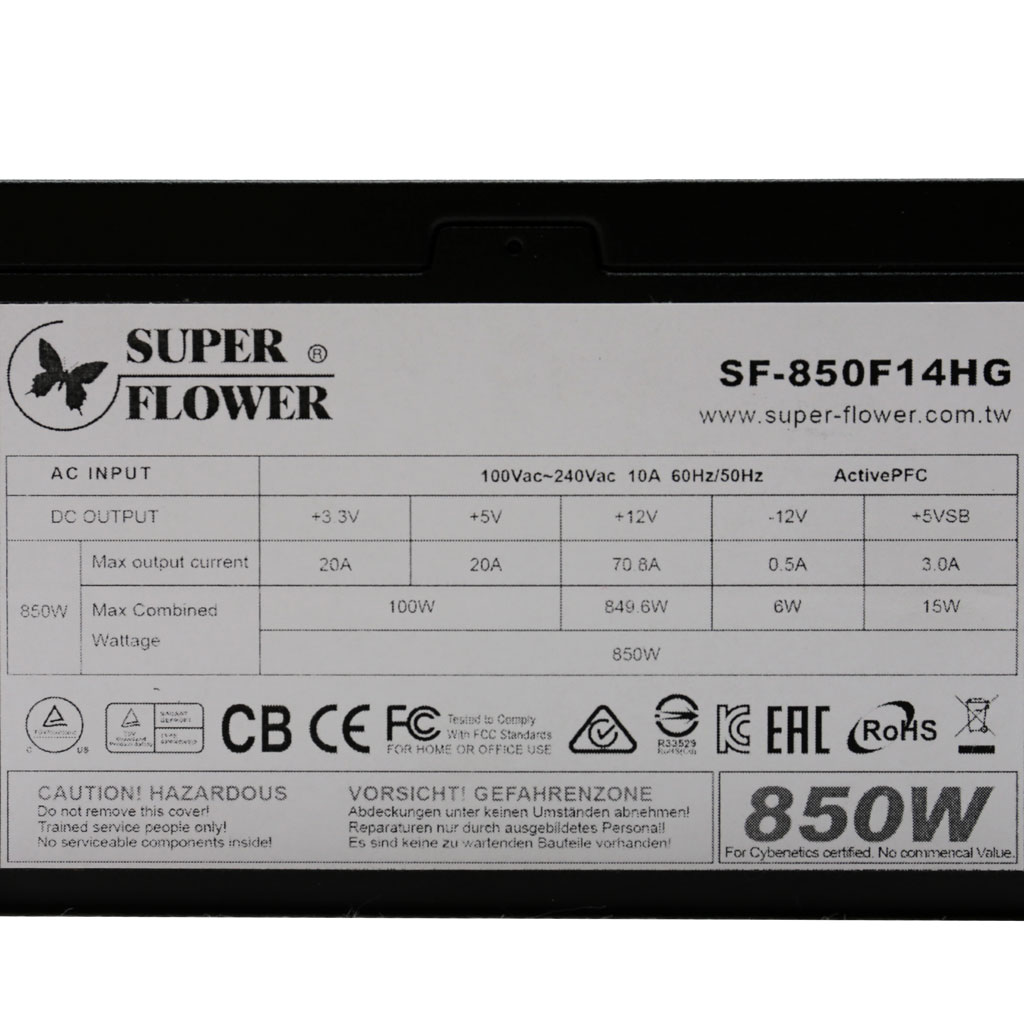

Power specifications label
