Cougar GX-F550 (#2)
Serial Number?1801006842
Lab ID296
  • Report:
  • Receipt Date: Feb 8, 2018
  • Test Date: Feb 19, 2018
  • Report Date: Feb 22, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial Number?1801006842
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)9-4
Rated Frequency (Hz)47-63
Rated Power (W)550
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 24 45.5 3 0.5
Watts 130 546 15 6
Total Max. Power (W) 550

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1700mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.9
AC Loss to PWR_OK Hold Up Time (ms)17.3
PWR_OK Inactive to DC Loss Delay (ms)3.6

Vampire Power

Graphs

INFO

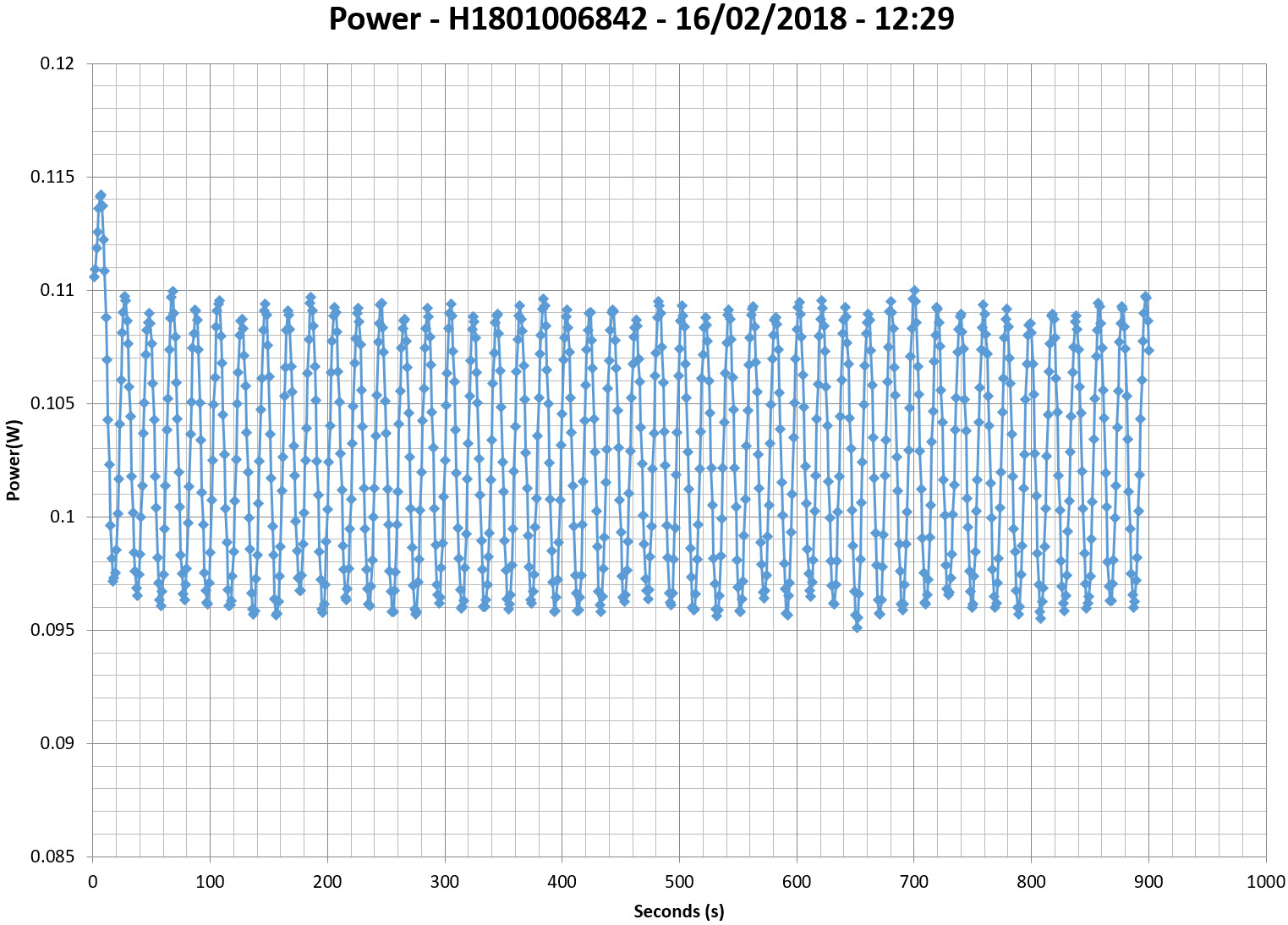

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

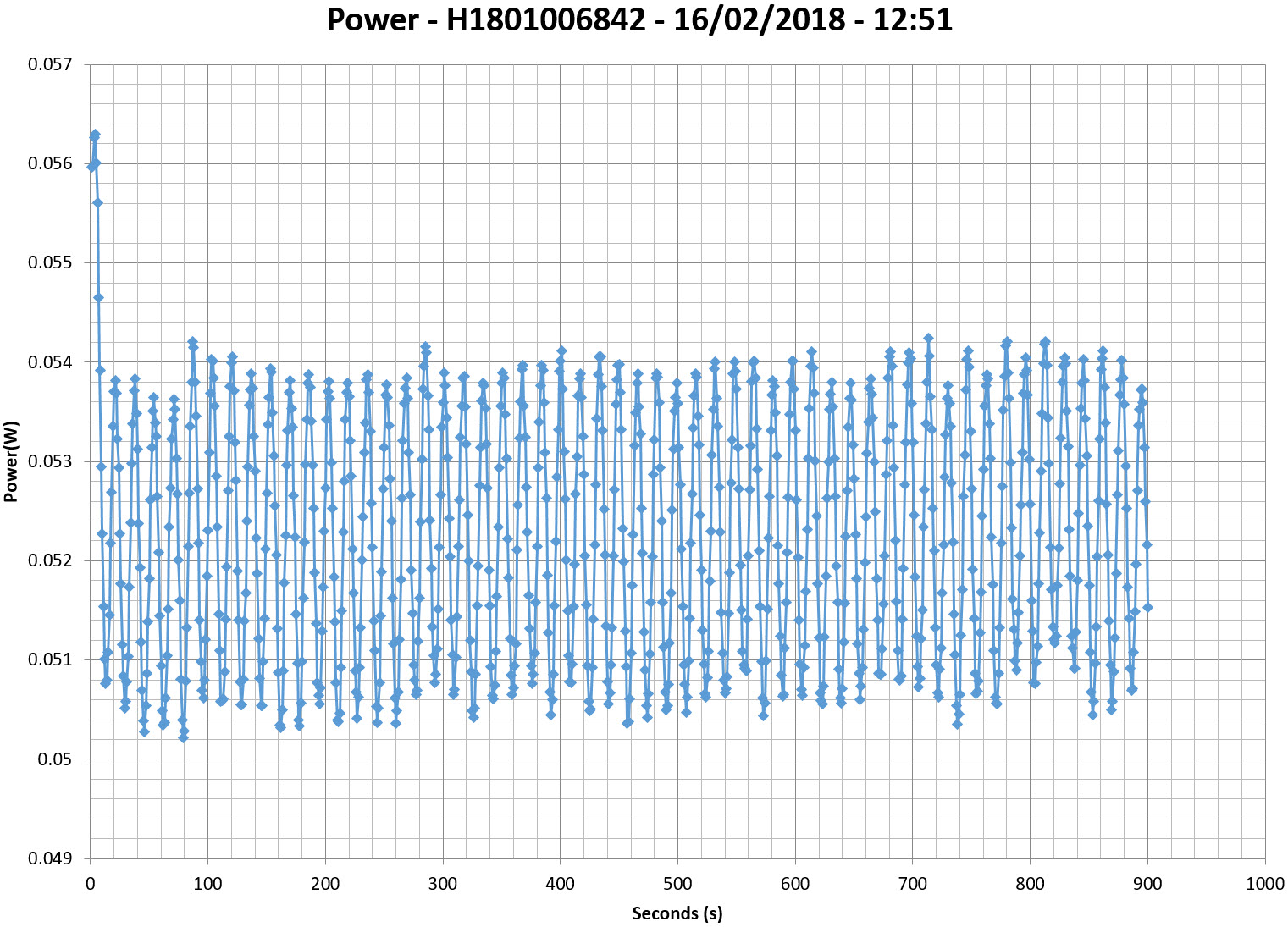

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

INFO

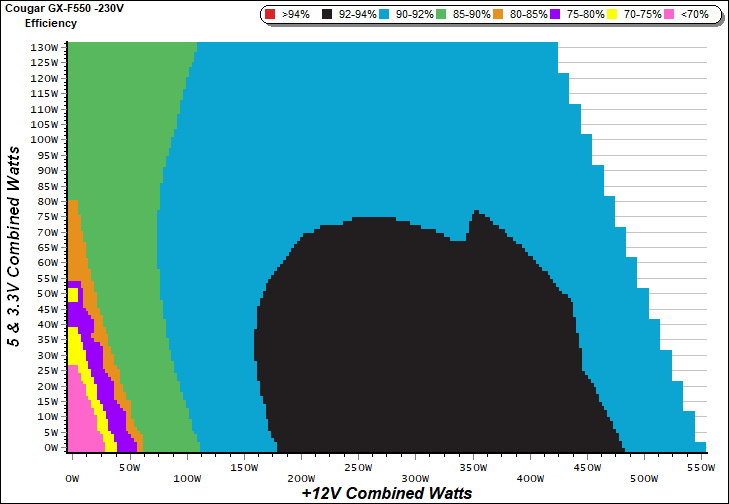

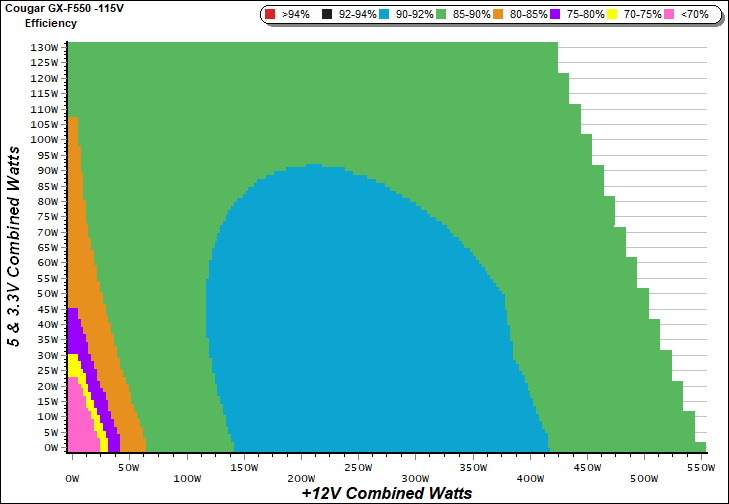

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

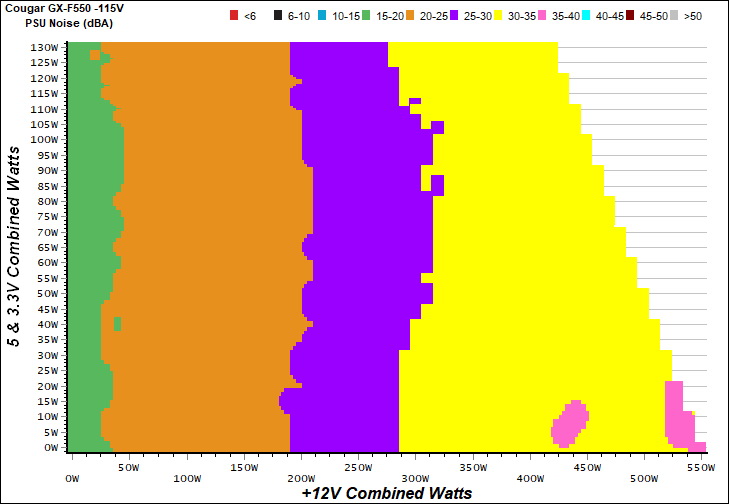

Noise Graph

INFO

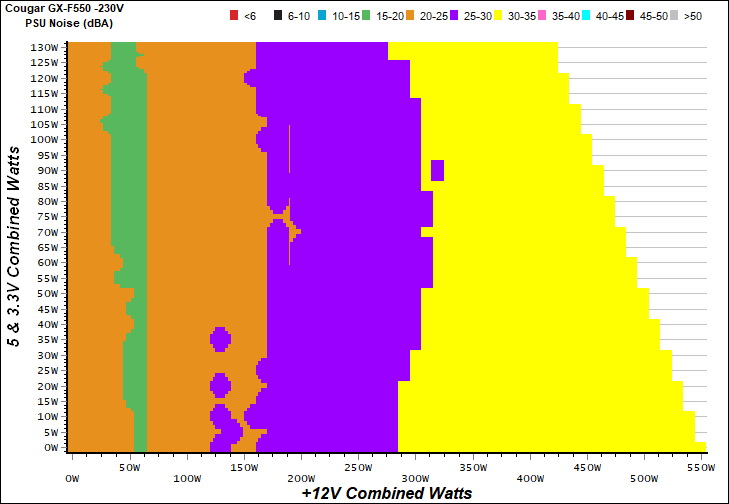

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

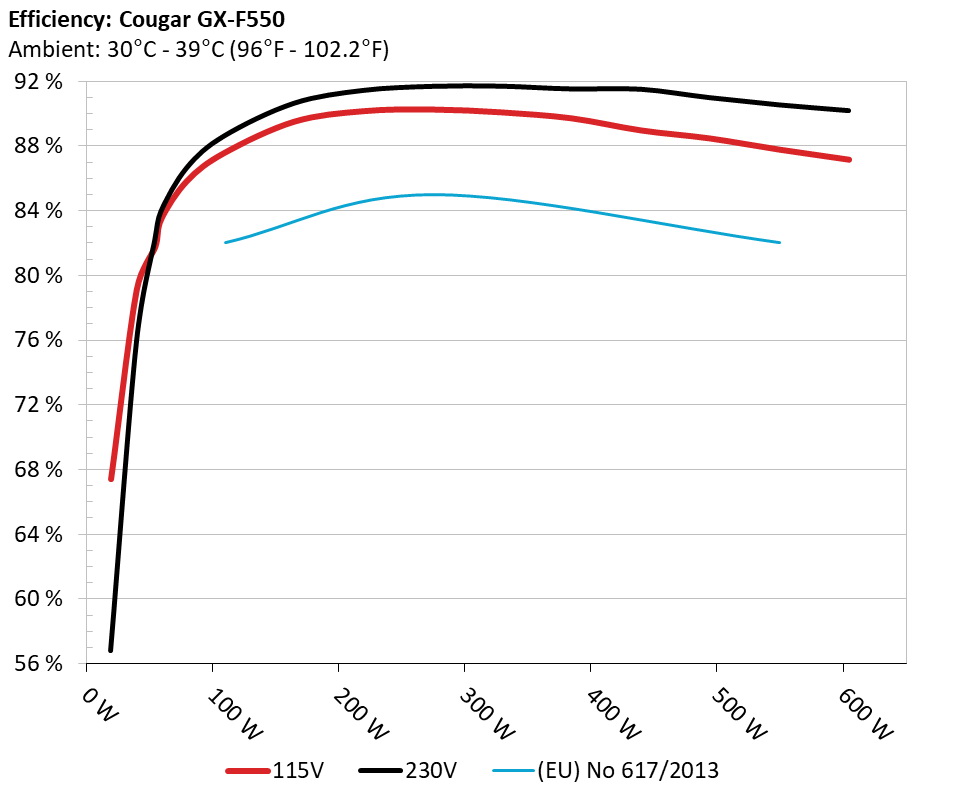

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

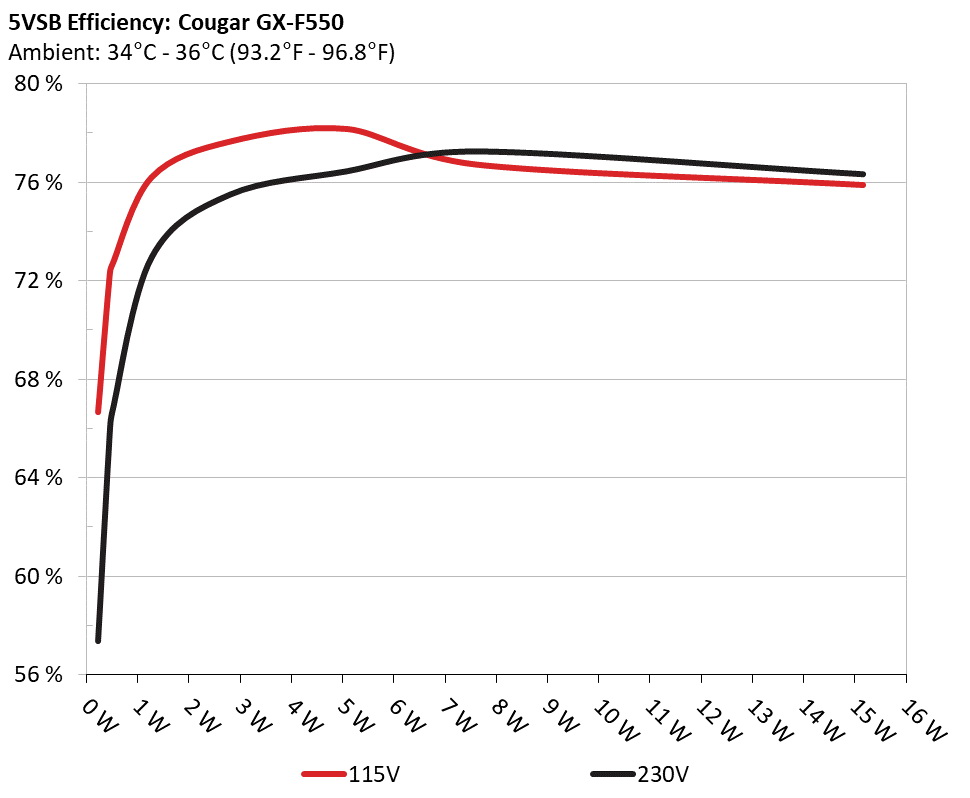

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.667% 0.026
5.108V 0.345 115.37V
2 0.090A 0.460 72.327% 0.047
5.106V 0.636 115.37V
3 0.550A 2.804 77.673% 0.219
5.097V 3.610 115.37V
4 1.000A 5.089 78.184% 0.310
5.088V 6.509 115.36V
5 1.500A 7.619 76.735% 0.368
5.079V 9.929 115.37V
6 3.000A 15.150 75.906% 0.438
5.050V 19.959 115.35V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 57.357% 0.010
5.108V 0.401 230.83V
2 0.090A 0.460 65.903% 0.017
5.106V 0.698 230.83V
3 0.550A 2.804 75.498% 0.089
5.097V 3.714 230.83V
4 1.000A 5.089 76.446% 0.149
5.088V 6.657 230.82V
5 1.500A 7.619 77.248% 0.203
5.079V 9.863 230.82V
6 3.001A 15.150 76.326% 0.307
5.049V 19.849 230.82V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.722A 2.005A 1.974A 0.984A 54.424 81.732% 770 22.4 32.40°C 0.952
12.059V 4.988V 3.342V 5.083V 66.588 34.45°C 115.29V
2 6.509A 3.010A 2.967A 1.182A 109.299 87.571% 810 23.3 32.92°C 0.981
12.045V 4.983V 3.337V 5.075V 124.812 35.26°C 115.22V
3 10.704A 3.516A 3.450A 1.381A 164.824 89.508% 860 24.7 33.46°C 0.974
12.035V 4.978V 3.333V 5.068V 184.145 35.99°C 115.15V
4 14.836A 4.022A 3.966A 1.581A 219.617 90.157% 885 26.3 33.79°C 0.978
12.026V 4.973V 3.328V 5.060V 243.595 36.71°C 115.08V
5 18.640A 5.033A 4.963A 1.782A 274.510 90.258% 955 29.0 34.36°C 0.982
12.018V 4.967V 3.323V 5.052V 304.139 37.74°C 115.11V
6 22.448A 6.046A 5.969A 1.983A 329.424 90.082% 1050 31.0 35.20°C 0.985
12.011V 4.961V 3.318V 5.044V 365.695 39.13°C 115.02V
7 26.296A 7.064A 6.973A 2.185A 384.735 89.714% 1110 32.8 36.07°C 0.988
12.003V 4.955V 3.313V 5.035V 428.844 40.19°C 114.94V
8 30.127A 8.081A 7.983A 2.388A 440.057 88.966% 1210 35.3 36.98°C 0.988
12.004V 4.950V 3.308V 5.027V 494.636 41.33°C 114.86V
9 34.348A 8.595A 8.477A 2.390A 494.580 88.470% 1300 37.3 37.74°C 0.990
11.997V 4.945V 3.303V 5.023V 559.035 42.49°C 114.87V
10 38.372A 9.111A 9.004A 2.996A 549.785 87.780% 1360 39.2 38.25°C 0.991
11.990V 4.940V 3.298V 5.007V 626.319 43.31°C 114.78V
11 42.997A 9.118A 9.017A 2.998A 604.997 87.159% 1420 39.8 39.00°C 0.992
11.984V 4.937V 3.294V 5.004V 694.133 44.37°C 114.70V
CL1 0.134A 16.003A 16.001A 0.000A 134.032 84.971% 1090 32.2 37.50°C 0.975
12.036V 4.954V 3.321V 5.086V 157.739 41.16°C 115.18V
CL2 45.510A 1.000A 1.001A 1.000A 559.305 88.405% 1380 38.4 38.50°C 0.991
11.997V 4.958V 3.308V 5.053V 632.664 42.95°C 114.78V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.681A 2.002A 1.968A 0.983A 54.069 82.162% 770 22.4 32.09°C 0.706
12.125V 4.988V 3.343V 5.084V 65.808 35.52°C 230.66V
2 6.468A 3.007A 2.962A 1.182A 108.954 88.611% 770 22.4 32.58°C 0.864
12.072V 4.983V 3.338V 5.076V 122.958 36.40°C 230.63V
3 10.659A 3.513A 3.445A 1.381A 164.452 90.640% 820 23.8 34.10°C 0.914
12.054V 4.978V 3.333V 5.068V 181.434 38.10°C 230.59V
4 14.791A 4.019A 3.962A 1.581A 219.275 91.436% 860 24.7 35.69°C 0.933
12.041V 4.973V 3.329V 5.061V 239.812 39.84°C 230.56V
5 18.596A 5.032A 4.961A 1.781A 274.175 91.689% 925 27.8 36.13°C 0.945
12.029V 4.967V 3.324V 5.053V 299.027 40.76°C 230.52V
6 22.407A 6.044A 5.963A 1.982A 329.098 91.700% 1000 29.8 36.65°C 0.951
12.020V 4.961V 3.318V 5.044V 358.887 41.98°C 230.48V
7 26.253A 7.062A 6.969A 2.184A 384.404 91.529% 1070 31.5 37.21°C 0.957
12.011V 4.955V 3.313V 5.036V 419.979 42.85°C 230.54V
8 30.122A 8.079A 7.979A 2.387A 439.729 91.509% 1140 33.6 37.81°C 0.963
11.996V 4.950V 3.308V 5.027V 480.530 43.82°C 230.50V
9 34.324A 8.593A 8.472A 2.389A 494.262 90.992% 1250 36.5 38.28°C 0.965
11.997V 4.945V 3.303V 5.024V 543.190 44.79°C 230.46V
10 38.347A 9.107A 9.003A 2.995A 549.469 90.545% 1350 37.9 38.97°C 0.968
11.990V 4.940V 3.299V 5.008V 606.848 45.96°C 230.42V
11 42.971A 9.112A 9.011A 2.997A 604.685 90.189% 1440 40.0 39.67°C 0.971
11.985V 4.937V 3.295V 5.005V 670.466 47.26°C 230.37V
CL1 0.118A 15.999A 15.997A 0.000A 133.841 85.901% 1140 33.6 38.47°C 0.901
12.059V 4.955V 3.322V 5.086V 155.808 44.08°C 230.71V
CL2 45.496A 0.998A 0.998A 1.000A 559.122 91.156% 1390 38.5 39.20°C 0.968
11.997V 4.960V 3.309V 5.054V 613.366 45.75°C 230.42V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.194A 0.501A 0.476A 0.196A 19.504 67.406% 680 17.3 0.815
12.069V 4.993V 3.346V 5.101V 28.935 115.35V
2 2.456A 1.000A 0.987A 0.393A 39.915 79.130% 700 18.7 0.930
12.061V 4.990V 3.344V 5.096V 50.442 115.32V
3 3.652A 1.503A 1.466A 0.589A 59.426 83.502% 710 19.3 0.962
12.056V 4.989V 3.342V 5.091V 71.167 115.29V
4 4.913A 2.005A 1.975A 0.787A 79.804 85.846% 750 21.3 0.969
12.051V 4.986V 3.341V 5.085V 92.962 115.27V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.151A 0.496A 0.473A 0.196A 19.093 56.794% 750 21.3 0.477
12.192V 4.993V 3.348V 5.102V 33.618 230.68V
2 2.407A 0.997A 0.981A 0.392A 39.540 75.853% 810 23.3 0.629
12.166V 4.991V 3.346V 5.097V 52.127 230.67V
3 3.604A 1.500A 1.459A 0.589A 58.992 83.953% 750 21.3 0.727
12.106V 4.989V 3.344V 5.091V 70.268 230.66V
4 4.873A 2.002A 1.970A 0.786A 79.463 86.657% 750 21.3 0.800
12.087V 4.987V 3.341V 5.086V 91.698 230.65V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.6 mV 8.4 mV 7.7 mV 8.0 mV Pass
20% Load 6.8 mV 9.0 mV 9.3 mV 6.8 mV Pass
30% Load 7.5 mV 10.0 mV 10.4 mV 8.2 mV Pass
40% Load 8.3 mV 11.0 mV 11.1 mV 9.6 mV Pass
50% Load 10.2 mV 12.1 mV 12.5 mV 13.0 mV Pass
60% Load 11.9 mV 14.6 mV 14.3 mV 13.1 mV Pass
70% Load 14.2 mV 16.9 mV 16.6 mV 13.9 mV Pass
80% Load 10.5 mV 16.5 mV 18.7 mV 27.5 mV Pass
90% Load 10.9 mV 17.8 mV 19.5 mV 29.5 mV Pass
100% Load 11.8 mV 18.9 mV 21.5 mV 19.1 mV Pass
110% Load 13.0 mV 19.9 mV 21.7 mV 21.0 mV Pass
Crossload 1 7.7 mV 16.9 mV 18.7 mV 4.9 mV Pass
Crossload 2 12.0 mV 14.6 mV 16.1 mV 21.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.7 mV 8.4 mV 7.7 mV 7.6 mV Pass
20% Load 9.4 mV 9.6 mV 9.7 mV 7.5 mV Pass
30% Load 9.5 mV 11.2 mV 11.4 mV 8.4 mV Pass
40% Load 9.0 mV 11.1 mV 12.3 mV 9.8 mV Pass
50% Load 9.8 mV 13.2 mV 13.7 mV 12.9 mV Pass
60% Load 10.3 mV 14.4 mV 15.5 mV 14.4 mV Pass
70% Load 10.7 mV 15.6 mV 17.3 mV 14.2 mV Pass
80% Load 14.4 mV 17.6 mV 18.7 mV 21.5 mV Pass
90% Load 12.1 mV 18.5 mV 19.9 mV 32.9 mV Pass
100% Load 13.0 mV 19.4 mV 21.8 mV 20.4 mV Pass
110% Load 14.3 mV 19.7 mV 21.5 mV 20.6 mV Pass
Crossload 1 9.9 mV 17.4 mV 19.2 mV 5.7 mV Pass
Crossload 2 12.9 mV 15.0 mV 17.1 mV 21.2 mV Pass

The results above are not used in the certification process

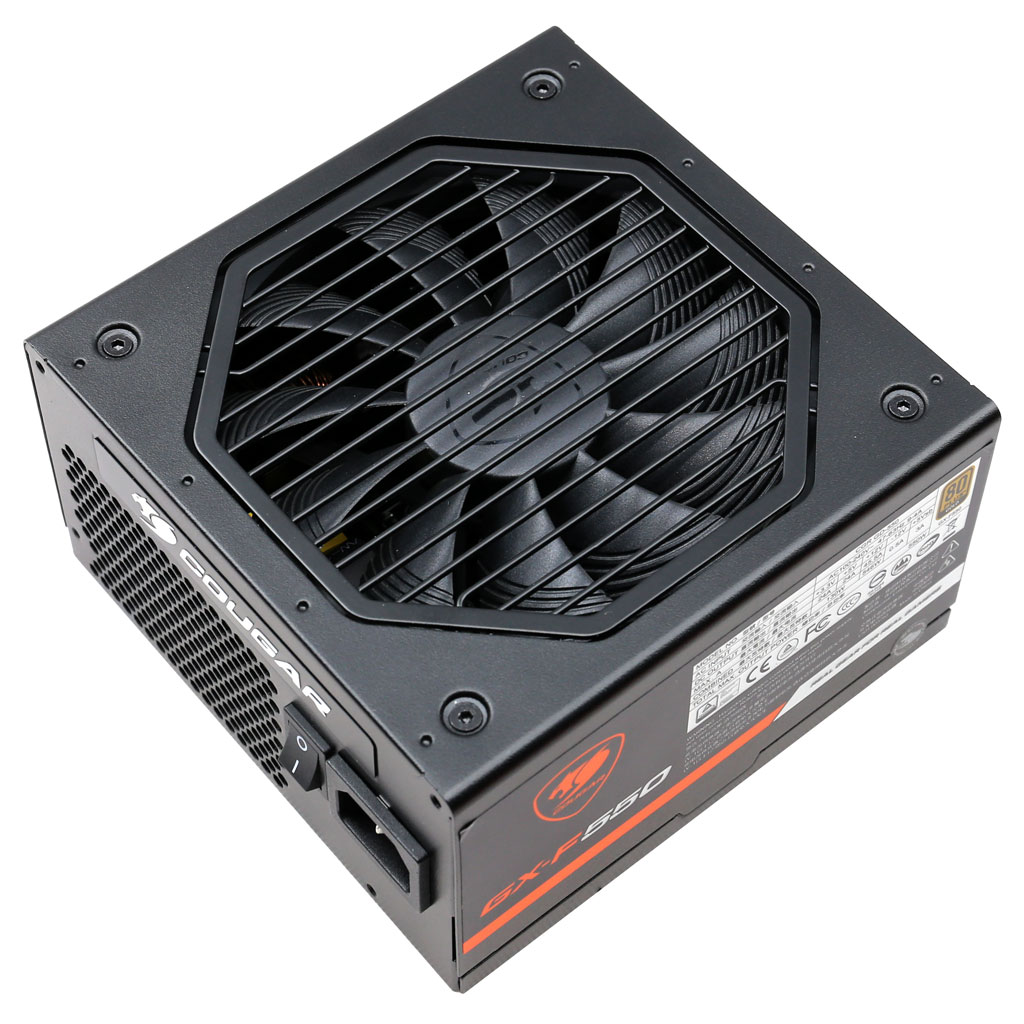

Cougar GX-F550 (#2)

Top side

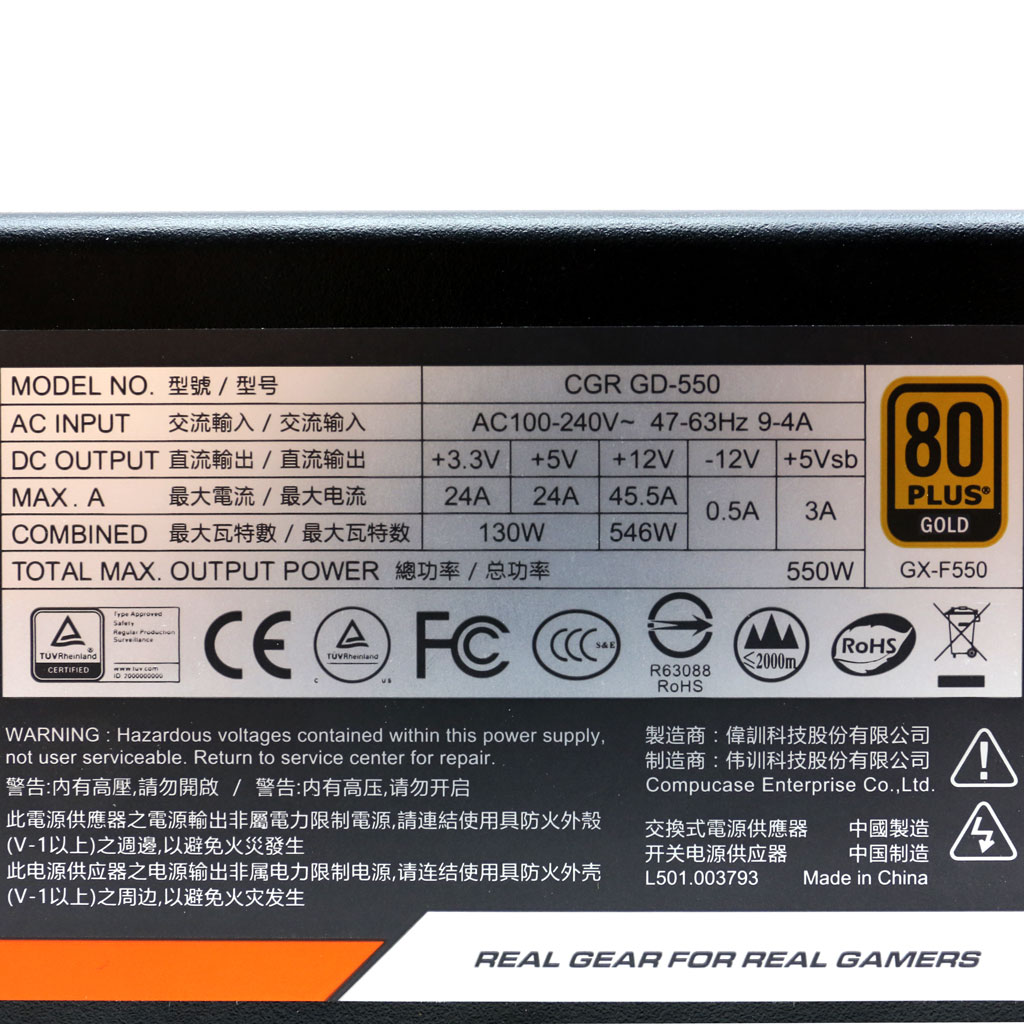

Power specifications label
