CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar GX-F550
Serial NumberH1801006841
Lab ID295
  • Report: 19PS295A
  • Receipt Date: Feb 13, 2018
  • Test Date: Feb 20, 2018
  • Report Date: Feb 22, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial NumberH1801006841
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)9-4
Rated Frequency (Hz)47-63
Rated Power (W)550
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 24 45.5 3 0.5
Watts 130 546 15 6
Total Max. Power (W) 550

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1700mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.4
AC Loss to PWR_OK Hold Up Time (ms)17.3
PWR_OK Inactive to DC Loss Delay (ms)4.1

Vampire Power

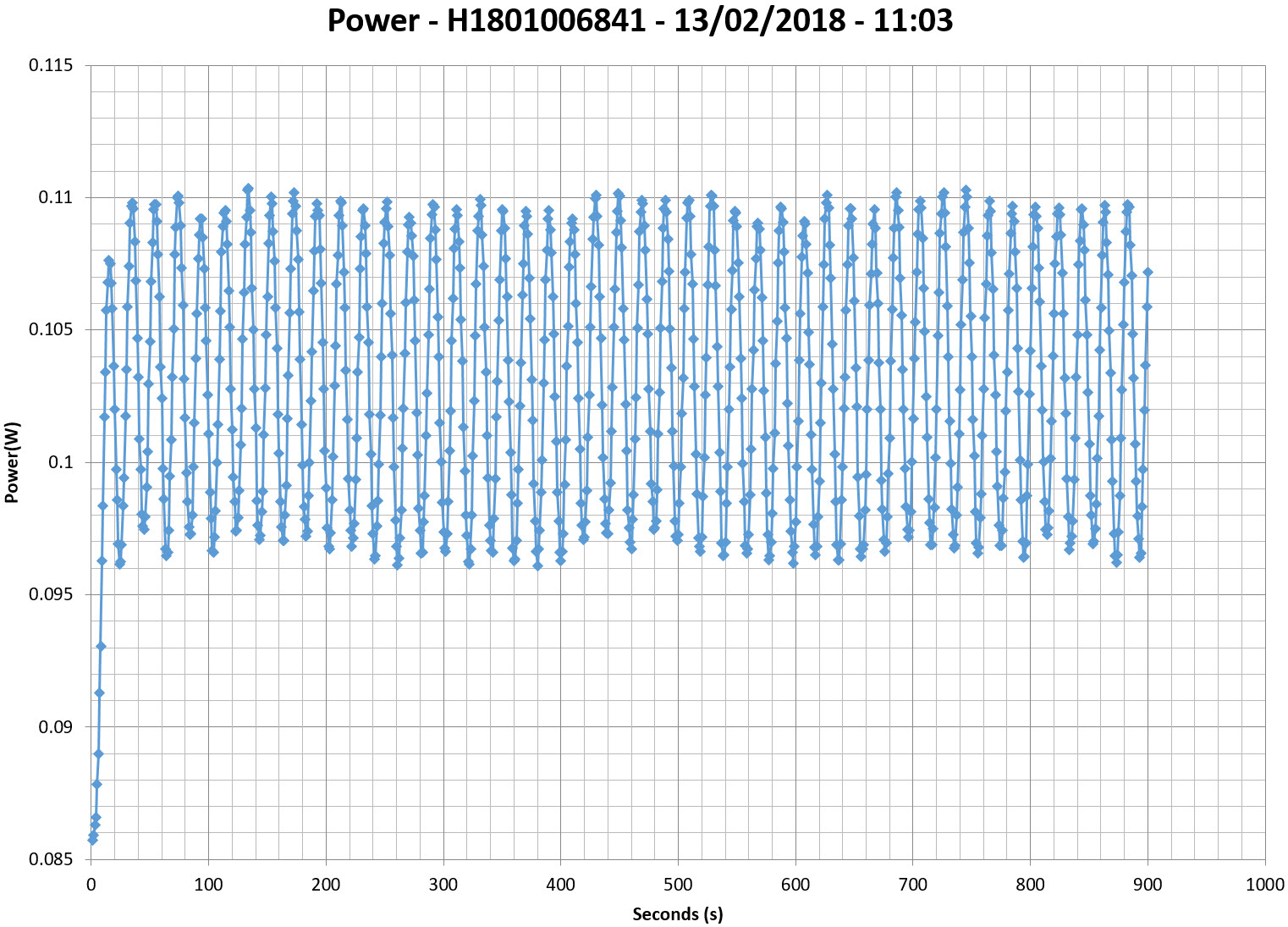

Graphs

INFO

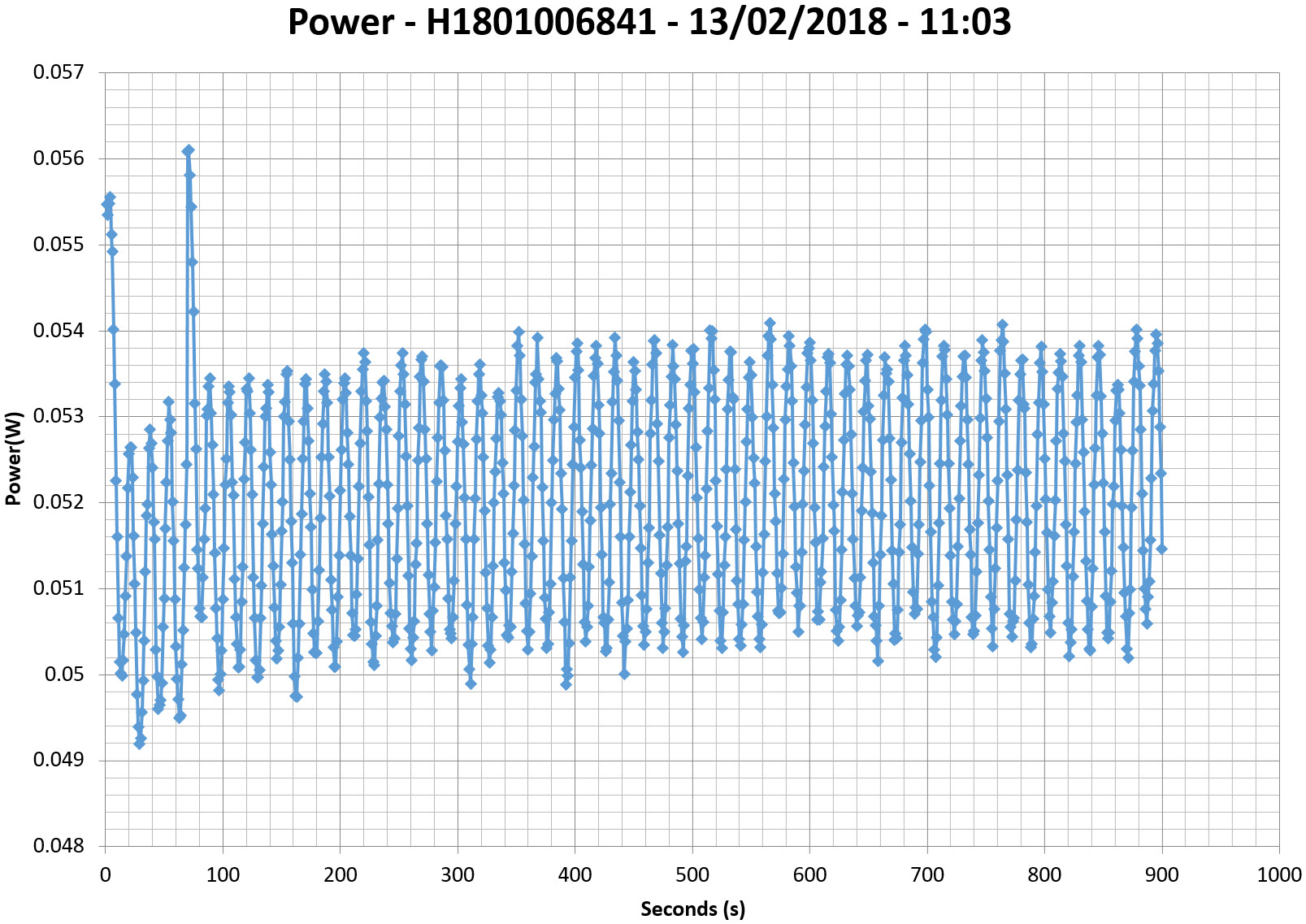

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

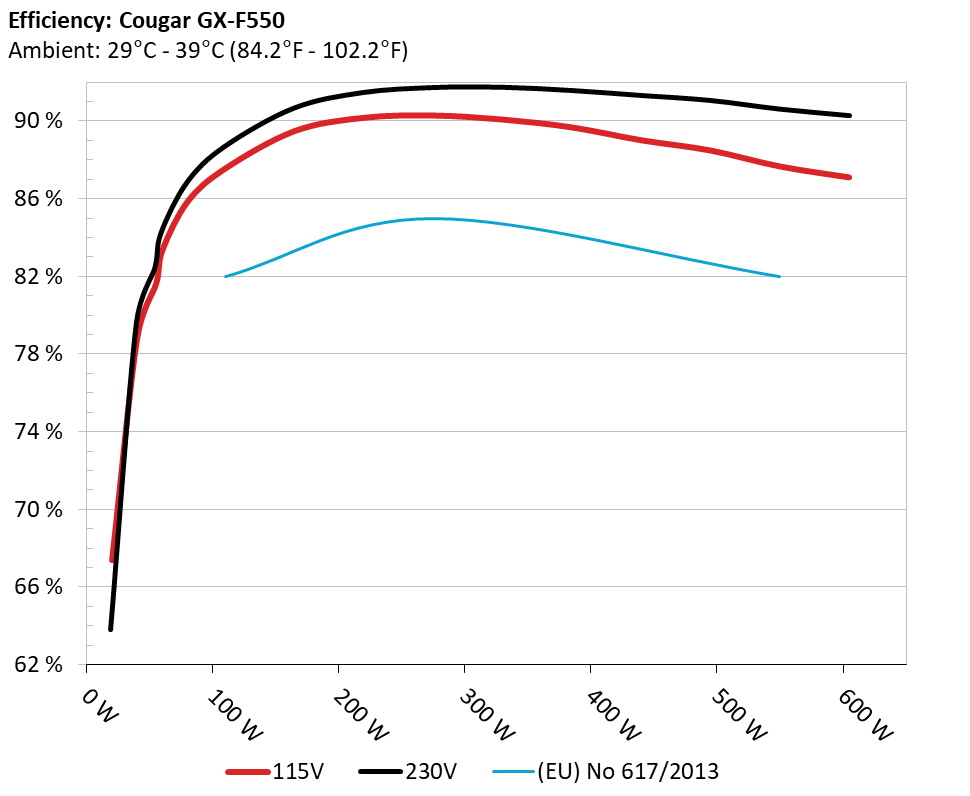

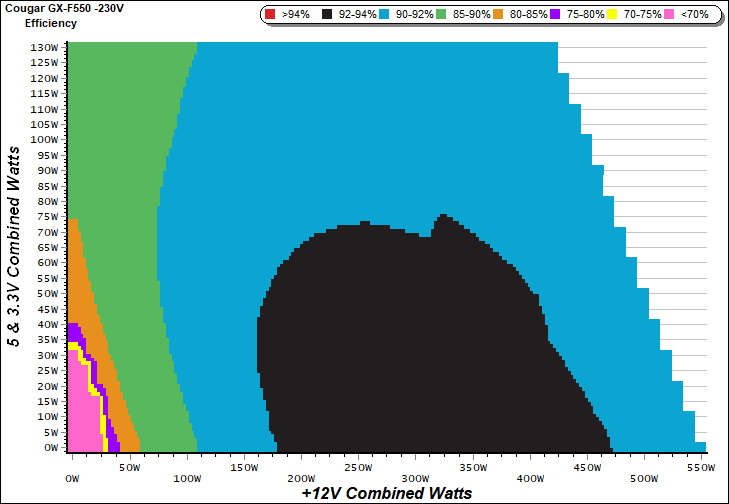

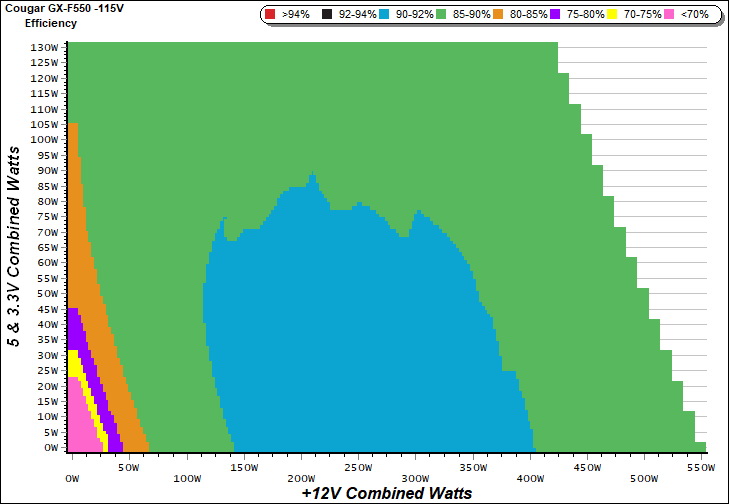

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

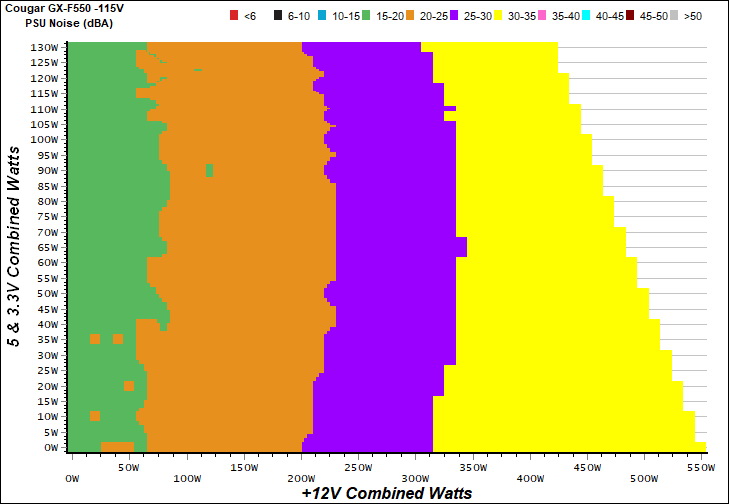

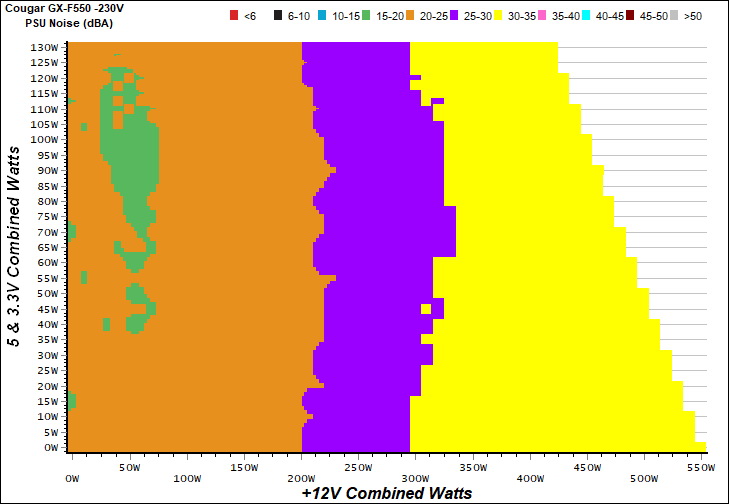

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

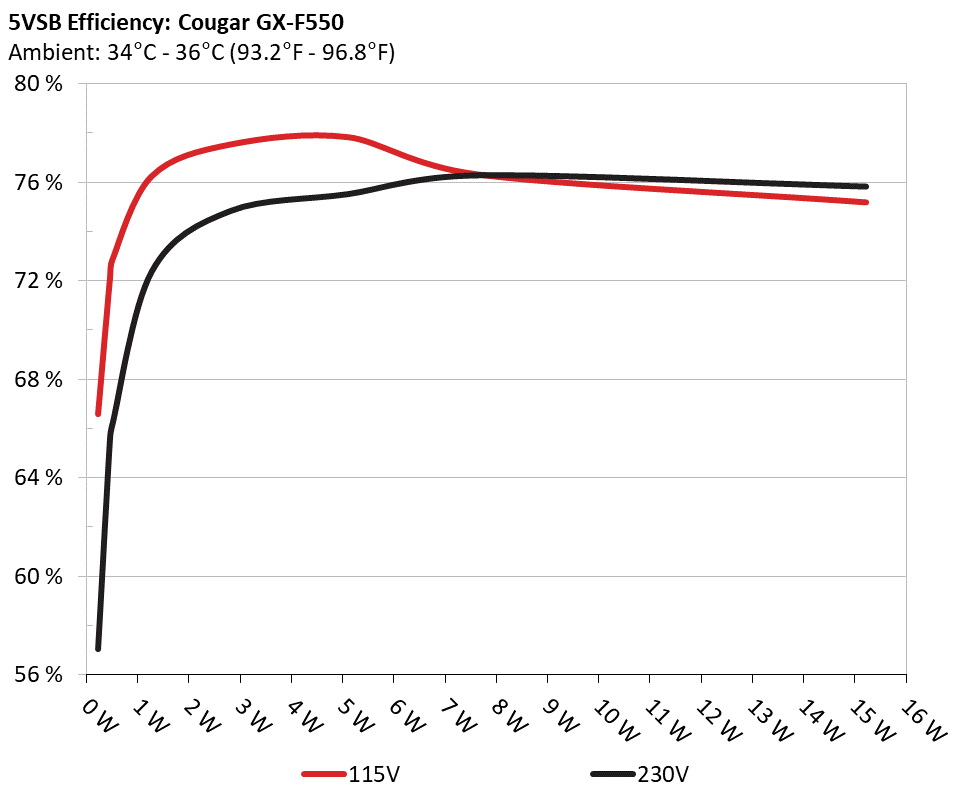

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 66.571% 0.026
5.131V 0.347 115.27V
2 0.090A 0.462 72.075% 0.048
5.129V 0.641 115.27V
3 0.550A 2.816 77.533% 0.221
5.120V 3.632 115.26V
4 1.000A 5.112 77.832% 0.314
5.111V 6.568 115.26V
5 1.500A 7.654 76.311% 0.373
5.102V 10.030 115.26V
6 3.000A 15.222 75.182% 0.445
5.074V 20.247 115.25V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 57.037% 0.010
5.131V 0.405 230.82V
2 0.090A 0.462 65.532% 0.018
5.130V 0.705 230.83V
3 0.550A 2.816 74.834% 0.090
5.120V 3.763 230.82V
4 1.000A 5.112 75.521% 0.152
5.112V 6.769 230.82V
5 1.500A 7.654 76.281% 0.206
5.102V 10.034 230.82V
6 3.000A 15.222 75.826% 0.310
5.074V 20.075 230.82V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.748A 1.999A 1.977A 0.979A 54.962 81.616% 750 21.3 32.75°C 0.960
12.139V 5.002V 3.341V 5.107V 67.342 35.26°C 115.29V
2 6.526A 3.003A 2.968A 1.177A 110.031 87.558% 770 22.4 32.92°C 0.976
12.125V 4.996V 3.335V 5.099V 125.667 35.76°C 115.22V
3 10.644A 3.507A 3.469A 1.375A 165.031 89.484% 820 23.8 33.32°C 0.974
12.117V 4.991V 3.330V 5.092V 184.425 36.38°C 115.15V
4 14.770A 4.012A 3.969A 1.574A 220.039 90.168% 860 24.7 34.21°C 0.976
12.108V 4.986V 3.325V 5.084V 244.033 37.51°C 115.08V
5 18.557A 5.021A 4.972A 1.773A 275.033 90.278% 918 27.4 34.70°C 0.980
12.099V 4.980V 3.320V 5.077V 304.652 38.22°C 115.05V
6 22.351A 6.032A 5.975A 1.973A 330.030 90.073% 1020 30.2 35.51°C 0.982
12.090V 4.974V 3.314V 5.069V 366.402 39.26°C 115.03V
7 26.154A 7.046A 6.984A 2.174A 385.117 89.669% 1090 32.2 36.24°C 0.985
12.082V 4.969V 3.309V 5.061V 429.486 40.35°C 114.94V
8 29.932A 8.062A 7.994A 2.376A 439.945 89.007% 1100 32.5 36.89°C 0.987
12.079V 4.961V 3.302V 5.052V 494.280 41.27°C 114.86V
9 34.127A 8.574A 8.489A 2.377A 494.482 88.485% 1226 35.8 37.06°C 0.988
12.072V 4.957V 3.298V 5.049V 558.830 41.88°C 114.78V
10 38.130A 9.087A 9.019A 2.980A 549.710 87.661% 1320 37.5 37.93°C 0.990
12.064V 4.953V 3.293V 5.034V 627.088 43.58°C 114.79V
11 42.736A 9.095A 9.031A 2.982A 604.938 87.096% 1407 39.1 38.97°C 0.991
12.056V 4.949V 3.289V 5.030V 694.561 45.27°C 114.70V
CL1 0.130A 16.002A 16.001A 0.000A 134.131 85.035% 1070 31.5 37.28°C 0.976
12.111V 4.968V 3.316V 5.110V 157.737 41.81°C 115.17V
CL2 45.510A 1.002A 0.998A 1.000A 562.709 88.282% 1340 37.8 38.72°C 0.990
12.071V 4.971V 3.304V 5.079V 637.397 44.01°C 114.77V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.676A 1.993A 1.972A 0.979A 54.146 82.429% 710 19.3 30.41°C 0.751
12.178V 5.002V 3.341V 5.107V 65.688 33.93°C 230.68V
2 6.433A 3.000A 2.966A 1.177A 109.043 88.687% 770 22.4 31.14°C 0.878
12.150V 4.996V 3.335V 5.100V 122.952 34.88°C 230.65V
3 10.597A 3.504A 3.450A 1.375A 164.568 90.690% 810 23.3 32.00°C 0.916
12.134V 4.991V 3.331V 5.093V 181.462 35.93°C 230.71V
4 14.701A 4.009A 3.969A 1.573A 219.393 91.490% 845 24.6 32.21°C 0.932
12.122V 4.986V 3.326V 5.085V 239.801 36.40°C 230.68V
5 18.479A 5.019A 4.968A 1.773A 274.290 91.747% 910 26.9 32.56°C 0.941
12.111V 4.980V 3.320V 5.077V 298.965 37.18°C 230.64V
6 22.268A 6.029A 5.971A 1.972A 329.220 91.763% 970 29.4 33.15°C 0.949
12.100V 4.975V 3.314V 5.069V 358.773 37.91°C 230.59V
7 26.092A 7.043A 6.979A 2.173A 384.540 91.595% 1050 31.0 33.56°C 0.953
12.090V 4.969V 3.309V 5.061V 419.827 38.72°C 230.55V
8 29.920A 8.059A 7.991A 2.375A 439.855 91.338% 1140 33.6 34.53°C 0.959
12.081V 4.963V 3.303V 5.053V 481.569 39.85°C 230.51V
9 34.115A 8.572A 8.488A 2.377A 494.364 91.084% 1235 36.2 35.61°C 0.963
12.073V 4.958V 3.298V 5.049V 542.757 41.29°C 230.57V
10 38.120A 9.086A 9.020A 2.980A 549.586 90.636% 1310 37.4 36.47°C 0.965
12.064V 4.953V 3.293V 5.034V 606.363 42.58°C 230.53V
11 42.722A 9.093A 9.031A 2.982A 604.815 90.301% 1400 38.8 37.60°C 0.968
12.057V 4.950V 3.289V 5.031V 669.773 43.97°C 230.49V
CL1 0.123A 16.001A 15.999A 0.000A 134.069 86.194% 1070 31.5 35.31°C 0.905
12.130V 4.969V 3.317V 5.110V 155.543 40.66°C 230.82V
CL2 45.503A 1.000A 0.998A 1.000A 562.616 91.247% 1350 38.0 36.82°C 0.965
12.071V 4.972V 3.304V 5.079V 616.586 42.63°C 230.54V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.222A 0.499A 0.491A 0.195A 19.983 67.376% 680 17.3 0.869
12.147V 5.005V 3.344V 5.124V 29.659 115.25V
2 2.444A 0.999A 0.988A 0.391A 39.976 78.862% 690 18.0 0.945
12.141V 5.004V 3.343V 5.119V 50.691 115.32V
3 3.670A 1.501A 1.483A 0.587A 60.008 83.355% 725 20.2 0.966
12.137V 5.002V 3.341V 5.114V 71.991 115.27V
4 4.893A 2.000A 1.977A 0.783A 79.963 85.850% 735 20.7 0.973
12.132V 5.000V 3.339V 5.109V 93.143 115.26V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.150A 0.496A 0.473A 0.195A 19.164 63.823% 725 20.2 0.509
12.260V 5.006V 3.345V 5.125V 30.027 230.69V
2 2.406A 0.996A 0.983A 0.391A 39.598 79.620% 700 18.7 0.670
12.189V 5.004V 3.343V 5.120V 49.734 230.68V
3 3.592A 1.494A 1.463A 0.587A 59.092 84.257% 700 18.7 0.769
12.174V 5.002V 3.341V 5.115V 70.133 230.68V
4 4.846A 1.998A 1.973A 0.783A 79.515 86.846% 725 20.2 0.828
12.162V 5.000V 3.339V 5.109V 91.559 230.66V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.1 mV 6.6 mV 6.2 mV 5.7 mV Pass
20% Load 6.0 mV 7.1 mV 6.3 mV 5.9 mV Pass
30% Load 6.9 mV 7.5 mV 6.9 mV 6.9 mV Pass
40% Load 7.6 mV 8.1 mV 7.6 mV 9.4 mV Pass
50% Load 8.8 mV 8.6 mV 8.3 mV 8.2 mV Pass
60% Load 10.7 mV 8.9 mV 8.9 mV 10.5 mV Pass
70% Load 15.8 mV 9.5 mV 10.1 mV 10.5 mV Pass
80% Load 10.4 mV 10.9 mV 13.7 mV 12.9 mV Pass
90% Load 10.8 mV 12.0 mV 13.4 mV 13.1 mV Pass
100% Load 11.2 mV 13.1 mV 14.7 mV 15.5 mV Pass
110% Load 11.6 mV 14.3 mV 16.1 mV 16.7 mV Pass
Crossload 1 7.1 mV 10.4 mV 12.7 mV 4.2 mV Pass
Crossload 2 11.2 mV 10.5 mV 12.1 mV 12.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.3 mV 7.0 mV 6.3 mV 4.6 mV Pass
20% Load 8.7 mV 8.1 mV 7.9 mV 7.0 mV Pass
30% Load 8.9 mV 9.0 mV 9.3 mV 7.5 mV Pass
40% Load 9.5 mV 9.3 mV 9.6 mV 8.9 mV Pass
50% Load 9.6 mV 9.9 mV 10.6 mV 9.6 mV Pass
60% Load 10.1 mV 11.0 mV 11.8 mV 12.6 mV Pass
70% Load 10.6 mV 11.9 mV 12.7 mV 12.4 mV Pass
80% Load 11.1 mV 11.7 mV 13.6 mV 13.0 mV Pass
90% Load 11.2 mV 11.5 mV 14.6 mV 13.7 mV Pass
100% Load 11.8 mV 13.6 mV 15.7 mV 15.9 mV Pass
110% Load 12.7 mV 13.7 mV 16.4 mV 17.5 mV Pass
Crossload 1 9.0 mV 10.3 mV 14.6 mV 4.4 mV Pass
Crossload 2 11.9 mV 11.6 mV 12.4 mV 12.0 mV Pass

The results above are not used in the certification process

Cougar GX-F550

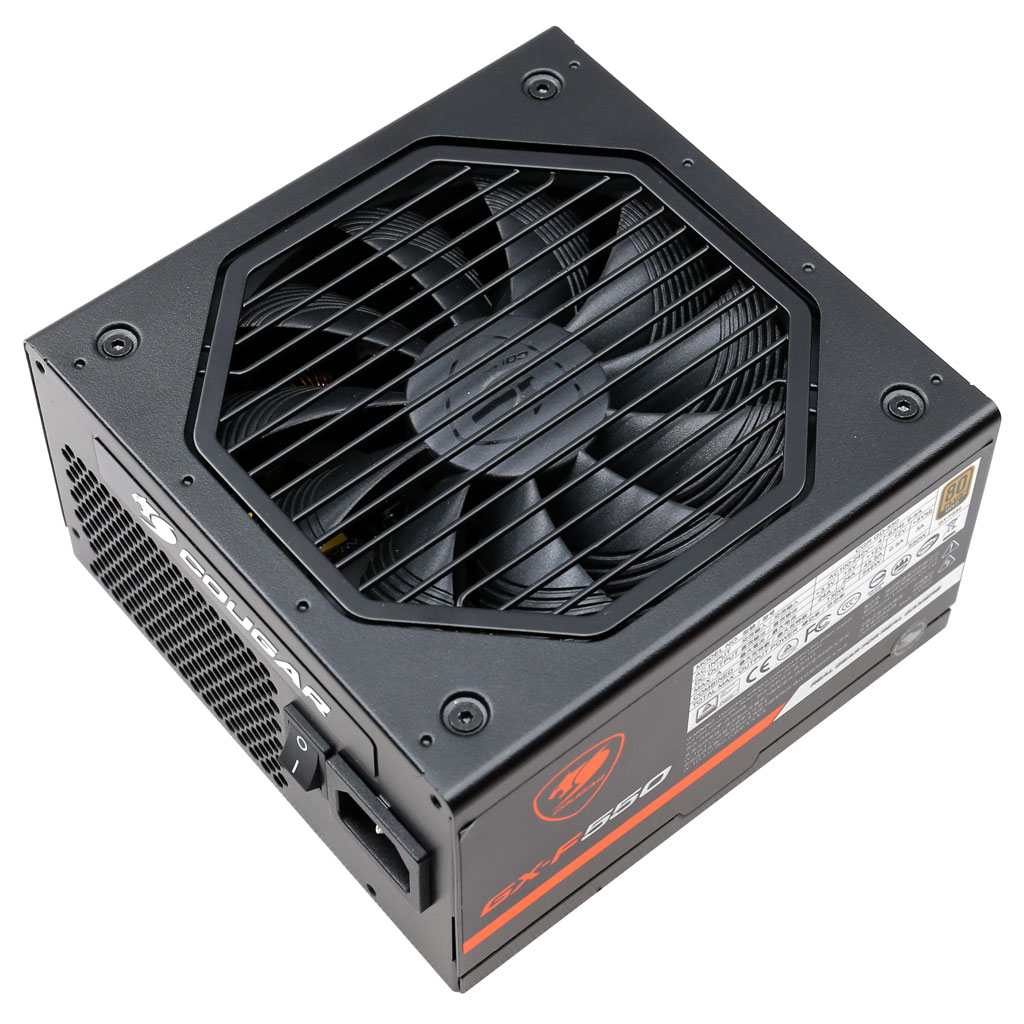

Top side

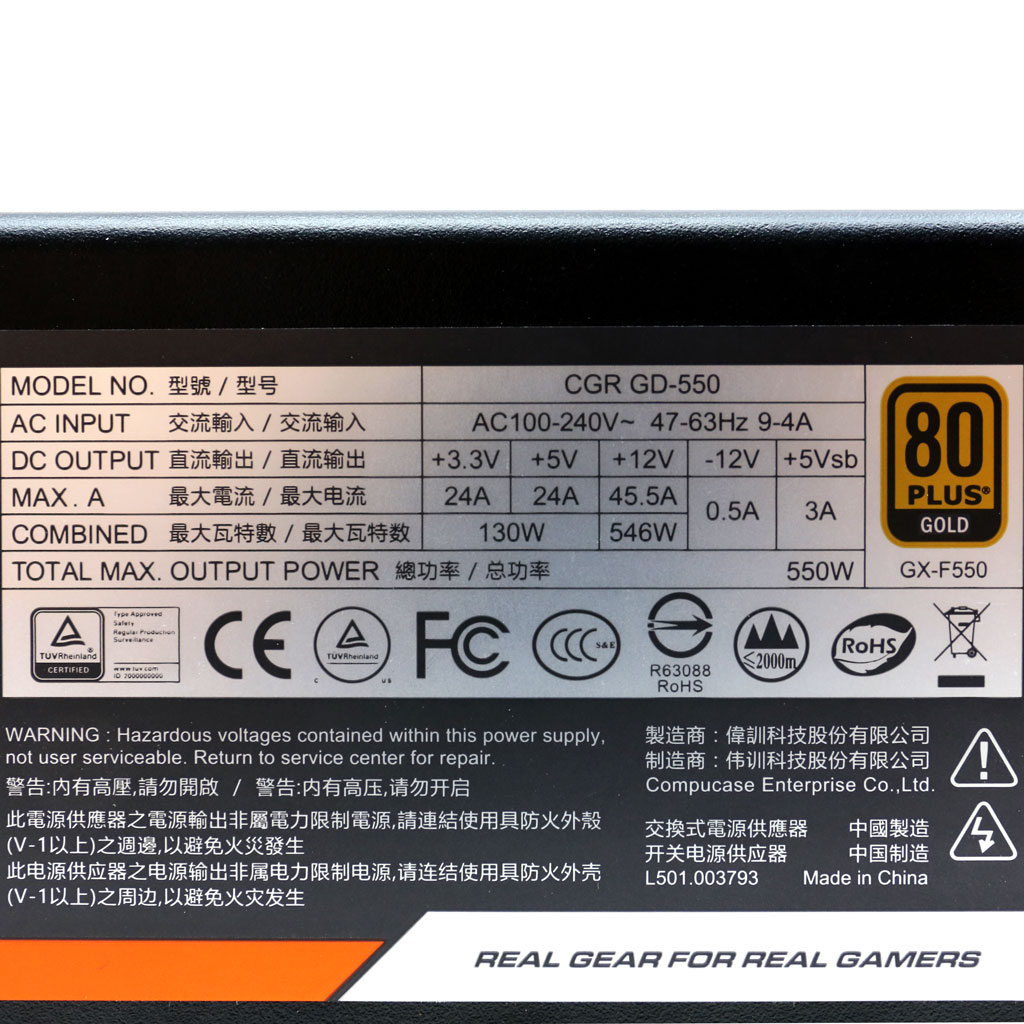

Power specifications label
