Cougar GX-F650
Serial NumberH1801006848
Lab ID294
  • Report:
  • Receipt Date: Feb 11, 2018
  • Test Date: Feb 18, 2018
  • Report Date: Feb 21, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial NumberH1801006848
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 24 54 3 0.5
Watts 130 648 15 6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
SATA (450mm+120mm) 1 2 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1700mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.5
AC Loss to PWR_OK Hold Up Time (ms)17.5
PWR_OK Inactive to DC Loss Delay (ms)3

Vampire Power

Graphs

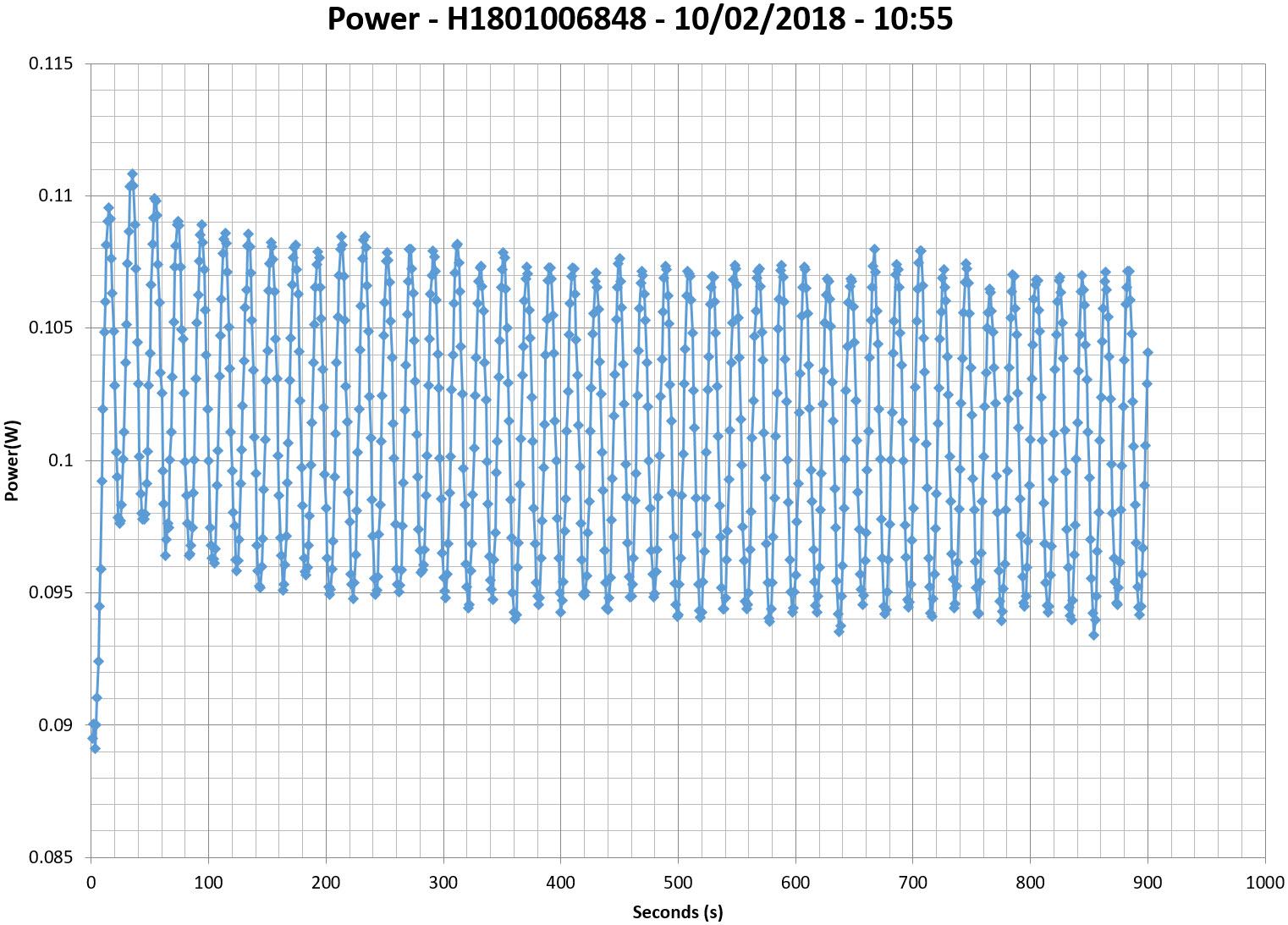

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

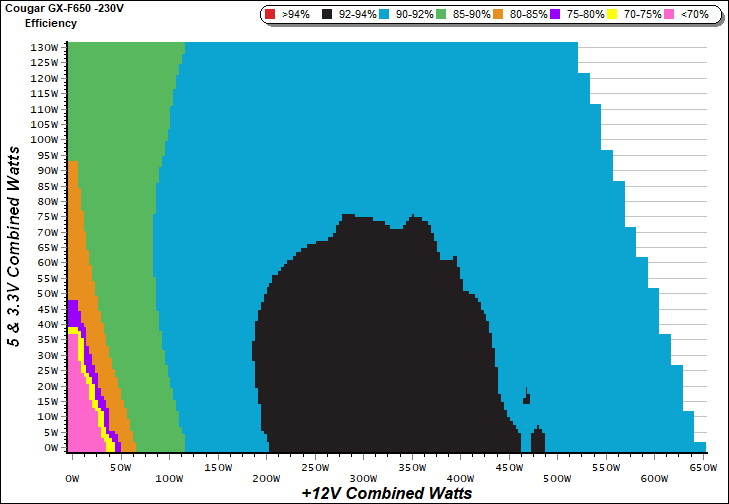

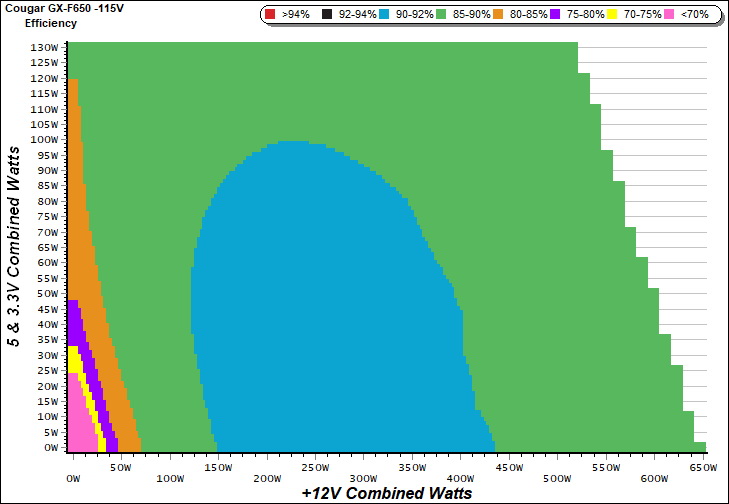

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

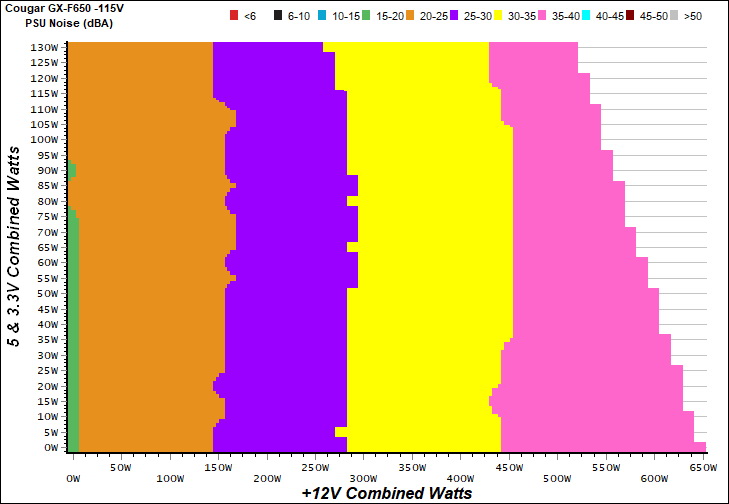

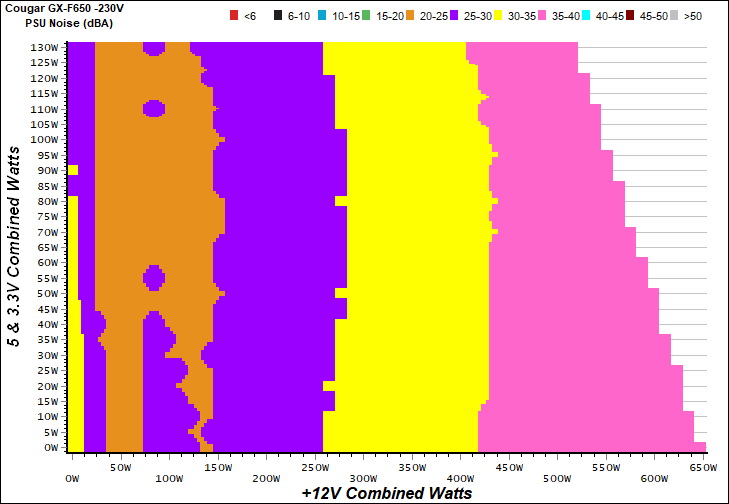

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

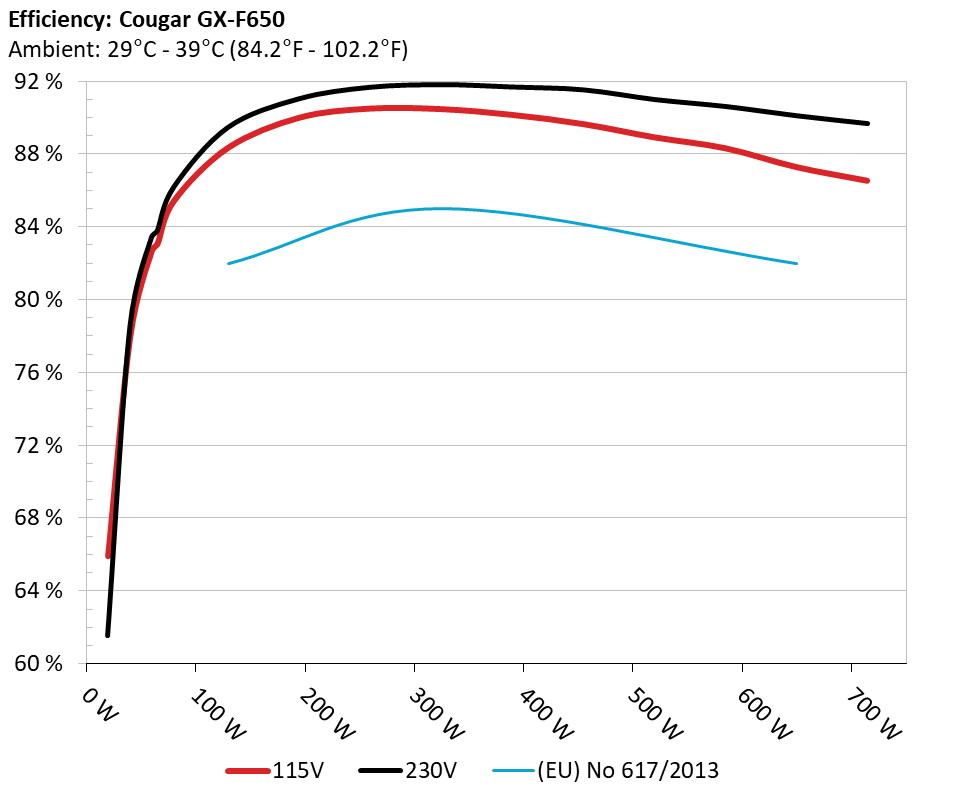

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

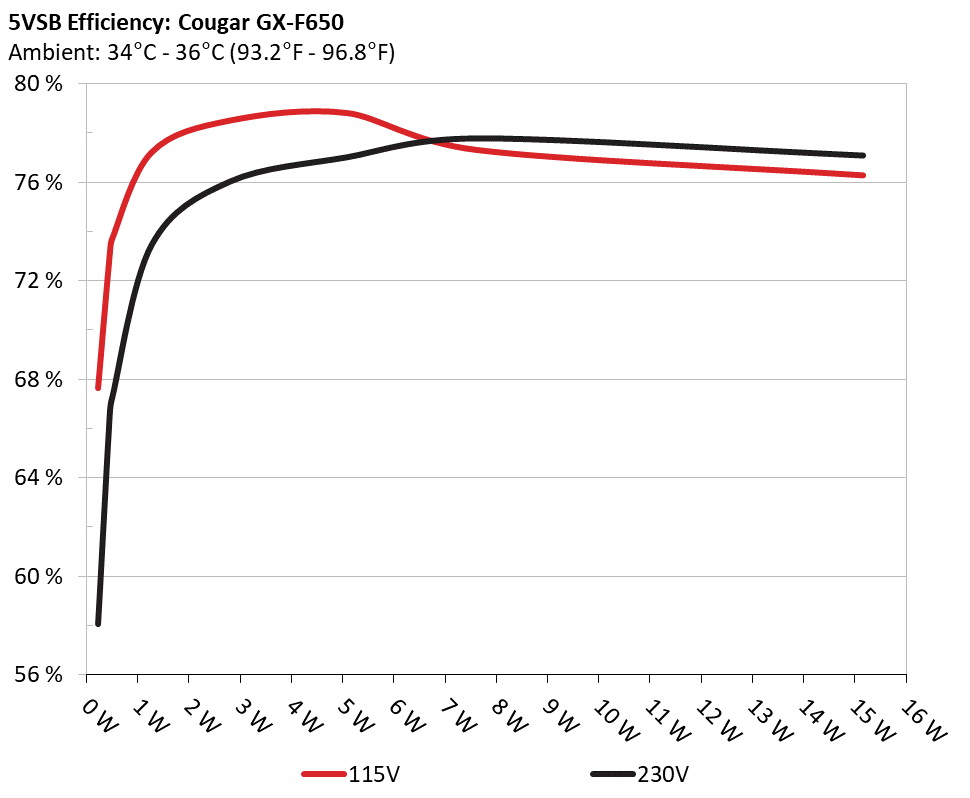

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 67.647% 0.026
5.114V 0.340 115.27V
2 0.090A 0.460 73.132% 0.047
5.112V 0.629 115.27V
3 0.550A 2.806 78.490% 0.219
5.103V 3.575 115.26V
4 1.000A 5.094 78.794% 0.311
5.094V 6.465 115.26V
5 1.500A 7.627 77.298% 0.370
5.084V 9.867 115.26V
6 3.000A 15.163 76.269% 0.443
5.055V 19.881 115.24V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 58.081% 0.010
5.113V 0.396 230.72V
2 0.090A 0.460 66.667% 0.018
5.112V 0.690 230.72V
3 0.550A 2.806 76.043% 0.089
5.103V 3.690 230.71V
4 1.000A 5.094 77.030% 0.150
5.094V 6.613 230.71V
5 1.500A 7.626 77.793% 0.204
5.084V 9.803 230.71V
6 3.000A 15.163 77.099% 0.308
5.055V 19.667 230.70V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.575A 2.010A 1.971A 0.983A 64.631 83.096% 810 23.3 30.63°C 0.965
12.043V 4.970V 3.341V 5.089V 77.779 34.74°C 115.17V
2 8.167A 3.021A 2.966A 1.181A 129.124 88.368% 830 24.4 31.08°C 0.983
12.029V 4.963V 3.335V 5.080V 146.120 35.56°C 115.18V
3 13.167A 3.531A 3.452A 1.380A 194.239 90.023% 885 26.3 31.54°C 0.976
12.018V 4.958V 3.329V 5.072V 215.765 36.19°C 115.10V
4 18.176A 4.037A 3.969A 1.580A 259.461 90.528% 945 28.6 32.37°C 0.978
12.009V 4.952V 3.324V 5.064V 286.609 37.30°C 115.01V
5 22.858A 5.054A 4.970A 1.780A 324.759 90.497% 1020 30.2 32.89°C 0.981
11.999V 4.946V 3.318V 5.055V 358.863 38.88°C 114.92V
6 27.479A 6.073A 5.975A 1.982A 389.292 90.184% 1110 32.8 33.33°C 0.985
11.991V 4.940V 3.312V 5.046V 431.664 40.04°C 114.93V
7 32.174A 7.095A 6.987A 2.184A 454.609 89.673% 1210 35.3 34.08°C 0.988
11.982V 4.933V 3.306V 5.037V 506.965 41.35°C 114.83V
8 36.843A 8.119A 7.998A 2.386A 519.922 88.946% 1300 37.3 35.67°C 0.989
11.984V 4.927V 3.300V 5.029V 584.539 43.82°C 114.72V
9 41.947A 8.635A 8.496A 2.389A 584.847 88.345% 1400 38.8 36.21°C 0.990
11.976V 4.922V 3.294V 5.024V 662.001 45.27°C 114.72V
10 46.782A 9.154A 9.028A 2.996A 649.679 87.311% 1510 40.7 37.06°C 0.992
11.970V 4.916V 3.289V 5.008V 744.100 46.44°C 114.62V
11 52.222A 9.162A 9.045A 2.998A 714.490 86.563% 1535 41.8 38.51°C 0.993
11.964V 4.912V 3.284V 5.003V 825.403 49.44°C 114.51V
CL1 0.128A 16.000A 16.000A 0.000A 133.634 84.705% 1140 33.6 35.68°C 0.982
12.021V 4.937V 3.319V 5.092V 157.764 44.09°C 115.16V
CL2 53.994A 0.999A 0.998A 1.000A 659.960 87.725% 1470 40.4 36.38°C 0.992
11.977V 4.934V 3.299V 5.053V 752.308 46.57°C 114.62V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.569A 2.011A 1.972A 0.983A 64.735 83.781% 820 23.8 31.01°C 0.774
12.090V 4.970V 3.341V 5.088V 77.267 37.00°C 230.79V
2 8.158A 3.022A 2.968A 1.181A 129.233 89.462% 860 24.7 31.43°C 0.894
12.054V 4.963V 3.335V 5.080V 144.456 37.60°C 230.57V
3 13.156A 3.529A 3.454A 1.380A 194.327 91.041% 885 26.3 31.73°C 0.933
12.035V 4.958V 3.329V 5.072V 213.450 38.34°C 230.70V
4 18.161A 4.041A 3.970A 1.580A 259.538 91.677% 945 28.6 32.16°C 0.948
12.022V 4.952V 3.324V 5.063V 283.099 39.28°C 230.65V
5 22.842A 5.055A 4.973A 1.781A 324.832 91.818% 1020 30.2 32.79°C 0.956
12.010V 4.945V 3.318V 5.055V 353.778 40.21°C 230.70V
6 27.462A 6.074A 5.978A 1.982A 389.370 91.692% 1120 33.1 33.12°C 0.961
12.001V 4.939V 3.312V 5.046V 424.650 41.09°C 230.65V
7 32.184A 7.096A 6.987A 2.184A 454.688 91.535% 1200 35.1 34.34°C 0.964
11.981V 4.932V 3.305V 5.037V 496.735 42.63°C 230.60V
8 36.855A 8.121A 8.001A 2.387A 519.998 91.002% 1265 36.9 34.99°C 0.968
11.982V 4.926V 3.299V 5.028V 571.411 43.42°C 230.55V
9 41.956A 8.637A 8.500A 2.389A 584.924 90.620% 1380 38.4 35.88°C 0.969
11.975V 4.921V 3.294V 5.023V 645.467 44.72°C 230.49V
10 46.799A 9.158A 9.031A 2.996A 649.750 90.111% 1450 40.2 36.05°C 0.972
11.967V 4.915V 3.288V 5.007V 721.053 46.08°C 230.49V
11 52.236A 9.165A 9.046A 2.999A 714.559 89.683% 1525 41.3 36.63°C 0.974
11.962V 4.911V 3.283V 5.003V 796.765 48.76°C 230.32V
CL1 0.133A 16.002A 15.998A 0.000A 133.668 85.807% 1100 32.5 34.80°C 0.903
12.042V 4.936V 3.318V 5.091V 155.778 42.72°C 230.83V
CL2 54.012A 1.001A 1.001A 1.000A 660.032 90.611% 1440 40.0 35.31°C 0.971
11.974V 4.933V 3.299V 5.053V 728.420 45.66°C 230.55V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.176A 0.500A 0.475A 0.196A 19.256 65.914% 725 20.2 0.847
12.055V 4.975V 3.346V 5.108V 29.214 115.23V
2 2.444A 1.004A 0.985A 0.392A 39.734 78.064% 735 20.7 0.931
12.049V 4.973V 3.344V 5.102V 50.899 115.21V
3 3.638A 1.507A 1.462A 0.589A 59.193 82.678% 750 21.3 0.961
12.043V 4.971V 3.342V 5.097V 71.595 115.18V
4 4.904A 2.010A 1.973A 0.786A 79.619 85.454% 770 22.4 0.976
12.039V 4.969V 3.340V 5.092V 93.172 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.174A 0.501A 0.478A 0.196A 19.383 61.539% 820 23.8 0.487
12.172V 4.974V 3.346V 5.107V 31.497 230.82V
2 2.435A 1.004A 0.987A 0.392A 39.800 78.541% 810 23.3 0.646
12.118V 4.973V 3.344V 5.102V 50.674 230.80V
3 3.631A 1.508A 1.466A 0.589A 59.314 83.395% 820 23.8 0.753
12.095V 4.971V 3.342V 5.097V 71.124 230.79V
4 4.895A 2.012A 1.972A 0.786A 79.702 86.179% 820 23.8 0.816
12.077V 4.969V 3.340V 5.091V 92.484 230.78V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.3 mV 6.9 mV 9.2 mV 5.7 mV Pass
20% Load 7.3 mV 7.6 mV 10.3 mV 6.1 mV Pass
30% Load 8.4 mV 8.1 mV 12.1 mV 6.6 mV Pass
40% Load 11.2 mV 8.5 mV 13.8 mV 7.8 mV Pass
50% Load 12.7 mV 8.9 mV 16.7 mV 9.1 mV Pass
60% Load 14.2 mV 10.2 mV 19.5 mV 10.5 mV Pass
70% Load 15.7 mV 10.8 mV 21.7 mV 14.7 mV Pass
80% Load 13.9 mV 12.2 mV 23.3 mV 16.3 mV Pass
90% Load 16.0 mV 14.2 mV 26.2 mV 16.6 mV Pass
100% Load 17.0 mV 15.3 mV 29.6 mV 33.0 mV Pass
110% Load 18.1 mV 16.5 mV 34.1 mV 34.0 mV Pass
Crossload 1 8.2 mV 12.1 mV 20.7 mV 4.7 mV Pass
Crossload 2 17.2 mV 13.3 mV 28.8 mV 21.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.6 mV 6.7 mV 8.6 mV 6.4 mV Pass
20% Load 8.8 mV 7.5 mV 10.6 mV 6.1 mV Pass
30% Load 9.1 mV 8.1 mV 13.0 mV 7.3 mV Pass
40% Load 10.3 mV 8.7 mV 14.7 mV 8.6 mV Pass
50% Load 11.3 mV 9.2 mV 16.4 mV 9.5 mV Pass
60% Load 11.6 mV 10.5 mV 17.8 mV 10.3 mV Pass
70% Load 16.1 mV 10.8 mV 20.9 mV 16.0 mV Pass
80% Load 14.5 mV 12.3 mV 24.4 mV 16.4 mV Pass
90% Load 16.1 mV 13.1 mV 26.9 mV 21.5 mV Pass
100% Load 18.1 mV 15.4 mV 30.7 mV 45.1 mV Pass
110% Load 18.8 mV 17.6 mV 35.0 mV 45.6 mV Pass
Crossload 1 9.7 mV 12.5 mV 20.1 mV 4.9 mV Pass
Crossload 2 17.7 mV 13.5 mV 28.6 mV 21.3 mV Pass

The results above are not used in the certification process

Cougar GX-F650

Top side

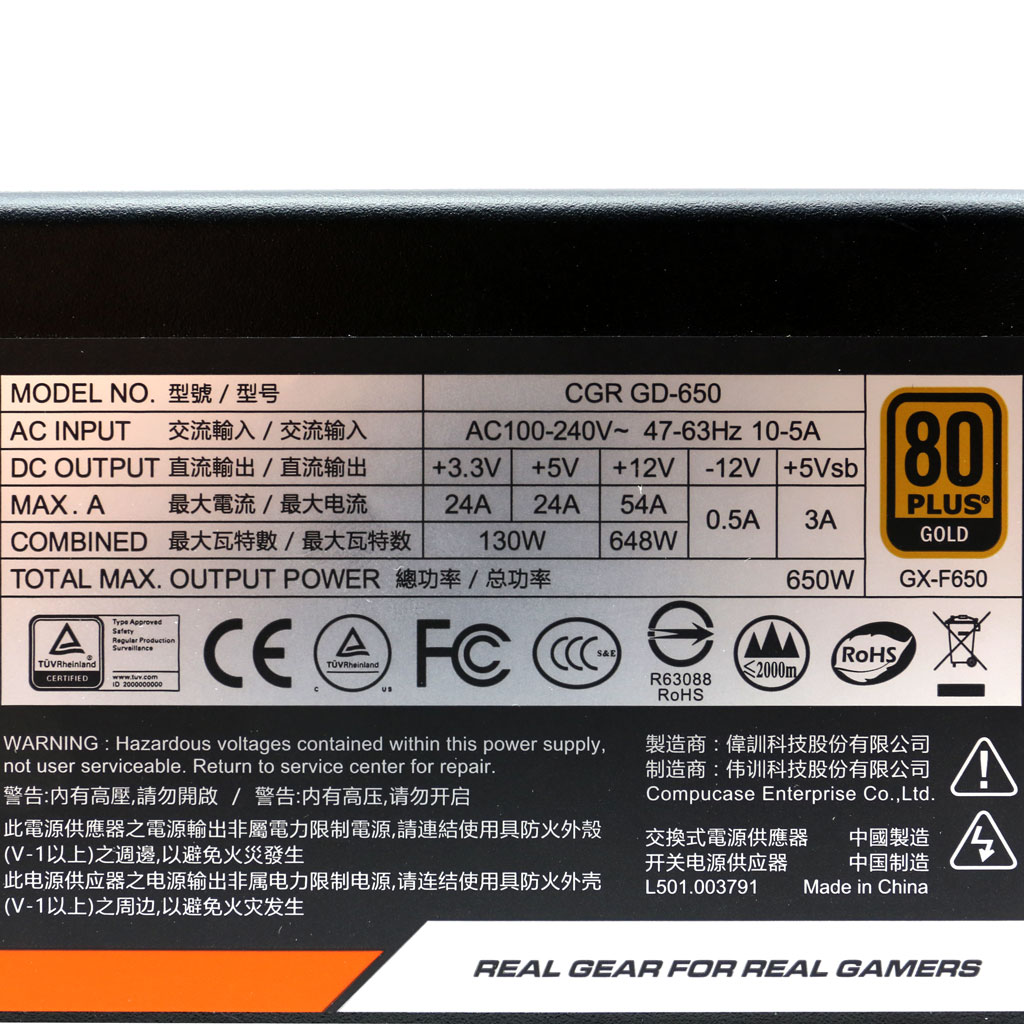

Power specifications label
