Cougar GX-F650 (#2)
Serial NumberH1801006851
Lab ID293
  • Report:
  • Receipt Date: Feb 6, 2018
  • Test Date: Feb 18, 2018
  • Report Date: Feb 21, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial NumberH1801006851
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 24 54 3 0.5
Watts 130 648 15 6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
SATA (450mm+120mm) 1 2 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1700mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.2
AC Loss to PWR_OK Hold Up Time (ms)17.3
PWR_OK Inactive to DC Loss Delay (ms)2.9

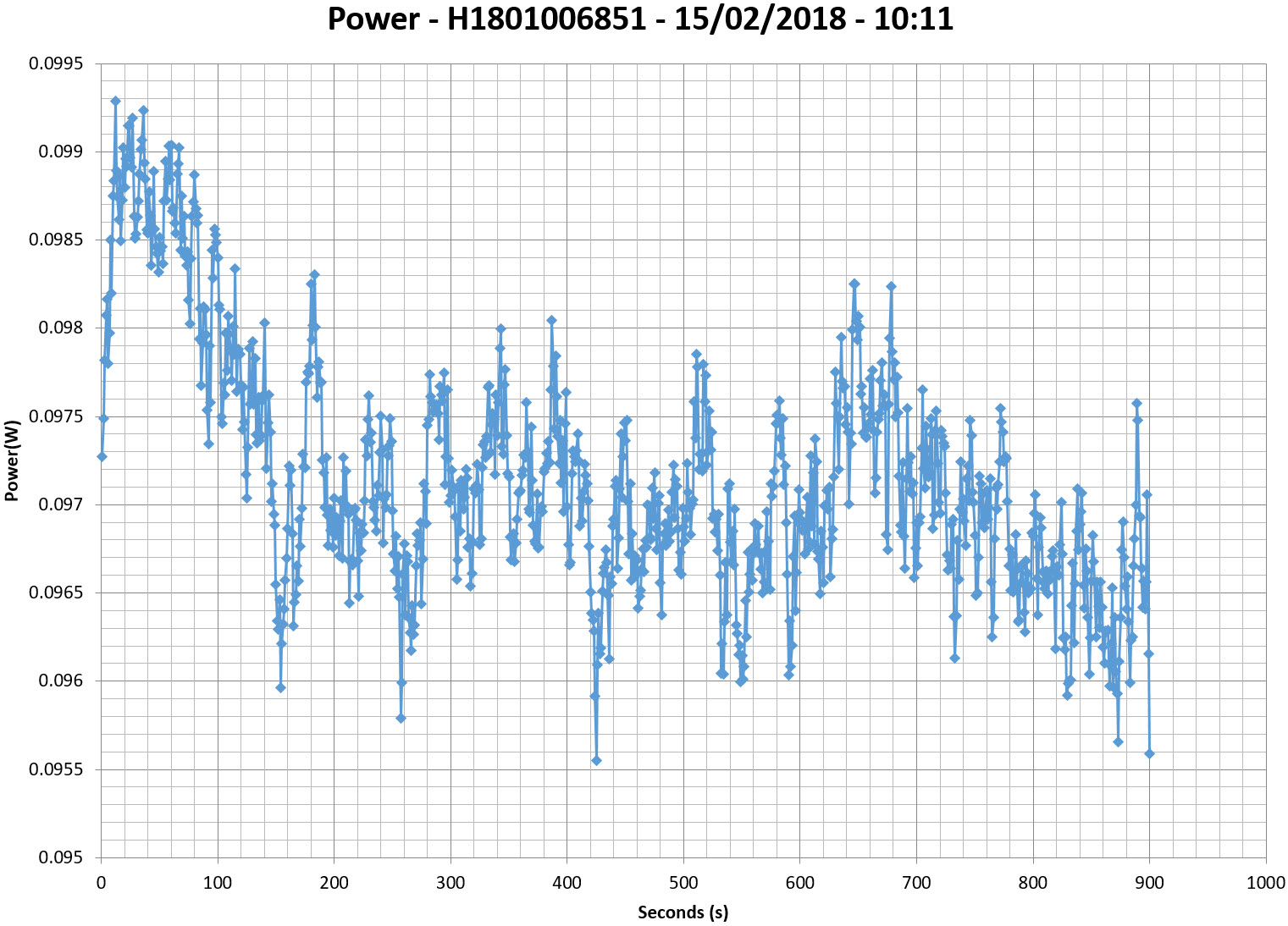

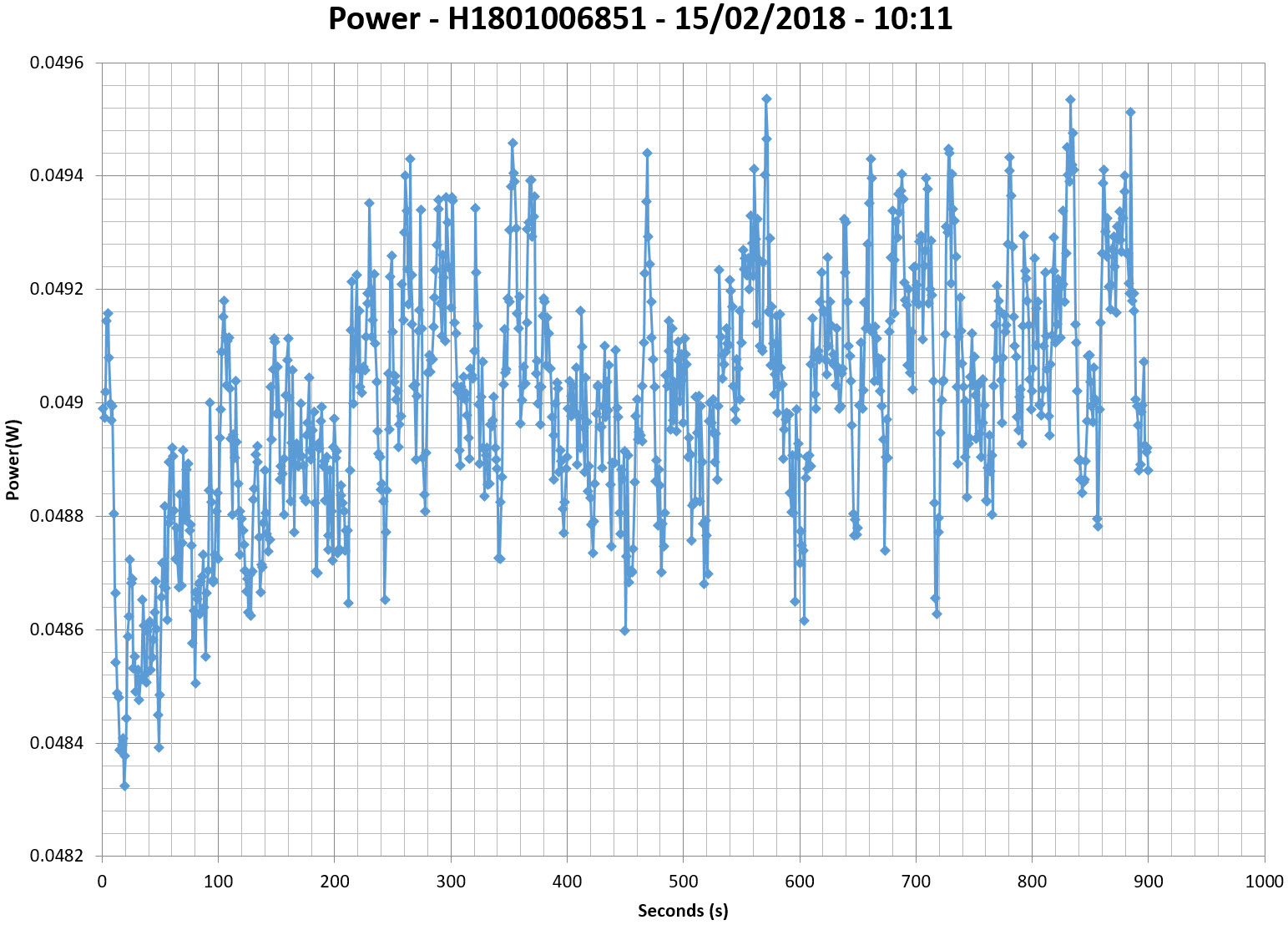

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

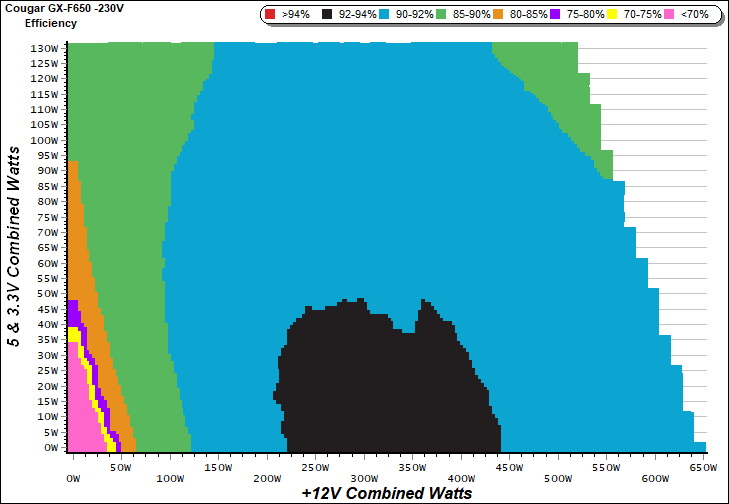

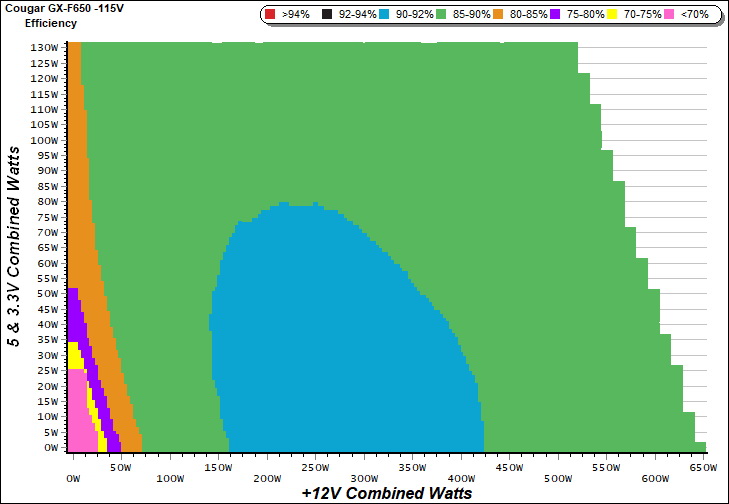

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

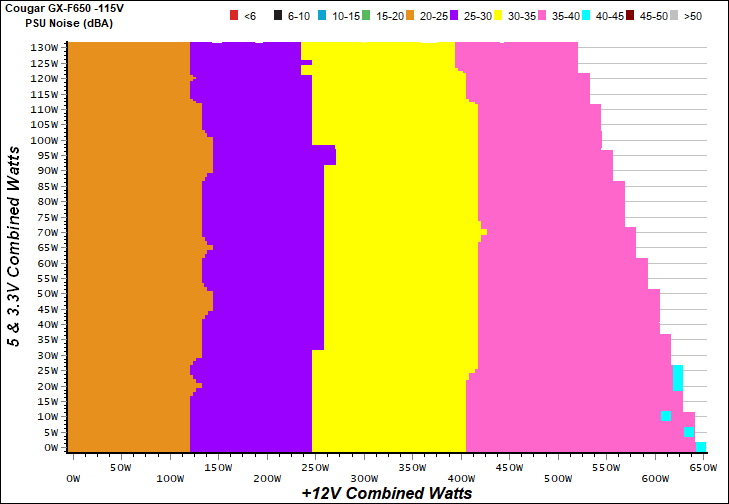

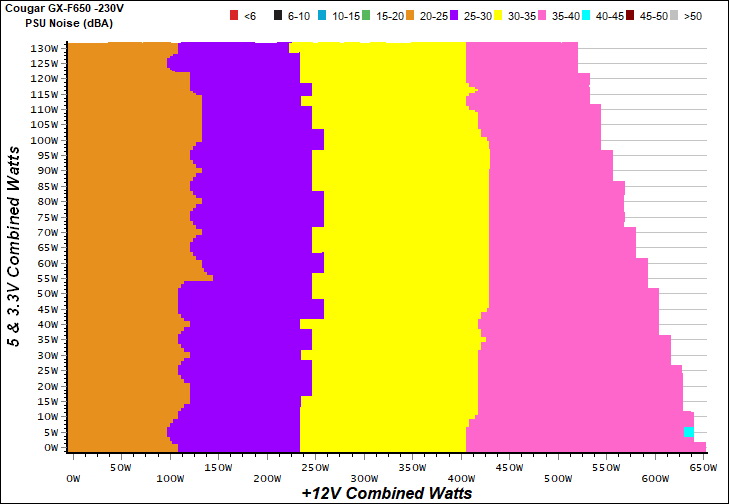

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

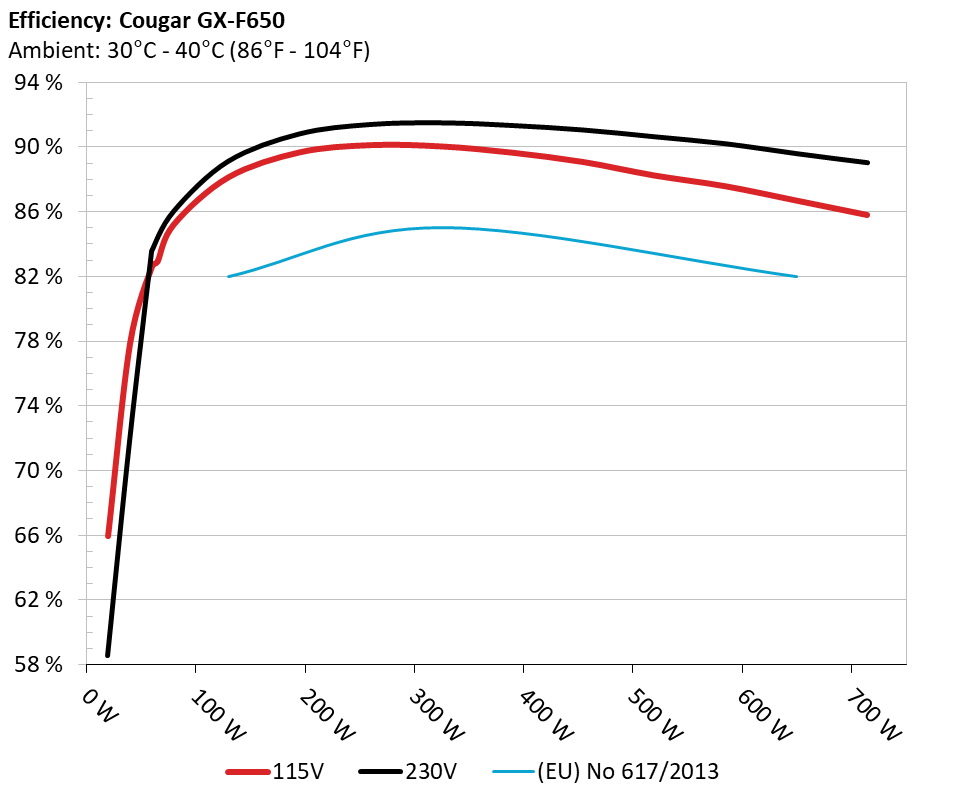

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

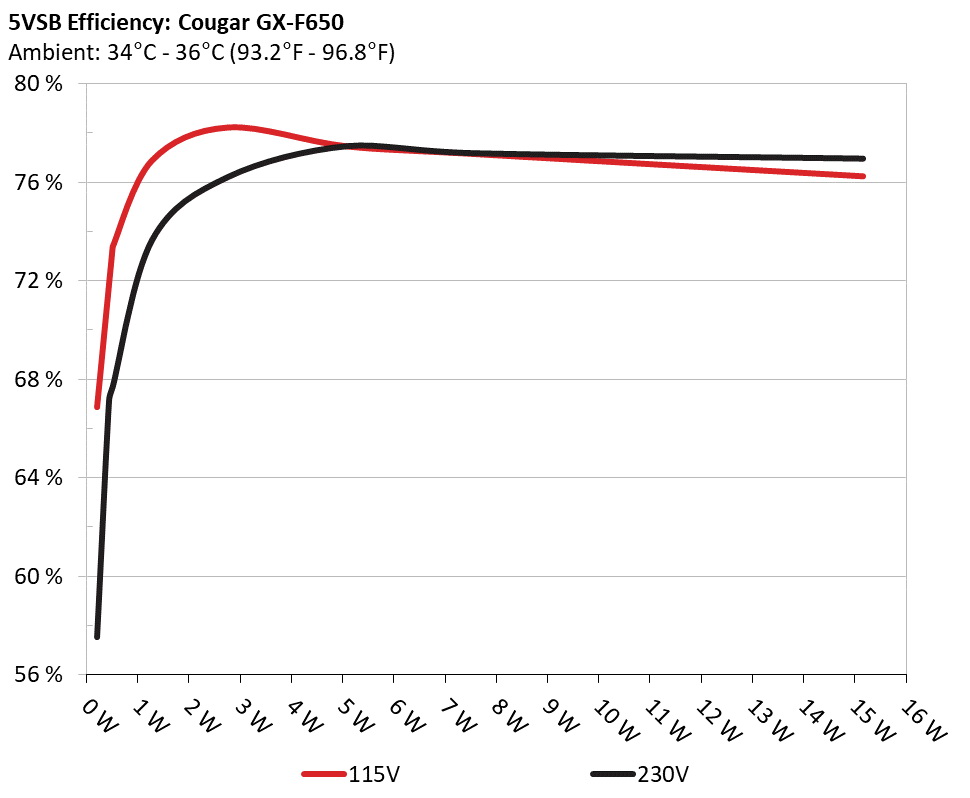

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 66.875% 0.032
5.112V 0.320 115.03V
2 0.087A 0.447 73.399% 0.060
5.111V 0.609 115.03V
3 0.542A 2.766 78.246% 0.255
5.100V 3.535 115.03V
4 1.002A 5.104 77.474% 0.338
5.093V 6.588 115.04V
5 1.502A 7.632 77.161% 0.386
5.082V 9.891 115.03V
6 3.002A 15.164 76.262% 0.444
5.052V 19.884 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 57.527% 0.011
5.112V 0.372 230.15V
2 0.087A 0.447 67.117% 0.020
5.111V 0.666 230.18V
3 0.543A 2.768 76.232% 0.102
5.101V 3.631 230.15V
4 1.002A 5.105 77.489% 0.168
5.093V 6.588 230.16V
5 1.502A 7.634 77.197% 0.224
5.083V 9.889 230.16V
6 3.002A 15.168 76.979% 0.316
5.053V 19.704 230.16V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.581A 1.995A 1.978A 0.981A 64.798 82.904% 860 24.7 32.56°C 0.978
12.072V 5.007V 3.333V 5.083V 78.160 35.81°C 115.07V
2 8.206A 2.995A 2.975A 1.181A 129.800 88.134% 885 26.3 33.12°C 0.982
12.058V 4.999V 3.324V 5.073V 147.276 36.87°C 115.06V
3 13.184A 3.508A 3.494A 1.381A 194.918 89.676% 945 28.6 34.26°C 0.976
12.047V 4.990V 3.318V 5.064V 217.359 38.47°C 115.06V
4 18.161A 4.014A 3.984A 1.581A 259.813 90.124% 1020 30.2 34.87°C 0.978
12.038V 4.984V 3.312V 5.054V 288.283 39.79°C 115.05V
5 22.803A 5.023A 4.992A 1.783A 324.765 90.045% 1100 32.5 35.88°C 0.983
12.029V 4.975V 3.303V 5.042V 360.669 41.51°C 115.05V
6 27.451A 6.039A 6.005A 1.986A 389.768 89.657% 1210 35.3 36.13°C 0.986
12.021V 4.968V 3.295V 5.031V 434.732 42.26°C 115.04V
7 32.098A 7.050A 7.023A 2.191A 454.620 89.080% 1282 37.0 36.75°C 0.989
12.012V 4.960V 3.288V 5.020V 510.350 44.33°C 115.05V
8 36.736A 8.075A 8.046A 2.395A 519.690 88.248% 1390 38.5 37.60°C 0.990
12.013V 4.953V 3.280V 5.008V 588.898 47.05°C 115.05V
9 41.833A 8.597A 8.583A 2.397A 584.798 87.582% 1470 40.4 38.88°C 0.991
12.005V 4.945V 3.273V 5.001V 667.712 48.64°C 115.04V
10 46.666A 9.112A 9.090A 3.008A 649.579 86.695% 1530 41.5 39.60°C 0.992
11.998V 4.938V 3.267V 4.983V 749.269 50.48°C 115.04V
11 52.102A 9.124A 9.108A 3.011A 714.495 85.806% 1545 42.2 40.26°C 0.993
11.992V 4.933V 3.260V 4.977V 832.683 52.39°C 115.04V
CL1 0.098A 16.026A 16.005A 0.005A 133.767 84.123% 1200 35.1 37.22°C 0.980
12.044V 4.972V 3.304V 5.082V 159.014 45.14°C 115.05V
CL2 61.943A 1.003A 1.004A 1.002A 756.739 85.831% 1550 42.7 39.48°C 0.993
11.999V 4.947V 3.274V 5.026V 881.666 49.45°C 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.567A 1.993A 1.978A 0.981A 64.787 83.557% 860 24.7 31.85°C 0.792
12.119V 5.007V 3.333V 5.083V 77.536 37.95°C 230.25V
2 8.185A 3.000A 2.976A 1.181A 129.769 89.106% 860 24.7 32.17°C 0.900
12.082V 4.998V 3.324V 5.073V 145.635 38.85°C 230.25V
3 13.164A 3.509A 3.492A 1.381A 194.900 90.799% 945 28.6 33.02°C 0.935
12.064V 4.990V 3.318V 5.064V 214.651 39.98°C 230.25V
4 18.138A 4.016A 3.983A 1.581A 259.779 91.381% 1000 29.8 33.52°C 0.950
12.051V 4.984V 3.312V 5.054V 284.282 40.78°C 230.23V
5 22.784A 5.020A 4.993A 1.782A 324.748 91.483% 1090 32.2 34.47°C 0.957
12.039V 4.975V 3.303V 5.042V 354.981 42.45°C 230.23V
6 27.420A 6.041A 6.007A 1.986A 389.660 91.321% 1170 33.9 35.09°C 0.963
12.030V 4.968V 3.295V 5.031V 426.691 43.71°C 230.24V
7 32.079A 7.053A 7.024A 2.191A 454.667 91.040% 1255 36.7 35.62°C 0.965
12.020V 4.960V 3.288V 5.020V 499.414 44.93°C 230.25V
8 36.736A 8.081A 8.047A 2.395A 519.678 90.625% 1340 37.8 36.54°C 0.968
12.012V 4.952V 3.280V 5.008V 573.436 46.28°C 230.23V
9 41.825A 8.598A 8.583A 2.398A 584.710 90.193% 1450 40.2 37.67°C 0.971
12.005V 4.945V 3.273V 5.001V 648.287 47.64°C 230.26V
10 46.667A 9.113A 9.091A 3.008A 649.553 89.582% 1525 41.3 39.06°C 0.973
11.997V 4.938V 3.267V 4.983V 725.091 49.50°C 230.24V
11 52.126A 9.124A 9.108A 3.011A 714.512 89.023% 1545 42.2 39.20°C 0.974
11.987V 4.932V 3.260V 4.977V 802.619 50.76°C 230.25V
CL1 0.098A 16.028A 16.002A 0.004A 133.749 85.300% 1190 34.7 36.58°C 0.911
12.063V 4.972V 3.303V 5.082V 156.799 44.64°C 230.24V
CL2 61.953A 1.003A 1.003A 1.002A 756.656 89.193% 1550 42.7 37.56°C 0.974
11.999V 4.947V 3.273V 5.026V 848.331 47.37°C 230.25V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.208A 0.490A 0.477A 0.196A 19.648 65.937% 750 21.3 0.882
12.086V 5.013V 3.338V 5.102V 29.798 115.07V
2 2.442A 0.989A 0.986A 0.391A 39.736 77.853% 810 23.3 0.953
12.079V 5.012V 3.336V 5.097V 51.040 115.07V
3 3.674A 1.486A 1.498A 0.586A 59.780 82.602% 820 23.8 0.970
12.074V 5.009V 3.334V 5.092V 72.371 115.07V
4 4.908A 1.995A 1.978A 0.786A 79.803 85.217% 830 24.4 0.973
12.068V 5.005V 3.332V 5.086V 93.647 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.194A 0.492A 0.476A 0.196A 19.622 58.584% 860 24.7 0.539
12.200V 5.012V 3.339V 5.103V 33.494 230.25V
2 2.421A 0.990A 0.989A 0.391A 39.757 71.875% 910 26.9 0.701
12.187V 5.010V 3.337V 5.097V 55.314 230.24V
3 3.664A 1.487A 1.498A 0.586A 59.843 83.353% 830 24.4 0.773
12.123V 5.008V 3.334V 5.092V 71.795 230.24V
4 4.892A 1.995A 1.979A 0.786A 79.800 86.007% 860 24.7 0.834
12.106V 5.005V 3.332V 5.086V 92.783 230.24V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.6 mV 10.0 mV 9.9 mV 7.5 mV Pass
20% Load 7.5 mV 10.6 mV 11.4 mV 9.0 mV Pass
30% Load 8.0 mV 12.3 mV 12.8 mV 11.0 mV Pass
40% Load 9.3 mV 12.7 mV 13.5 mV 10.9 mV Pass
50% Load 10.0 mV 13.6 mV 15.7 mV 14.0 mV Pass
60% Load 11.6 mV 15.0 mV 16.9 mV 15.9 mV Pass
70% Load 11.6 mV 15.5 mV 18.4 mV 18.8 mV Pass
80% Load 10.4 mV 16.9 mV 19.1 mV 31.3 mV Pass
90% Load 55.0 mV 25.8 mV 23.8 mV 31.5 mV Pass
100% Load 12.5 mV 21.6 mV 24.4 mV 22.8 mV Pass
110% Load 13.2 mV 21.9 mV 25.1 mV 23.3 mV Pass
Crossload 1 7.9 mV 15.8 mV 17.8 mV 6.2 mV Pass
Crossload 2 14.3 mV 19.0 mV 20.5 mV 20.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.6 mV 10.6 mV 10.6 mV 7.5 mV Pass
20% Load 9.5 mV 11.0 mV 12.2 mV 8.7 mV Pass
30% Load 9.2 mV 12.3 mV 13.9 mV 11.2 mV Pass
40% Load 9.4 mV 13.5 mV 14.8 mV 11.7 mV Pass
50% Load 9.5 mV 13.7 mV 16.7 mV 13.8 mV Pass
60% Load 9.7 mV 15.0 mV 16.3 mV 15.4 mV Pass
70% Load 10.1 mV 15.7 mV 18.1 mV 16.0 mV Pass
80% Load 10.4 mV 16.8 mV 18.6 mV 26.3 mV Pass
90% Load 11.0 mV 18.2 mV 20.3 mV 30.5 mV Pass
100% Load 12.0 mV 20.2 mV 24.2 mV 21.2 mV Pass
110% Load 13.4 mV 22.0 mV 23.7 mV 22.0 mV Pass
Crossload 1 9.8 mV 15.5 mV 17.9 mV 5.9 mV Pass
Crossload 2 14.1 mV 19.8 mV 20.4 mV 19.4 mV Pass

The results above are not used in the certification process

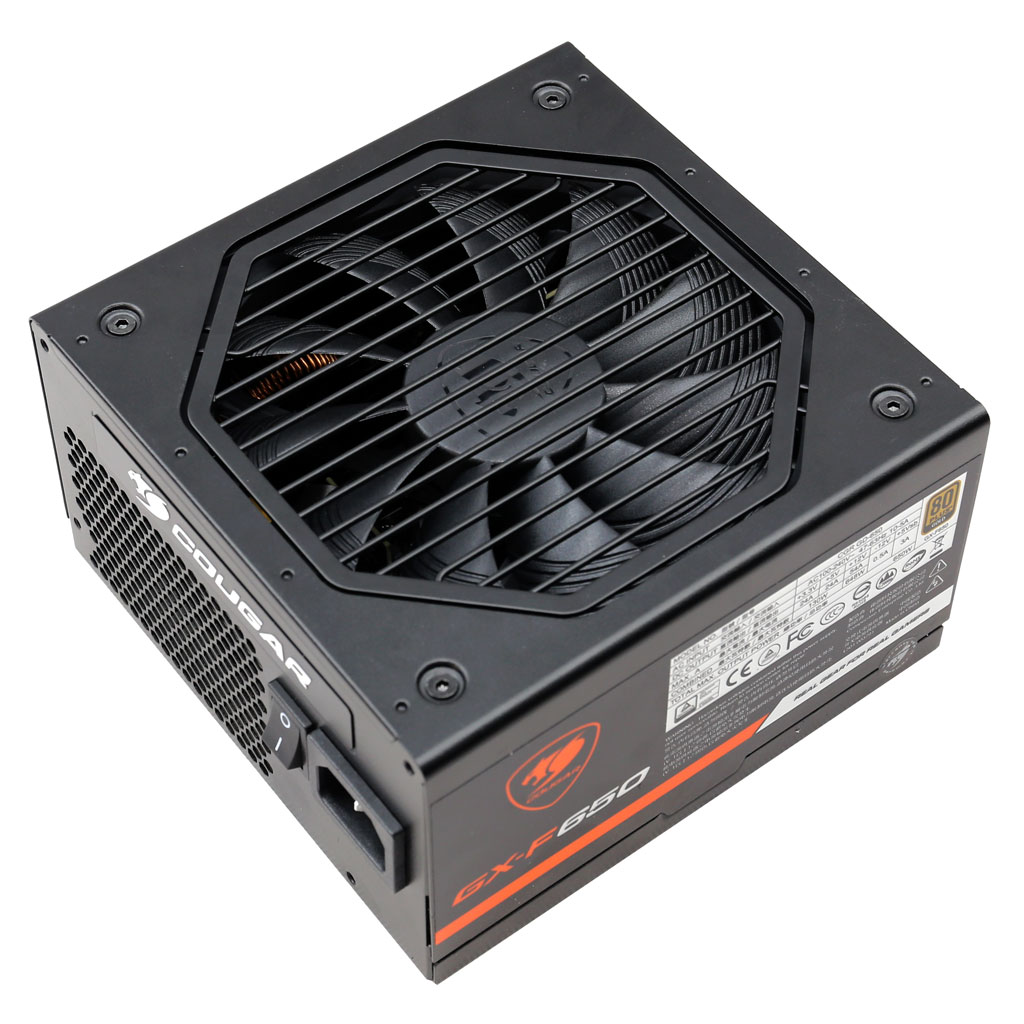

Cougar GX-F650 (#2)

Top side

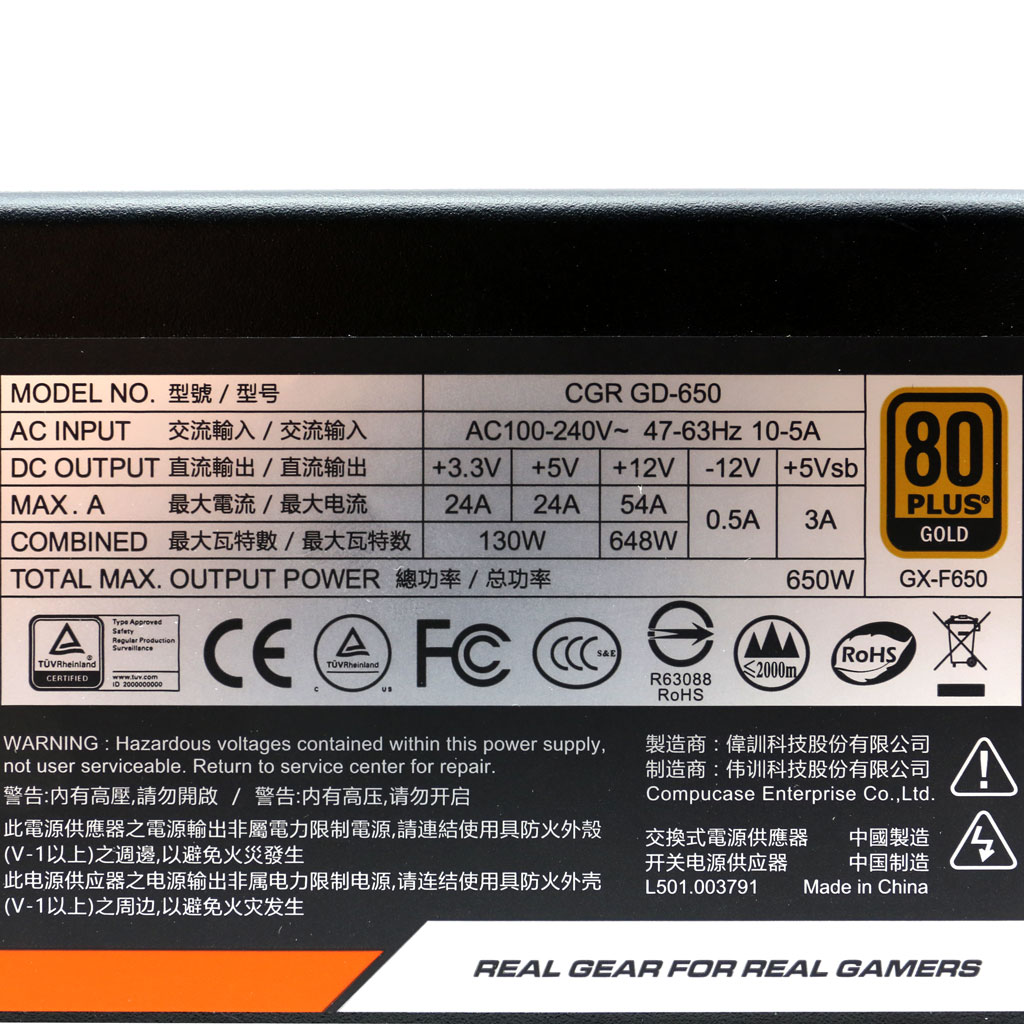

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
