CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar GX-F750
Serial NumberH1801006855
Lab ID292
  • Report:
  • Receipt Date: Feb 7, 2018
  • Test Date: Feb 16, 2018
  • Report Date: Feb 20, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesGX-F
Model Number
Serial NumberH1801006855
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5
Rated Frequency (Hz)47-63
Rated Power (W)750
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan
(RL4Z S1352512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 62 3 0.5
Watts 150 744 15 6
Total Max. Power (W) 750

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 18AWG No
SATA (450mm+120mm) 1 2 18AWG No
4 pin Molex (400mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1680mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data
Manufacturer (OEM) HEC/Compucase
Platform Model TPK
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x MPS HF81 (X Capacitor Bleeder)
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA60R125P6 (650V, 19A @ 100°C, 0.125Ohm)
APFC Boost Diode 1x Hestia H2S060H006 (600V, 6A @ 152°C)
Hold-up Cap(s) 1x Chemi-Con (400V, 680uF, 2000h @ 105°C, KMW)
Main Switchers 2x Infineon IPP65R150CFD
(700V, 14.2A @ 100°C, 0.15Ohm)
APFC Controller Champion CM6502S
Resonant Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x FETs
5V & 3.3V DC-DC Converters: 2x TI CSD87355Q5D (30V, 45A @ 125°C)
PWM Controller: 2x APW7073
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KY), Teapo (1-3,000h @ 105°C, SC)
Polymers: APAQ
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Globe Fan RL4Z S1352512H (12V, 0.33A, 1550 RPM, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x PFR10L60CT SBR (60V, 10A)
Standby PWM Controller TinySwitch-III TNY280PN
-12V Circuit
Rectifier KIA7912PI

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.6
AC Loss to PWR_OK Hold Up Time (ms)14.5
PWR_OK Inactive to DC Loss Delay (ms)3.1

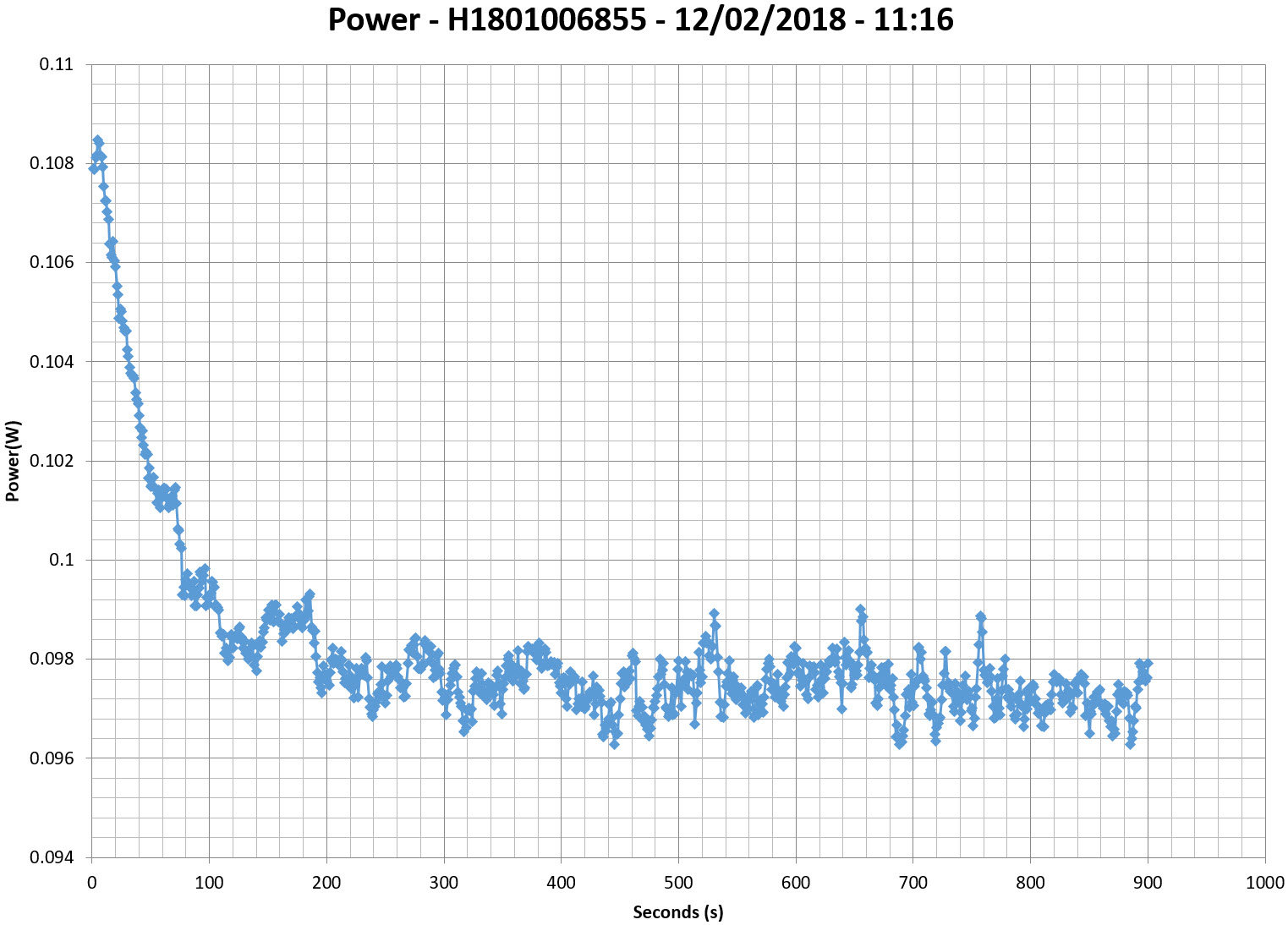

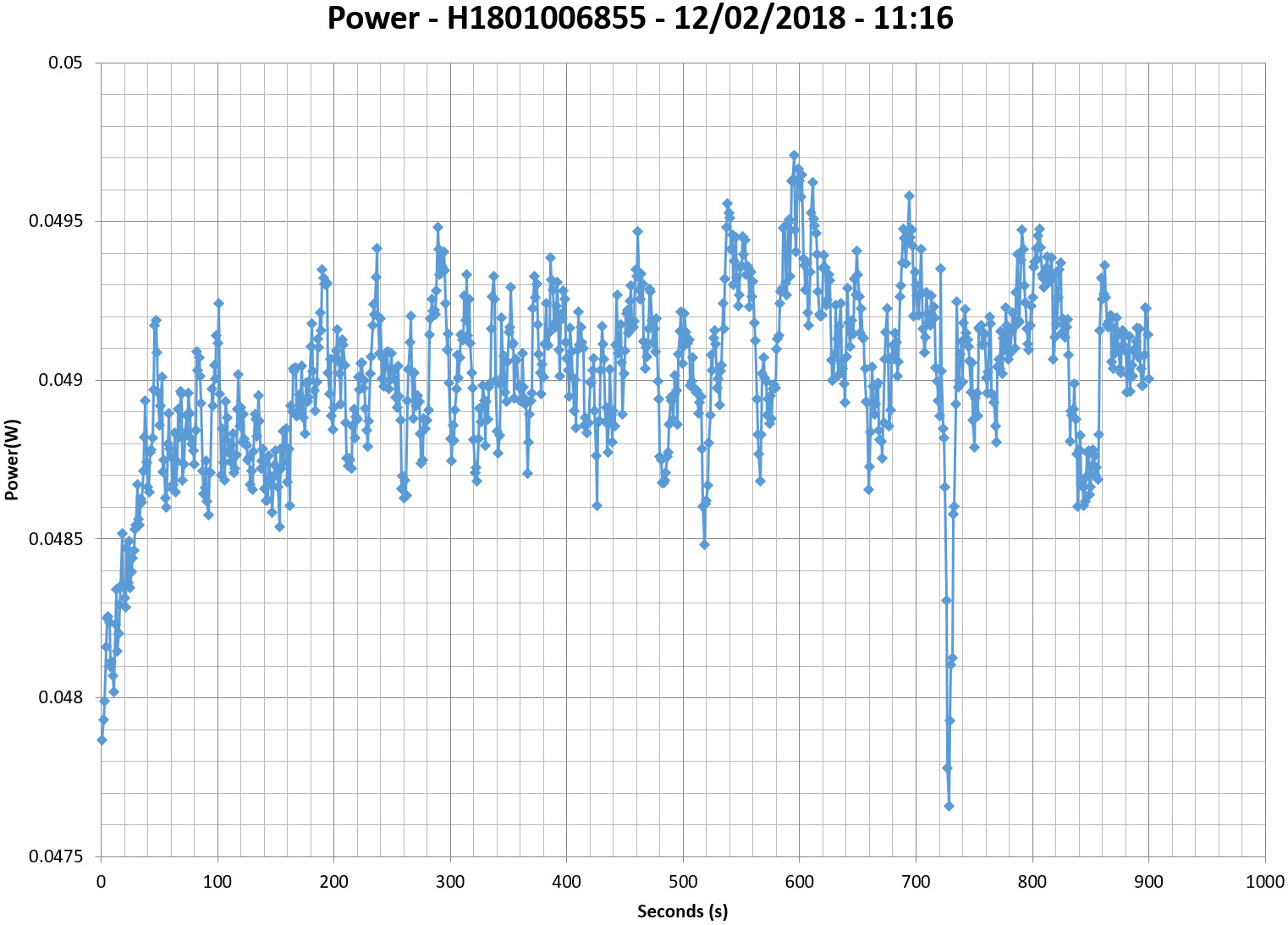

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

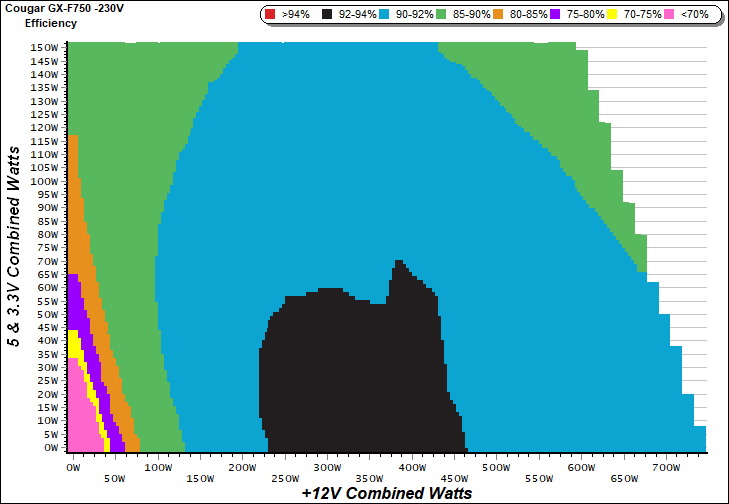

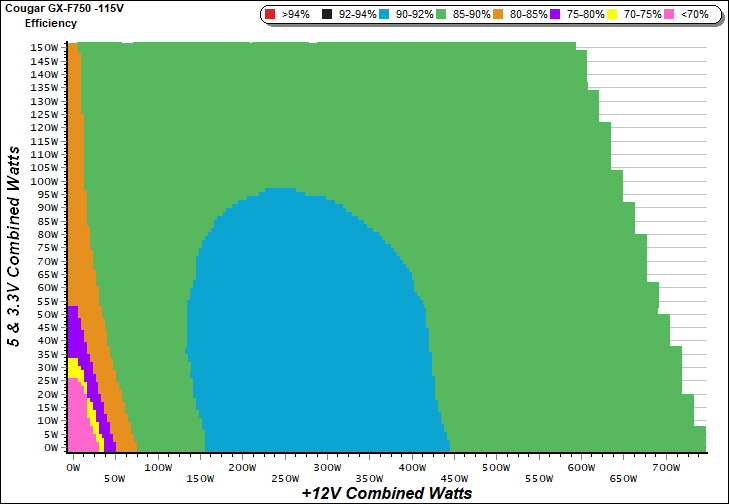

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

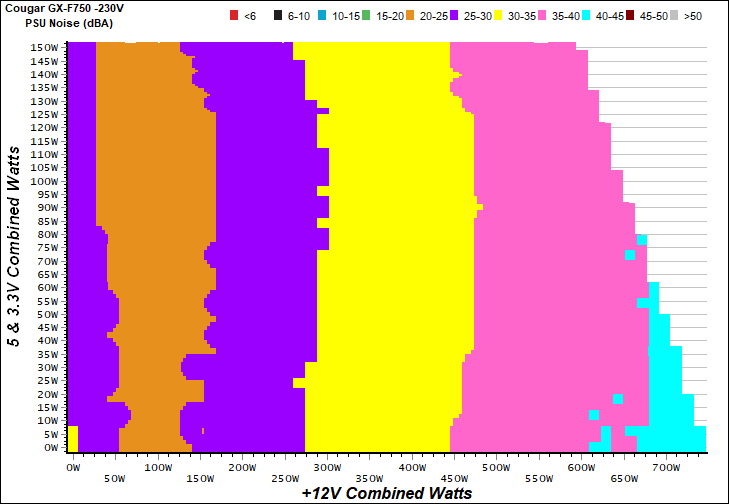

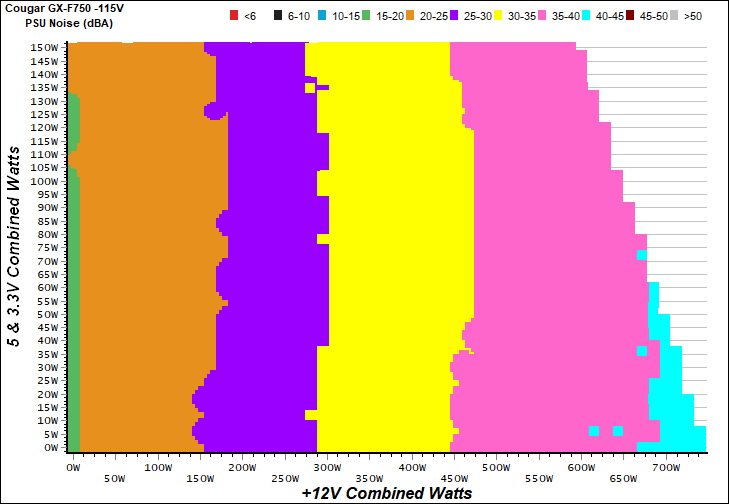

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

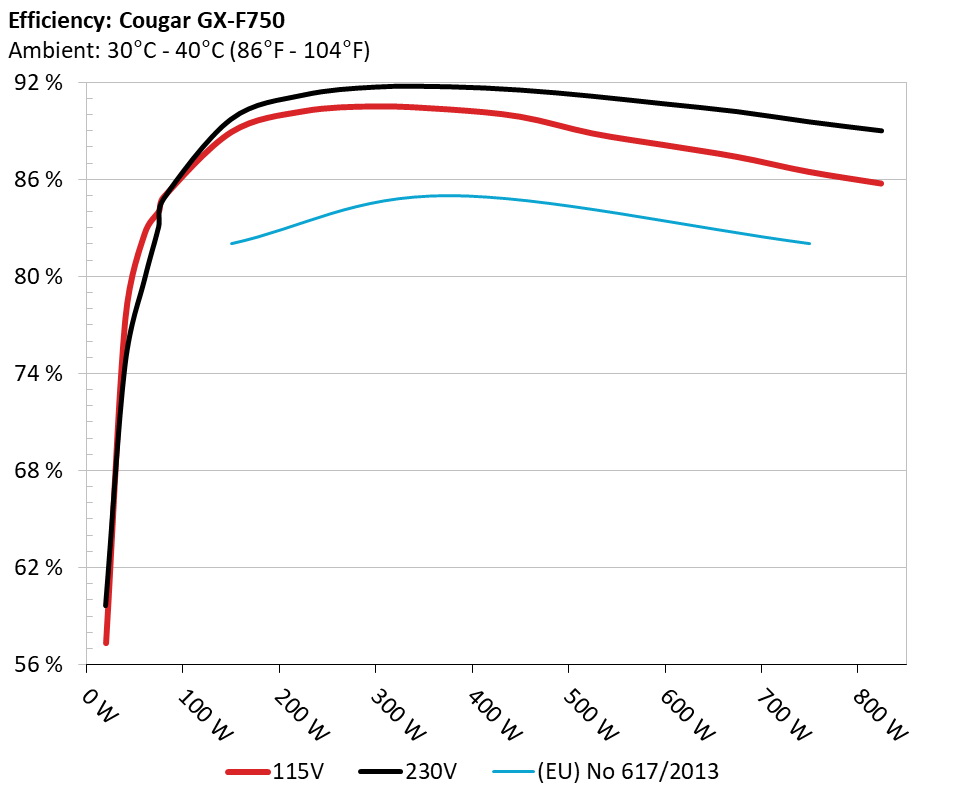

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

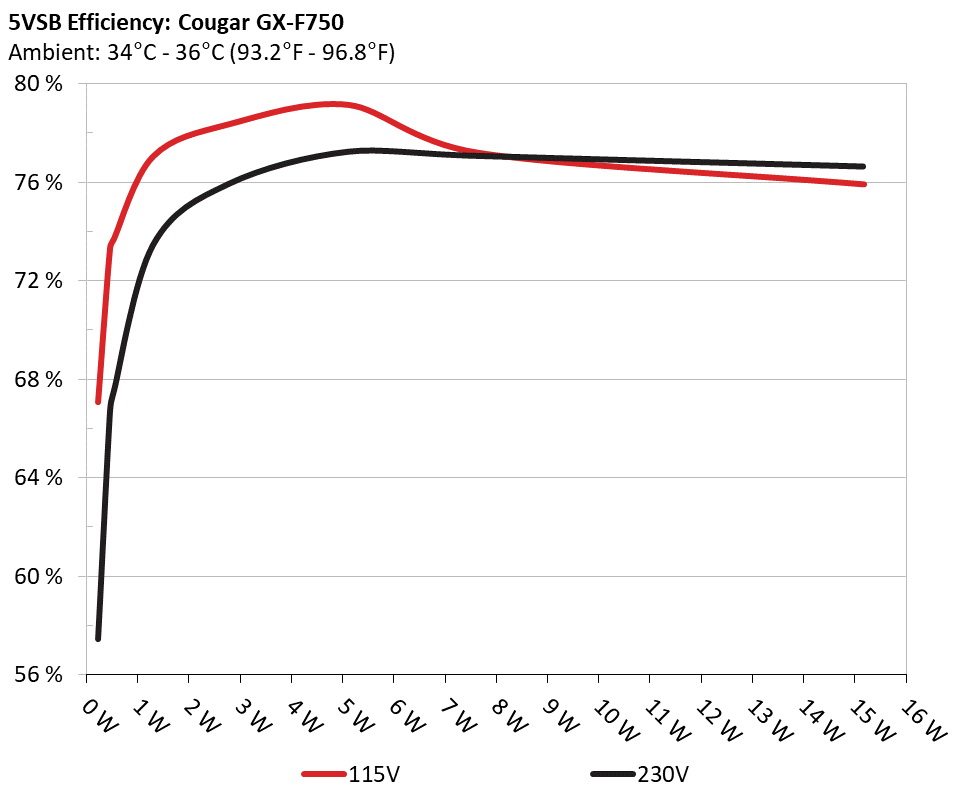

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.216 67.081% 0.033
5.123V 0.322 115.04V
2 0.087A 0.448 73.322% 0.061
5.121V 0.611 115.04V
3 0.542A 2.772 78.372% 0.257
5.110V 3.537 115.03V
4 1.002A 5.112 79.158% 0.339
5.101V 6.458 115.04V
5 1.502A 7.643 77.210% 0.389
5.089V 9.899 115.03V
6 3.002A 15.170 75.930% 0.447
5.054V 19.979 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.216 57.447% 0.012
5.122V 0.376 230.18V
2 0.087A 0.448 66.667% 0.021
5.121V 0.672 230.18V
3 0.543A 2.773 75.931% 0.104
5.111V 3.652 230.14V
4 1.003A 5.113 77.236% 0.172
5.100V 6.620 230.15V
5 1.502A 7.643 77.062% 0.228
5.088V 9.918 230.16V
6 3.001A 15.169 76.630% 0.322
5.054V 19.795 230.16V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.393A 2.004A 1.980A 0.981A 74.787 84.018% 810 23.3 31.80°C 0.974
12.111V 4.984V 3.333V 5.092V 89.013 36.73°C 115.07V
2 9.840A 3.011A 2.975A 1.181A 149.806 88.902% 830 24.4 32.46°C 0.979
12.087V 4.976V 3.324V 5.080V 168.507 37.54°C 115.07V
3 15.637A 3.517A 3.495A 1.380A 224.871 90.191% 885 26.3 33.19°C 0.979
12.074V 4.969V 3.318V 5.071V 249.328 39.52°C 115.06V
4 21.436A 4.030A 3.984A 1.580A 299.773 90.485% 970 29.4 33.78°C 0.984
12.063V 4.963V 3.312V 5.060V 331.297 41.87°C 115.04V
5 26.907A 5.041A 4.991A 1.781A 374.744 90.305% 1070 31.5 34.79°C 0.988
12.052V 4.955V 3.304V 5.049V 414.976 43.55°C 115.06V
6 32.384A 6.068A 6.006A 1.982A 449.741 89.851% 1170 33.9 35.49°C 0.991
12.041V 4.948V 3.296V 5.038V 500.543 45.17°C 115.07V
7 37.840A 7.083A 7.021A 2.186A 524.667 88.818% 1265 36.9 36.04°C 0.992
12.040V 4.940V 3.289V 5.028V 590.720 46.69°C 115.08V
8 43.326A 8.114A 8.043A 2.391A 599.654 88.095% 1390 38.5 36.94°C 0.994
12.031V 4.931V 3.282V 5.015V 680.691 49.54°C 115.07V
9 49.246A 8.632A 8.580A 2.396A 674.698 87.371% 1490 40.5 38.49°C 0.995
12.023V 4.925V 3.275V 5.009V 772.222 52.29°C 115.09V
10 54.918A 9.154A 9.086A 3.006A 749.546 86.443% 1545 42.2 39.35°C 0.995
12.015V 4.918V 3.268V 4.988V 867.098 53.62°C 115.08V
11 61.205A 9.166A 9.102A 3.009A 824.474 85.723% 1550 42.7 40.42°C 0.996
12.005V 4.911V 3.263V 4.983V 961.786 55.32°C 115.06V
CL1 0.100A 18.030A 18.002A 0.004A 149.901 84.143% 1190 34.7 38.30°C 0.978
12.078V 4.948V 3.303V 5.097V 178.151 47.96°C 115.04V
CL2 61.948A 1.002A 1.005A 1.002A 758.165 86.878% 1535 41.8 39.92°C 0.995
12.024V 4.936V 3.284V 5.045V 872.677 53.54°C 115.06V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.366A 2.005A 1.976A 0.981A 74.748 83.062% 820 23.8 30.97°C 0.841
12.179V 4.984V 3.333V 5.092V 89.991 36.83°C 230.23V
2 9.813A 3.009A 2.975A 1.181A 149.765 89.715% 795 22.8 31.64°C 0.928
12.117V 4.976V 3.324V 5.080V 166.935 37.69°C 230.23V
3 15.614A 3.519A 3.496A 1.380A 224.883 91.209% 830 24.4 31.95°C 0.951
12.092V 4.969V 3.317V 5.070V 246.558 38.14°C 230.24V
4 21.417A 4.033A 3.984A 1.580A 299.802 91.706% 910 26.9 32.95°C 0.959
12.075V 4.962V 3.310V 5.059V 326.917 39.50°C 230.24V
5 26.885A 5.040A 4.993A 1.781A 374.712 91.724% 970 29.4 33.44°C 0.966
12.061V 4.954V 3.303V 5.049V 408.522 40.27°C 230.24V
6 32.357A 6.070A 6.005A 1.984A 449.680 91.521% 1090 32.2 34.13°C 0.969
12.049V 4.947V 3.295V 5.038V 491.342 41.10°C 230.23V
7 37.842A 7.084A 7.023A 2.185A 524.689 91.135% 1210 35.3 35.25°C 0.972
12.040V 4.940V 3.288V 5.027V 575.729 42.83°C 230.23V
8 43.328A 8.115A 8.044A 2.391A 599.602 90.664% 1310 37.4 35.38°C 0.975
12.029V 4.932V 3.282V 5.013V 661.342 43.92°C 230.23V
9 49.254A 8.633A 8.580A 2.396A 674.689 90.185% 1420 39.8 36.32°C 0.977
12.021V 4.925V 3.274V 5.007V 748.118 45.68°C 230.23V
10 54.924A 9.156A 9.087A 3.005A 749.494 89.554% 1525 41.3 37.69°C 0.979
12.013V 4.917V 3.267V 4.987V 836.915 47.92°C 230.23V
11 61.215A 9.167A 9.106A 3.010A 824.480 88.998% 1550 42.7 38.78°C 0.980
12.003V 4.911V 3.262V 4.981V 926.408 50.16°C 230.23V
CL1 0.099A 18.030A 18.003A 0.004A 149.877 85.206% 1170 33.9 37.10°C 0.933
12.104V 4.948V 3.302V 5.096V 175.899 44.54°C 230.26V
CL2 61.932A 1.003A 1.004A 1.002A 758.095 89.928% 1530 41.5 37.69°C 0.979
12.026V 4.935V 3.283V 5.044V 842.998 48.44°C 230.25V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.195A 0.501A 0.477A 0.196A 19.723 57.321% 735 20.7 0.918
12.242V 4.989V 3.339V 5.114V 34.408 115.07V
2 2.432A 0.999A 0.986A 0.391A 39.768 77.358% 725 20.2 0.957
12.129V 4.988V 3.336V 5.108V 51.408 115.07V
3 3.667A 1.496A 1.497A 0.585A 59.868 82.640% 750 21.3 0.975
12.117V 4.986V 3.335V 5.100V 72.444 115.07V
4 4.891A 2.003A 1.981A 0.784A 79.799 84.902% 795 22.8 0.975
12.108V 4.984V 3.332V 5.095V 93.989 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.194A 0.503A 0.476A 0.196A 19.723 59.638% 750 21.3 0.563
12.245V 4.991V 3.339V 5.115V 33.071 230.23V
2 2.412A 1.000A 0.986A 0.391A 39.759 74.463% 795 22.8 0.714
12.224V 4.989V 3.336V 5.108V 53.394 230.23V
3 3.646A 1.497A 1.497A 0.586A 59.885 79.763% 820 23.8 0.807
12.189V 4.987V 3.334V 5.100V 75.079 230.23V
4 4.871A 2.004A 1.978A 0.785A 79.891 84.793% 795 22.8 0.850
12.177V 4.984V 3.332V 5.094V 94.219 230.23V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.4 mV 7.9 mV 9.1 mV 7.7 mV Pass
20% Load 7.5 mV 8.4 mV 10.1 mV 9.7 mV Pass
30% Load 7.9 mV 8.6 mV 11.0 mV 10.8 mV Pass
40% Load 8.3 mV 8.8 mV 12.3 mV 12.3 mV Pass
50% Load 8.6 mV 9.2 mV 14.9 mV 13.8 mV Pass
60% Load 9.0 mV 10.6 mV 14.8 mV 15.4 mV Pass
70% Load 9.3 mV 10.8 mV 16.1 mV 17.3 mV Pass
80% Load 9.3 mV 11.4 mV 17.3 mV 19.9 mV Pass
90% Load 10.0 mV 11.8 mV 18.5 mV 21.1 mV Pass
100% Load 10.7 mV 14.4 mV 22.7 mV 24.6 mV Pass
110% Load 11.9 mV 17.1 mV 22.7 mV 26.5 mV Pass
Crossload 1 8.2 mV 10.2 mV 16.0 mV 6.1 mV Pass
Crossload 2 10.9 mV 13.9 mV 20.4 mV 20.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.6 mV 10.3 mV 11.9 mV 9.5 mV Pass
20% Load 10.6 mV 8.6 mV 10.8 mV 9.7 mV Pass
30% Load 9.3 mV 9.4 mV 11.9 mV 11.0 mV Pass
40% Load 8.7 mV 9.2 mV 13.1 mV 12.9 mV Pass
50% Load 8.7 mV 9.7 mV 13.9 mV 13.9 mV Pass
60% Load 9.3 mV 10.7 mV 15.3 mV 15.9 mV Pass
70% Load 9.5 mV 10.9 mV 16.4 mV 17.0 mV Pass
80% Load 10.1 mV 12.3 mV 17.5 mV 19.7 mV Pass
90% Load 10.3 mV 12.4 mV 19.0 mV 21.2 mV Pass
100% Load 11.7 mV 15.6 mV 23.6 mV 27.6 mV Pass
110% Load 12.6 mV 17.7 mV 24.7 mV 30.7 mV Pass
Crossload 1 10.8 mV 11.3 mV 17.6 mV 7.3 mV Pass
Crossload 2 11.7 mV 15.6 mV 21.9 mV 22.3 mV Pass

The results above are not used in the certification process

Cougar GX-F750

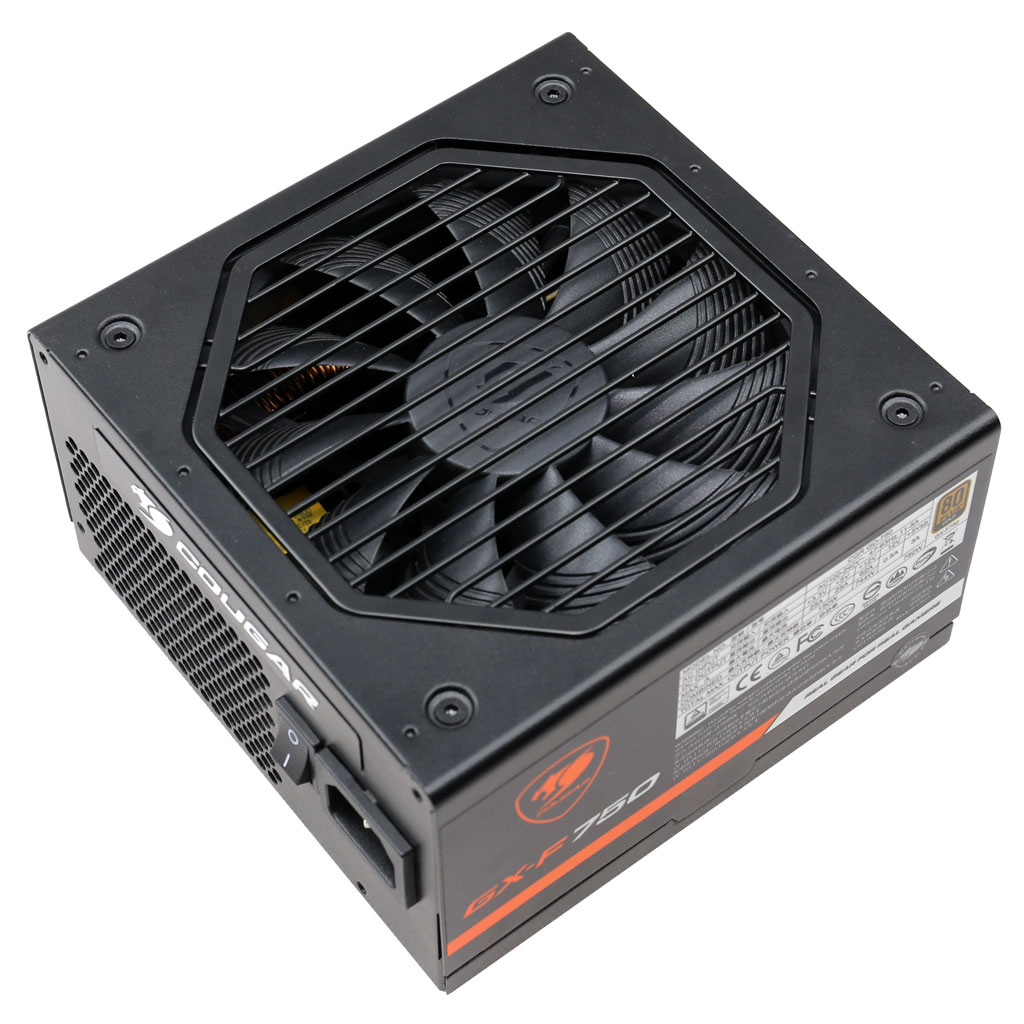

Top side

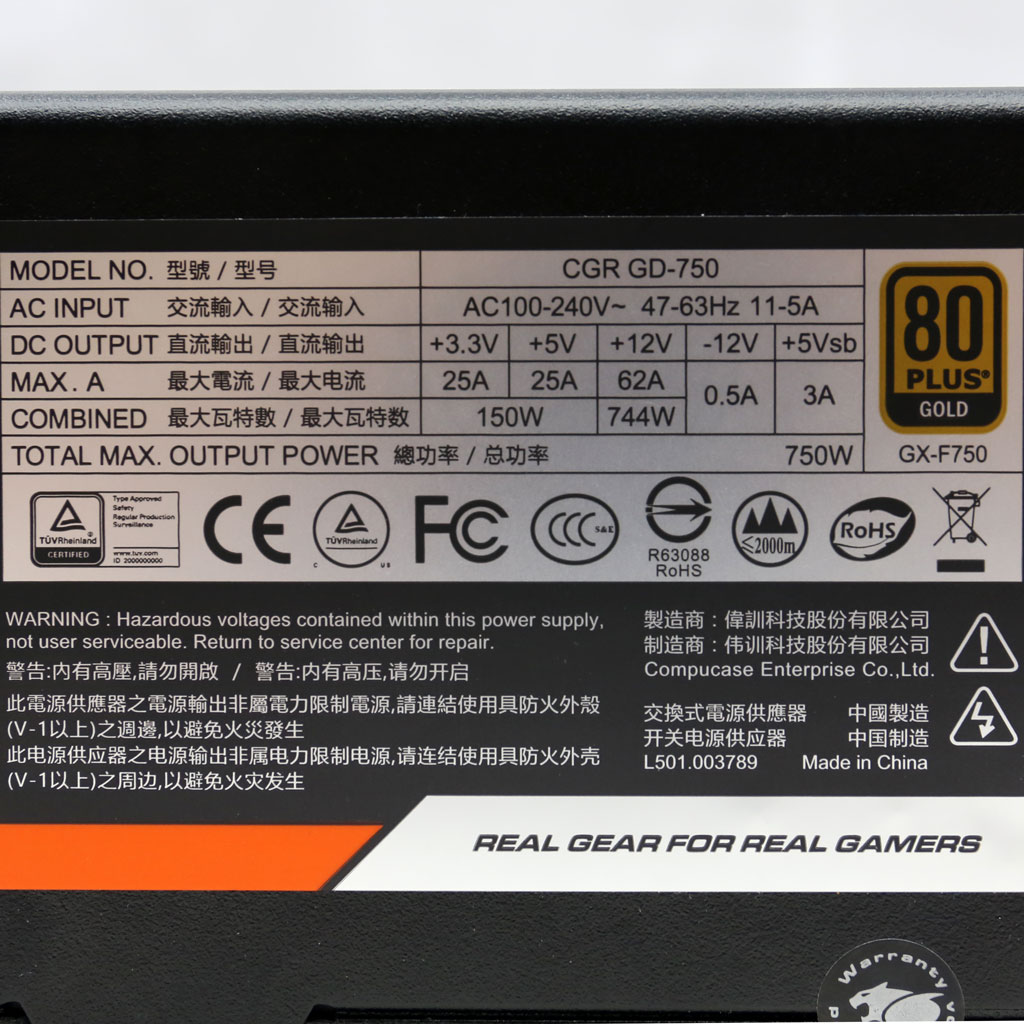

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
