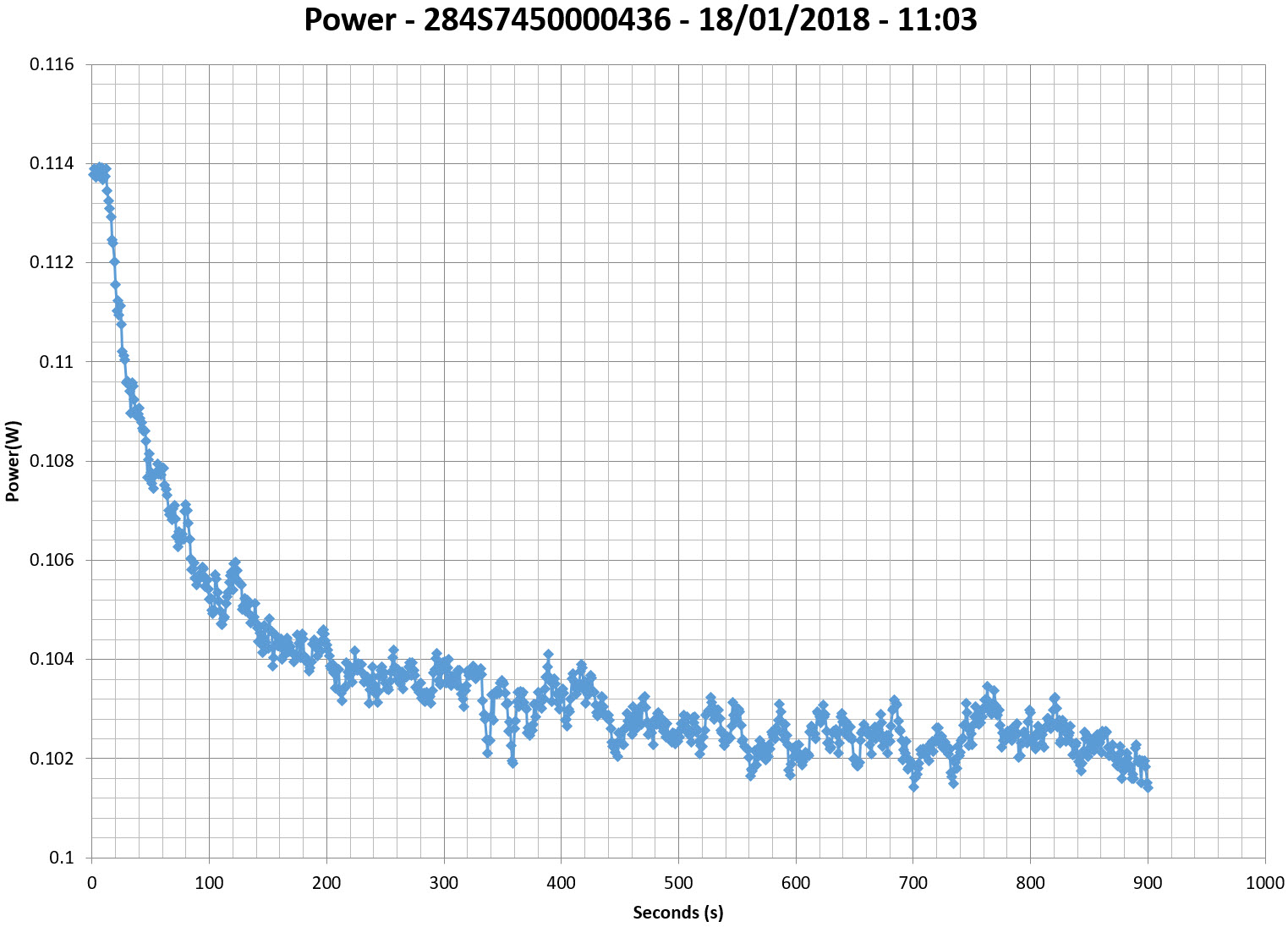

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

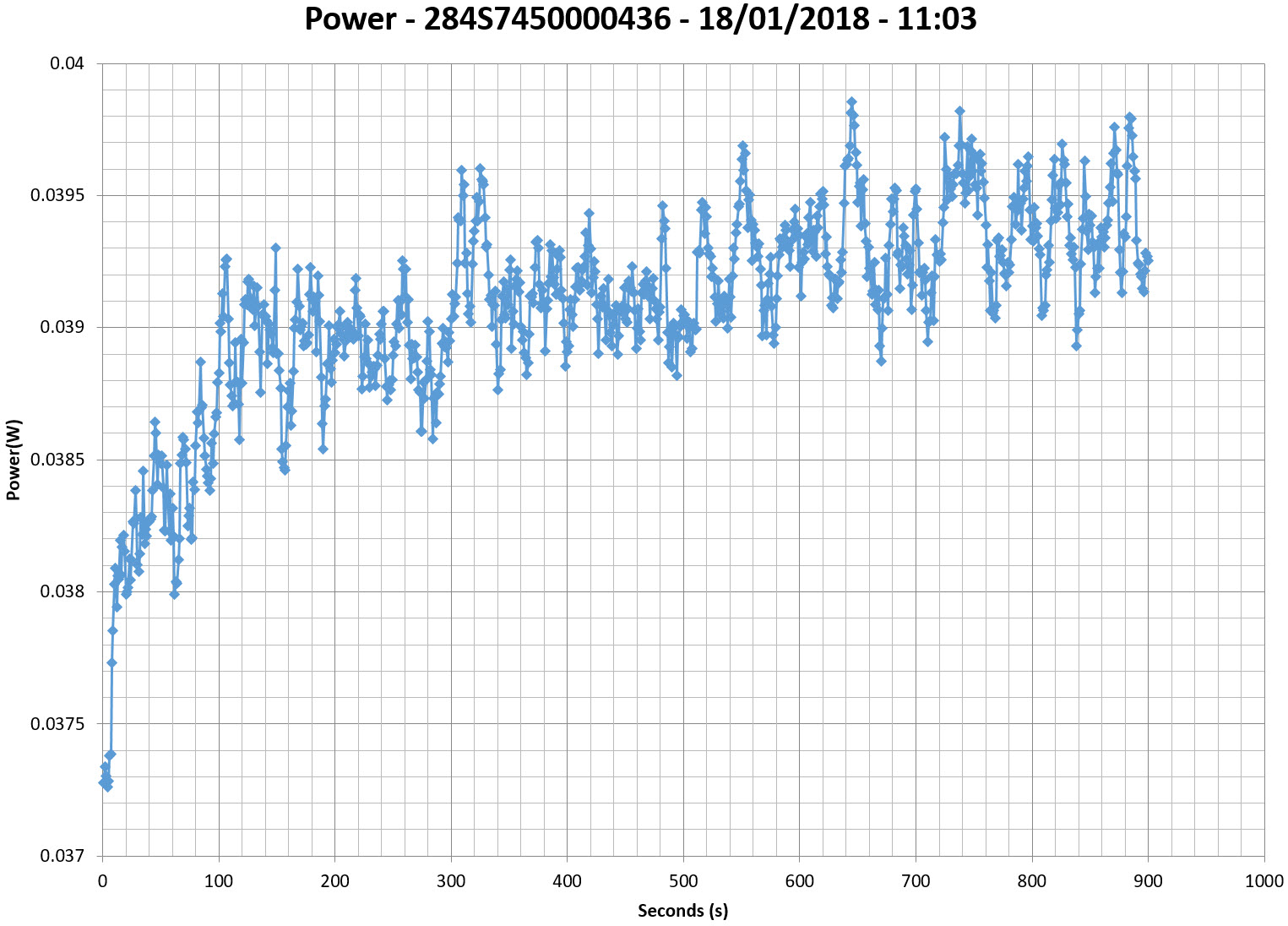

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

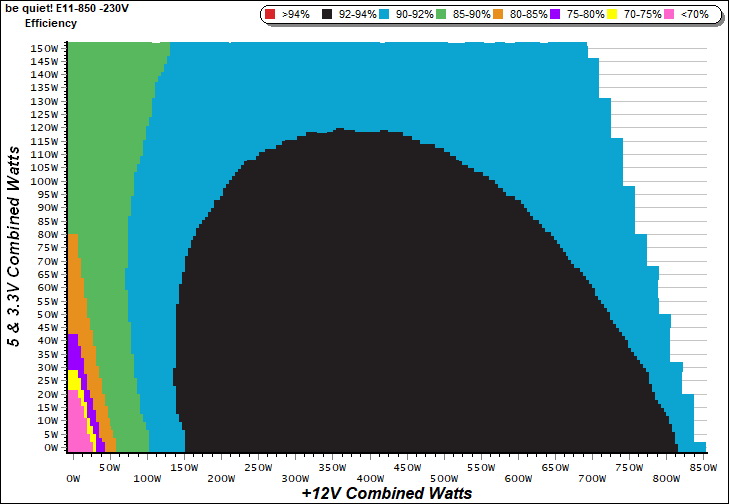

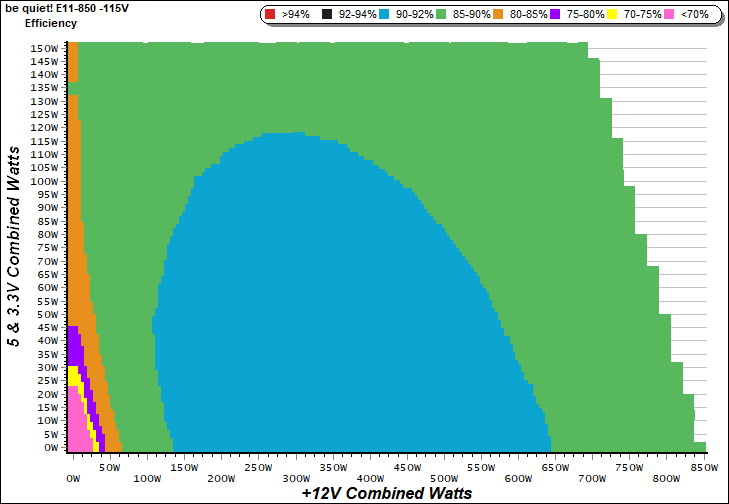

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

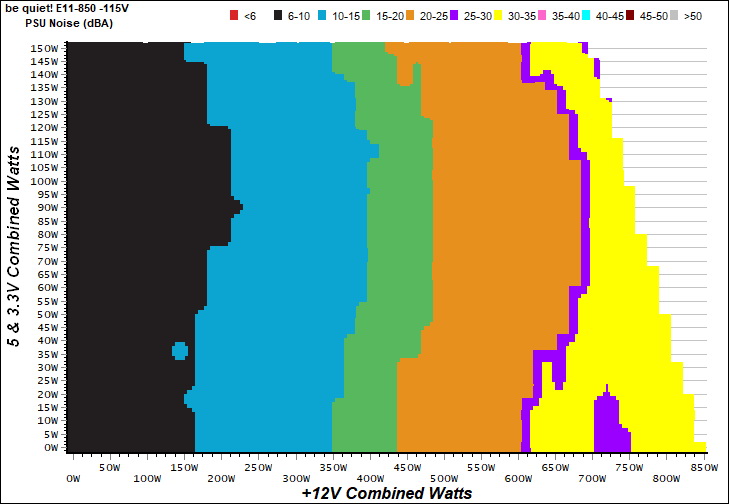

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

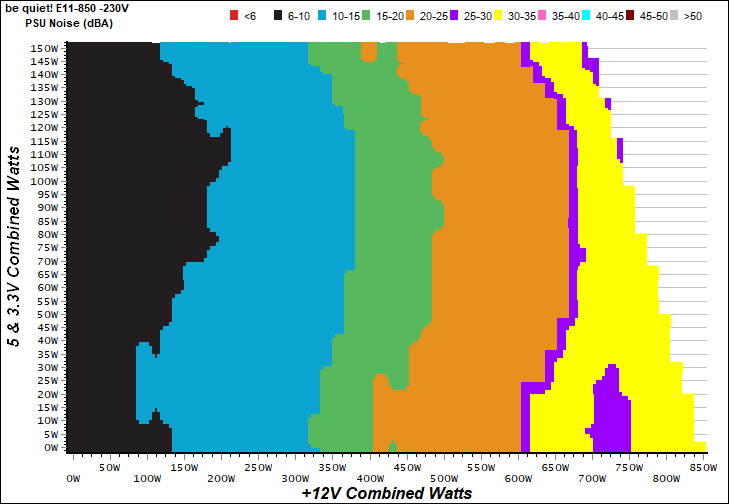

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

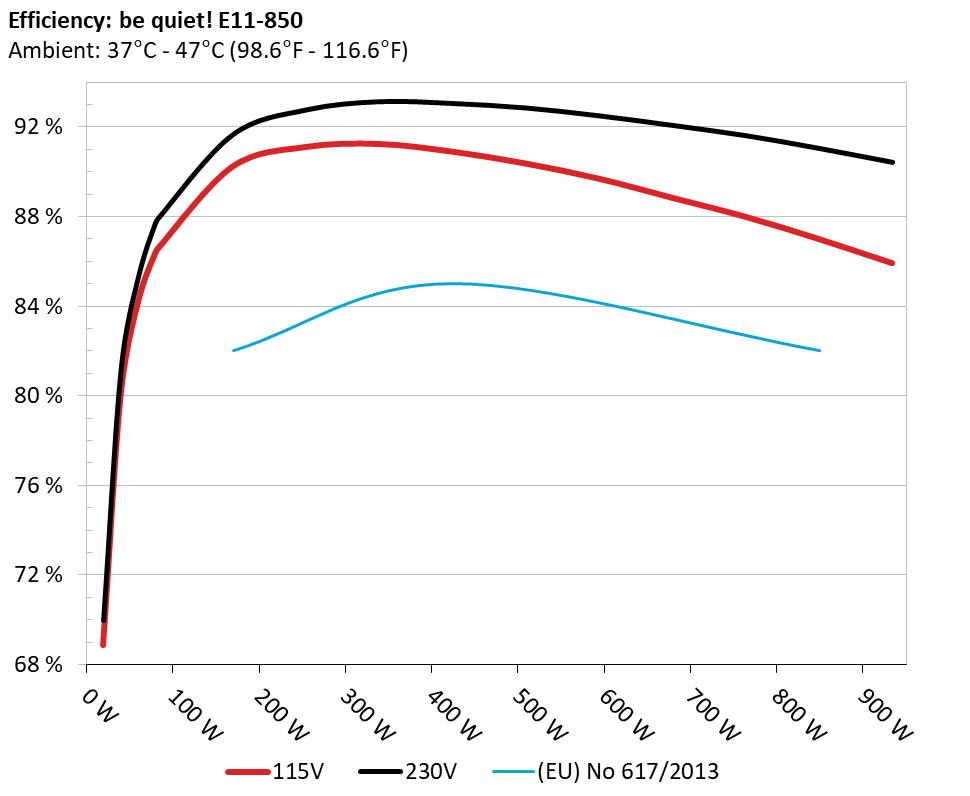

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

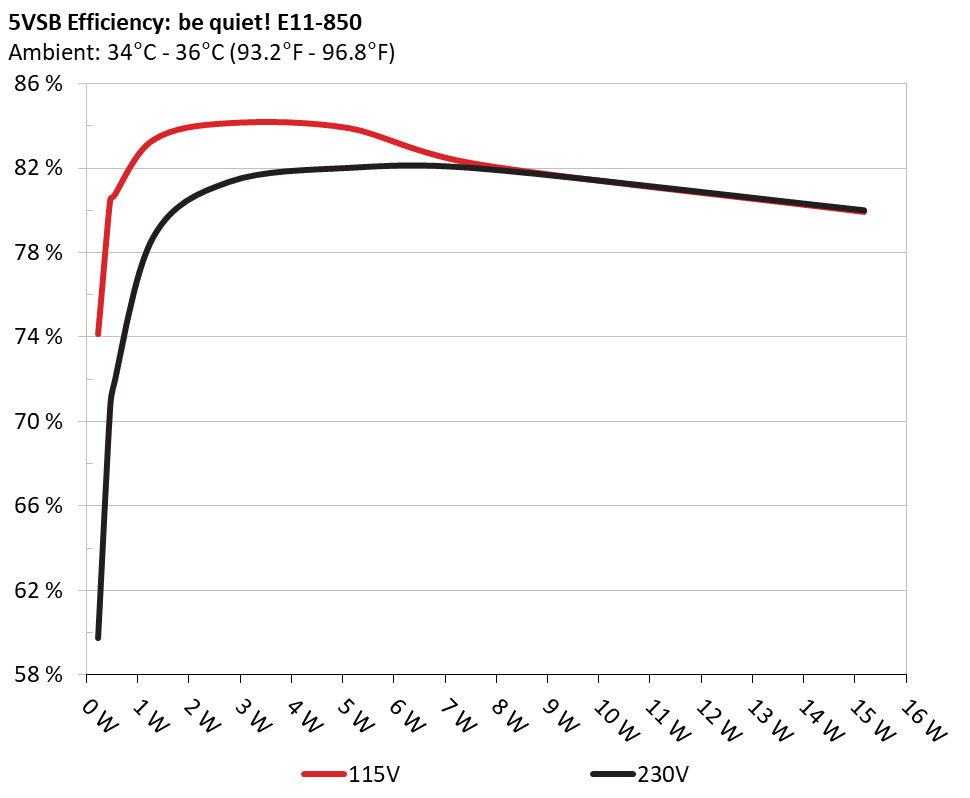

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

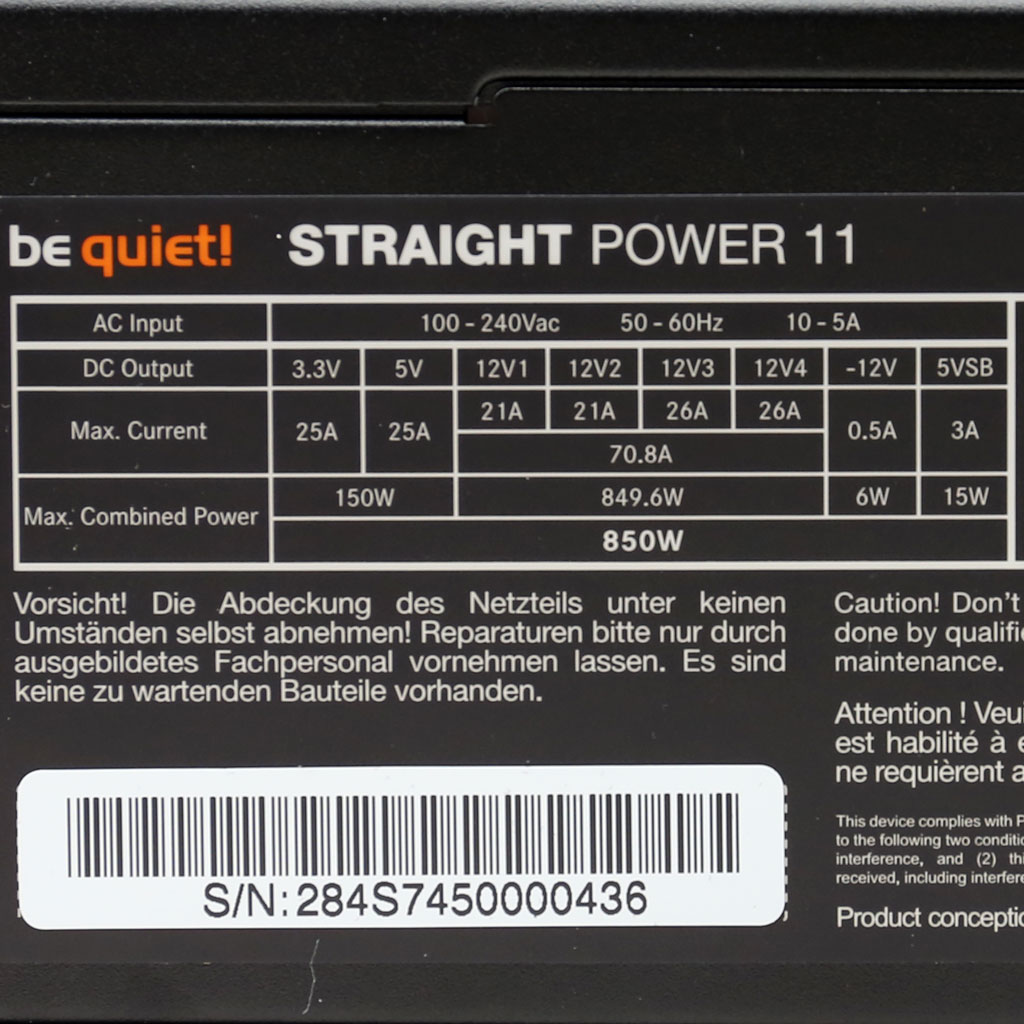

Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.215
74.138%
0.034
5.132V
0.290
115.06V
2
0.088A
0.450
80.501%
0.064
5.132V
0.559
115.06V
3
0.543A
2.776
84.147%
0.278
5.117V
3.299
115.06V
4
1.002A
5.116
83.910%
0.373
5.104V
6.097
115.06V
5
1.502A
7.651
82.189%
0.425
5.094V
9.309
115.06V
6
3.002A
15.174
79.935%
0.487
5.055V
18.983
115.06V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.215
59.722%
0.013
5.132V
0.360
230.19V
2
0.088A
0.449
70.597%
0.023
5.132V
0.636
230.19V
3
0.543A
2.776
81.360%
0.112
5.117V
3.412
230.19V
4
1.003A
5.119
82.022%
0.186
5.105V
6.241
230.20V
5
1.502A
7.655
81.994%
0.246
5.095V
9.336
230.20V
6
3.002A
15.183
80.012%
0.349
5.058V
18.976
230.20V
Supplementary Tests (For Reference)
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.218A
1.990A
1.980A
0.981A
84.819
86.650%
418
10.2
37.63°C
0.979
12.117V
5.025V
3.330V
5.095V
97.887
43.42°C
115.09V
2
11.464A
2.985A
2.981A
1.177A
169.668
90.230%
464
12.0
38.07°C
0.995
12.108V
5.017V
3.321V
5.086V
188.040
44.06°C
115.06V
3
18.081A
3.499A
3.499A
1.376A
254.878
91.110%
565
14.7
38.59°C
0.996
12.100V
5.008V
3.312V
5.077V
279.748
44.74°C
115.07V
4
24.692A
4.004A
3.994A
1.575A
339.739
91.241%
700
17.8
38.68°C
0.997
12.091V
4.999V
3.303V
5.067V
372.354
45.28°C
115.06V
5
30.967A
5.010A
5.006A
1.778A
424.610
90.897%
885
22.7
39.33°C
0.997
12.082V
4.988V
3.294V
5.055V
467.135
46.39°C
115.07V
6
37.255A
6.028A
6.025A
1.981A
509.563
90.367%
1086
28.0
40.02°C
0.998
12.073V
4.977V
3.285V
5.043V
563.882
47.58°C
115.08V
7
43.557A
7.040A
7.051A
2.183A
594.480
89.690%
1300
32.7
41.56°C
0.998
12.063V
4.968V
3.275V
5.032V
662.818
49.59°C
115.08V
8
49.871A
8.069A
8.084A
2.386A
679.491
88.837%
1550
37.4
42.39°C
0.998
12.053V
4.959V
3.265V
5.024V
764.870
51.52°C
115.08V
9
56.619A
8.589A
8.629A
2.390A
764.503
87.989%
1782
40.7
43.06°C
0.998
12.044V
4.949V
3.255V
5.017V
868.859
52.70°C
115.07V
10
63.119A
9.109A
9.147A
3.003A
849.263
86.999%
1987
43.4
44.46°C
0.998
12.034V
4.940V
3.247V
4.992V
976.178
54.66°C
115.06V
11
70.213A
9.128A
9.171A
3.006A
934.015
85.924%
2010
43.6
45.87°C
0.998
12.025V
4.932V
3.238V
4.986V
1087.022
56.88°C
115.08V
CL1
0.099A
18.030A
18.003A
0.005A
150.565
83.820%
1490
37.1
43.07°C
0.995
12.094V
4.989V
3.299V
5.105V
179.630
50.25°C
115.08V
CL2
70.774A
1.003A
1.003A
1.002A
865.561
87.420%
1987
43.4
44.89°C
0.998
12.042V
4.956V
3.261V
5.048V
990.116
55.11°C
115.08V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.219A
1.991A
1.979A
0.981A
84.837
88.005%
464
12.0
37.03°C
0.838
12.118V
5.025V
3.330V
5.095V
96.400
42.82°C
230.19V
2
11.462A
2.988A
2.978A
1.177A
169.656
91.665%
520
13.3
37.44°C
0.953
12.109V
5.016V
3.320V
5.087V
185.083
43.66°C
230.20V
3
18.087A
3.497A
3.499A
1.376A
254.917
92.768%
597
16.1
37.96°C
0.975
12.099V
5.007V
3.312V
5.076V
274.791
44.64°C
230.20V
4
24.696A
4.007A
3.994A
1.575A
339.799
93.133%
715
18.8
38.40°C
0.985
12.091V
4.998V
3.303V
5.067V
364.852
45.59°C
230.21V
5
30.971A
5.009A
5.009A
1.779A
424.639
93.052%
860
24.5
38.95°C
0.990
12.081V
4.988V
3.294V
5.055V
456.344
46.56°C
230.21V
6
37.266A
6.028A
6.027A
1.981A
509.661
92.853%
1070
26.6
39.76°C
0.993
12.072V
4.977V
3.284V
5.044V
548.890
47.69°C
230.21V
7
43.560A
7.041A
7.052A
2.183A
594.481
92.501%
1250
31.9
40.61°C
0.995
12.062V
4.968V
3.275V
5.032V
642.677
48.91°C
230.21V
8
49.872A
8.070A
8.084A
2.385A
679.443
92.074%
1520
36.7
41.37°C
0.995
12.052V
4.958V
3.265V
5.023V
737.928
49.90°C
230.20V
9
56.612A
8.590A
8.631A
2.390A
764.374
91.617%
1725
39.7
42.38°C
0.995
12.043V
4.949V
3.255V
5.017V
834.318
51.21°C
230.21V
10
63.119A
9.111A
9.149A
3.003A
849.218
91.047%
1970
43.3
43.39°C
0.996
12.033V
4.940V
3.247V
4.992V
932.728
52.41°C
230.21V
11
70.233A
9.128A
9.171A
3.005A
934.179
90.429%
2010
43.6
44.77°C
0.996
12.024V
4.932V
3.238V
4.986V
1033.053
54.95°C
230.22V
CL1
0.101A
18.030A
18.002A
0.004A
150.564
85.168%
1565
37.5
43.68°C
0.951
12.094V
4.988V
3.299V
5.105V
176.784
49.75°C
230.22V
CL2
70.790A
1.003A
1.002A
1.002A
865.606
91.437%
2000
43.5
44.70°C
0.996
12.040V
4.955V
3.260V
5.048V
946.670
53.18°C
230.24V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.205A
0.492A
0.476A
0.196A
19.681
68.877%
388
8.5
0.892
12.126V
5.034V
3.339V
5.121V
28.574
115.09V
2
2.437A
0.988A
0.987A
0.391A
39.807
79.953%
388
8.5
0.950
12.123V
5.031V
3.336V
5.114V
49.788
115.09V
3
3.667A
1.487A
1.496A
0.586A
59.907
84.160%
418
10.2
0.968
12.121V
5.029V
3.334V
5.107V
71.182
115.09V
4
4.887A
1.986A
1.979A
0.781A
79.779
86.347%
418
10.2
0.976
12.118V
5.026V
3.332V
5.099V
92.394
115.09V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.206A
0.490A
0.477A
0.196A
19.689
69.971%
418
10.2
0.543
12.127V
5.034V
3.339V
5.123V
28.139
230.17V
2
2.435A
0.989A
0.988A
0.391A
39.794
81.098%
418
10.2
0.718
12.124V
5.031V
3.336V
5.114V
49.069
230.17V
3
3.668A
1.486A
1.498A
0.586A
59.920
85.276%
430
11.0
0.769
12.121V
5.029V
3.334V
5.108V
70.266
230.18V
4
4.886A
1.989A
1.978A
0.780A
79.776
87.707%
430
11.0
0.828
12.119V
5.025V
3.332V
5.100V
90.957
230.18V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
20.8 mV
5.0 mV
10.3 mV
15.8 mV
Pass
20% Load
19.8 mV
4.4 mV
8.1 mV
23.8 mV
Pass
30% Load
17.6 mV
5.2 mV
9.2 mV
29.1 mV
Pass
40% Load
18.9 mV
5.6 mV
10.4 mV
31.4 mV
Pass
50% Load
21.1 mV
6.8 mV
12.4 mV
38.1 mV
Pass
60% Load
23.3 mV
7.4 mV
12.2 mV
40.0 mV
Pass
70% Load
25.4 mV
8.2 mV
12.4 mV
45.3 mV
Pass
80% Load
27.2 mV
8.6 mV
13.5 mV
47.1 mV
Pass
90% Load
28.6 mV
9.5 mV
15.2 mV
46.8 mV
Pass
100% Load
30.9 mV
10.8 mV
16.7 mV
25.1 mV
Pass
110% Load
33.1 mV
11.3 mV
17.6 mV
29.3 mV
Pass
Crossload 1
21.9 mV
6.4 mV
10.3 mV
10.1 mV
Pass
Crossload 2
31.2 mV
8.7 mV
16.1 mV
25.2 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.6 mV
5.1 mV
11.0 mV
16.0 mV
Pass
20% Load
17.5 mV
4.3 mV
8.8 mV
24.7 mV
Pass
30% Load
15.8 mV
4.9 mV
9.4 mV
30.0 mV
Pass
40% Load
17.4 mV
5.4 mV
10.8 mV
33.4 mV
Pass
50% Load
19.3 mV
6.3 mV
12.5 mV
37.7 mV
Pass
60% Load
22.1 mV
7.2 mV
13.2 mV
40.9 mV
Pass
70% Load
23.7 mV
8.5 mV
13.0 mV
44.3 mV
Pass
80% Load
25.5 mV
8.8 mV
13.5 mV
46.2 mV
Pass
90% Load
27.2 mV
9.2 mV
15.1 mV
48.2 mV
Pass
100% Load
29.1 mV
9.3 mV
16.0 mV
25.3 mV
Pass
110% Load
31.5 mV
9.7 mV
17.4 mV
28.2 mV
Pass
Crossload 1
20.1 mV
5.8 mV
10.1 mV
10.0 mV
Pass
Crossload 2
28.9 mV
8.5 mV
15.1 mV
26.6 mV
Pass
The results above are not used in the certification process
