Tempest Gaming Pulse 750W
-
Lab IDTE75002766
  • Report: 25PS2766A
  • Receipt Date: Mar 7, 2025
  • Test Date: Mar 12, 2025
  • Report Date: Mar 14, 2025
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Tempest Gaming
製造商 (OEM)Kinpower
Pulse
-

(Vrms)220-240
(Arms)5
(Hz)50-60
(W)750
ATX12V
120mm Rifle Bearing Fan (HA1225M12F-Z)
✗
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts103750153.6
Total Max. Power (W)750

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (545mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 1 1 18AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
SATA (450mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV,
Inrush Protection 1x NTC Thermistor M72 20D15 (10 ohm) & Relay
Bridge Rectifier(s)

1x
APFC MOSFETs

2x Fuxin Semiconductor FXN18N50F (500V, 10.2A @ 100°C, Rds(on): 0.38Ohm)
APFC Boost Diode

1x SI-Trend SI8L600F (600V, 8A @ 25°C)
Bulk Cap(s)

1x Nippon Chemi-con (400V, 470uF, 2,000h @ 105°C, KMW)
Main Switchers

2x SI-Trend SI24N50F
PFC / PWM Combo Controller

Champion CM6800UBX
Topology

Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4x Fuxin Semiconductor FXN0206C (65V, 118A @ 100°C, Rds(on): 2.8mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic: 14x TK (@105°C, SZ) Polymer: 12x Chengx (PC)
Supervisor IC IN1S4291-SCG
Fan Model Hong Hua HA1225M12F-Z (125mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

2x SMC Schottky SK54 (40V, 5A @ 150°C)
Standby PWM Controller

FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard+
(>1450 load combinations)86.766%
Average Noise Output (>1450 Load Combinations)35.51dBA
(>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load61.932%
0.1535W
12V Ripple (Full Load)36.01mV
5V Ripple (Full Load)30.41mV
3.3V Ripple (Full Load)35.81mV
5VSB Ripple (Full Load)25.33mV
12V Load Regulation1.60%
5V Load Regulation1.22%
3.3V Load Regulation2.01%
5VSB Load Regulation4.96%
Inrush Current106.900A
12V Transient Response (150%)11.56V
5V Transient Response (150%)4.996V
3.3V Transient Response (150%)3.263V
5VSB Transient Response (150%)5.006V
15.30ms
AC Loss to PWR_OK Hold Up Time12.60ms
PWR_OK Inactive to DC Loss Delay2.70ms
PSU Timings: T1 (20% / 100%)28.0ms22.0ms
PSU Timings: T3 (20% / 100%)127.0ms127.0ms
12V OCP (28.8°C / 40.1°C)68.40A (109.44%), 11.906V66.00A (105.60%), 11.907V
5V OCP (28.8°C / 40.1°C)24.3A (121.50%), 5.019V23A (115.00%), 5.015V
3.3V OCP (28.8°C / 40.1°C)25.1A (125.50%), 3.27V23.9A (119.50%), 3.261V
5VSB OCP (28.8°C / 40.1°C)4.8A (160.00%), 4.931V4.7A (156.67%), 4.921V
OPP (30.03°C / 44.57°C)118.82%108.80%

Hold-Up Time (ms)15.3
AC Loss to PWR_OK Hold Up Time (ms)12.6
PWR_OK Inactive to DC Loss Delay (ms)2.7

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.91 V 229.80 V 227.70 V 230.00 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.98 Hz 49.50 Hz 50.02 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.22 % 0.16 % N/A 0.28 % 2.00 % PASS
Real Power: 0.154 W 0.138 W N/A 0.169 W N/A N/A
Apparent Power: 13.192 W 13.005 W N/A 13.376 W N/A N/A
Power Factor: 0.012 N/A N/A N/A N/A N/A

Graphs 230V

230V

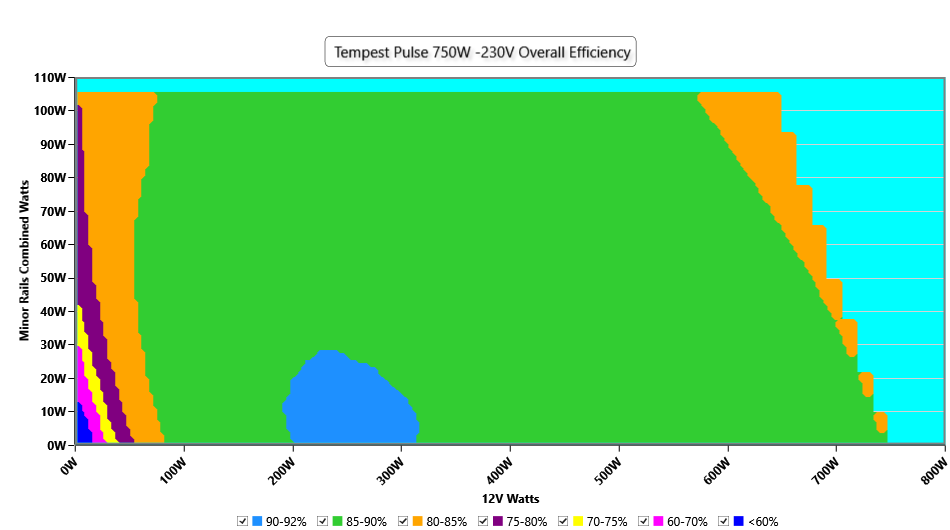

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

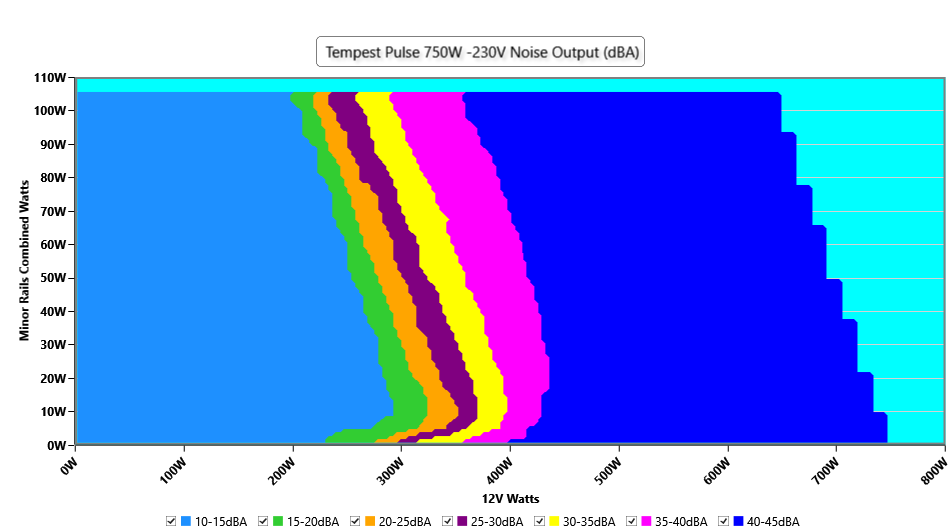

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

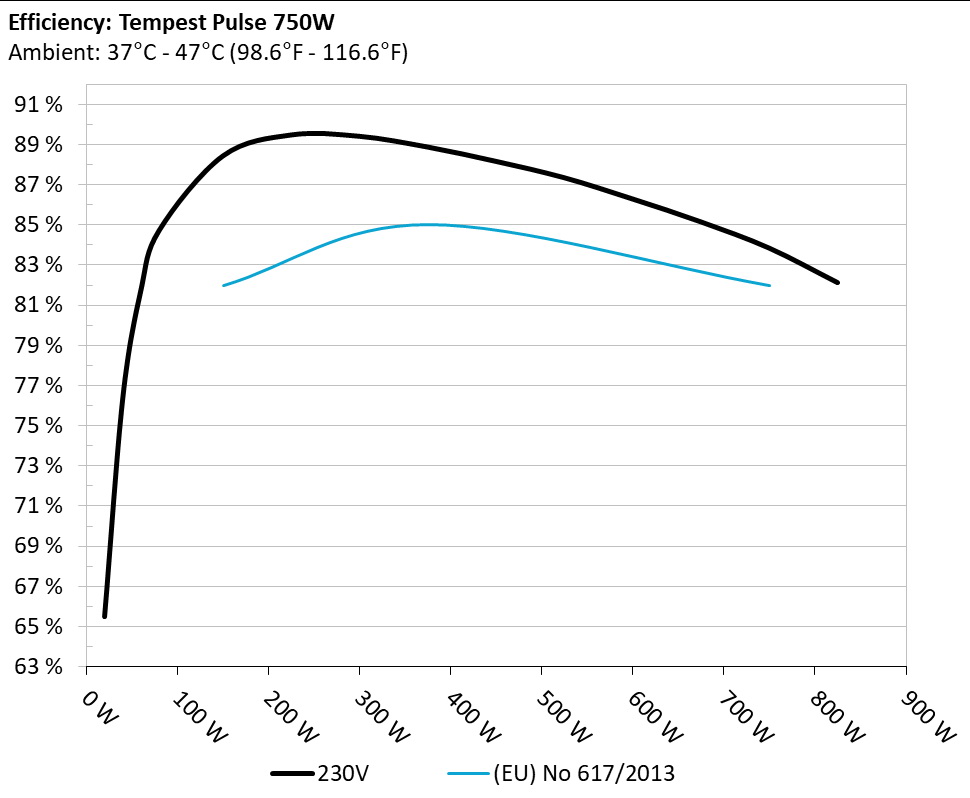

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

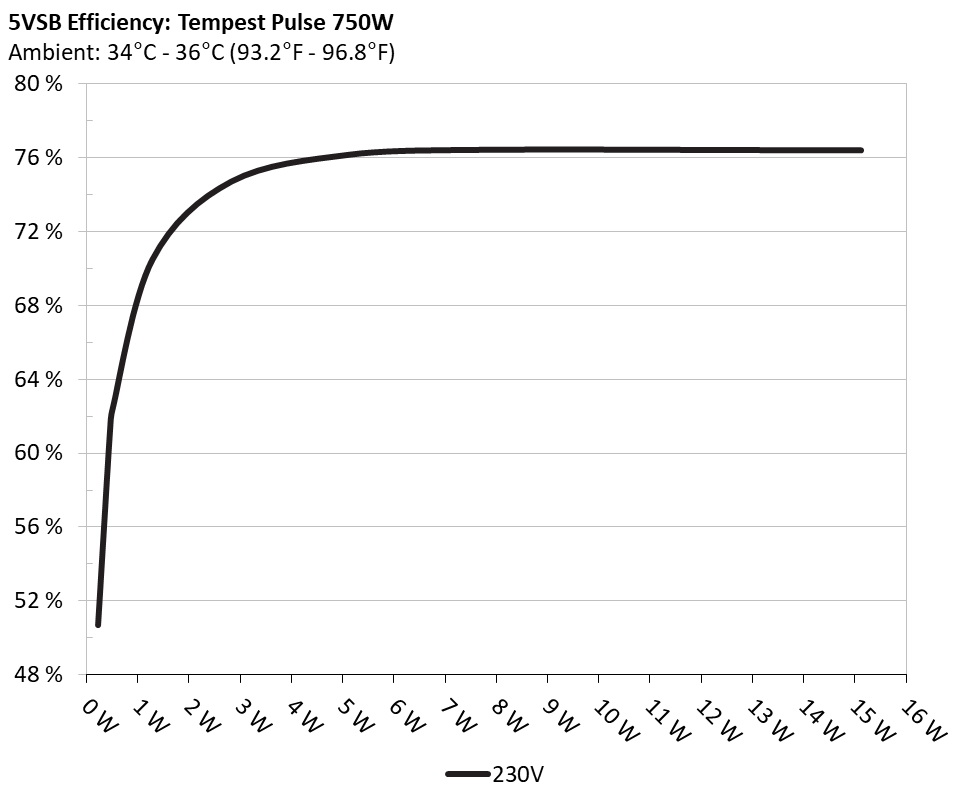

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 50.72% 0.037
5.177V 0.459W 229.88V
2 0.09A 0.466W 61.226% 0.061
5.175V 0.761W 229.89V
3 0.55A 2.835W 74.697% 0.249
5.154V 3.795W 229.88V
4 1A 5.134W 76.149% 0.347
5.134V 6.742W 229.88V
5 1.5A 7.668W 76.411% 0.405
5.112V 10.035W 229.89V
6 3A 15.129W 76.385% 0.468
5.043V 19.806W 229.88V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.436A 1.974A 1.98A 0.981A 75.007 83.527% 664 14.1 40.17°C 0.888
12.039V 5.067V 3.334V 5.099V 89.8 45.05°C 229.87V
20% 9.903A 2.964A 2.976A 1.182A 149.957 88.458% 669 14.5 40.95°C 0.93
12.022V 5.061V 3.327V 5.079V 169.523 46.65°C 229.86V
30% 15.736A 3.461A 3.476A 1.384A 224.963 89.505% 905 23.4 41.14°C 0.944
12.005V 5.056V 3.323V 5.06V 251.341 48.37°C 229.85V
40% 21.594A 3.959A 3.977A 1.587A 300.058 89.434% 1373 35.7 41.71°C 0.953
11.987V 5.053V 3.319V 5.04V 335.507 48.14°C 229.83V
50% 27.069A 4.954A 4.981A 1.793A 374.51 88.902% 1737 41.3 42.28°C 0.957
11.969V 5.047V 3.313V 5.02V 421.263 50.34°C 229.82V
60% 32.603A 5.952A 5.99A 2A 449.409 88.188% 1740 41.4 42.61°C 0.961
11.950V 5.041V 3.306V 4.999V 509.605 51.97°C 229.8V
70% 38.157A 6.953A 7.002A 2.21A 524.338 87.376% 1745 41.3 43.49°C 0.965
11.930V 5.035V 3.3V 4.978V 600.096 54.01°C 229.79V
80% 43.801A 7.954A 8.019A 2.318A 599.528 86.314% 1748 41.5 43.56°C 0.967
11.909V 5.028V 3.292V 4.961V 694.593 58.23°C 229.78V
90% 49.802A 8.463A 8.523A 2.427A 674.554 85.173% 1755 41.7 44.37°C 0.968
11.888V 5.021V 3.285V 4.945V 791.982 64.47°C 229.76V
100% 55.632A 8.972A 9.057A 3.061A 749.757 83.863% 1758 41.7 45.64°C 0.969
11.865V 5.015V 3.279V 4.901V 894.034 67.23°C 229.74V
110% 61.362A 9.984A 10.181A 3.07A 824.779 82.144% 1761 41.8 46.58°C 0.966
11.840V 5.007V 3.271V 4.886V 1004.076 73.18°C 229.73V
CL1 0.117A 12.311A 12.415A 0A 104.294 79.474% 1222 32.6 42.83°C 0.917
12.017V 5.035V 3.295V 5.124V 131.231 48.48°C 229.86V
CL2 0.115A 19.908A 0A 0A 101.351 77.734% 1080 28.7 41.49°C 0.919
12.028V 5.021V 3.327V 5.131V 130.382 46.93°C 229.87V
CL3 0.115A 0A 20.213A 0A 67.398 70.435% 1080 28.7 41.62°C 0.896
12.028V 5.057V 3.266V 5.131V 95.692 46.25°C 229.87V
CL4 63.080A 0A 0A 0A 749.56 85.111% 1759 41.8 45.81°C 0.97
11.883V 5.041V 3.309V 5.066V 880.701 64.49°C 229.75V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.492A 0.493A 0.194A 20.003 65.495% 651 13.5 36.92°C 0.748
12.054V 5.076V 3.345V 5.144V 30.541 39.64°C 229.88V
40W 2.714A 0.69A 0.692A 0.292A 40.003 76.407% 656 13.5 37.91°C 0.829
12.049V 5.073V 3.341V 5.137V 52.356 41.24°C 229.88V
60W 4.196A 0.887A 0.889A 0.39A 60.003 81.791% 658 13.5 38.23°C 0.865
12.044V 5.071V 3.339V 5.13V 73.363 41.98°C 229.88V
80W 5.675A 1.085A 1.088A 0.488A 79.958 84.746% 660 13.6 39.04°C 0.894
12.040V 5.069V 3.337V 5.123V 94.344 43.33°C 229.86V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load20.77mV15.99mV17.85mV16.62mVPass
20% Load20.98mV16.81mV17.80mV17.95mVPass
30% Load19.90mV16.96mV19.34mV17.34mVPass
40% Load20.72mV17.52mV20.41mV17.08mVPass
50% Load23.89mV19.67mV22.40mV18.00mVPass
60% Load22.97mV21.30mV23.89mV17.95mVPass
70% Load24.56mV21.87mV26.45mV18.01mVPass
80% Load23.54mV22.79mV27.42mV17.34mVPass
90% Load27.47mV25.85mV31.56mV17.60mVPass
100% Load36.01mV30.41mV35.81mV25.33mVPass
110% Load37.11mV32.21mV39.16mV26.00mVPass
Crossload124.36mV26.76mV27.42mV19.03mVPass
Crossload225.68mV47.92mV23.58mV16.37mVPass
Crossload319.70mV19.93mV24.40mV16.93mVPass
Crossload437.08mV25.72mV28.82mV25.45mVPass

The results above are not used in the certification process

Tempest Gaming Pulse 750W

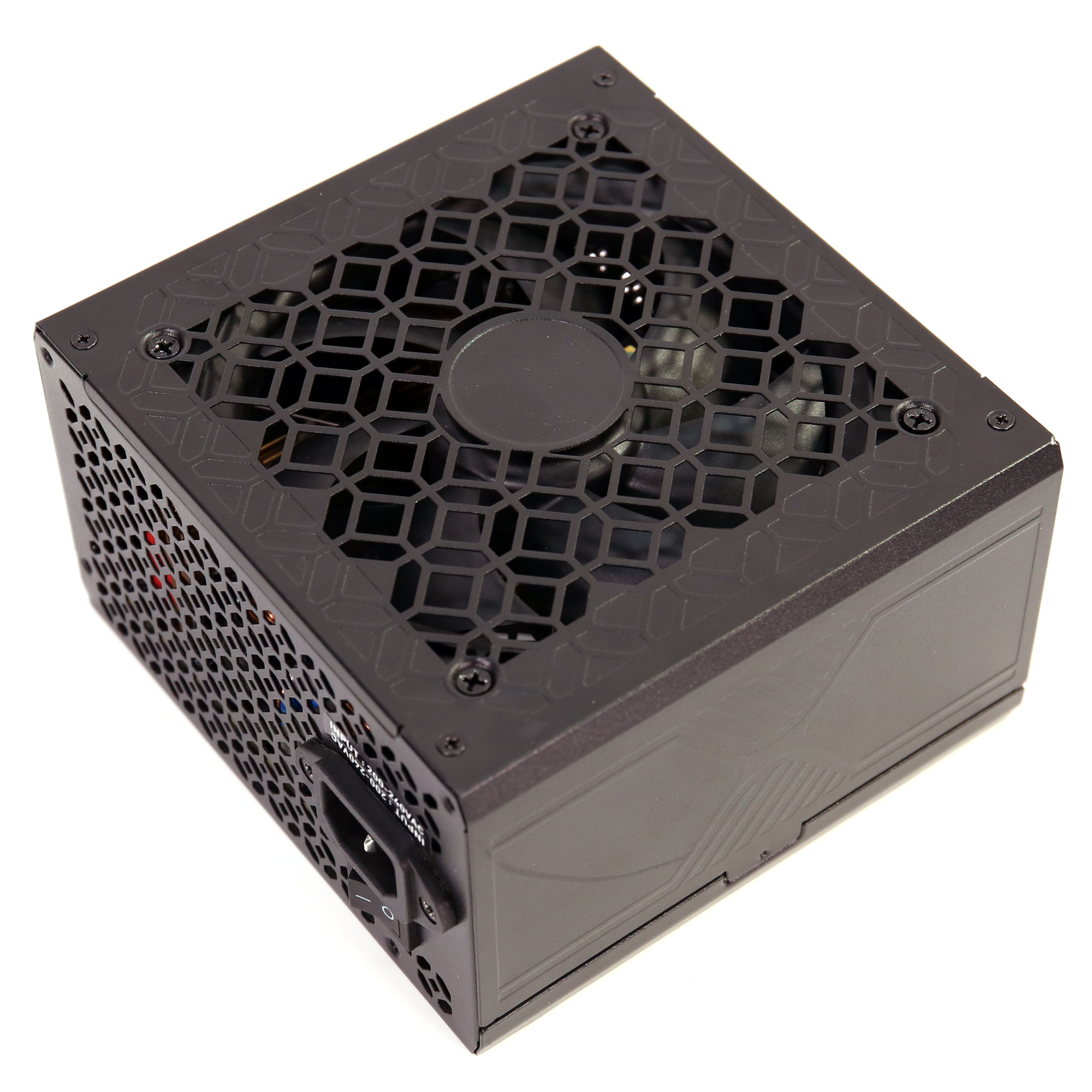

Top side

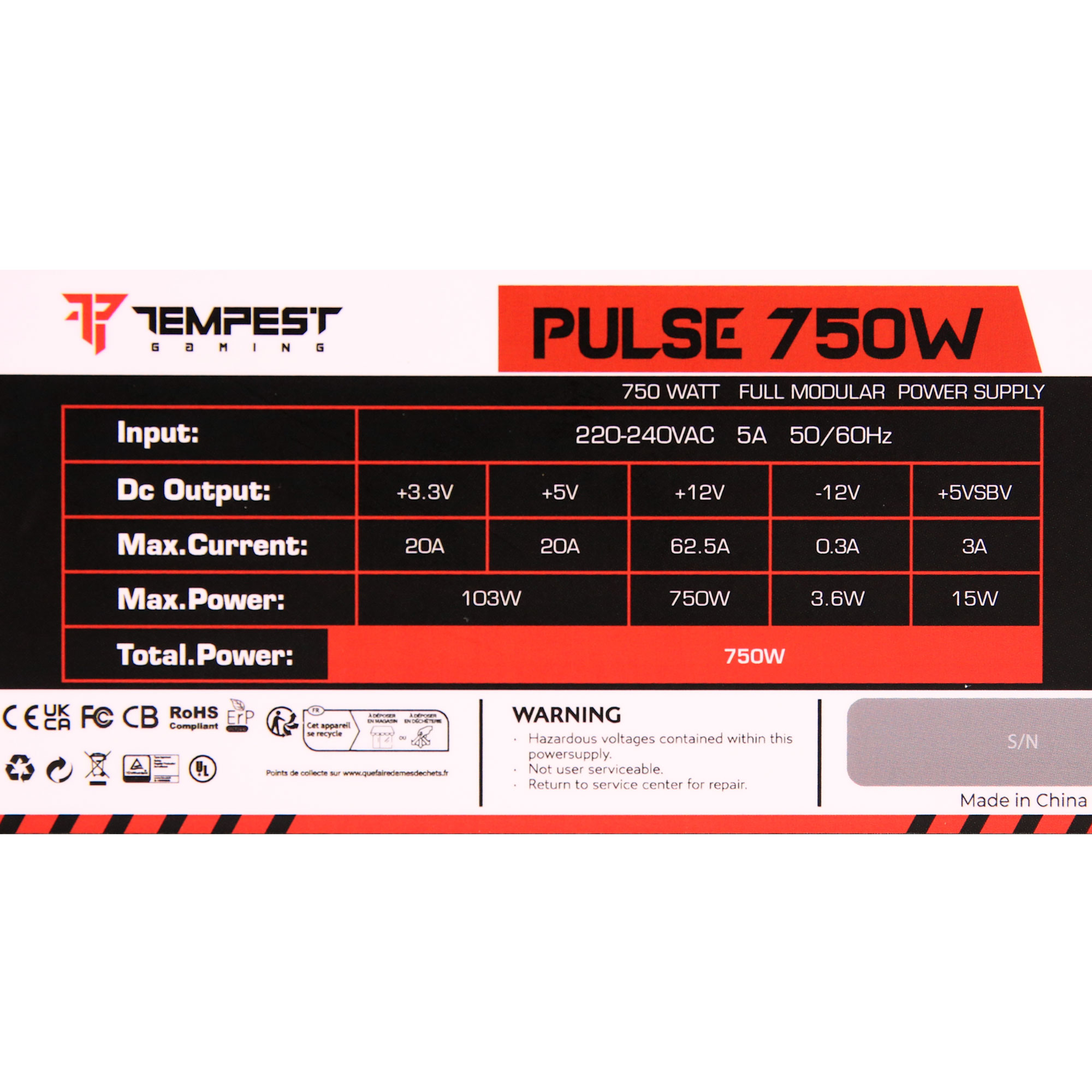

Power specifications label
