CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

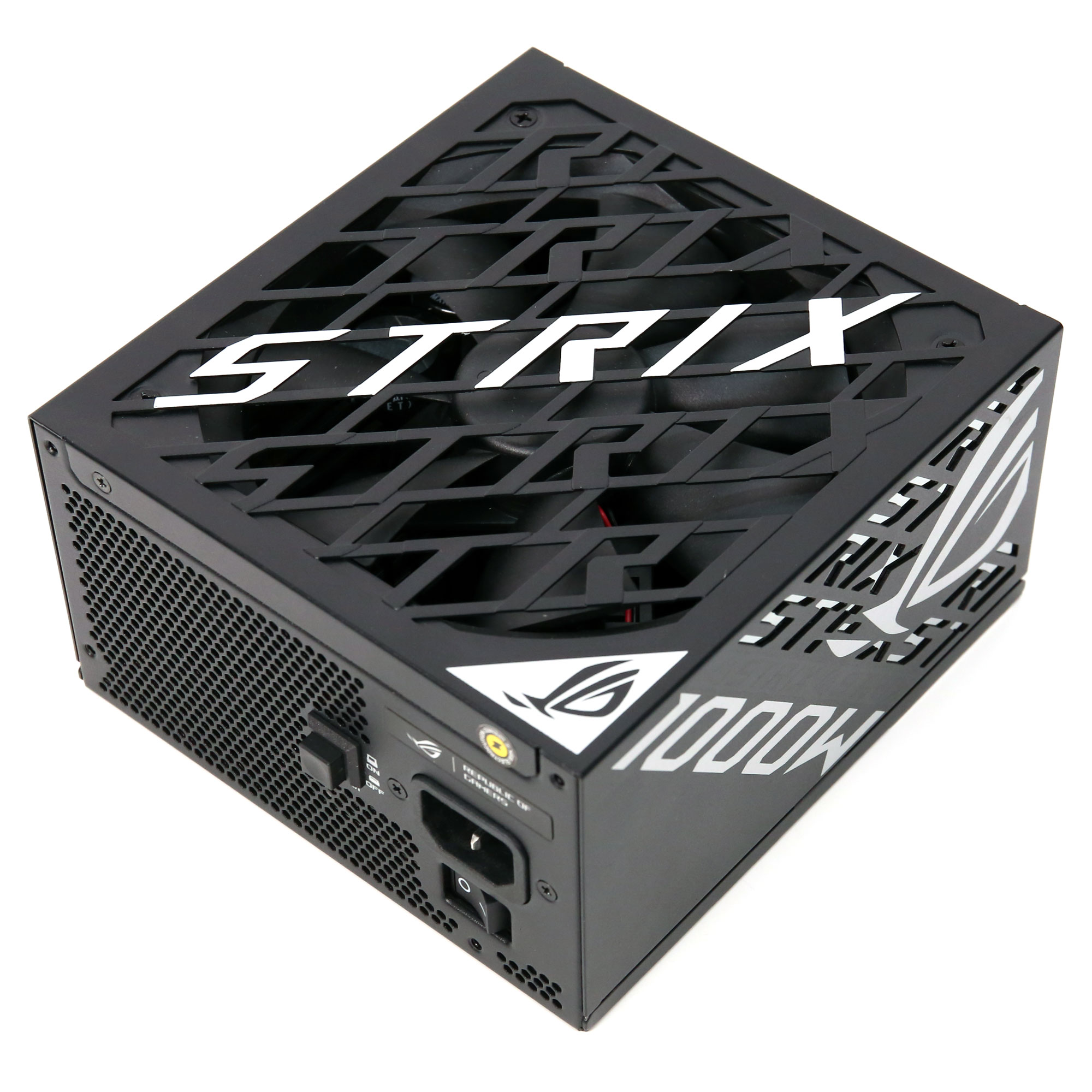

Asus ROG-STRIX-1000P-GAMING
Serial Number2O114183675
Lab IDAS10002759
  • Report: 25PS2759A
  • Receipt Date: Dec 2, 2024
  • Test Date: Mar 5, 2025
  • Report Date: Mar 7, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Great Wall
SeriesROG STRIX
Model NumberROG-STRIX-1000P-GAMING
Serial Number2O114183675
DUT NotesThis unit is equipped with an Everflow fan.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6.5-12
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Cooling135mm Dual Ball Bearing Fan (F1214025BL)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252583.330.3
Watts1301000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18AWG No
4+4 pin EPS12V (1000mm) 2 2 18AWG No
6+2 pin PCIe (750mm) 4 4 18AWG No
12+4 pin PCIe (745mm) (600W) 1 1 16-24AWG No
SATA (400mm+115mm+115mm) 2 6 18AWG No
4 pin Molex (400mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Great Wall
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor & Relay
Bridge Rectifier(s)

2x HY HBU1506U (600V, 15A @ 100°C)
APFC MOSFETs

1x Transphorm TP65H035G4WS (650V, 29.5A @ 100°C, Rds(on): 0.41Ohm)
APFC Boost Diode

1x Rohm Semiconductor SCS310AH (650V, 10A @ 135°C)
Bulk Cap(s)

1x Rubycon (450V, 330uF, 2-3000h @ 105°C, MXH) & 1x Rubycon (420V, 680uF, 3000h @ 105°C, MXK)
Main Switchers

2x Rohm Semiconductor R6035VNX3 (600V, 35A @ 25°C, Rds(on): 0.114Ohm)
APFC Controller

1x Champion CM6502UHHX & 1x Champion CM03X (reduce the no-load consumption)
Resonant Controller

Champion CM6901T6X
IC Driver

1x Novosense NSi6602
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Alpha & Omega AON6590A (40V, 54A @ 70°C, Rds(on): 0.99mOhm)
5V & 3.3V DC-DC Converters: 4x Alpha & Omega AON6354 (30V, 52A @ 100°C, Rds(on): 3.3mOhm) PWM Controller(s): Anpec APW7159C
Filtering Capacitors

Electrolytic: 7x Rubycon (6-10,000h @105°C, ZLH) 1x Rubycon (3-6,000h @105°C, YXG) 1x Rubycon (2-10,000 @ 105°C, YXF) 2x Rubycon (4-10,000h @105°C, YXJ) Polymer: 39x FPCAP
Supervisor IC Weltrend WT7681P
Fan Controller AS358M
Fan Model Everflow F1214025BL (135mm, 12V, 0.2A , Double Ball Bearing Fan)
5VSB
Rectifier

1x ER2J (600V, 2A @ 100°C) & 1x Onsemi NTMFS5C670NL (60V, 12A @ 100°C, Rds(on): 6.1mOhm)
Standby PWM Controller

Power Integrations TNY278PN

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.2
AC Loss to PWR_OK Hold Up Time (ms)19.1
PWR_OK Inactive to DC Loss Delay (ms)3.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.02 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.17 % 2.00 % PASS
Real Power: 0.073 W 0.051 W N/A 0.099 W N/A N/A
Apparent Power: 12.131 W 11.922 W N/A 12.331 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.90 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.27 % 2.00 % PASS
Real Power: 0.147 W 0.102 W N/A 0.236 W N/A N/A
Apparent Power: 40.843 W 40.387 W N/A 41.300 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

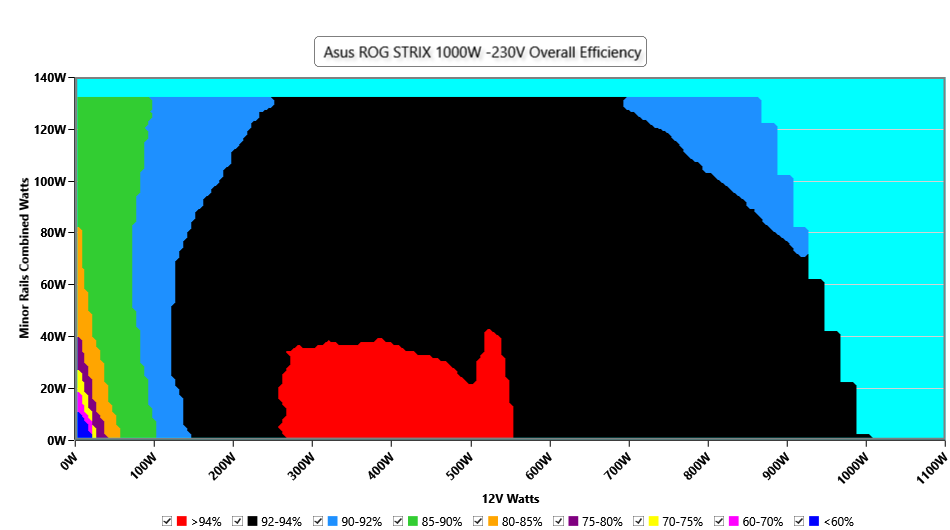

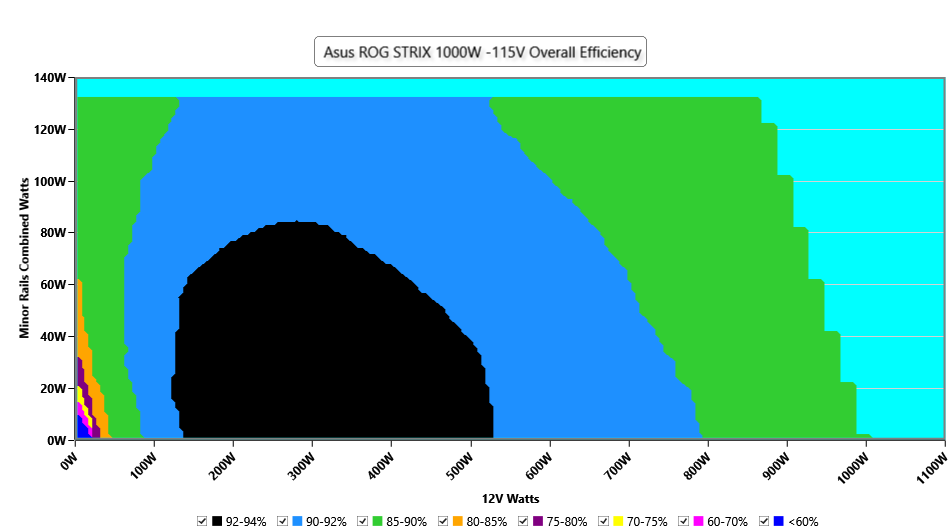

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

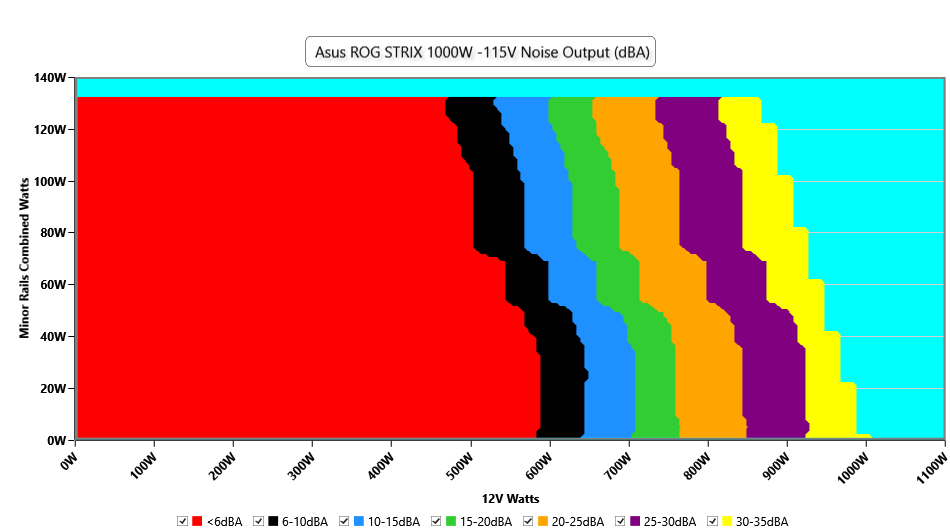

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

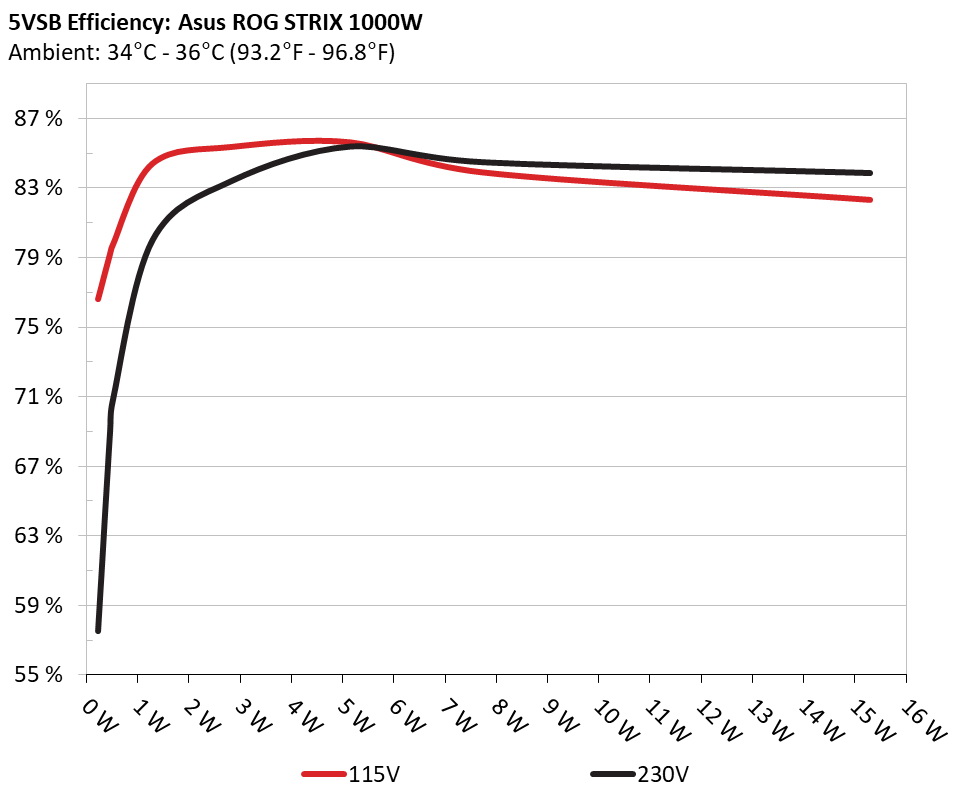

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 76.609% 0.018
5.193V 0.212W 114.88V
2 0.09A 0.468W 79.221% 0.05
5.192V 0.591W 114.88V
3 0.55A 2.848W 85.38% 0.234
5.176V 3.336W 114.88V
4 1A 5.163W 85.639% 0.338
5.162V 6.029W 114.88V
5 1.5A 7.721W 83.917% 0.399
5.146V 9.201W 114.88V
6 3.001A 15.293W 82.329% 0.483
5.096V 18.575W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 57.522% 0.01
5.194V 0.408W 229.96V
2 0.09A 0.467W 68.994% 0.017
5.192V 0.678W 229.98V
3 0.55A 2.847W 83.434% 0.084
5.177V 3.413W 229.96V
4 1A 5.162W 85.408% 0.142
5.163V 6.044W 229.96V
5 1.5A 7.721W 84.51% 0.2
5.147V 9.136W 229.95V
6 3A 15.295W 83.882% 0.309
5.099V 18.235W 229.95V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.500A 1.964A 1.99A 0.97A 99.997 90.472% 0 <6.0 47.87°C 0.975
12.059V 5.092V 3.317V 5.157V 110.525 40.26°C 114.84V
20% 14.023A 2.947A 2.986A 1.167A 199.949 92.801% 0 <6.0 48.28°C 0.986
12.055V 5.091V 3.316V 5.144V 215.462 40.94°C 114.8V
30% 21.904A 3.439A 3.486A 1.365A 299.997 93.001% 0 <6.0 48.18°C 0.989
12.050V 5.09V 3.314V 5.13V 322.576 41.34°C 114.78V
40% 29.750A 3.931A 3.986A 1.564A 399.558 92.72% 0 <6.0 49.18°C 0.99
12.046V 5.089V 3.312V 5.116V 430.932 41.62°C 114.74V
50% 37.266A 4.915A 4.985A 1.764A 499.279 92.181% 353 <6.0 42.31°C 0.992
12.043V 5.087V 3.31V 5.102V 541.631 63.07°C 114.71V
60% 44.857A 5.903A 5.988A 1.966A 599.801 91.478% 482 9.1 42.55°C 0.994
12.038V 5.083V 3.307V 5.087V 655.681 64.86°C 114.66V
70% 52.394A 6.89A 6.991A 2.169A 699.53 90.606% 611 14.1 43.06°C 0.995
12.032V 5.081V 3.305V 5.073V 772.055 64.56°C 114.63V
80% 60.011A 7.877A 7.994A 2.272A 799.529 89.897% 728 19.6 43.95°C 0.996
12.025V 5.077V 3.302V 5.062V 889.383 64.82°C 114.59V
90% 67.963A 8.372A 8.484A 2.376A 899.307 89.138% 909 27.3 44.75°C 0.996
12.019V 5.076V 3.3V 5.05V 1008.899 64.94°C 114.55V
100% 75.724A 8.867A 9.005A 2.987A 999.313 88.299% 1100 33.2 45.78°C 0.997
12.013V 5.075V 3.298V 5.022V 1131.739 64.55°C 114.51V
110% 83.416A 9.856A 10.099A 2.992A 1099.908 87.343% 1233 36.6 47.27°C 0.997
12.008V 5.073V 3.297V 5.013V 1259.295 66.32°C 114.46V
CL1 0.116A 15.417A 15.529A 0A 131.293 85.819% 479 9.1 42.8°C 0.983
12.067V 5.079V 3.323V 5.176V 152.991 60.89°C 114.82V
CL2 0.115A 24.613A 0A 0A 126.268 83.742% 666 17.2 42.22°C 0.982
12.070V 5.074V 3.319V 5.183V 150.781 55.3°C 114.83V
CL3 0.115A 0A 24.788A 0A 83.88 79.1% 733 19.8 41.79°C 0.975
12.063V 5.094V 3.328V 5.178V 106.043 51.37°C 114.84V
CL4 83.271A 0A 0A 0A 999.875 88.94% 1118 33.3 44.37°C 0.996
12.007V 5.086V 3.297V 5.131V 1124.217 58.03°C 114.52V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.498A 1.964A 1.99A 0.969A 99.982 89.674% 0 <6.0 47.28°C 0.86
12.063V 5.092V 3.317V 5.158V 111.493 40.42°C 229.93V
20% 14.020A 2.947A 2.986A 1.166A 199.925 93.184% 0 <6.0 47.01°C 0.937
12.056V 5.09V 3.315V 5.144V 214.543 40.86°C 229.92V
30% 21.901A 3.439A 3.486A 1.364A 299.968 93.99% 0 <6.0 47.75°C 0.963
12.051V 5.089V 3.313V 5.131V 319.148 41.5°C 229.9V
40% 29.745A 3.931A 3.986A 1.563A 399.495 94.063% 0 <6.0 48.78°C 0.972
12.046V 5.088V 3.312V 5.117V 424.706 41.74°C 229.89V
50% 37.263A 4.915A 4.984A 1.764A 499.24 93.896% 374 <6.0 42.21°C 0.979
12.043V 5.087V 3.31V 5.102V 531.692 45.1°C 229.88V
60% 44.857A 5.903A 5.987A 1.966A 599.764 93.573% 445 7.4 42.85°C 0.982
12.037V 5.083V 3.307V 5.088V 640.966 57.52°C 229.85V
70% 52.396A 6.89A 6.99A 2.168A 699.495 93.194% 580 12.8 43.43°C 0.985
12.031V 5.081V 3.305V 5.073V 750.582 58.19°C 229.84V
80% 60.008A 7.876A 7.993A 2.272A 799.497 92.771% 728 19.6 43.6°C 0.987
12.025V 5.078V 3.302V 5.062V 861.802 58.74°C 229.82V
90% 67.961A 8.372A 8.484A 2.376A 899.289 92.335% 908 27.3 44.69°C 0.989
12.019V 5.076V 3.3V 5.051V 973.937 60.19°C 229.8V
100% 75.721A 8.867A 9.005A 2.987A 999.293 91.794% 1099 33.2 45.63°C 0.99
12.013V 5.075V 3.298V 5.022V 1088.627 61.99°C 229.8V
110% 83.415A 9.856A 10.101A 2.992A 1099.891 91.188% 1216 35.8 46.39°C 0.991
12.007V 5.073V 3.296V 5.013V 1206.176 64°C 229.78V
CL1 0.116A 15.418A 15.537A 0A 131.29 86.838% 350 <6.0 41.46°C 0.91
12.066V 5.078V 3.321V 5.176V 151.189 54.71°C 229.94V
CL2 0.114A 24.612A 0A 0A 126.258 83.543% 663 17.2 40.35°C 0.909
12.073V 5.074V 3.319V 5.183V 151.132 50.67°C 229.93V
CL3 0.114A 0A 24.806A 0A 83.878 78.396% 731 19.8 40.38°C 0.854
12.069V 5.094V 3.326V 5.178V 106.991 47.97°C 229.94V
CL4 83.267A 0A 0A 0A 999.852 92.345% 1117 33.3 44.56°C 0.99
12.008V 5.086V 3.298V 5.132V 1082.735 56.87°C 229.78V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.491A 0.497A 0.193A 20 75.515% 0 <6.0 43.73°C 0.847
12.062V 5.094V 3.318V 5.189V 26.525 36.92°C 114.87V
40W 2.710A 0.687A 0.696A 0.289A 40 84.041% 0 <6.0 44.51°C 0.924
12.062V 5.095V 3.319V 5.185V 47.598 37.78°C 114.86V
60W 4.190A 0.883A 0.895A 0.386A 60 87.493% 0 <6.0 45.79°C 0.951
12.061V 5.094V 3.318V 5.18V 68.584 38.69°C 114.86V
80W 5.664A 1.08A 1.094A 0.483A 79.945 89.663% 0 <6.0 46.56°C 0.964
12.060V 5.094V 3.318V 5.175V 89.162 39.35°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.497A 0.193A 19.99 71.041% 0 <6.0 44.7°C 0.494
12.070V 5.092V 3.317V 5.189V 28.138 36.62°C 229.95V
40W 2.712A 0.687A 0.696A 0.289A 39.991 81.432% 0 <6.0 43.75°C 0.67
12.054V 5.093V 3.317V 5.185V 49.101 37.28°C 229.95V
60W 4.188A 0.883A 0.895A 0.386A 59.992 86.03% 0 <6.0 45.47°C 0.77
12.062V 5.093V 3.317V 5.18V 69.729 38.7°C 229.94V
80W 5.662A 1.08A 1.094A 0.483A 79.928 88.479% 0 <6.0 45.65°C 0.824
12.062V 5.093V 3.317V 5.176V 90.335 39.2°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.32mV7.83mV8.38mV6.09mVPass
20% Load8.71mV8.19mV9.15mV7.48mVPass
30% Load8.97mV7.99mV9.10mV7.85mVPass
40% Load10.26mV7.99mV9.62mV7.28mVPass
50% Load11.75mV7.88mV8.94mV8.15mVPass
60% Load13.04mV8.14mV9.46mV7.85mVPass
70% Load12.78mV8.24mV9.88mV9.03mVPass
80% Load13.35mV9.48mV12.00mV8.88mVPass
90% Load15.31mV9.33mV10.50mV9.86mVPass
100% Load18.77mV9.82mV11.66mV12.61mVPass
110% Load19.45mV10.13mV12.31mV13.11mVPass
Crossload114.97mV10.73mV12.74mV6.22mVPass
Crossload215.78mV15.04mV9.72mV6.50mVPass
Crossload312.99mV8.45mV13.19mV6.09mVPass
Crossload419.67mV8.26mV10.18mV8.88mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load24.95mV24.32mV26.68mV21.73mVPass
20% Load10.42mV8.24mV9.26mV6.61mVPass
30% Load10.36mV8.29mV9.57mV6.97mVPass
40% Load10.10mV7.93mV9.67mV7.59mVPass
50% Load11.70mV7.83mV9.10mV8.52mVPass
60% Load12.17mV8.35mV9.15mV7.69mVPass
70% Load12.94mV8.40mV9.62mV8.47mVPass
80% Load14.59mV9.43mV10.86mV10.01mVPass
90% Load15.47mV9.02mV11.27mV10.01mVPass
100% Load18.87mV9.95mV12.23mV12.88mVPass
110% Load20.99mV10.38mV12.26mV13.60mVPass
Crossload119.89mV11.19mV12.44mV6.43mVPass
Crossload217.58mV15.81mV9.72mV6.20mVPass
Crossload317.32mV8.86mV13.71mV6.35mVPass
Crossload420.95mV8.84mV9.86mV9.16mVPass

The results above are not used in the certification process

Asus ROG-STRIX-1000P-GAMING

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
