CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

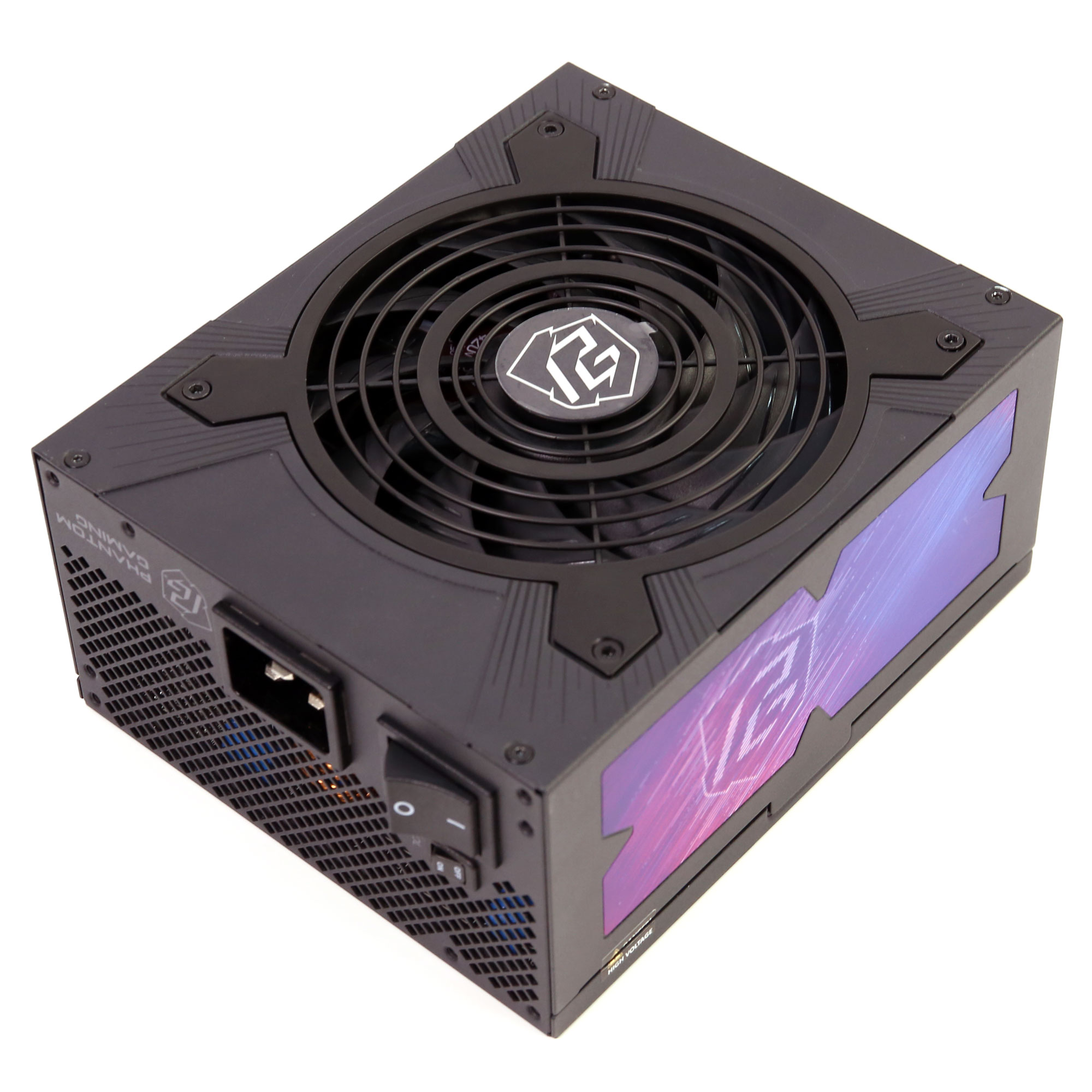

ASRock Phantom Gaming PG-1600G (ATX v3.1)

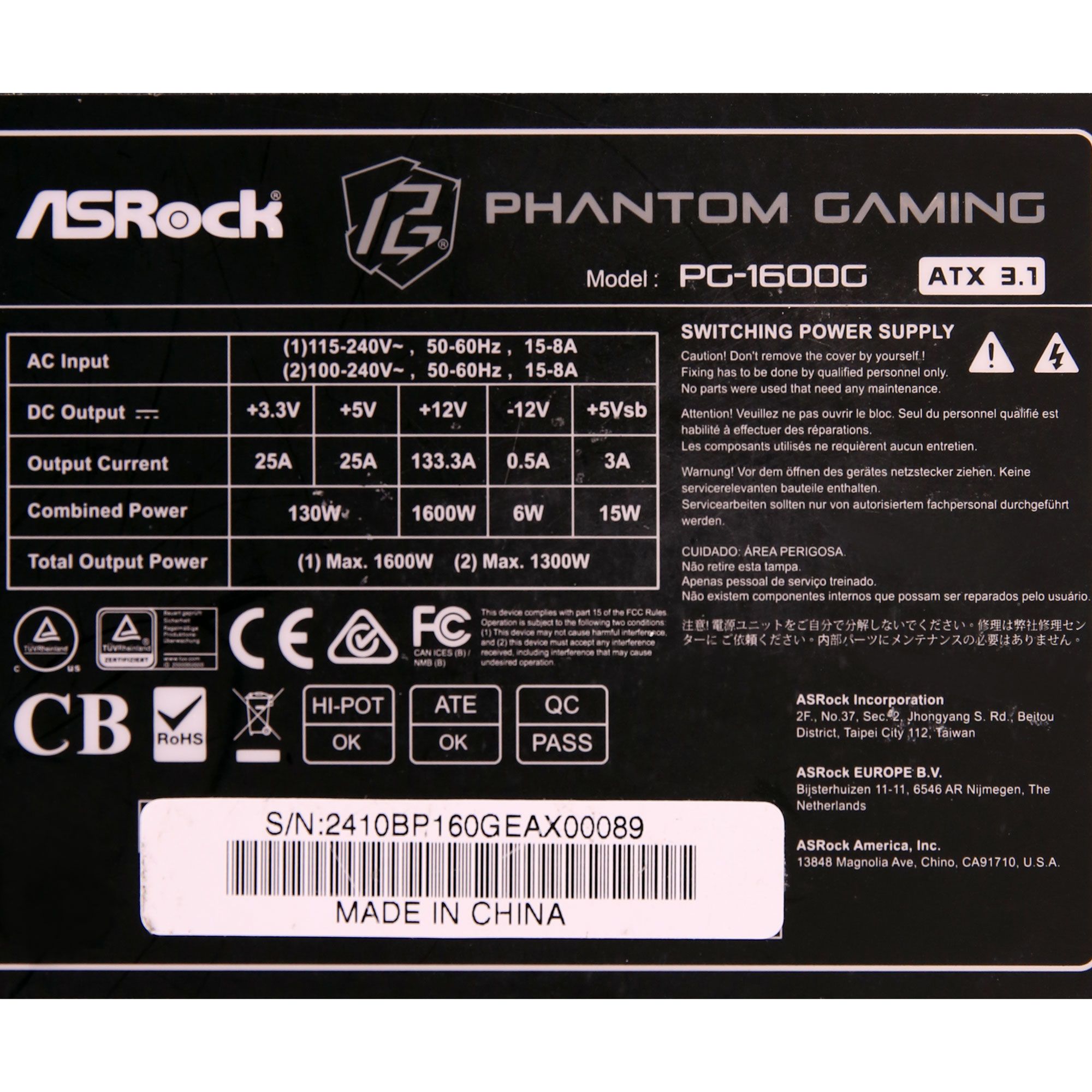

Serial Number2410BP160GEAX00089
Lab IDAR16002746
  • Report: 25PS2746A
  • Receipt Date: Jan 28, 2025
  • Test Date: Feb 18, 2025
  • Report Date: Feb 18, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandASRock
Manufacturer (OEM)FSP
SeriesPhantom Gaming
Model NumberPG-1600G
Serial Number2410BP160GEAX00089
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-240
Rated Current (Arms)8-15
Rated Frequency (Hz)50-60
Rated Power (W)1600
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan (PLA13525S12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525133.330.5
Watts1301600156
Total Max. Power (W)1600

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (590mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (675mm) 4 4 16-18AWG No
6+2 pin PCIe (675mm+75mm) 2 4 16-18AWG No
12+4 pin PCIe (700mm) (600W) 2 2 16-24AWG No

SATA (450mm+100mm+100mm)

 4 12 18AWG No
4-pin Molex (450mm+100mm+100mm) 2 6 18AWG No

AC Power Cord (1690mm) - C19 coupler

 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (discharge IC)
Inrush Protection 2x NTC Thermistor SCK-2R58 (2.5 ohm) & Relay
Bridge Rectifier(s)

2x HY Electronics GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETs

2x Infineon IPW60R060P7 (650V, 30A @ 100°C, Rds(on): 0.060Ohm)
APFC Boost Diode

2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s)

2x Nippon Chemi-con (420V, 680uF or combinesd 1,360uF, 2,000h @ 105°C, KHE) & 1x Nippon Chemi-con (420V, 470uF, 2,000h @ 105°C, KHE)
Main Switchers

4x Infineon IPA60R099P7 (650V, 20A @ 100°C, Rds(on): 0.099Ohm)
Resonant Controller

Champion CM6901T6X
APFC Controller

Infineon ICE2PCS02
Driver IC

2x Novosense NSI6602
Topology

Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x Toshiba TPHR8504PL (40V, 150A @ 25°C, Rds(on): 0.85mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0902NS (30V, 67A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): Anpec APW7159C
Filtering Capacitors

Electrolytic: 4x Nippon Chemi-Con (@105°C, W) 2x Nippon Chemi-Con (2-5,000h @105°C, KZE) 1x Rubycon (4-10,000h @105°C, YXJ) 3x Rubycon (6-10,000h @105°C, ZLH) Polymer: 32x Nippon Chemi-con
Supervisor IC Wetrend WT7527RA
Fan Controller Lite-on LSP5523
Fan Model Power Logic PLA13525S12M (135mm, 12V, 0.40A, Hydro Dynamic Bearing Fan)
5VSB
Rectifier

PFC Device Corporation P15L50N5 (50V, 15A)
Standby PWM Controller

MGT CEU04N7G (4V, 3.5A @25°C, Rds(on): 3.3Ohms)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20
AC Loss to PWR_OK Hold Up Time (ms)18.9
PWR_OK Inactive to DC Loss Delay (ms)1.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.02 V 115.01 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.055 W -0.002 W N/A 0.098 W N/A N/A
Apparent Power: 10.274 W 10.147 W N/A 10.408 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.90 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.128 W 0.086 W N/A 0.234 W N/A N/A
Apparent Power: 34.998 W 34.689 W N/A 35.334 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

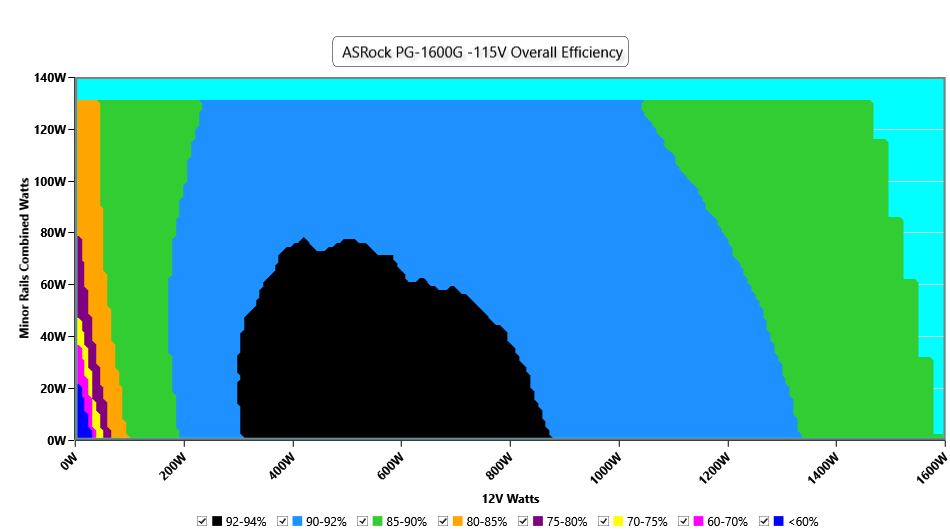

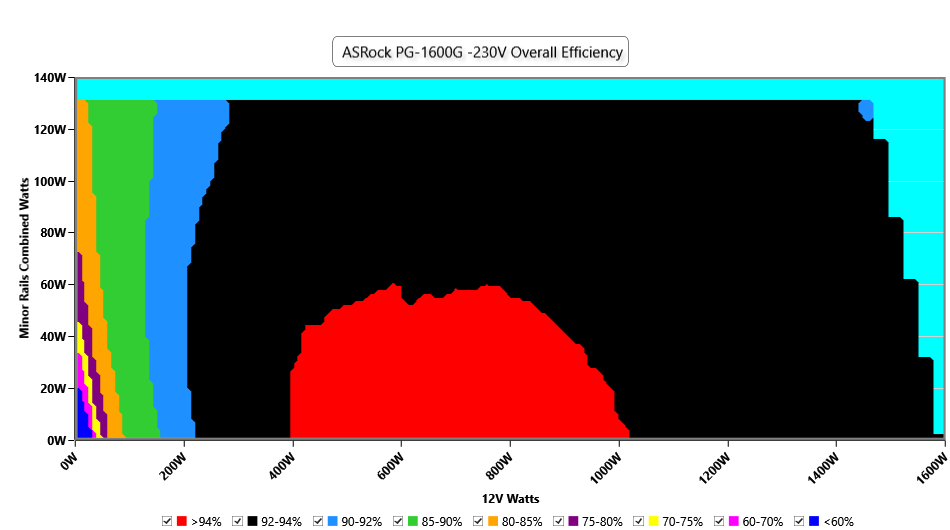

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

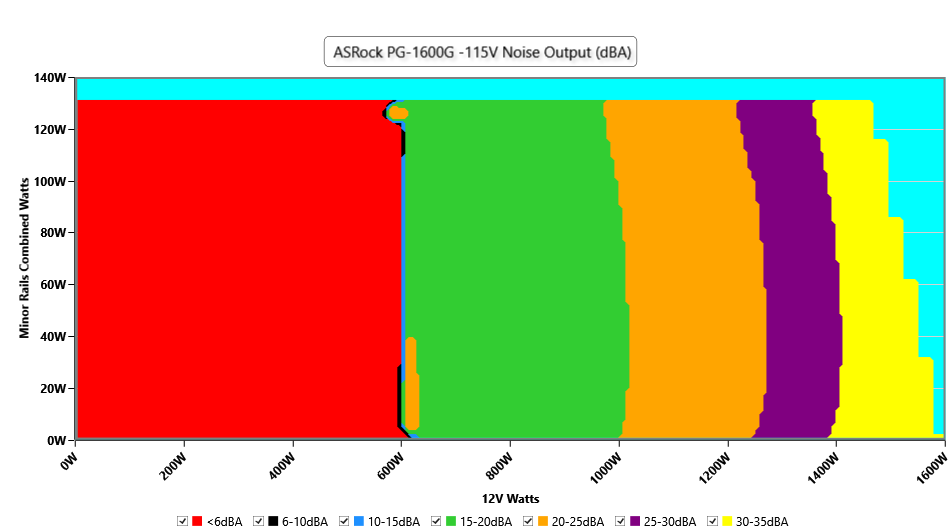

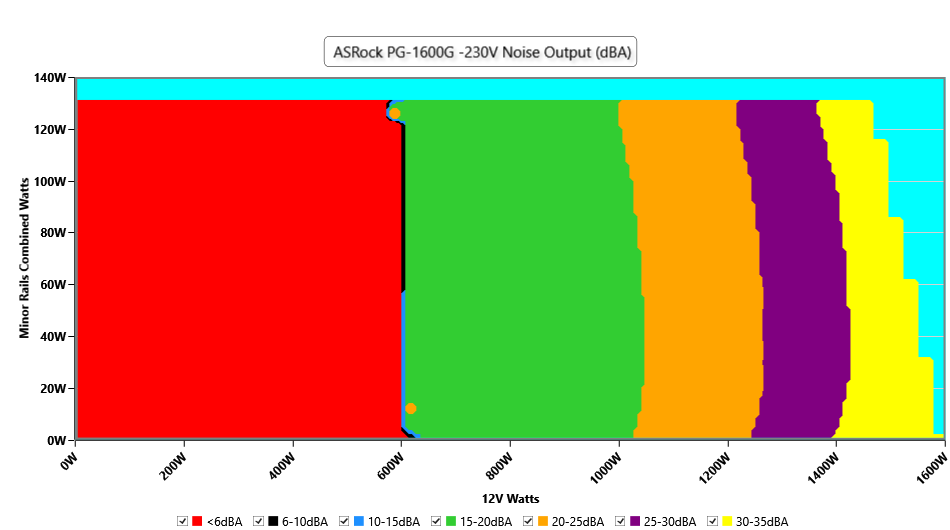

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

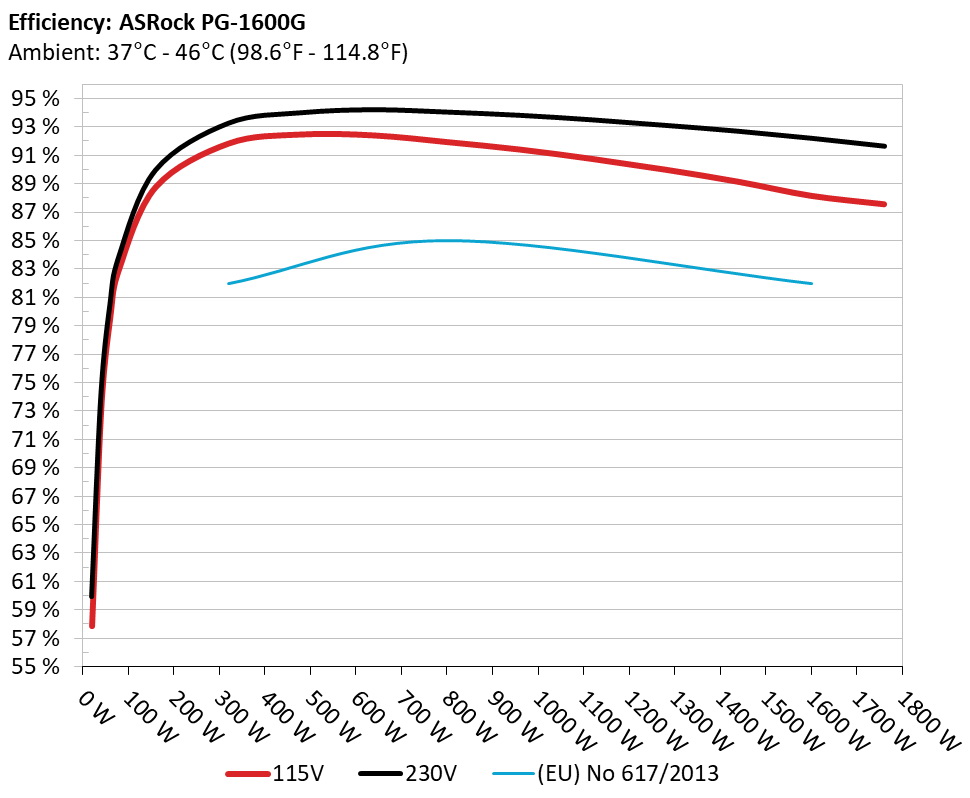

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

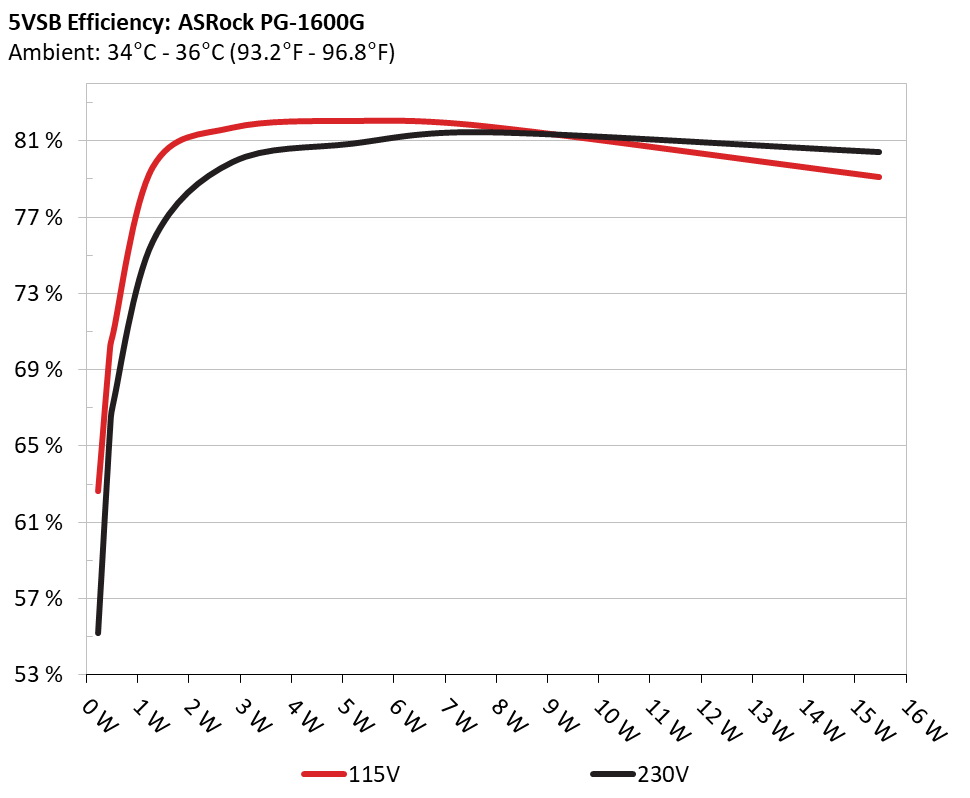

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 62.648% 0.036
5.202V 0.374W 114.91V
2 0.09A 0.468W 70.165% 0.064
5.202V 0.667W 114.91V
3 0.55A 2.857W 81.7% 0.266
5.195V 3.497W 114.91V
4 1A 5.188W 82.051% 0.351
5.188V 6.322W 114.91V
5 1.5A 7.771W 81.78% 0.412
5.18V 9.503W 114.91V
6 3A 15.47W 79.113% 0.489
5.157V 19.554W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 55.182% 0.012
5.202V 0.425W 229.9V
2 0.09A 0.468W 65.886% 0.021
5.202V 0.711W 229.9V
3 0.55A 2.857W 79.903% 0.099
5.194V 3.576W 229.89V
4 1A 5.188W 80.869% 0.167
5.187V 6.416W 229.9V
5 1.5A 7.771W 81.471% 0.209
5.18V 9.538W 229.89V
6 3A 15.47W 80.428% 0.325
5.156V 19.235W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.398A 1.945A 1.983A 0.965A 160.007 88.756% 0 <6.0 49.09°C 0.993
12.144V 5.142V 3.329V 5.181V 180.281 40.15°C 114.86V
20% 23.814A 2.919A 2.977A 1.16A 319.984 91.814% 0 <6.0 50.34°C 0.997
12.139V 5.14V 3.326V 5.171V 348.513 40.53°C 114.81V
30% 36.518A 3.406A 3.475A 1.356A 479.238 92.452% 0 <6.0 53.2°C 0.998
12.136V 5.138V 3.324V 5.161V 518.377 41.56°C 114.76V
40% 49.326A 3.894A 3.974A 1.553A 639.649 92.385% 0 <6.0 56.49°C 0.998
12.132V 5.136V 3.322V 5.152V 692.378 41.7°C 114.7V
50% 61.765A 4.872A 4.971A 1.751A 799.395 91.921% 657 16.6 42.16°C 0.998
12.125V 5.132V 3.32V 5.142V 869.652 50.17°C 114.64V
60% 74.298A 5.851A 5.971A 1.949A 959.871 91.391% 785 22.1 42.78°C 0.998
12.115V 5.128V 3.317V 5.132V 1050.288 49.75°C 114.57V
70% 86.767A 6.831A 6.972A 2.148A 1119.606 90.73% 952 24.9 43.38°C 0.998
12.107V 5.125V 3.314V 5.122V 1234.003 49.94°C 114.51V
80% 99.330A 7.809A 7.974A 2.249A 1279.61 89.978% 1097 28.7 43.86°C 0.998
12.098V 5.122V 3.311V 5.113V 1422.14 49.28°C 114.45V
90% 112.231A 8.301A 8.463A 2.351A 1439.406 89.128% 1270 32.8 44.74°C 0.997
12.090V 5.119V 3.309V 5.105V 1614.994 50.14°C 114.37V
100% 124.931A 8.793A 8.983A 2.948A 1599.404 88.138% 1436 36 45.97°C 0.997
12.084V 5.117V 3.307V 5.089V 1814.648 51.38°C 114.3V
110% 137.670A 9.772A 10.075A 2.951A 1759.801 87.542% 1439 36 46.11°C 0.997
12.069V 5.115V 3.305V 5.084V 2010.244 52.01°C 114.25V
CL1 0.115A 15.279A 15.579A 0A 131.295 82.206% 0 <6.0 48.81°C 0.991
12.169V 5.124V 3.313V 5.192V 159.714 41.15°C 114.84V
CL2 0.114A 24.404A 0A 0A 126.255 79.946% 0 <6.0 55.79°C 0.991
12.171V 5.117V 3.323V 5.194V 157.927 40.25°C 114.86V
CL3 0.114A 0A 24.98A 0A 83.902 73.25% 0 <6.0 55.53°C 0.978
12.169V 5.142V 3.303V 5.194V 114.544 41.06°C 114.87V
CL4 132.310A 0A 0A 0A 1599.923 88.689% 1450 36.2 45.28°C 0.997
12.092V 5.136V 3.32V 5.139V 1803.97 59.65°C 114.33V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.402A 1.944A 1.982A 0.965A 159.991 89.963% 0 <6.0 45.26°C 0.934
12.137V 5.143V 3.33V 5.182V 177.842 40.42°C 229.86V
20% 23.826A 2.918A 2.975A 1.16A 319.957 93.273% 0 <6.0 47.03°C 0.977
12.131V 5.141V 3.328V 5.172V 343.032 40.54°C 229.84V
30% 36.534A 3.405A 3.473A 1.356A 479.155 94.012% 0 <6.0 48.56°C 0.987
12.129V 5.139V 3.326V 5.162V 509.676 41.2°C 229.81V
40% 49.345A 3.893A 3.971A 1.553A 639.558 94.223% 0 <6.0 51.22°C 0.991
12.126V 5.138V 3.324V 5.153V 678.768 41.58°C 229.79V
50% 61.778A 4.87A 4.968A 1.75A 799.301 94.059% 632 16.1 42.19°C 0.991
12.121V 5.134V 3.321V 5.143V 849.791 44.74°C 229.75V
60% 74.302A 5.848A 5.967A 1.948A 959.78 93.834% 730 20.3 42.59°C 0.991
12.113V 5.131V 3.319V 5.133V 1022.848 44.41°C 229.73V
70% 86.772A 6.827A 6.967A 2.147A 1119.508 93.512% 898 24.2 42.53°C 0.992
12.105V 5.127V 3.316V 5.123V 1197.185 47.1°C 229.7V
80% 99.327A 7.804A 7.968A 2.248A 1279.536 93.125% 1078 28.6 43.59°C 0.992
12.098V 5.124V 3.313V 5.115V 1373.998 47.04°C 229.67V
90% 112.223A 8.296A 8.456A 2.35A 1439.339 92.711% 1243 31.6 44.59°C 0.991
12.090V 5.122V 3.311V 5.106V 1552.498 47.45°C 229.65V
100% 124.926A 8.788A 8.976A 2.947A 1599.357 92.216% 1409 35.5 45.32°C 0.991
12.084V 5.12V 3.309V 5.09V 1734.369 48.2°C 229.61V
110% 137.569A 9.771A 10.072A 2.951A 1759.957 91.655% 1579 38.6 46.42°C 0.99
12.079V 5.116V 3.306V 5.083V 1920.203 49.45°C 229.58V
CL1 0.116A 15.274A 15.573A 0A 131.306 82.642% 0 <6.0 47.13°C 0.924
12.176V 5.125V 3.314V 5.192V 158.883 40.87°C 229.86V
CL2 0.115A 24.403A 0A 0A 126.255 80.434% 0 <6.0 43.16°C 0.922
12.174V 5.117V 3.323V 5.194V 156.969 40.02°C 229.86V
CL3 0.114A 0A 24.981A 0A 83.902 73.872% 0 <6.0 42.8°C 0.877
12.171V 5.142V 3.303V 5.194V 113.583 40.83°C 229.87V
CL4 132.323A 0A 0A 0A 1599.915 92.581% 1450 36.2 45.76°C 0.991
12.091V 5.136V 3.32V 5.139V 1728.123 49.25°C 229.62V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.486A 0.495A 0.192A 20.003 57.854% 0 <6.0 37.82°C 0.888
12.127V 5.142V 3.331V 5.199V 34.575 36.61°C 114.91V
40W 2.693A 0.681A 0.694A 0.289A 40.001 73.059% 0 <6.0 41.91°C 0.941
12.139V 5.143V 3.331V 5.197V 54.753 37.49°C 114.9V
60W 4.162A 0.875A 0.892A 0.385A 60 79.606% 0 <6.0 43.77°C 0.96
12.141V 5.143V 3.331V 5.195V 75.37 38.01°C 114.89V
80W 5.626A 1.069A 1.09A 0.481A 79.947 83.032% 0 <6.0 47.91°C 0.974
12.144V 5.143V 3.33V 5.192V 96.283 39.41°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.486A 0.495A 0.192A 20.001 59.917% 0 <6.0 37.93°C 0.501
12.132V 5.143V 3.333V 5.199V 33.38 36.5°C 229.89V
40W 2.694A 0.68A 0.693A 0.289A 39.999 73.948% 0 <6.0 40.11°C 0.682
12.133V 5.144V 3.332V 5.197V 54.092 37.59°C 229.89V
60W 4.164A 0.875A 0.891A 0.385A 59.996 80.45% 0 <6.0 41.27°C 0.782
12.134V 5.144V 3.332V 5.195V 74.575 38.09°C 229.88V
80W 5.628A 1.069A 1.089A 0.481A 79.936 83.903% 0 <6.0 43.89°C 0.842
12.136V 5.144V 3.332V 5.192V 95.269 39.31°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load15.45mV15.48mV15.09mV15.45mVPass
20% Load16.42mV15.79mV15.29mV15.60mVPass
30% Load17.75mV15.48mV15.19mV16.52mVPass
40% Load16.73mV16.40mV14.99mV16.72mVPass
50% Load15.91mV16.76mV15.35mV16.27mVPass
60% Load17.40mV16.25mV15.50mV16.78mVPass
70% Load17.70mV18.75mV16.52mV18.57mVPass
80% Load18.42mV17.83mV16.47mV19.03mVPass
90% Load17.55mV18.85mV16.93mV19.95mVPass
100% Load29.62mV21.76mV19.31mV23.26mVPass
110% Load27.62mV22.17mV17.38mV23.91mVPass
Crossload118.62mV16.34mV16.64mV21.27mVPass
Crossload216.37mV17.88mV15.60mV19.39mVPass
Crossload316.17mV17.62mV19.03mV20.72mVPass
Crossload427.16mV19.55mV16.42mV32.40mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.60mV15.17mV15.30mV16.57mVPass
20% Load16.73mV16.91mV15.86mV17.29mVPass
30% Load17.50mV16.04mV15.96mV17.08mVPass
40% Load17.70mV16.86mV15.70mV16.93mVPass
50% Load16.73mV16.60mV16.16mV18.93mVPass
60% Load17.40mV16.91mV15.40mV19.28mVPass
70% Load17.29mV17.78mV16.32mV18.06mVPass
80% Load18.11mV19.16mV17.50mV20.51mVPass
90% Load18.11mV18.70mV17.34mV20.26mVPass
100% Load28.39mV20.33mV17.48mV23.58mVPass
110% Load28.29mV24.41mV18.36mV23.83mVPass
Crossload118.76mV16.65mV17.85mV21.81mVPass
Crossload216.01mV18.65mV15.81mV21.43mVPass
Crossload315.60mV16.55mV18.98mV21.07mVPass
Crossload428.05mV20.54mV17.03mV26.26mVPass

The results above are not used in the certification process

ASRock Phantom Gaming PG-1600G (ATX v3.1)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
