Einarex APEX L5 850W
-
Lab IDEX85002738
  • Report: 25PS2738A
  • Receipt Date: Jan 30, 2025
  • Test Date: Feb 6, 2025
  • Report Date: Feb 6, 2025
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Einarex
製造商 (OEM)Tecnomall Technology
APEX L5
APEX L5 850
-

(Vrms)200-240
(Arms)6
(Hz)50-60
(W)850
ATX12V
120mm Hydro Dynamic Bearing Fan
✗
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.530.3
Watts120846153.6
Total Max. Power (W)850

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
8 pin EPS12V (645mm) / 4+4 pin EPS12V (145mm) 1 1 / 1 18AWG No
6+2 pin PCIe (550mm) 1 1 18AWG No
6+2 pin PCIe (550mm+150mm) 1 2 18AWG No
12+4 pin PCIe (555mm) (300W) 1 1 16-22AWG No
SATA (450mm+155mm+155mm) 2 6 18AWG No
4-pin Molex (450mm+150mm) 1 2 18AWG No
AC Power Cord (1390mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Tecnomall Technology
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection 1x NTC Thermistor 5D-20 (5 ohm)
Bridge Rectifier(s)

2x Hygroup GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs

2x Way-On WML28N50C4 (500V, 16A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode

1x Fuxin FXCR10S65D
Bulk Cap(s)

1x Rubycon (420V, 680uF, 2,000h @ 105°C, MXE)
Main Switchers

2x Way-On WML53N65F2 (550V, 26A @ 100°C, Rds(on): 0.078Ohm)
PFC/PWM Controller

Champion CM6800UBX
Topology

Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC Converters
Secondary Side
+12V MOSFETs 5x Maple Semi SLP150N06G (60V, 150A @ 100°C, Rds(on): 3mOhm)
5V & 3.3V DC-DC Converters: 4x SYT100N03X5 PWM Controller(s): Aplustek AT8852ZSPD
Filtering Capacitors Electrolytic: 8x Hangcon (105°C, SK) 5x Hangcon (105°C, SA) Polymer: 13x unknown
Supervisor IC Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP)
Fan Model Einarex (120mm, 12V, 0.30A, Hydraumatic Bearing Fan)
5VSB
Rectifier

1x SB1045L SBR (45V, 10A)
Standby PWM Controller

Chipown PN8141

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard+
(>1450 load combinations)86.843%
Average Noise Output (>1450 Load Combinations)38.23dBA
(>1450 Load Combinations)0.928
Efficiency With 10W (≤500W) or 2% (>500W) Load69.632%
0.1302W
12V Ripple (Full Load)29.96mV
5V Ripple (Full Load)17.11mV
3.3V Ripple (Full Load)24.47mV
5VSB Ripple (Full Load)18.28mV
12V Load Regulation1.25%
5V Load Regulation3.03%
3.3V Load Regulation4.13%
5VSB Load Regulation4.51%
Inrush Current267.500A
12V Transient Response (200%)11.04V
5V Transient Response (200%)4.949V
3.3V Transient Response (200%)3.162V
5VSB Transient Response (200%)4.937V
19.90ms
AC Loss to PWR_OK Hold Up Time14.70ms
PWR_OK Inactive to DC Loss Delay5.20ms
PSU Timings: T1 (20% / 100%)13.0ms13.0ms
PSU Timings: T3 (20% / 100%)123.0ms122.0ms
12V OCP (28.3°C / 41.3°C)80.20A (113.76%), 11.946V78.20A (110.92%), 11.931V
5V OCP (28.3°C / 41.3°C)22.2A (111.00%), 5.023V22.082A (110.41%), 5.016V
3.3V OCP (28.3°C / 41.3°C)23.3A (116.50%), 3.277V22.5A (112.50%), 3.266V
5VSB OCP (28.3°C / 41.3°C)4A (133.33%), 4.989V4A (133.33%), 4.986V
OPP (29.37°C / 43.97°C)121.01%114.54%

Hold-Up Time (ms)19.9
AC Loss to PWR_OK Hold Up Time (ms)14.7
PWR_OK Inactive to DC Loss Delay (ms)5.2

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.88 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.130 W 0.091 W N/A 0.195 W N/A N/A
Apparent Power: 29.906 W 29.379 W N/A 30.493 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs 230V

230V

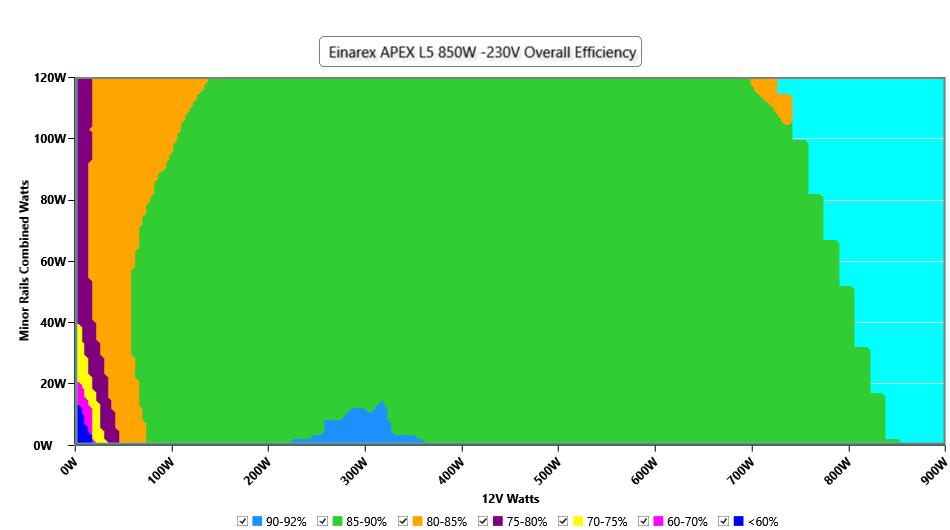

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

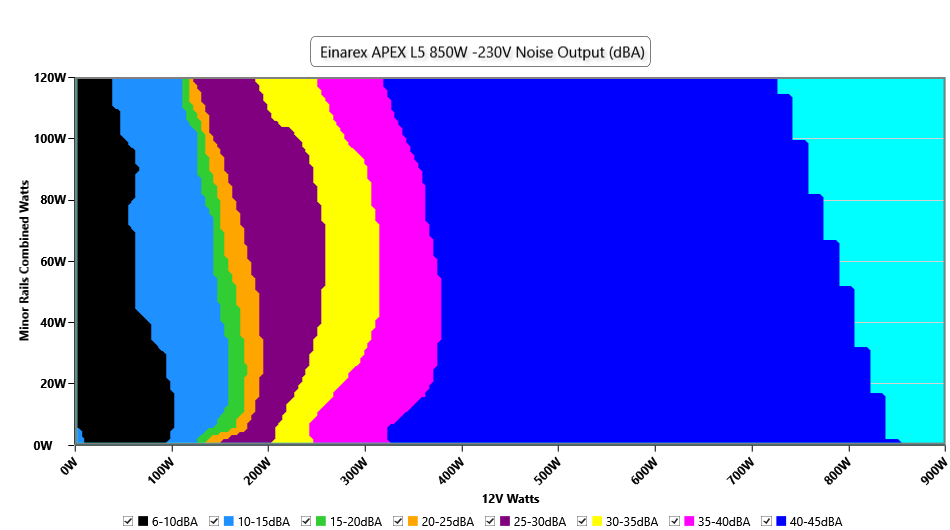

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

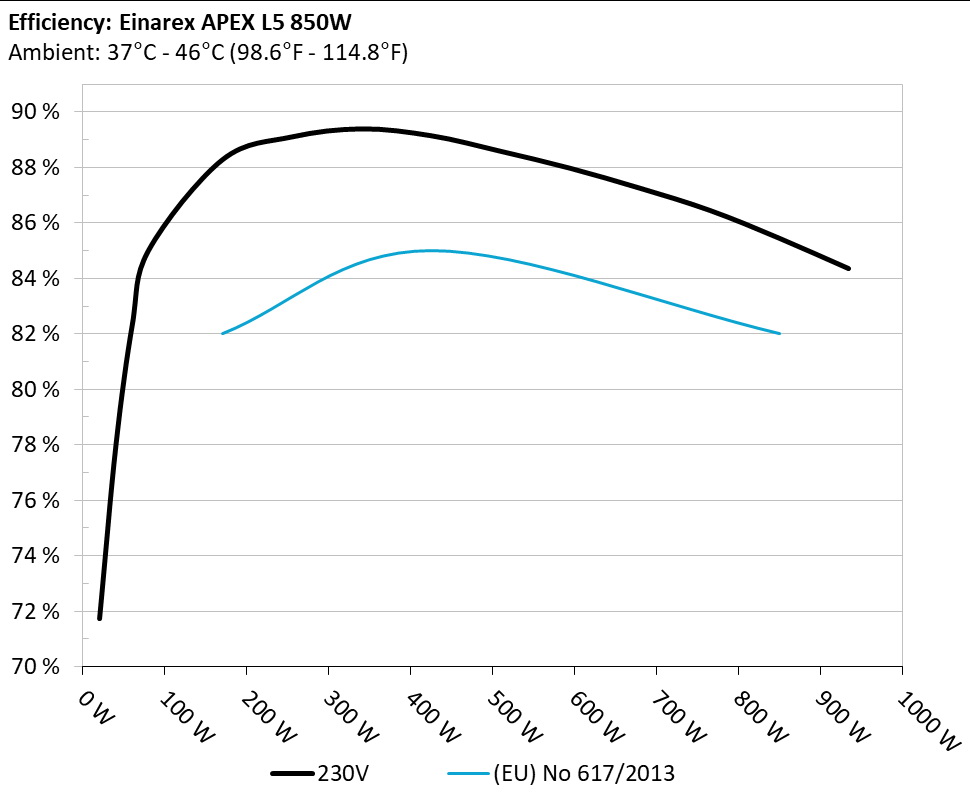

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

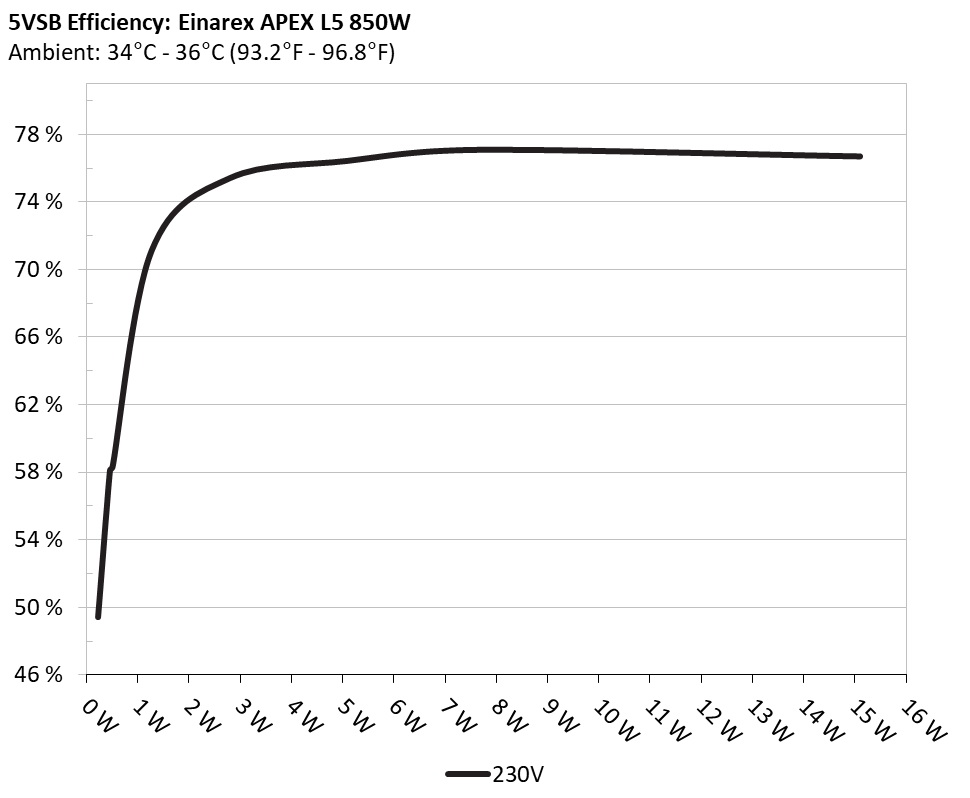

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 49.399% 0.016
5.129V 0.469W 229.88V
2 0.09A 0.462W 58.089% 0.027
5.127V 0.796W 229.89V
3 0.55A 2.812W 75.433% 0.117
5.113V 3.728W 229.88V
4 1A 5.099W 76.447% 0.191
5.099V 6.67W 229.88V
5 1.5A 7.625W 77.097% 0.229
5.083V 9.89W 229.88V
6 3A 15.104W 76.709% 0.337
5.035V 19.69W 229.88V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.277A 1.958A 1.965A 0.984A 85.001 84.96% 608 12.7 40.09°C 0.808
12.014V 5.108V 3.359V 5.082V 100.048 45.9°C 229.88V
20% 11.584A 2.943A 2.958A 1.185A 169.942 88.282% 1175 34.6 40.55°C 0.891
12.002V 5.096V 3.347V 5.064V 192.495 46.57°C 229.87V
30% 18.253A 3.439A 3.459A 1.387A 254.954 89.107% 1565 42.6 41.42°C 0.92
11.992V 5.089V 3.339V 5.047V 286.126 46.31°C 229.85V
40% 24.944A 3.938A 3.965A 1.591A 340.046 89.397% 1579 42.9 41.75°C 0.934
11.981V 5.079V 3.329V 5.029V 380.378 48.08°C 229.83V
50% 31.285A 4.938A 4.977A 1.797A 424.877 89.149% 1579 42.9 42.23°C 0.943
11.967V 5.064V 3.316V 5.01V 476.588 50.94°C 229.82V
60% 37.617A 5.943A 5.998A 2A 509.39 88.59% 1580 42.9 42.53°C 0.949
11.952V 5.048V 3.302V 4.99V 574.996 52.6°C 229.8V
70% 44.033A 6.958A 7.03A 2.214A 594.721 87.973% 1579 42.9 43.42°C 0.953
11.936V 5.031V 3.287V 4.97V 676.031 54.62°C 229.78V
80% 50.474A 7.978A 8.072A 2.322A 679.538 87.258% 1582 43 43.91°C 0.955
11.920V 5.013V 3.271V 4.952V 778.771 57.74°C 229.77V
90% 57.339A 8.505A 8.598A 2.432A 764.951 86.458% 1580 42.9 44.18°C 0.956
11.902V 4.996V 3.257V 4.935V 884.772 60.86°C 229.75V
100% 63.971A 9.037A 9.161A 3.062A 849.758 85.453% 1581 43 45.36°C 0.958
11.882V 4.979V 3.242V 4.899V 994.414 64.8°C 229.73V
110% 70.460A 10.075A 10.304A 3.07A 934.334 84.358% 1582 43 45.7°C 0.96
11.866V 4.962V 3.232V 4.887V 1107.573 65.08°C 229.71V
CL1 0.117A 14.517A 14.617A 0A 121.29 77.224% 1567 42.6 40.56°C 0.867
11.967V 4.973V 3.264V 5.084V 157.066 51.15°C 229.86V
CL2 0.116A 19.911A 0A 0A 101.346 77.015% 1129 33 40.01°C 0.849
11.989V 5.02V 3.317V 5.1V 131.593 47.67°C 229.87V
CL3 0.115A 0A 20.164A 0A 67.396 68.517% 710 18.6 40.34°C 0.805
11.985V 5.009V 3.274V 5.097V 98.365 48.68°C 229.87V
CL4 71.353A 0A 0A 0A 849.5 85.869% 1589 43.1 45.13°C 0.959
11.906V 5.054V 3.306V 5.023V 989.305 63.07°C 229.74V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.487A 0.489A 0.195A 19.997 71.735% 591 11.5 36.94°C 0.493
12.030V 5.13V 3.376V 5.12V 27.873 39.47°C 229.91V
40W 2.718A 0.683A 0.685A 0.293A 39.994 78.014% 597 11.9 37.16°C 0.662
12.026V 5.128V 3.374V 5.114V 51.267 41.33°C 229.89V
60W 4.202A 0.879A 0.881A 0.392A 59.994 82.352% 600 12.1 38.12°C 0.747
12.022V 5.121V 3.369V 5.107V 72.85 42.84°C 229.88V
80W 5.684A 1.075A 1.078A 0.49A 79.938 85.021% 602 12.1 39.45°C 0.798
12.019V 5.117V 3.366V 5.101V 94.022 43.59°C 229.88V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load13.20mV12.98mV12.79mV11.46mVPass
20% Load13.86mV12.52mV12.28mV11.71mVPass
30% Load14.07mV12.01mV11.87mV10.74mVPass
40% Load23.79mV14.97mV15.14mV12.68mVPass
50% Load24.91mV14.61mV17.09mV14.01mVPass
60% Load26.04mV14.72mV17.14mV13.25mVPass
70% Load25.17mV15.27mV18.11mV14.27mVPass
80% Load24.20mV16.61mV19.59mV13.91mVPass
90% Load28.19mV16.14mV20.05mV14.94mVPass
100% Load29.96mV17.11mV24.47mV18.28mVPass
110% Load31.36mV18.66mV25.23mV18.90mVPass
Crossload119.58mV16.96mV16.07mV13.68mVPass
Crossload216.57mV19.36mV13.66mV11.66mVPass
Crossload313.56mV14.00mV15.35mV12.33mVPass
Crossload440.45mV16.65mV22.86mV14.31mVPass

The results above are not used in the certification process

Einarex APEX L5 850W

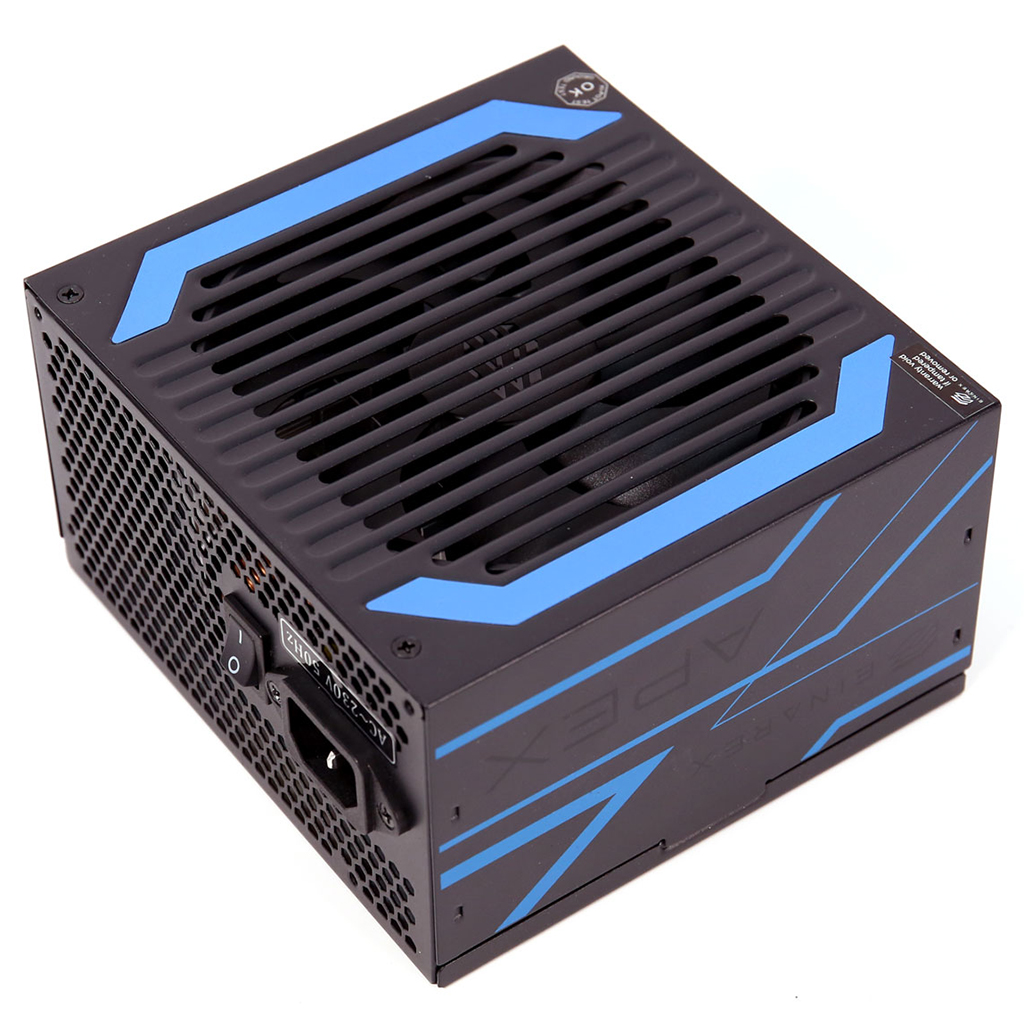

Top side

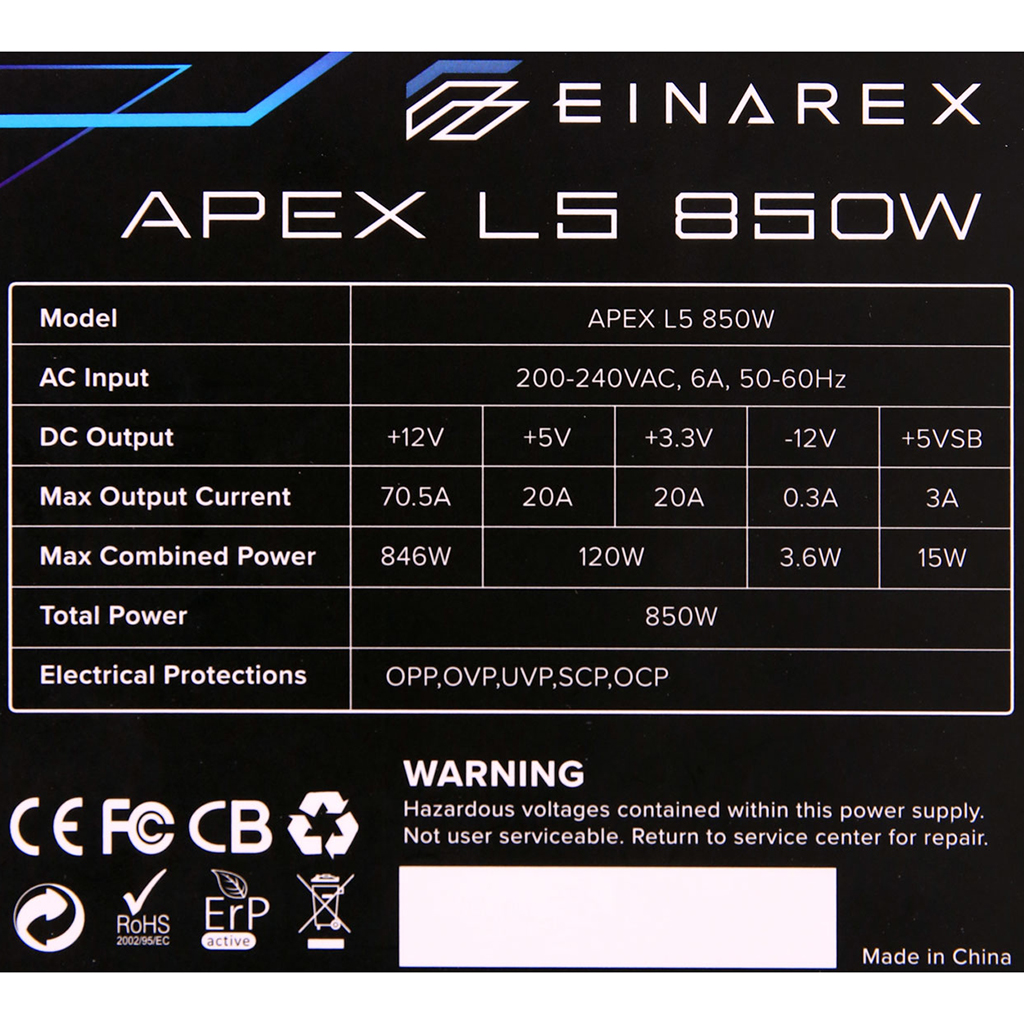

Power specifications label
