Cybenetics Test - ASRock Taichi TC-1650T (ATX v3.1)

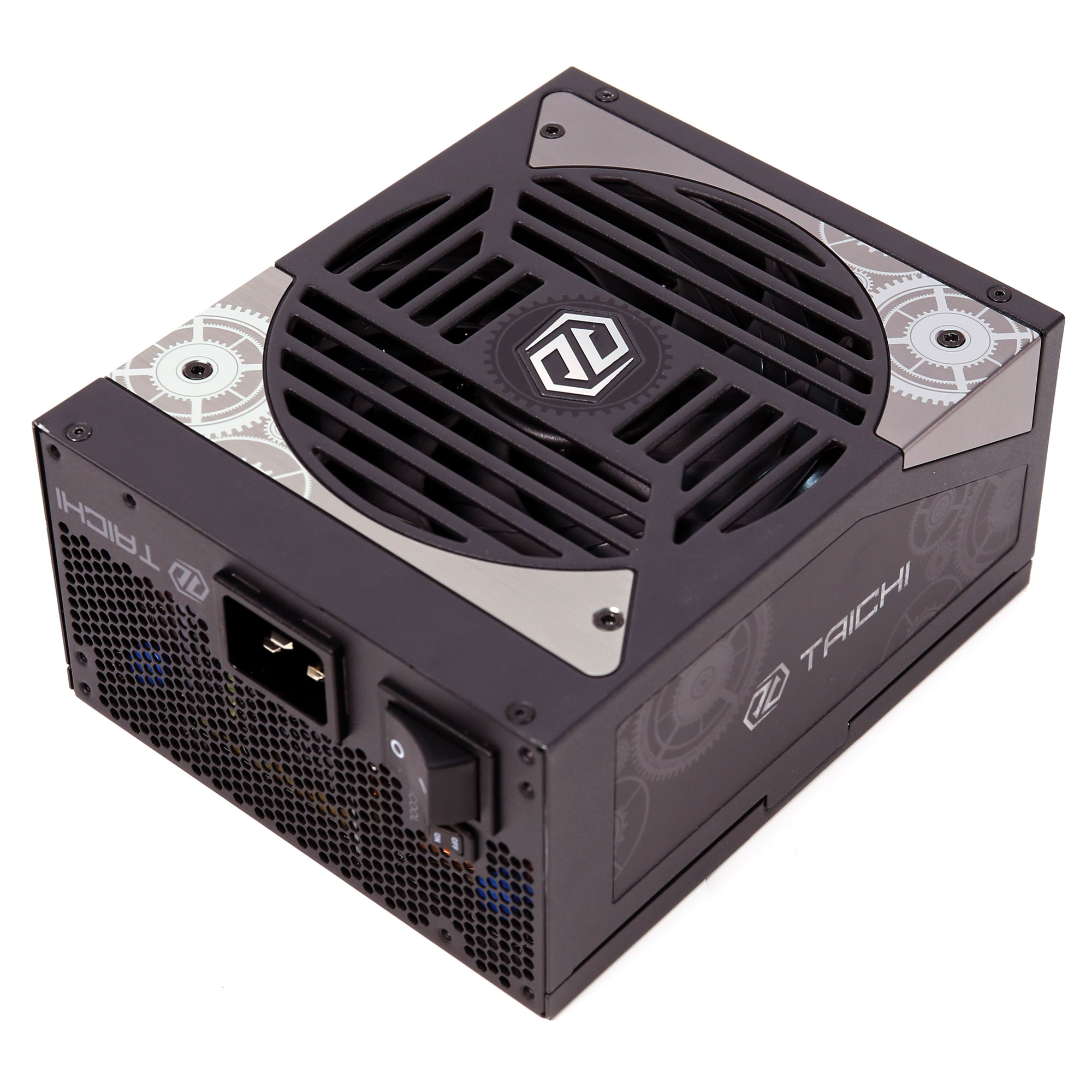

ASRock Taichi TC-1650T (ATX v3.1)

2412BT165AEA910012

Lab IDAR16502737

Report: 25PS2737A
Receipt Date: Jan 28, 2025
Test Date: Feb 11, 2025
Report Date: Feb 11, 2025

	115V	230V
效率評比

115V	230V
		噪音評比

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	ASRock
製造商 (OEM)	FSP
	TAICHI
	TC-1650T
	2412BT165AEA910012

(Vrms)	115-240
(Arms)	10-16
(Hz)	50-60
(W)	1650
	ATX12V
	135mm Hydro Dynamic Bearing Fan (PLA13525S12M)
	✓ (selectable)
	Fully Modular

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	137.5	3	0.5
Max. Power	Watts	130		1650	15	6
Total Max. Power (W)		1650

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (600mm)	1	1	16-22AWG	No
4+4 pin EPS12V (650mm)	2	2	16AWG	No
6+2 pin PCIe (675mm+80mm)	2	4	16-18AWG	No
6+2 pin PCIe (675mm)	4	4	16-18AWG	No
12+4 pin PCIe (700mm) (600W)	2	2	16-24AWG	No
SATA (455mm+105mm+105mm)	4	12	18AWG	No
4-pin Molex (455mm+105mm+105mm)	2	6	18AWG	No

Parts Description

General Data
Manufacturer (OEM)	FSP
PCB Type	Double-Sided
Primary Side
Transient Filter	4x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection	3x NTC Thermistor SCK-2R515 (2.5 Ohm @ 25°C) & Relay
Rectifier FETs	8x CEL68N60SF (600V, 43A @ 100°C, Rds(on): 37mOhm)
APFC MOSFETs	4x Infineon IPA60R120C7 (650V, 7A @ 100°C, Rds(on): 0.120Ohm)
APFC Boost Diode	2x Infineon IDH10G65C6 (650V, 10A @ 140°C)
Bulk Cap(s)	3x Nippon Chemi-Con (450V, 560uF each or 1680uF combined, 2,000h @ 105°C, KMW)
Main Switchers	4x Cmsemicon CMS6047B
Gate Drivers	2x Texas Instruments UCC21520
APFC Controller	UCC28070
Resonant Controller	Champion CM6901T2X
Topology	Primary side: Bridgeless, APFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	12x Cmsemicon CMR009N04NS
5V & 3.3V	DC-DC Converters: 6x Infineon BSC0902NS (30V, 67A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): upi-semi uP3861P
Filtering Capacitors	Electrolytic: 4x Nippon Chemi-Con (@ 105°C, W) 2x Rubycon (6-10,000h @ 105°C, ZLH) 1x Nippon Chemi-Con (4-10,000h (@ 105°C, KY) Polymer: 37x Nippon Chemi-Con, 5x FPCAP
Supervisor IC	Weltrend WT7527RA (OCP, OVP, UVP, SCP,PG)
Fan Controller	APW9010
Fan Model	Power Logic PLA13525S12M (135mm, 12V, 0.40A, Hydro Dynamic Bearing Fan)
5VSB Circuit
Rectifier	Seecos SSD61N06S (60V, 40A @ 100°C, Rds(on): 9mOhm)
Standby PWM Controller	Power Integrations INN3166C

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

效率評比	TITANIUM
噪音評比	A+
(>1450 load combinations)	91.629%
Average Noise Output (>1450 Load Combinations)	17.94dBA
(>1450 Load Combinations)	0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.393%
	0.0387W
12V Ripple (Full Load)	39.92mV
5V Ripple (Full Load)	18.75mV
3.3V Ripple (Full Load)	17.51mV
5VSB Ripple (Full Load)	18.93mV
12V Load Regulation	0.30%
5V Load Regulation	0.44%
3.3V Load Regulation	0.54%
5VSB Load Regulation	1.64%
Inrush Current	94.510A

效率評比	TITANIUM
噪音評比	A+
(>1450 load combinations)	93.437%
Average Noise Output (>1450 Load Combinations)	16.15dBA
(>1450 Load Combinations)	0.945
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.751%
	0.1296W
12V Ripple (Full Load)	35.97mV
5V Ripple (Full Load)	18.70mV
3.3V Ripple (Full Load)	17.62mV
5VSB Ripple (Full Load)	19.99mV
12V Load Regulation	0.32%
5V Load Regulation	0.46%
3.3V Load Regulation	0.54%
5VSB Load Regulation	1.66%
Inrush Current	96.630A
12V Transient Response (200%)	11.69V
5V Transient Response (200%)	4.833V
3.3V Transient Response (200%)	3.149V
5VSB Transient Response (200%)	4.876V
	26.50ms
AC Loss to PWR_OK Hold Up Time	22.80ms
PWR_OK Inactive to DC Loss Delay	3.70ms
PSU Timings: T1 (20% / 100%)	98.0ms	103.0ms
PSU Timings: T3 (20% / 100%)	123.0ms	122.0ms
12V OCP (24.9°C / 41.1°C)	157.26A (114.38%), 12.033V	151.40A (110.11%), 12.044V
5V OCP (24.9°C / 41.1°C)	30.1A (120.40%), 5.006V	26.8A (107.20%), 5.01V
3.3V OCP (24.9°C / 41.1°C)	31.2A (124.80%), 3.354V	28.5A (114.00%), 3.338V
5VSB OCP (24.9°C / 41.1°C)	5A (166.67%), 4.801V	5A (166.67%), 4.838V
OPP (27.17°C / 43.46°C)	113.07%	110.55%

Hold-Up Time (ms)	26.5
AC Loss to PWR_OK Hold Up Time (ms)	22.8
PWR_OK Inactive to DC Loss Delay (ms)	3.7

待機電源消耗

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.06 V	115.02 V	113.85 V	115.10 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.14 %	0.11 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.039 W	0.021 W	N/A	0.058 W	N/A	N/A
Apparent Power:	10.025 W	9.922 W	N/A	10.128 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.00 V	230.90 V	227.70 V	231.06 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.26 %	2.00 %	PASS
Real Power:	0.130 W	0.087 W	N/A	0.188 W	N/A	N/A
Apparent Power:	33.664 W	33.462 W	N/A	33.914 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

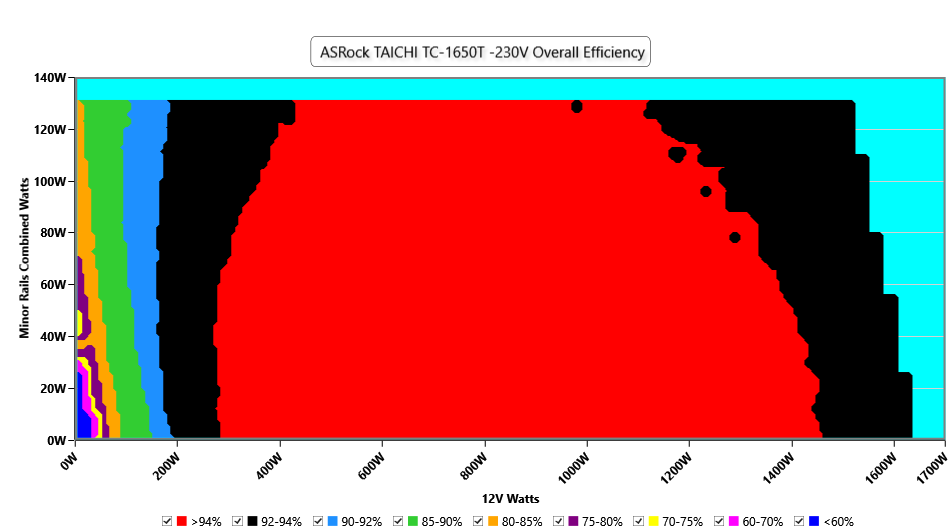

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

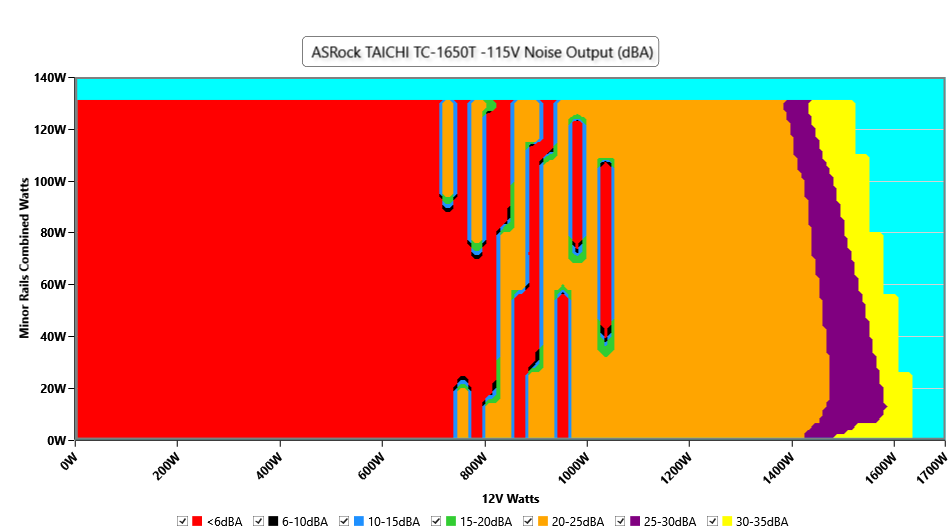

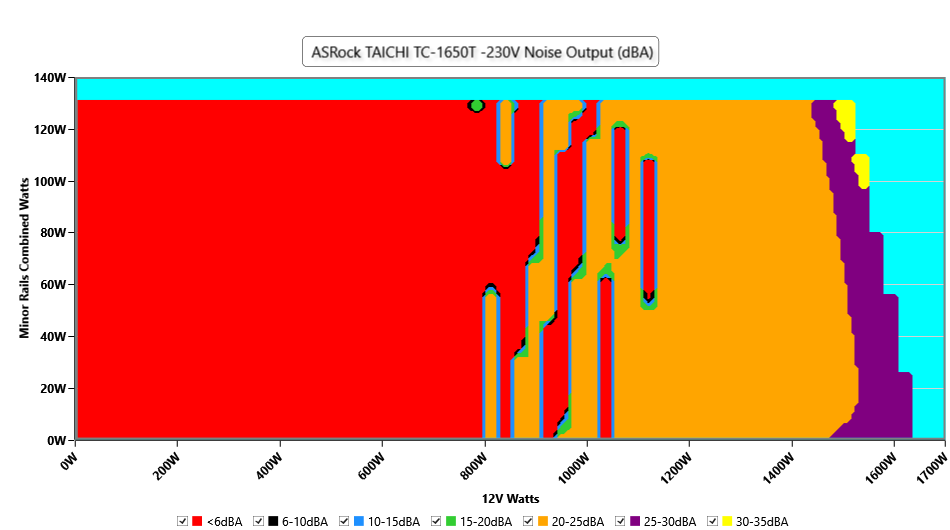

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

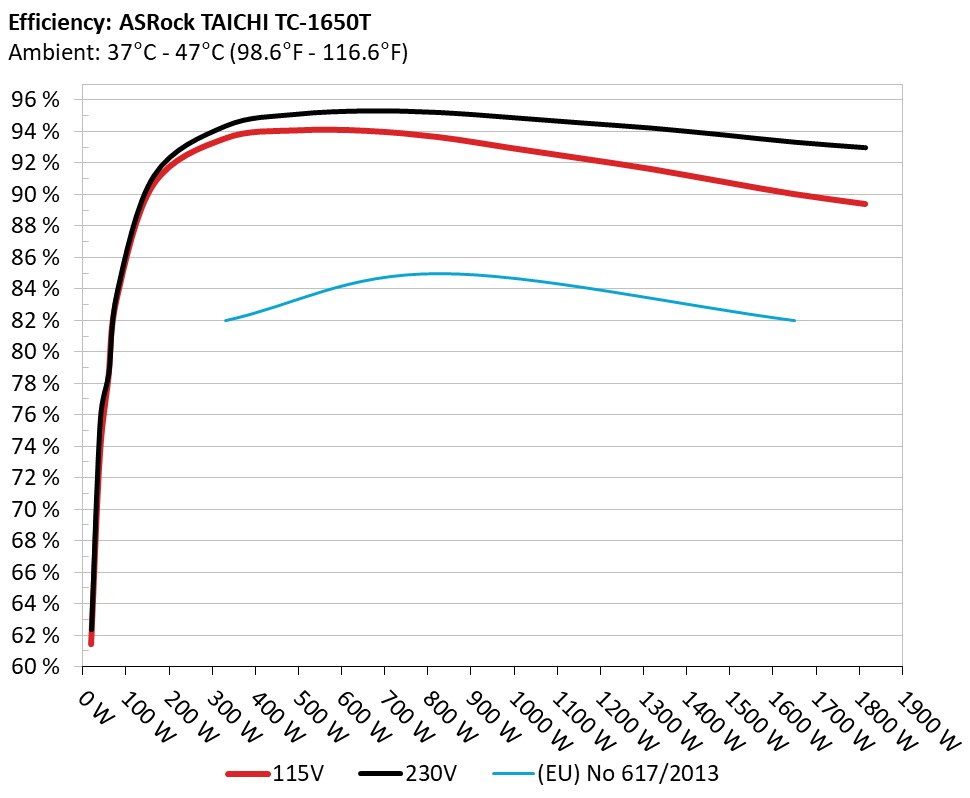

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

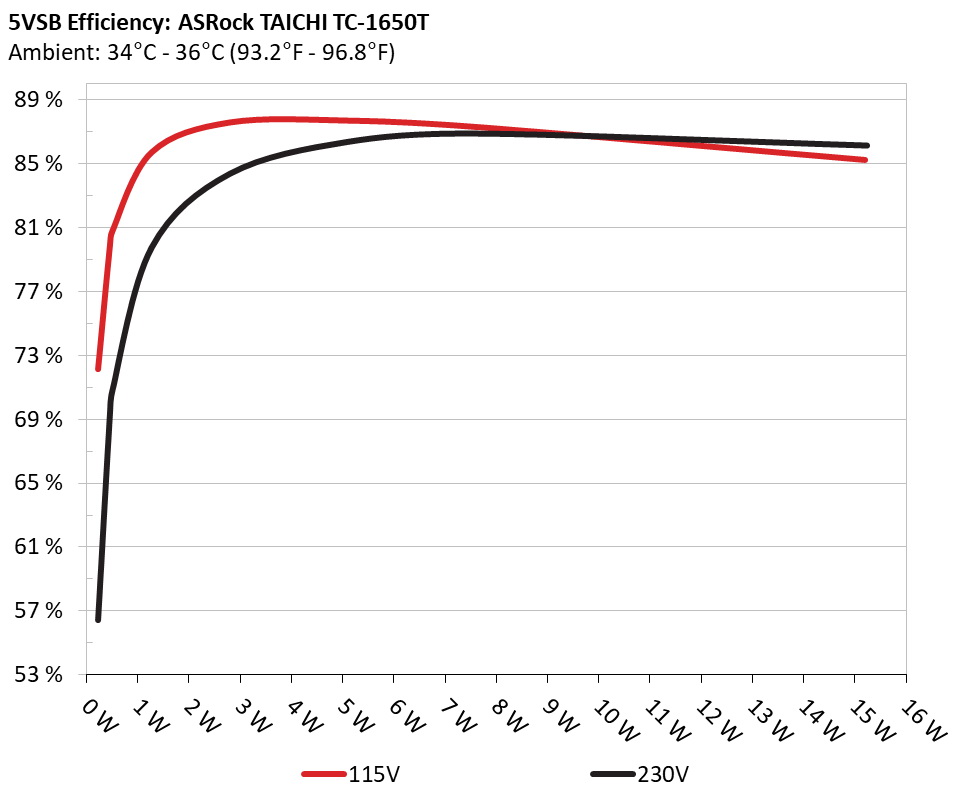

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	72.132%	0.031
1	5.115V	0.318W	72.132%	114.86V
2	0.09A	0.459W	79.81%	0.056
2	5.094V	0.575W	79.81%	114.85V
3	0.55A	2.801W	87.607%	0.254
3	5.091V	3.197W	87.607%	114.84V
4	1A	5.098W	87.72%	0.36
4	5.097V	5.813W	87.72%	114.85V
5	1.5A	7.642W	87.311%	0.417
5	5.094V	8.753W	87.311%	114.85V
6	3.001A	15.19W	85.253%	0.501
6	5.062V	17.819W	85.253%	114.85V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	56.446%	0.012
1	5.114V	0.408W	56.446%	229.83V
2	0.09A	0.459W	69.22%	0.02
2	5.098V	0.663W	69.22%	229.83V
3	0.55A	2.801W	84.383%	0.094
3	5.091V	3.319W	84.383%	229.82V
4	1A	5.095W	86.381%	0.158
4	5.094V	5.899W	86.381%	229.82V
5	1.5A	7.645W	86.901%	0.218
5	5.095V	8.798W	86.901%	229.82V
6	3.001A	15.239W	86.154%	0.327
6	5.079V	17.688W	86.154%	229.83V

Supplementary Tests (For Reference)

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	11.859A	1.987A	1.981A	0.982A	164.948	90.64%	0	<6.0	48.82°C	0.969
10%	12.088V	5.032V	3.332V	5.091V	181.984	90.64%	0	<6.0	40.34°C	114.78V
20%	24.748A	2.979A	2.971A	1.18A	329.952	93.53%	0	<6.0	49.05°C	0.962
20%	12.084V	5.034V	3.332V	5.084V	352.768	93.53%	0	<6.0	40.75°C	114.73V
30%	37.937A	3.477A	3.468A	1.379A	494.347	94.041%	0	<6.0	50.96°C	0.97
30%	12.080V	5.032V	3.331V	5.076V	525.675	94.041%	0	<6.0	41.61°C	114.68V
40%	51.200A	3.976A	3.966A	1.579A	659.562	94.012%	0	<6.0	52.42°C	0.98
40%	12.077V	5.03V	3.329V	5.067V	701.576	94.012%	0	<6.0	41.92°C	114.63V
50%	64.136A	4.974A	4.96A	1.78A	824.902	93.619%	0	<6.0	54.44°C	0.984
50%	12.074V	5.027V	3.327V	5.058V	881.122	93.619%	0	<6.0	42.17°C	114.57V
60%	77.005A	5.972A	5.956A	1.981A	989.394	92.941%	0	<6.0	57.91°C	0.989
60%	12.072V	5.024V	3.325V	5.048V	1064.544	92.941%	0	<6.0	42.75°C	114.51V
70%	89.958A	6.972A	6.954A	2.183A	1154.744	92.273%	664	21.4	43.48°C	0.991
70%	12.068V	5.02V	3.322V	5.039V	1251.454	92.273%	664	21.4	61.63°C	114.45V
80%	102.942A	7.972A	7.951A	2.285A	1319.572	91.588%	667	21.5	43.84°C	0.993
80%	12.062V	5.017V	3.32V	5.032V	1440.784	91.588%	667	21.5	61.83°C	114.39V
90%	116.317A	8.475A	8.437A	2.389A	1484.978	90.785%	909	29.8	44.83°C	0.994
90%	12.057V	5.014V	3.318V	5.023V	1635.709	90.785%	909	29.8	61.41°C	114.31V
100%	129.452A	8.977A	8.956A	2.995A	1649.773	90.005%	1228	37.8	45.67°C	0.995
100%	12.051V	5.012V	3.316V	5.009V	1832.986	90.005%	1228	37.8	56.52°C	114.26V
110%	142.458A	9.98A	10.051A	2.998A	1814.364	89.376%	1372	38.7	42.11°C	0.996
110%	12.046V	5.01V	3.312V	5.004V	2030.015	89.376%	1372	38.7	57.14°C	114.2V
CL1	0.116A	15.6A	15.499A	0A	131.301	83.408%	0	<6.0	54.44°C	0.965
CL1	12.088V	5.019V	3.329V	5.082V	157.416	83.408%	0	<6.0	42.2°C	114.79V
CL2	0.115A	24.941A	0A	0A	126.26	80.983%	0	<6.0	55.37°C	0.965
CL2	12.090V	5.007V	3.329V	5.083V	155.912	80.983%	0	<6.0	40.22°C	114.79V
CL3	0.115A	0A	24.664A	0A	83.877	77.79%	0	<6.0	531.3°C	0.96
CL3	11.953V	5.026V	3.345V	5.064V	107.822	77.79%	0	<6.0	40.71°C	114.82V
CL4	136.878A	0A	0A	0A	1649.531	90.494%	1035	33.7	44.9°C	0.995
CL4	12.051V	5.018V	3.316V	5.024V	1822.82	90.494%	1035	33.7	56.75°C	114.26V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	11.858A	1.987A	1.98A	0.982A	164.948	91.21%	0	<6.0	49.12°C	0.904
10%	12.089V	5.032V	3.333V	5.091V	180.843	91.21%	0	<6.0	40.15°C	229.81V
20%	24.746A	2.98A	2.97A	1.18A	329.953	94.349%	0	<6.0	49.8°C	0.926
20%	12.085V	5.034V	3.334V	5.084V	349.709	94.349%	0	<6.0	40.71°C	229.78V
30%	37.938A	3.478A	3.467A	1.379A	494.36	95.107%	0	<6.0	51.12°C	0.933
30%	12.081V	5.032V	3.332V	5.076V	519.788	95.107%	0	<6.0	41.06°C	229.75V
40%	51.202A	3.977A	3.964A	1.579A	659.575	95.319%	0	<6.0	50.56°C	0.942
40%	12.077V	5.029V	3.33V	5.067V	691.963	95.319%	0	<6.0	41.64°C	229.73V
50%	64.138A	4.974A	4.958A	1.78A	824.925	95.221%	0	<6.0	52.94°C	0.95
50%	12.074V	5.026V	3.328V	5.057V	866.328	95.221%	0	<6.0	42.01°C	229.7V
60%	77.008A	5.973A	5.954A	1.981A	989.429	94.908%	0	<6.0	55.22°C	0.961
60%	12.072V	5.023V	3.326V	5.048V	1042.539	94.908%	0	<6.0	42.86°C	229.68V
70%	89.965A	6.973A	6.951A	2.183A	1154.777	94.561%	662	21.4	43.08°C	0.966
70%	12.067V	5.02V	3.324V	5.039V	1221.172	94.561%	662	21.4	53.49°C	229.65V
80%	102.953A	7.974A	7.948A	2.285A	1319.599	94.227%	664	21.4	43.83°C	0.97
80%	12.061V	5.016V	3.321V	5.032V	1400.472	94.227%	664	21.4	53.62°C	229.61V
90%	116.336A	8.476A	8.435A	2.389A	1485.004	93.794%	809	27.4	44.11°C	0.974
90%	12.056V	5.014V	3.319V	5.023V	1583.244	93.794%	809	27.4	53.95°C	229.59V
100%	129.468A	8.979A	8.953A	2.996A	1649.802	93.333%	1210	37.2	45.76°C	0.977
100%	12.050V	5.011V	3.317V	5.008V	1767.64	93.333%	1210	37.2	51.86°C	229.56V
110%	142.472A	9.982A	10.057A	3.001A	1814.276	92.983%	1176	34.9	42.68°C	0.979
110%	12.044V	5.009V	3.311V	5V	1951.205	92.983%	1176	34.9	53.11°C	229.53V
CL1	0.116A	15.606A	15.502A	0A	131.296	83.803%	0	<6.0	48.03°C	0.896
CL1	12.092V	5.017V	3.328V	5.079V	156.677	83.803%	0	<6.0	40.29°C	229.81V
CL2	0.115A	24.947A	0A	0A	126.261	81.389%	0	<6.0	48.19°C	0.895
CL2	12.091V	5.005V	3.328V	5.08V	155.134	81.389%	0	<6.0	40.16°C	229.81V
CL3	0.115A	0A	24.686A	0A	83.878	78.178%	0	<6.0	47.5°C	0.855
CL3	11.951V	5.027V	3.342V	5.064V	107.299	78.178%	0	<6.0	40.71°C	229.85V
CL4	136.872A	0A	0A	0A	1649.54	93.689%	1069	34.6	44.18°C	0.977
CL4	12.051V	5.018V	3.315V	5.022V	1760.659	93.689%	1069	34.6	52.98°C	229.56V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.497A	0.495A	0.197A	19.997	61.456%	0	<6.0	41.87°C	0.896
20W	12.076V	5.034V	3.334V	5.083V	32.514	61.456%	0	<6.0	36.21°C	114.82V
40W	2.706A	0.695A	0.693A	0.295A	39.998	73.322%	0	<6.0	45.04°C	0.936
40W	12.076V	5.033V	3.334V	5.083V	54.55	73.322%	0	<6.0	38.16°C	114.81V
60W	4.184A	0.894A	0.891A	0.394A	59.998	78.352%	0	<6.0	46.7°C	0.95
60W	12.078V	5.033V	3.334V	5.083V	76.578	78.352%	0	<6.0	38.56°C	114.81V
80W	5.654A	1.092A	1.089A	0.492A	79.936	83.429%	0	<6.0	47.72°C	0.956
80W	12.079V	5.033V	3.333V	5.083V	95.81	83.429%	0	<6.0	39.28°C	114.81V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.229A	0.497A	0.495A	0.197A	19.991	62.346%	0	<6.0	43.96°C	0.565
20W	12.076V	5.034V	3.335V	5.084V	32.056	62.346%	0	<6.0	36.12°C	229.84V
40W	2.706A	0.695A	0.693A	0.295A	39.994	75.653%	0	<6.0	45.55°C	0.719
40W	12.077V	5.033V	3.335V	5.084V	52.017	75.653%	0	<6.0	37.38°C	229.83V
60W	4.182A	0.894A	0.89A	0.393A	59.995	78.621%	0	<6.0	47.9°C	0.811
60W	12.080V	5.033V	3.335V	5.083V	76.32	78.621%	0	<6.0	38.23°C	229.84V
80W	5.654A	1.093A	1.088A	0.492A	79.932	83.86%	0	<6.0	49.73°C	0.844
80W	12.080V	5.033V	3.335V	5.084V	95.313	83.86%	0	<6.0	39.71°C	229.82V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	23.78mV	17.25mV	16.57mV	13.65mV	Pass
20% Load	26.19mV	17.55mV	18.93mV	12.01mV	Pass
30% Load	25.06mV	17.35mV	17.55mV	12.52mV	Pass
40% Load	23.78mV	18.17mV	17.14mV	12.62mV	Pass
50% Load	21.84mV	17.35mV	17.08mV	14.31mV	Pass
60% Load	21.28mV	17.35mV	17.14mV	13.90mV	Pass
70% Load	22.50mV	18.42mV	16.68mV	18.06mV	Pass
80% Load	21.63mV	19.71mV	18.57mV	15.96mV	Pass
90% Load	23.58mV	18.63mV	18.06mV	15.96mV	Pass
100% Load	39.92mV	18.75mV	17.51mV	18.93mV	Pass
110% Load	39.31mV	20.61mV	18.33mV	19.33mV	Pass
Crossload1	42.40mV	19.34mV	17.35mV	10.69mV	Pass
Crossload2	20.71mV	21.66mV	17.18mV	9.85mV	Pass
Crossload3	0.00mV	0.00mV	0.00mV	0.00mV	Pass
Crossload4	35.76mV	20.26mV	18.29mV	12.00mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	22.86mV	16.68mV	16.68mV	13.44mV	Pass
20% Load	29.72mV	17.91mV	17.55mV	11.70mV	Pass
30% Load	27.31mV	18.58mV	16.88mV	12.57mV	Pass
40% Load	23.01mV	17.91mV	17.18mV	12.67mV	Pass
50% Load	24.60mV	18.37mV	17.29mV	15.85mV	Pass
60% Load	22.04mV	18.88mV	18.83mV	13.03mV	Pass
70% Load	22.66mV	17.50mV	17.44mV	17.80mV	Pass
80% Load	24.55mV	18.27mV	17.75mV	15.85mV	Pass
90% Load	24.34mV	17.50mV	17.55mV	16.32mV	Pass
100% Load	35.97mV	18.70mV	17.62mV	19.99mV	Pass
110% Load	37.67mV	19.28mV	18.31mV	19.70mV	Pass
Crossload1	50.57mV	18.53mV	16.87mV	11.20mV	Pass
Crossload2	38.36mV	20.89mV	17.96mV	10.98mV	Pass
Crossload3	0.00mV	0.00mV	0.00mV	0.00mV	Pass
Crossload4	37.36mV	21.31mV	19.64mV	13.64mV	Pass

The results above are not used in the certification process

ASRock Taichi TC-1650T (ATX v3.1)

Top side

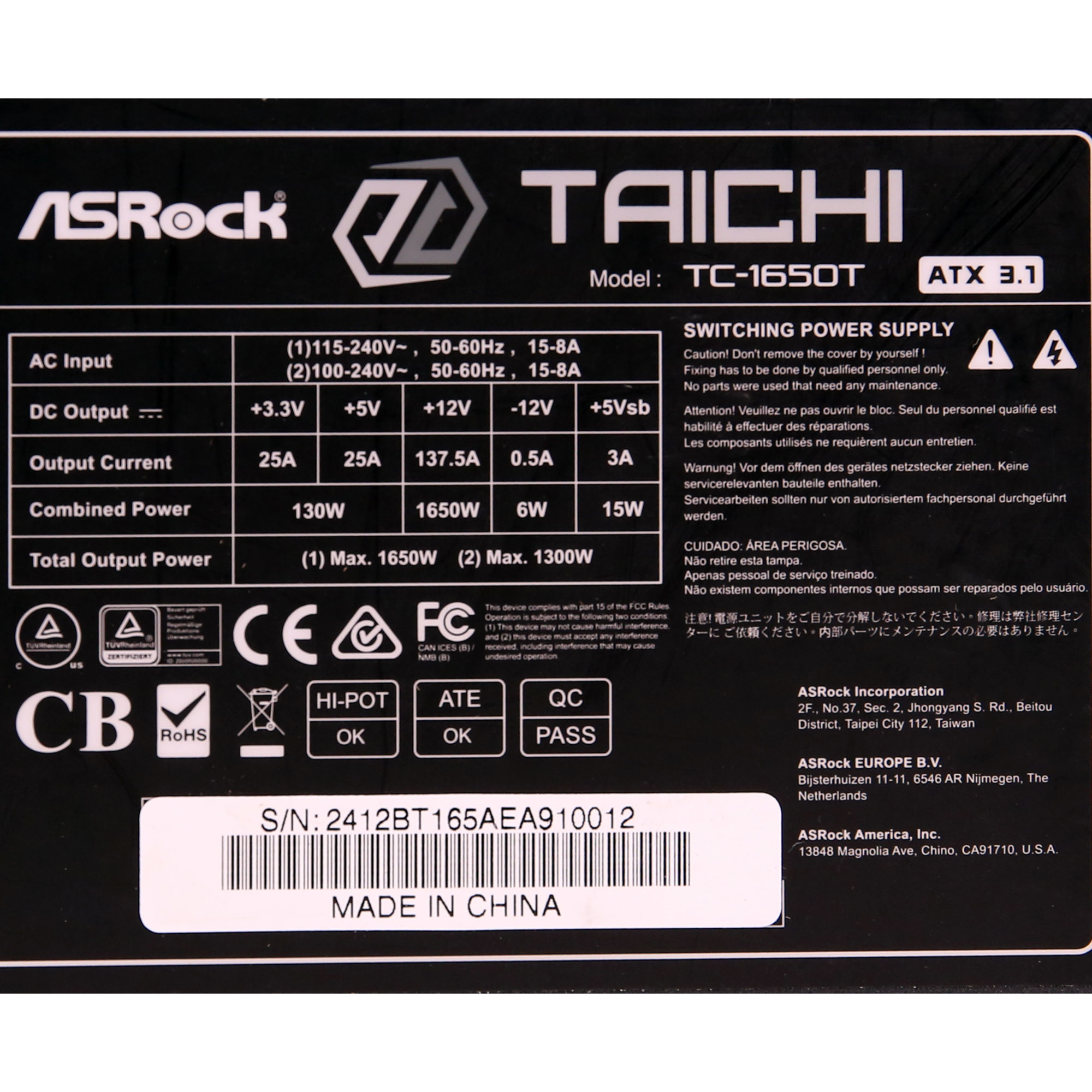

Power specifications label
