SilverStone Triton 750Rx
Serial Number-
Lab IDSL75002710
  • Report: 25PS2710A
  • Receipt Date: Dec 28, 2024
  • Test Date: Jan 16, 2025
  • Report Date: Jan 17, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Andyson
SeriesTriton
Model NumberSST-AX0750FCGD-A
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)4.5-9
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Cooling120mm Sleeve Bearing Fan (S1202512L)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181862.530.3
Watts100750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (560mm) 1 1 18-22AWG No
8 pin EPS12V (670mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 18AWG No
6+2 pin PCIe (530mm) 1 1 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-26AWG No
SATA (510mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No

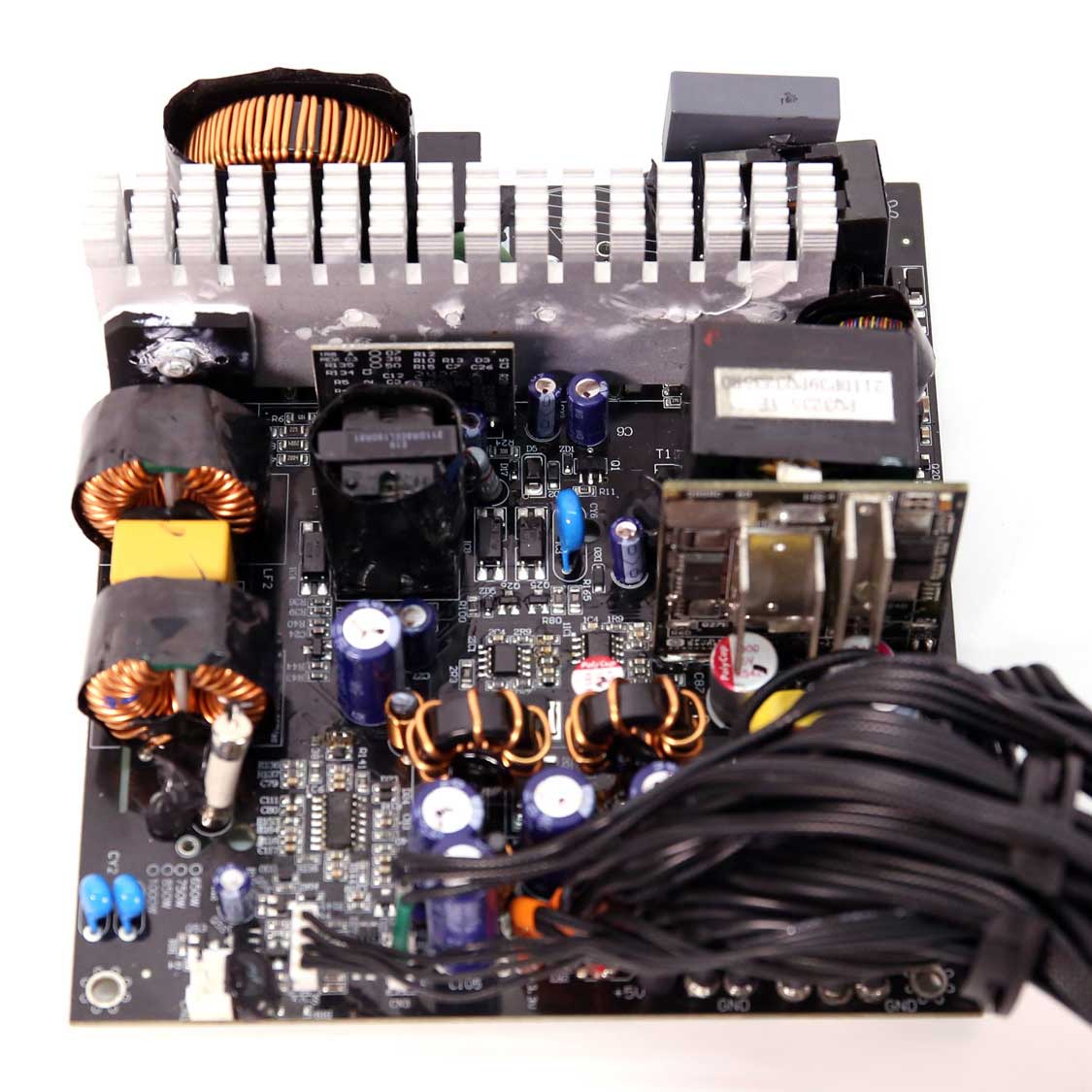

Parts Description

General Data
Manufacturer (OEM)

Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK 056 (5 ohm) & Relay
Bridge Rectifier(s)

2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs

2x Perfect PWE180N65MFS (650V, 13A @ 100°C, Rds(on): 180mOhm)
APFC Boost Diode

1x SID8P65
Bulk Cap(s)

1x Hitachi HU (400V, 470uF, 4,000h @ 105°C, HU)
Main Switchers

2x SI24N50F
Resonant Controller

Champion CM6901T6X
APFC Controller

Champion CM6500UNX & CM03AX (Remove Phantom Power)
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4x
5V & 3.3V DC-DC Converters: 4x WayOn WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) PWM Controller(s): 1x Anpec APW7164
Filtering Capacitors

Electrolytic: 15x Jun Fu (2,000h @105°C, WG) Polymer: 5x Polycap
Supervisor IC Esthome EST.7630FS

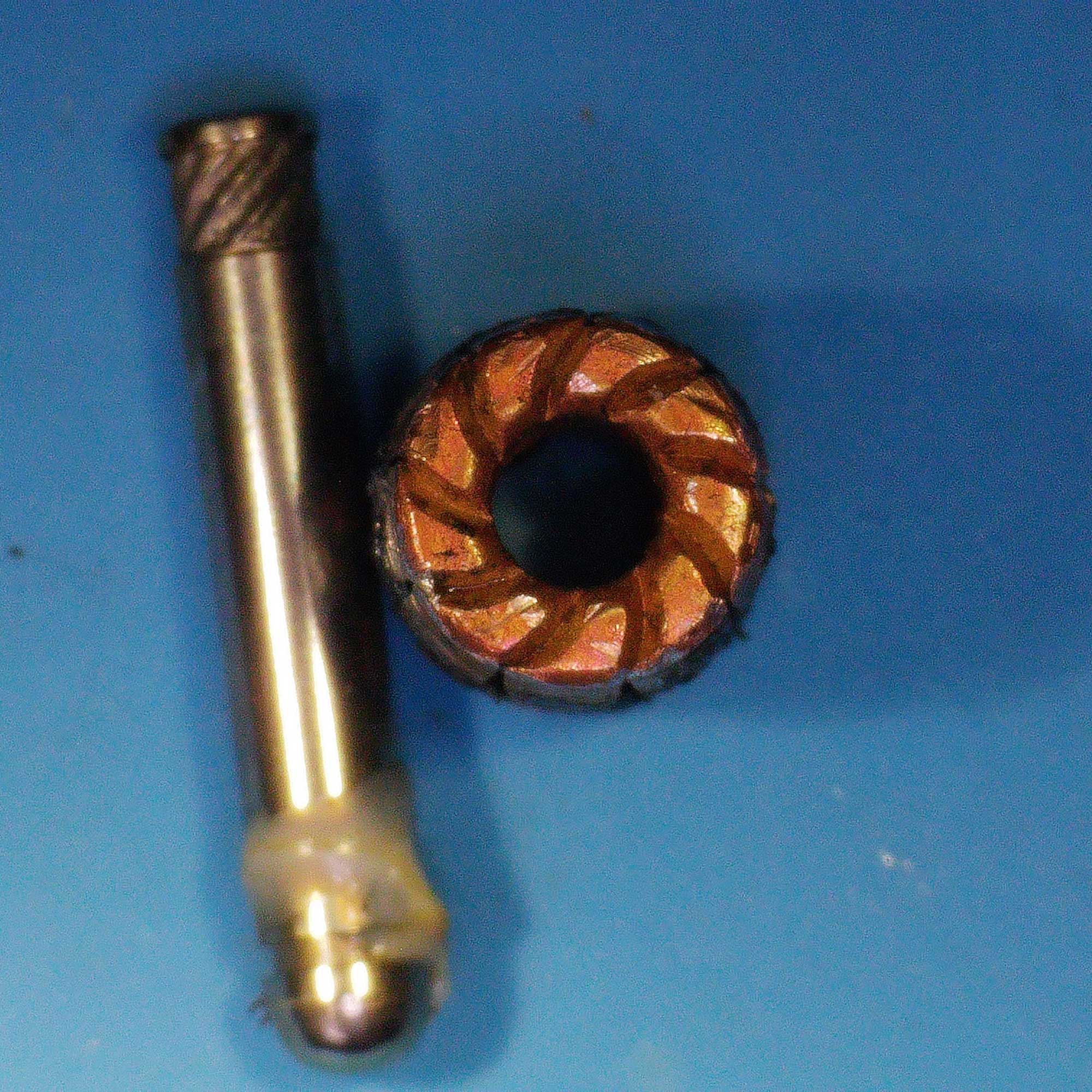

Fan Model Globe Fan S1202512L (120mm, 12V, 0.18A, Sleeve Bearing Fan)
5VSB
Rectifier

1x Chongqing Pingwei PS1045L SBR (45V, 10A) & Chongqing Pingwei US2MG
Standby PWM Controller

Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)13.4
AC Loss to PWR_OK Hold Up Time (ms)11.7
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.00 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.074 W -0.010 W N/A 0.104 W N/A N/A
Apparent Power: 9.035 W 8.371 W N/A 9.717 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.99 V 230.88 V 227.70 V 231.04 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.101 W 0.061 W N/A 0.141 W N/A N/A
Apparent Power: 27.743 W 26.976 W N/A 28.602 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

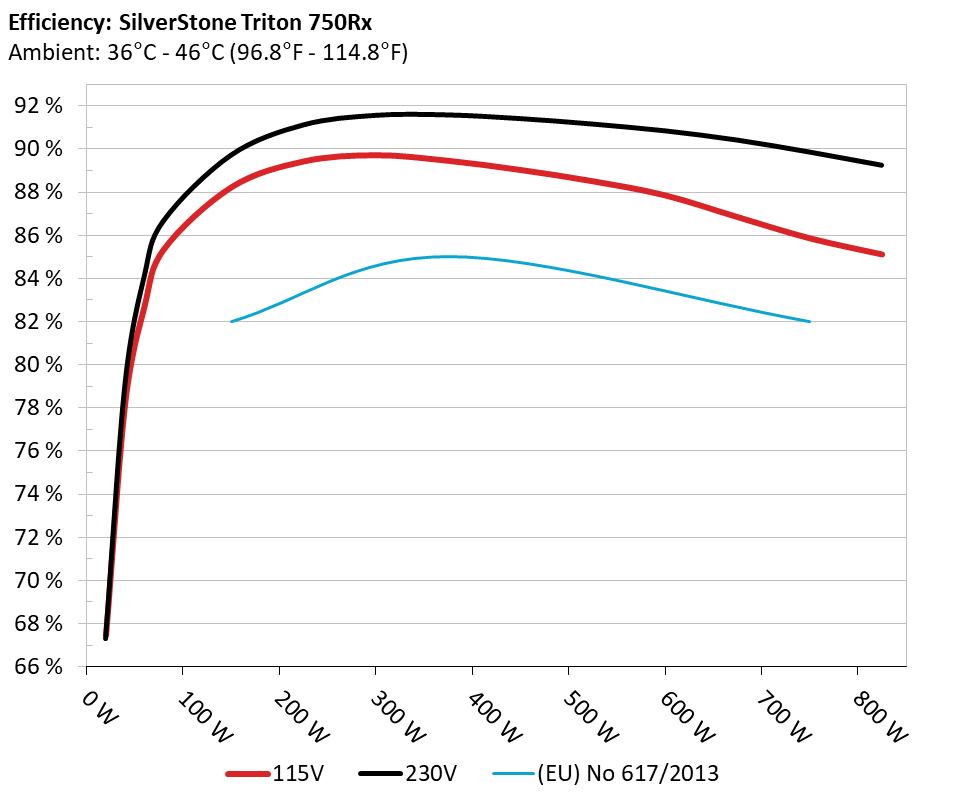

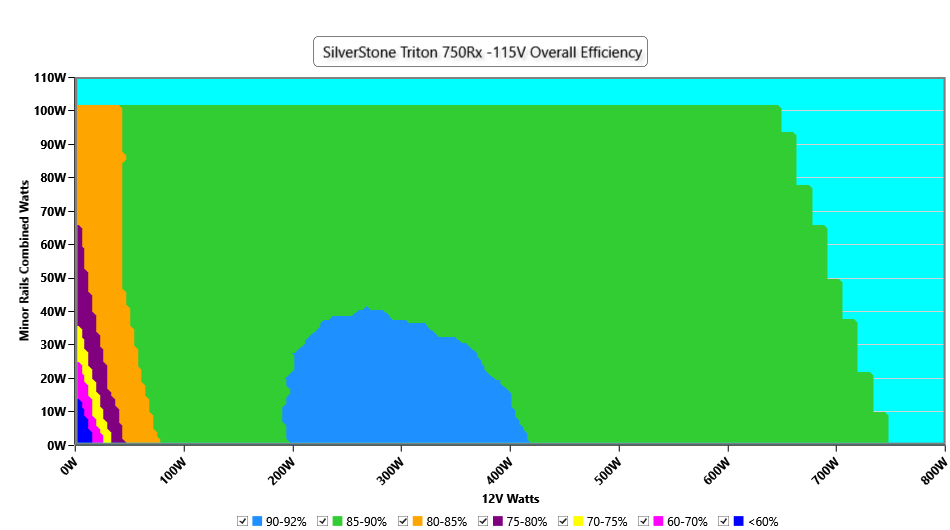

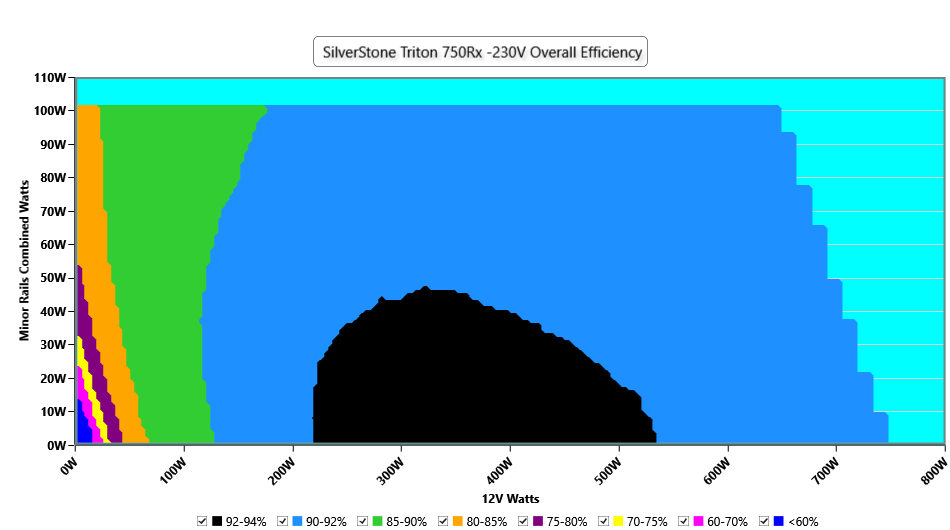

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

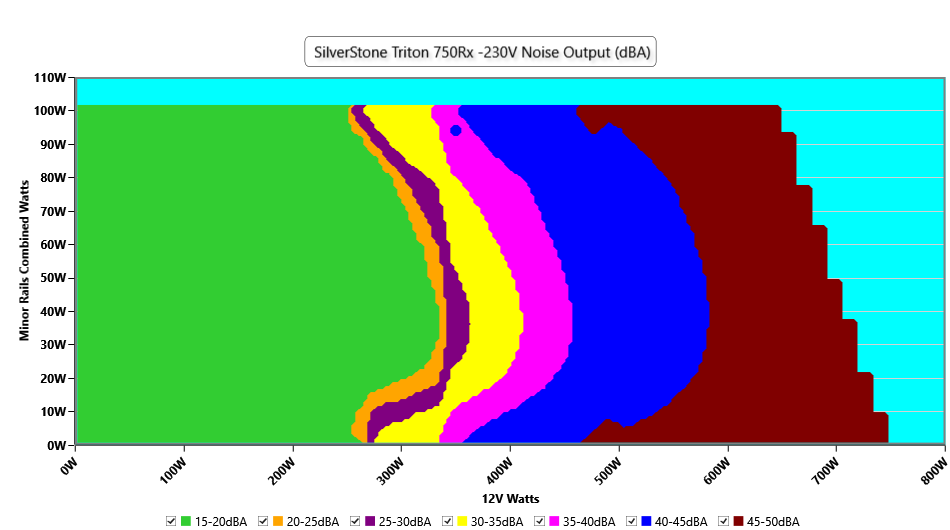

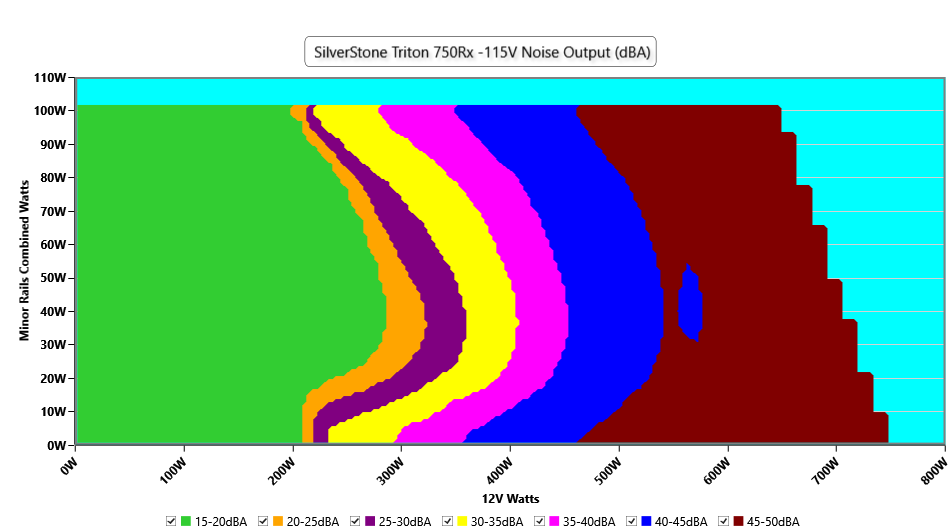

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

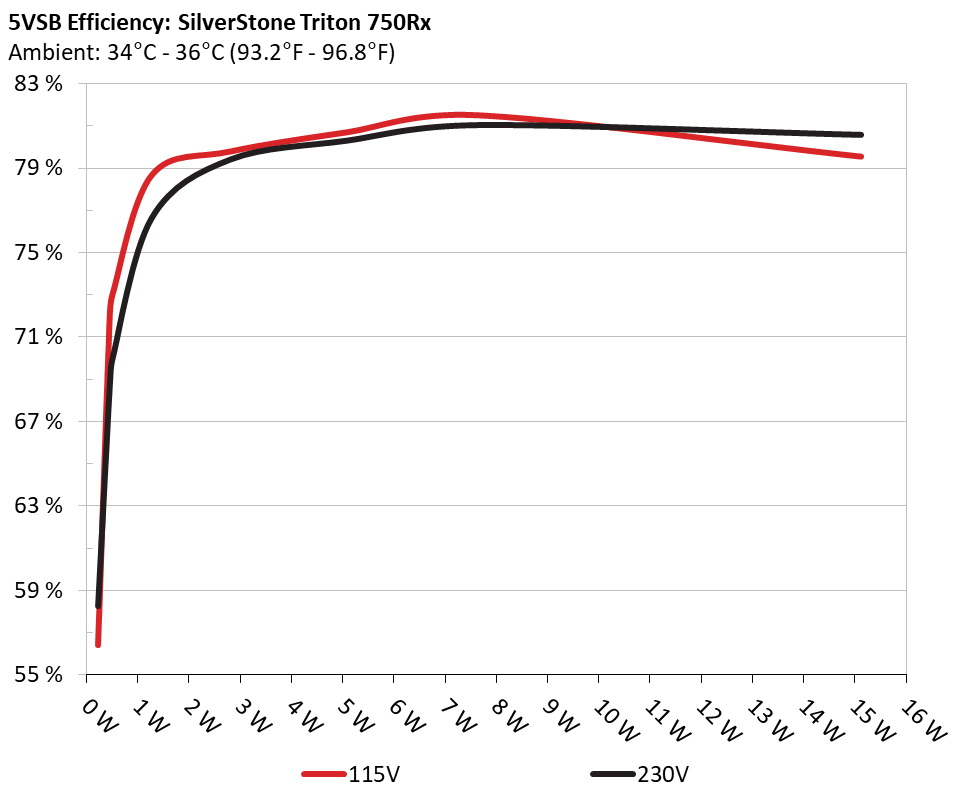

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 56.399% 0.039
5.127V 0.304W 114.96V
2 0.09A 0.461W 72.154% 0.081
5.124V 0.64W 114.96V
3 0.55A 2.812W 79.805% 0.309
5.111V 3.523W 114.96V
4 1A 5.099W 80.719% 0.395
5.098V 6.318W 114.97V
5 1.5A 7.627W 81.522% 0.436
5.083V 9.355W 114.96V
6 3A 15.112W 79.561% 0.494
5.037V 18.995W 114.95V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 58.252% 0.015
5.11V 0.395W 230.11V
2 0.09A 0.461W 68.808% 0.026
5.123V 0.67W 230.09V
3 0.55A 2.812W 79.43% 0.129
5.11V 3.541W 230.06V
4 1A 5.099W 80.327% 0.207
5.098V 6.348W 230.06V
5 1.5A 7.628W 81.06% 0.268
5.084V 9.41W 230.06V
6 3.001A 15.118W 80.595% 0.364
5.039V 18.76W 230.06V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.421A 1.967A 1.94A 0.983A 75.007 83.966% 735 20.2 40.46°C 0.953
12.080V 5.085V 3.402V 5.088V 89.331 45.84°C 114.95V
20% 9.860A 2.956A 2.918A 1.183A 149.972 88.232% 1186 35.4 40.53°C 0.961
12.077V 5.076V 3.393V 5.074V 169.976 46.54°C 114.93V
30% 15.650A 3.455A 3.413A 1.384A 224.978 89.429% 1496 42.3 41.27°C 0.963
12.071V 5.066V 3.384V 5.06V 251.573 47.85°C 114.9V
40% 21.459A 3.956A 3.912A 1.586A 300.07 89.716% 1714 44.5 41.87°C 0.971
12.063V 5.057V 3.375V 5.046V 334.466 49.36°C 114.87V
50% 26.899A 4.955A 4.904A 1.789A 374.712 89.463% 1881 49 42.07°C 0.977
12.052V 5.047V 3.365V 5.031V 418.846 50.77°C 114.86V
60% 32.372A 5.957A 5.903A 1.994A 449.647 89.035% 1888 49.1 42.73°C 0.982
12.042V 5.038V 3.355V 5.016V 505.027 52.7°C 114.84V
70% 37.854A 6.964A 6.908A 2.2A 524.579 88.515% 1892 49.2 43.22°C 0.984
12.032V 5.028V 3.344V 5.001V 592.645 55.7°C 114.82V
80% 43.412A 7.973A 7.917A 2.306A 599.779 87.861% 1894 49.2 43.71°C 0.986
12.022V 5.018V 3.335V 4.988V 682.65 57.94°C 114.79V
90% 49.309A 8.486A 8.426A 2.412A 674.807 86.855% 1896 49.2 44.02°C 0.987
12.012V 5.009V 3.323V 4.976V 776.924 61.3°C 114.77V
100% 55.021A 9.002A 8.965A 3.032A 750.007 85.868% 1898 49.3 45.43°C 0.988
12.001V 4.999V 3.313V 4.947V 873.441 65.83°C 114.76V
110% 60.614A 10.026A 10.09A 3.039A 825.004 85.118% 1895 49.2 44.09°C 0.989
11.989V 4.987V 3.3V 4.937V 969.27 65.56°C 114.74V
CL1 0.116A 11.887A 11.7A 0A 101.305 81.225% 1745 45 40.48°C 0.978
12.064V 5.065V 3.393V 5.1V 124.721 47.32°C 114.93V
CL2 0.116A 17.749A 0A 0A 91.402 80.599% 1651 43.8 40.81°C 0.981
12.071V 5.071V 3.395V 5.108V 113.402 45.4°C 114.93V
CL3 0.116A 0A 17.479A 0A 60.795 74.096% 1651 43.8 41.91°C 0.951
12.066V 5.074V 3.398V 5.104V 82.049 46.54°C 114.95V
CL4 62.384A 0A 0A 0.001A 749.758 87.294% 1651 43.8 44.44°C 0.988
12.018V 5.021V 3.323V 5.052V 858.892 62.6°C 114.76V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.420A 1.966A 1.942A 0.983A 75.007 85.207% 790 23.2 40.2°C 0.831
12.081V 5.087V 3.4V 5.088V 88.03 45.44°C 230.09V
20% 9.858A 2.956A 2.921A 1.183A 149.969 89.719% 1161 34.7 40.59°C 0.907
12.077V 5.076V 3.389V 5.074V 167.129 45.72°C 230.07V
30% 15.649A 3.455A 3.418A 1.384A 224.975 91.122% 1493 42.3 41.23°C 0.927
12.072V 5.067V 3.38V 5.06V 246.893 46.54°C 230.07V
40% 21.459A 3.956A 3.917A 1.586A 300.068 91.568% 1705 44.5 41.54°C 0.939
12.063V 5.057V 3.371V 5.046V 327.698 47.51°C 230.06V
50% 26.897A 4.955A 4.912A 1.789A 374.693 91.587% 1887 49.1 42.1°C 0.945
12.053V 5.047V 3.359V 5.031V 409.109 49.34°C 230.06V
60% 32.367A 5.956A 5.913A 1.994A 449.606 91.418% 1889 49.1 42.52°C 0.95
12.043V 5.038V 3.349V 5.016V 491.814 50.65°C 230.05V
70% 37.849A 6.962A 6.919A 2.2A 524.545 91.166% 1892 49.2 43.39°C 0.956
12.032V 5.029V 3.339V 5.002V 575.37 52.26°C 230.04V
80% 43.407A 7.971A 7.931A 2.305A 599.721 90.852% 1893 49.2 43.7°C 0.961
12.022V 5.018V 3.328V 4.989V 660.113 53.77°C 230.03V
90% 49.308A 8.485A 8.418A 2.411A 674.779 90.425% 1895 49.2 44.05°C 0.963
12.012V 5.009V 3.326V 4.978V 746.244 55.93°C 230.02V
100% 55.023A 8.999A 8.96A 3.032A 749.993 89.867% 1897 49.3 45.64°C 0.965
12.000V 5.001V 3.315V 4.948V 834.558 59.46°C 230.01V
110% 60.624A 10.019A 10.08A 3.038A 825.013 89.258% 1894 49.2 42.03°C 0.967
11.987V 4.99V 3.303V 4.938V 924.291 57.64°C 229.99V
CL1 0.116A 11.88A 11.691A 0A 101.303 82.53% 1786 46.1 40.74°C 0.877
12.064V 5.067V 3.395V 5.1V 122.747 46.87°C 230.08V
CL2 0.116A 17.738A 0A 0A 91.4 81.886% 1555 42.2 40.15°C 0.863
12.071V 5.074V 3.395V 5.108V 111.618 44.64°C 230.09V
CL3 0.116A 0A 17.472A 0A 60.794 75.662% 1330 38.6 40.09°C 0.816
12.065V 5.074V 3.4V 5.104V 80.348 44.54°C 230.09V
CL4 62.394A 0A 0A 0.001A 749.81 90.856% 1897 49.3 44.23°C 0.964
12.017V 5.022V 3.323V 5.053V 825.27 54.57°C 230.01V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.484A 0.196A 20.001 67.471% 711 19.3 36.36°C 0.882
12.080V 5.089V 3.407V 5.115V 29.645 37.18°C 114.97V
40W 2.706A 0.687A 0.678A 0.294A 40.003 78.287% 721 19.7 37.02°C 0.93
12.082V 5.091V 3.406V 5.112V 51.107 40.4°C 114.96V
60W 4.182A 0.885A 0.873A 0.392A 60.002 82.723% 740 20.4 38.83°C 0.946
12.082V 5.089V 3.404V 5.108V 72.535 43.25°C 114.96V
80W 5.656A 1.082A 1.067A 0.49A 79.965 85.353% 743 20.5 39.48°C 0.958
12.082V 5.087V 3.402V 5.103V 93.687 44.66°C 114.95V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.484A 0.195A 20.006 67.311% 707 19.2 36.01°C 0.565
12.082V 5.093V 3.408V 5.116V 29.722 37.89°C 230.09V
40W 2.706A 0.687A 0.678A 0.294A 40.004 79.08% 719 19.6 37.83°C 0.708
12.082V 5.091V 3.405V 5.112V 50.588 41.4°C 230.09V
60W 4.182A 0.884A 0.873A 0.392A 60.003 84.092% 726 19.8 38.61°C 0.792
12.082V 5.09V 3.403V 5.107V 71.355 42.91°C 230.09V
80W 5.656A 1.081A 1.068A 0.49A 79.967 86.673% 731 20 39.12°C 0.836
12.082V 5.088V 3.4V 5.103V 92.265 43.89°C 230.09V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load13.74mV9.23mV7.88mV13.14mVPass
20% Load17.35mV10.20mV9.67mV12.94mVPass
30% Load18.72mV9.79mV10.48mV14.42mVPass
40% Load21.88mV10.00mV11.95mV14.72mVPass
50% Load25.03mV11.22mV9.92mV15.95mVPass
60% Load26.41mV12.55mV10.58mV16.15mVPass
70% Load32.11mV12.70mV11.49mV17.93mVPass
80% Load37.81mV38.00mV16.79mV19.05mVPass
90% Load39.79mV13.26mV16.73mV19.82mVPass
100% Load55.56mV26.92mV20.14mV28.49mVPass
110% Load65.46mV19.27mV21.71mV38.74mVPass
Crossload123.18mV15.71mV17.95mV12.32mVPass
Crossload216.74mV12.65mV8.04mV9.27mVPass
Crossload315.93mV23.31mV22.07mV12.02mVPass
Crossload456.97mV13.05mV11.86mV21.33mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.55mV14.69mV14.60mV12.84mVPass
20% Load13.64mV8.16mV8.85mV11.62mVPass
30% Load20.61mV10.15mV10.89mV13.81mVPass
40% Load22.49mV9.64mV10.53mV13.96mVPass
50% Load24.63mV10.66mV9.61mV14.37mVPass
60% Load28.85mV10.10mV10.43mV14.87mVPass
70% Load26.26mV10.25mV10.22mV14.88mVPass
80% Load35.57mV30.96mV15.97mV18.19mVPass
90% Load40.96mV12.04mV15.21mV18.65mVPass
100% Load64.26mV42.63mV19.89mV30.07mVPass
110% Load71.24mV18.11mV19.90mV34.61mVPass
Crossload117.40mV31.93mV18.56mV10.80mVPass
Crossload214.81mV11.88mV7.53mV8.46mVPass
Crossload315.98mV15.35mV22.38mV11.67mVPass
Crossload461.74mV12.21mV11.01mV18.19mVPass

The results above are not used in the certification process

SilverStone Triton 750Rx

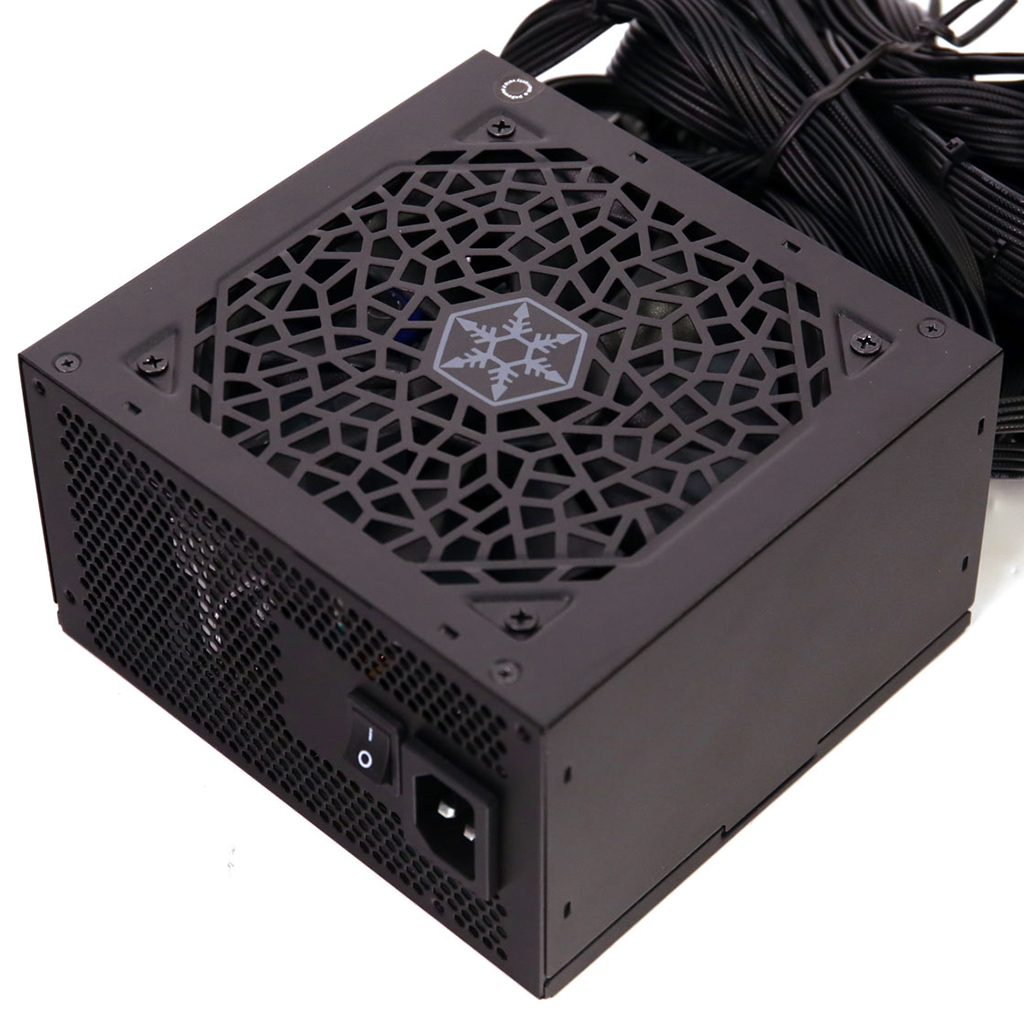

Top side

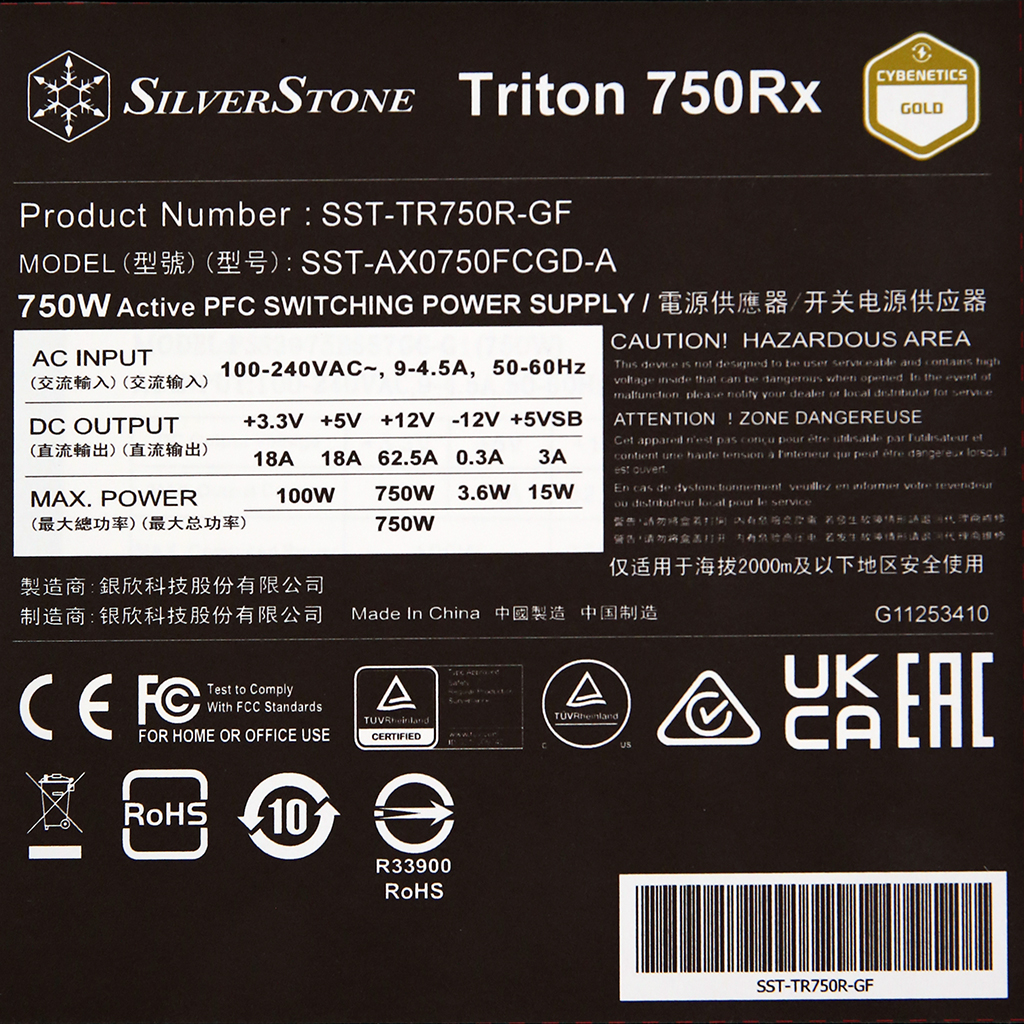

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
