CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

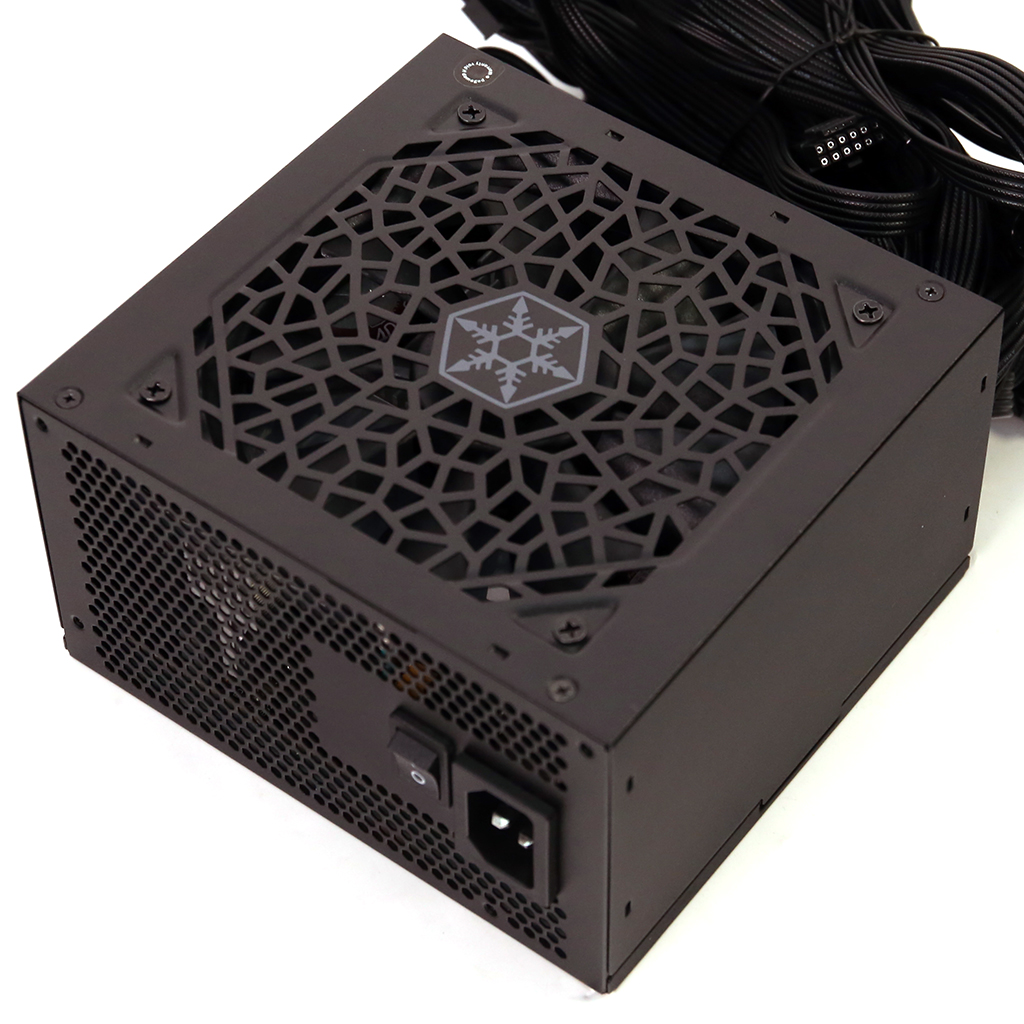

SilverStone Triton 850Rx
-
Lab IDSL85002709
  • Report: 25PS2709A
  • Receipt Date: Dec 28, 2024
  • Test Date: Jan 14, 2025
  • Report Date: Jan 16, 2025
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

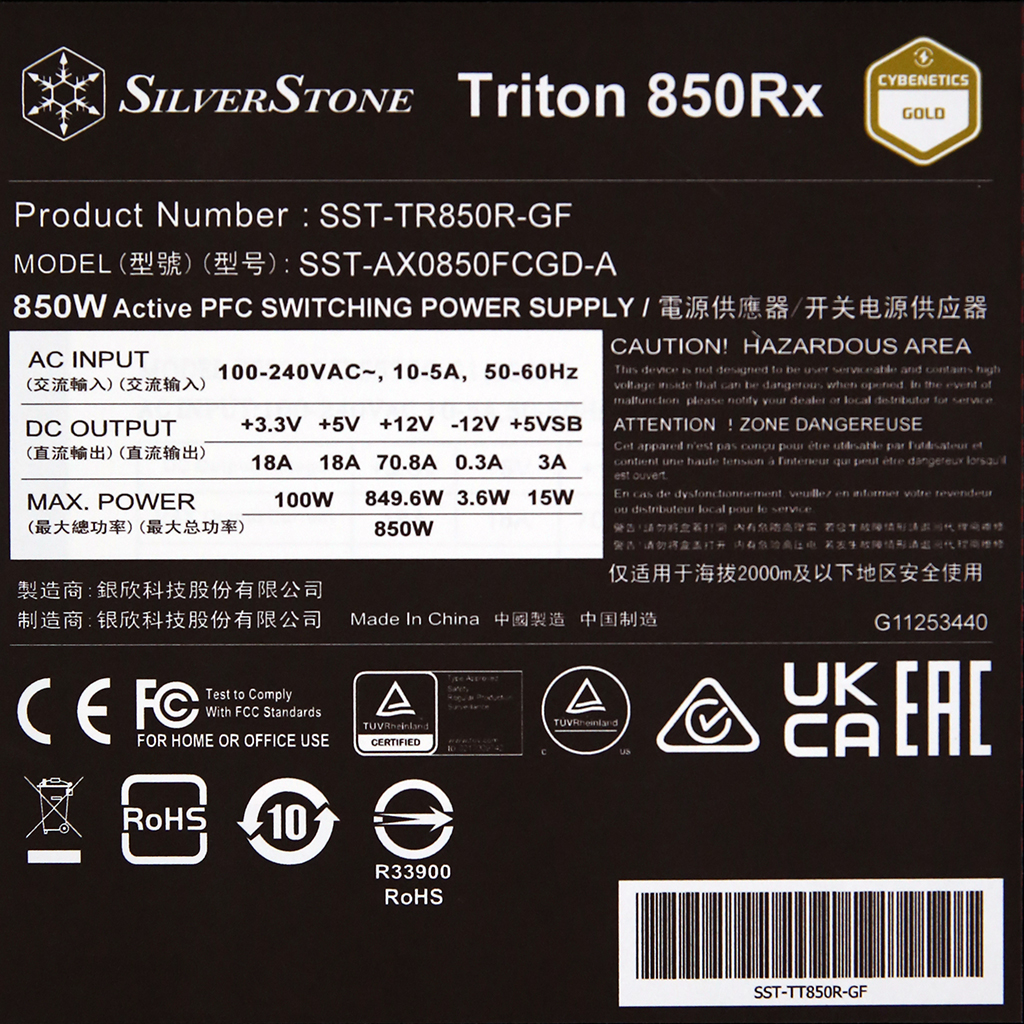

General Information

SilverStone
製造商 (OEM)Andyson
Triton
SST-AX0850FCGD-A
-

(Vrms)100-240
(Arms)5-10
(Hz)50-60
(W)850
ATX12V
120mm Sleeve Bearing Fan (S1202512M)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181870.830.3
Watts100850153.6
Total Max. Power (W)850

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (565mm) 1 1 18AWG No
8 pin EPS12V (655mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (525mm+150mm) 2 4 18AWG No
6+2 pin PCIe (525mm) 1 1 18AWG No
12+4 pin PCIe (595mm) (600W) 1 1 16-26AWG No
SATA (510mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No

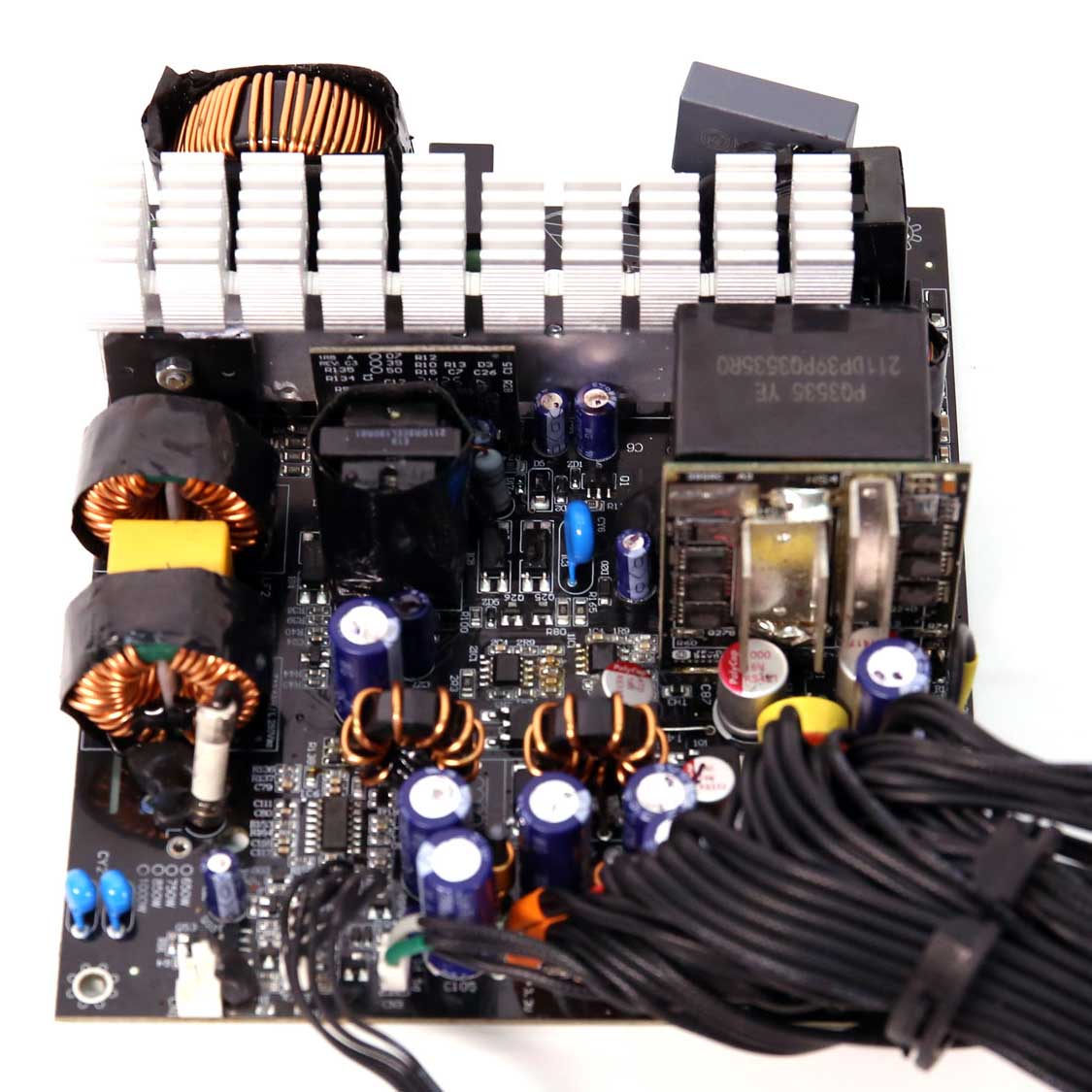

Parts Description

General Data
Manufacturer (OEM)

Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK 056 (5 ohm) & Relay
Bridge Rectifier(s)

2x GBU1506 (800V, 15A @ 100°C)
APFC MOSFETs

2x Perfect PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Boost Diode

1x SID8P65
Bulk Cap(s)

1x Nippon Chemi-con (400V, 680uF, 2,000h @ 105°C, KMR)
Main Switchers

2x Perfect PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
Resonant Controller

Champion CM6901T6X
APFC Controller

Champion CM6500UNX & CM03AX (Remove Phantom Power)
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x
5V & 3.3V DC-DC Converters: 4x WayOn WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) PWM Controller(s): 1x Anpec APW7164
Filtering Capacitors

Electrolytic: 15x Jun Fu (2,000h @105°C, WG) Polymer: 6x Polycap
Supervisor IC Esthome EST.7630FS
Fan Model Globe Fan S1202512M (120mm, 12V, 0.30A, Sleeve Bearing Fan)
5VSB
Rectifier

1x Chongqing Pingwei PS1045L SBR (45V, 10A) & Chongqing Pingwei US2MG
Standby PWM Controller

Esthome EST.3026M

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time (ms)16
AC Loss to PWR_OK Hold Up Time (ms)14.2
PWR_OK Inactive to DC Loss Delay (ms)1.8

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.159 W -0.011 W N/A 0.196 W N/A N/A
Apparent Power: 8.912 W 8.268 W N/A 9.559 W N/A N/A
Power Factor: 0.020 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.88 V 227.70 V 231.05 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.195 W 0.148 W N/A 0.245 W N/A N/A
Apparent Power: 27.364 W 26.674 W N/A 28.085 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A

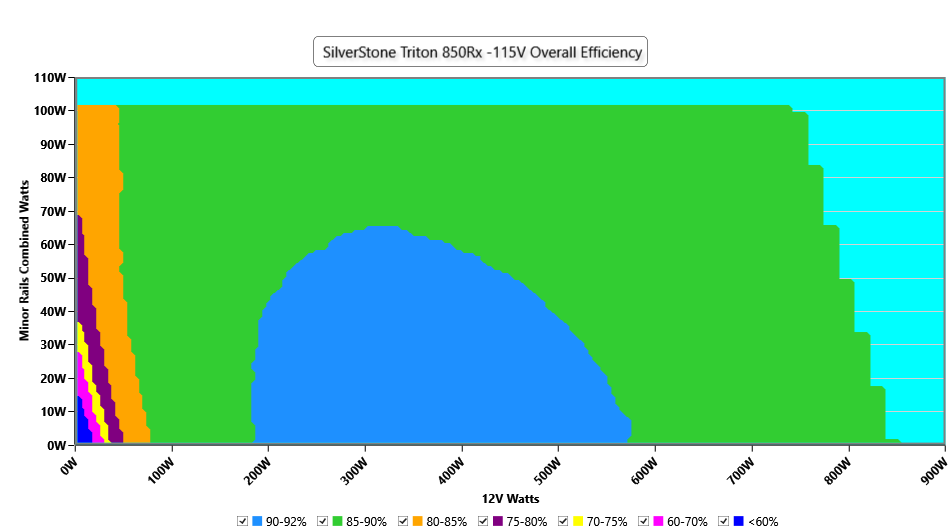

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

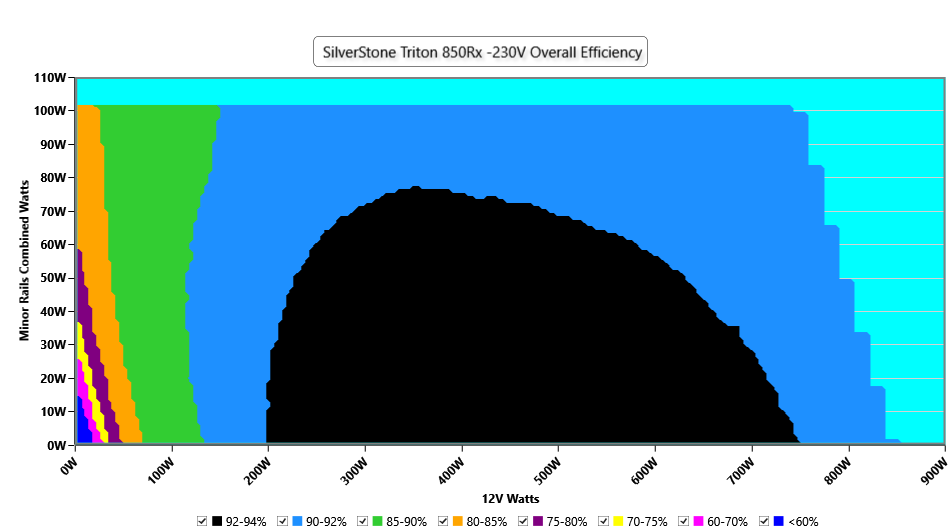

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

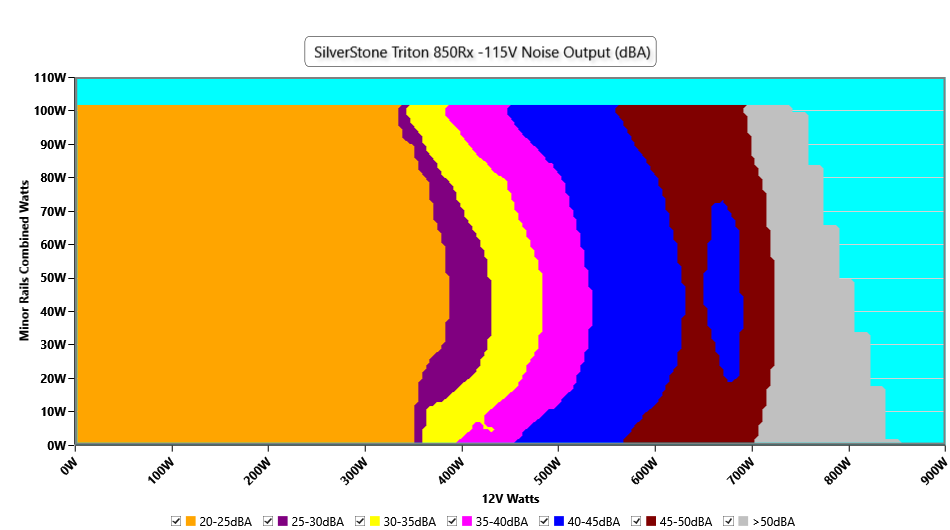

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

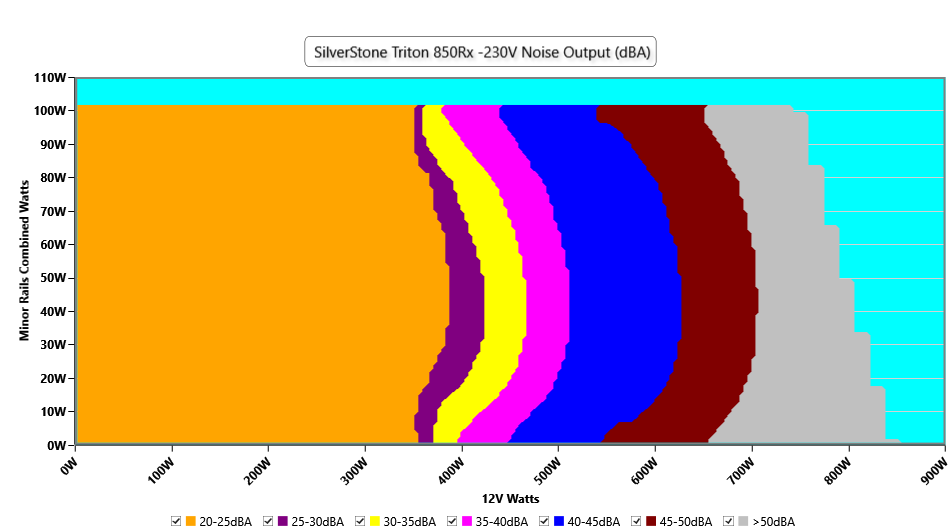

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

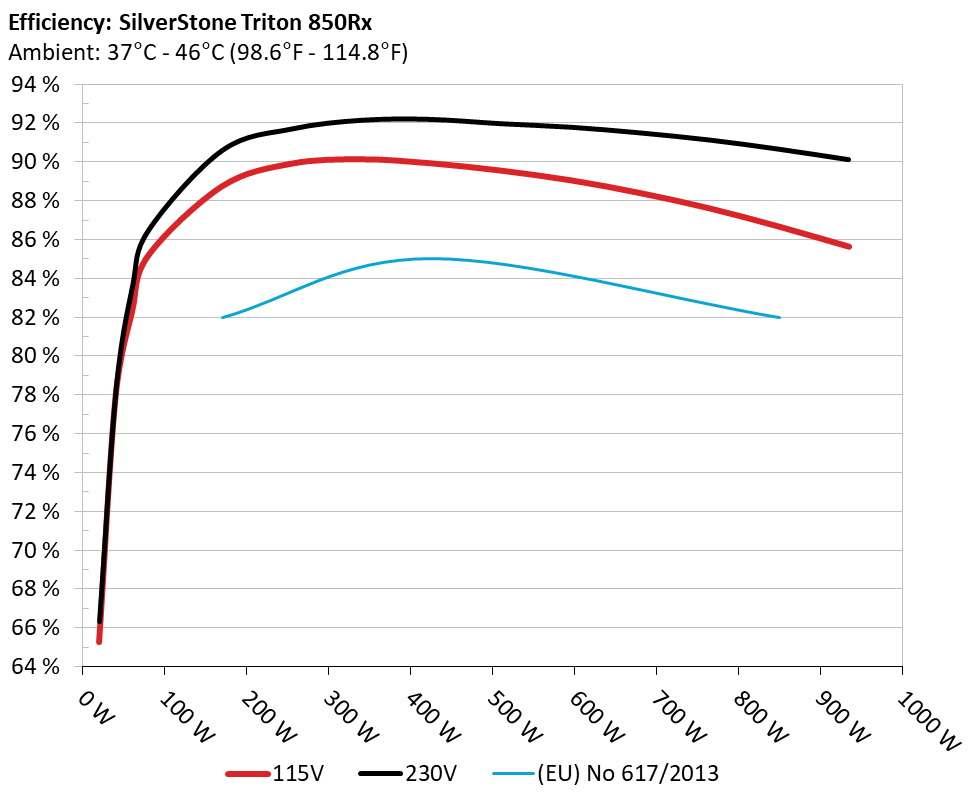

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

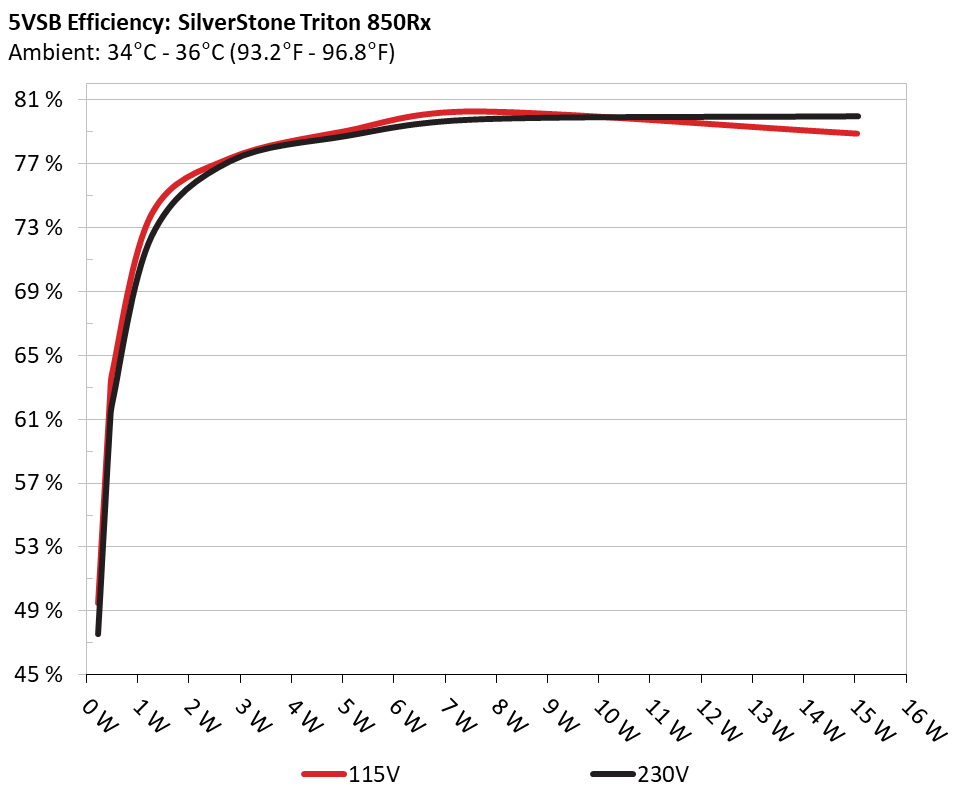

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 49.505% 0.06
5.109V 0.464W 115V
2 0.09A 0.46W 62.272% 0.094
5.108V 0.738W 114.99V
3 0.55A 2.803W 77.322% 0.317
5.094V 3.625W 114.98V
4 1A 5.082W 79.037% 0.402
5.081V 6.431W 114.97V
5 1.5A 7.6W 80.251% 0.442
5.065V 9.471W 114.96V
6 3A 15.051W 78.869% 0.498
5.017V 19.083W 114.96V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 47.531% 0.019
5.112V 0.487W 230.09V
2 0.09A 0.46W 60.608% 0.03
5.11V 0.76W 230.09V
3 0.55A 2.803W 77.155% 0.132
5.095V 3.633W 230.09V
4 1A 5.083W 78.742% 0.21
5.082V 6.455W 230.1V
5 1.5A 7.601W 79.774% 0.27
5.066V 9.528W 230.1V
6 3A 15.054W 79.969% 0.363
5.017V 18.826W 230.1V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.190A 1.974A 1.94A 0.986A 85.005 85.046% 839 25.4 40.16°C 0.955
12.215V 5.067V 3.402V 5.074V 99.953 44.68°C 114.94V
20% 11.390A 2.967A 2.917A 1.186A 169.969 88.754% 1197 35.5 40.89°C 0.951
12.210V 5.057V 3.394V 5.06V 191.509 46.68°C 114.91V
30% 17.940A 3.468A 3.412A 1.387A 254.977 89.921% 1470 41.6 41.35°C 0.96
12.203V 5.048V 3.385V 5.046V 283.561 47.49°C 114.89V
40% 24.509A 3.97A 3.91A 1.59A 340.075 90.145% 1740 44.8 41.55°C 0.97
12.194V 5.039V 3.376V 5.032V 377.236 48.47°C 114.87V
50% 30.741A 4.973A 4.901A 1.794A 425.053 89.937% 1987 50.6 42.1°C 0.976
12.184V 5.029V 3.367V 5.017V 472.612 49.58°C 114.85V
60% 36.948A 5.979A 5.898A 2A 509.589 89.564% 2103 50.2 42.58°C 0.981
12.173V 5.019V 3.358V 5.002V 568.968 50.95°C 114.82V
70% 43.230A 6.99A 6.901A 2.206A 594.919 89.067% 2103 50.2 43.13°C 0.984
12.163V 5.009V 3.348V 4.987V 667.951 53.02°C 114.8V
80% 49.528A 8.003A 7.911A 2.312A 679.755 88.407% 2107 50.3 43.87°C 0.985
12.152V 4.998V 3.337V 4.975V 768.888 55.45°C 114.78V
90% 56.228A 8.52A 8.418A 2.418A 765.202 87.609% 2108 50.3 44.03°C 0.987
12.142V 4.989V 3.326V 4.963V 873.428 57.32°C 114.76V
100% 62.675A 9.04A 8.959A 3.041A 850.057 86.666% 2110 50.3 45.2°C 0.989
12.132V 4.978V 3.315V 4.934V 980.841 61.61°C 114.73V
110% 69.009A 10.065A 10.079A 3.047A 934.636 85.641% 2112 50.3 46.36°C 0.986
12.119V 4.968V 3.304V 4.924V 1091.34 64.67°C 114.76V
CL1 0.115A 11.916A 11.67A 0A 101.311 80.546% 2078 50 42.92°C 0.965
12.203V 5.052V 3.402V 5.09V 125.778 48.94°C 114.93V
CL2 0.115A 17.769A 0A 0A 91.404 80.157% 1715 44.5 40.87°C 0.969
12.207V 5.065V 3.395V 5.096V 114.03 45.8°C 114.93V
CL3 0.115A 0A 17.417A 0A 60.796 73.881% 1374 39.3 40.54°C 0.936
12.201V 5.054V 3.41V 5.092V 82.289 44.81°C 114.93V
CL4 69.978A 0A 0A 0.001A 849.743 87.942% 2111 50.3 44.7°C 0.988
12.143V 4.997V 3.318V 5.037V 966.268 58.14°C 114.73V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.192A 1.975A 1.94A 0.986A 85.006 86.286% 839 25.4 40.23°C 0.845
12.213V 5.066V 3.402V 5.074V 98.517 44.52°C 230.06V
20% 11.391A 2.968A 2.918A 1.186A 169.971 90.596% 1005 30.2 40.69°C 0.905
12.209V 5.056V 3.393V 5.06V 187.612 45.89°C 230.05V
30% 17.942A 3.468A 3.413A 1.388A 254.984 91.702% 1440 40.6 41.48°C 0.924
12.202V 5.047V 3.384V 5.046V 278.056 46.61°C 230.05V
40% 24.510A 3.971A 3.911A 1.59A 340.079 92.15% 1781 46.1 41.68°C 0.935
12.194V 5.037V 3.375V 5.033V 369.051 47.4°C 230.04V
50% 30.746A 4.974A 4.902A 1.794A 425.084 92.193% 1986 50.6 42.28°C 0.941
12.183V 5.028V 3.366V 5.018V 461.082 48.23°C 230.03V
60% 36.951A 5.98A 5.899A 1.999A 509.617 91.971% 2104 50.2 42.94°C 0.949
12.173V 5.018V 3.357V 5.003V 554.127 49.78°C 230.02V
70% 43.233A 6.991A 6.903A 2.205A 594.92 91.792% 2106 50.2 43.45°C 0.955
12.162V 5.008V 3.347V 4.989V 648.116 51.12°C 230.02V
80% 49.525A 8.004A 7.912A 2.311A 679.722 91.499% 2107 50.3 43.57°C 0.959
12.152V 4.997V 3.336V 4.977V 742.877 52.65°C 230.02V
90% 56.222A 8.521A 8.419A 2.417A 765.167 91.128% 2109 50.3 44.82°C 0.961
12.142V 4.988V 3.325V 4.965V 839.663 54.89°C 230.01V
100% 62.674A 9.04A 8.96A 3.039A 849.998 90.656% 2111 50.3 45.64°C 0.964
12.131V 4.978V 3.314V 4.937V 937.605 55.91°C 230V
110% 69.011A 10.065A 10.084A 3.045A 934.575 90.12% 2111 50.3 46.06°C 0.966
12.118V 4.968V 3.302V 4.926V 1037.035 58.92°C 229.98V
CL1 0.115A 11.917A 11.674A 0A 101.308 81.859% 2090 50 42.93°C 0.873
12.203V 5.052V 3.401V 5.09V 123.757 48.87°C 230.08V
CL2 0.115A 17.77A 0A 0A 91.401 81.258% 1743 45 40.81°C 0.863
12.208V 5.065V 3.395V 5.096V 112.483 45.86°C 230.08V
CL3 0.114A 0A 17.434A 0A 60.792 75.212% 1271 37.5 40°C 0.818
12.201V 5.054V 3.407V 5.092V 80.812 44.26°C 230.08V
CL4 69.976A 0A 0A 0.001A 849.74 91.65% 2116 50.3 44.96°C 0.963
12.144V 4.997V 3.319V 5.039V 927.158 54.79°C 229.98V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.492A 0.484A 0.196A 20.005 65.264% 823 24.7 36.59°C 0.885
12.219V 5.077V 3.409V 5.103V 30.653 41.6°C 114.96V
40W 2.676A 0.69A 0.678A 0.294A 40.003 77.882% 825 24.7 37.6°C 0.911
12.218V 5.074V 3.407V 5.099V 51.357 41.68°C 114.96V
60W 4.136A 0.888A 0.872A 0.393A 60.002 82.261% 828 24.8 38.26°C 0.924
12.215V 5.072V 3.405V 5.094V 72.942 42.36°C 114.95V
80W 5.594A 1.085A 1.067A 0.491A 79.964 85.186% 831 25 39.82°C 0.946
12.214V 5.069V 3.403V 5.089V 93.872 43.57°C 114.95V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.493A 0.484A 0.196A 20.009 66.305% 810 24.4 36.05°C 0.642
12.214V 5.075V 3.409V 5.102V 30.18 38.1°C 230.05V
40W 2.676A 0.69A 0.678A 0.294A 40.006 78.204% 820 24.7 37.18°C 0.748
12.215V 5.073V 3.406V 5.098V 51.154 41.11°C 230.05V
60W 4.138A 0.888A 0.872A 0.393A 60.004 83.546% 827 24.8 38.13°C 0.805
12.214V 5.07V 3.404V 5.094V 71.822 41.94°C 230.05V
80W 5.596A 1.086A 1.067A 0.491A 79.971 86.483% 829 24.8 39.03°C 0.837
12.213V 5.068V 3.402V 5.09V 92.479 42.92°C 230.06V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.72mV8.37mV7.93mV11.31mVPass
20% Load14.15mV11.63mV11.14mV11.97mVPass
30% Load15.21mV10.82mV13.12mV12.48mVPass
40% Load15.06mV11.63mV13.17mV15.03mVPass
50% Load17.65mV12.90mV13.12mV14.72mVPass
60% Load21.68mV15.61mV14.70mV13.60mVPass
70% Load23.76mV19.13mV16.58mV16.15mVPass
80% Load26.15mV23.11mV21.21mV18.24mVPass
90% Load29.36mV25.76mV23.50mV20.89mVPass
100% Load41.59mV28.25mV25.78mV28.21mVPass
110% Load47.71mV31.71mV26.05mV35.88mVPass
Crossload118.08mV17.98mV20.81mV10.24mVPass
Crossload212.52mV12.70mV13.17mV8.40mVPass
Crossload313.48mV17.04mV22.48mV9.94mVPass
Crossload438.79mV13.54mV14.23mV17.75mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.76mV9.69mV8.65mV11.92mVPass
20% Load13.94mV10.41mV10.88mV11.82mVPass
30% Load17.10mV12.45mV13.32mV12.53mVPass
40% Load17.45mV11.94mV13.78mV15.13mVPass
50% Load20.10mV13.26mV14.75mV14.16mVPass
60% Load19.34mV13.26mV13.58mV12.53mVPass
70% Load25.09mV18.88mV16.12mV15.69mVPass
80% Load27.02mV22.90mV20.60mV17.22mVPass
90% Load29.72mV25.71mV21.11mV22.57mVPass
100% Load43.74mV30.41mV24.41mV29.99mVPass
110% Load51.67mV33.70mV27.29mV33.50mVPass
Crossload118.83mV18.40mV19.04mV9.96mVPass
Crossload212.67mV13.01mV13.63mV8.56mVPass
Crossload310.94mV16.43mV20.04mV8.10mVPass
Crossload443.26mV12.74mV11.52mV14.76mVPass

The results above are not used in the certification process

SilverStone Triton 850Rx

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
